Device

Fuze MDX-1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Fuze
Model / source grouping
MDX-1
Device type
bookshelf
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Fuze MDX-1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-1
Manufacturer Fuze
Released Not recorded
Device type bookshelf
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 260mm/Speaker 255mm
Weight 4700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥55 000
-
Inputs RCA in, CD, Tape deck
Outputs 3.5mm headphone
Control Not recorded

Fuze MDX-1.

5 editing functions, MD synchronized recording, MD throttle-in method, 32-track program, skip, search, random, repeat functions

◆Product specifications

  • RADIO frequency: AM522～1629kHz FM76～108MHz (TV1～3ch)
  • Receiving frequency characteristics: CD/MD 20Hz～20kHz

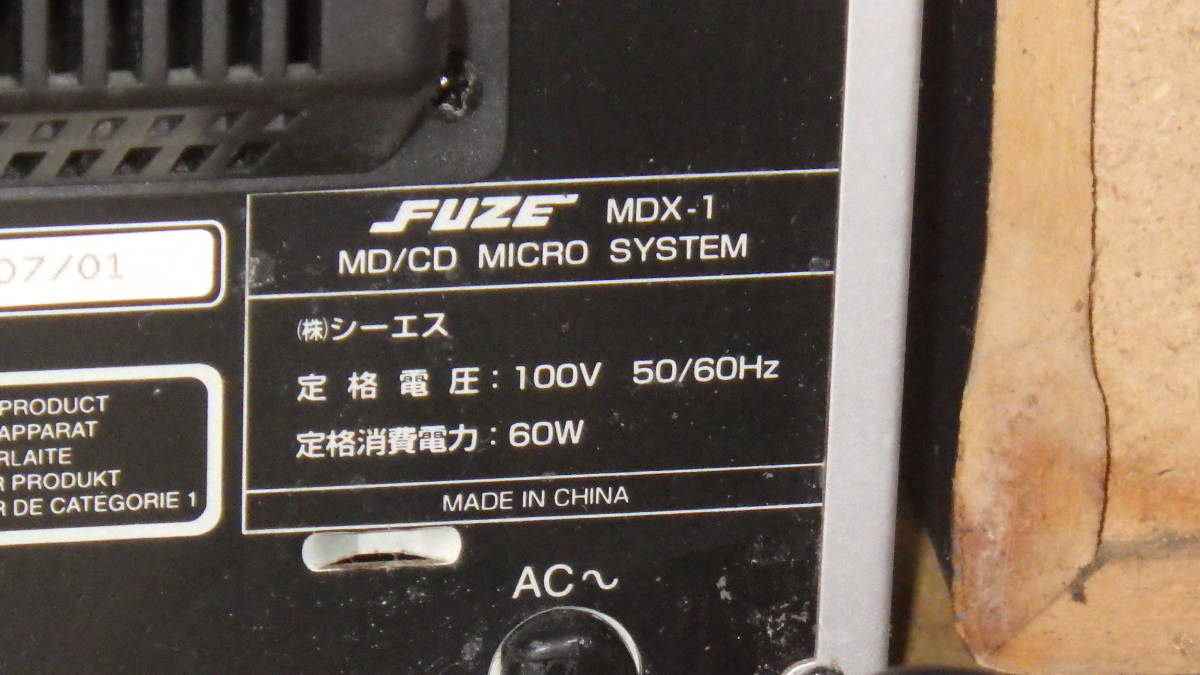

  • Power supply: AC100V ( 50/60Hz)
  • Practical maximum output: 10W＋10W
  • Power consumption: 60W
  • Speaker: 3-way (ultra-high-pitched buzzer 2.0cm, tweeter 5.0cm, woofer 10cm)
  • Color: Main unit/silver Speaker/blue
  • Full size (main unit/speaker x 2): Width 518 x Height 265 x Depth Main unit 260mm/Speaker 255mm
  • Weight: Approx. 4.7kg Speaker 2.3kg (per unit)
  • Set contents: Main unit (1), speaker (2), AC cord (1), remote controller (1), AM antenna (1) , FM antenna (1), Instruction Manual/Warranty

Content adapted from: Fuze Product Page Fuze Product Page (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
Manual
RegionJapan
