| Name | MDP500 |
|---|---|
| Manufacturer | HHb |
| Released | 2000/10 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 225 x 57 x 180mm |
| Weight | 2.0kg (w/ batt) |
| ATRAC ver | 4 |
| Battery | Not recorded AA |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | Center positive |
| Price (launch) | $1 500 |
| Not recorded | |
| - | |

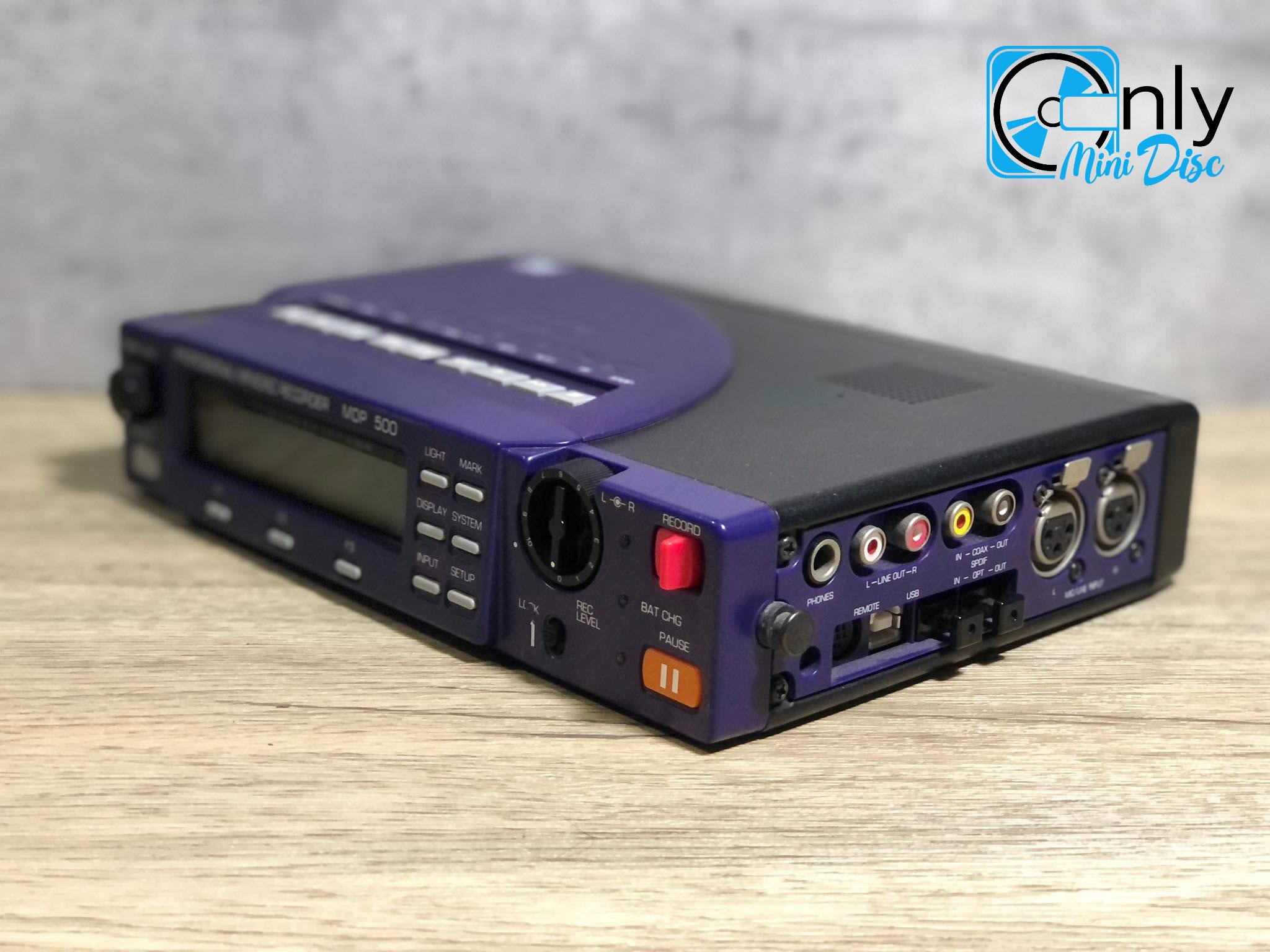

| Inputs | XLR in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | USB Type-B |
Professional recorder. USB output is only real-time audio.

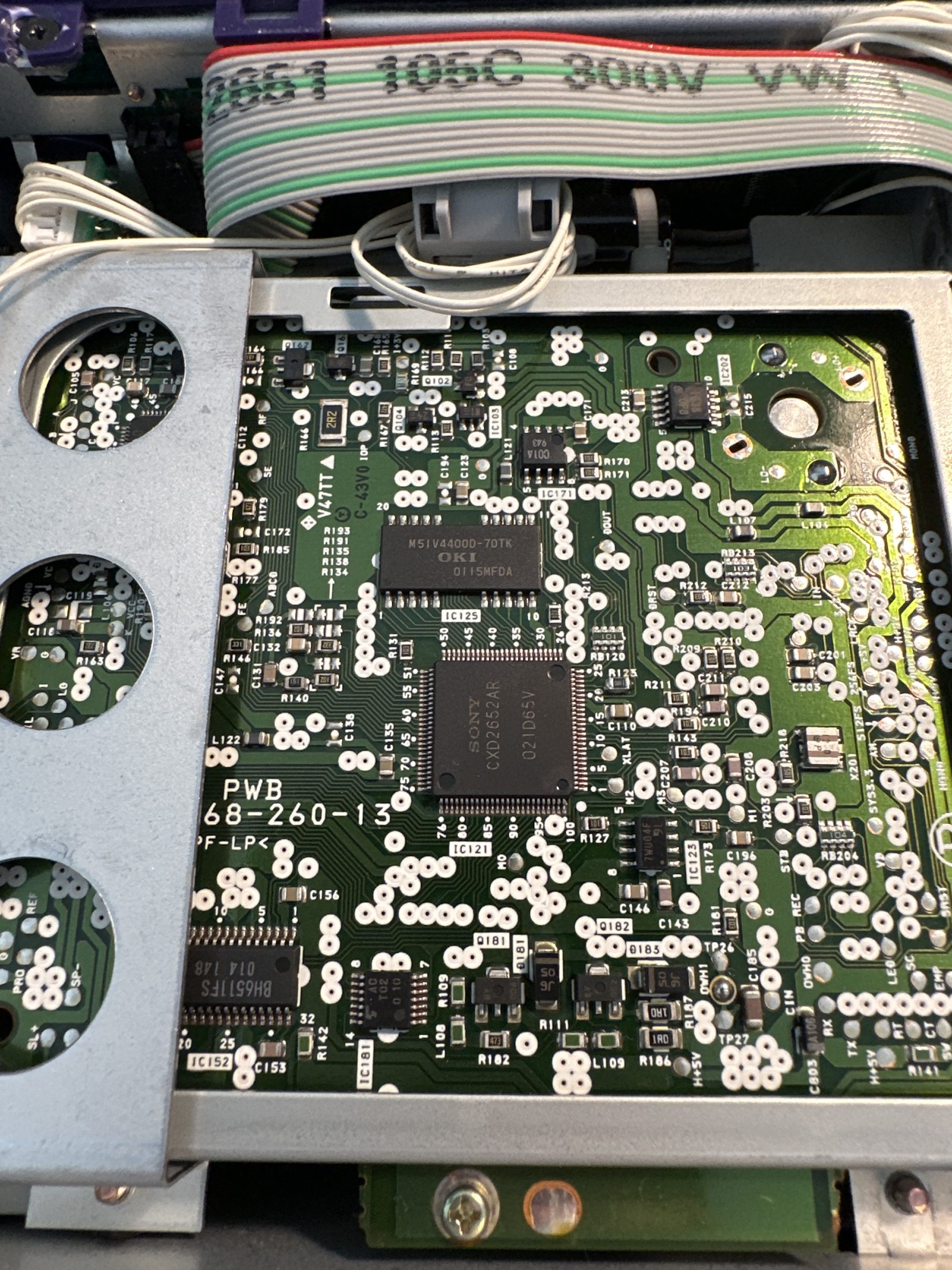

ATRAC IC: CXD2652AR
Content adapted from: HHb legacy FAQs, MiniDisc.org page
Manuals
Repair
Photos
Additional specifications and references
| Scms | Yes |
|---|---|
| Remote Page | |
| Atrac Ic | CXD2650R / CXD2652/R/AR |
| Manual | User manual, Service manual, other |
| Region | Japan |
