Hitachi AX-F100
| Name | AX-F100 |
|---|---|
| Manufacturer | Hitachi |
| Released | 2000/11 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 210 x 96.5 x 320mm (MD unit) |
| Weight | 2.6kg (MD unit) |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | Not recorded |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

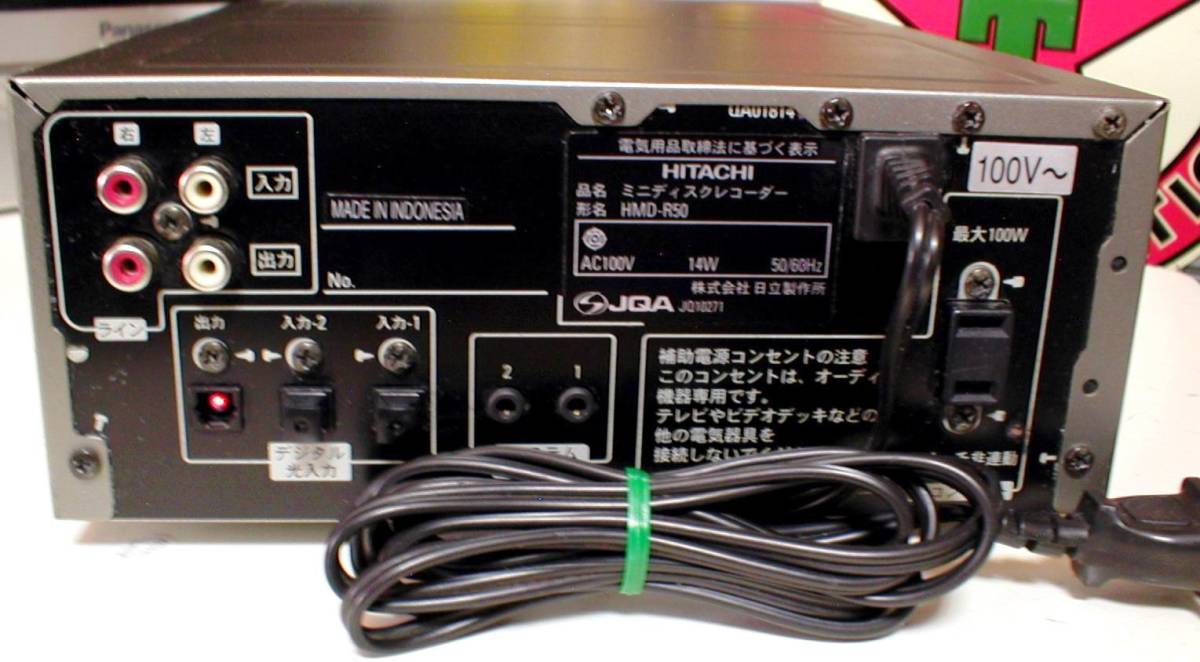

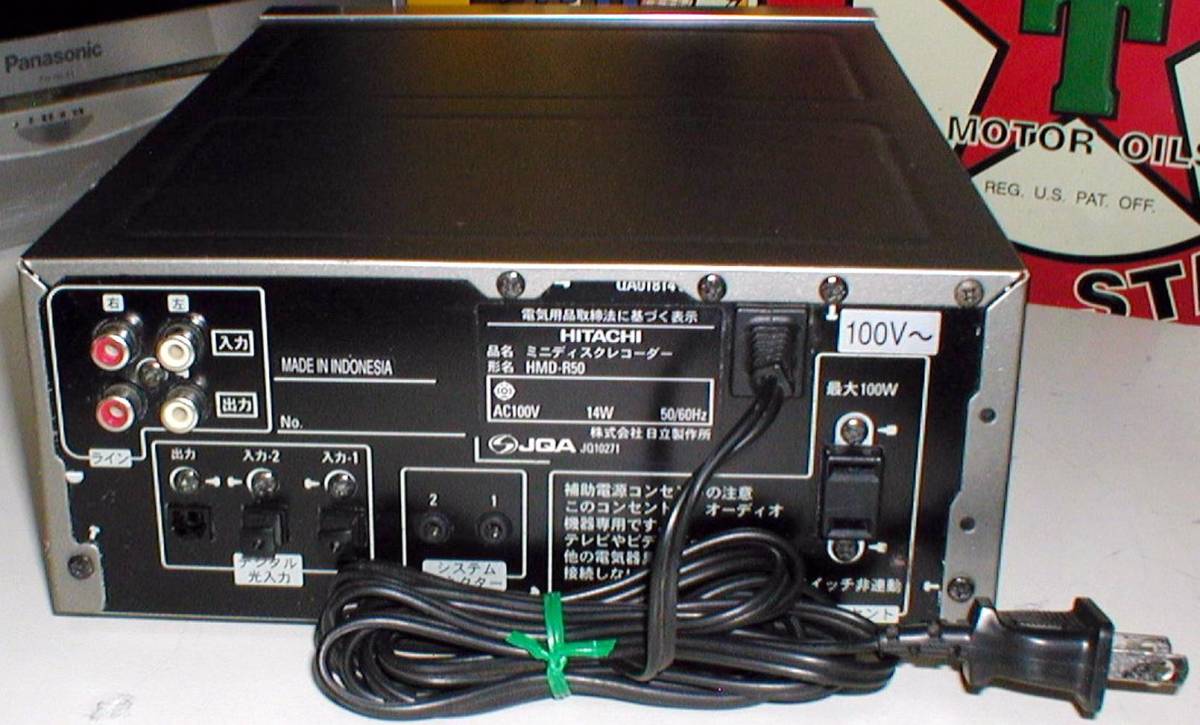

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | Not recorded |

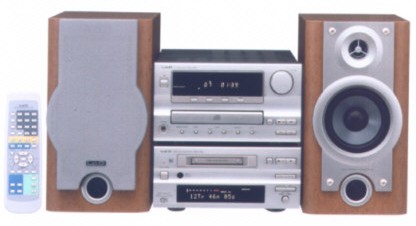

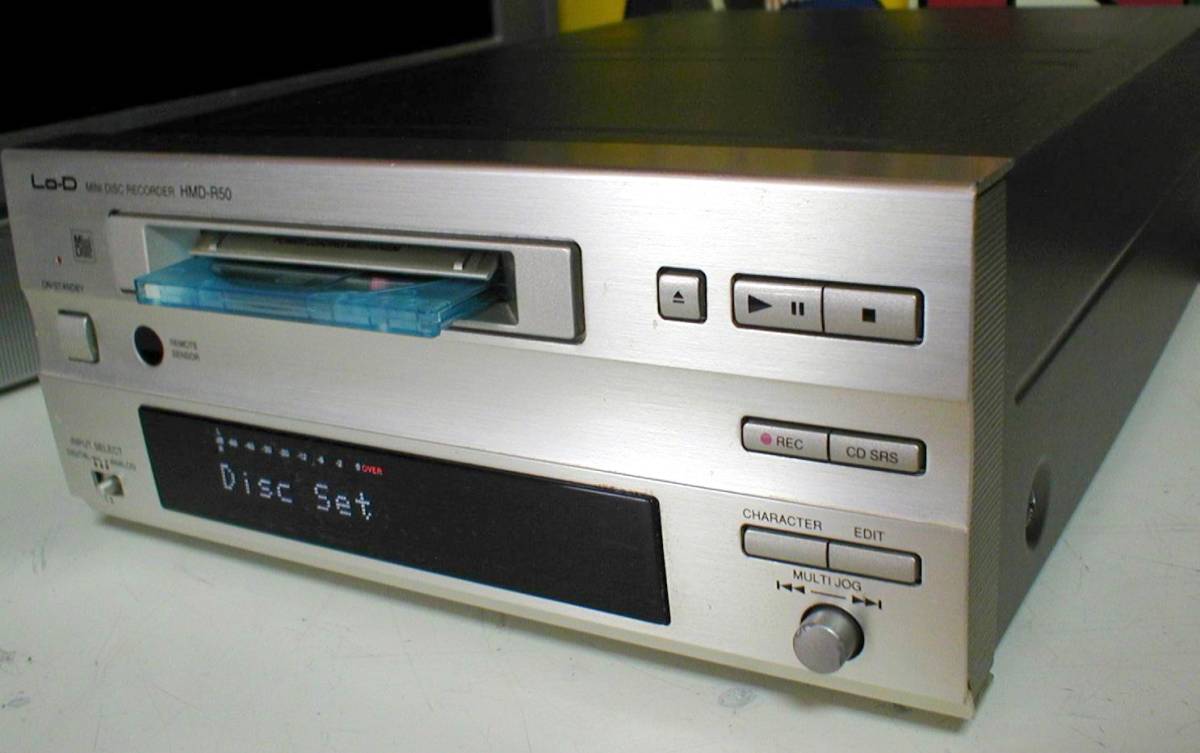

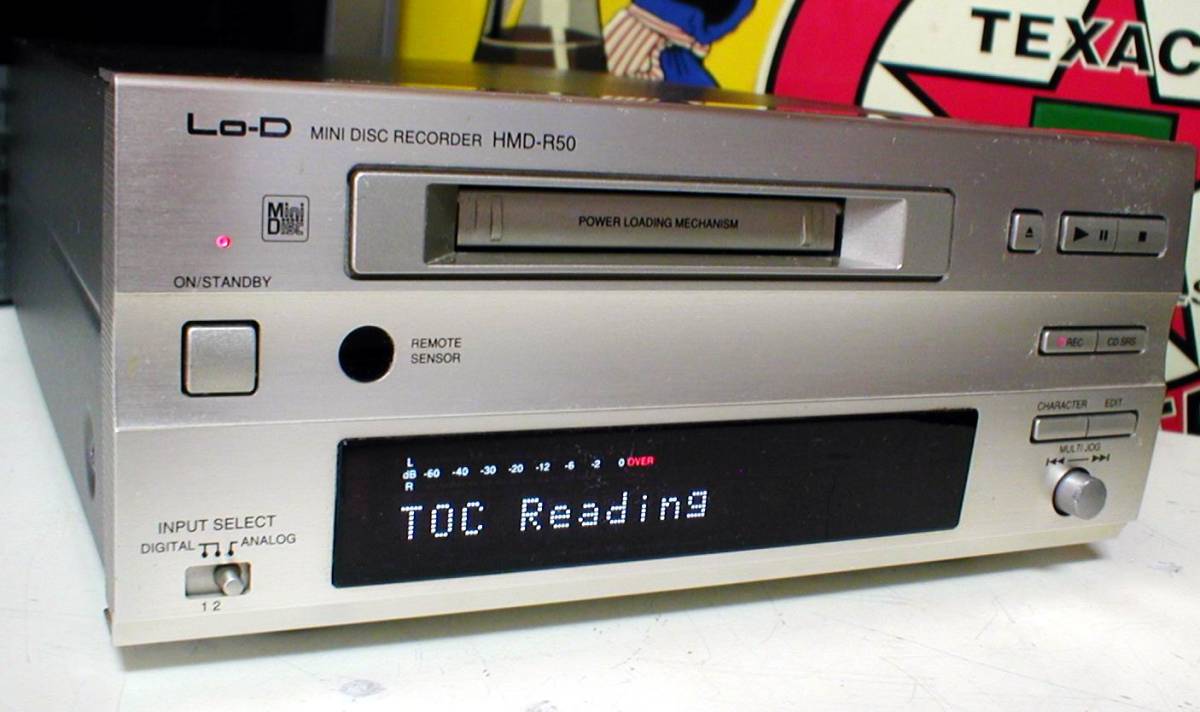

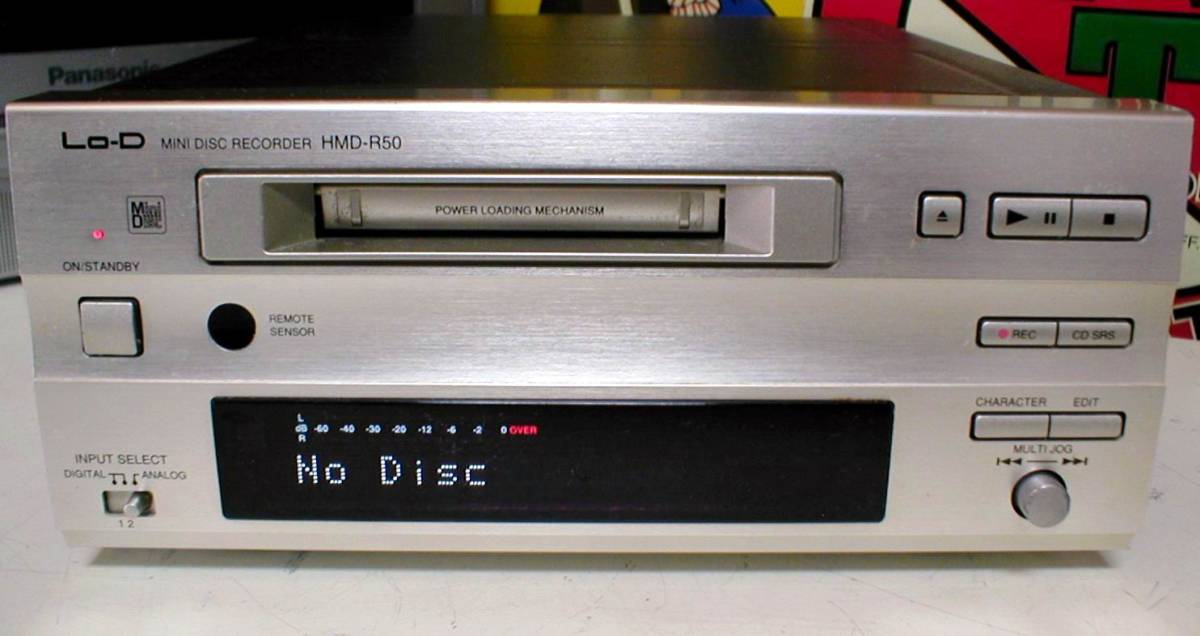

Component system with CD/MD/Tuner. The MD deck's part# is HMD-R50.
Hitachi's first MD unit release. Full MD editing features, program/random/repeat playback modes, four-mode preset equalizer. 30W+30W speaker output.
Content adapted from: Hitachi Press Release Minidisc.org Page Manual Page
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual, Service manual |
| Region | Japan |
