Kenwood DPX-5200M

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-5200M
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-5200M”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-5200M
Manufacturer Kenwood
Released 2002/05
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 178 (W) x 100 (H) x 155 (D) mm
Weight 2300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥52 500
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

Equipped with "multitask LSI type Q" A hybrid IC that integrates an electronic volume and a 3-band parametric equalizer (New dB equalizer). By integrating the functions that affect sound quality into a single chip, it is strong against internal and external noise and minimizes deterioration of sound quality.

Built-in EASY DSP Various sound field effects can be obtained in 6 patterns of SFC (Hall Simulation) by EASY DSP.

Other features

  • MDLP compatible
  • Supports CD-R / RW playback
  • RCA 1PRE OUT output

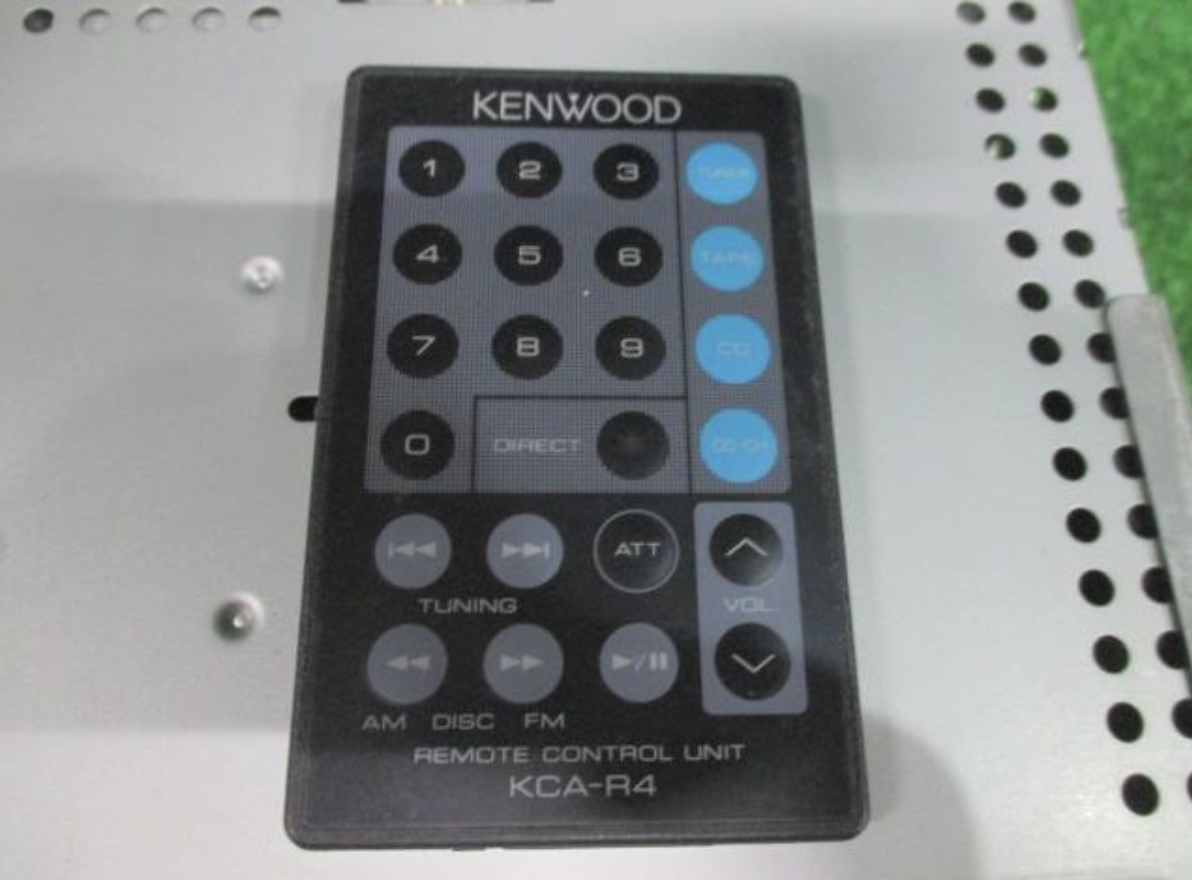

  • Remote control compatible
  • 47W x 4 built-in amplifier installed (SEPARATE POWER IC configuration)

[MD part]

  • Frequency characteristics: 20Hz-20kHz (± 1dB)
  • S / N ratio: 90dB (1kHz)
  • Dynamic range: 90dB
  • Stereo separation: 85dB

[CD part]

  • Frequency characteristics: 10Hz-20kHz (± 1dB)
  • S / N ratio: 93dB (1kHz)
  • Dynamic range: 93 dB
  • Stereo separation: 85dB

[FM section]

  • Reception frequency range: 76.0MHz-90.0MHz (100kHz step)

[Audio section]

  • Maximum output: 47W x 4
  • Rated output: 29W x 4 (4Ω, 1kHz, 10% THD)
  • Pre-out level: 1500mV (FM / 10kΩ)

Content adapted from: User manual Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)

Manuals

User manual

Repair

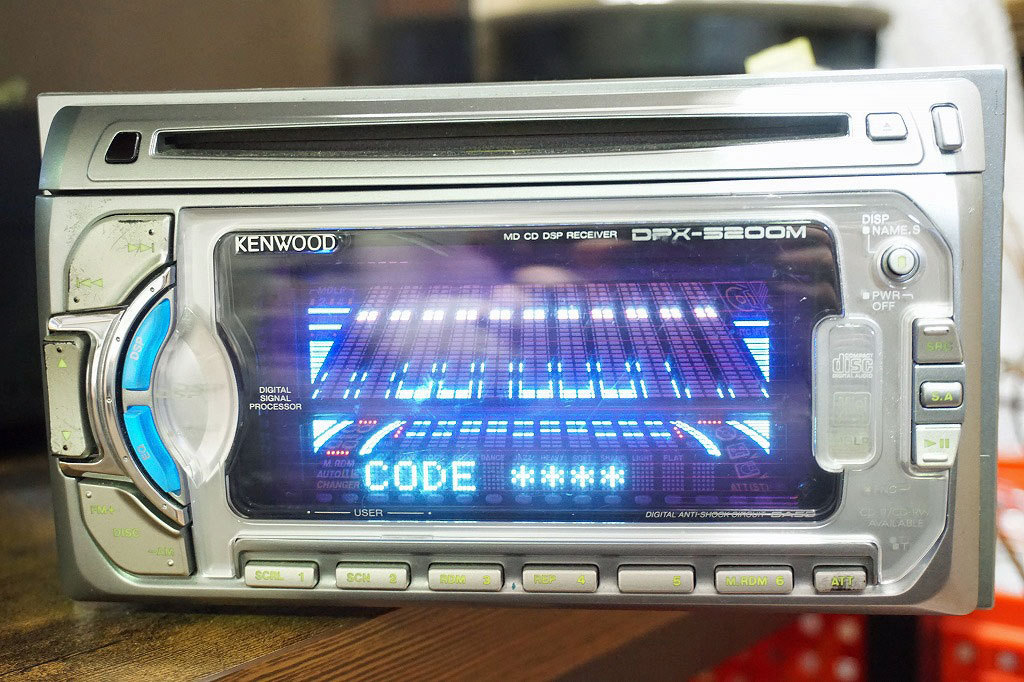

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
