Device

Kenwood DPX-6000MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-6000MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-6000MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-6000MD
Manufacturer Kenwood
Released 1999/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178 (W) x 100 (H) x 155 (D) mm
Weight 2700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥69 800
-
Inputs CD
Outputs Not recorded
Control Not recorded

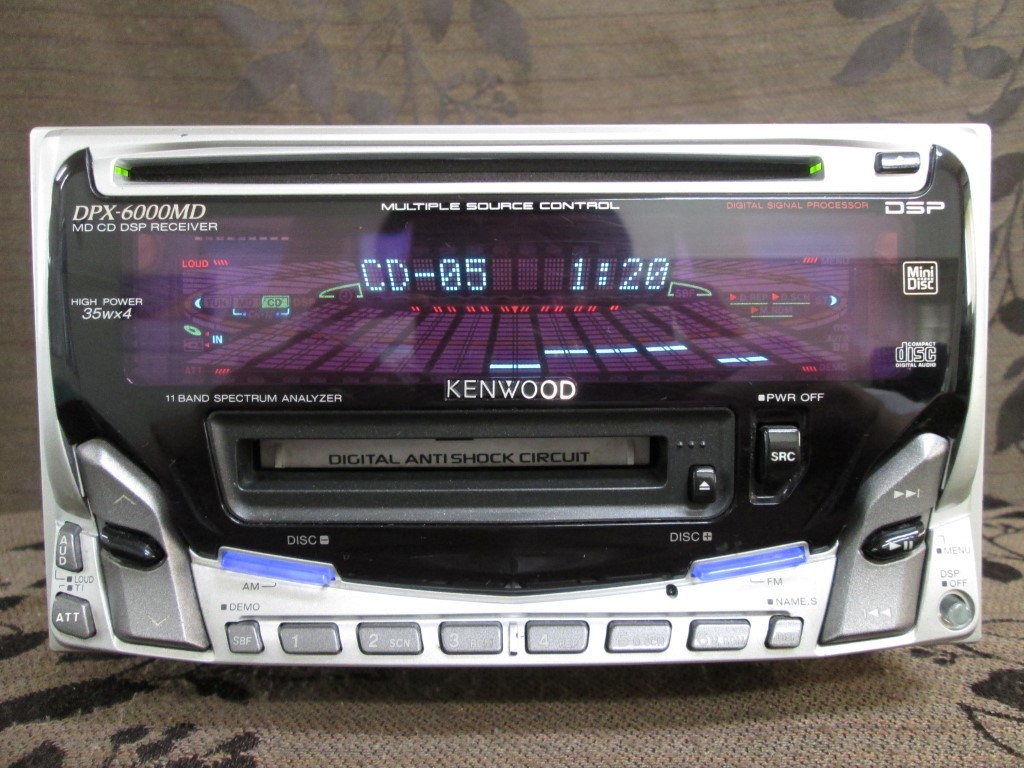

Dual size MD/CD receiver at an affordable price. 20bit resolution is installed in MD playback, enabling MD playback with high sound quality. The display is equipped with a variety of spectrum analyzer functions, including 3 patterns of silent mode, 9 patterns of standard mode, and 9 patterns of upbeat mode, making the interior of the car fun. In addition, 6 types of DSPs that realistically reproduce the sense of presence and a 4-mode equalizer create the desired sound quality in the car. Equipped with 35W x 4ch high power amplifier.

[CD section]

  • Frequency response: 10Hz to 20kHz (±1dB)
  • S/N ratio: 93dB (1kHz)
  • Dynamic range: 93dB
  • Stereo Separation: 85dB

[MD department]

  • Frequency response: 20Hz to 20kHz (±1dB)
  • S/N ratio: 90dB (1kHz)
  • Dynamic range: 90dB
  • Stereo Separation: 80dB

[FM section]

  • Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

  • Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[Audio part]

  • Maximum output: 35W x 4
  • Rated output: 21W x 4 (4Ω, 1kHz, 10%THD)
  • Pre-out level: 1500mV (FM/10kΩ)

[Common part]

  • Power supply voltage: 14.4V (11 to 16V)
  • Maximum current consumption: 10A
  • Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
  • Mass: 2.7kg

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
Manual
RegionJapan
