Device

Kenwood DPX-6021M

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-6021M
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-6021M”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name DPX-6021M
Manufacturer Kenwood
Released 2001/06
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-DIN 178 (W) x 100 (H) x 155 (D) mm
Weight 3300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥73 500
-
Inputs CD
Outputs Not recorded
Control Not recorded

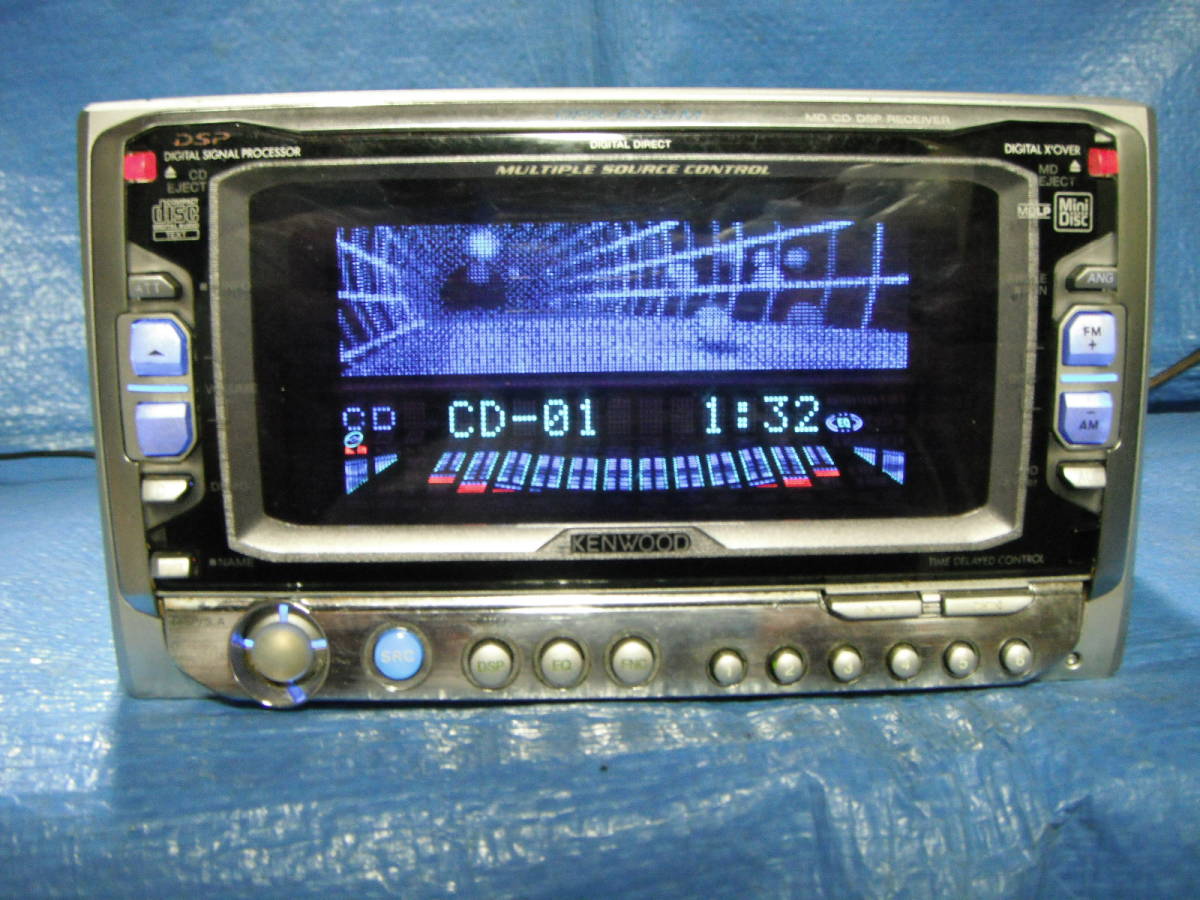

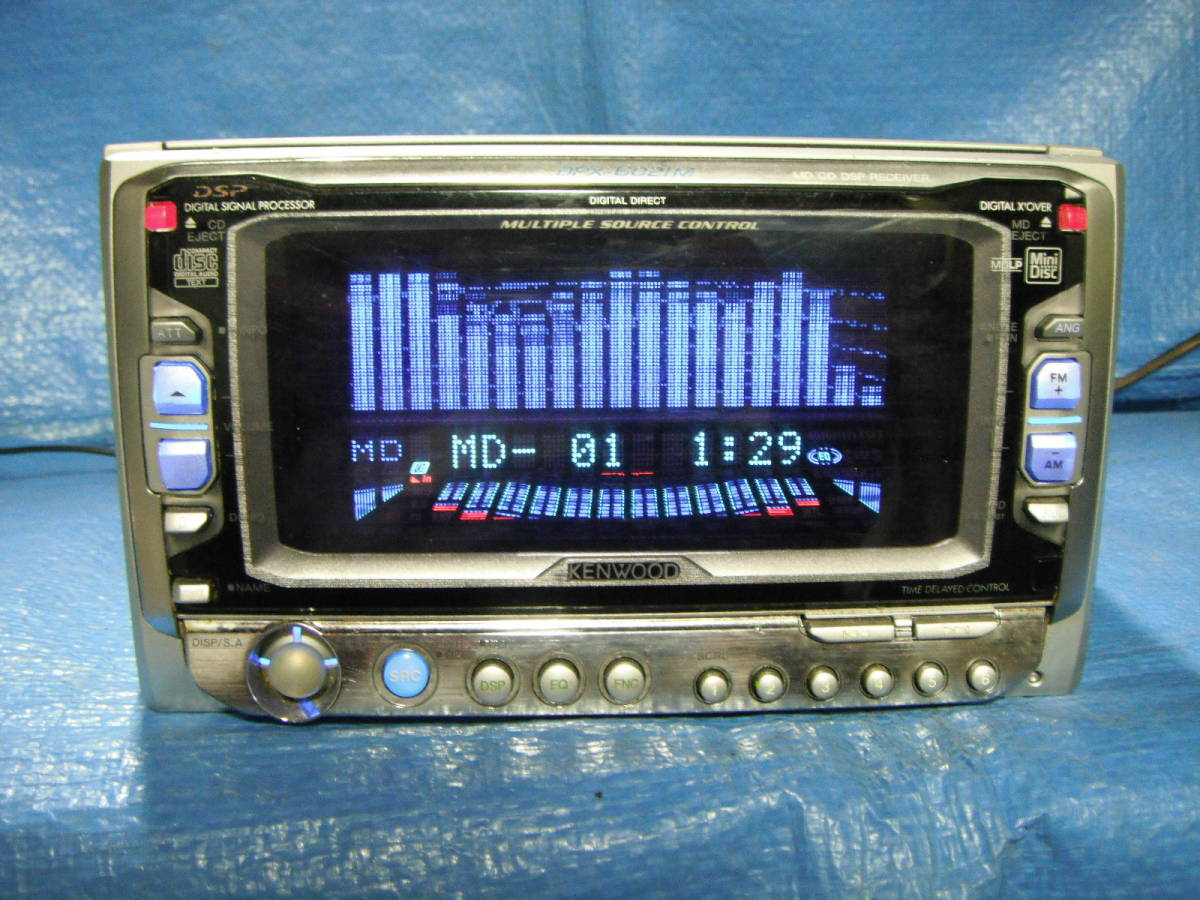

"DPX-6021M" It is a dual size MD / CD receiver that adopts an electric full open panel system and realizes high cost performance. Equipped with "3D moving picture display" and "3D spectrum analyzer" that enable realistic and three-dimensional display in the large display part unique to 2DIN. In terms of sound quality, it is fully equipped with technologies related to sound quality improvement such as "FOCUS GND", "NIICIRCUIT", "Digital Direct", and "Separate Power IC". Achieves bass and clear, well-grained treble. In addition, "Full Spec DSP", "9BAND Equalizer", and "TIME DELAYED CONTROL" that improve the sense of localization and presence make it possible to create the desired sound quality suitable for the passenger compartment. It is also equipped with an "Amplifier Delete Circuit" that turns off the music signal line to the built-in amplifier when an external amplifier is connected, and draws out its specifications to the full when an external amplifier is connected. CD-R / RW compatible * 2 , MDLP compatible, built-in 47W x 4ch ultra-high power amplifier.

* 2: Playback of MP3 data is not supported.

Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror) Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror)

Manuals

Kenwood DPX-6021M User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
