| Name | DPX-6200M |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 2800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥73 500 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |

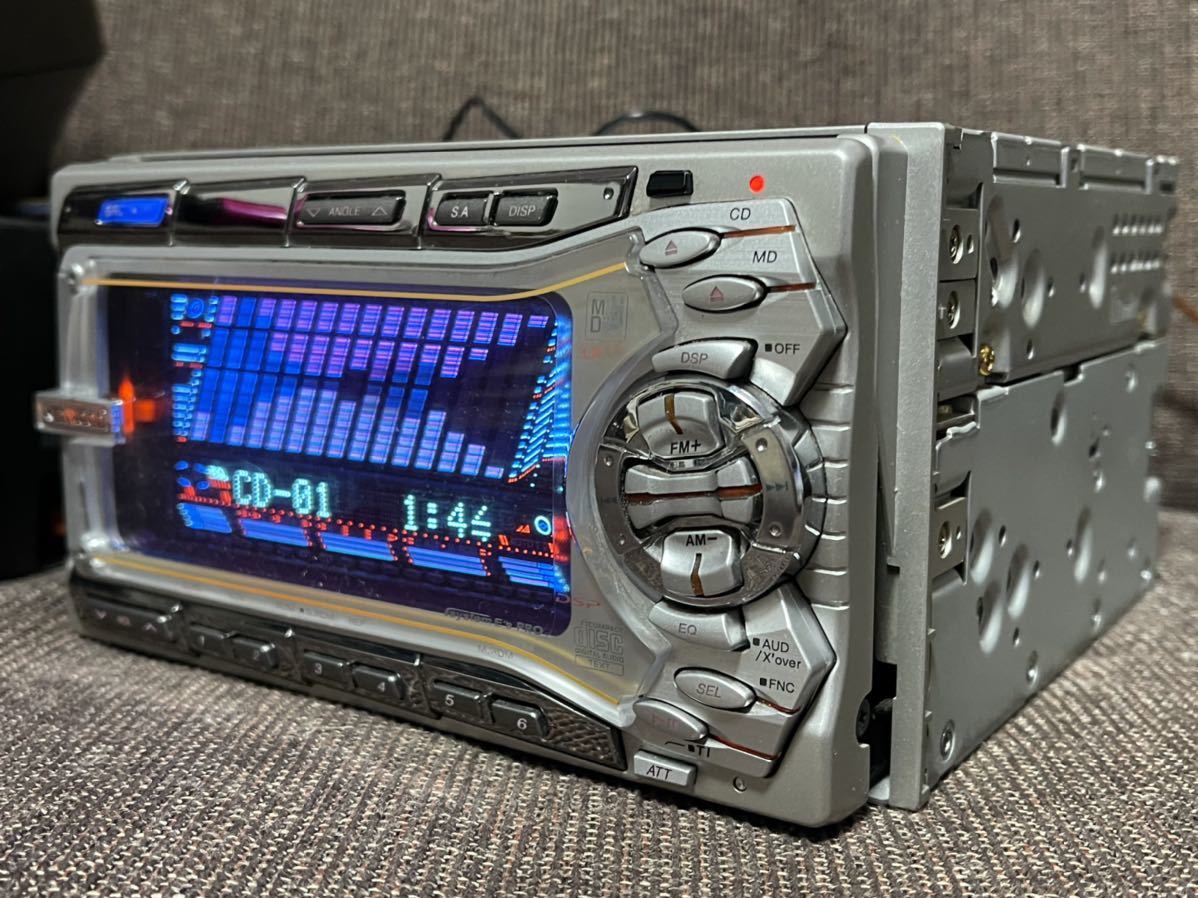

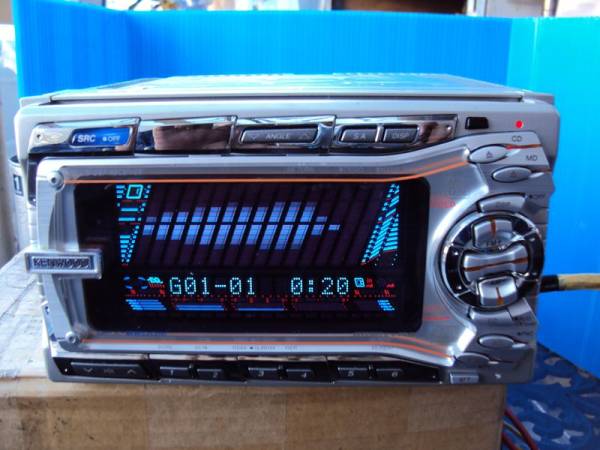

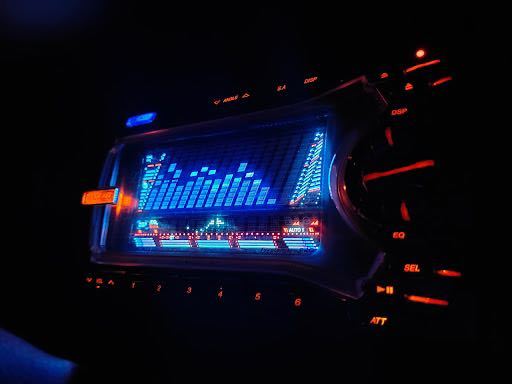

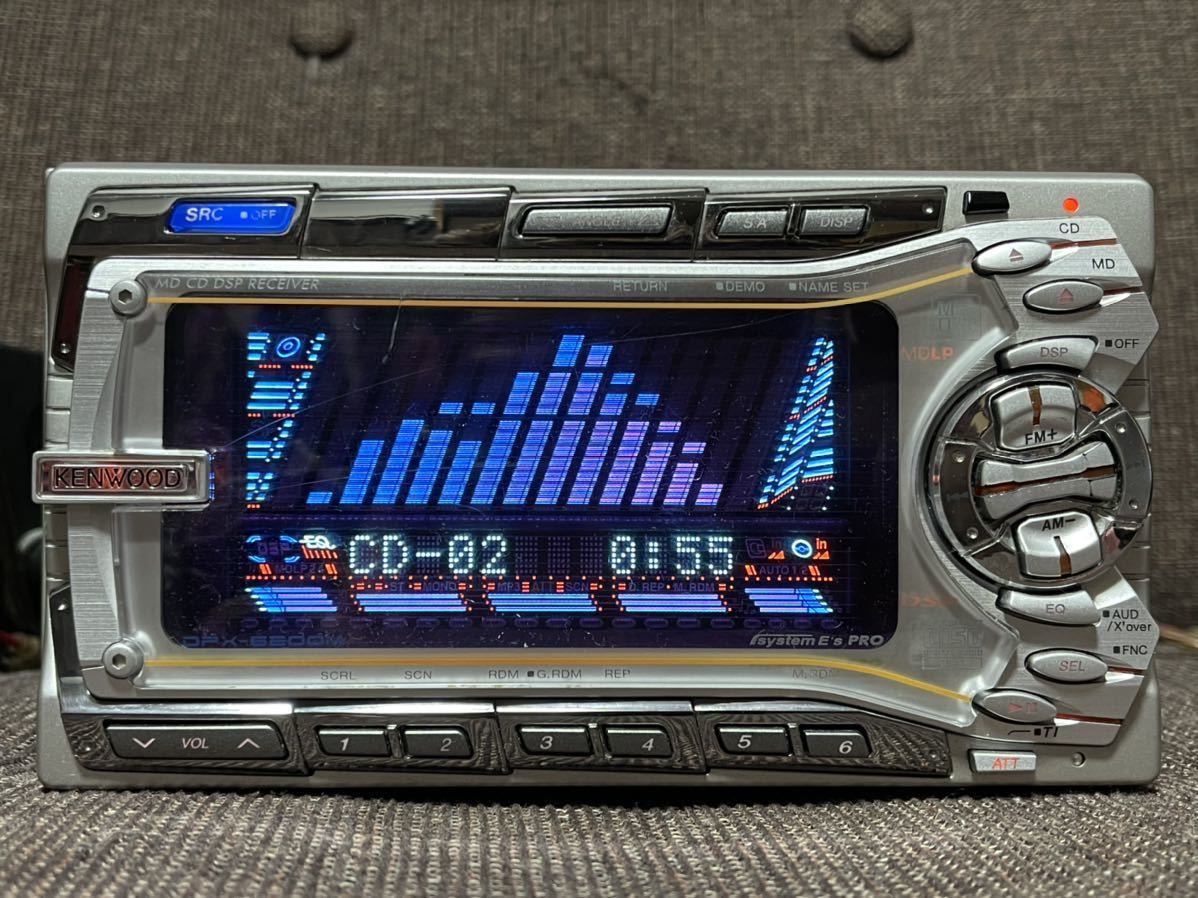

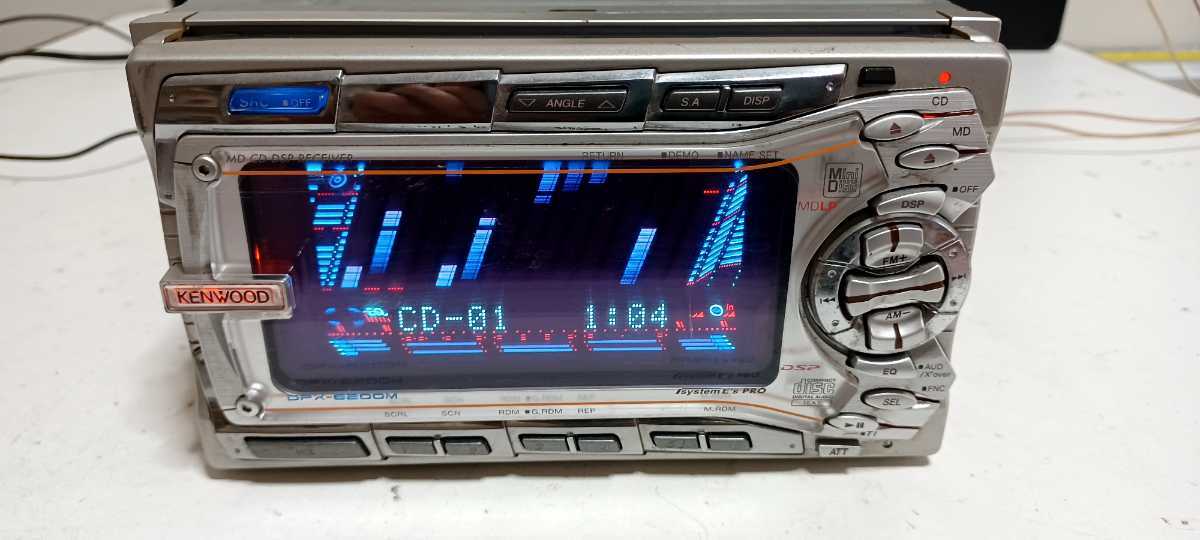

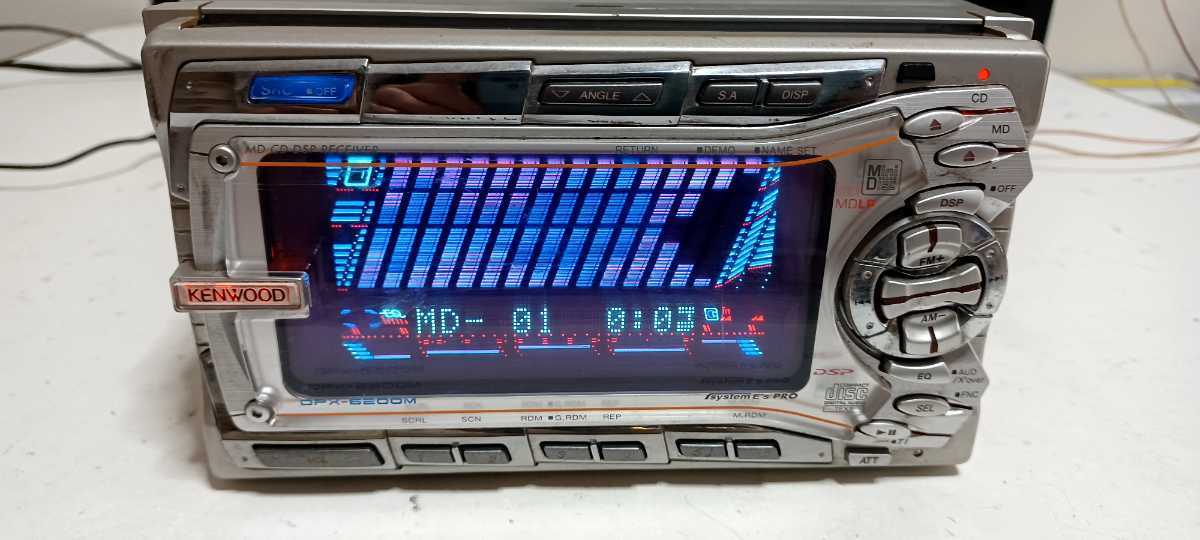

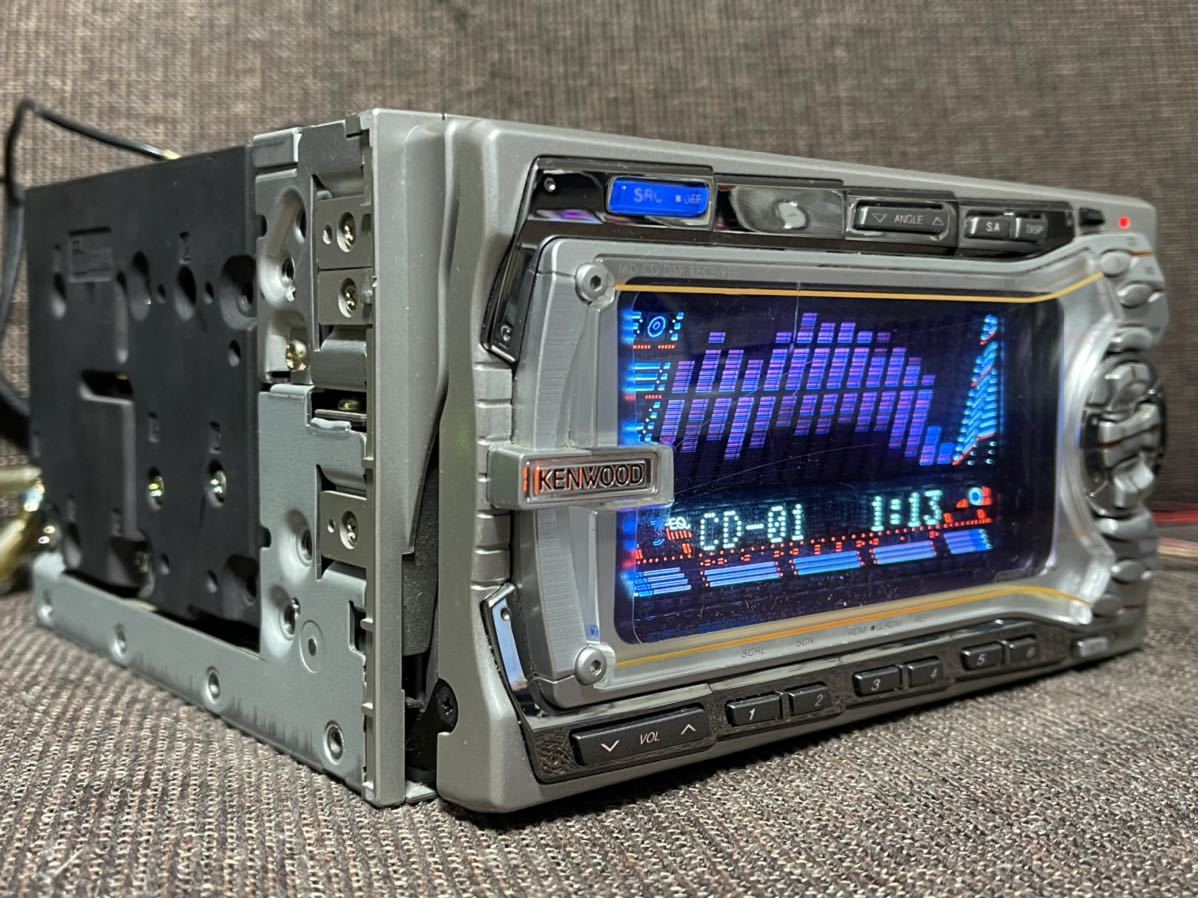

Equipped with the industry's first color gradation FL Display A new spectrum analyzer with RGB emission 8-gradation color gradation display has been realized. A spectrum analyzer that can be freely selected from 9 types of graphics creates a glossy display.
Built-in DSP / EQ A variety of sound field effects can be obtained with 6 patterns of SFC (Hall Simulation). In addition, the 7-band graphic equalizer with center frequency (60, 160, 400, 1k, 2k, 6k, 16kHZ) provides vivid visual effects, and users can preset 5 patterns of Rock, Pops, Dance, Vocal, and Flat. You can add 3 preset patterns.
Equipped with "System E's PRO" FRONT / REAR High-pass filter can be set independently. Furthermore, the low-pass filter, phase, and GAIN can be set for the Non-fedder output.
Other features
- MDLP compatible
- Supports MD group management function
- Equipped with anti-theft function
- 47W x 4 built-in amplifier installed
- Supports CD-R / RW playback
- Remote control compatible

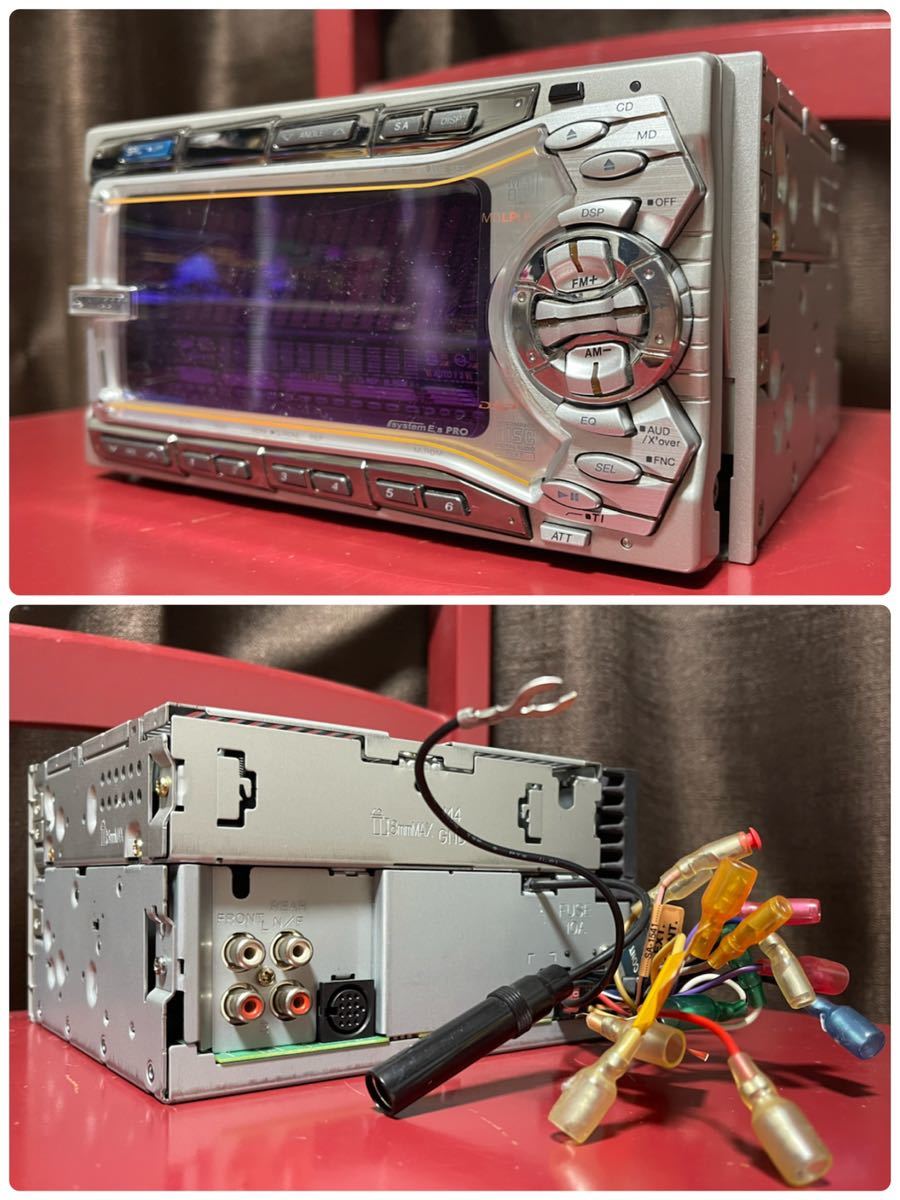

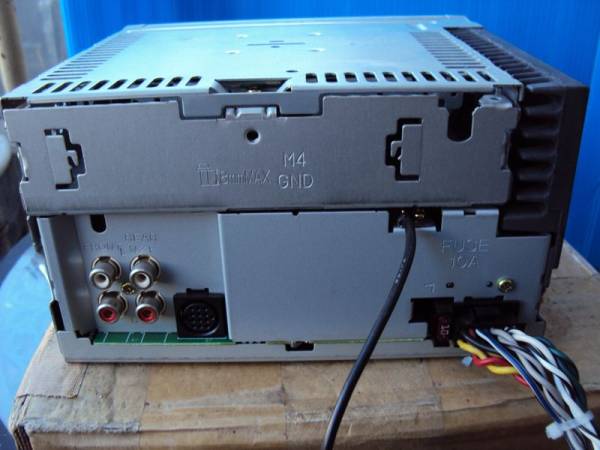

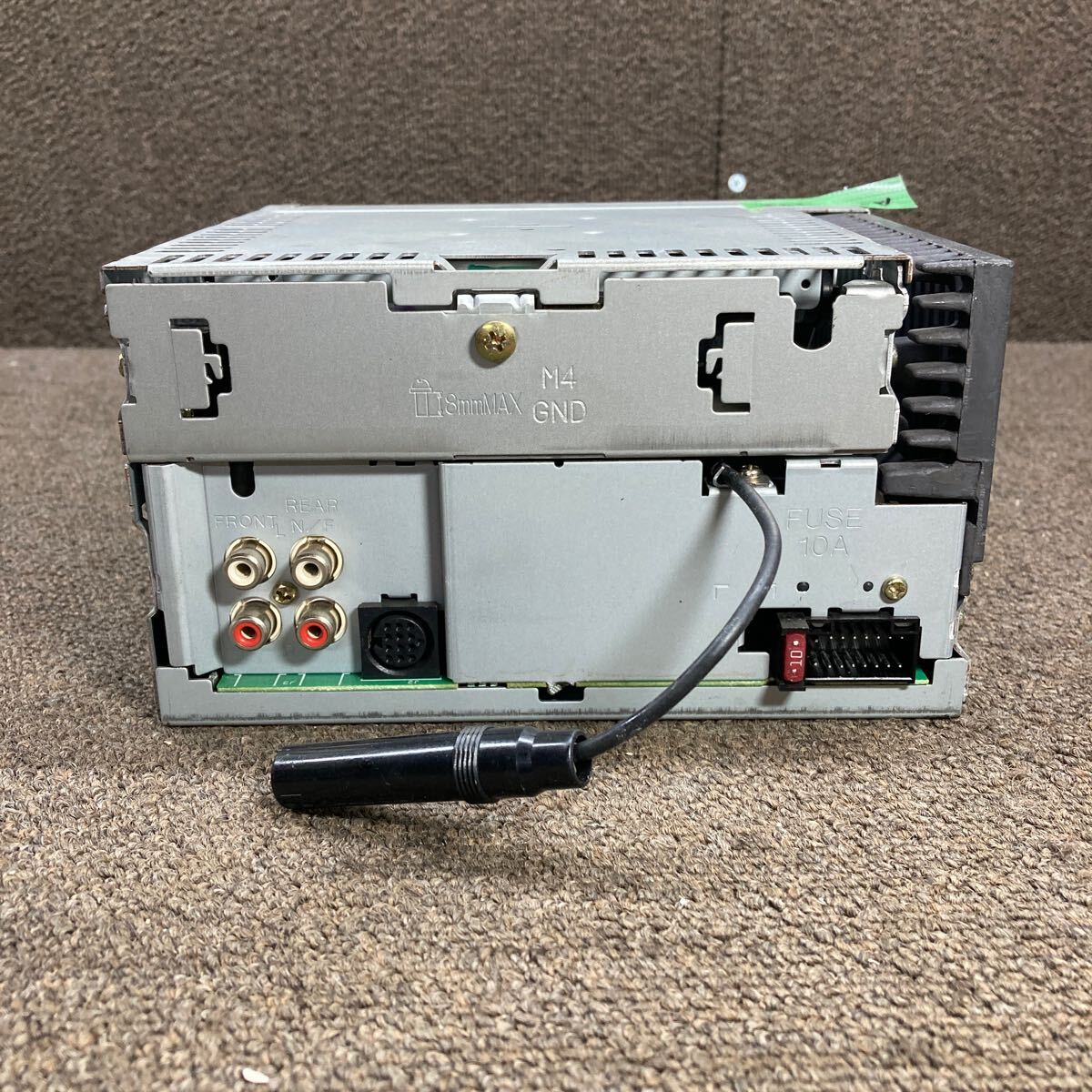

- RCA 2PRE OUT output
[MD part]
- Frequency characteristics: 20Hz-20kHz (± 1dB)
- S / N ratio: 93dB (1kHz)
- Dynamic range: 90dB
- Stereo separation: 85dB
[CD part]
- Frequency characteristics: 10Hz-20kHz (± 1dB)
- S / N ratio: 105dB (1kHz)
- Dynamic range: 95dB
- Stereo separation: 85dB
[FM section]
- Reception frequency range: 76.0MHz-90.0MHz (100kHz step)
[EQ section]
- Equalizer center frequency: 60, 160, 400, 1k, 2k, 6k, 16kHz
- Variable range: ± 12 dB
[Audio section]
- Maximum output: 47W x 4
- Rated output: 29W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level: 1800mV (FM / 10kΩ)
Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror) av.watch response.jp ascii.jp
