Kenwood DPX-660MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-660MD / DPX-660MDH
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-660MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name DPX-660MD / DPX-660MDH
Manufacturer Kenwood
Released 1998/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178(W)×100(H)×155(D)mm
Weight 2900
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs CD
Outputs Speaker amplifier
Control Not recorded

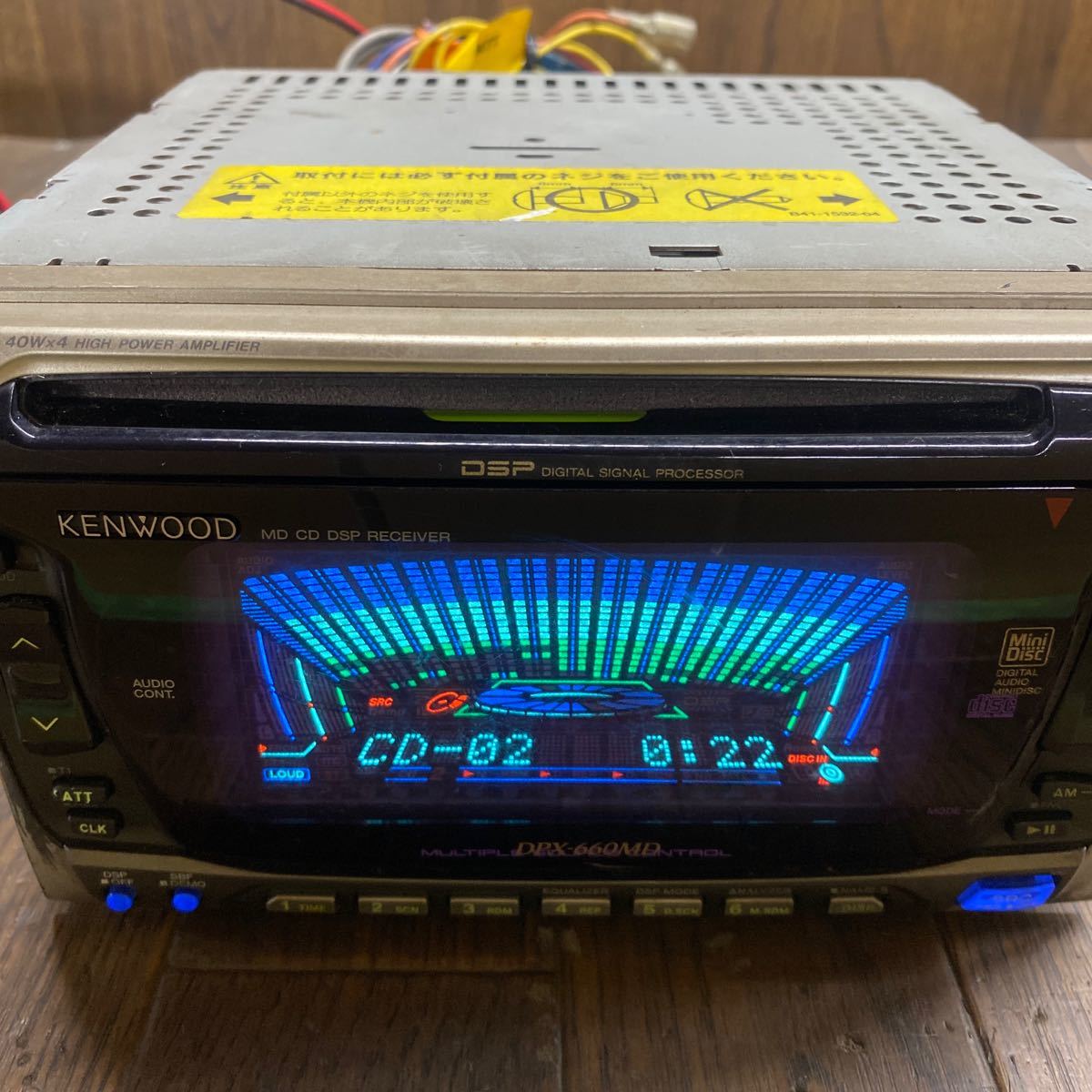

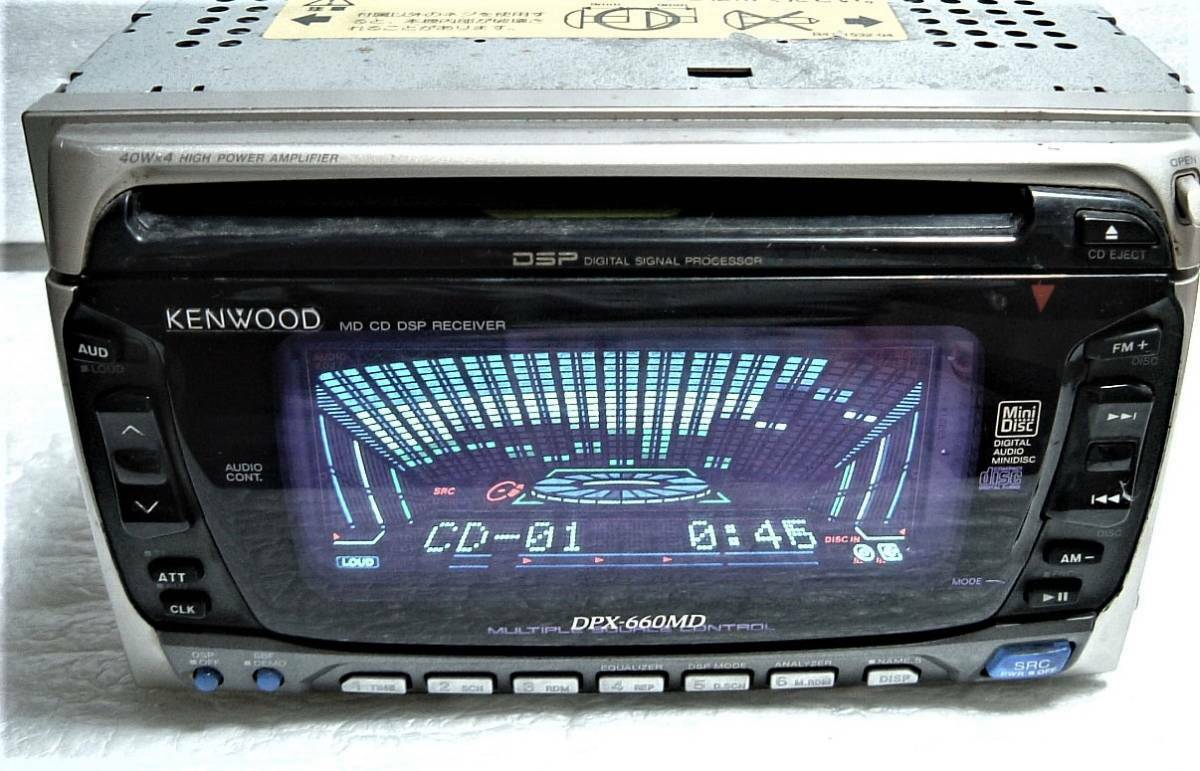

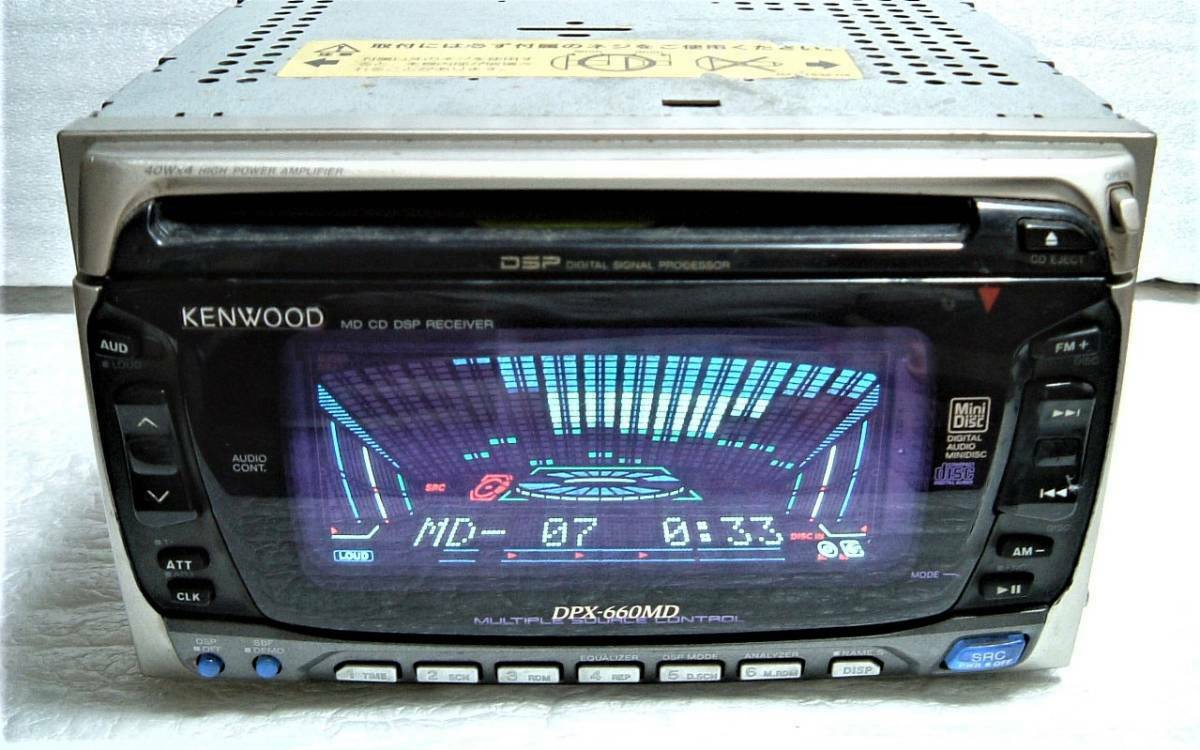

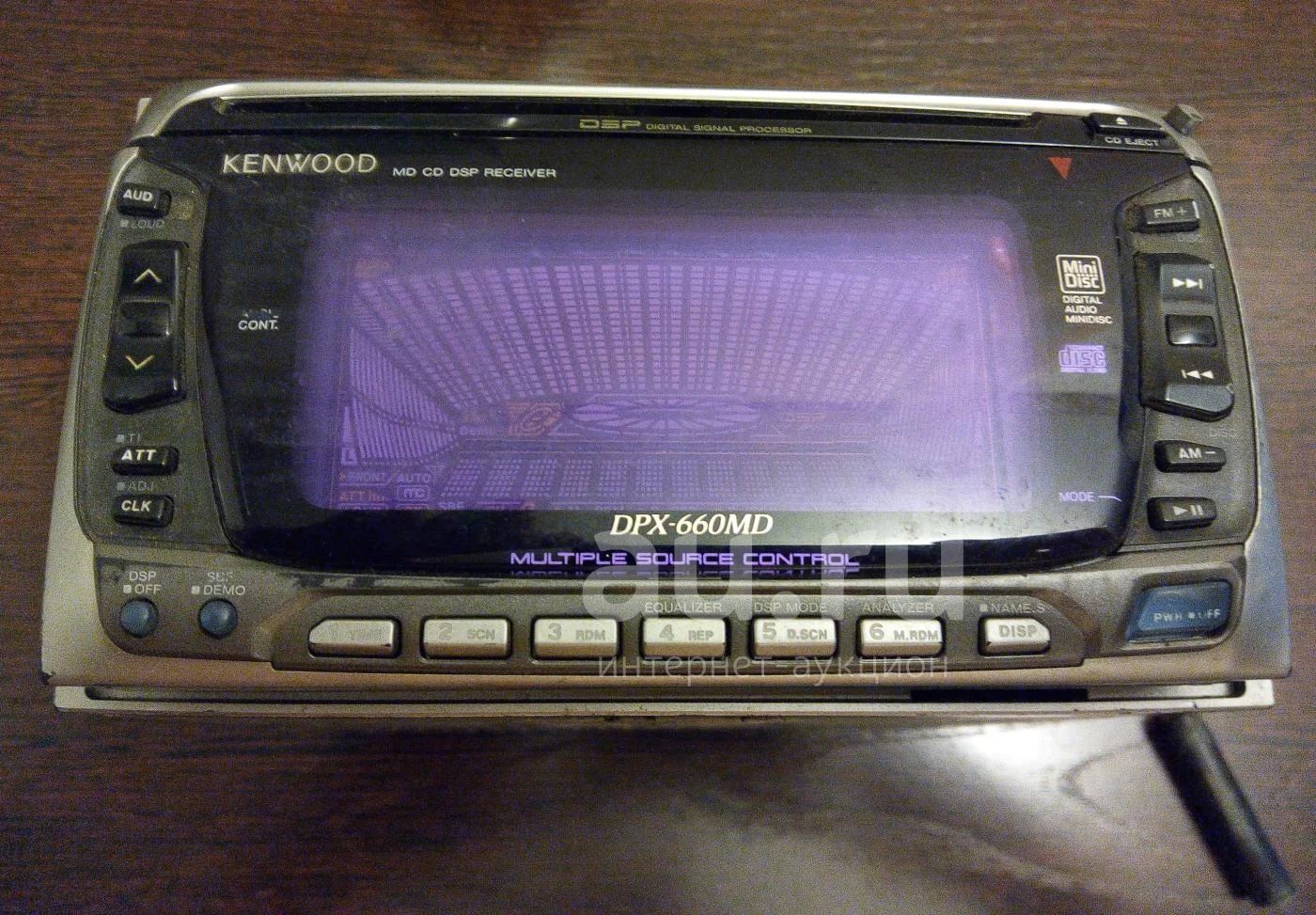

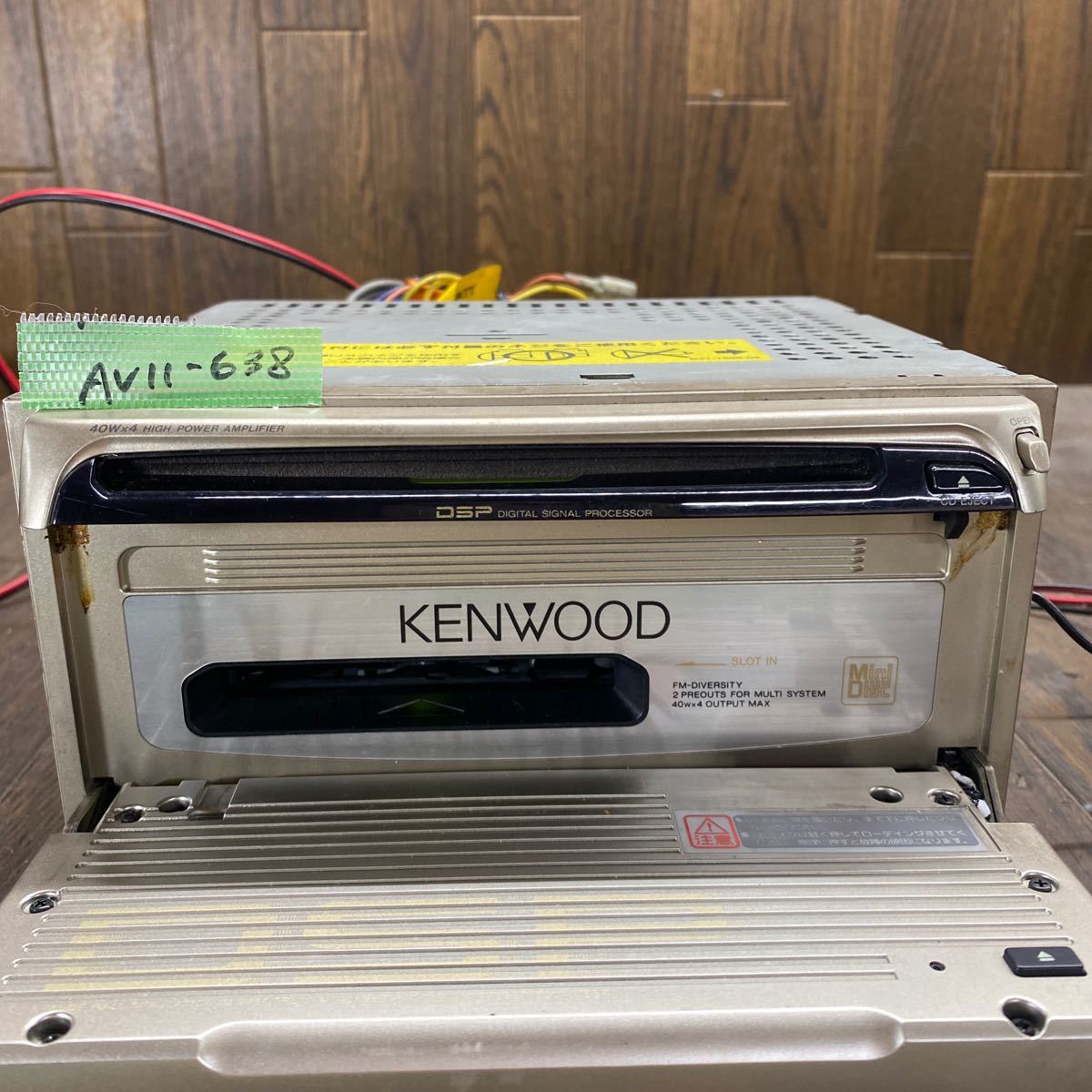

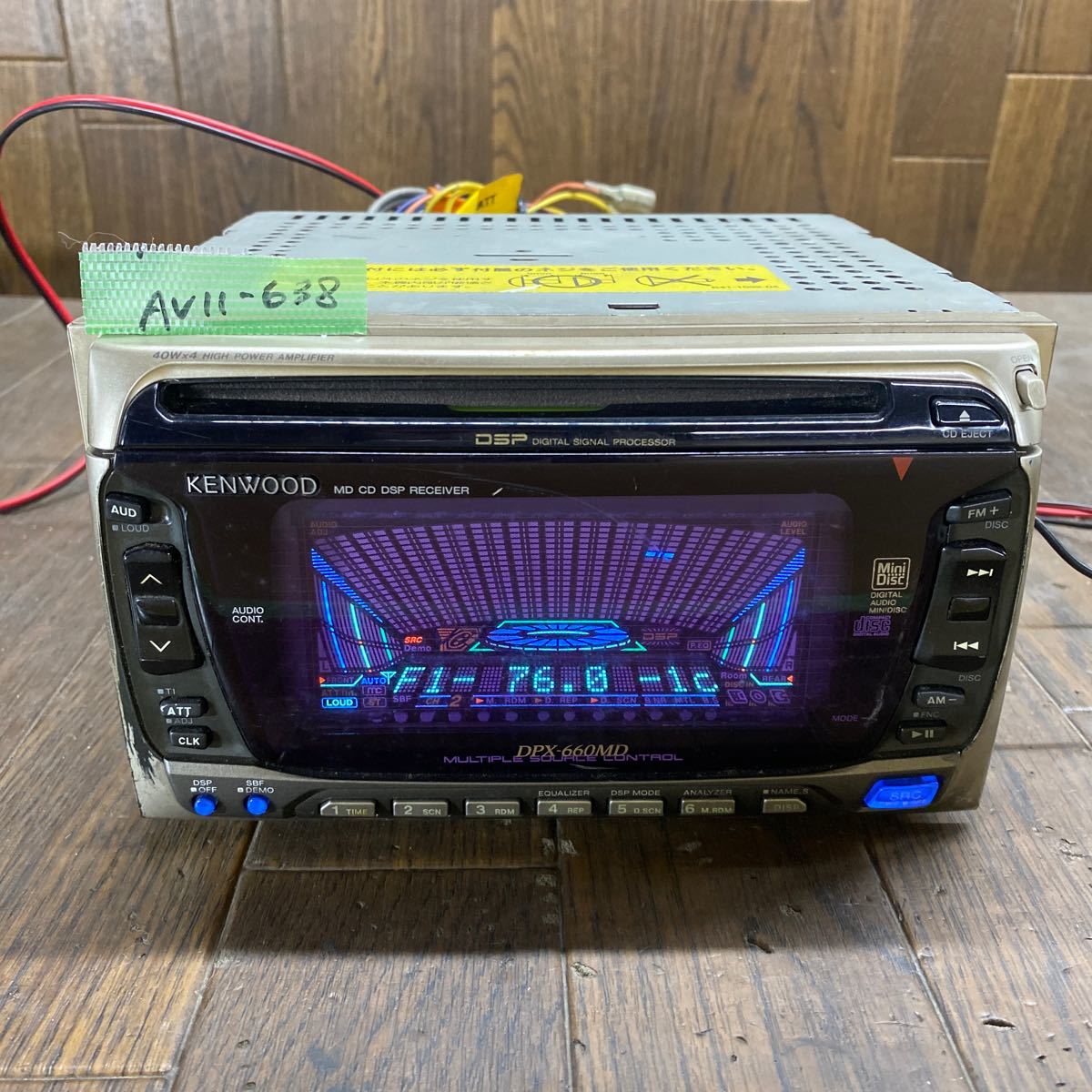

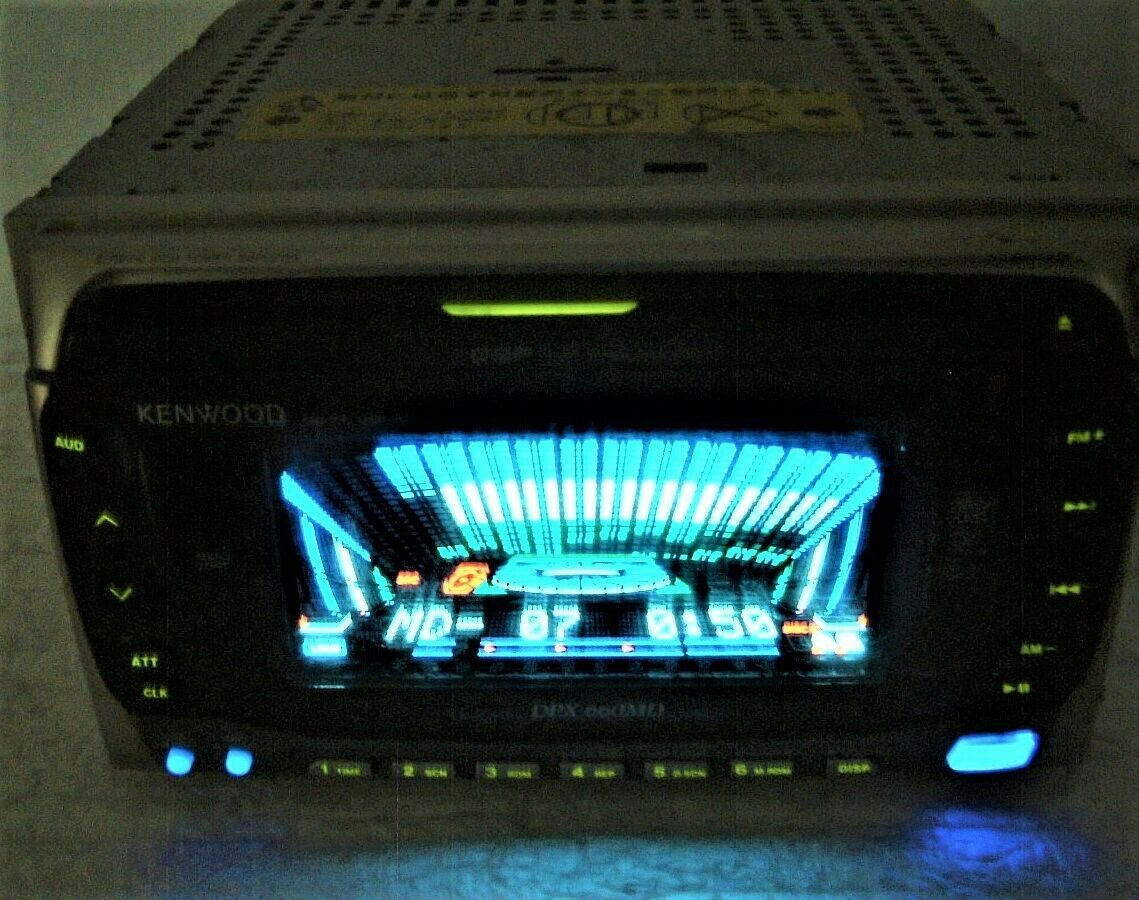

Kenwood DPX-660MD / DPX-660MDH. A flip-down panel type MD/CD receiver equipped with a wide display panel. Equipped with a 9-pattern spectrum analyzer display that enhances the visual effect with a variety of expressions. Equipped with a DSP capable of hall simulation in 6 modes and an equalizer with 4 types of preset patterns. Equipped with two RCA output terminals. Equipped with a dimmer adjustment function that can adjust the brightness at dimming in two steps. Built-in 40W x 4ch high power amplifier.

[MD player part]

  • Digital filter: 8 times oversampling
  • D/A converter: 1bit
  • Frequency characteristics: 20Hz - 20kHz (±1dB)
  • S/N ratio: 80dB (1kHz)

[CD player part]

  • Digital filter: 8 times oversampling D/A converter: 1bit
  • Frequency characteristics: 10Hz - 20kHz (±1dB)
  • S/N ratio: 93dB (1kHz)

[Tuner part]

  • Receiving frequency range: FM 76.0MHz - 90.0MHz (100kHz steps )
  • AM 522kHz to 1,629kHz (9kHz steps)

[Audio part]

  • Maximum output: 40W x 4
  • Rated output: 25W x 4 (4Ω, 30Hz to 20kHz, 1%THD)

[Common part]

  • Power supply voltage: 14.4V (11 to 16V)

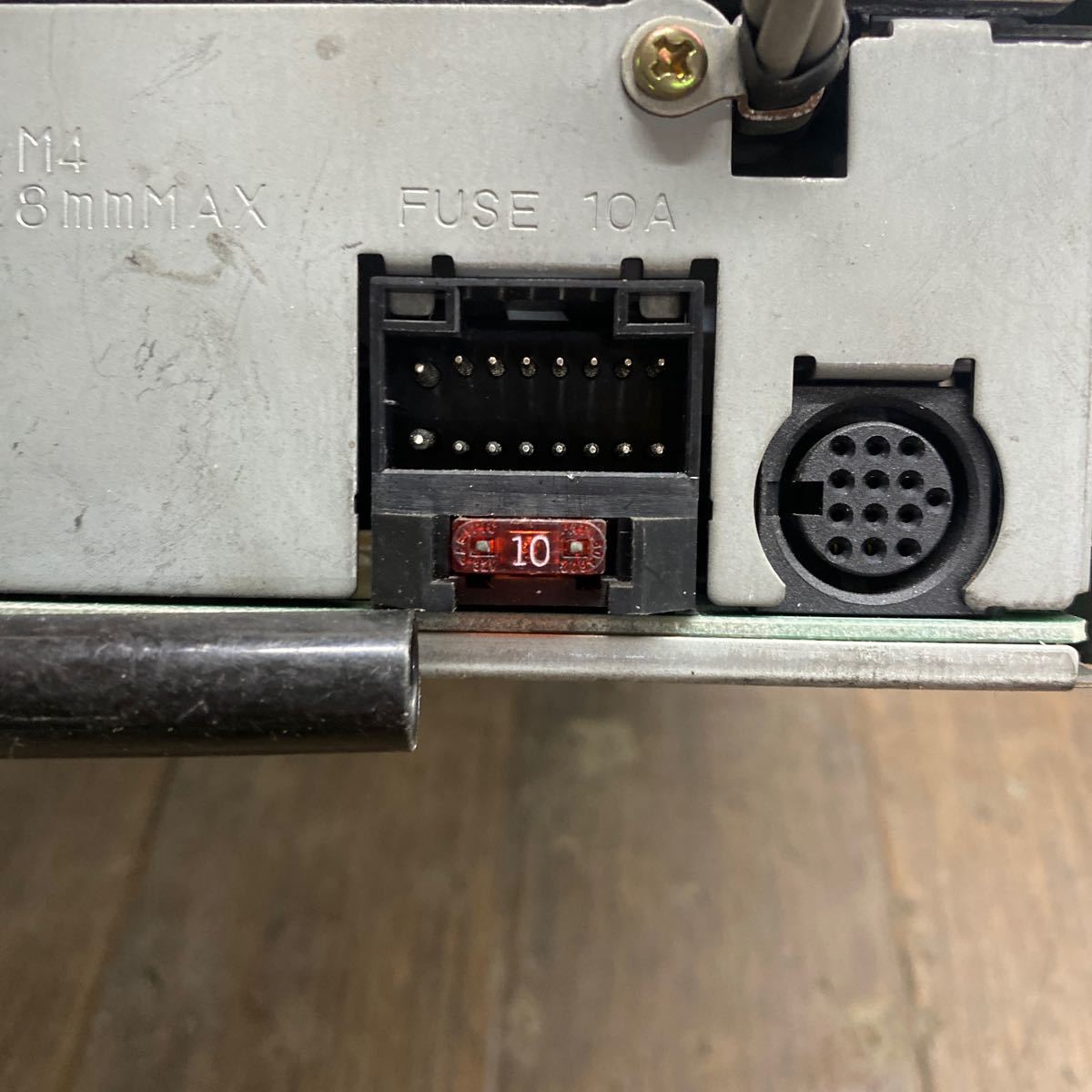

  • Maximum current consumption: 10A
  • Embedded dimensions: 178(W)×100(H)×155(D)mm
  • Weight: 2.9kg

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)
