Kenwood DPX-7000MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-7000MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-7000MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-7000MD
Manufacturer Kenwood
Released 1999/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-DIN 178 (W) x 100 (H) x 155 (D) mm
Weight 2800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

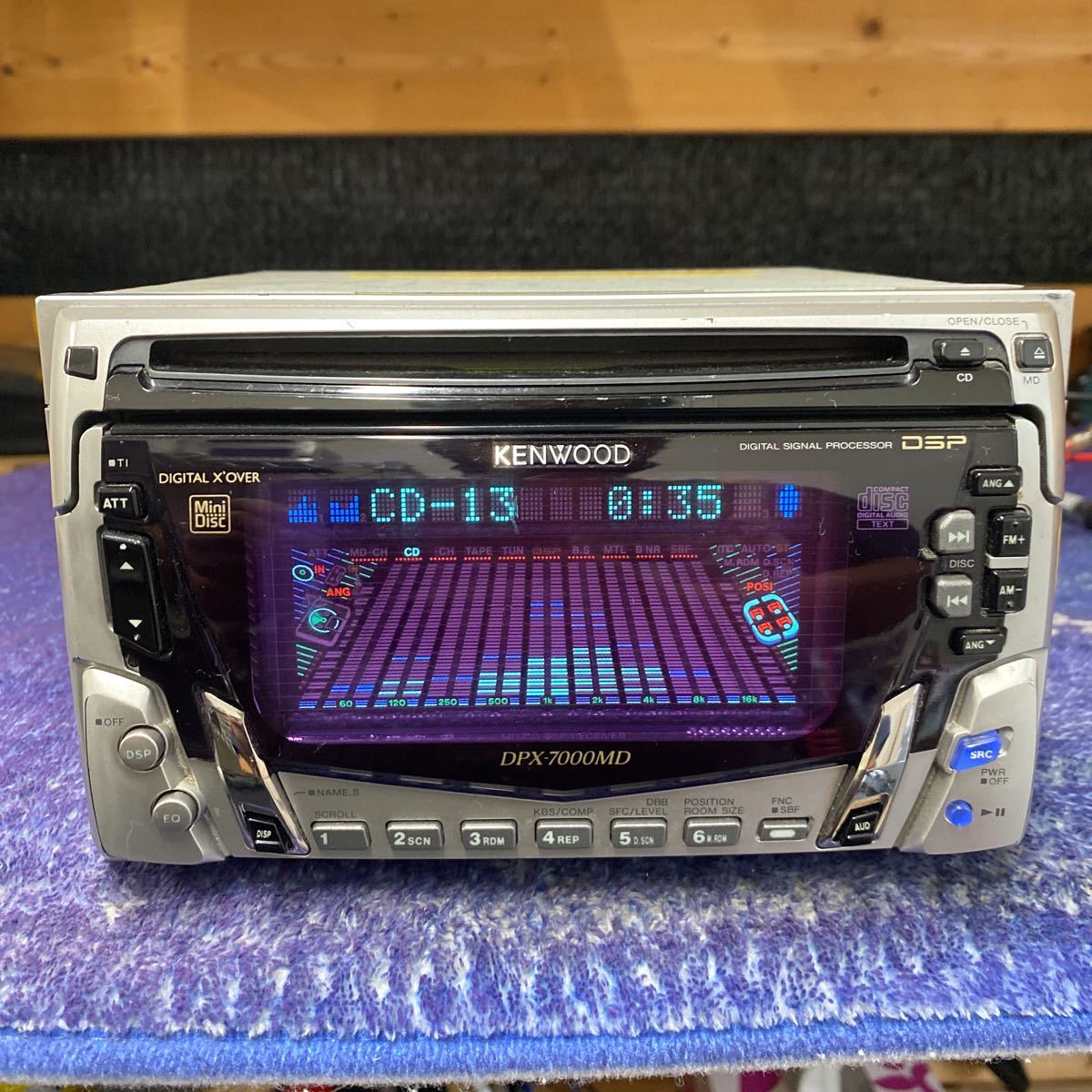

Kenwood DPX-7000MD.

[CD section]

  • Frequency response: 10Hz to 20kHz (±1dB)
  • S/N ratio: 93dB (1kHz)
  • Dynamic range: 93dB
  • Stereo Separation: 85dB

[MD department]

  • Frequency response: 20Hz to 20kHz (±1dB)
  • S/N ratio: 90dB (1kHz)
  • Dynamic range: 90dB
  • Stereo Separation: 80dB

[FM section]

  • Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

  • Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[EQ section]

  • Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
  • Variable range: ±12dB

[Audio part]

  • Maximum output: 40W x 4
  • Rated output: 26W x 4 (4Ω, 1kHz, 10%THD)
  • Pre-out level: 1500mV (FM/10kΩ)

[Common part]

  • Power supply voltage: 14.4V (11 to 16V)
  • Maximum current consumption: 10A
  • Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
  • Mass: 2.8kg

Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)

Manuals

Kenwood DPX-7000MD User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
