| Name | DPX-7010MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | 178 x 100 x 155mm |
| Weight | 2900 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | CD |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |
Kenwood DPX-7010MD. See also the DPX-7100MDi. This unit may be an export version based on the radio reception frequencies.
FM: 87.5 - 108.0 MHz
MD Mecha: X92-3770-00

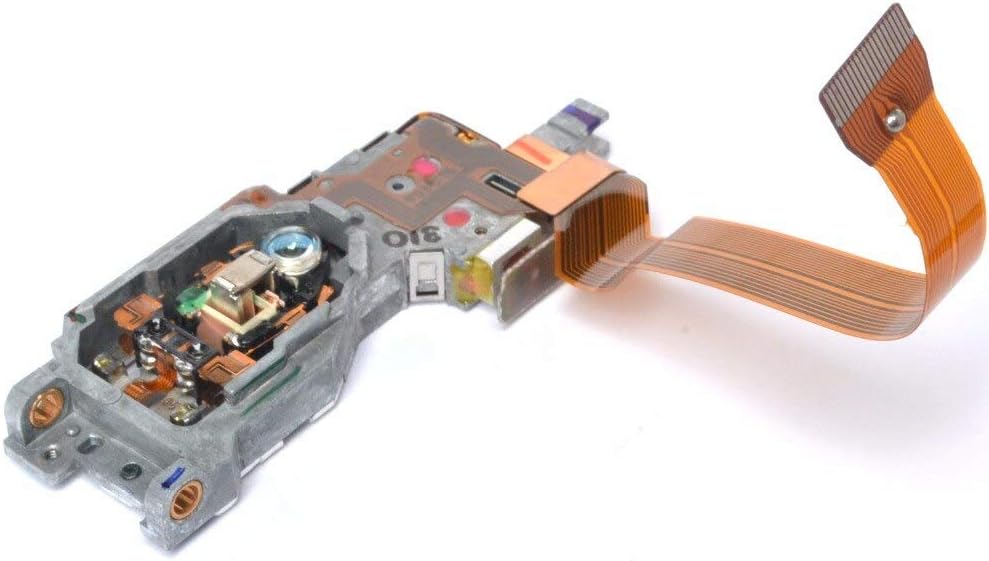

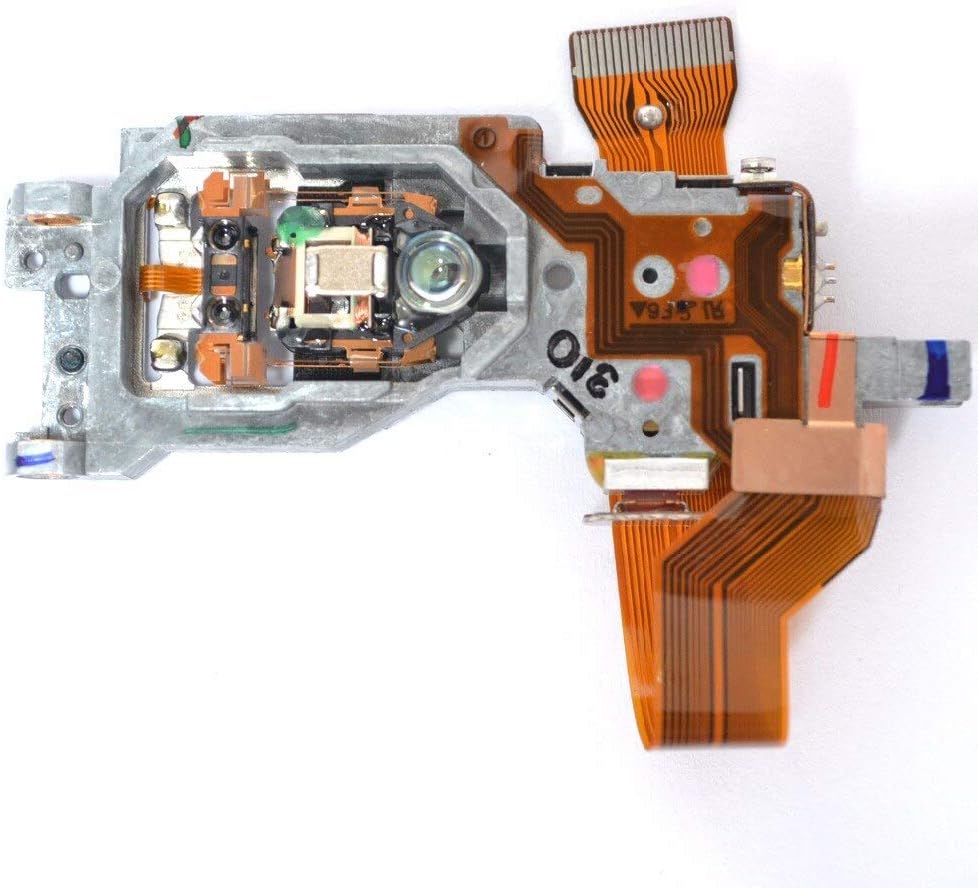

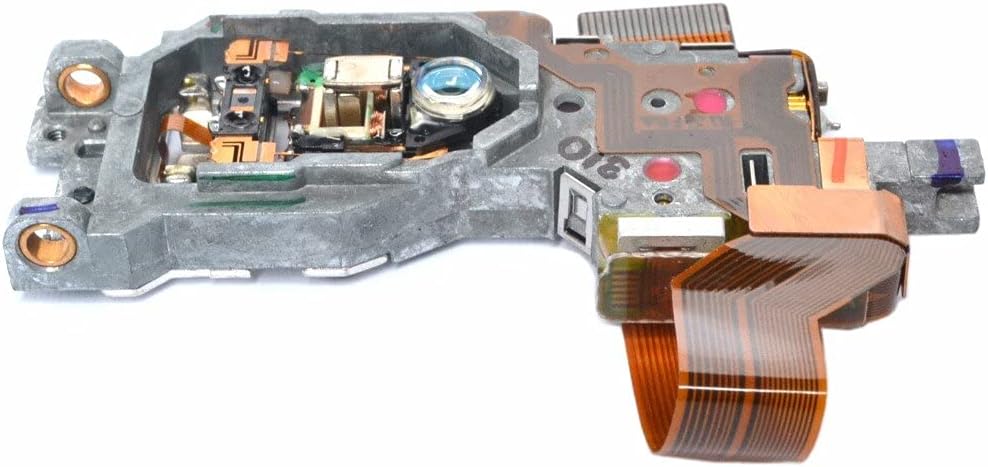

Optical block: KMS-242B - MPU1 (Part# T25-0211-05)
ATRAC IC: CXD2659R
Content adapted from: Based on the service manual it was released around June-2000.
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Remote Page | |
| Mechanism | x92-3770-00 |
| Pickup | kms-242b |
| Manual | User manual, Service manual |
| Region | Japan |
