Kenwood DPX-770MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-770MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-770MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-770MD
Manufacturer Kenwood
Released 1998/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178(W)× 100(H) x 160(D)mm
Weight 3000
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥105 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

This is a new full-auto slide panel type MD/CD receiver that achieves unique operation by adopting a thin structure "H2 (Half Height) MD mechanism". Equipped with a "cross light display" that develops a novel and vivid display by mixing blue and white spectrum analyzers. In addition to adopting a logical flow construction structure, the hybrid IC "System E's" is installed to achieve high-quality sound reproduction. Furthermore, it is equipped with a DSP capable of hall simulation in 11 modes and a 9-band equalizer. Supports CD text. Equipped with a 13-step display brightness adjustment function. Built-in 40W x 4ch high power amplifier.

[MD player part]

  • Digital filter: 8 times oversampling
  • D/A converter: 1bit
  • Frequency characteristics: 20Hz - 20kHz (±1dB)
  • S/N ratio: 80dB (1kHz)

[CD player part]

  • Digital filter: 8 times oversampling D/A converter: 1bit
  • Frequency characteristics: 10Hz - 20kHz (±1dB)
  • S/N ratio: 93dB (1kHz)

[Tuner part]

  • Receiving frequency range: FM 76.0MHz - 90.0MHz (100kHz steps )
  • AM 522kHz to 1,629kHz (9kHz steps)

[DSP/EQ section]

  • Equalizer center frequency band: 60, 120, 250, 500, 1k, 2k, 4k, 8k, 16kHz

[Audio section]

  • Maximum output: 40W x 4
  • Rated output: 25W×4 (4Ω, 30Hz～20kHz, 1%THD)

[Common part]

  • Power supply voltage: 14.4V (11～16V)
  • Maximum current consumption: 10A
  • Embedded size: 178(W)× 100(H) x 160(D)mm Mass: 3.0kg

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)

Manuals

Kenwood DPX-770MD User Manual JP

Repair

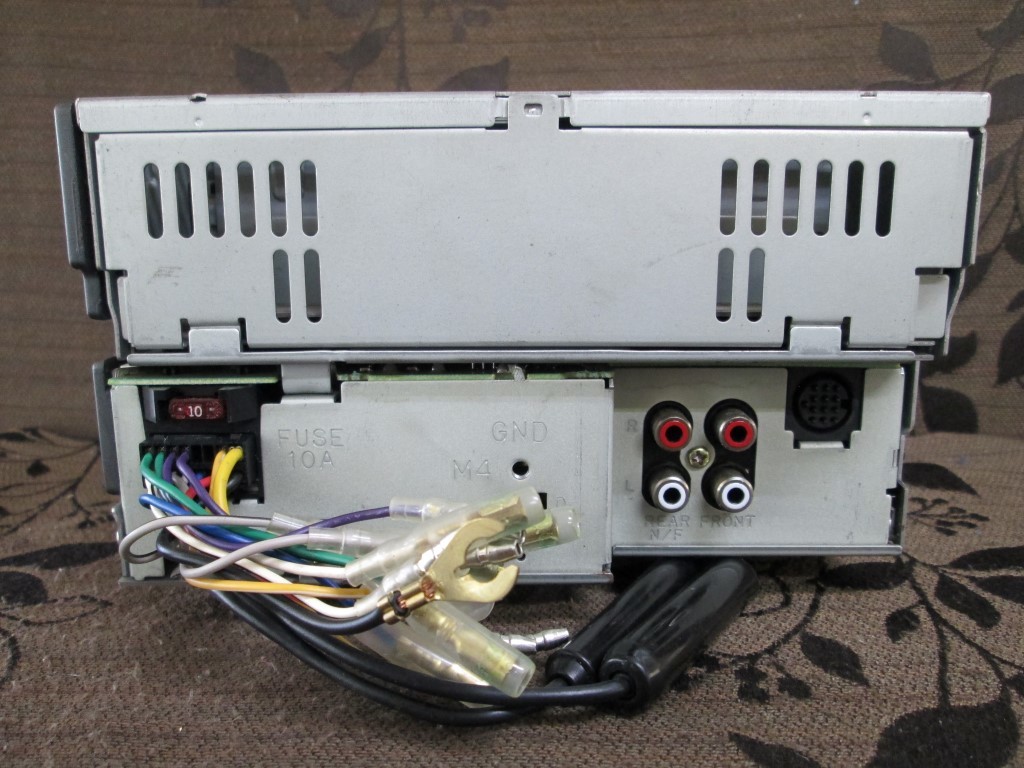

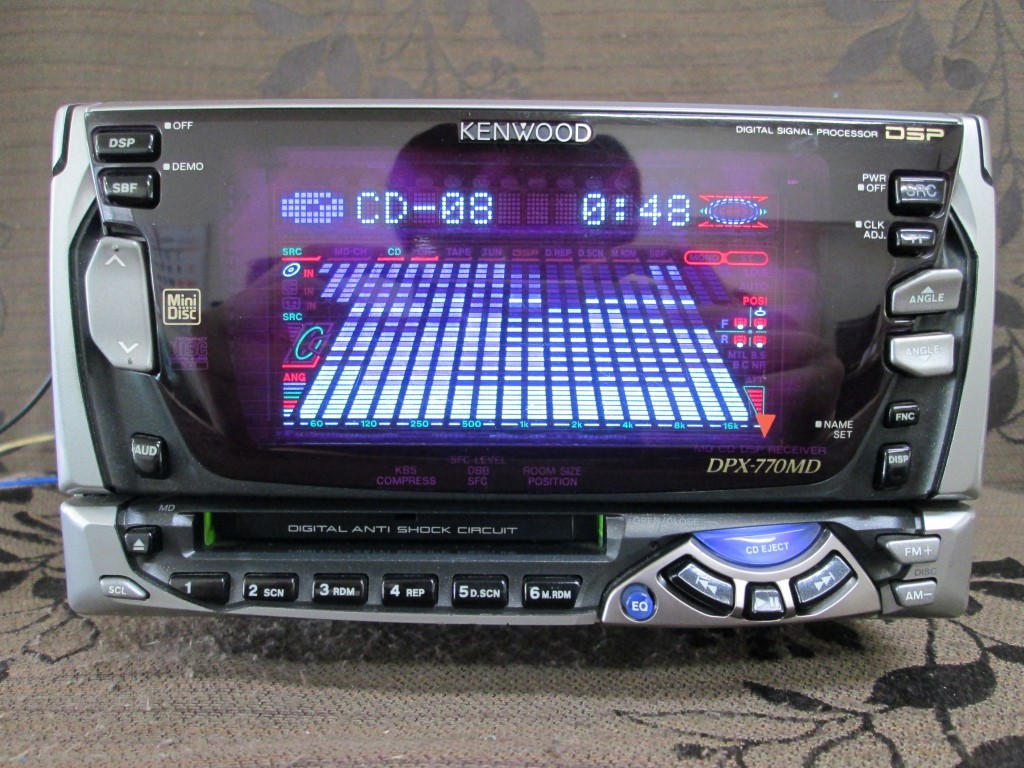

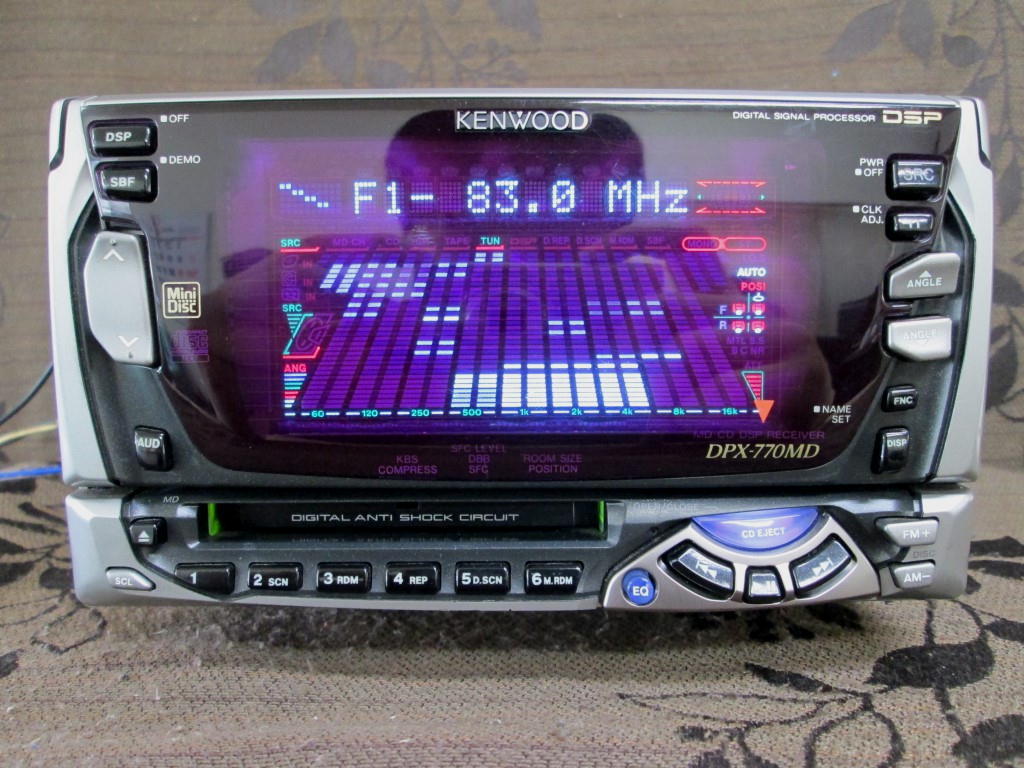

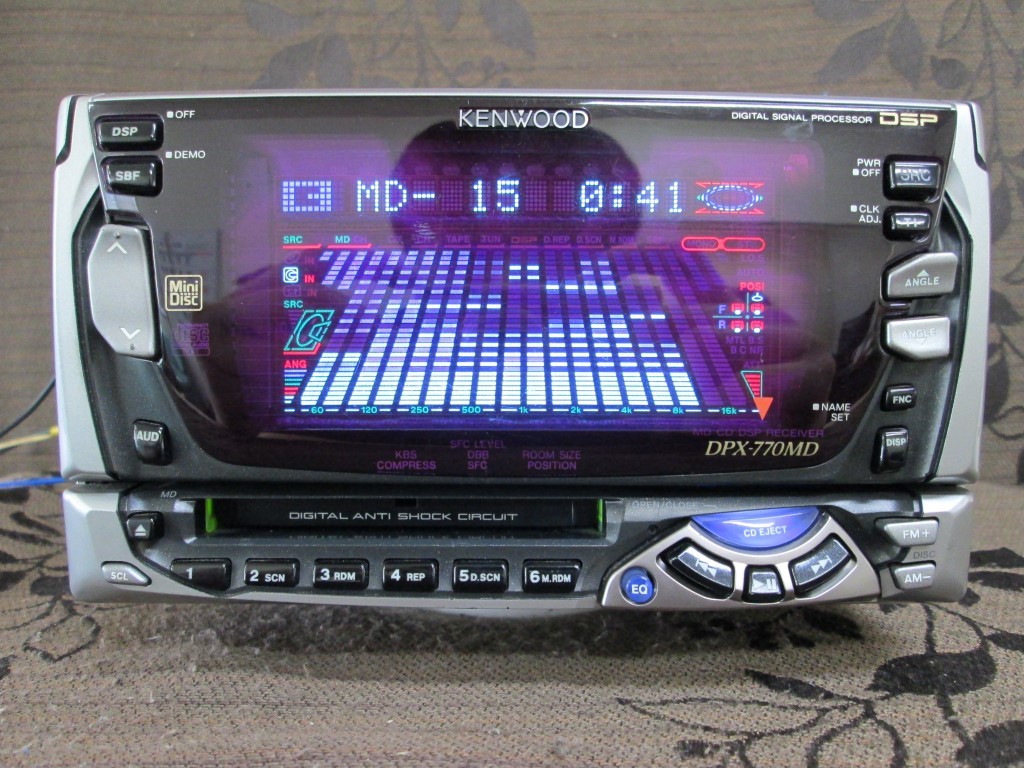

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ManualUser manual
RegionJapan
