Kenwood DPX-8100MJi

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
DPX-8100MJi
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-8100MJi”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-8100MJi
Manufacturer Kenwood
Released 2000/06
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 2-Din 178 (W) x 100 (H) x 155 (D) mm
Weight 3300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥94 500
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

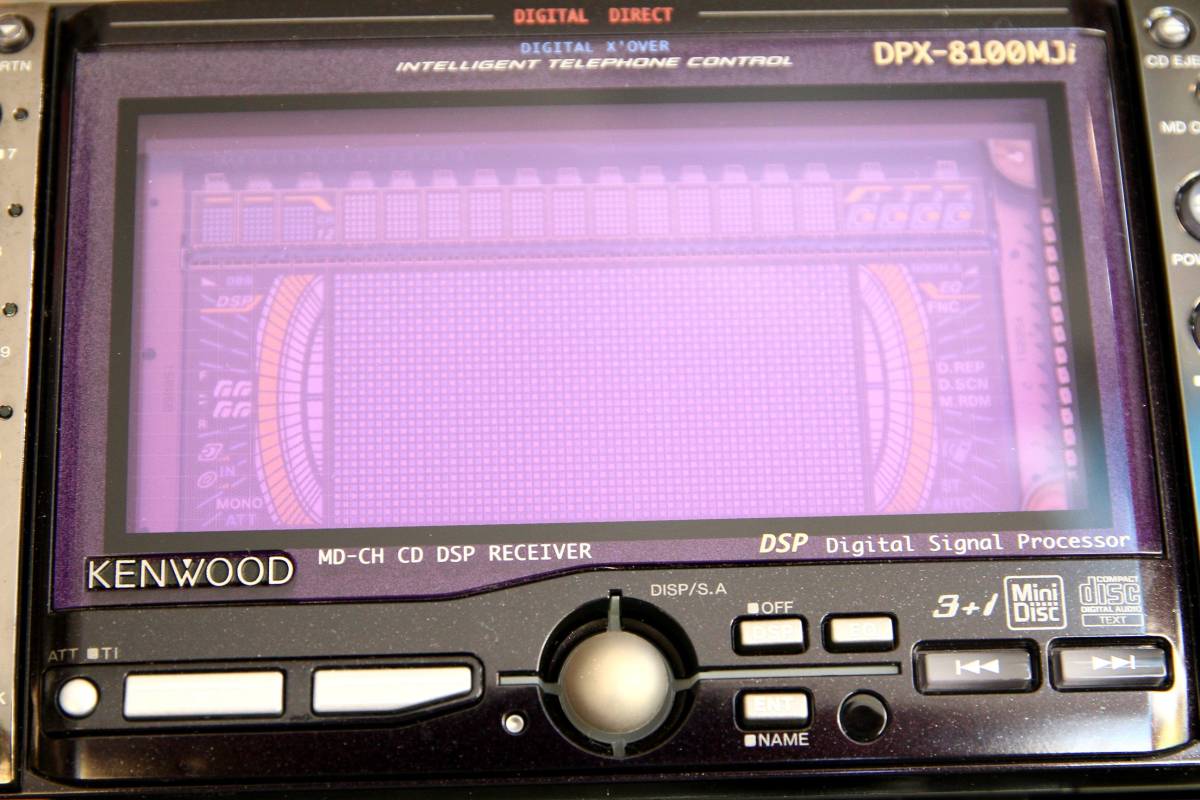

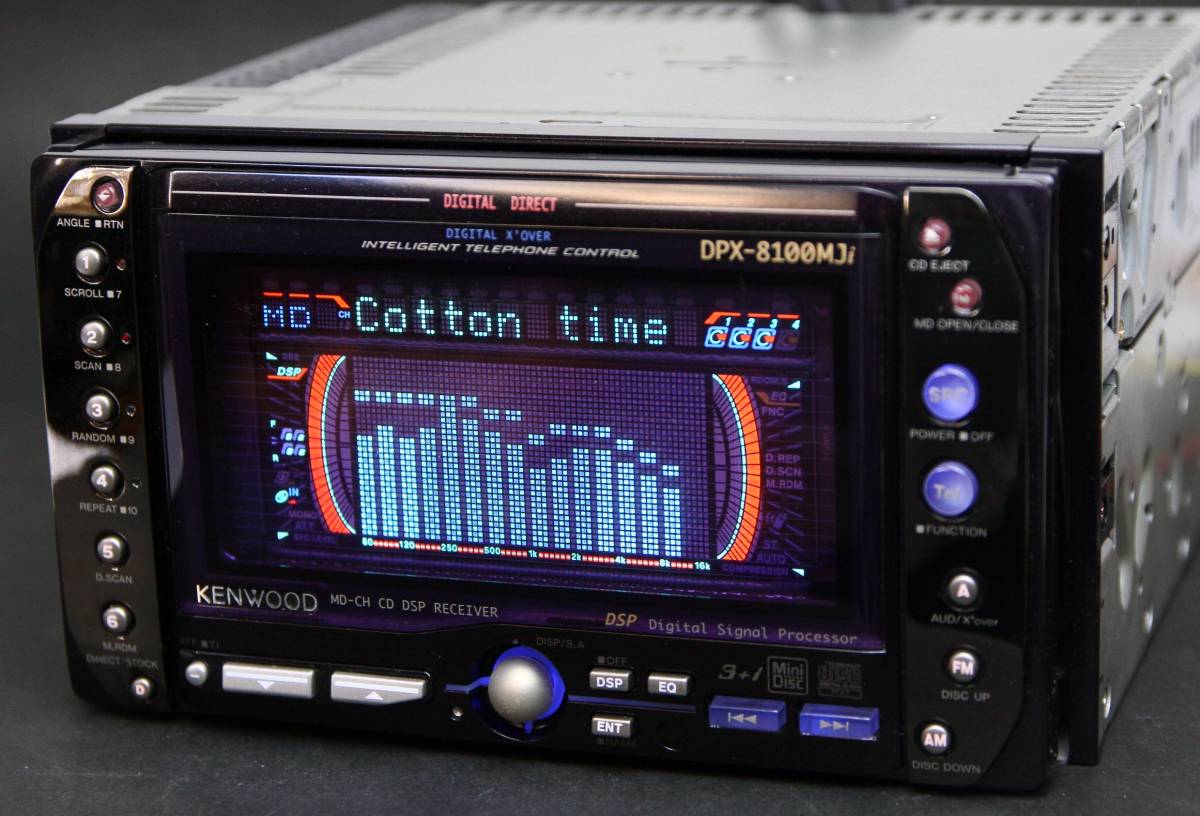

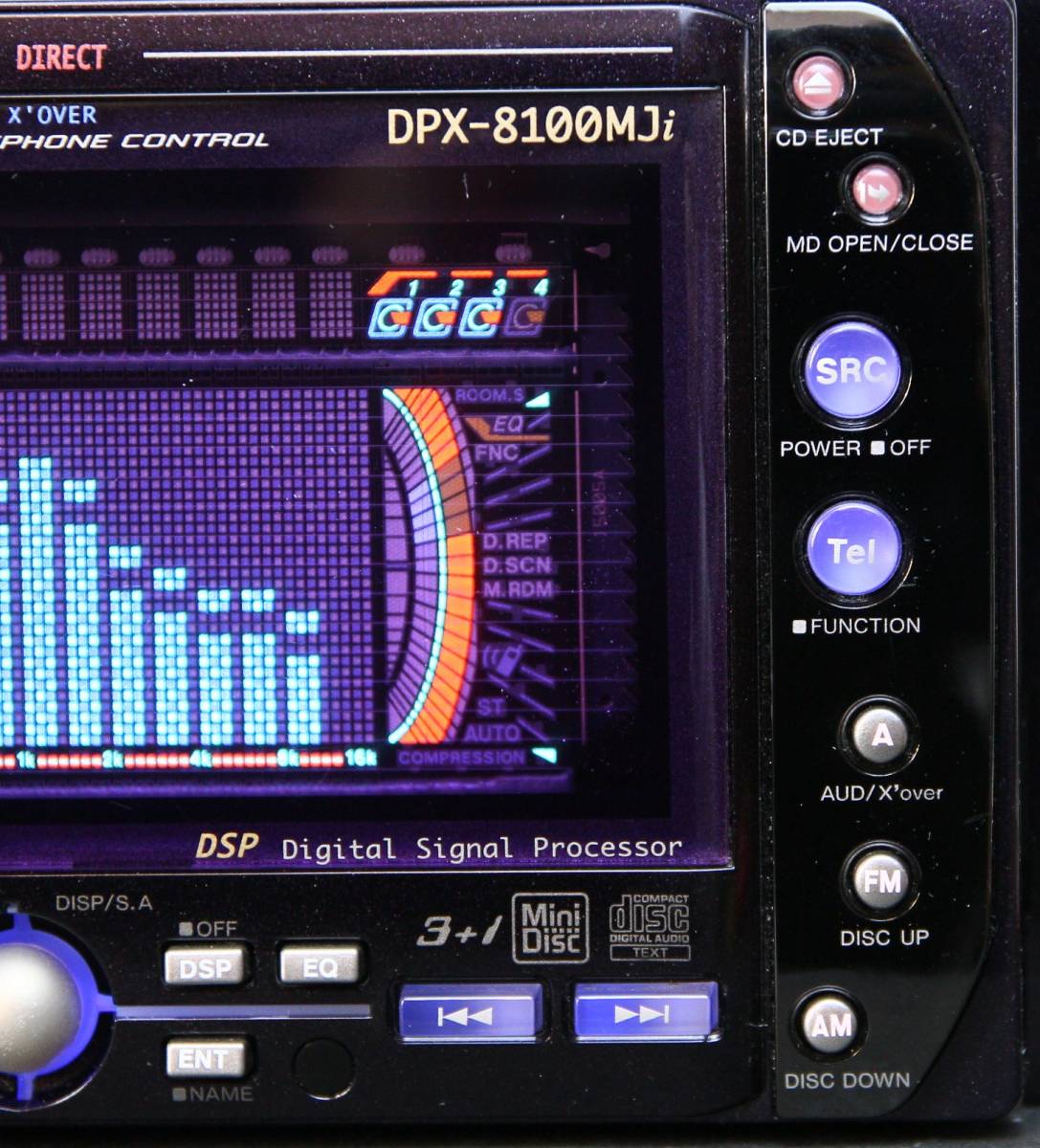

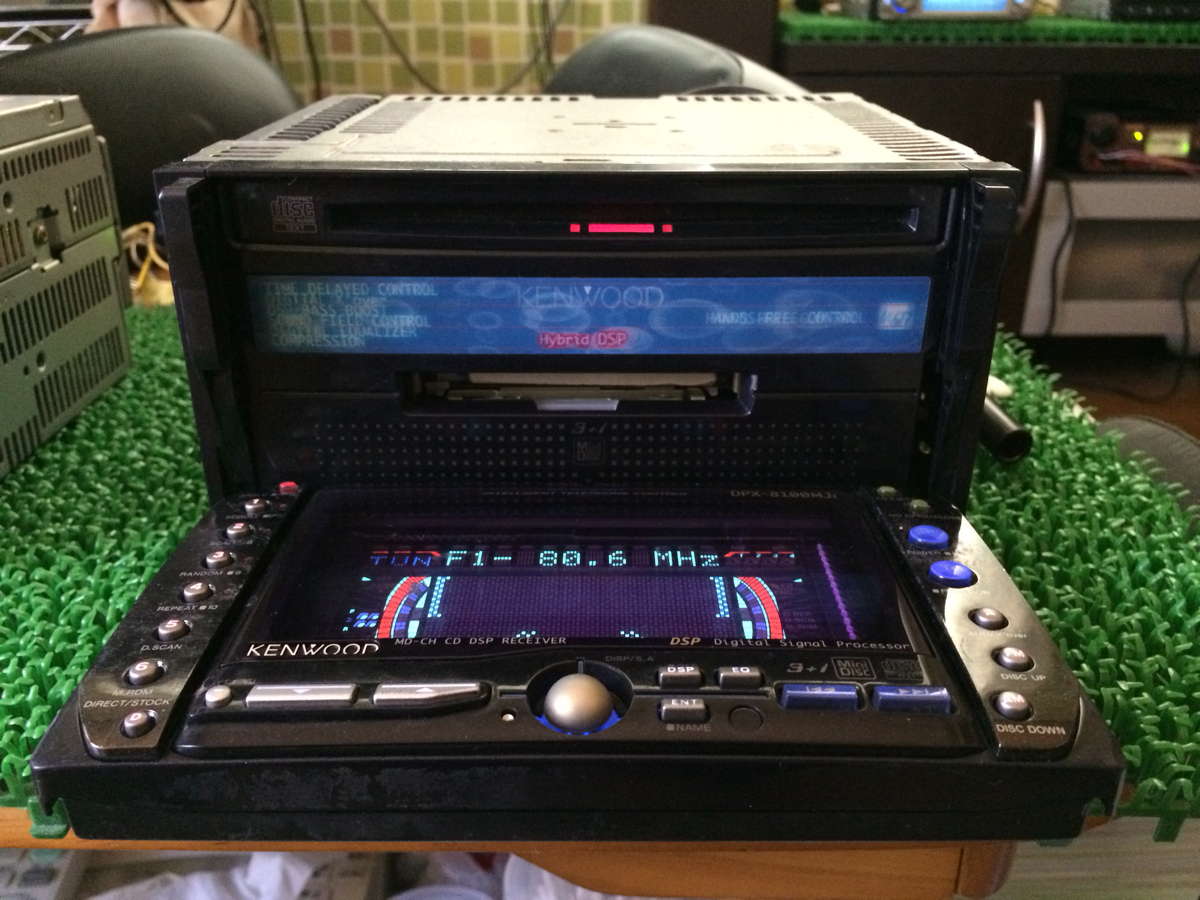

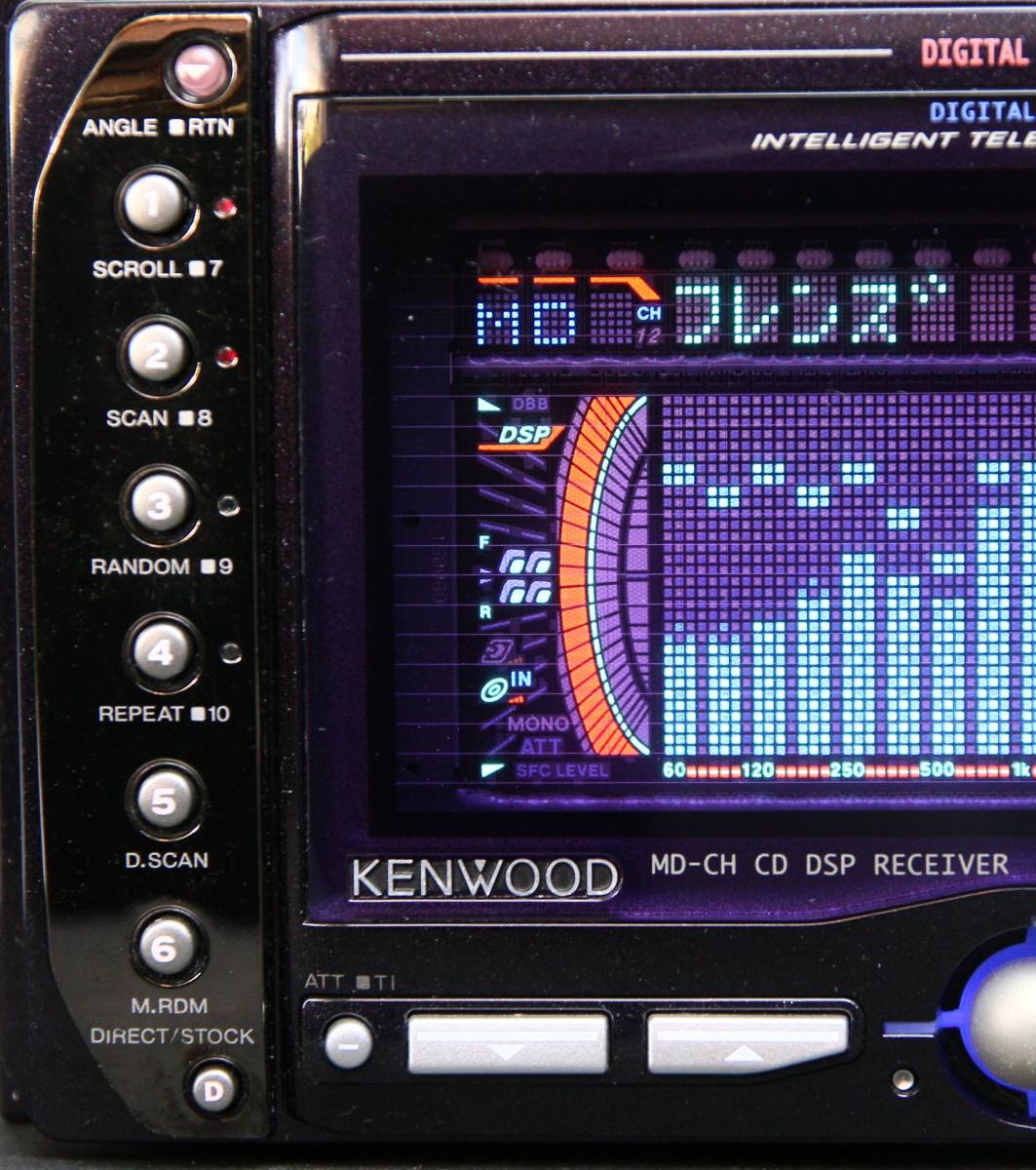

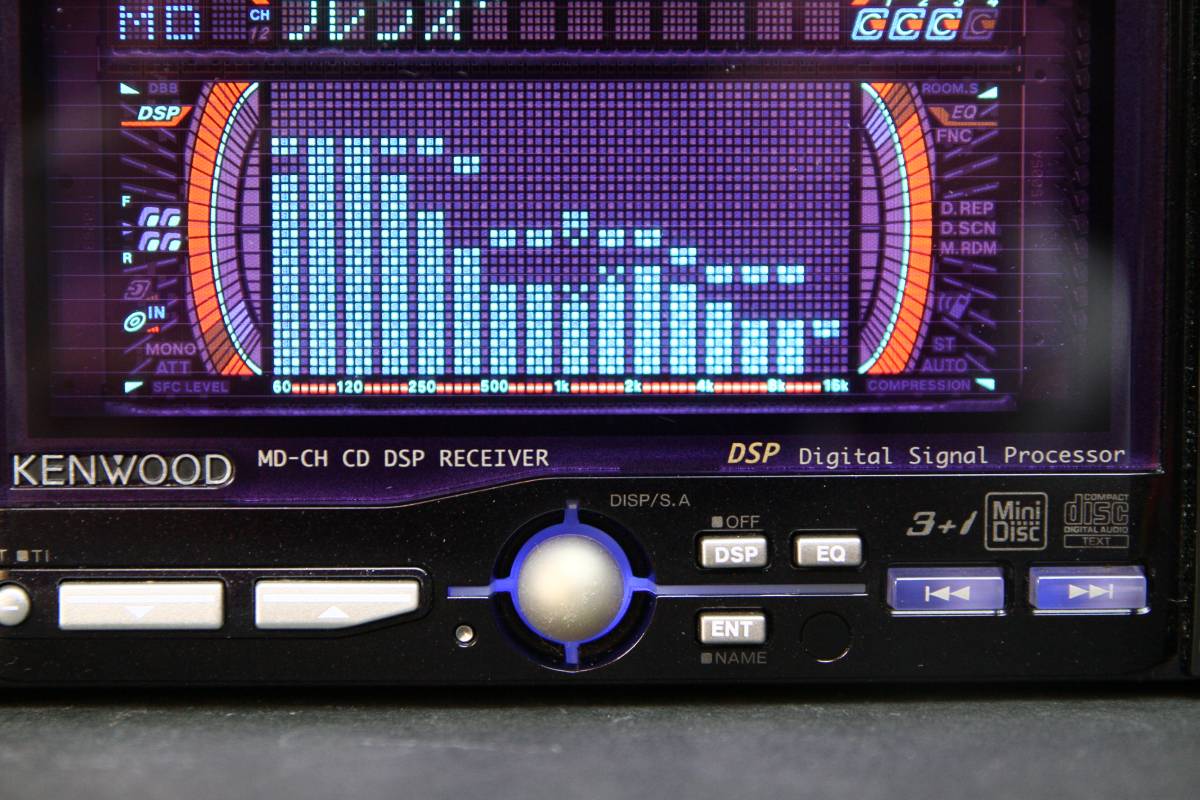

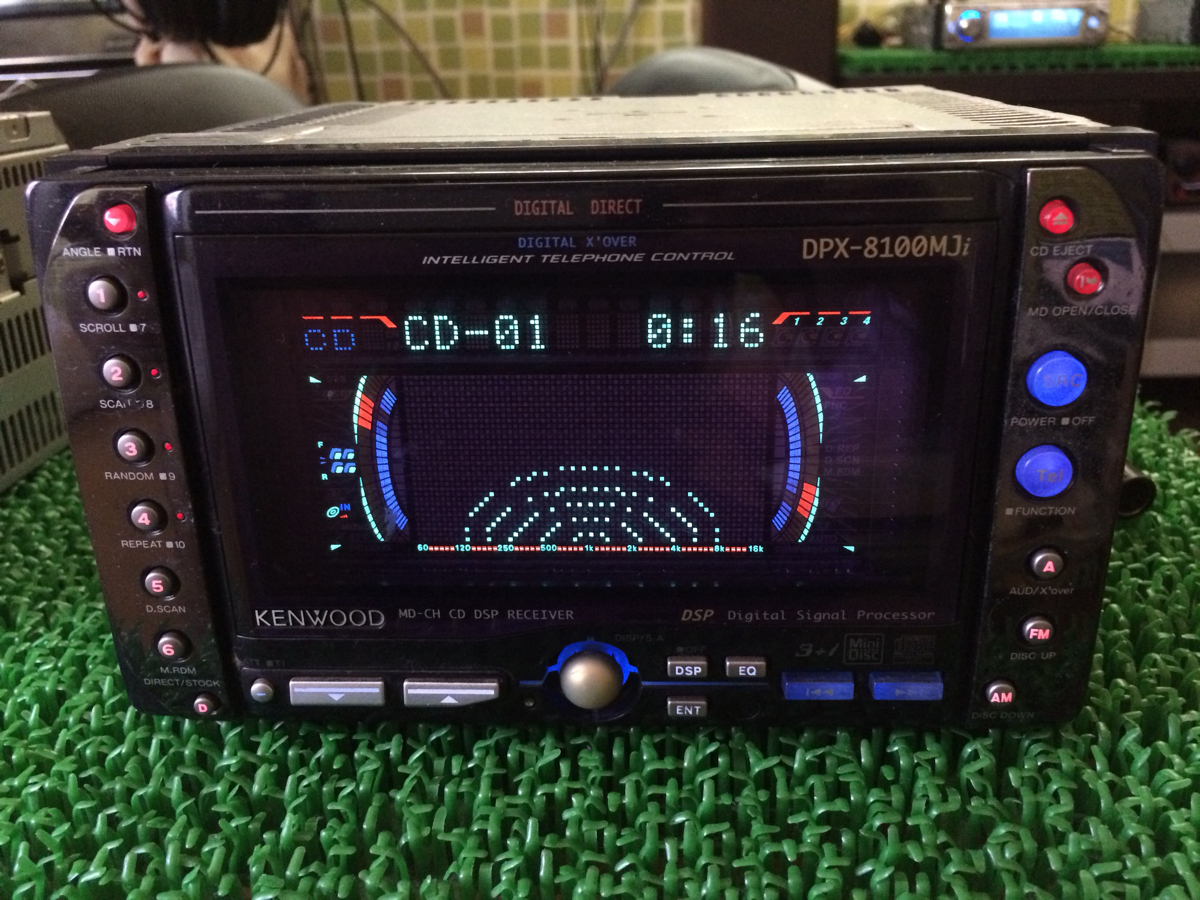

"DPX-8100MJi" is an MD changer/CD receiver that uses an electric full open panel system. The large display, unique to 2DIN, is equipped with a beautiful "hyper cross light display" that alternately arranges the luminescent colors of the spectrum analyzer display tube. In addition, like the DPX - 9100MJi, it has a built-in mobile phone hands-free function that can automatically receive calls . .

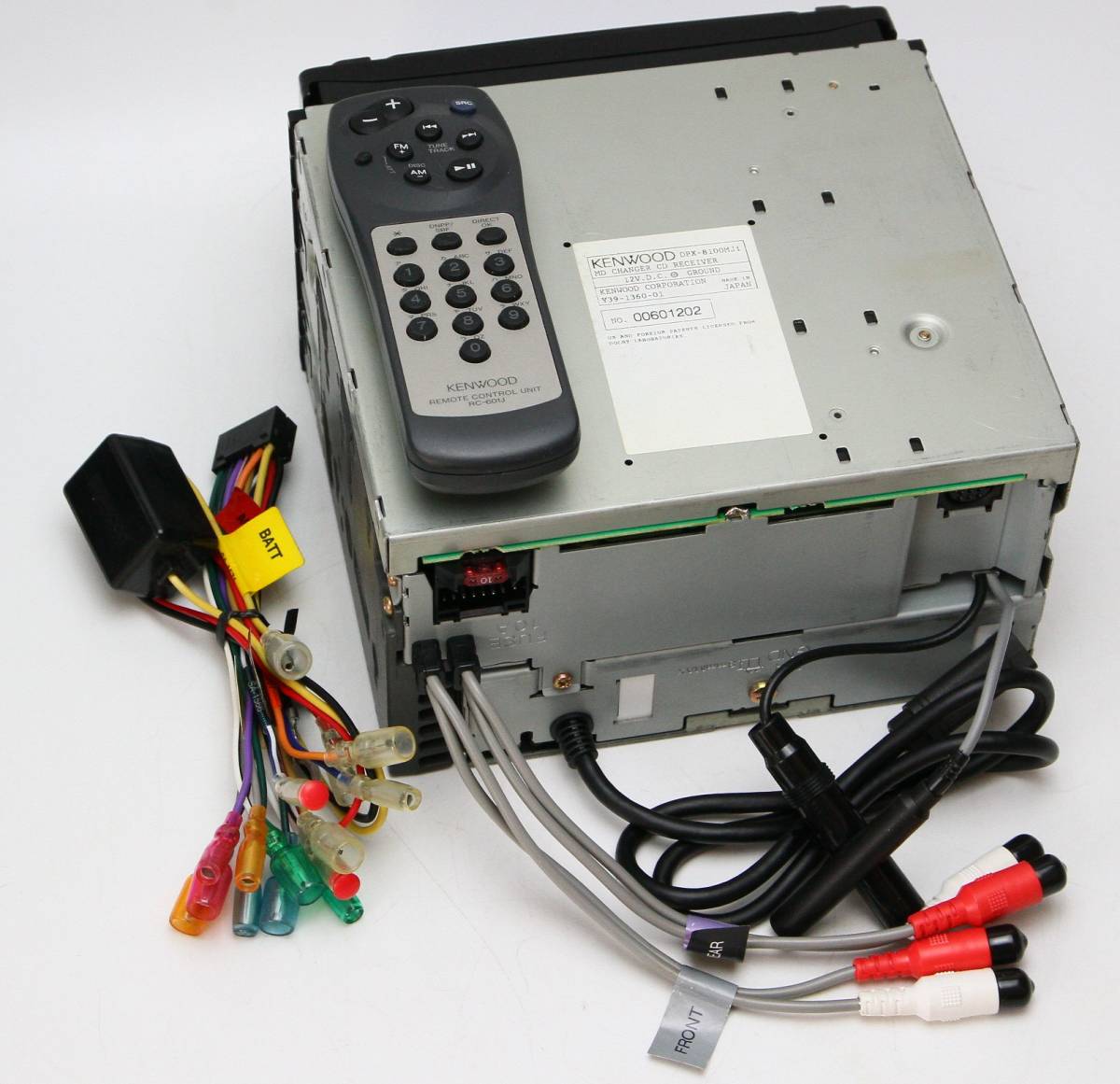

Equipped with a newly developed high-performance pickup and high-precision servo circuit, it can also read music signals recorded not only on CD-R but also on CD-RW *2 . The 2DIN size body is equipped with a bank-type 3+1 in-dash MD changer that allows you to enjoy up to 3 MDs as a changer. . Equipped with "Digital Direct" that directly inputs digital signals to the DSP for high-quality CD/MD playback. Digital sound quality is further improved by reducing the number of signal conversions. Equipped with a hybrid DSP that allows you to enjoy a variety of sound qualities, and a built-in 47W x 4ch ultra-high power amplifier. Includes remote control.

*1: CA-HF100 (for normal mobile phones) and CA-HF200 (for cdmaOne), both 5,000 yen, excluding tax *2: MP3 data playback is not supported.

[MD department]

  • Frequency response: 20Hz to 20kHz (±1dB)
  • S/N ratio: 93dB (1kHz)
  • Dynamic range: 93dB
  • Stereo Separation: 85dB

[CD section]

  • Frequency response: 10Hz to 20kHz (±1dB)
  • S/N ratio: 95dB (1kHz)
  • Dynamic range: 95dB
  • Stereo Separation: 88dB

[FM section]

  • Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

  • Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[EQ section]

  • Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
  • Variable range: ±12dB

[Audio part]

  • Maximum output: 47W x 4
  • Rated output: 29W x 4 (4Ω, 1kHz, 10%THD)
  • Pre-out level: 1500mV (FM/10kΩ)

[Common part]

  • Power supply voltage: 14.4V (11 to 16V)
  • Maximum current consumption: 10A
  • Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
  • Mass: 3.3kg

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)

Manuals

Kenwood DPX-8100MJi User Manual JP

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
