Device

Kenwood DPX-8200WMP

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-08-19

Manufacturer
Kenwood
Model / source grouping
DPX-8200WMP
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood DPX-8200WMP”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name DPX-8200WMP
Manufacturer Kenwood
Released 2002/05
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Not recorded
Dimensions 2-Din 178 (W) x 100 (H) x 155 (D) mm
Weight 2800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥84 000
-
Inputs CD
Outputs Not recorded
Control Not recorded

Kenwood 8200WMP. There seems to be a Gathers branded variant (DPX-8200WMPH) probably made for Honda OEM.

The DPX-8200WMP is a model in which the 9200WMP 16-gradation organic EL display is changed to an 8-gradation FL display. In addition, SFC is omitted in 6 patterns.

Taken from the MD pickup (x92-4570-00) manual:

  • Laser GaAIAs (λ=790±20nm)
  • Digital Filter 8 Times Over Sampling
  • D/A Converter 1 Bit
  • Frequency Response 20Hz~20kHz (±2dB)
  • T.H.D. 0.02% (1kHz)
  • S/N Ratio 95dB (1kHz)
  • Dynamic range 93dB
  • Channel Separation 85dB
  • Spindle Speed 950~450rpm

Uses the CXA2523AR and CXD2667R for decoding.

Content adapted from: Kenwood press release Kenwood press release (MiniDisc Wiki mirror) av.watch

Manuals

Kenwood DPX-8030MD User Manual ENG (should be equivalent)

Kenwood DPX-8030MD Service Manual (Partial)

https://manualzz.com/doc/19693381/x92-4110-0x-x92-4570-0x-service-manual-description-mechanism#p1

Repair

Photos

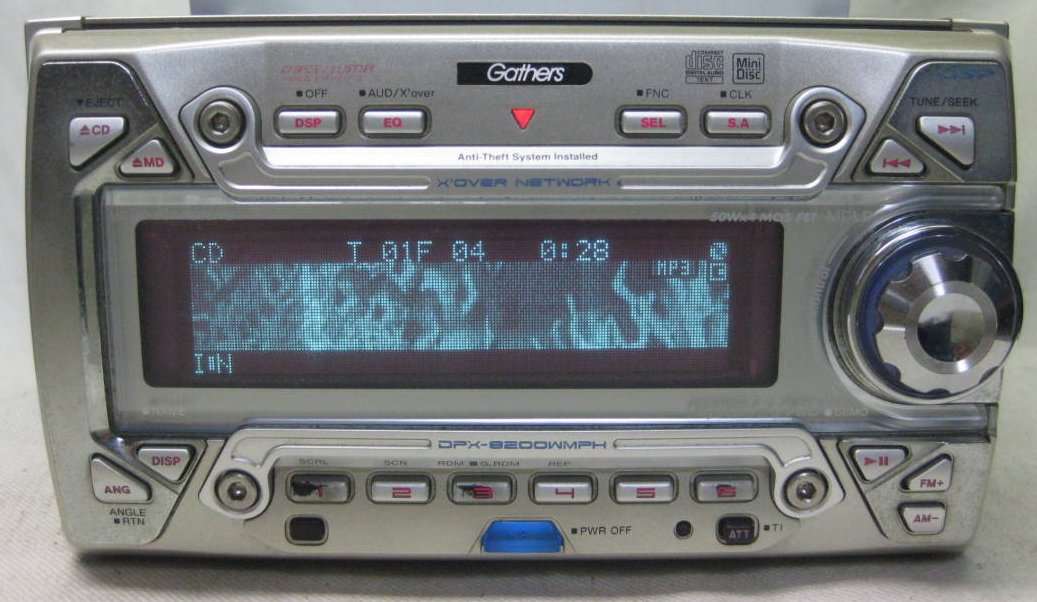

Gathers DPX-8200WMPH:

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Remote Page
Atrac IcCXD2667R
ManualUser manual, Service manual
RegionJapan
