| Name | DPX-9100MJi |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 3300 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥126 000 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |

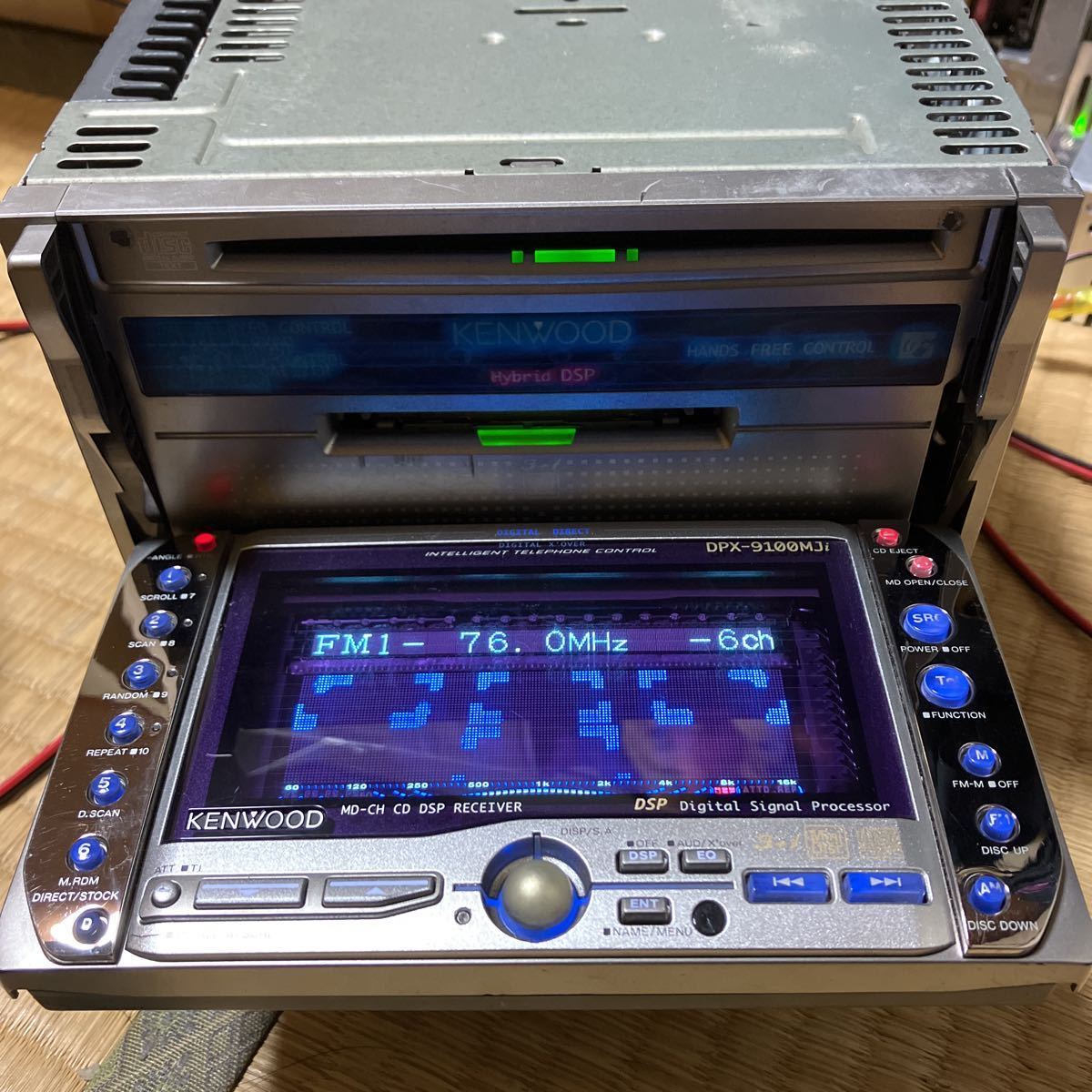

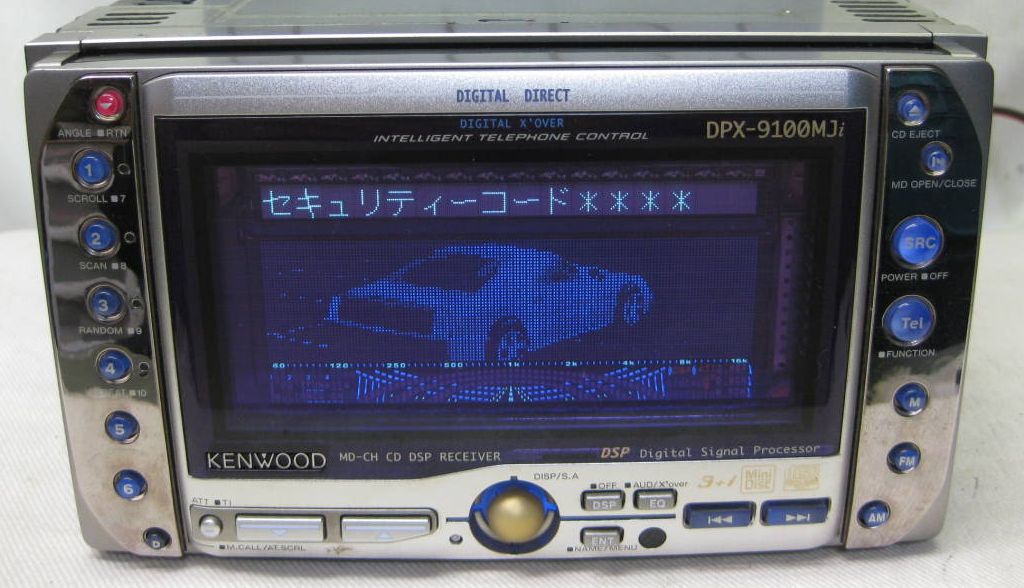

The Kenwood DPX-9100MJi is an 3 MD changer/CD receiver that uses an electric full open panel system. Equipped with a "3D moving picture display" that enables realistic and three-dimensional display on a large display unique to 2DIN. In addition, as a countermeasure against the legislation prohibiting the use of mobile phones while driving, a built-in mobile phone hands-free function that can automatically receive calls. By using the optional hands-free kit with a microphone *1 , not only can you make hands-free calls, but you can also store 100 calls in the mobile phone's built-in memory and make calls from the DPX-9100MJi to the memory destination. is also possible. In addition, 10 incoming/outgoing call history memory, 6 one-key outgoing calls, etc. have realized a full-fledged fusion of car audio and mobile phones.
Equipped with a newly developed high-performance pickup and high-precision servo circuit, it can also read music signals recorded not only on CD-R but also on CD-RW *2. The 2DIN size body is equipped with a bank-type 3+1 in-dash MD changer that allows you to enjoy up to 3 MDs as a changer. Equipped with "Digital Direct" that directly inputs digital signals to the DSP for high-quality CD/MD playback. Digital sound quality is further improved by reducing the number of signal conversions. This is the pinnacle model of the 2000 model DPX series, equipped with a hybrid DSP that allows you to enjoy a variety of sound qualities. Built-in 47W x 4ch ultra-high power amplifier, capable of receiving FM teletext broadcasts. Includes remote control.
*1: CA-HF100 (for normal mobile phones) and CA-HF200 (for cdmaOne), both 5,000 yen, excluding tax *2: MP3 data playback is not supported.
Supports MD kanji title (DPX-9100MJi), kana title, and CD text display
Equipped with 2x 1.5V pre-out terminals for subwoofer drive.
Content adapted from: Kenwood Press Release (archived)
Manuals
Repair

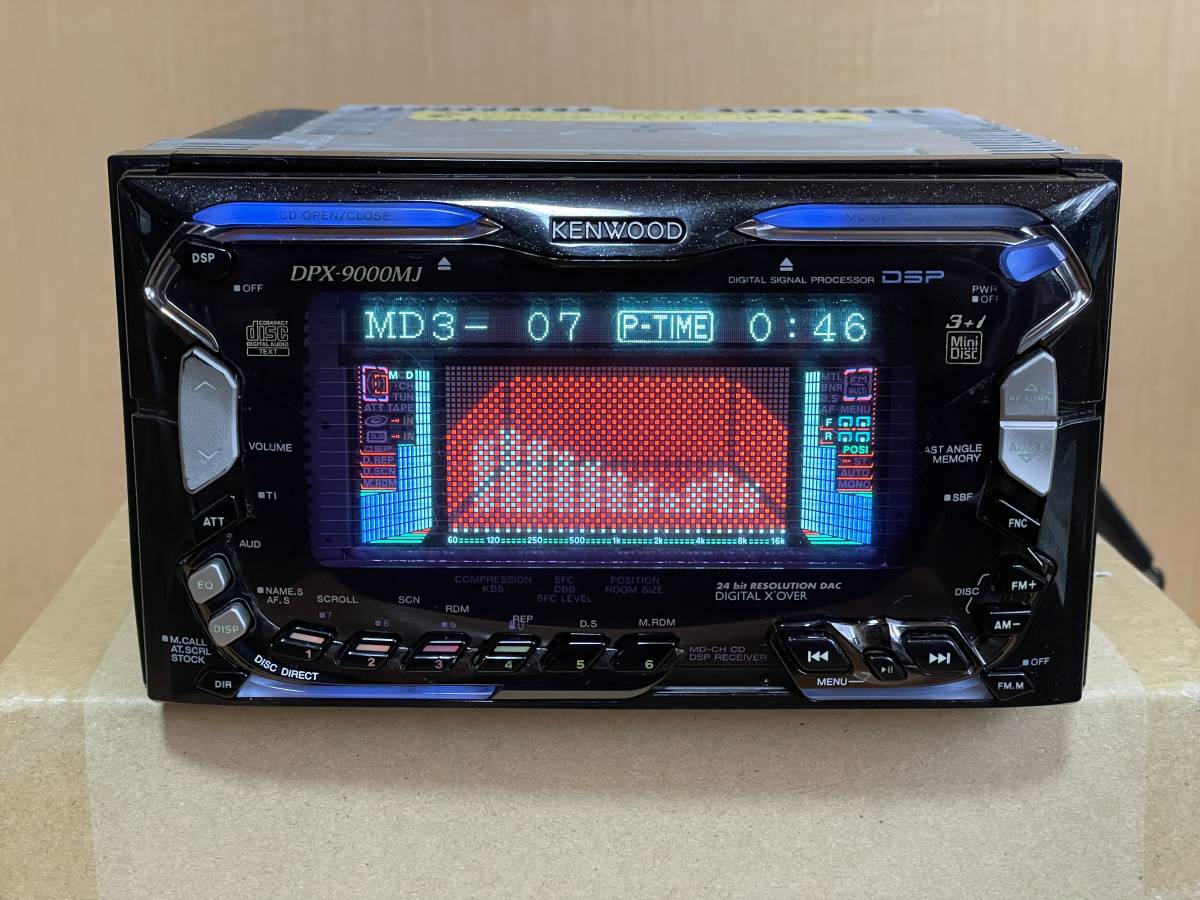

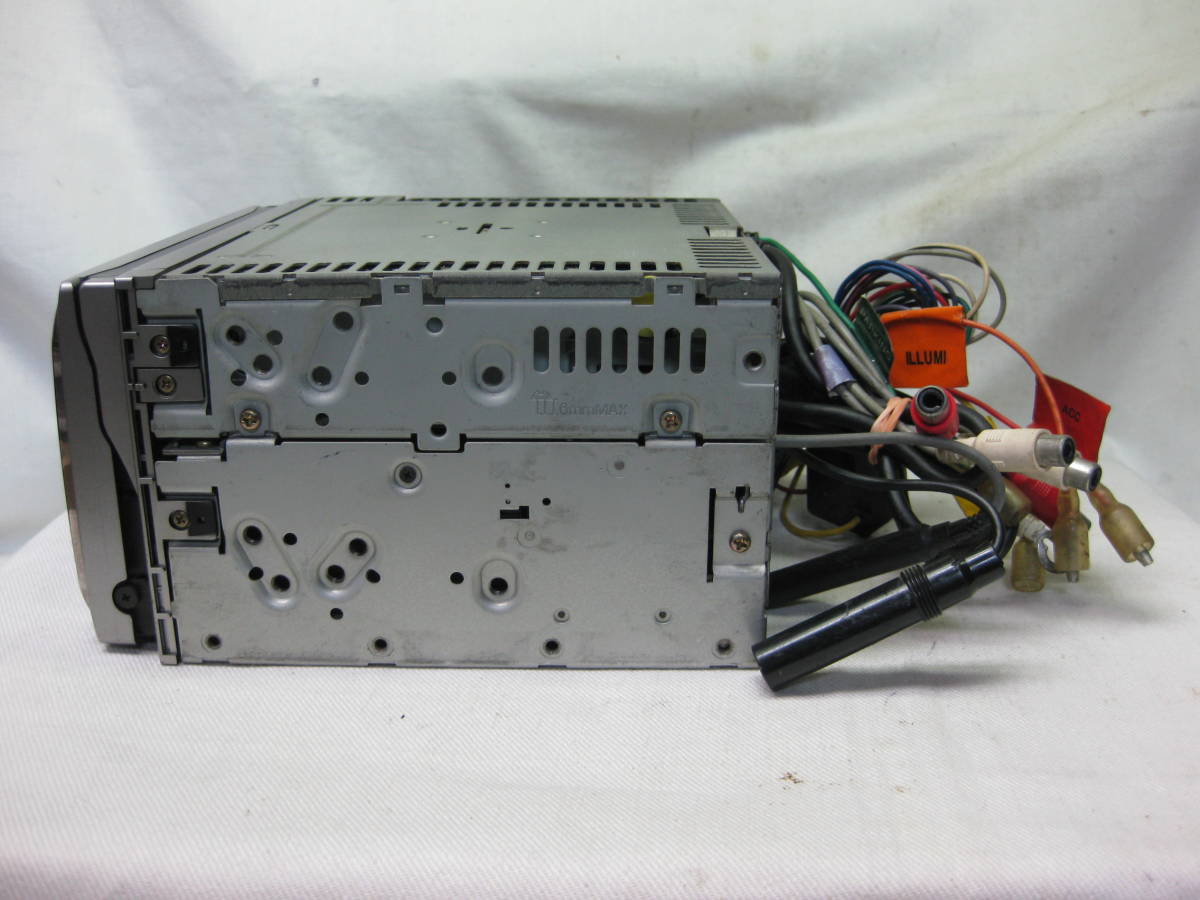

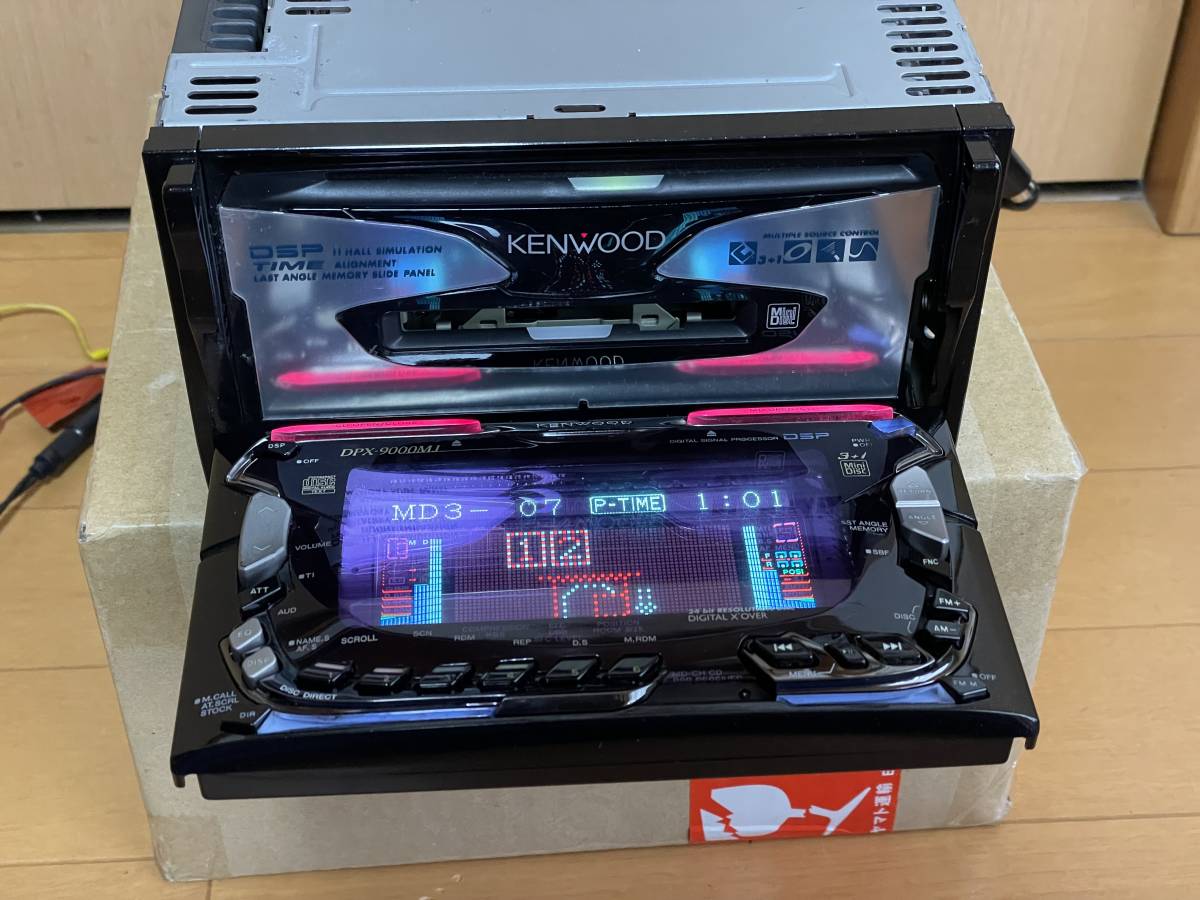

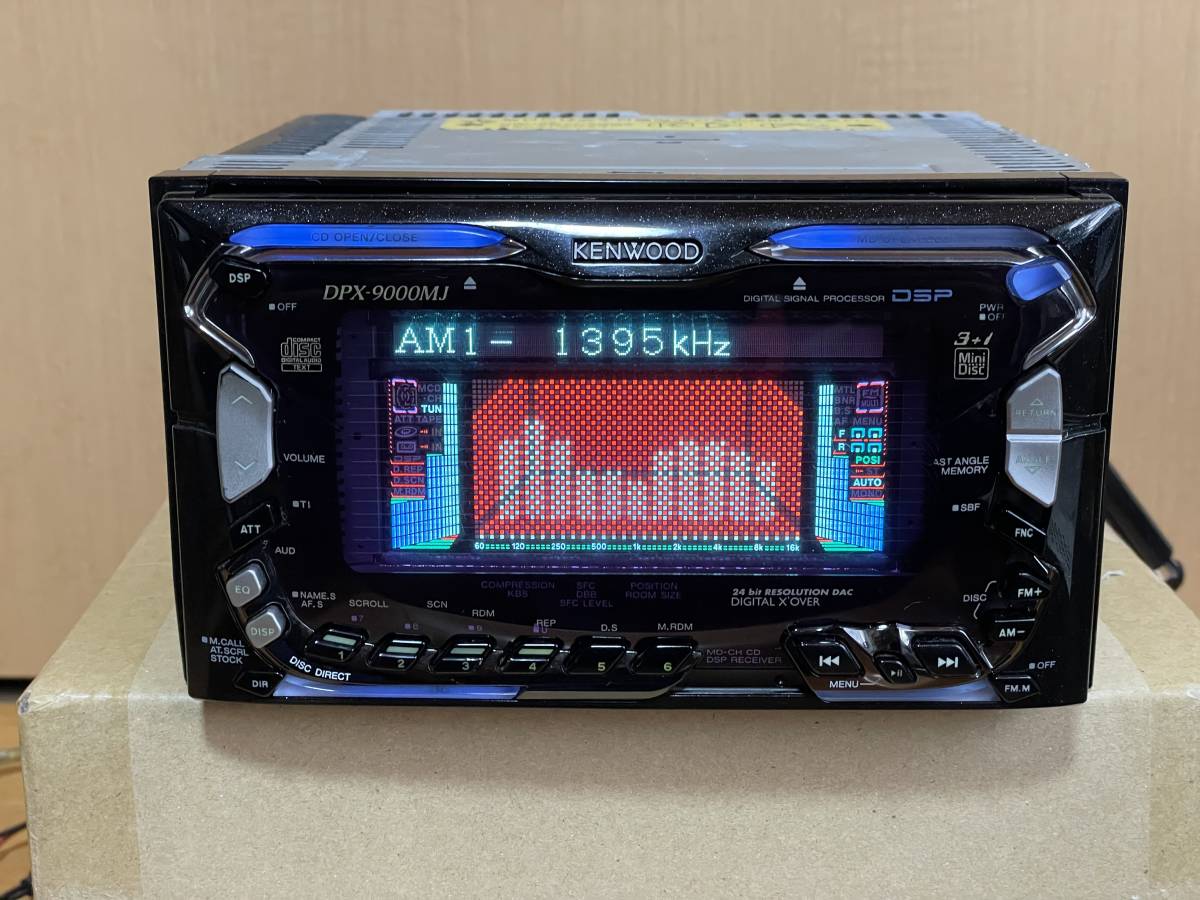

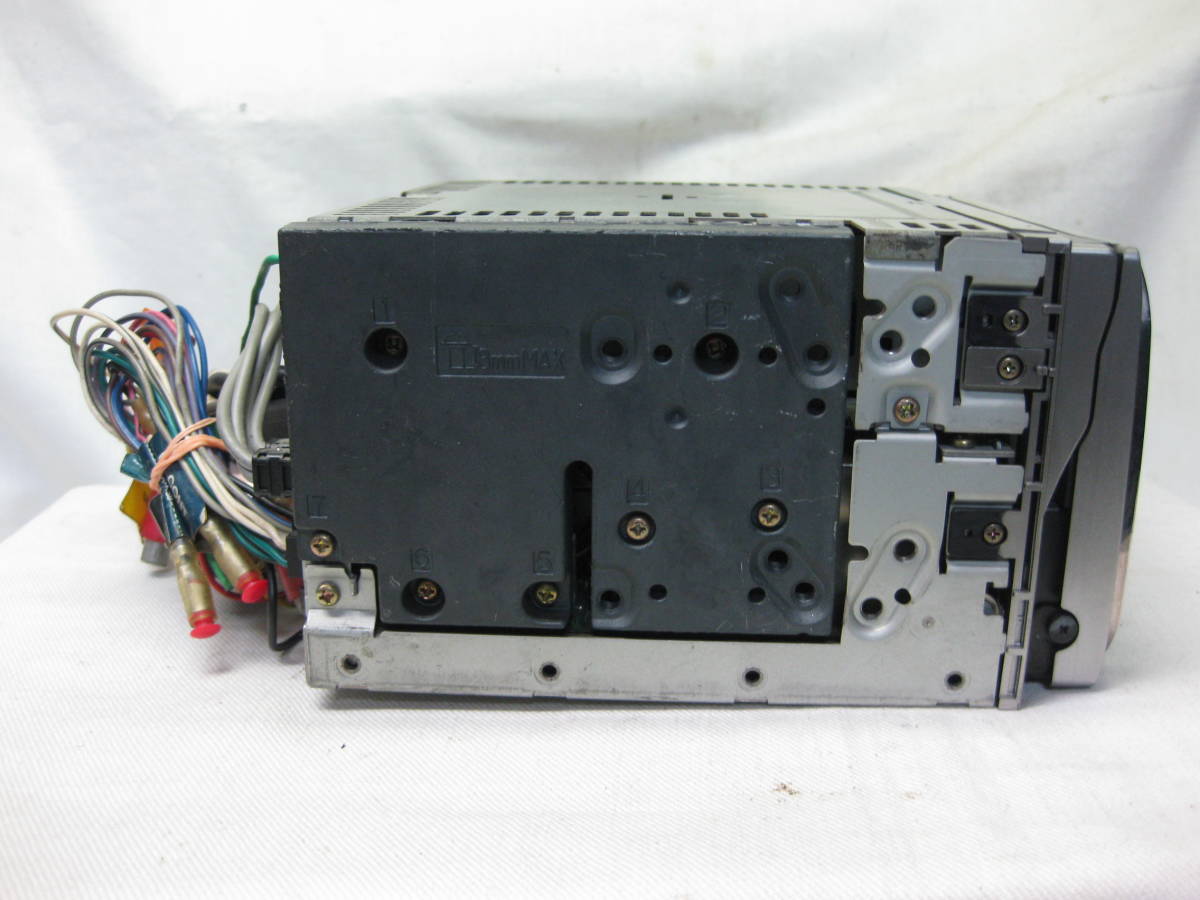

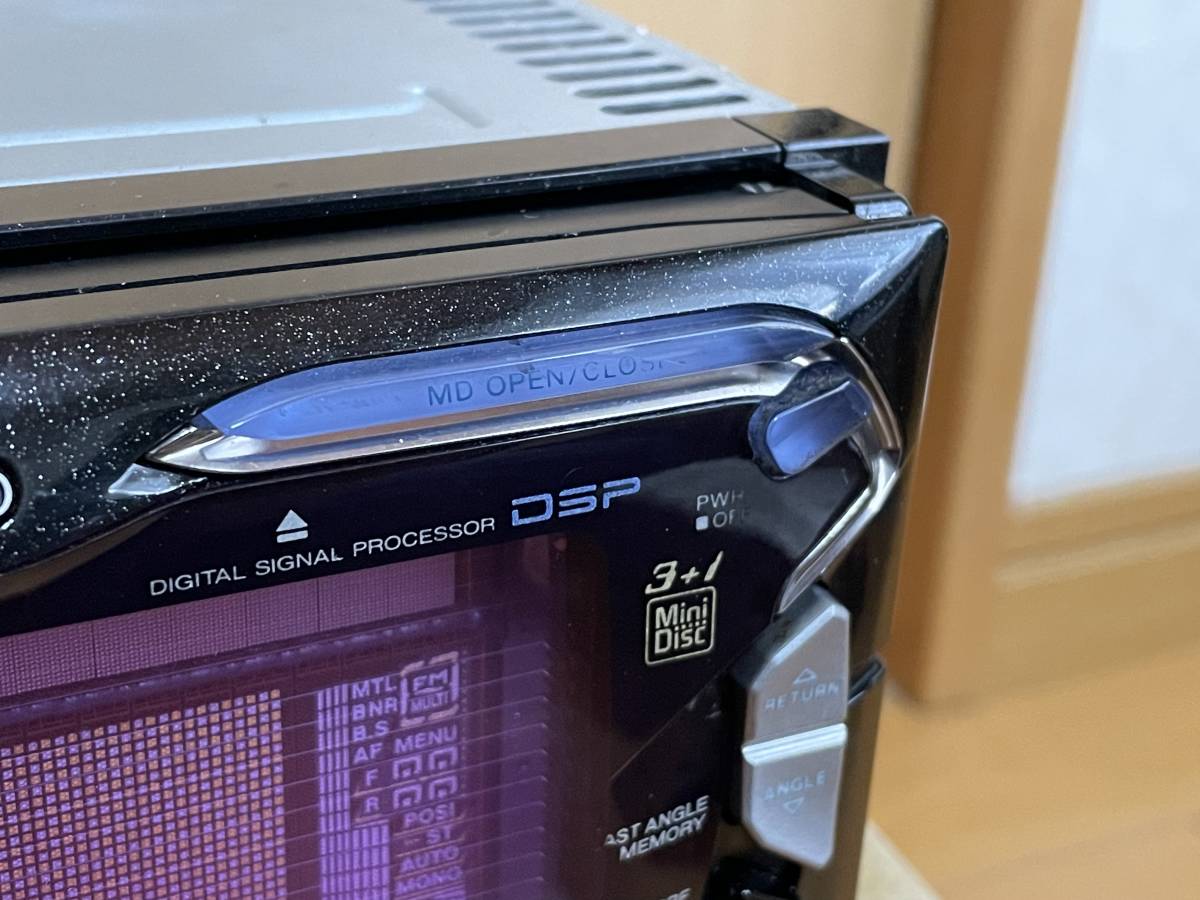

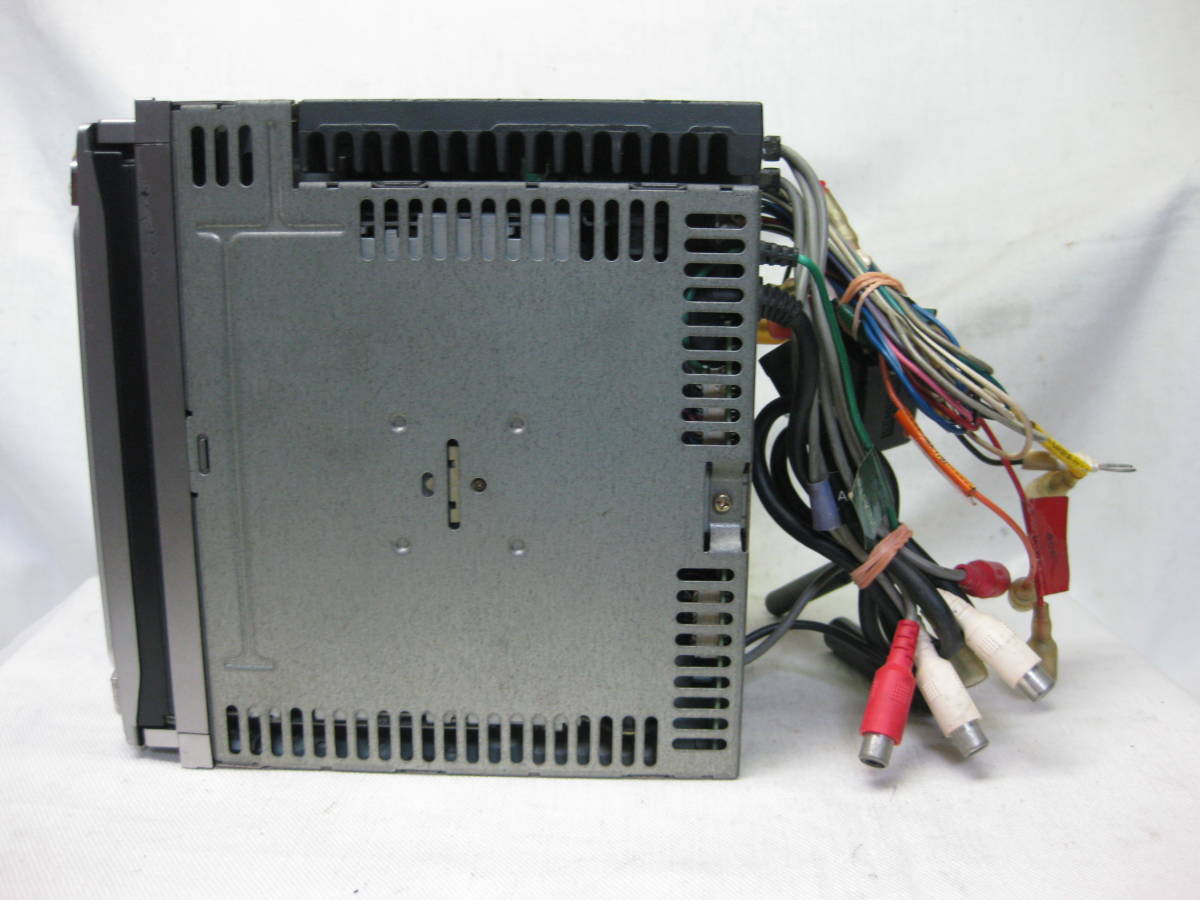

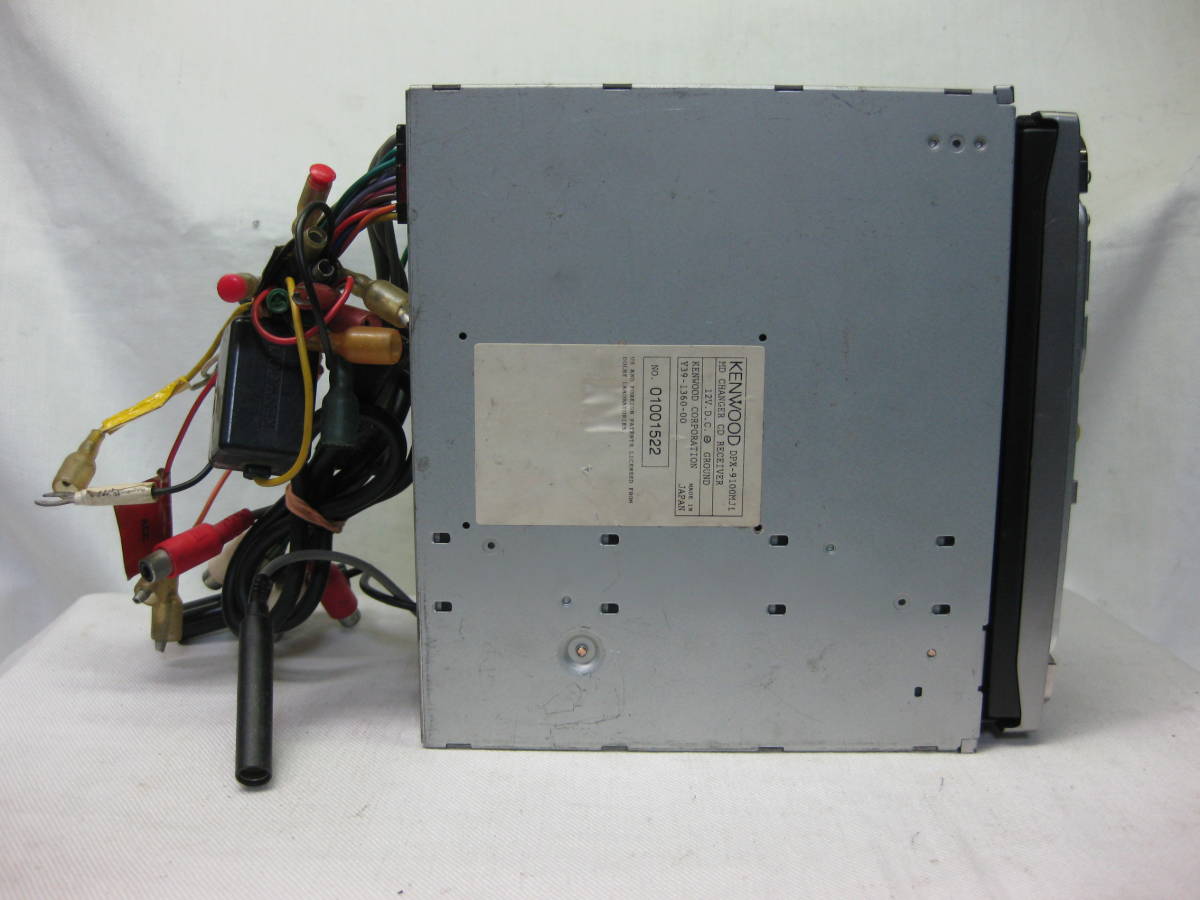

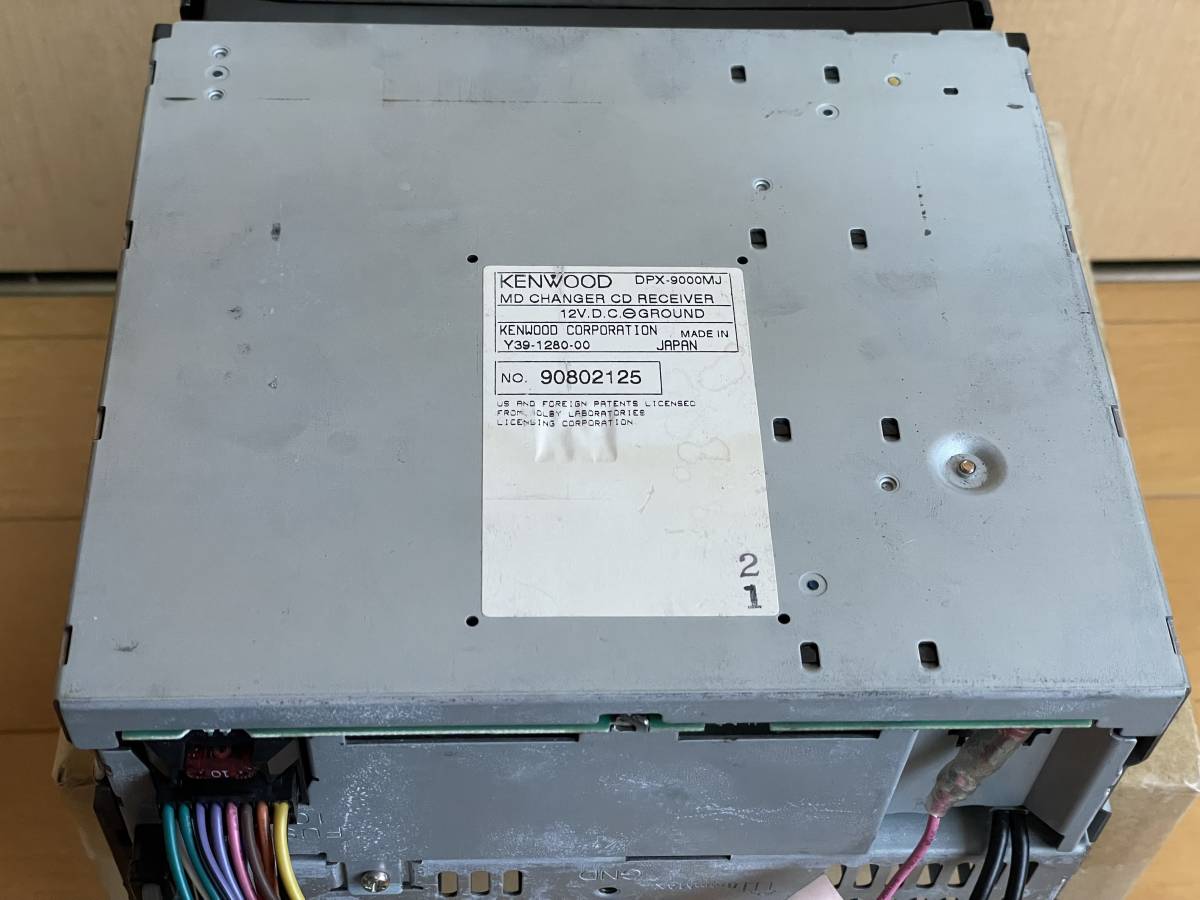

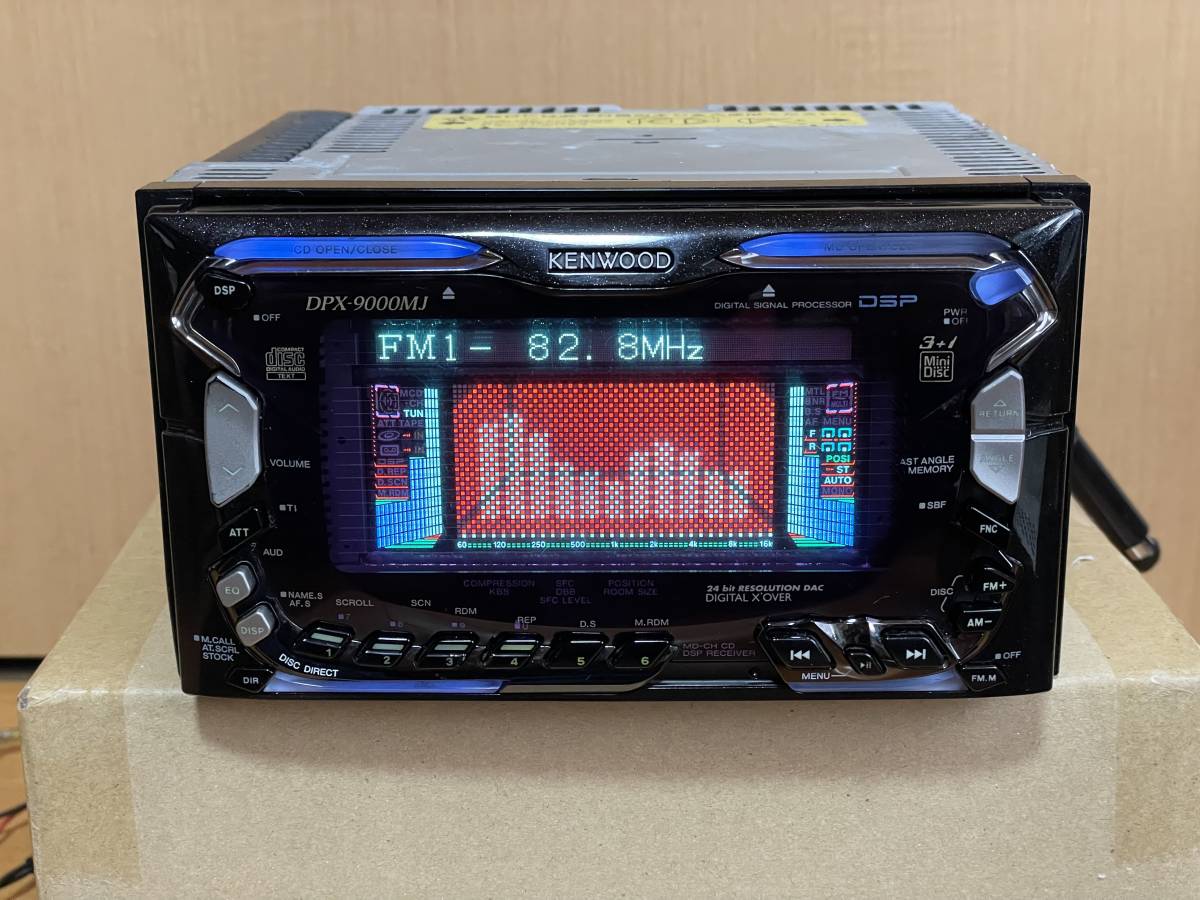

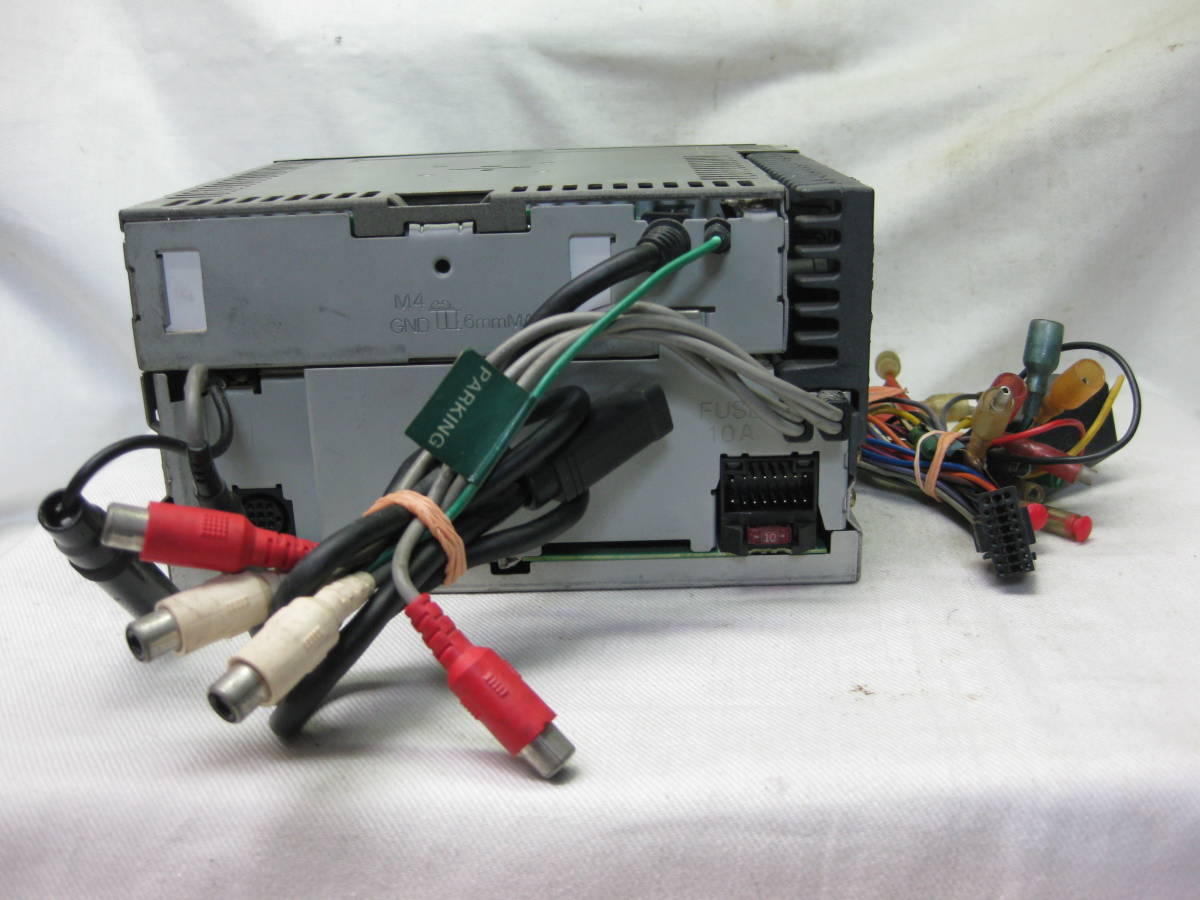

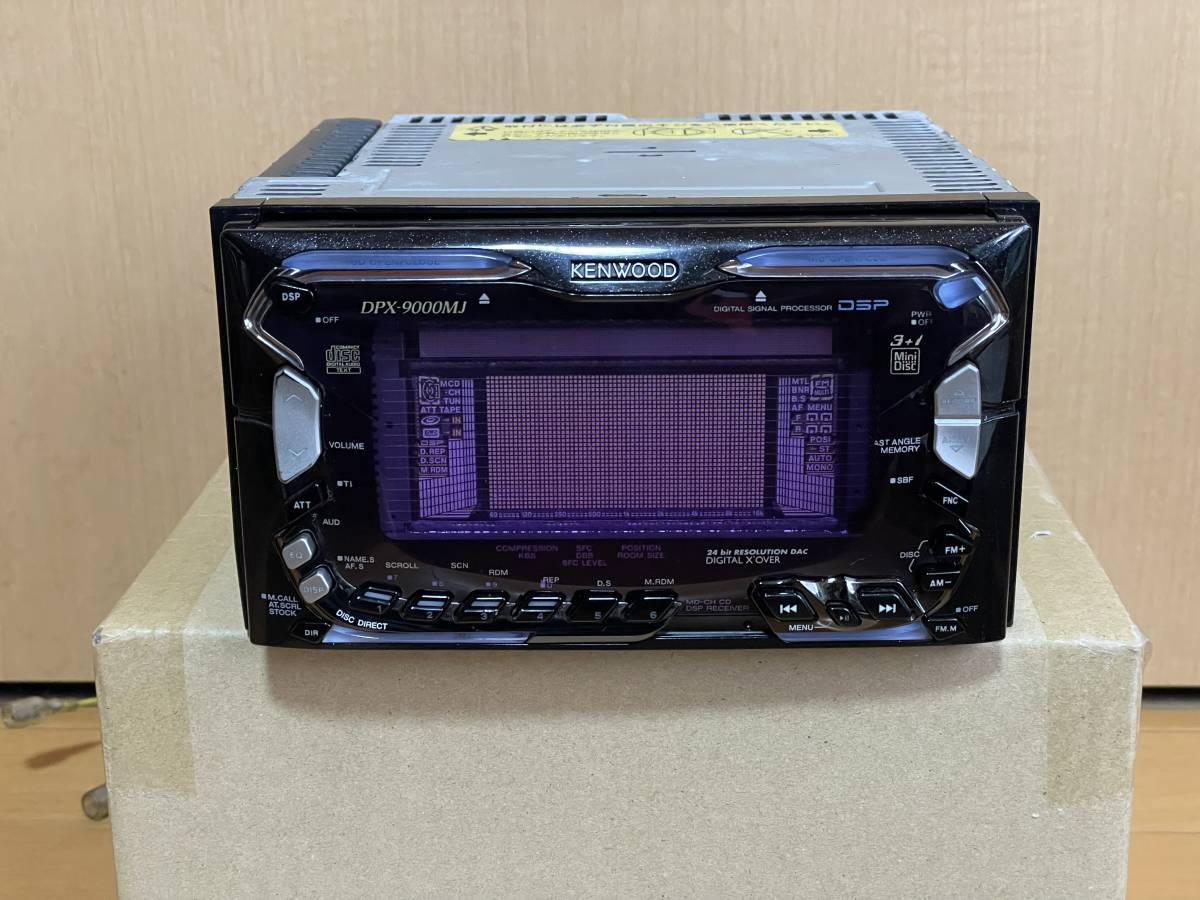

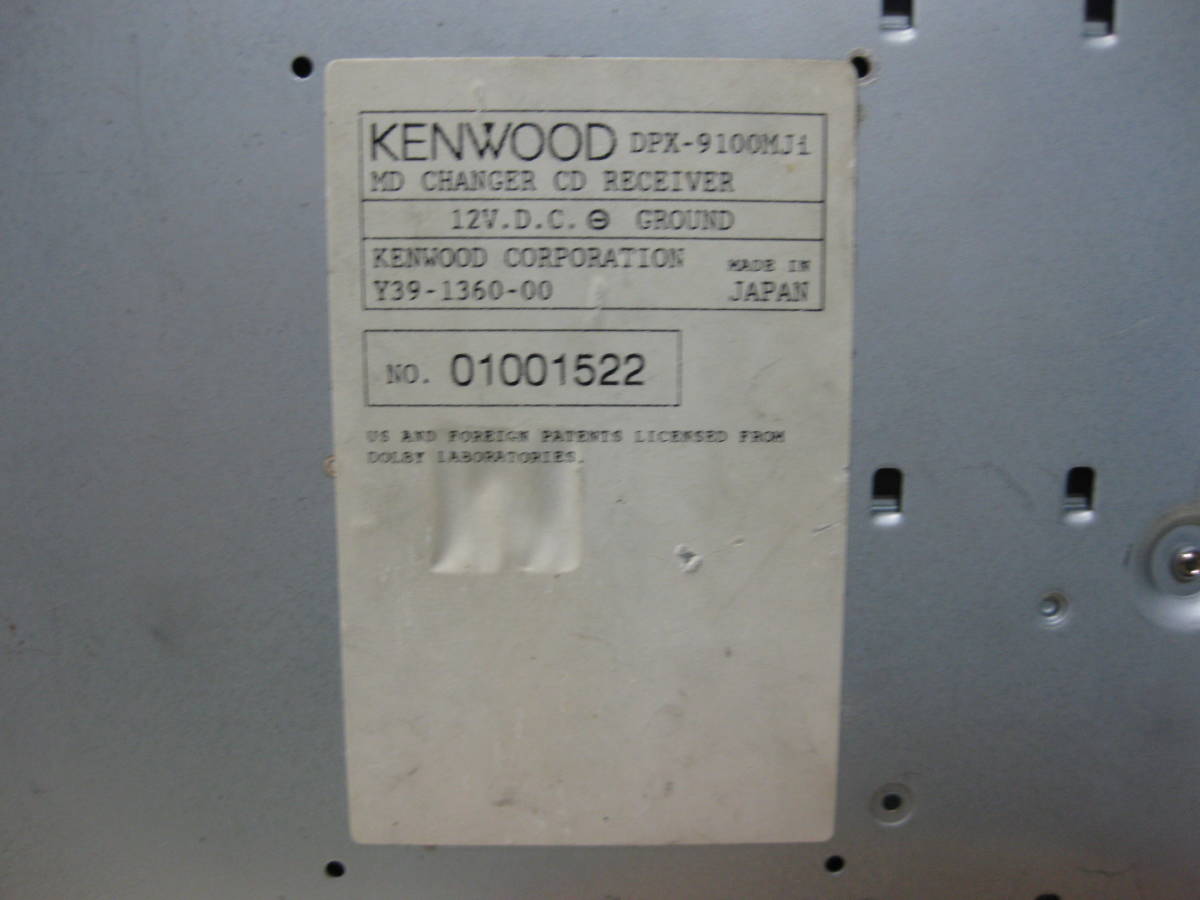

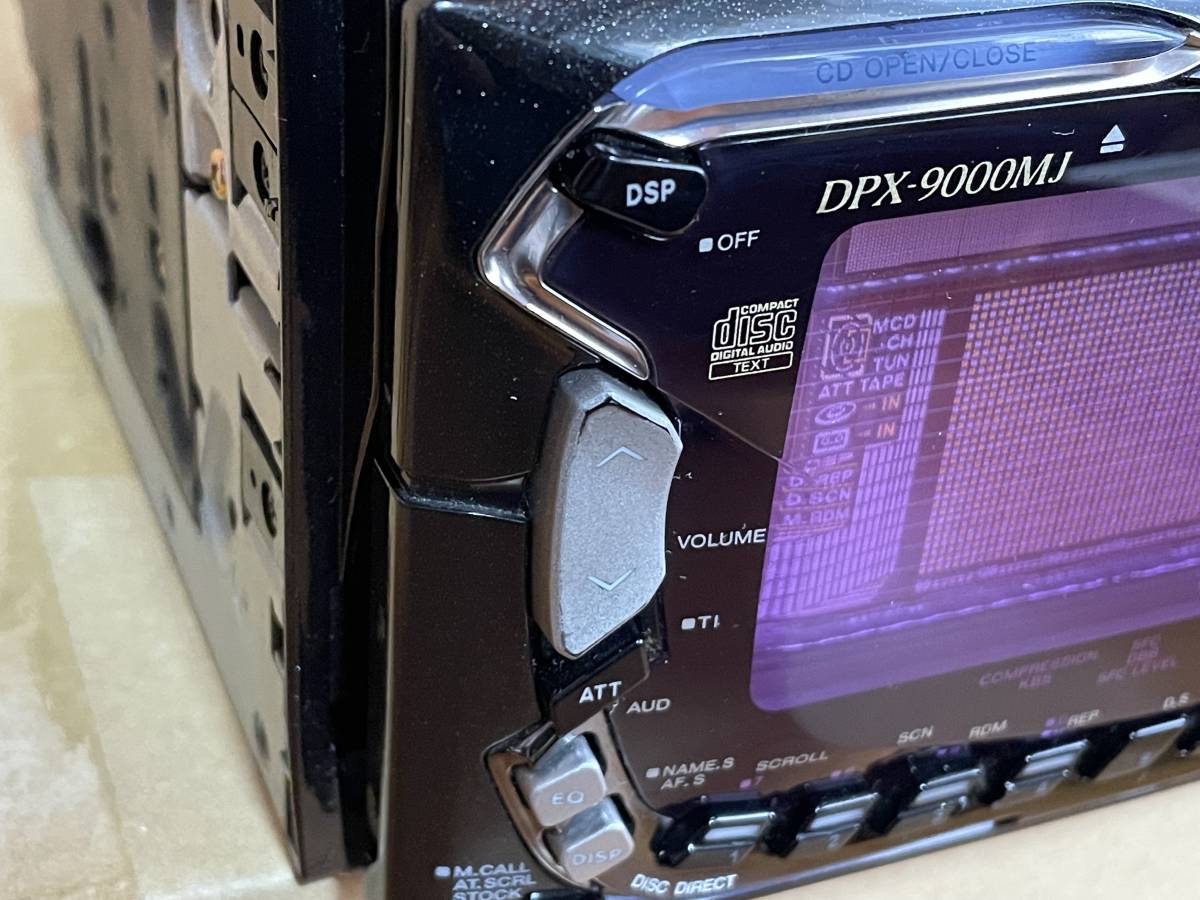

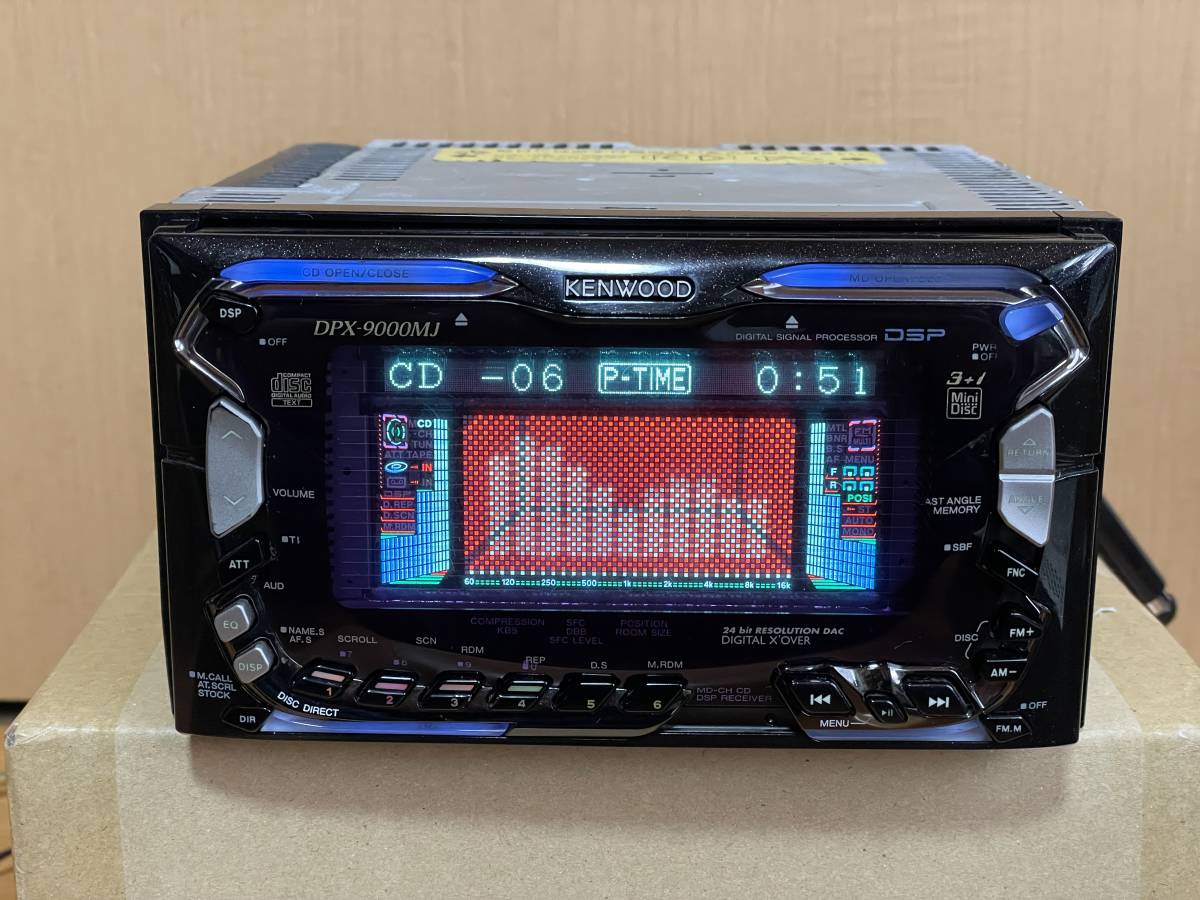

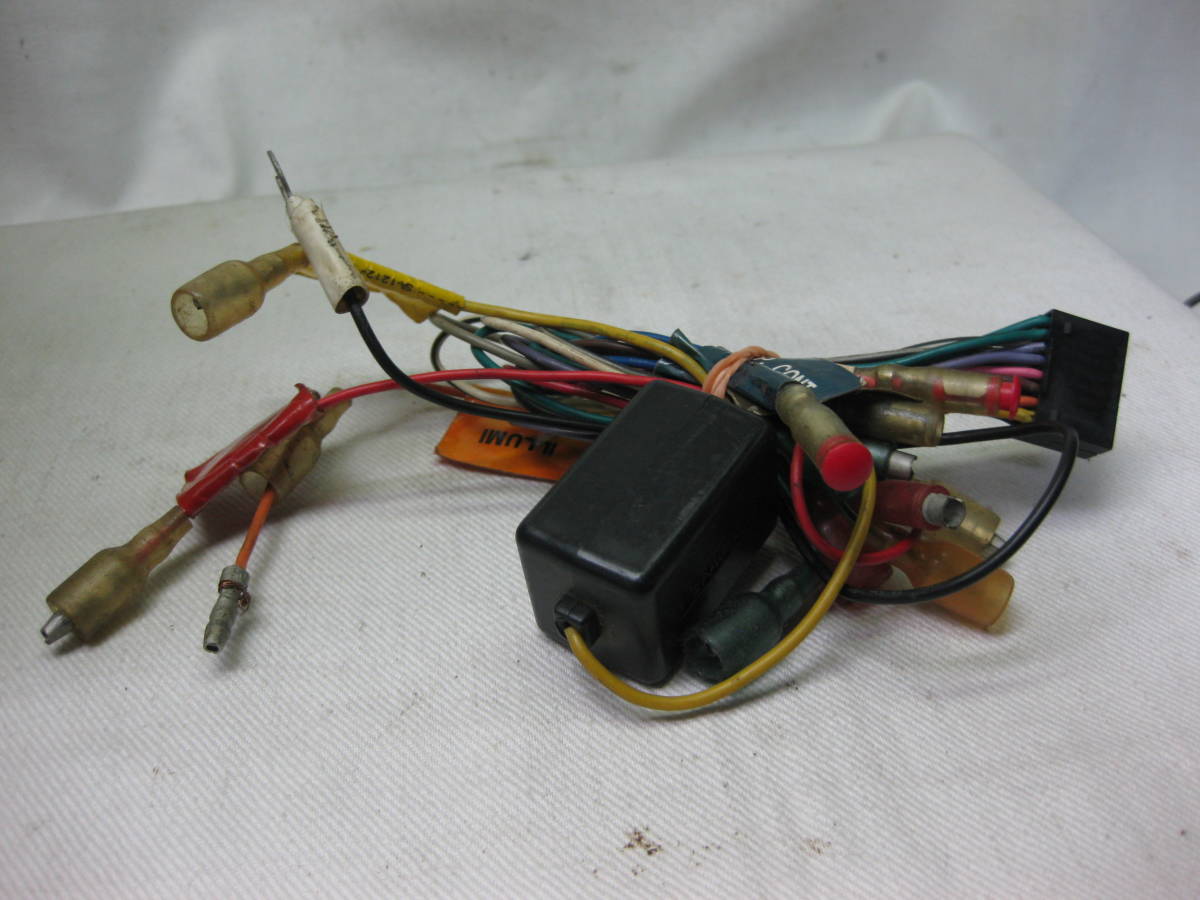

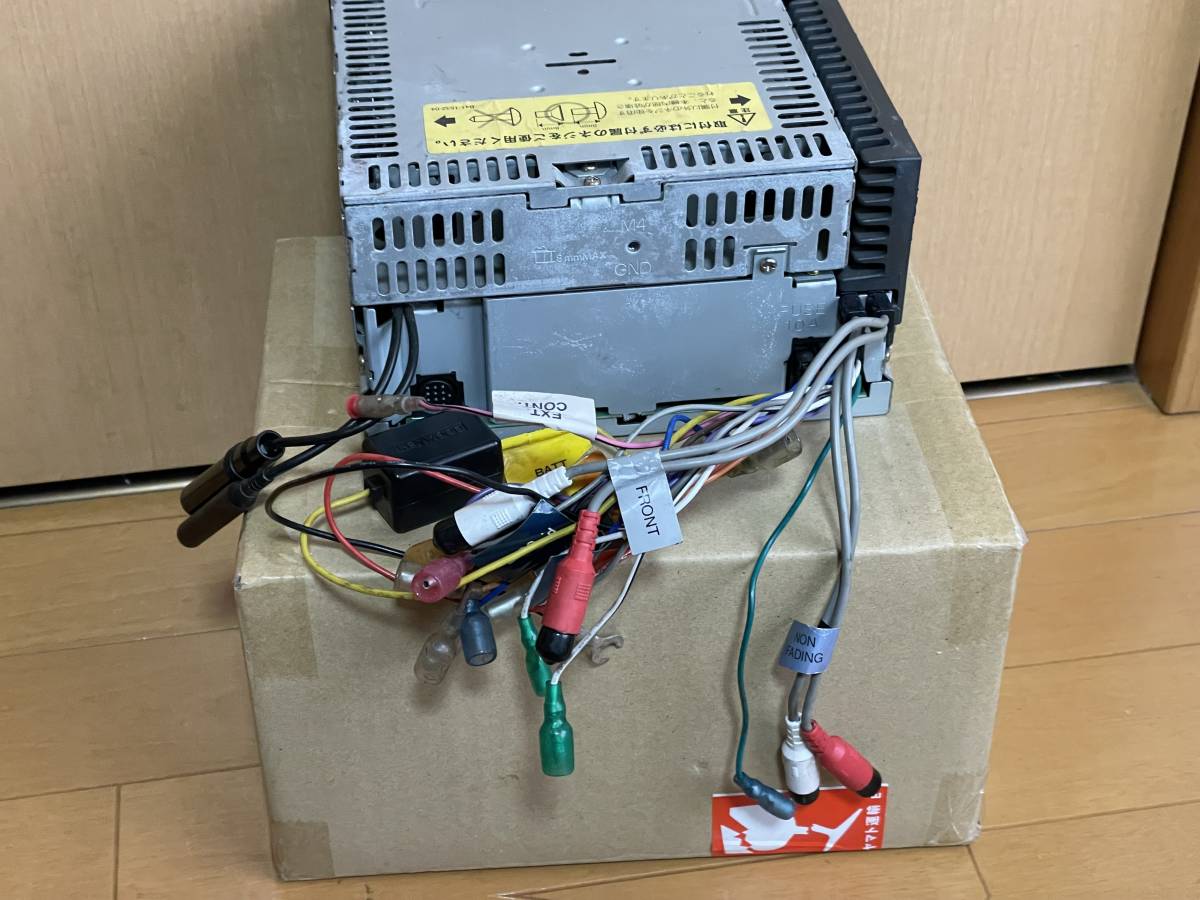

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | User manual |
|---|---|
| Region | Japan |
