| Name | f-MD07 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2004/01 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 178 × 50 × 160 mm |
| Weight | 1300 |
| ATRAC ver | 3 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥42 200 | |
| - | |
| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

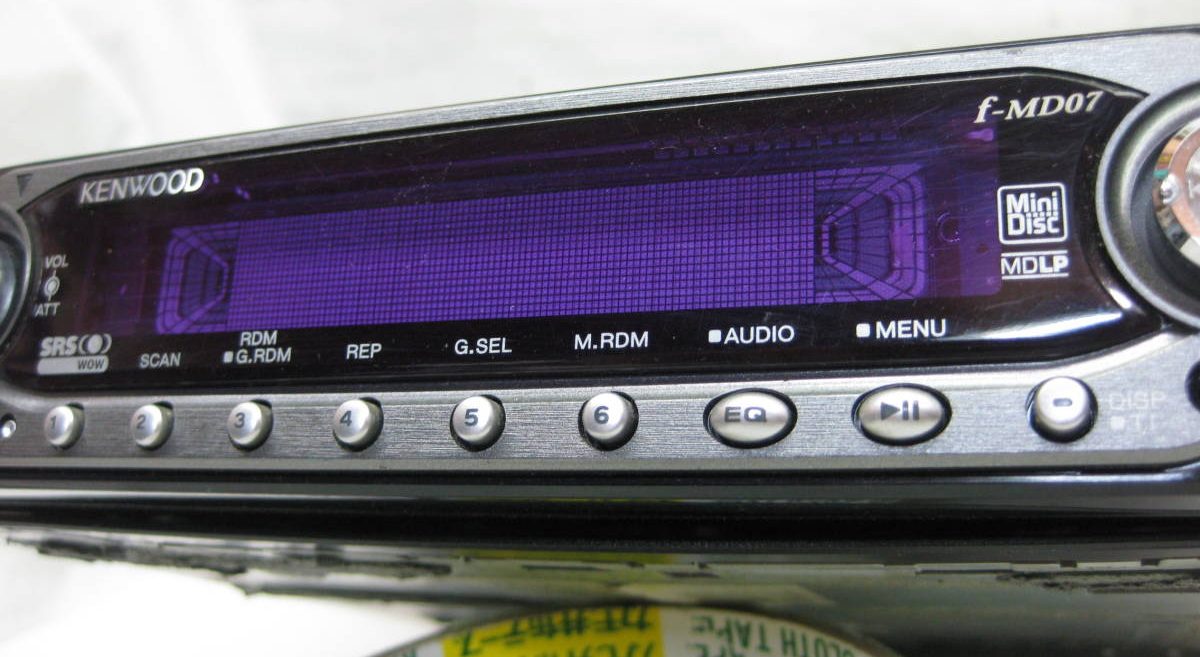

MDLP compatible MD receiver with electric facepannel slide mechanism. Latest release of the "fiass" single din head unit series. Kenwood had to adapt to the market and keep it more simple and affordable with the f-MD07. Being priced just over ¥40.000 it was the cheapest "fiass" MD head unit to be released. Equipped with a 13 pin terminal and an RCA Auxiliary Input.
[Main differences to previous fiass entries]
- Different design and volume/menu control knobs
- Electric facepannel slide mechanism
- No full screen Spectrum Analyzer options
- No Multi-color or OEL Display
[General features]
- MDLP compatible MD receiver
- High sound quality 24bit ATRAC MD
- Electronic Volume, Balance and Fader Audio Control
- Separate SW Level Control
- 3-Band EQ settings
- EASY DSP built-in
- Volume Offset settings
- Dimmer and Clock functions
- Detachable flip-down panel and Security functions
- 10key remote control included
[MD Department]
- Frequency response: 20Hz to 20kHz (±2dB)
- S/N ratio: 90dB (1kHz)
- Dynamic range: 80dB
- Stereo Separation: 85dB
[FM Department]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz step)
- Practical sensitivity: 9.3dBf (0.8μV/75 ohm)
- Frequency response: 30Hz to 15kHz (±3.0dB)
- Stereo Separation: 40dB (1kHz)
[AM Department]
- Receiving frequency range: 522kHz to 1629kHz (9kHz step)
- Sensitivity 25dBμ
[Audio Department]
- Maximum power: 50W×4
- Rated power: 30W×4 (4 ohm, 1kHz, 10% THD)
- Pre-out level: 2.0V (MD/10k ohm)
[Gen 4 Sister Models]
- KMD-6527: EU MD version
- f-CD07: Japanese CD version
- f-CD05/f-CD05S: Japanese CD version (no RCA-In)
- KDC-W6527/W6527SE: EU CD version
- KDC-W657: EU CD version (no RCA-In)
Content adapted from: Kenwood Press Release av.watch home.d04.itscom.net/ticea/ Kenwood Manual search
Manuals
Repair

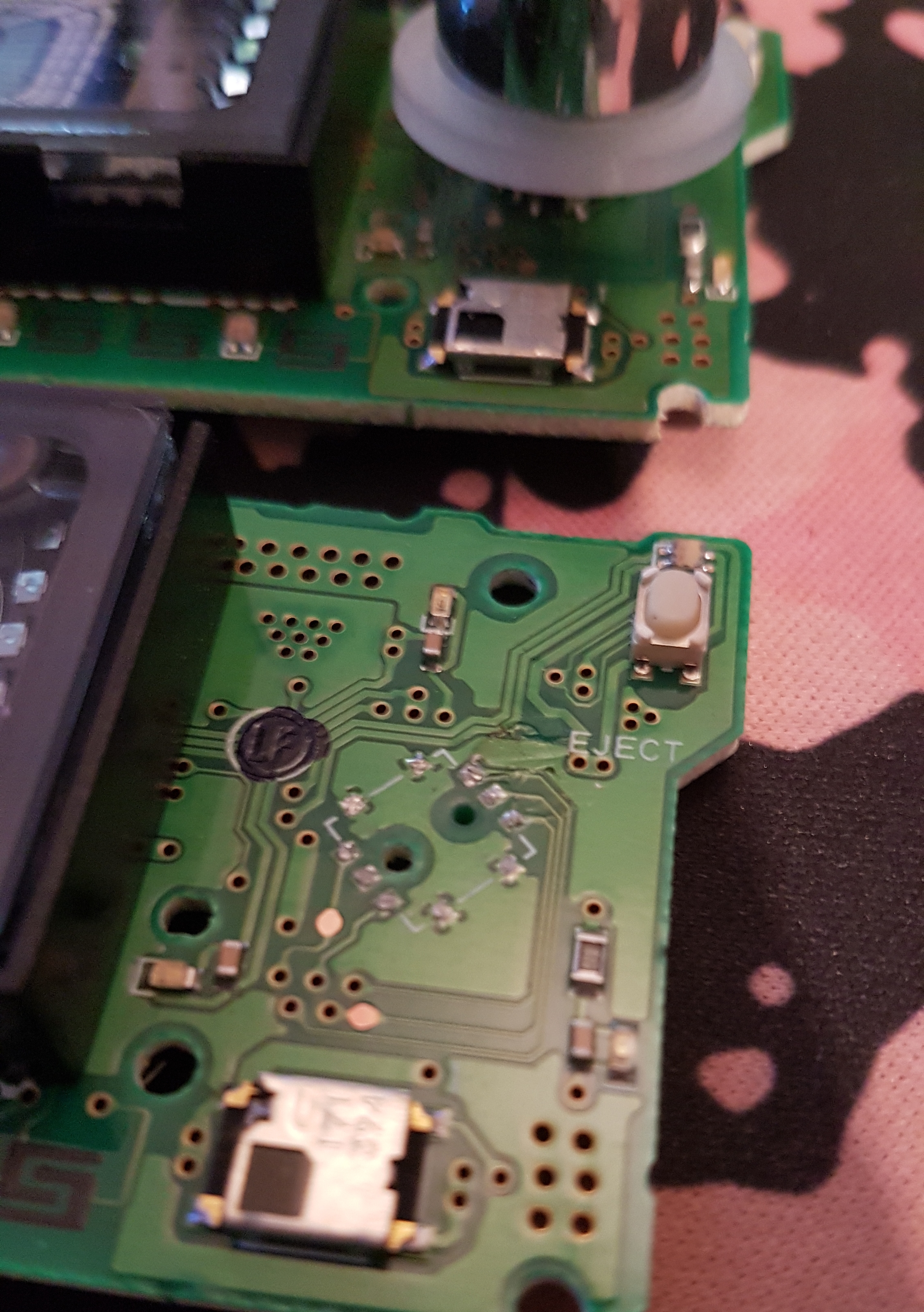

On some more worn units, the rightside control stick needs to be reflown to the faceplate PCB. Picture can be seen in the Photos section.
The faceplate PCBs are interchangeable between all fiass Gen 4 entries. Only the options the unit was designed for will show up in the menu settings. Example: When putting the PCB of a f-CD05 into a f-MD07, the Aux-in settings won't show up.
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
