| Name | K-WD01 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2004/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178W x 100H x 155Dmm |
| Weight | 2100 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥85 000 | |
| - | |
| Inputs | CD |
| Outputs | Not recorded |
| Control | Not recorded |

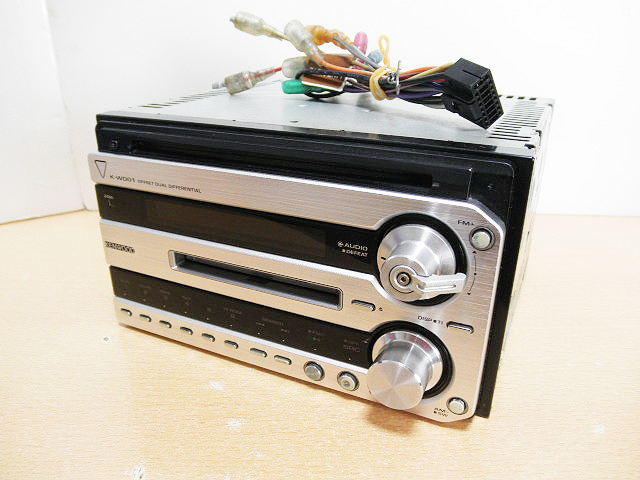

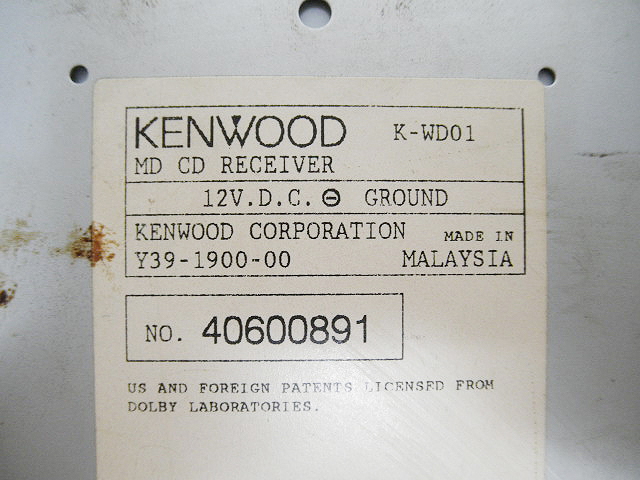

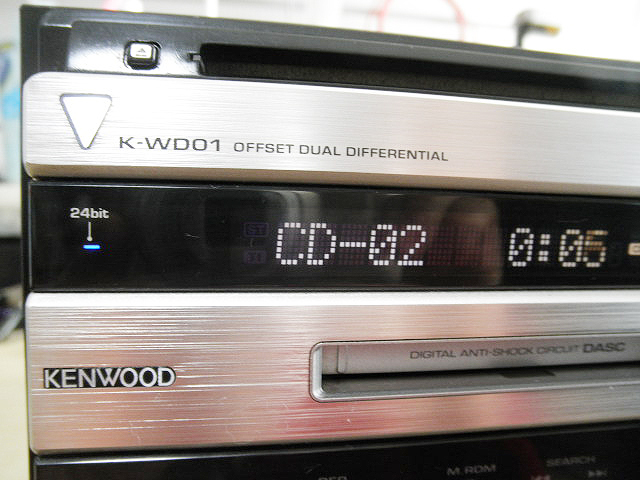

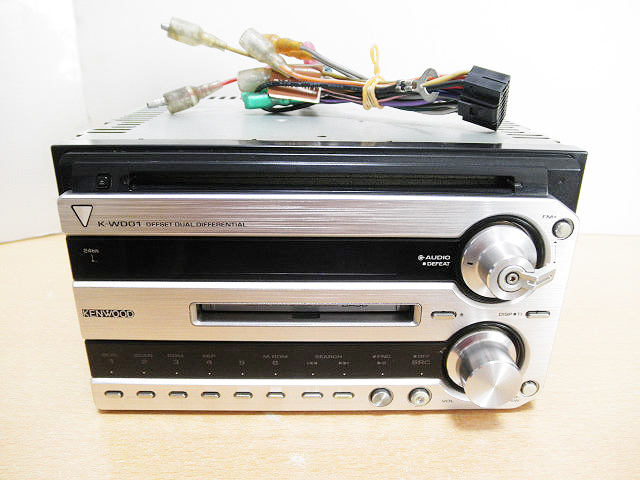

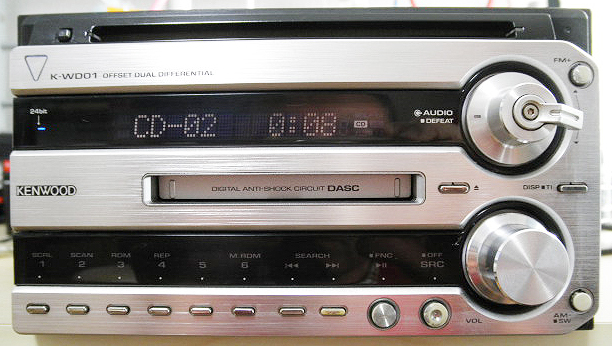

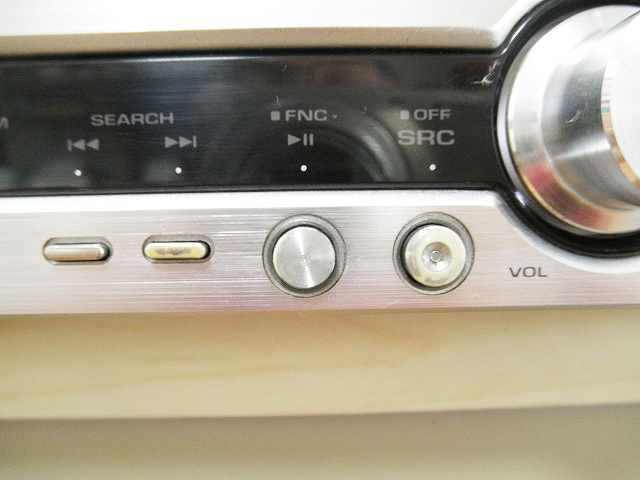

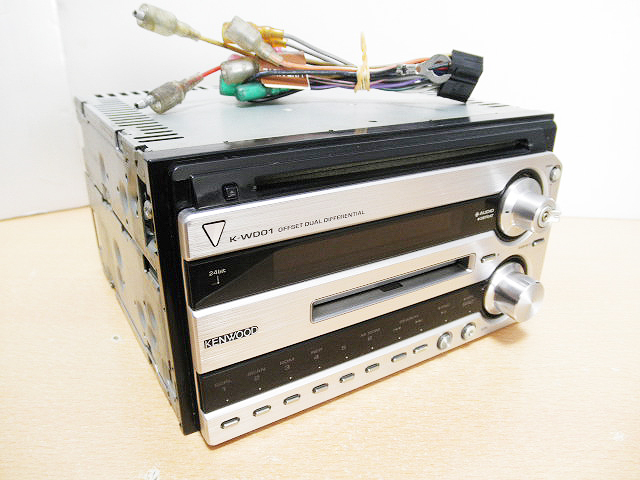

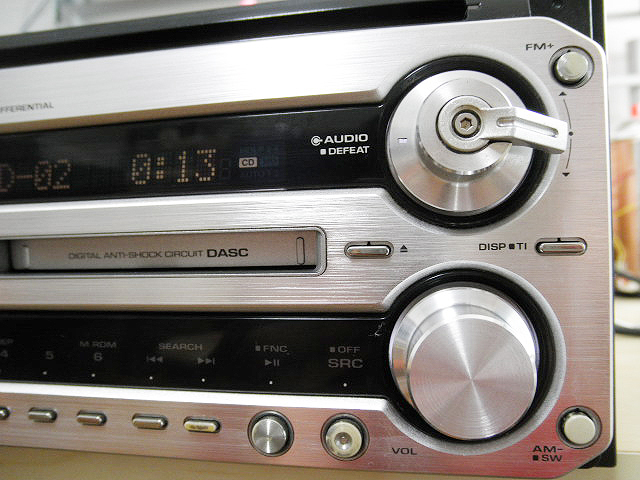

KENWOOD K-WD01
MD part Frequency characteristic
- 20Hz to 20kHz (± 1dB)
- S / N ratio 95dB (1kHz)
- Dynamic range 90dB
- Stereo separation 90dB
Audio part
- Maximum output 40W x 4
- Rated output 26W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level 1.8V (FM / 10kΩ)
- Pre-out details Front LR, rear LR, subwoofer LR
Content adapted from: Kenwood's site Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | User manual |
| Region | Japan |
