| Name | M707 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1998/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 1-Din 178W x 50H x 160Dmm |
| Weight | 1700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥67 000 | |
| - | |
| Inputs | Not recorded |
| Outputs | RCA out |
| Control | Not recorded |

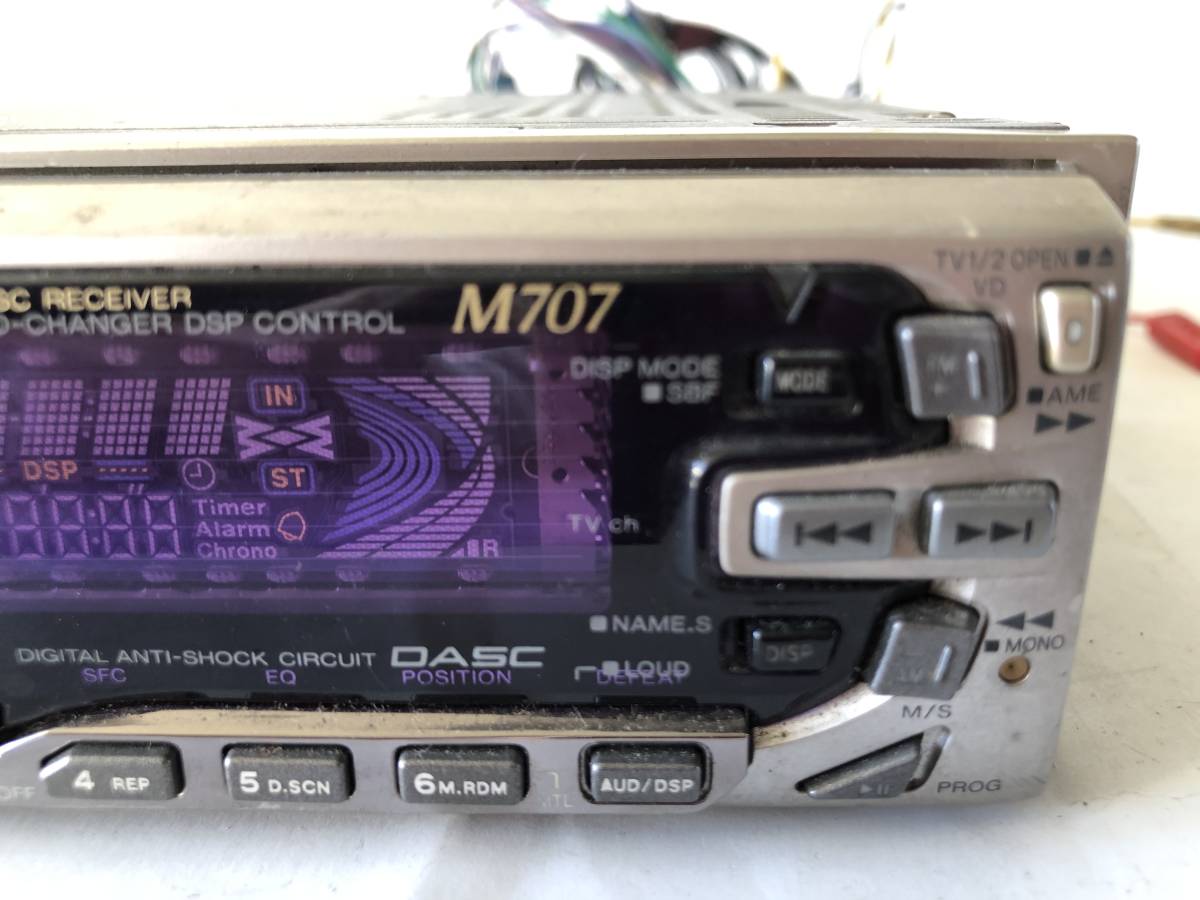

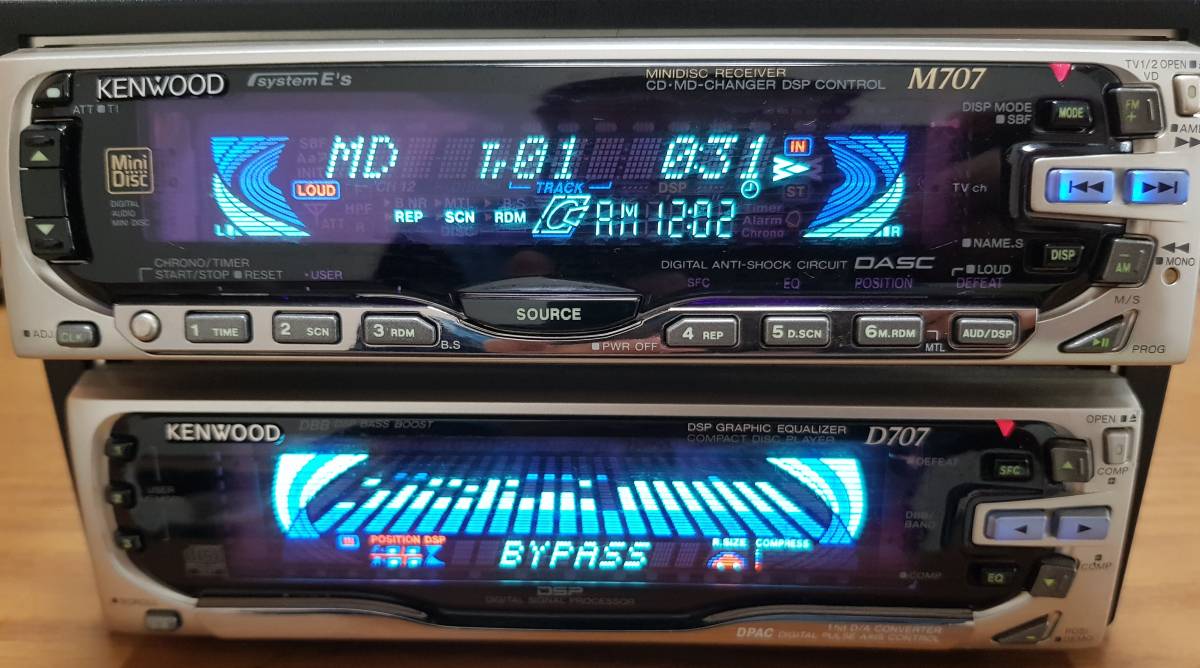

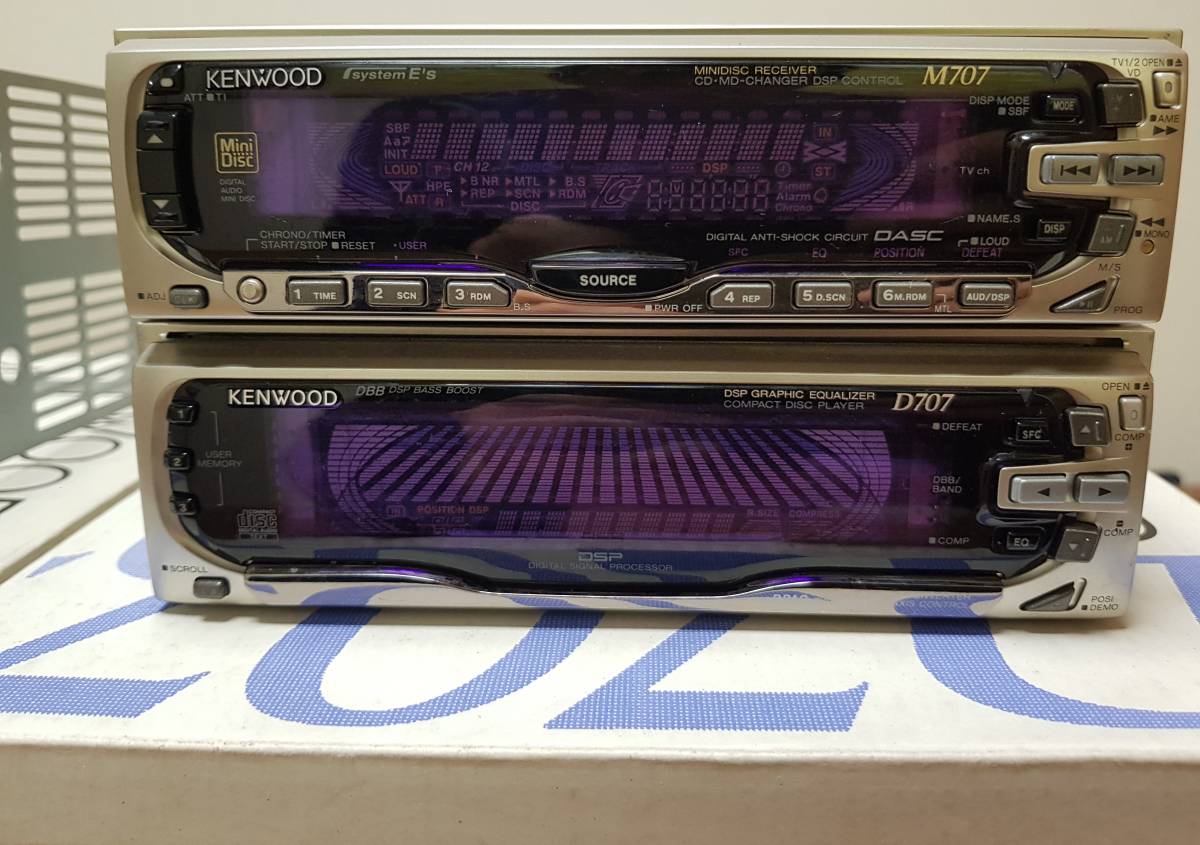

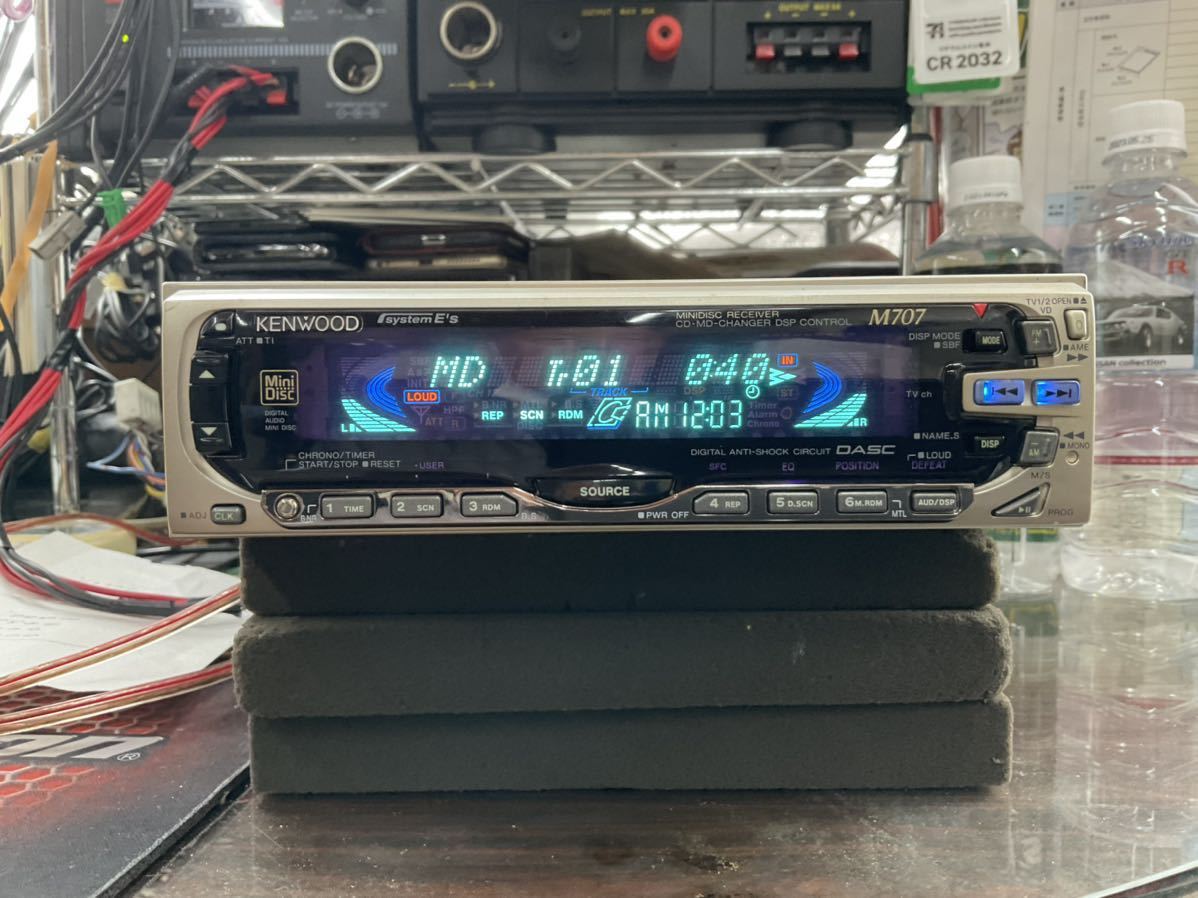

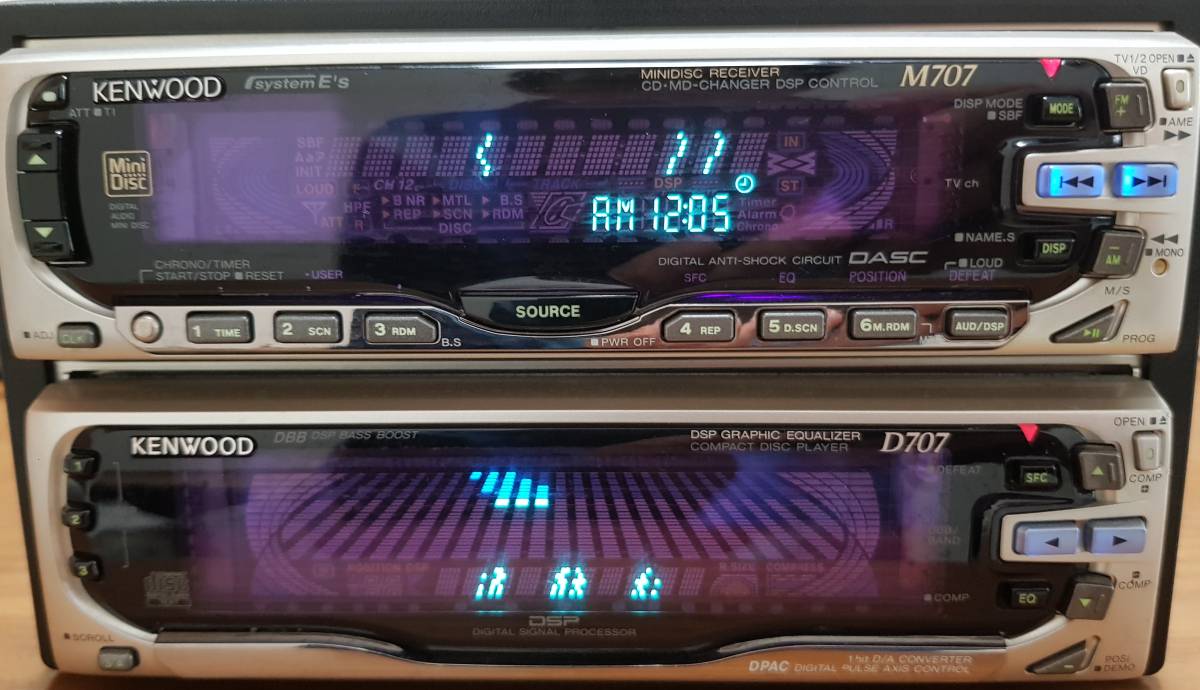

The M707 is part of the 1998 "707" Head Unit series by Kenwood. Kenwood upgraded the M505 with a motorized faceplate, better button layout/durability and new visuals. Compatible DSP units from the same series are the X707 and the D707. These units allowed for more visuals, different DSP presets, 11 Band EQ settings and additional Cassette or Compact Disc playback.

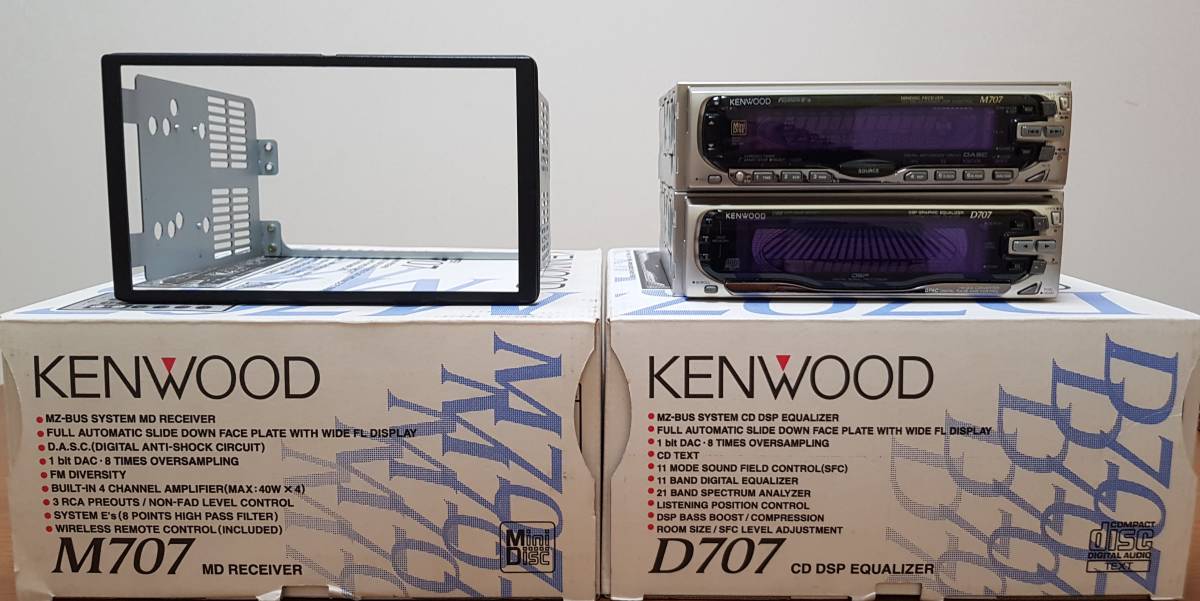

- MZ-Bus System MD Receiver

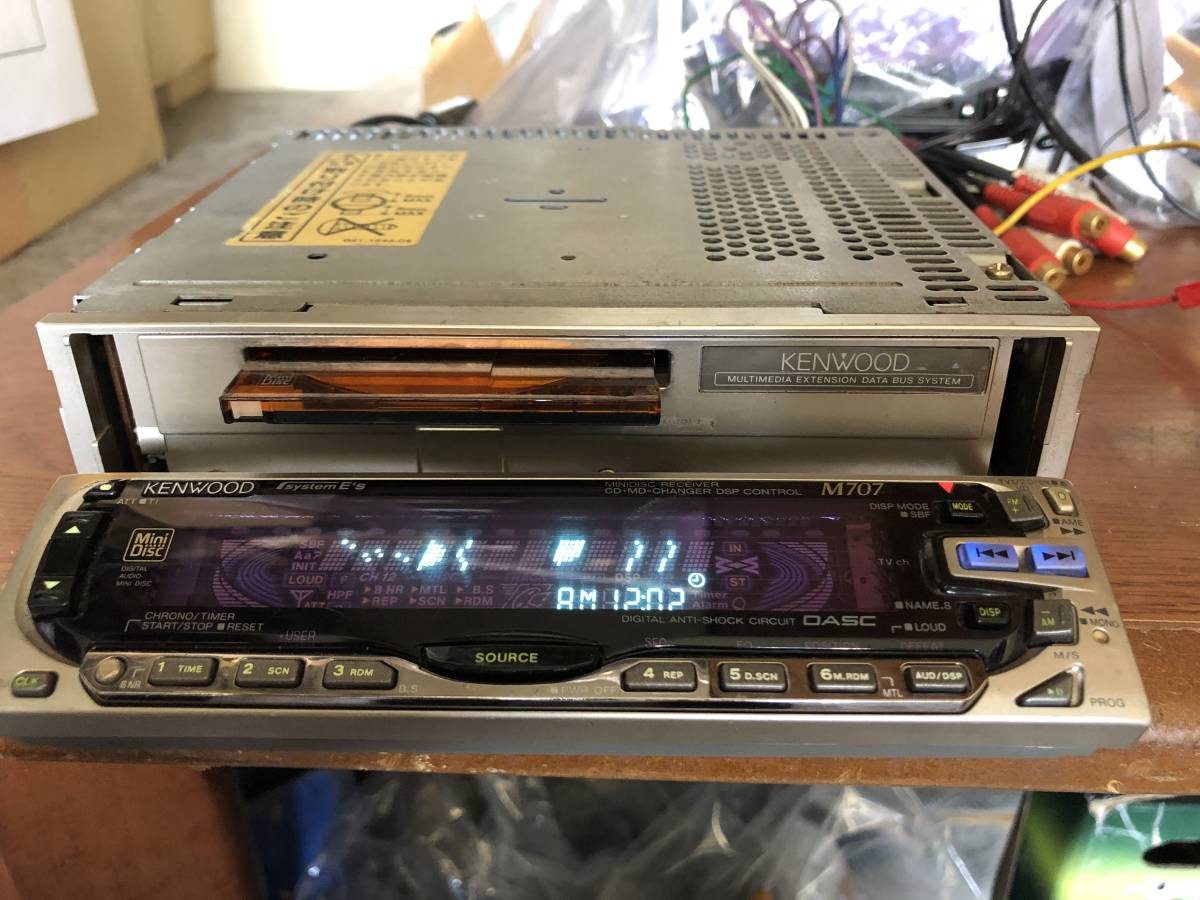

- Full Automatic Slide Down Face Plate with FL Display
- D.A.S.C. (Digital Anti-Shock Circuit)
- 1 bit DAC · 9 Times Oversampling
- FM Diversity
- Build-In 4 Channel Amplification (MAX:40Wx4)
- 3 RCA Preouts / Non-Fad Level Control
- System E's (8 Points High Pass Filter)
- Wireless Remote Control (Included)
A full list of the units released within the "707" series and more information can be looked at in the links below ↓
Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror) Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Spec Page Spec Page (MiniDisc Wiki mirror)
