| Name | M909 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1999/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-DIN 178 (W) x 50 (H) x 160 (D) mm |
| Weight | 1500 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |
| Inputs | Not recorded |
| Outputs | Not recorded |
| Control | Not recorded |

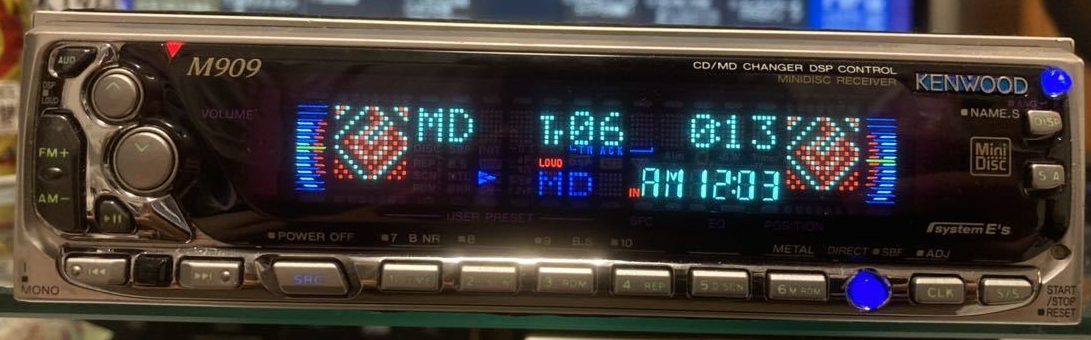

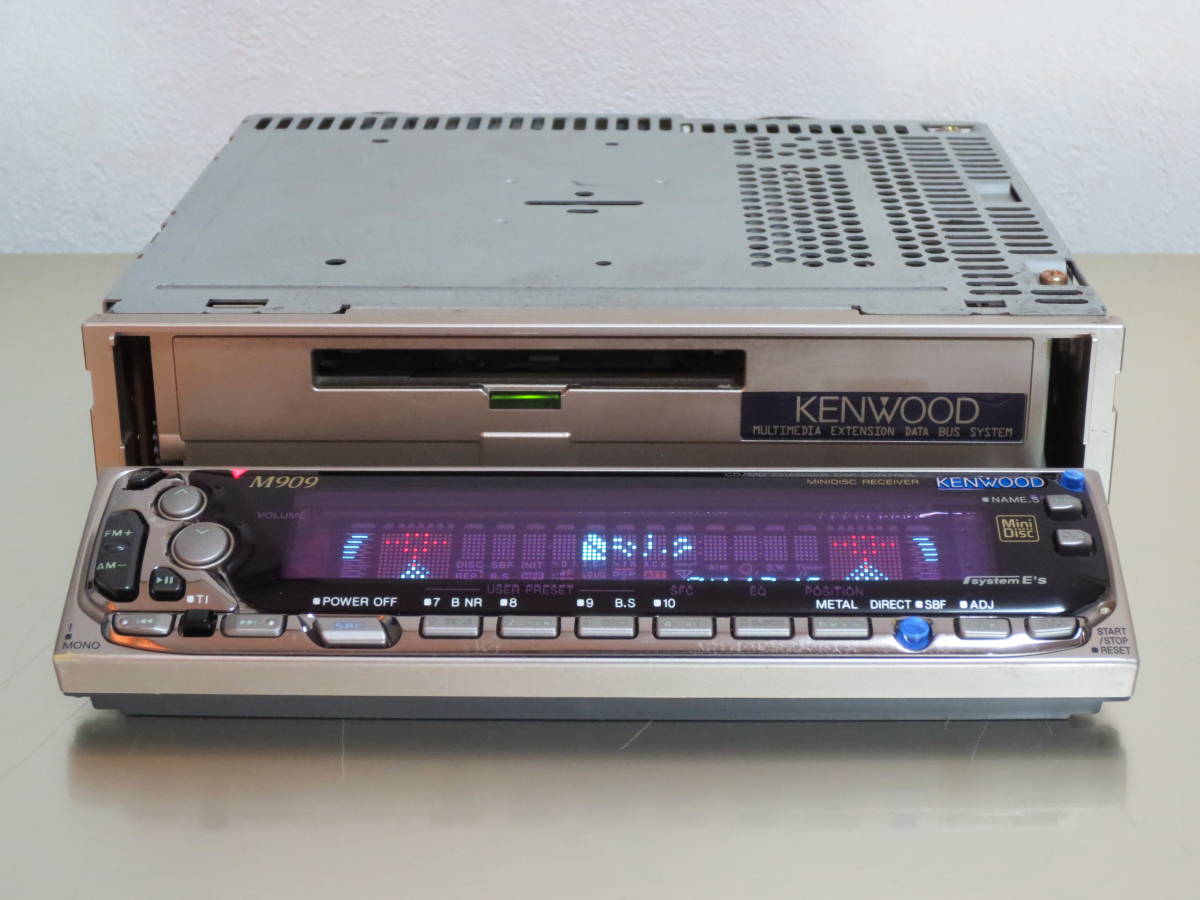

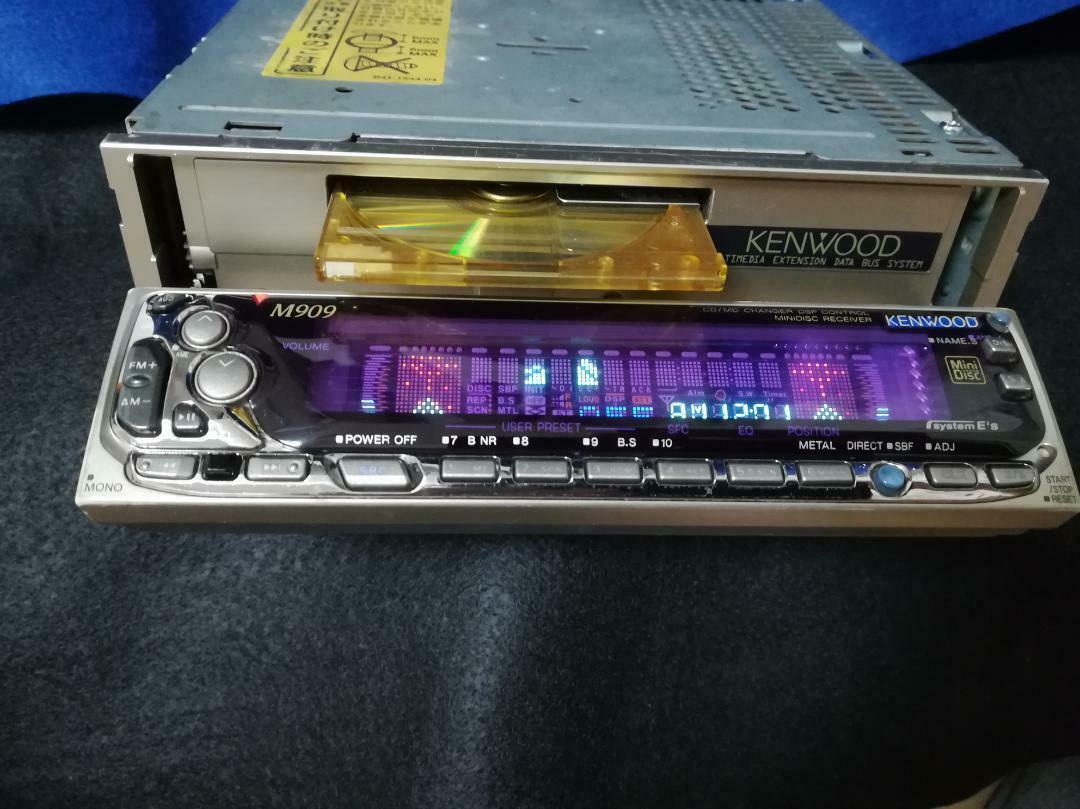

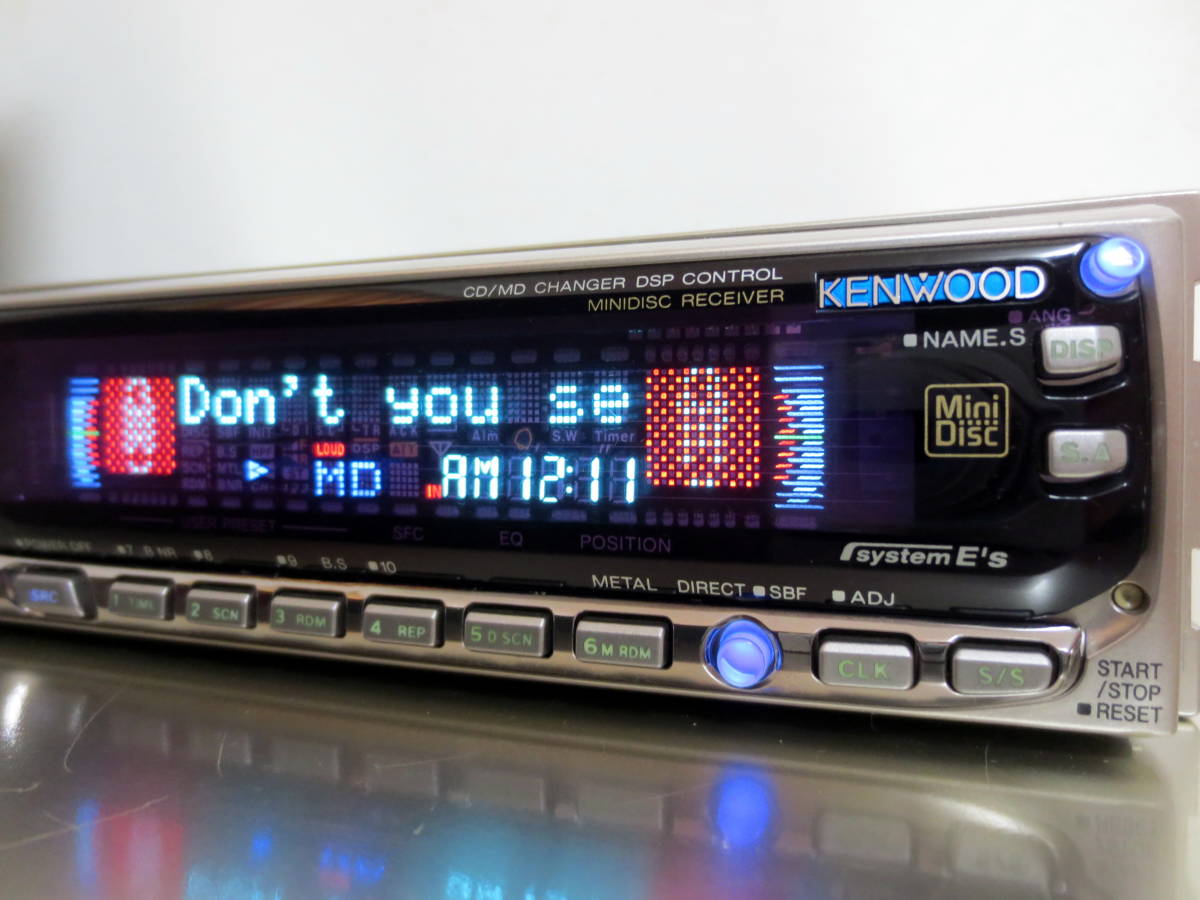

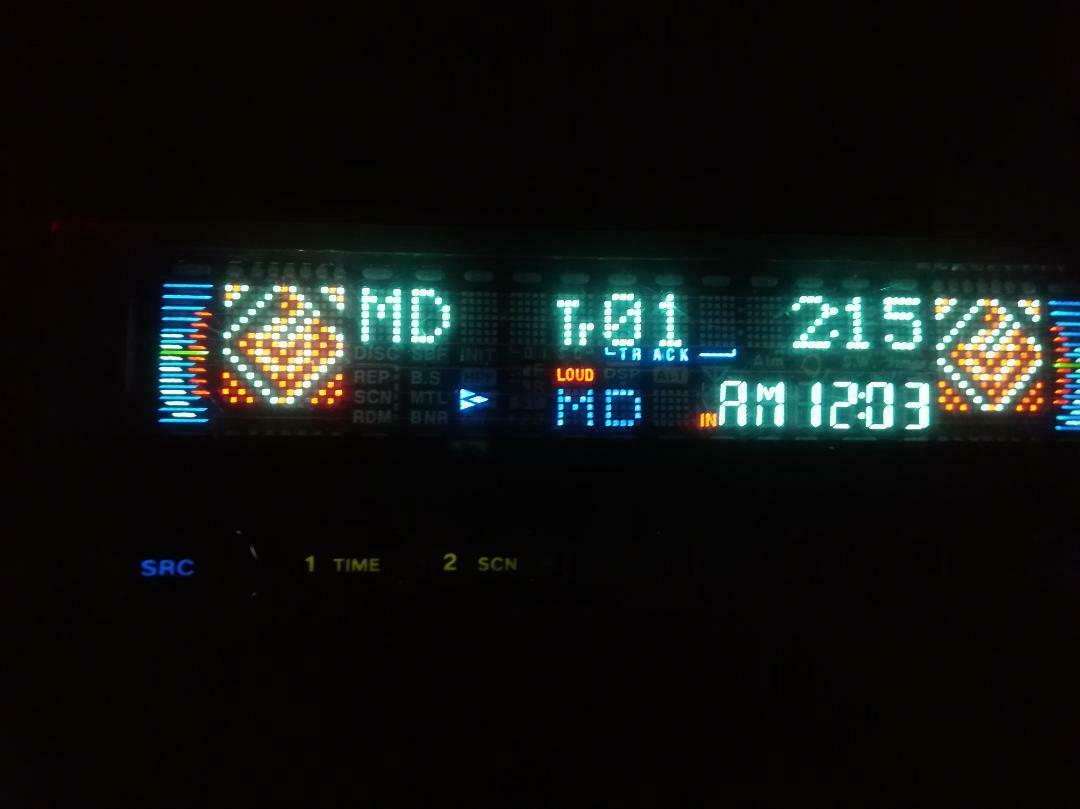

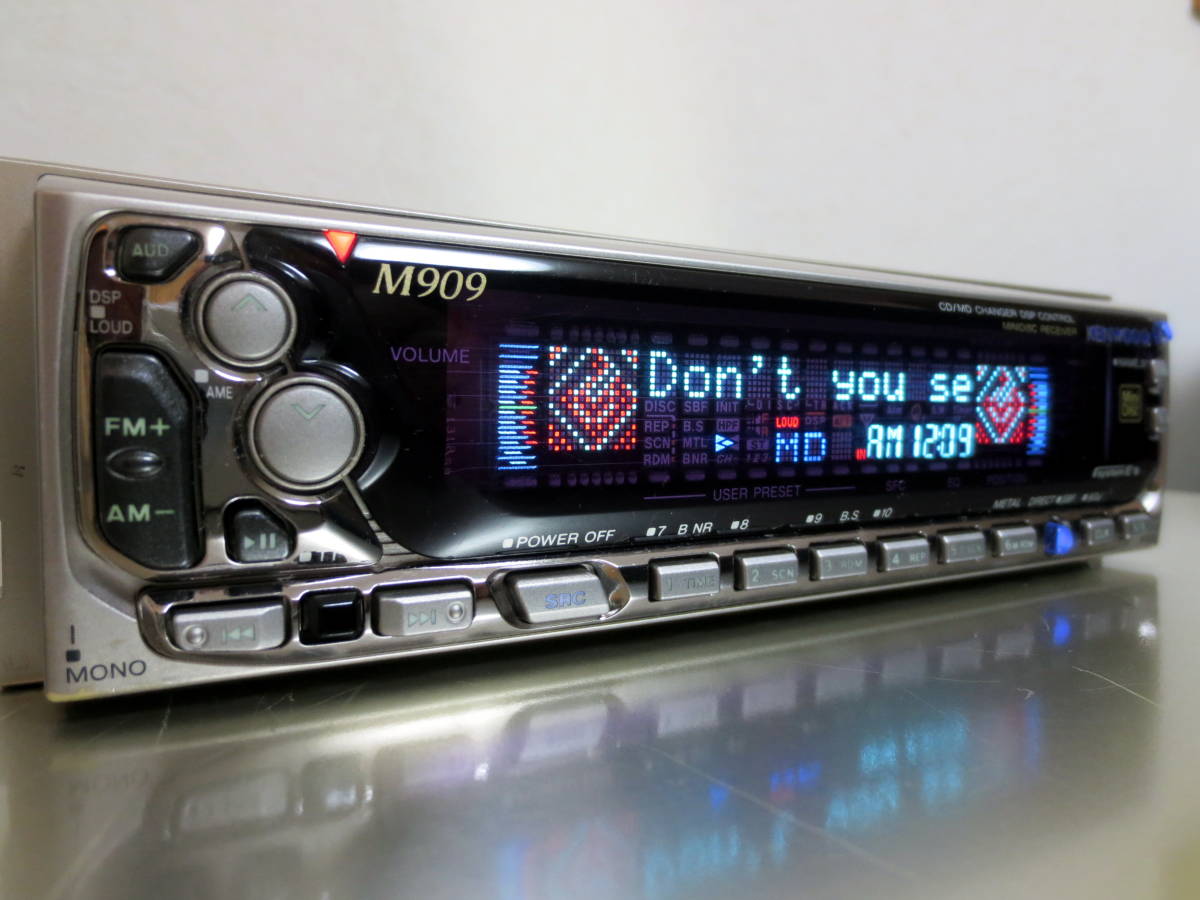

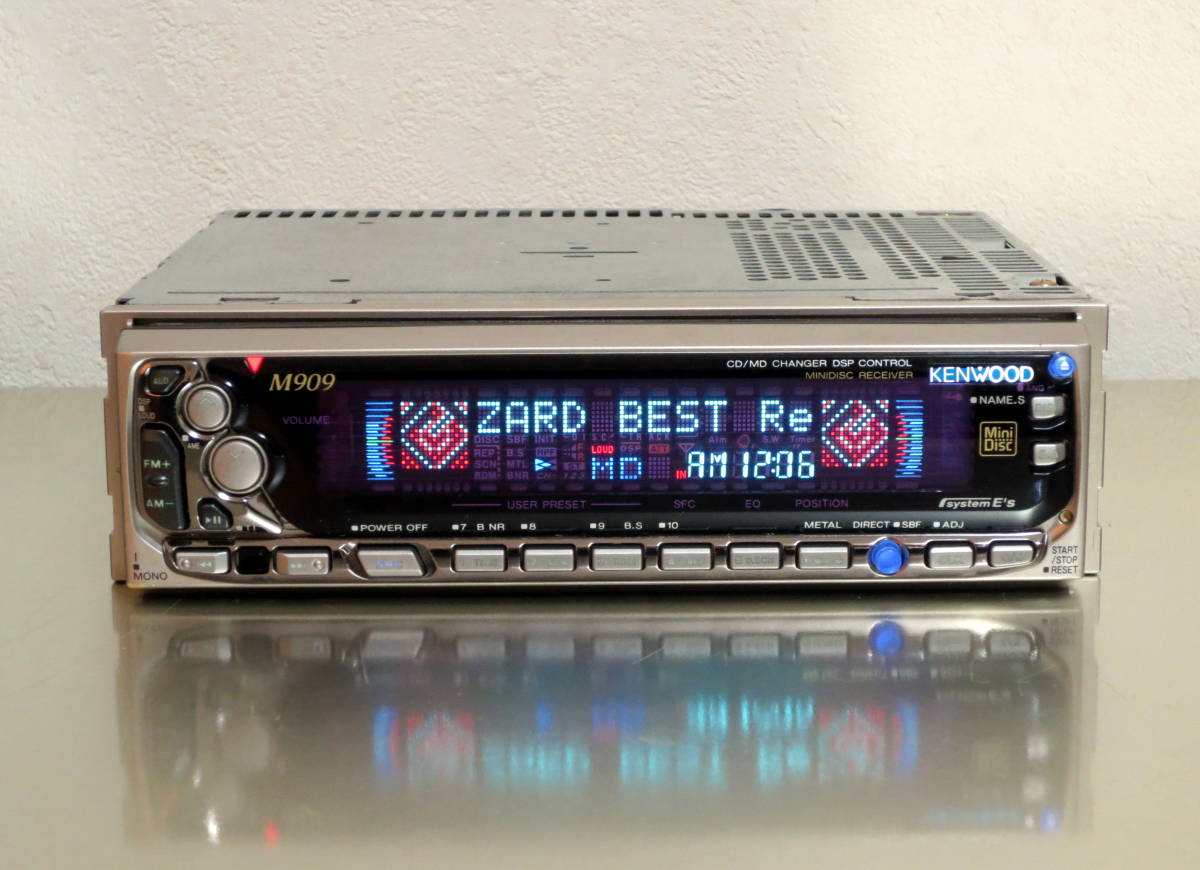

This is an MD receiver that uses the popular electric fully automatic slide panel system for 2DIN components. Equipped with a hybrid IC "System E's" that reduces sound distortion in an ultra-high power amplifier of 44W x 4ch. The display uses a 15 x 15 dot display section to display a variety of displays, using a "Varius Sign FL Display Tube". Produces fun and beauty in the car.
- Supports MD kana titles and CD texts
- 12-hour clock, STOP WATCH, timer, alarm 4-mode clock function
- Comes with a hand grip remote control that fits your hand
- Adopts "System E's PRO" with improved quality and twin stabilized power supply.
- Equipped with 1.5V high-voltage pre-out terminal (gold-plated) that demonstrates tremendous sound pressure for subwoofer drive
- "Display brightness adjustment function" that can adjust the display brightness in 3 steps
★Main ratings "MJ909" [MD Department]
Frequency response: 20Hz to 20kHz (±1dB) S/N ratio: 98dB (1kHz) Dynamic range: 98dB Stereo Separation: 92dB [FM section] Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps) [AM section] Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ [Audio part] Maximum output: 44W x 4 Rated output: 28W x 4 (4Ω, 1kHz, 10%THD) Pre-out level: 1500mV (FM/10kΩ) [Common part] Power supply voltage: 14.4V (11 to 16V) Maximum current consumption: 10A Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm Mass: 1,700g
"MZ909" [CD section]
Frequency response: 10Hz to 20kHz (±1dB) S/N ratio: 93dB (1kHz) Dynamic range: 95dB Stereo Separation: 85dB [MD Department] Frequency response: 20Hz to 20kHz (±1dB) S/N ratio: 93dB (1kHz) Dynamic range: 90dB Stereo Separation: 85dB [FM section] Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps) [AM section] Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ [Audio part] Maximum output: 44W x 4 Rated output: 28W x 4 (4Ω, 1kHz, 10%THD) Pre-out level: 1500mV (FM/10kΩ) [Common part] Power supply voltage: 14.4V (11 to 16V) Maximum current consumption: 10A Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm Mass: 1,700g
"M909" [MD Department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 93dB (1kHz)
- Dynamic range: 90dB
- Stereo Separation: 85dB
[FM section]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[Audio part]
- Maximum output: 44W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1500mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
- Mass: 1,500g
Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | User manual |
| Region | Japan |
