Device

Kenwood M929

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
M929
Device type
auto
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood M929”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name M929
Manufacturer Kenwood
Released 2001/02
Device type auto
Recorder Player
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-Din 178 x 50 x 160mm
Weight 1700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥63 000
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

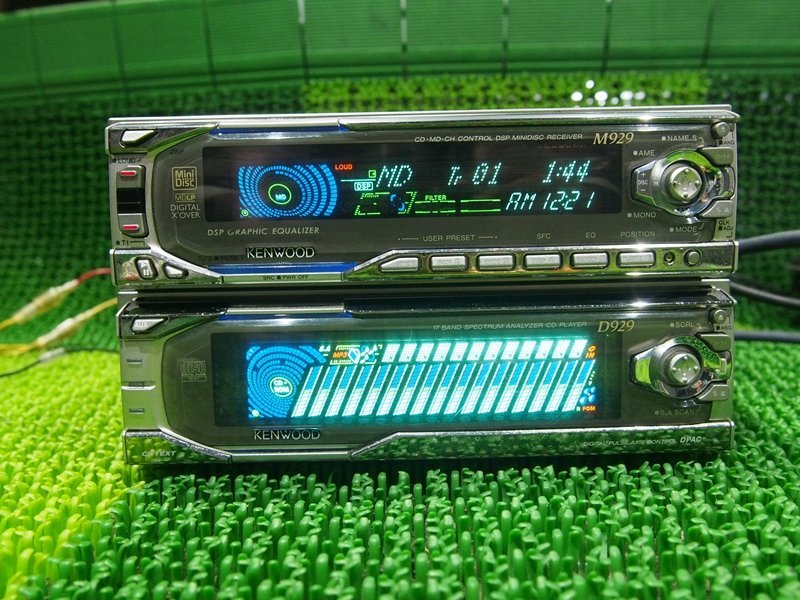

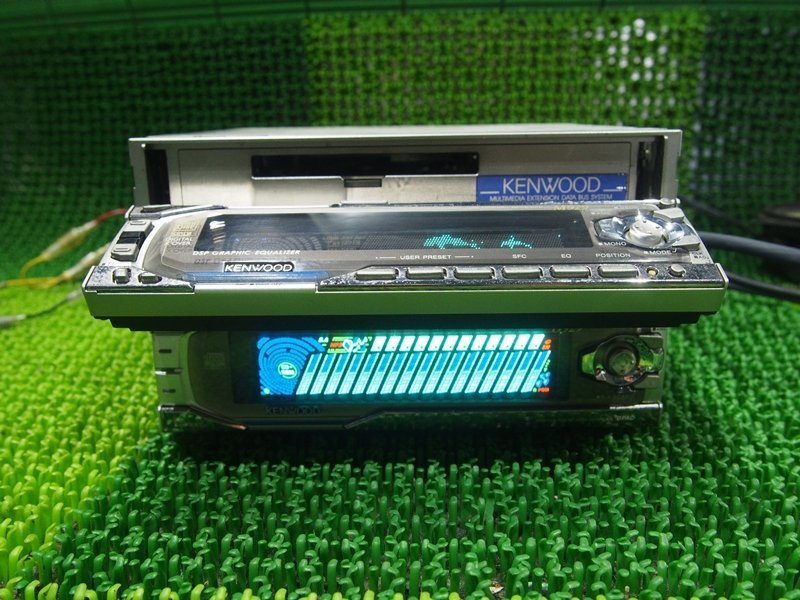

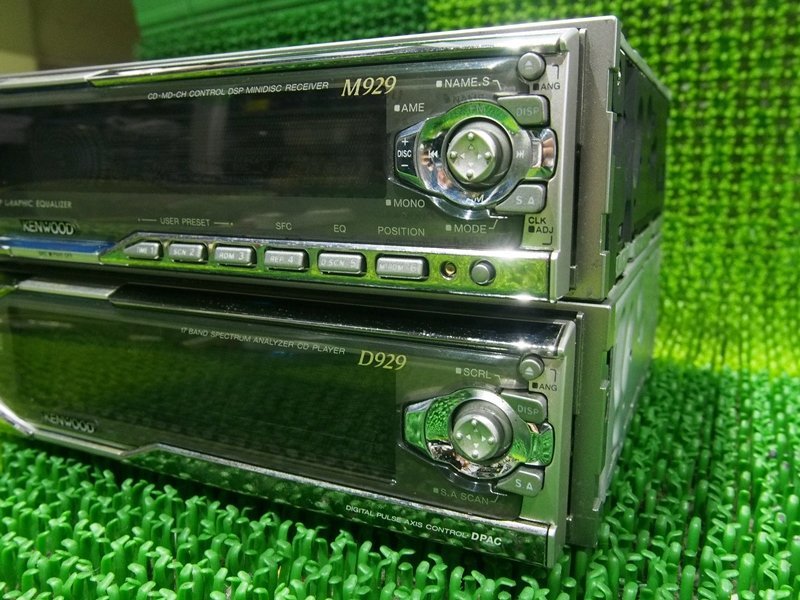

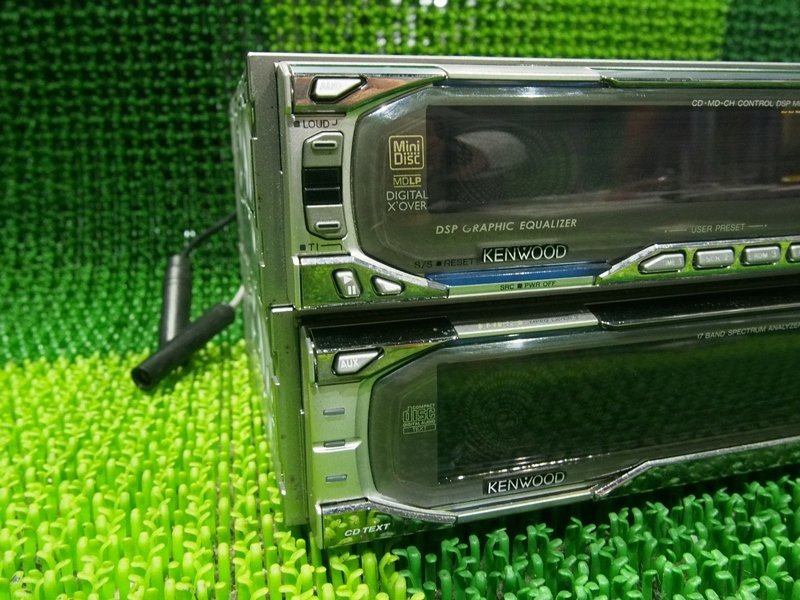

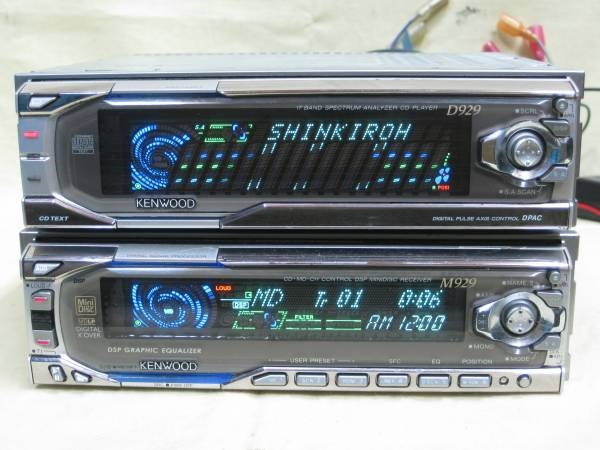

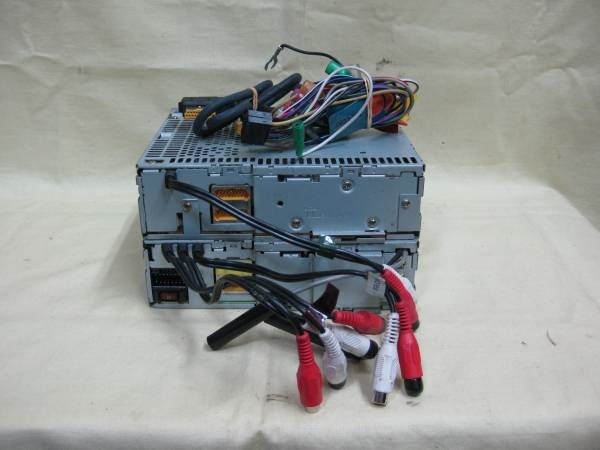

Kenwood M929.

[MD part]

  • Frequency characteristics: 20Hz to 20kHz (± 1dB)
  • S / N ratio: 90dB (1kHz)
  • Dynamic range: 90dB
  • Stereo separation: 85dB

[FM section]

  • Reception frequency range: 76.0MHz-90.0MHz (100kHz step)

[AM department]

  • Reception frequency range: 522kHz to 1629kHz (9kHz step)
  • Sensitivity: 28 dBμ

[EQ section]

  • Equalizer center frequency: 60,120,250,500,1k,2k, 4k, 8k, 16kHz
  • Variable range: ± 12 dB

[Audio section]

  • Maximum output: 45W x 4
  • Rated output: 28W x 4 (4Ω, 1kHz, 10% THD)
  • Pre-out level: 1500mV (FM / 10kΩ)

[Common part]

  • Power supply voltage: 14.4V (11-16V)
  • Maximum current consumption: 10A
  • Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
  • Mass: 1.7 kg

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror) Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Kenwood Product Page 2 Kenwood Product Page 2 (MiniDisc Wiki mirror) av.watch response.jp

Manuals

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
Manual
RegionJapan
