Kenwood MJ909

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
MJ909
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood MJ909”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MJ909
Manufacturer Kenwood
Released 1999/03
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-Din 178 (W) x 50 (H) x 160 (D) mm
Weight 1700
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥79 000
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded

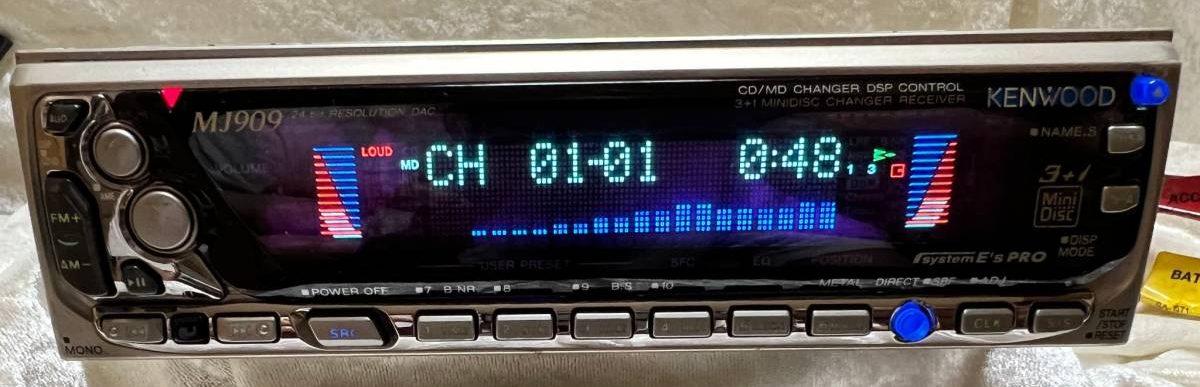

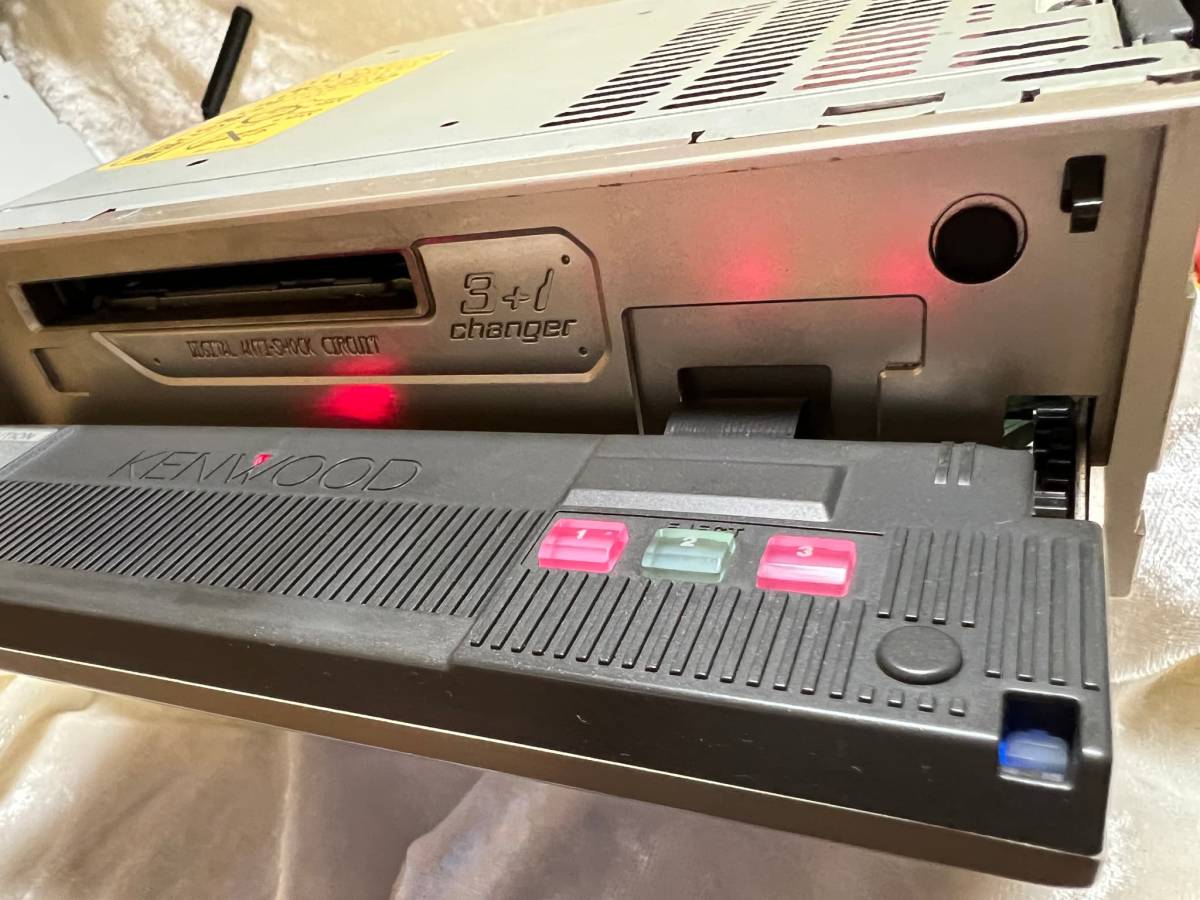

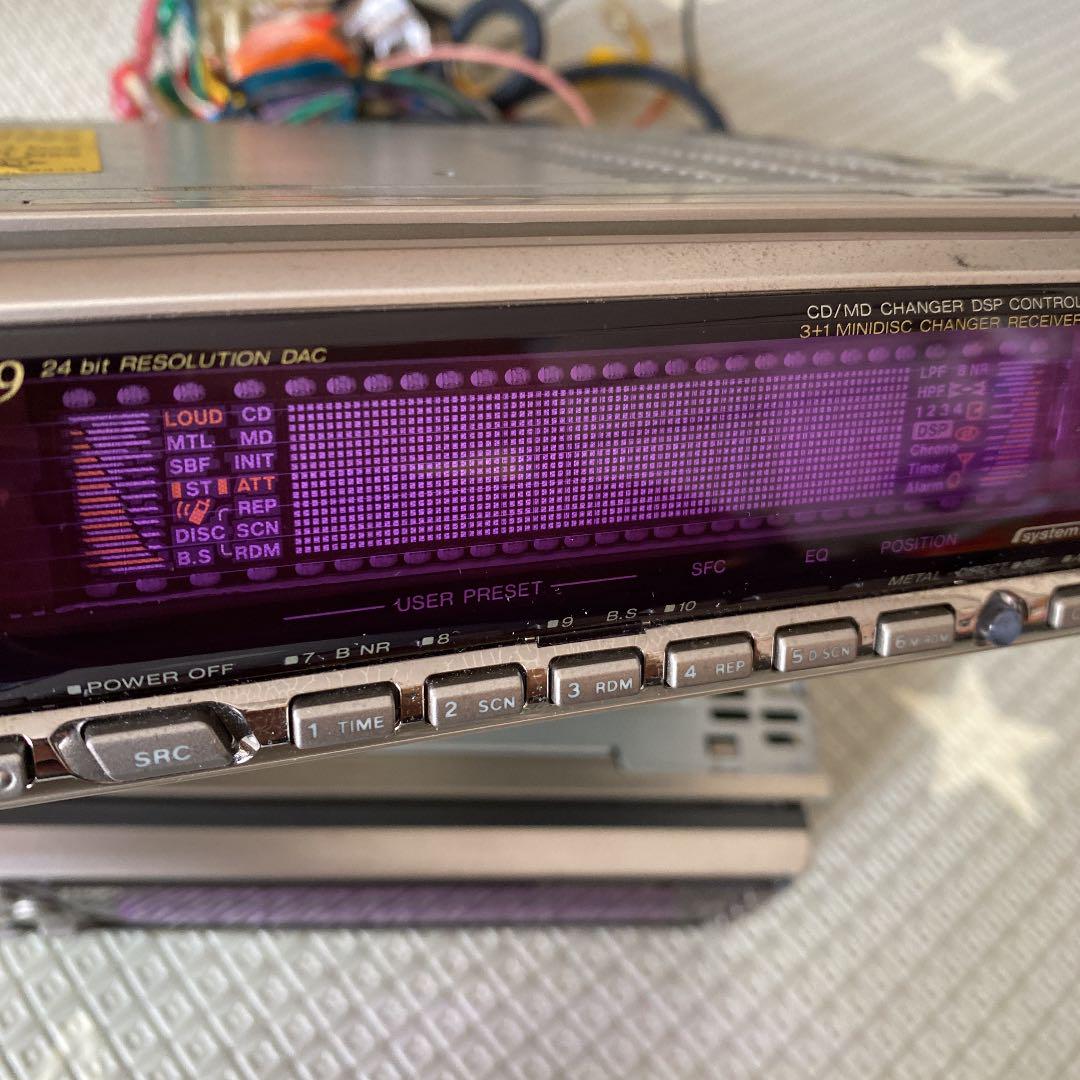

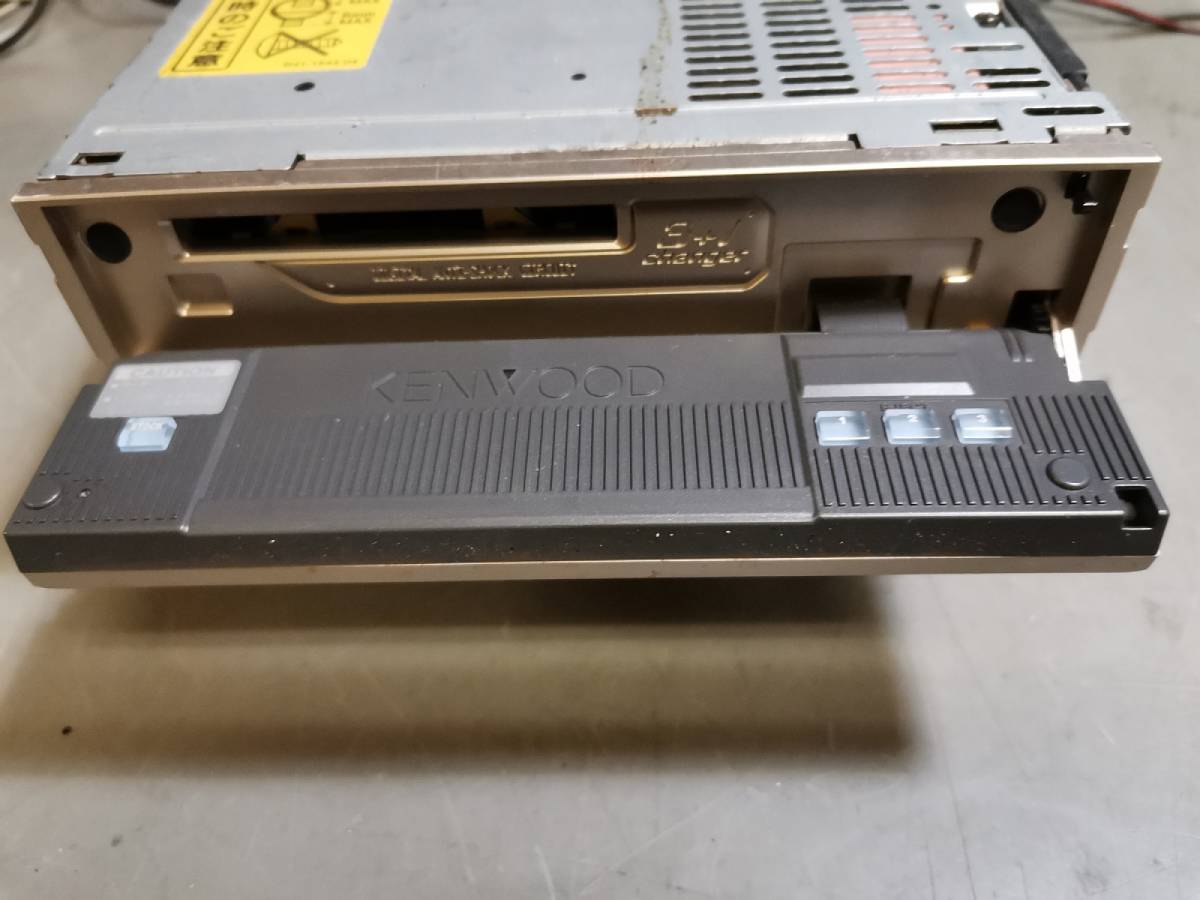

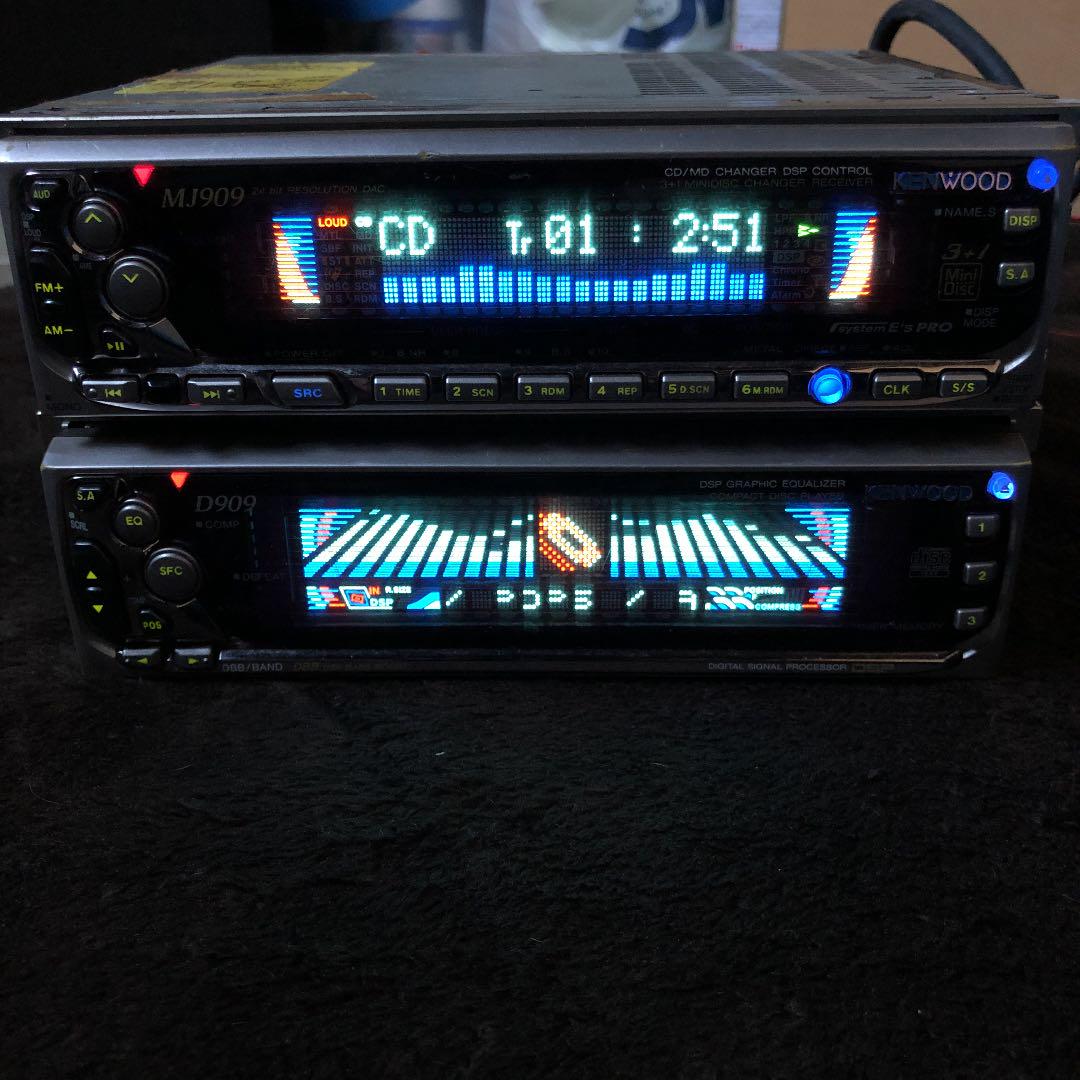

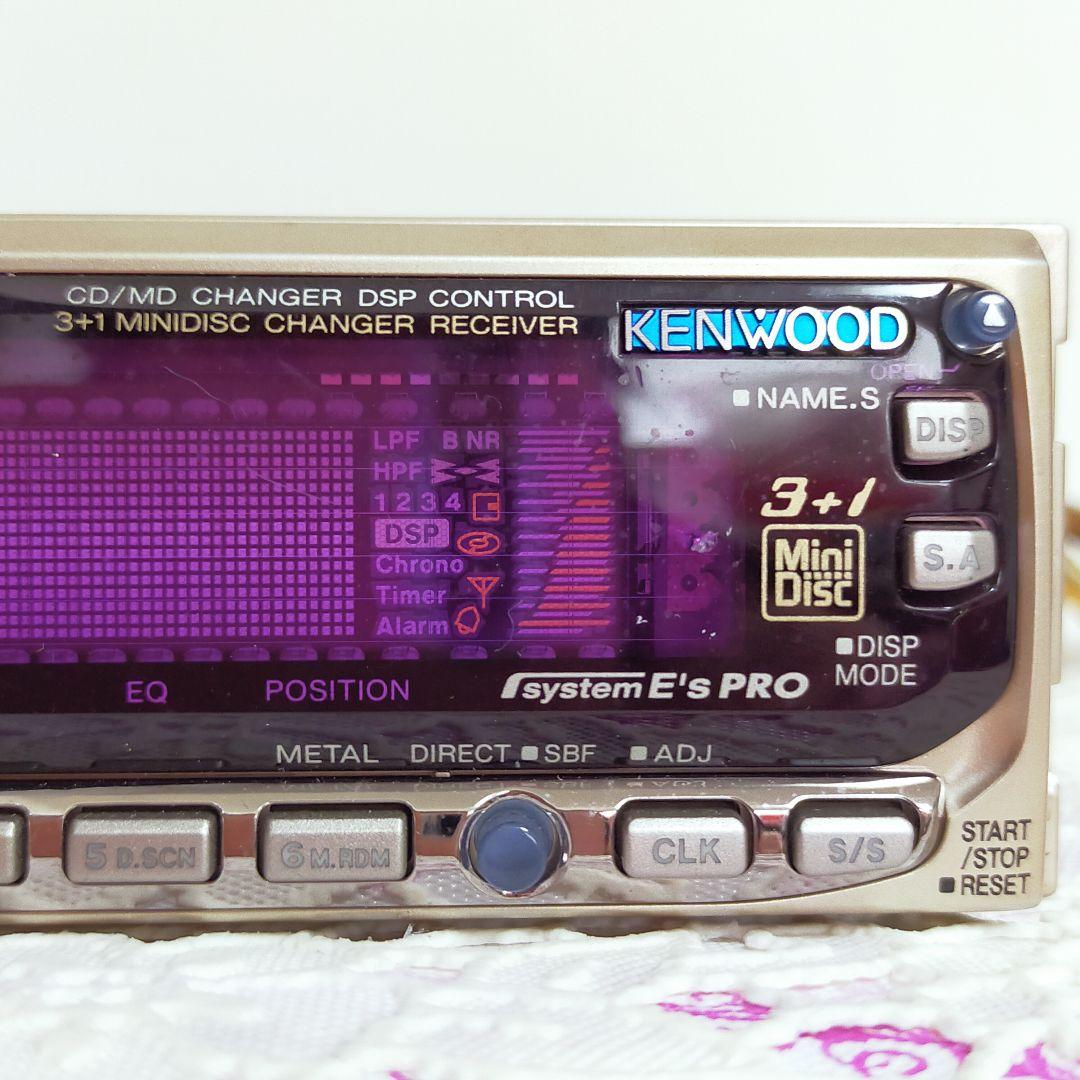

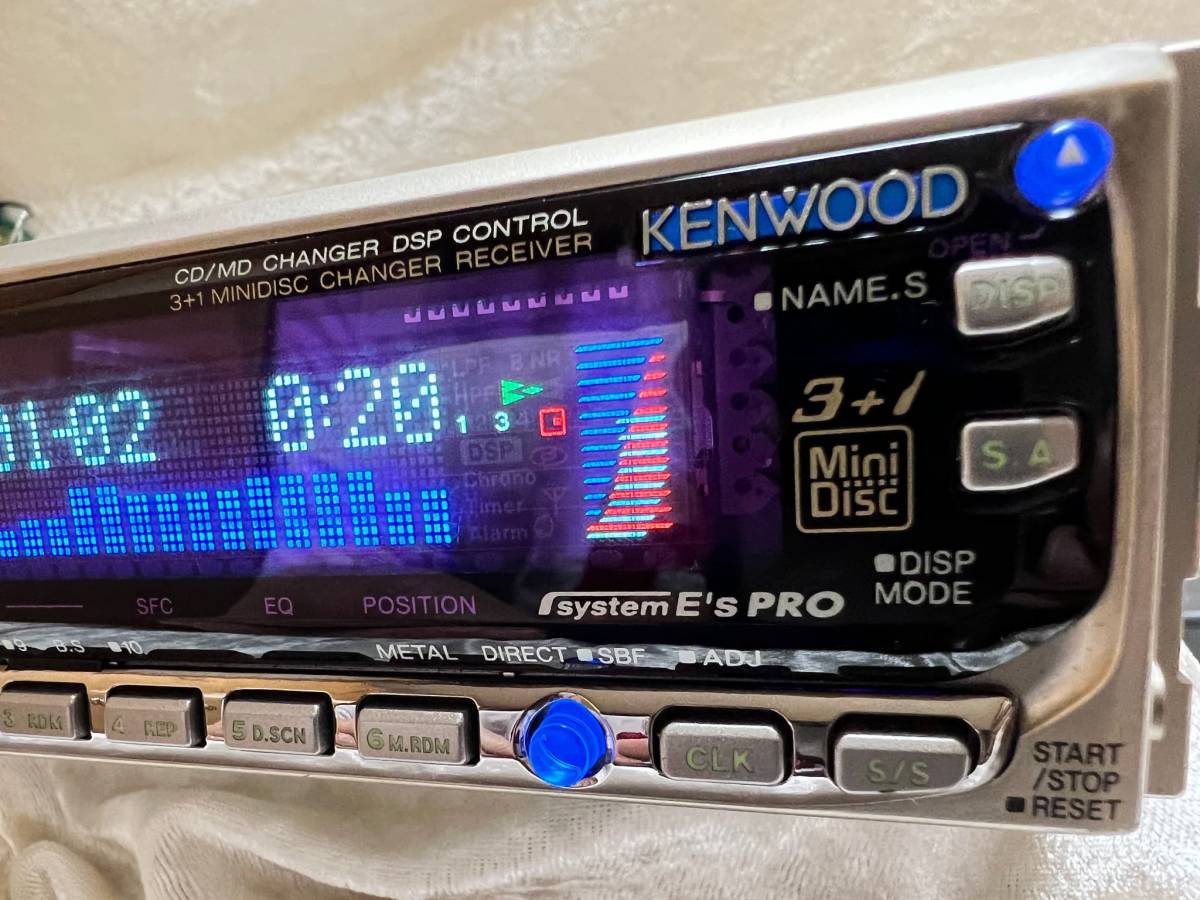

with a bank-type 3+1MD changer in a 1DIN size housing. In addition to enjoying up to 3 MDs as a changer, you can use it as a single MD player by inserting an add-on MD. The display uses a multi-functional full-dot FL tube. Divided into upper and lower tiers, display with variations. The MJ909 has separate ATRAC and DAC circuit configurations, and is equipped with a newly developed "advanced multi-bit DAC" that incorporates the latest technology, which is unusual for car audio MD. It enables 24-bit processing that achieves sound quality comparable to high-quality MD home audio. The newly developed hybrid IC "System E's PRO", which further improves the functions of "System E's", twin stabilized power supplies, and an ultra-high power amplifier of 44W x 4ch, achieves the best sound quality in this class

[MD Department]

  • Frequency response: 20Hz to 20kHz (±1dB)
  • S/N ratio: 98dB (1kHz)
  • Dynamic range: 98dB
  • Stereo Separation: 92dB

[FM section]

  • Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

  • Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[Audio part]

  • Maximum output: 44W x 4
  • Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)
  • Pre-out level: 1500mV (FM/10kΩ)

[Common part]

  • Power supply voltage: 14.4V (11 to 16V)
  • Maximum current consumption: 10A
  • Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
  • Mass: 1,700g

Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror)

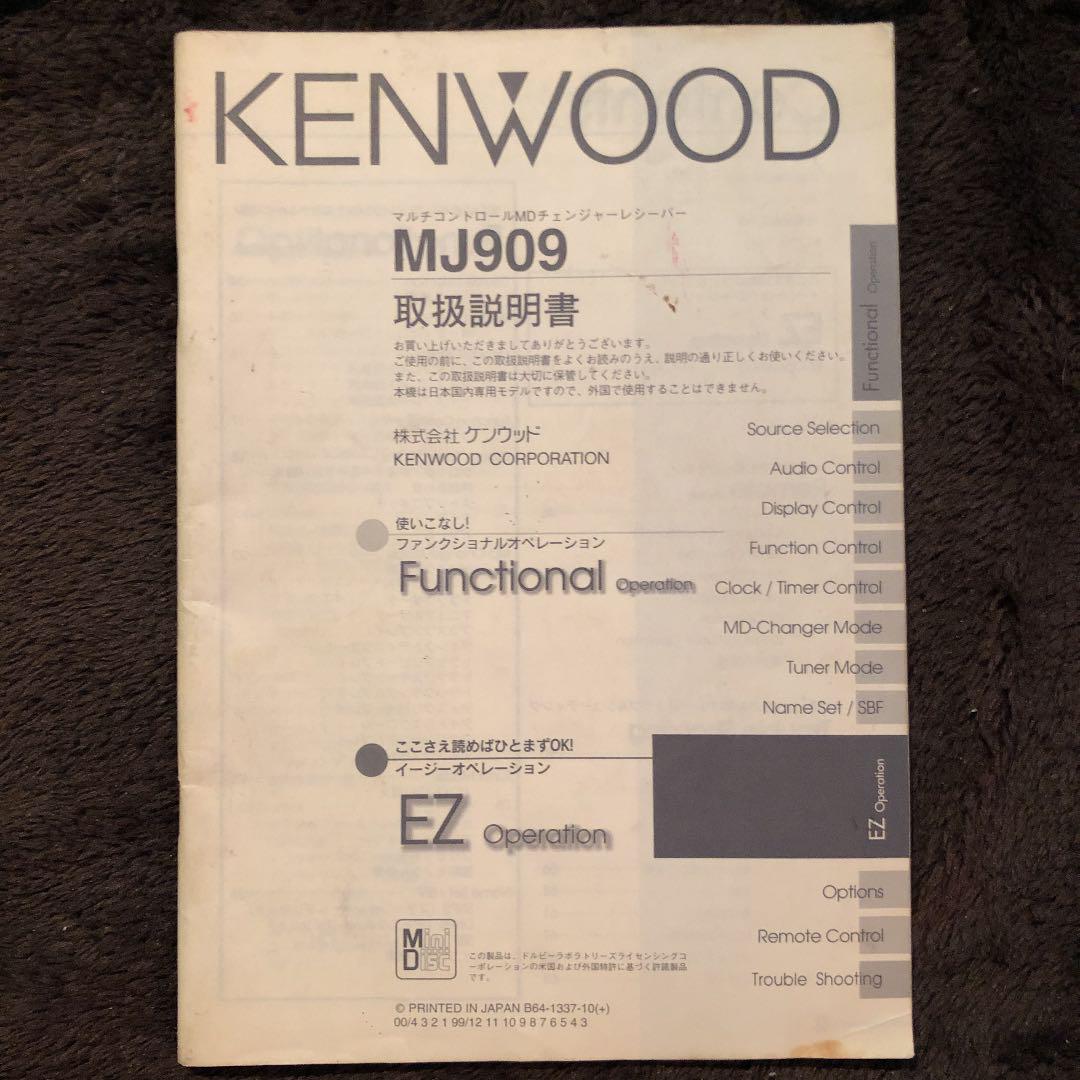

Manuals

Video

Watch the referenced video on YouTube

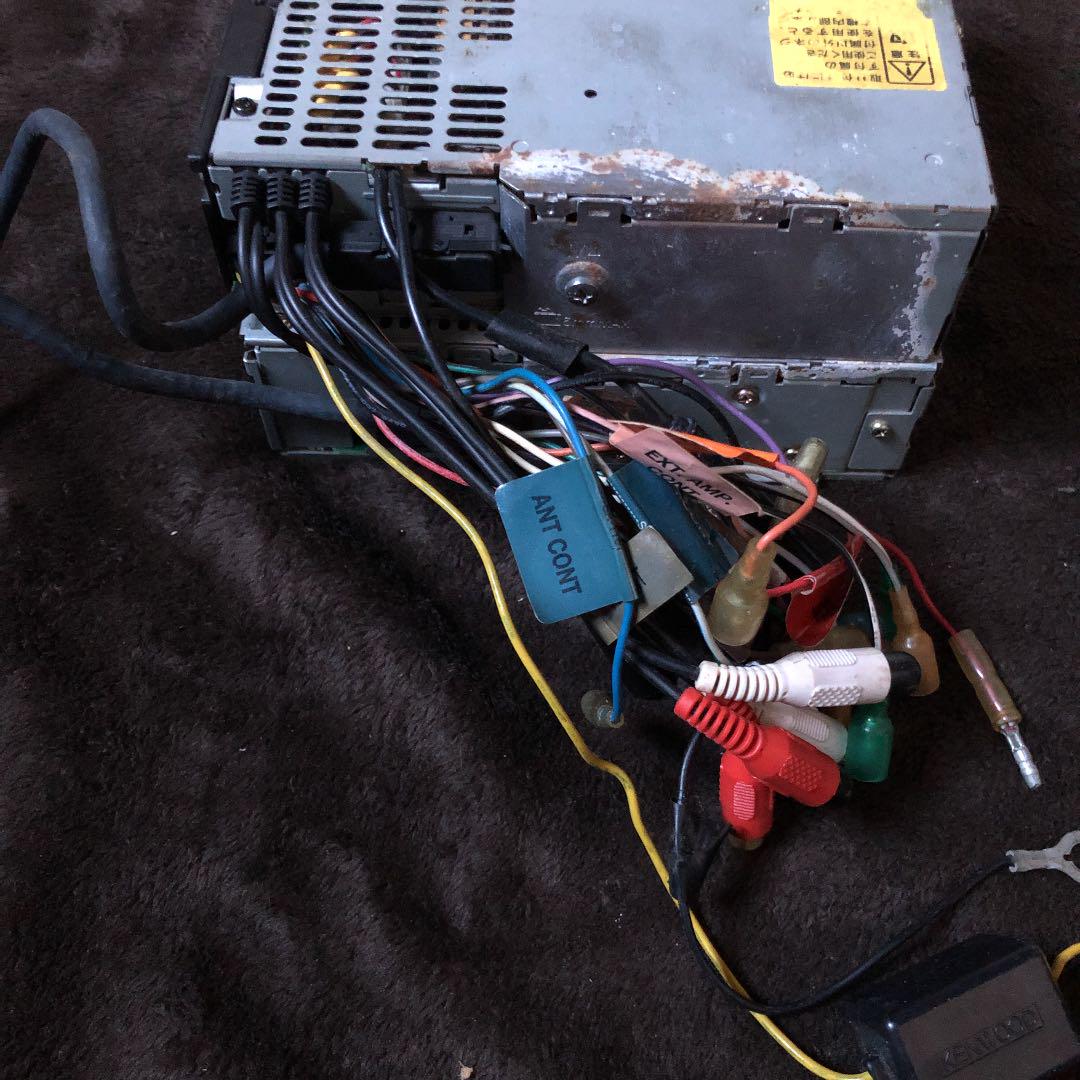

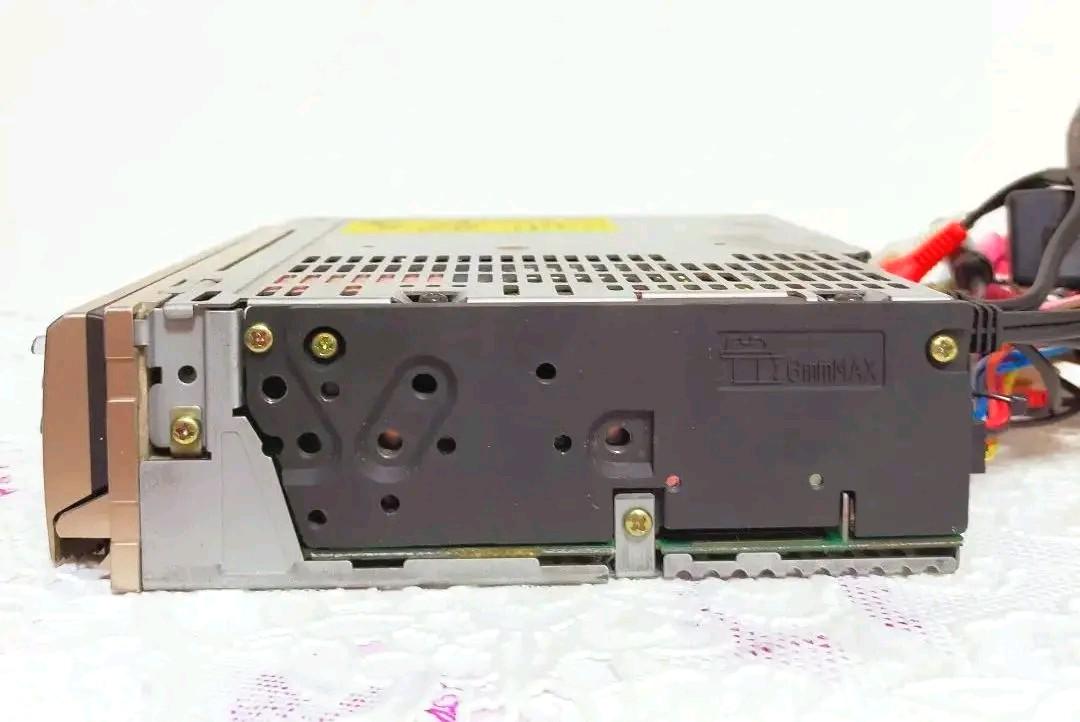

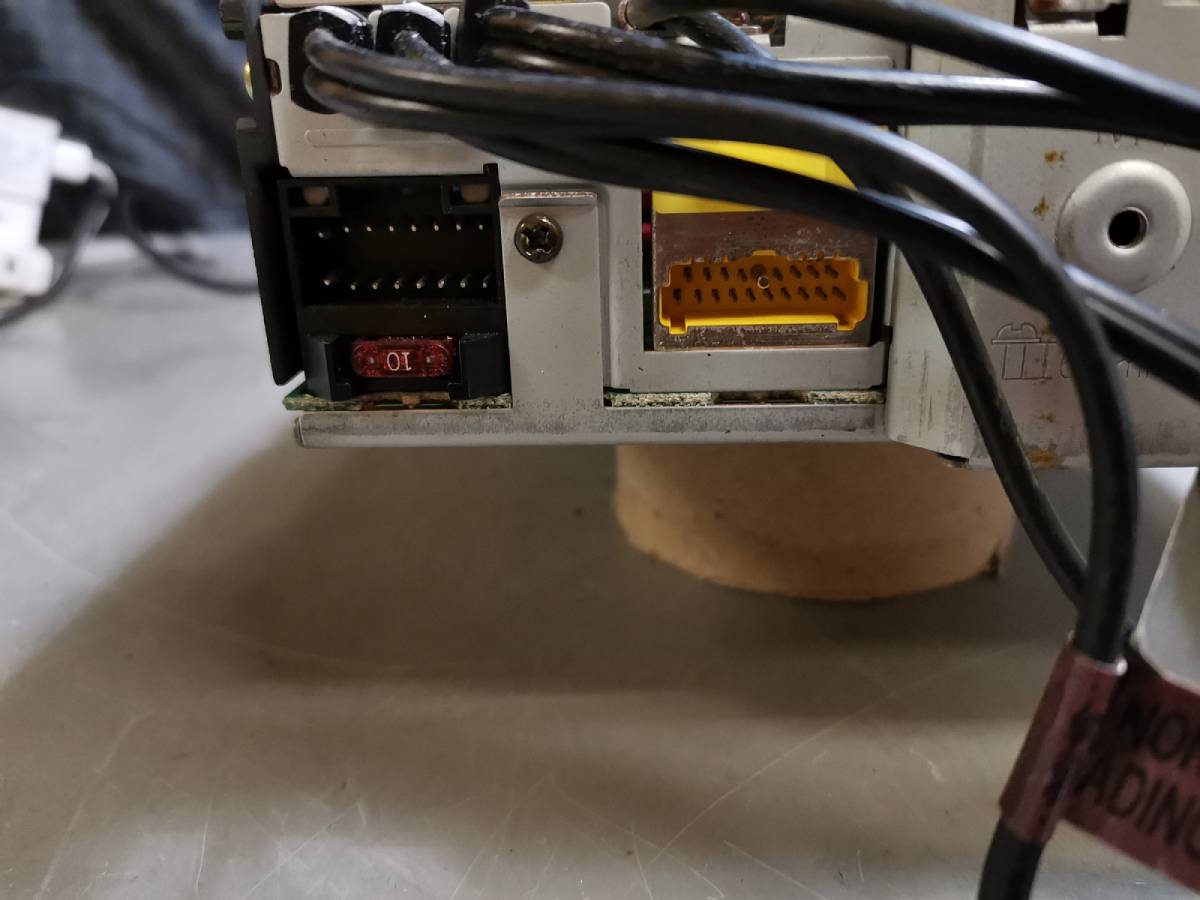

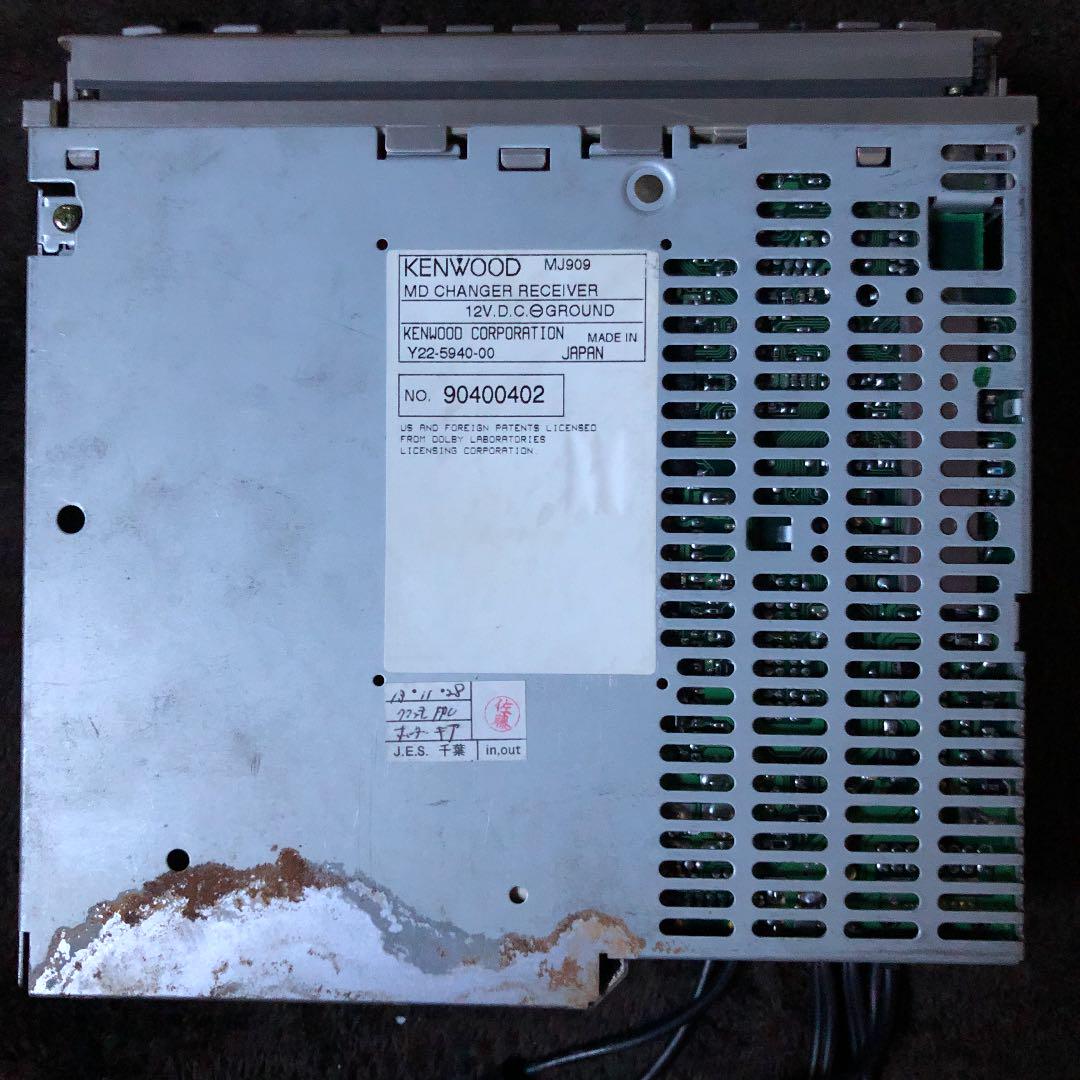

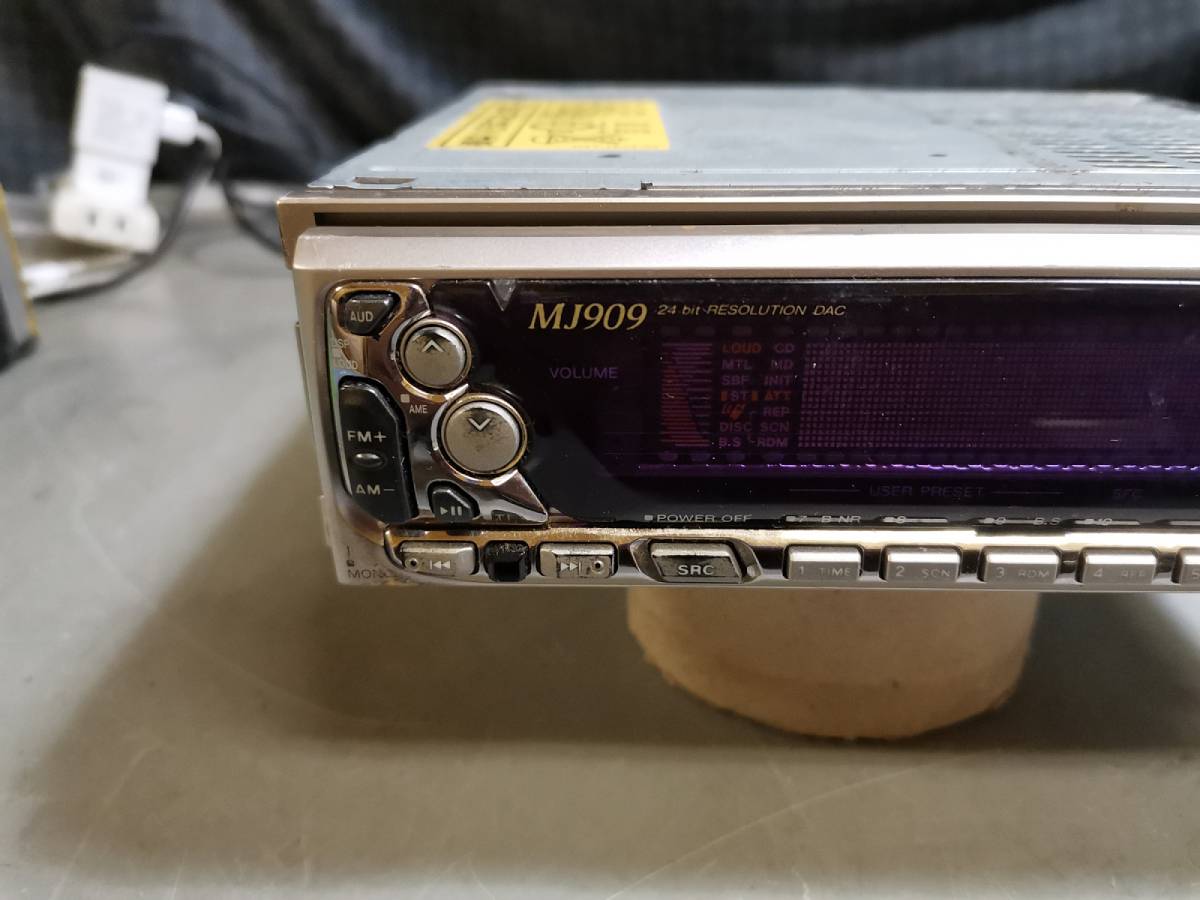

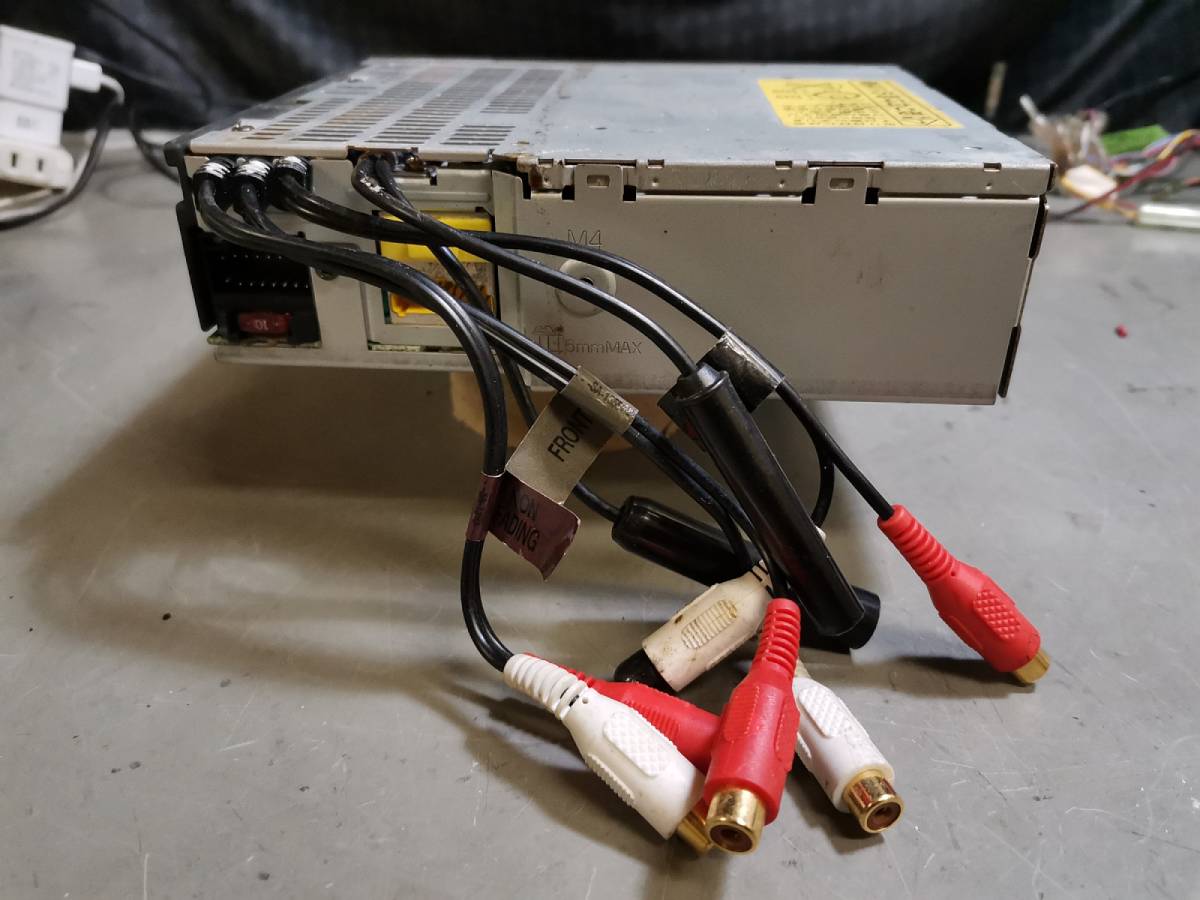

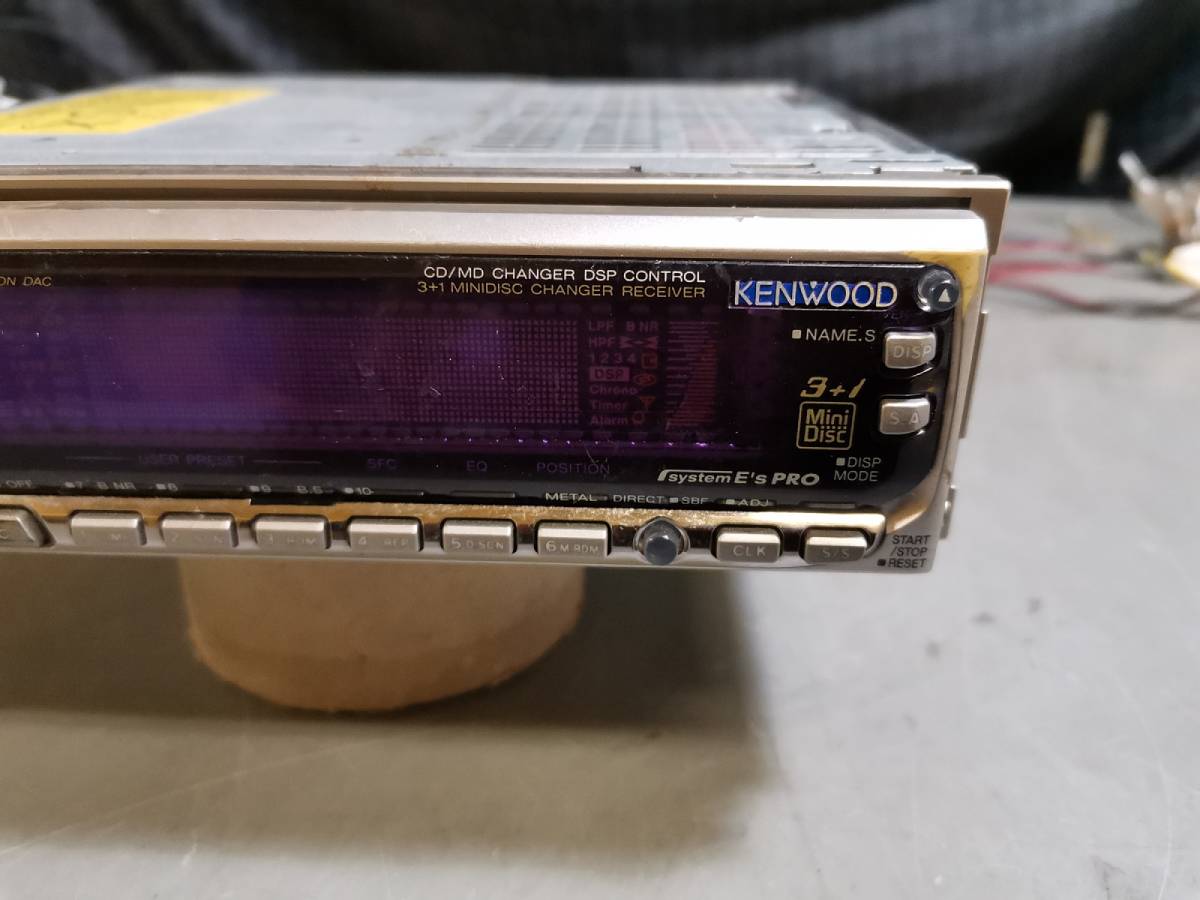

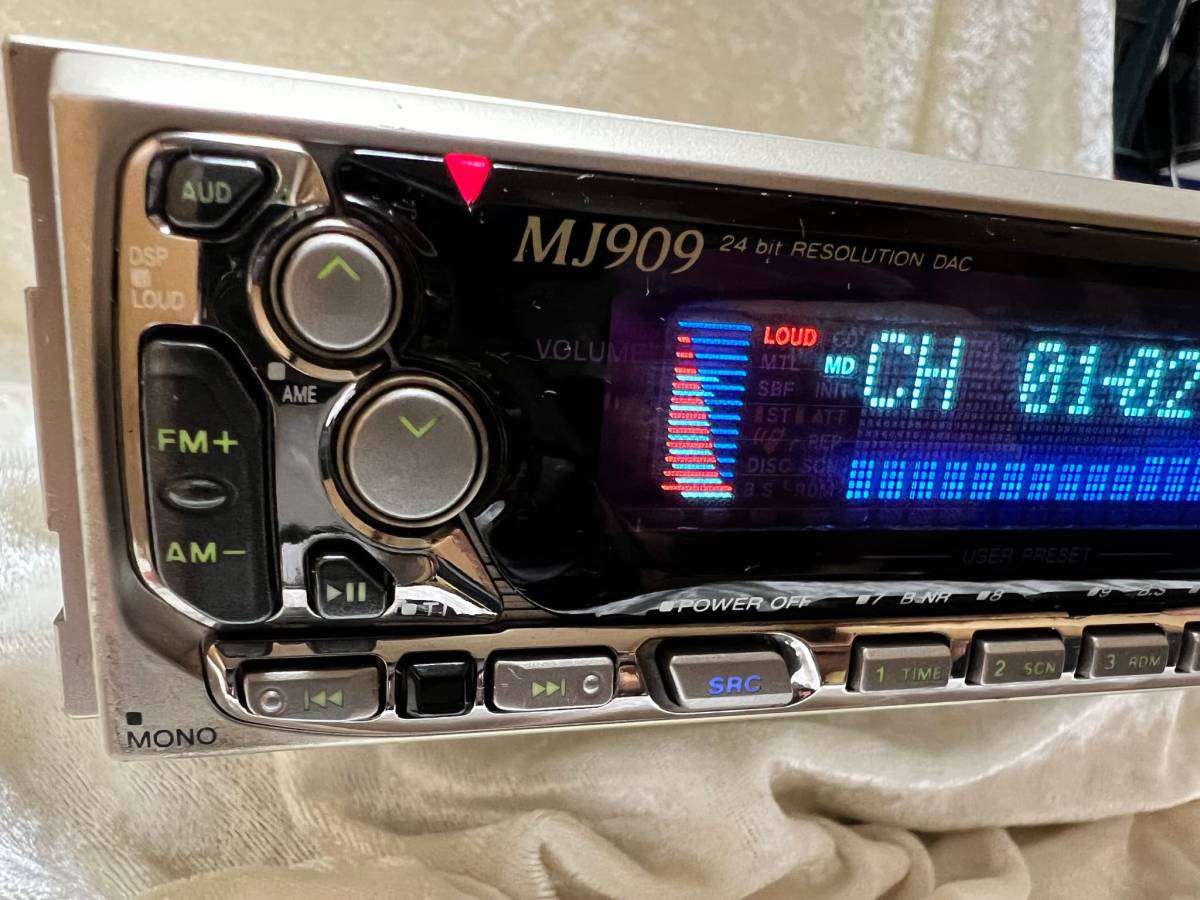

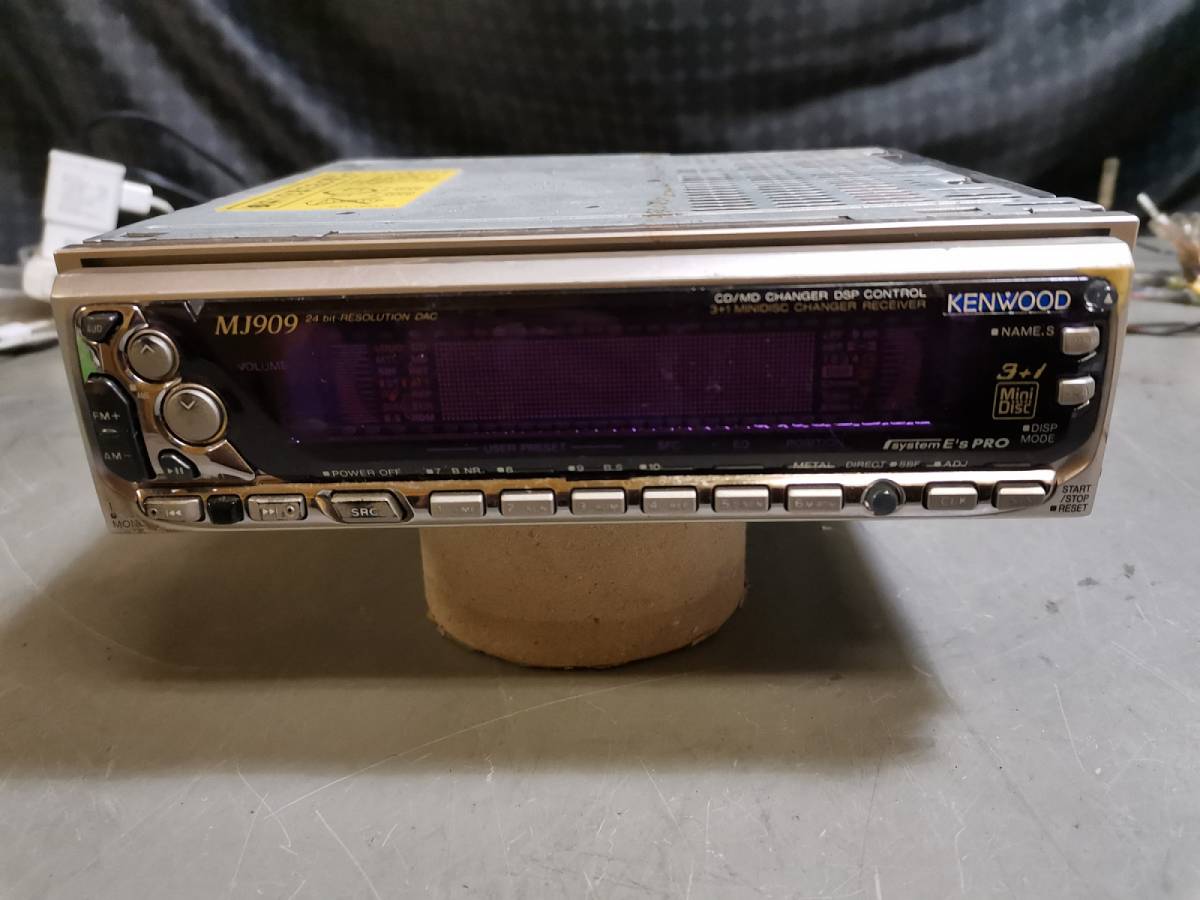

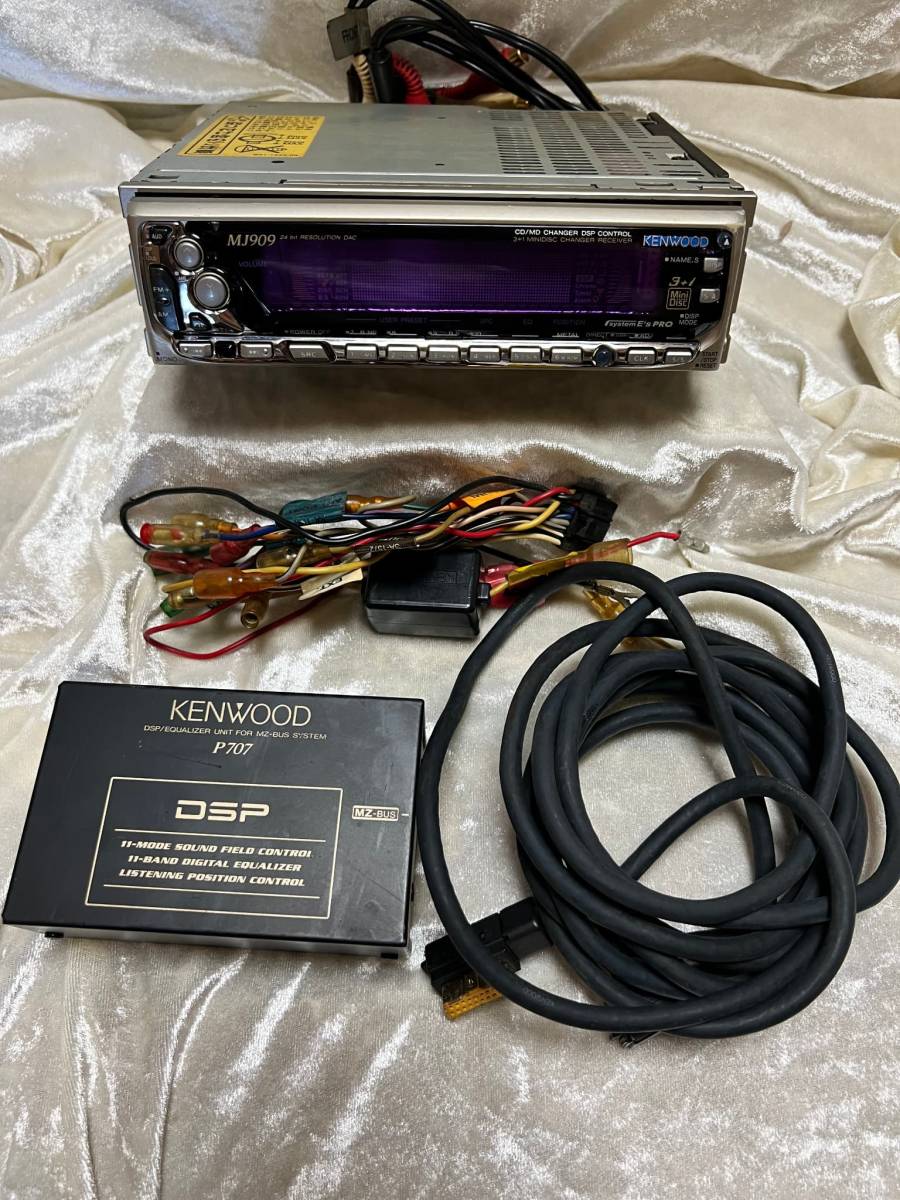

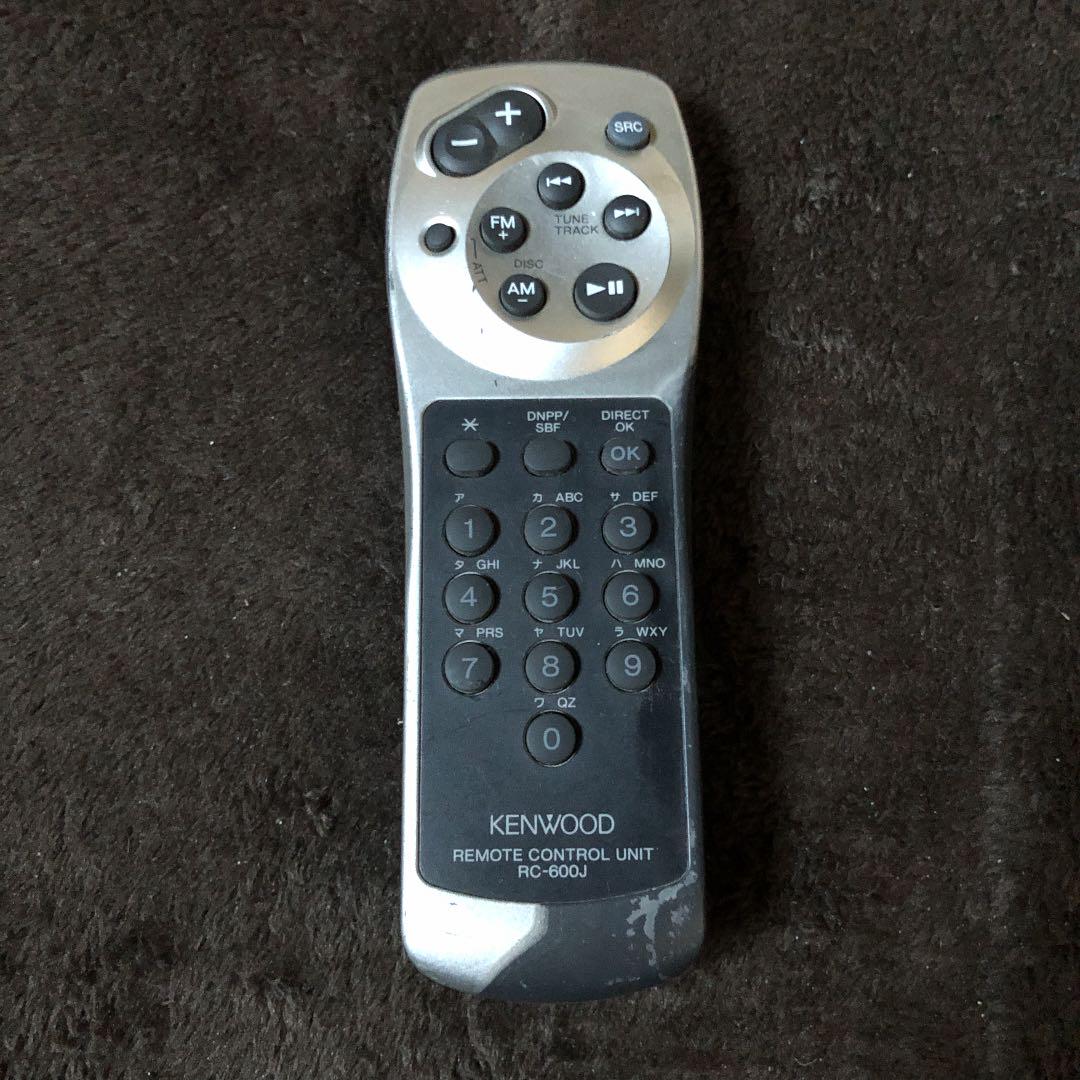

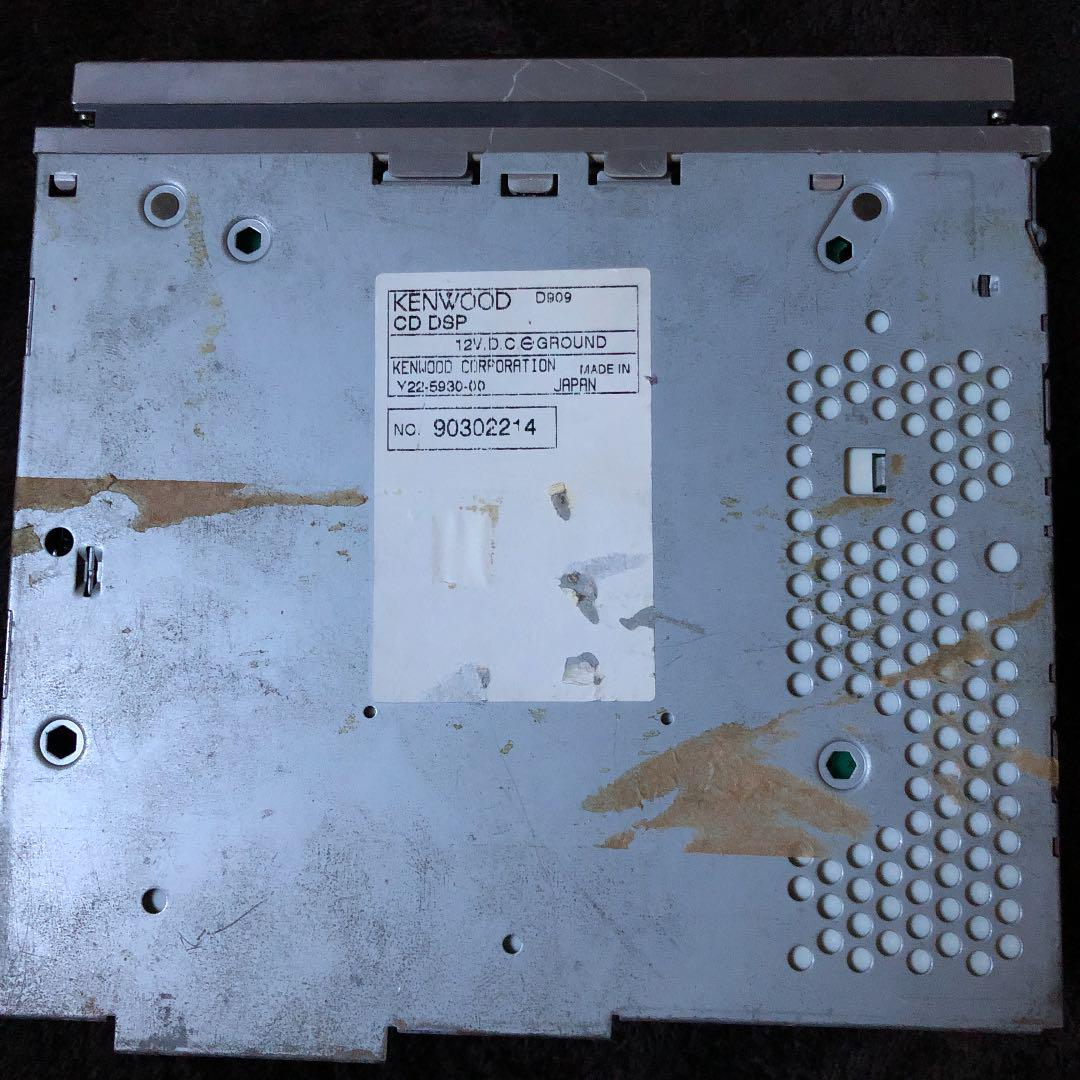

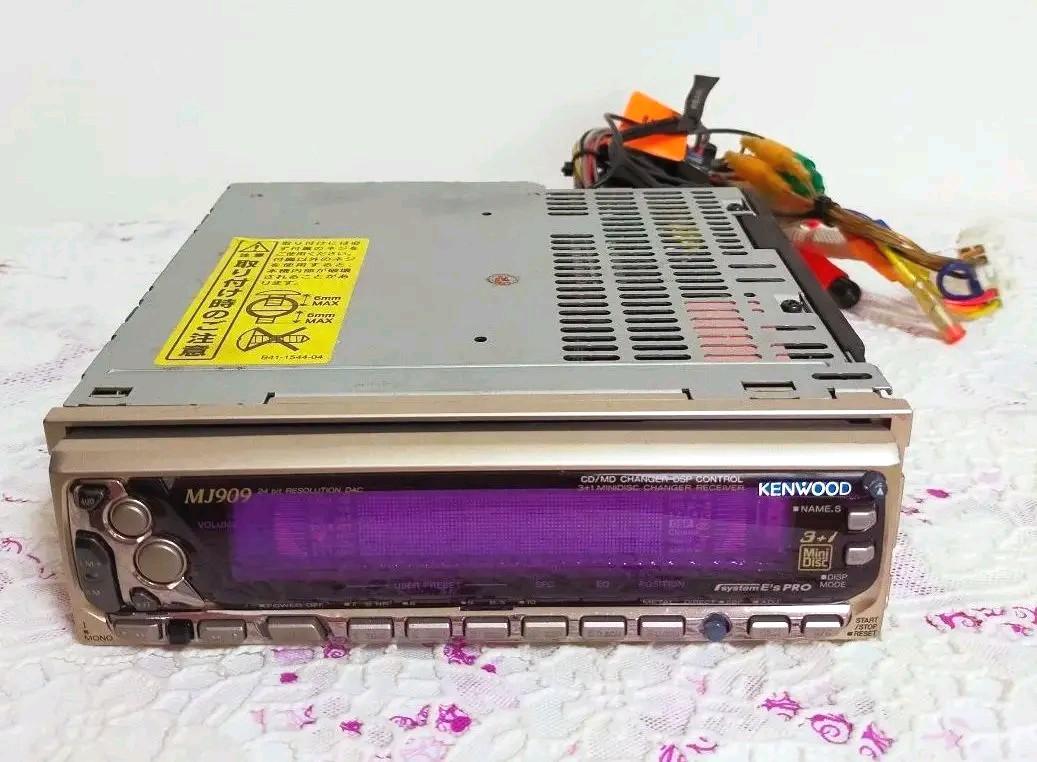

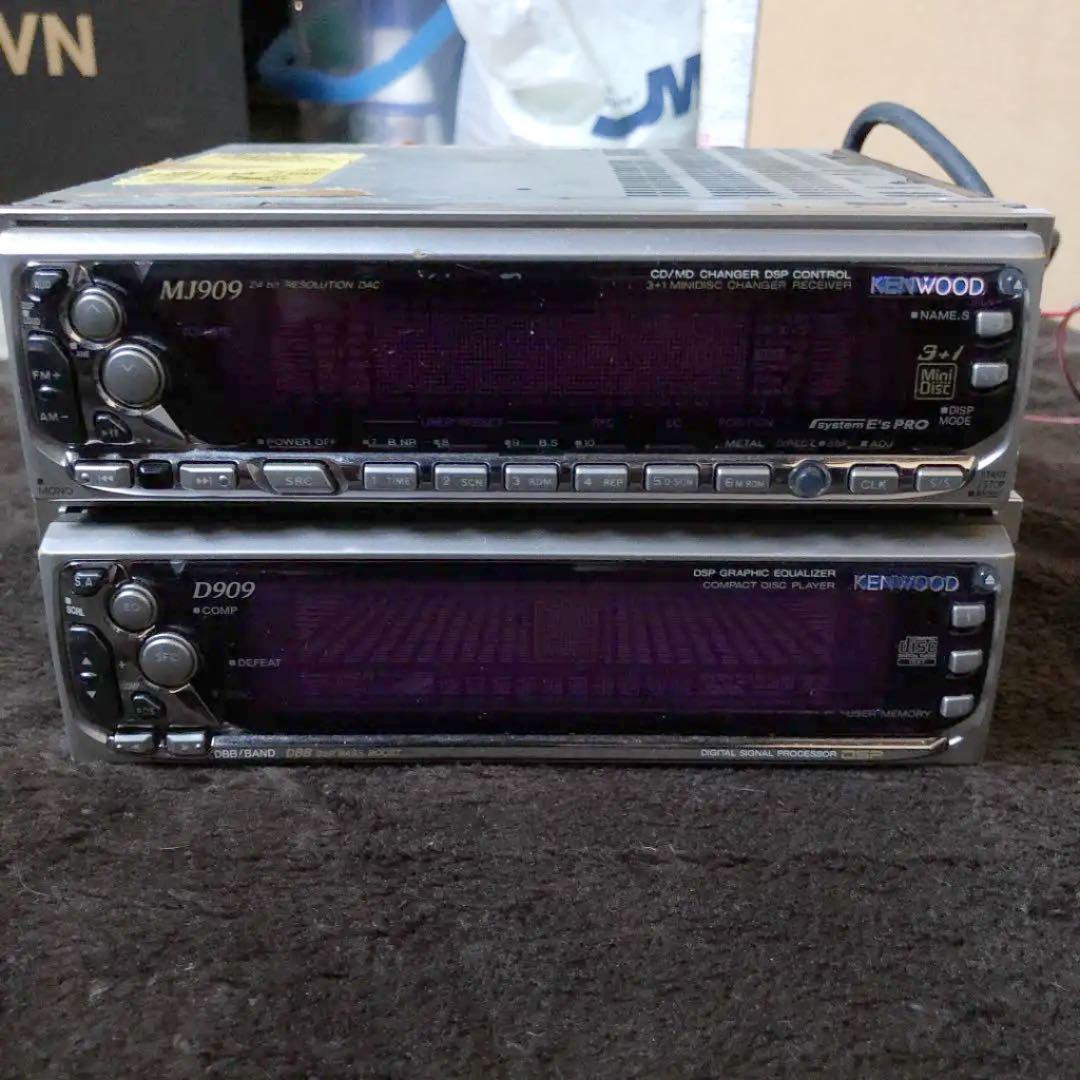

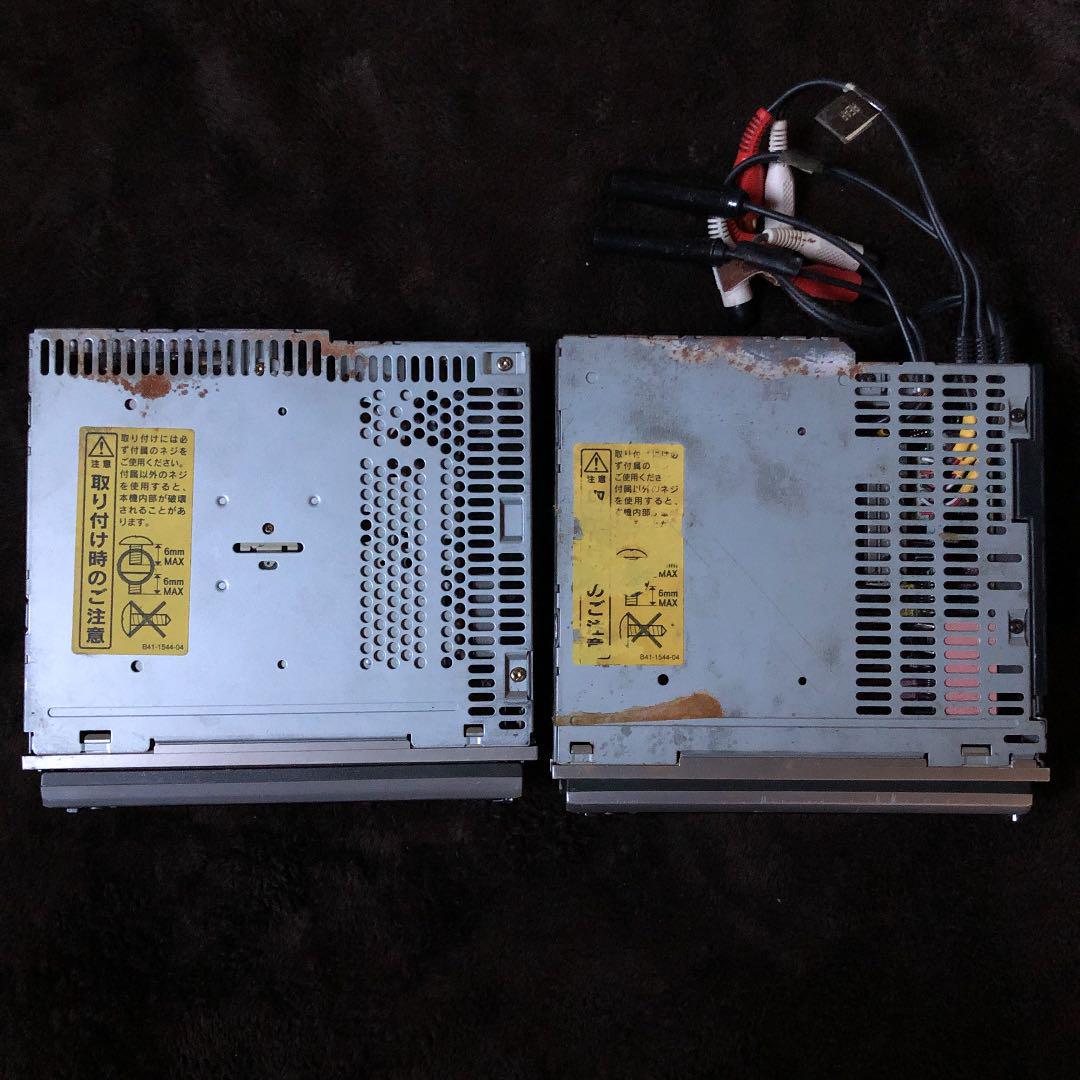

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
Manual
RegionJapan
