| Name | MZ907 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1998/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 1-Din 178W x 50H x 160Dmm |
| Weight | 1700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥105 000 | |
| - | |
| Inputs | Not recorded |

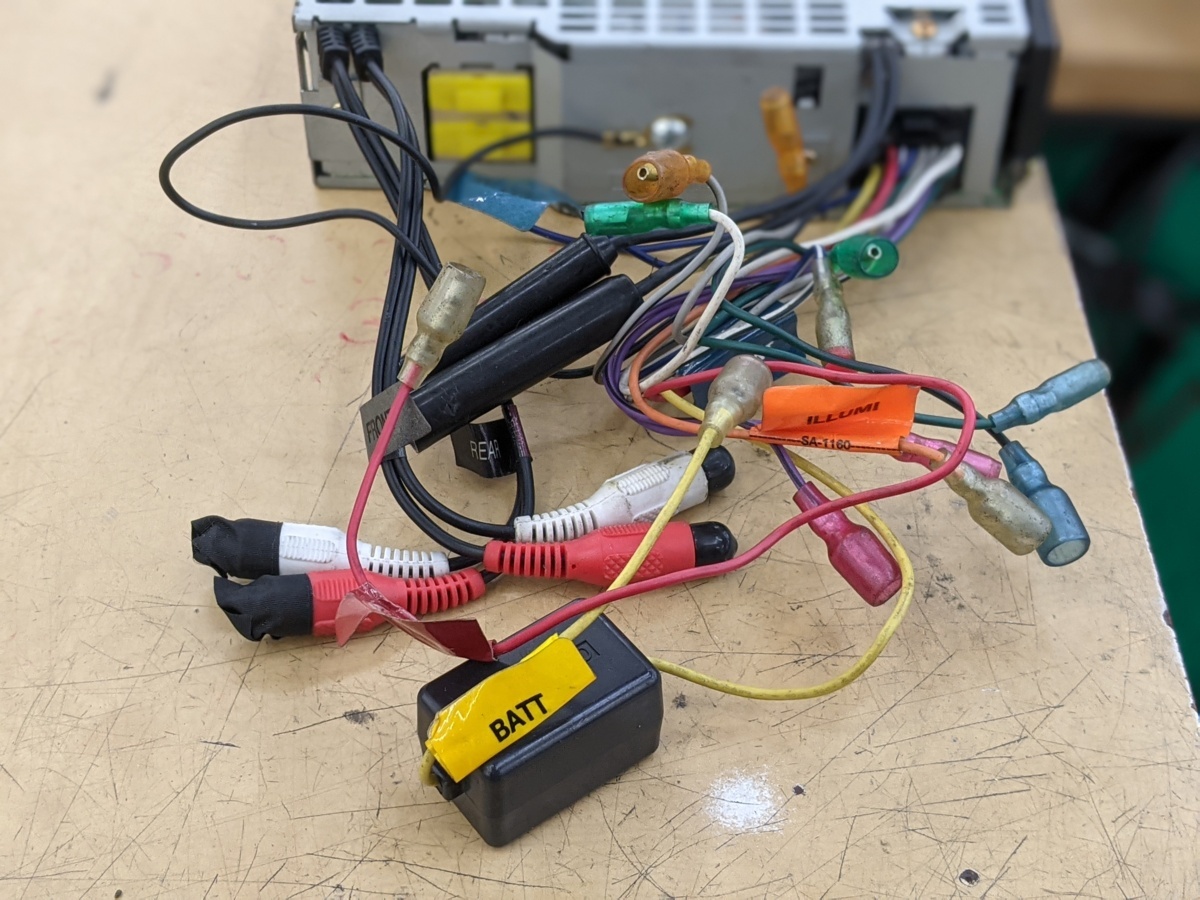

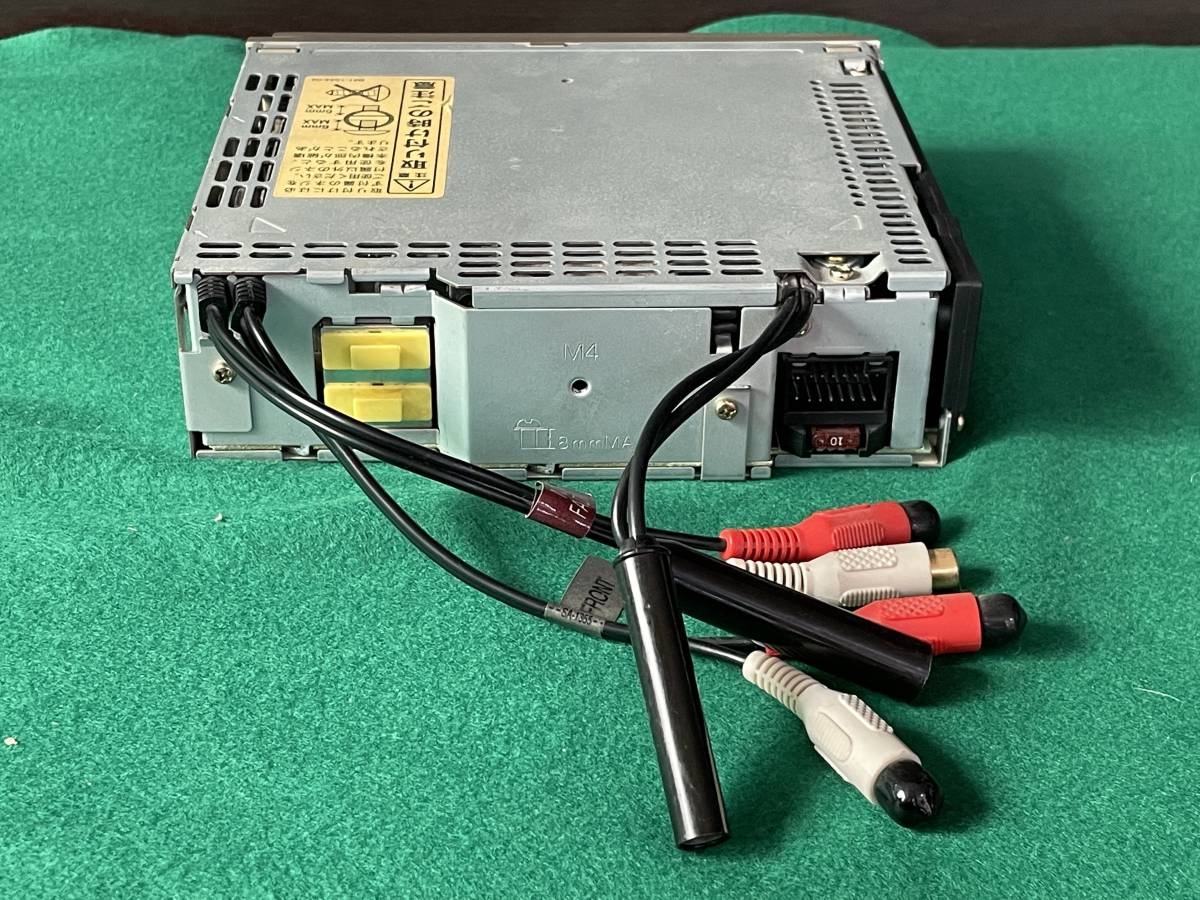

| Outputs | RCA out, Speaker amplifier |
| Control | Not recorded |

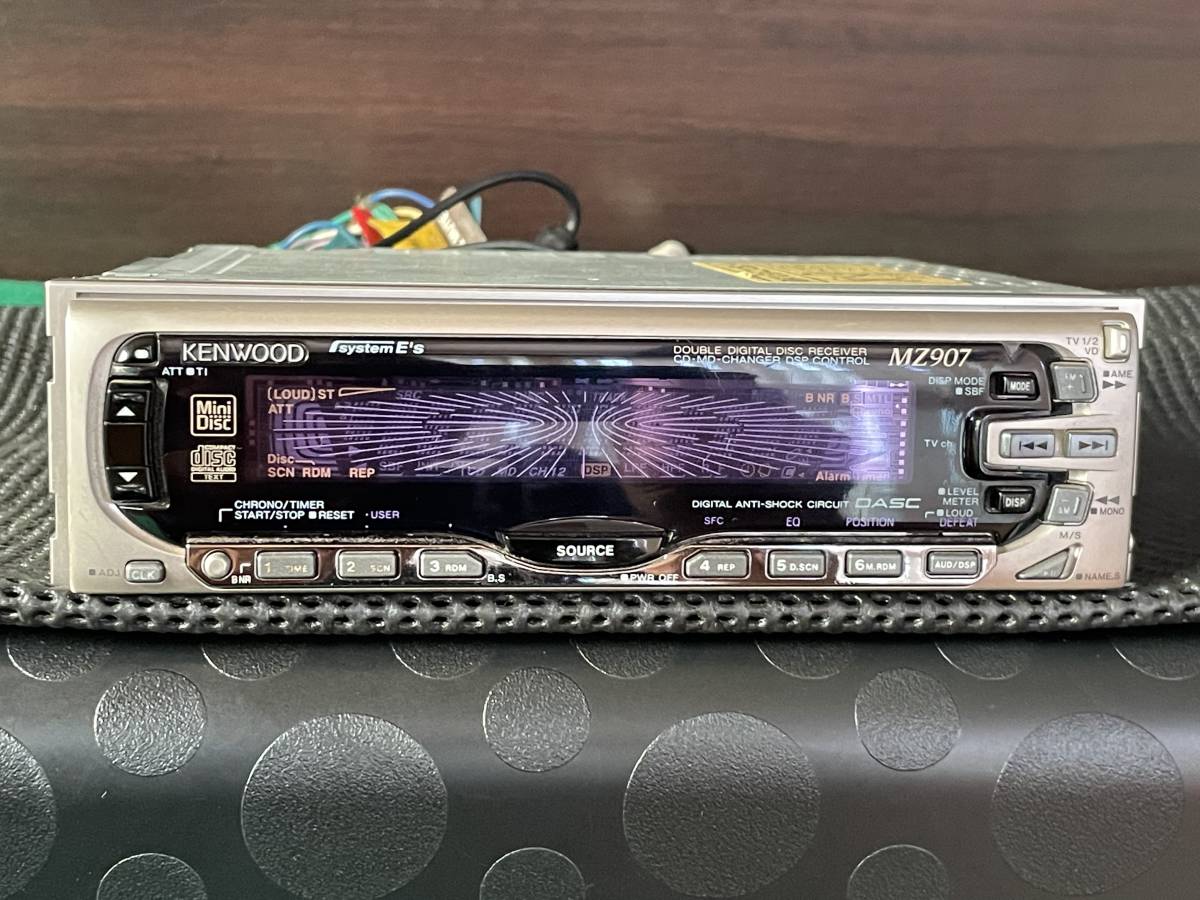

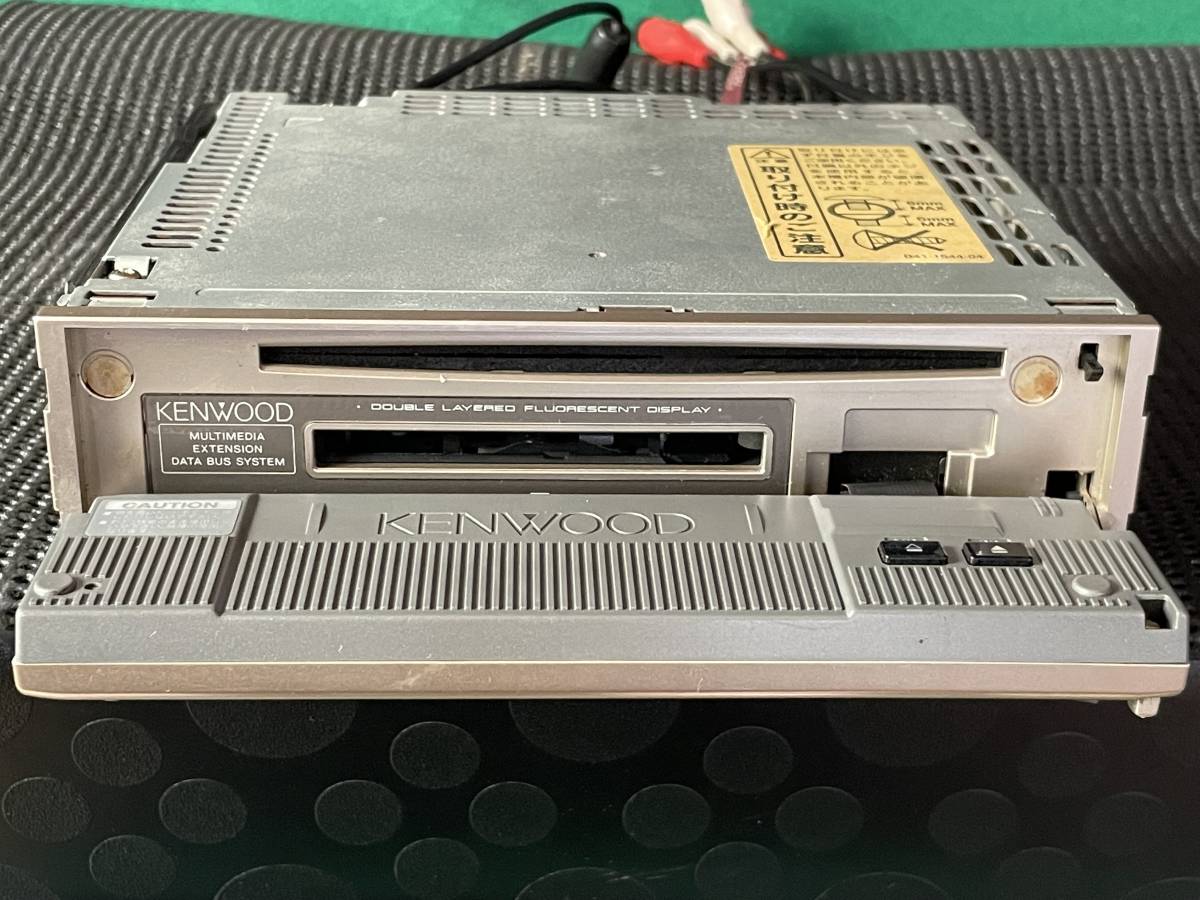

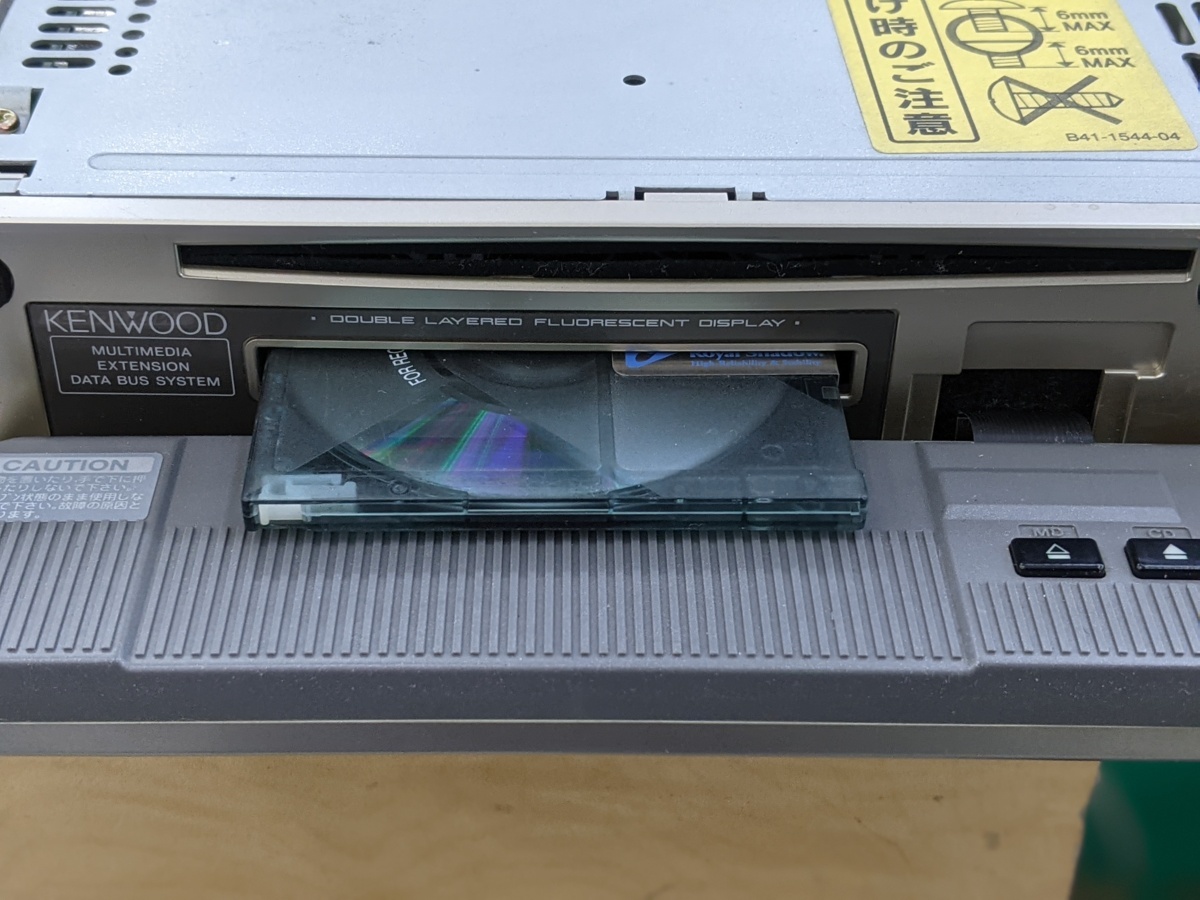

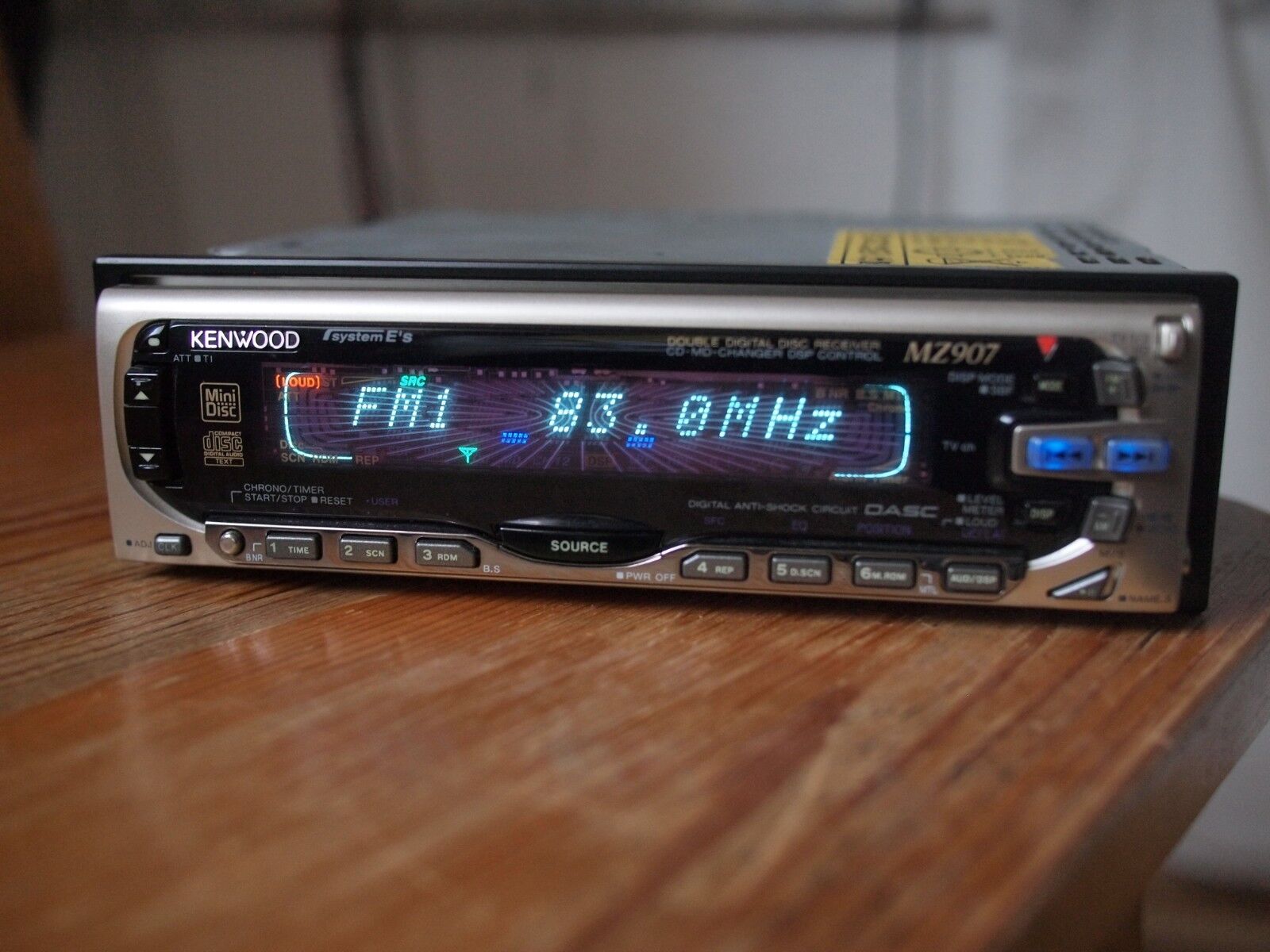

The MZ907 is part of the 1998 “707” Head Unit series by Kenwood. It was the first Head Unit by Kenwood that managed to fit a MD and a CD drive into a Single Din space. It was the most experience unit Kenwood was building at the time. It is a good option for people that lack space for a Doulbe Din head unit, but still want to enjoy both formats. Compatible DSP units from the same series are the X707 and the D707. These units allowed for more visuals, different DSP presets and 11 Band EQ settings. In combination with the X707, the MZ907 was able to play MD, CD and Cassette.
- digital filter 8x oversampling
- D/A converter 1 bit
- number of revolutions 400 to 800 rpm (constant linear velocity)
- Frequency characteristic 20Hz to 20kHz (±1dB)
- harmonic distortion 0.01% (1kHz)
- S/N ratio 90dB (1kHz)
- dynamic range 90dB
- stereo separation 80dB
Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror) Features Features (MiniDisc Wiki mirror) Specs Specs (MiniDisc Wiki mirror) Product Page Product Page (MiniDisc Wiki mirror)
