| Name | MZ929 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2001/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 1-Din 178 (W) x 50 (H) x 160 (D) mm |
| Weight | 1600 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥99 800 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control | Not recorded |
Supports MP3 playback
There was a Nissan OEM version: The MZ929N. Nissan part# B81A2-N0180. Kenwood model# Y39-1350-05.

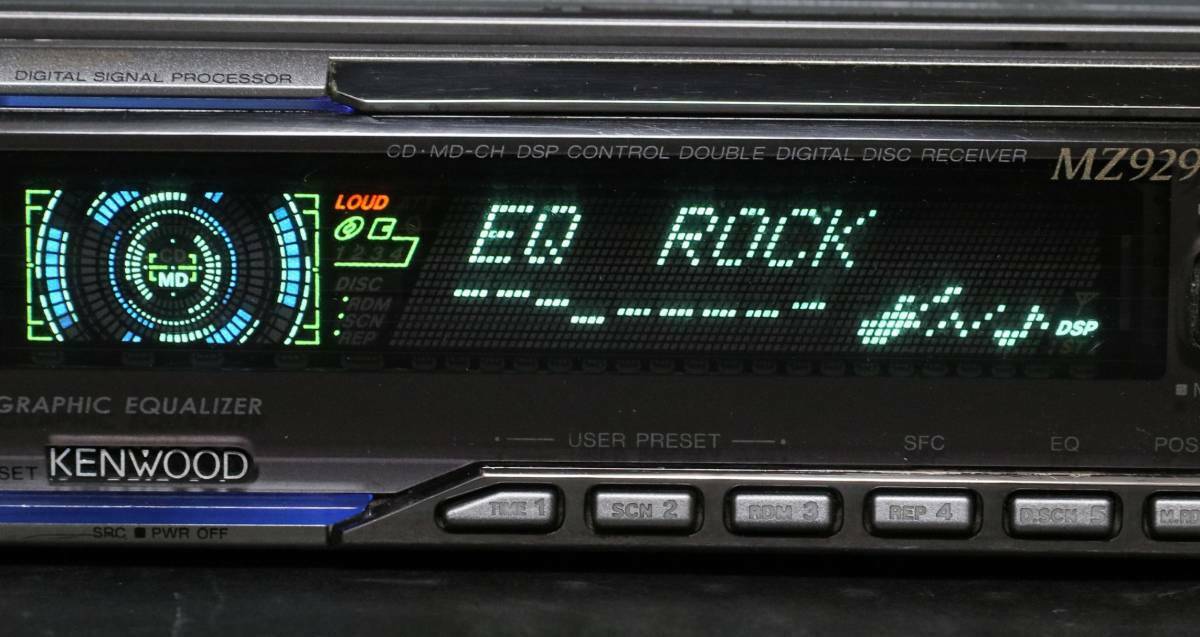

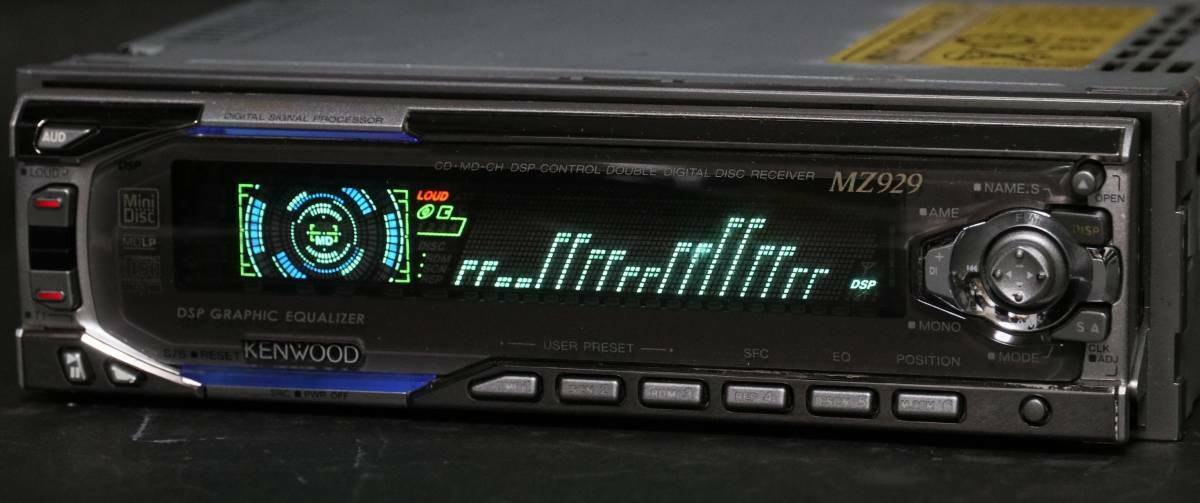

This is an MD / CD receiver that realizes ultra-high density mounting by mounting a thin MD mechanism and a thin CD mechanism in a 1DIN size housing. With limited dashboard space, MD and CD can be used in 1DIN size, making effective use of space. MD corresponds to MD new standard "MDLP" which can play up to 320 minutes with one MD. 24-bit high-quality sound LSI is adopted as ATRAC which decodes MD data. The left and right independent separate power ICs are used for the amplifier, and by significantly improving the channel separation, we have succeeded in realistically reproducing the sense of sound field and spaciousness. In addition, it is equipped with a full-spec DSP / EQ, expanding the enjoyment of listening to music in the passenger compartment. Equipped with a "3 mode font" function that allows you to select the display font of the display unit from 3 types. A multifunctional full-dot FL tube is used for the display, enabling beautiful and precise display. Equipped with a 45W x 4ch high power amplifier. Includes 10-key remote control.
[MD part]
- Frequency characteristics: 20Hz to 20kHz (± 1dB)
- S / N ratio: 90dB (1kHz)
- Dynamic range: 90dB
- Stereo separation: 85dB
[CD section]
- Frequency characteristics: 10Hz to 20kHz (± 1dB)
- S / N ratio: 93dB (1kHz)
- Dynamic range: 93 dB
- Stereo separation: 85dB
[FM section]
- Reception frequency range: 76.0MHz-90.0MHz (100kHz step)
[EQ section]
- Equalizer center frequency: 60,120,250,500,1k,2k, 4k, 8k, 16kHz
- Variable range: ± 12 dB
[Audio section]
- Maximum output: 45W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level: 1500mV (FM / 10kΩ)
[Common part]
- Power supply voltage: 14.4V (11-16V)

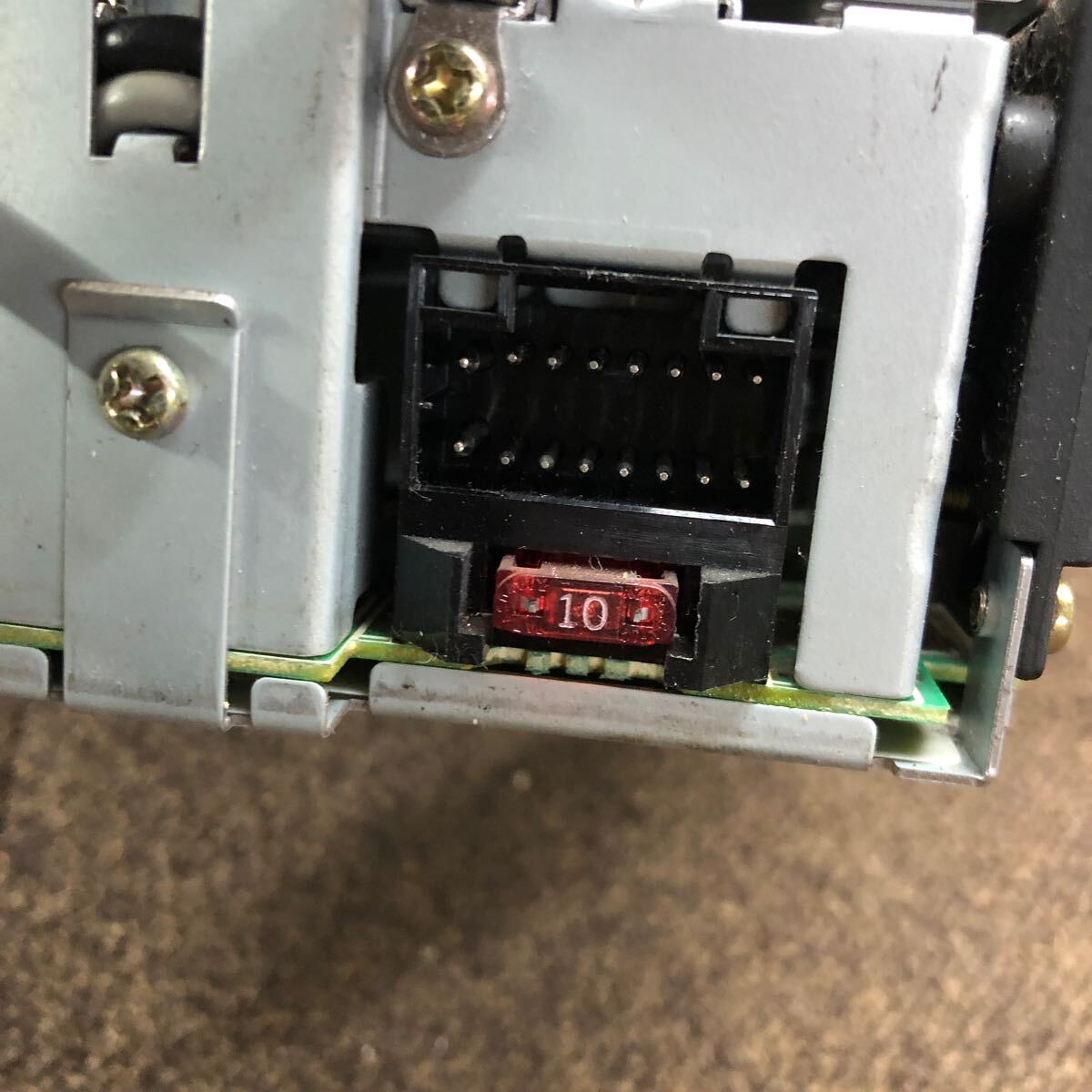

- Maximum current consumption: 10A

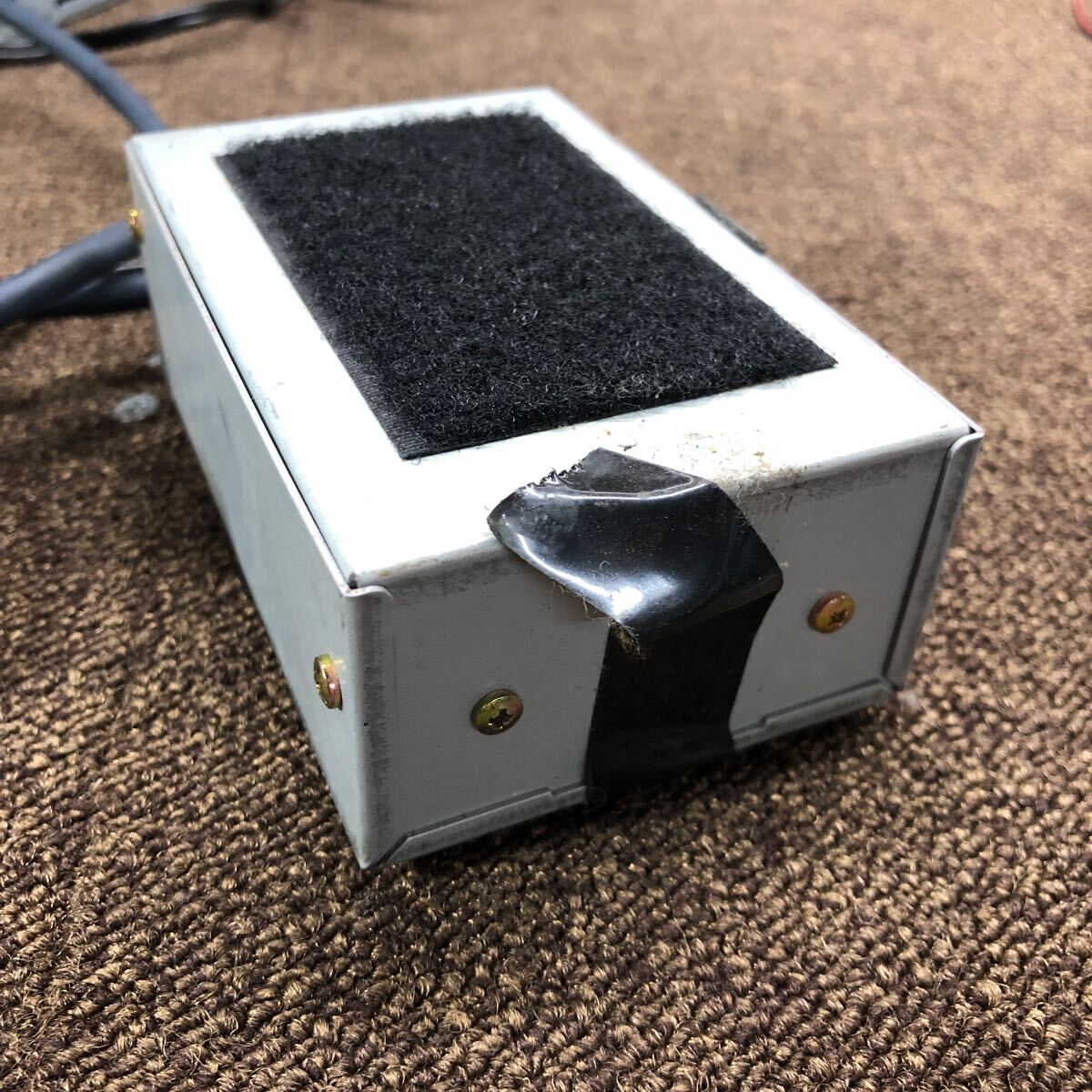

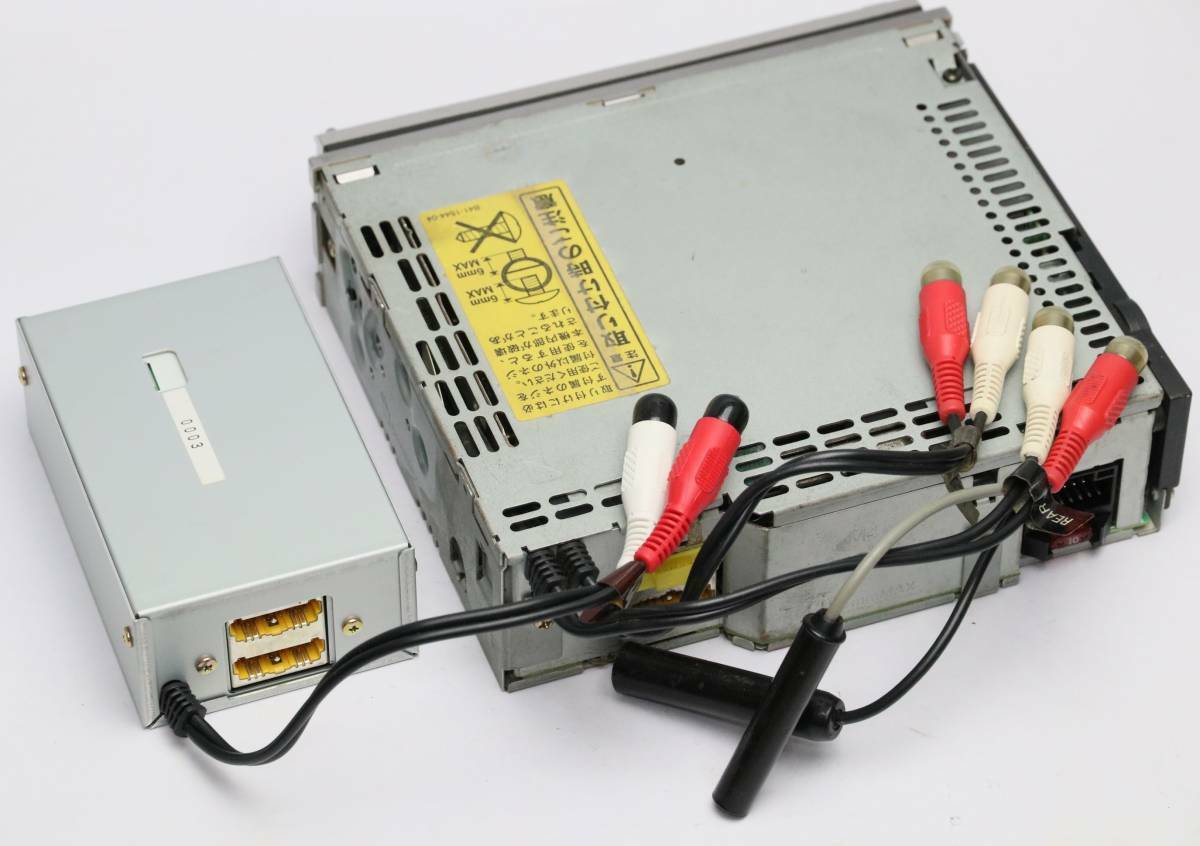

- 110 (W) x 40 (H) x 70 (D) mm (hideaway part)
- 0.31kg (Hideaway part)
Content adapted from: Kenwood Press Release (archived) Kenwood Press Release (archived) (MiniDisc Wiki mirror) Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Kenwood Product Page 2 Kenwood Product Page 2 (MiniDisc Wiki mirror) av.watch response.jp
Manuals
Repair
Photos

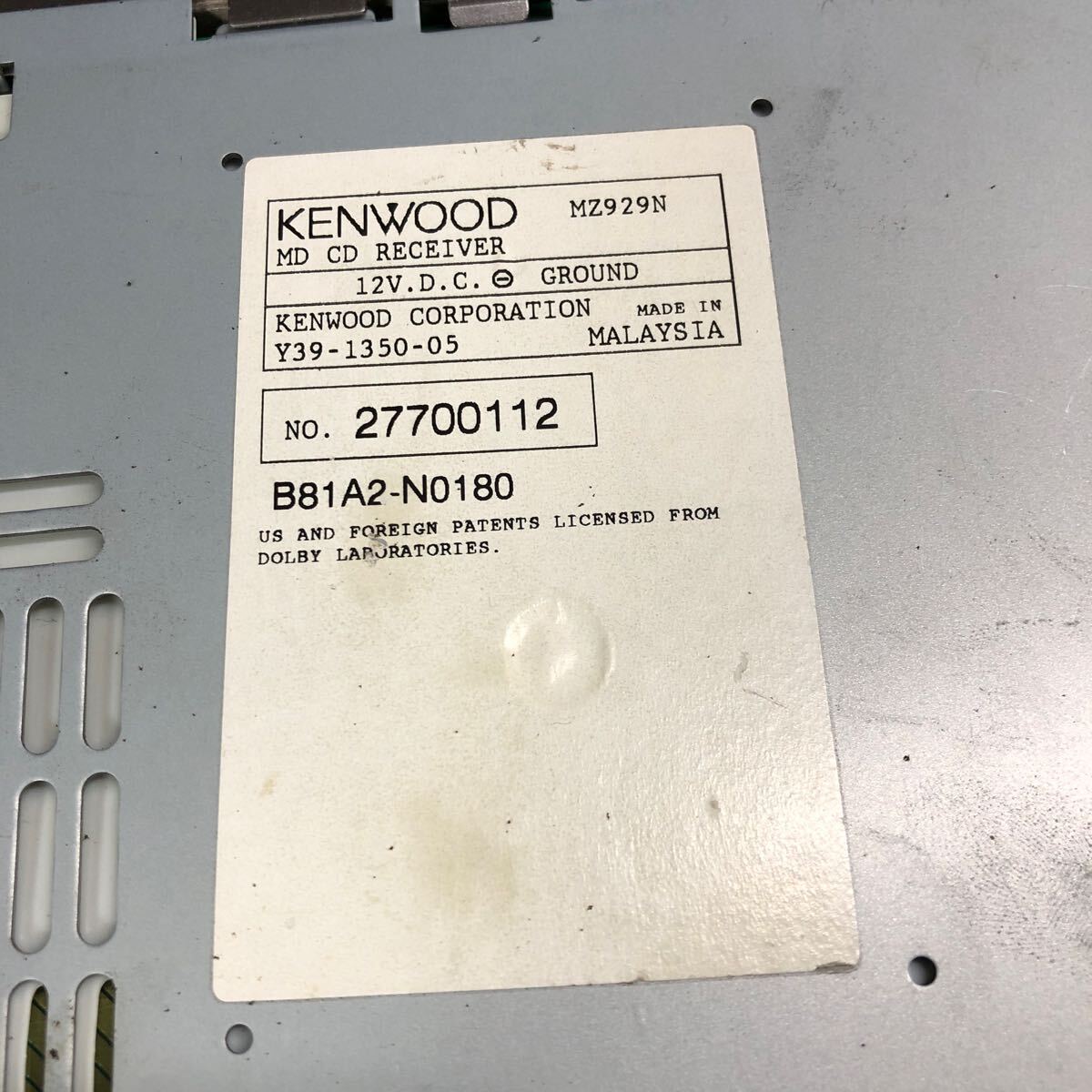

Nissan MZ929N B81A2-N0180:
