Kenwood RX-680MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
RX-680MD
Device type
auto
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

No directly linked document has been identified for this record. Search the manual library or consult the source below.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood RX-680MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name RX-680MD
Manufacturer Kenwood
Released 2001/03
Device type auto
Recorder Player
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 1-DIN 178W x 50H x 160Dmm
Weight 1300
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 12
Power cable Not recorded
Price (launch) Not recorded
¥31 500
-
Inputs Not recorded
Outputs Not recorded
Control Not recorded
  • Built-in NEW dB equalizer
  • Built-in speaker selector
  • 3 band tone control
  • CD changer control function
  • Supports AUX input
  • Clock/date & memo display function (32 characters x 30 days)
  • Remote control compatible (separately sold remote control: KCA-R7/RC600)
  • Equipped with 1 pre-out (rear)
  • Built-in 45W x 4 high power amplifier

[MD Department] Frequency response: 20Hz to 20kHz (±2dB) S/N ratio: 90dB (1kHz) Dynamic range: 90dB Stereo Separation: 85dB (1kHz)

[FM Department]

  • Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
  • Practical sensitivity: 9.3dBf (0.8μV/75Ω)
  • Frequency response: 30Hz to 15kHz (±3.0dB)
  • Stereo Separation: 40dB (1kHz)

[AM Department]

  • Receiving frequency range: 522kHz to 1629kHz (9kHz steps)
  • Sensitivity: 28dBμ (25μV)

[Audio part]

  • Maximum output: 45W x 4
  • Rated output: 28W x 4 (4Ω, 1kHz, 10% THD)
  • Pre-out level: 1800mV

[Common Department]

  • Power supply voltage: 14.4V (11-16V)
  • Maximum consumption current: 10A
  • Embedded dimensions: 178W x 50H x 160Dmm
  • Mass: 1.3kg

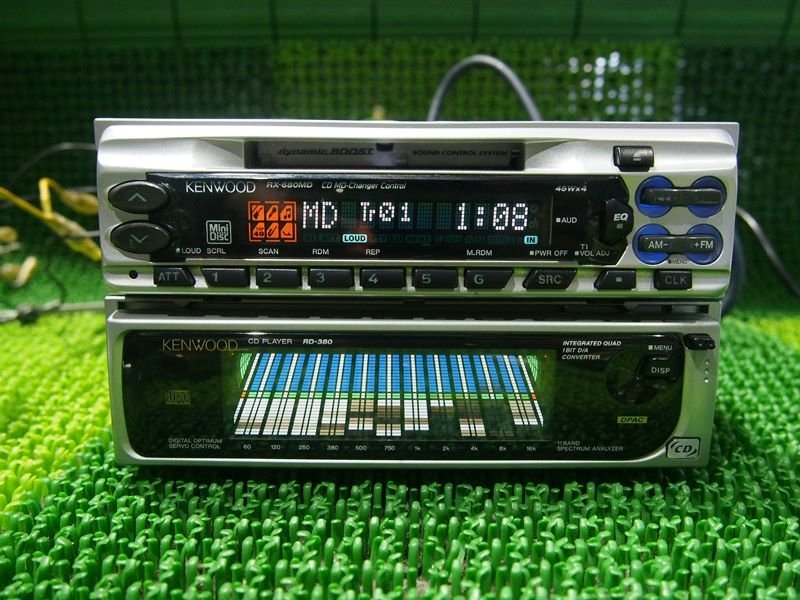

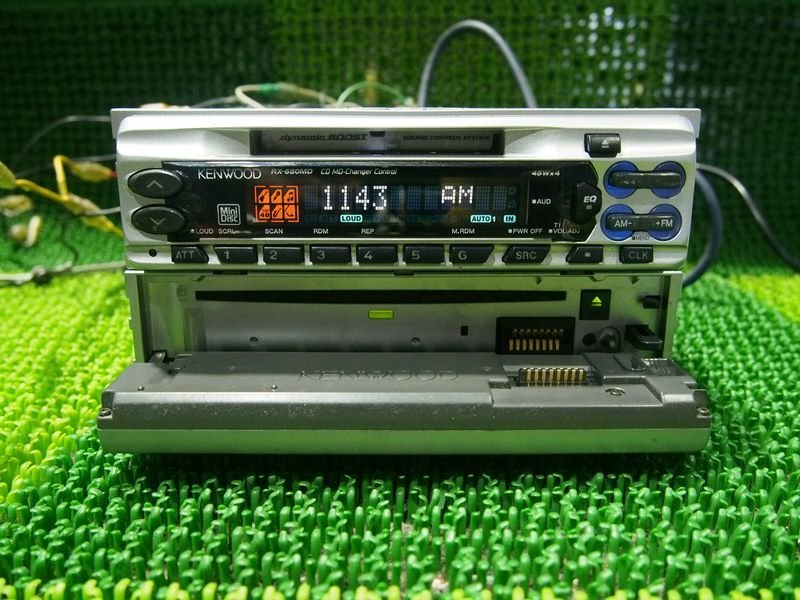

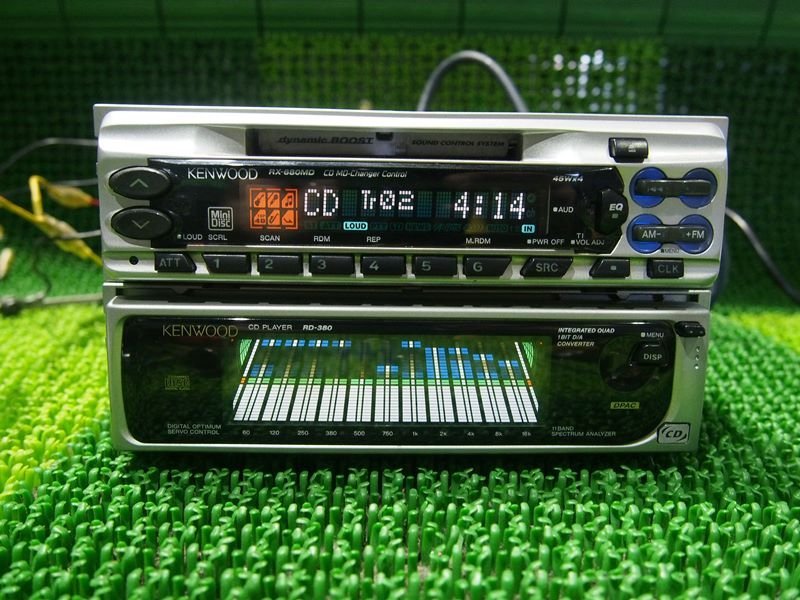

Seems to have been commonly paired with an RD-360 CD player as visualizer + CD player.

Content adapted from: Kenwood Press Release Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) phileweb.com
