| Name | RX-690MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1 DIN |
| Weight | 1.1kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 12 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥31 500 | |
| - | |
| Inputs | RCA in |
| Outputs | RCA out |
| Control | Not recorded |
Supports MDLP playback.
It is equipped with a dB equalizer that can correct 7 patterns of sound quality, a 3-band "tone control", and a "speaker selector".
AM/FM frequency range: FM 76.0MHz-90.0MHz (100kHz step), AM 522kHz-1629kHz (9kHz step)
- Supports AUX input.
- Remote control compatible.
- Built-in 45W x 4ch ultra-high power amplifier.
- DISC changer control function.
- Name input function.
Content adapted from: Kenwood News Release Page av.watch av.watch (MiniDisc Wiki mirror)
Manuals
Repair

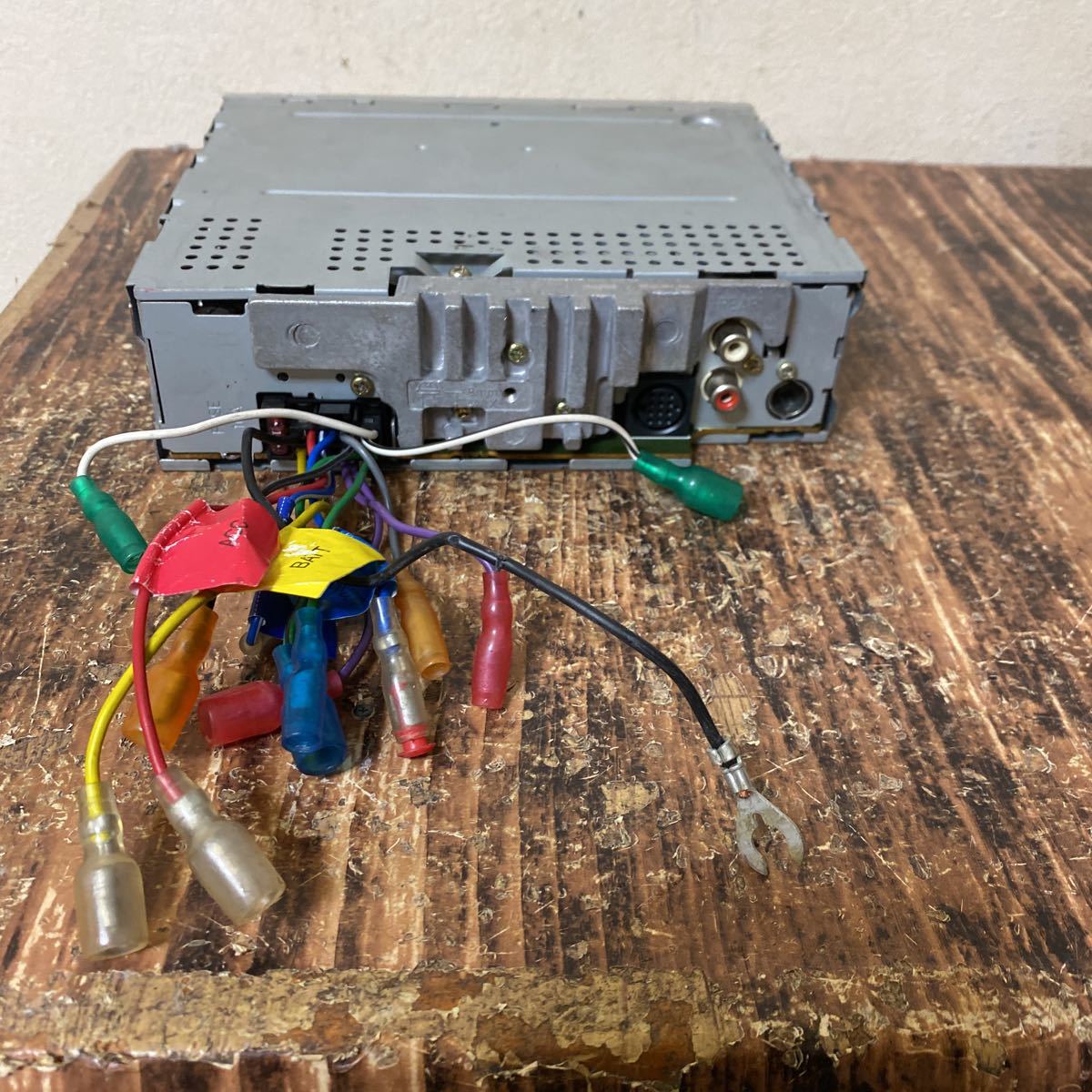

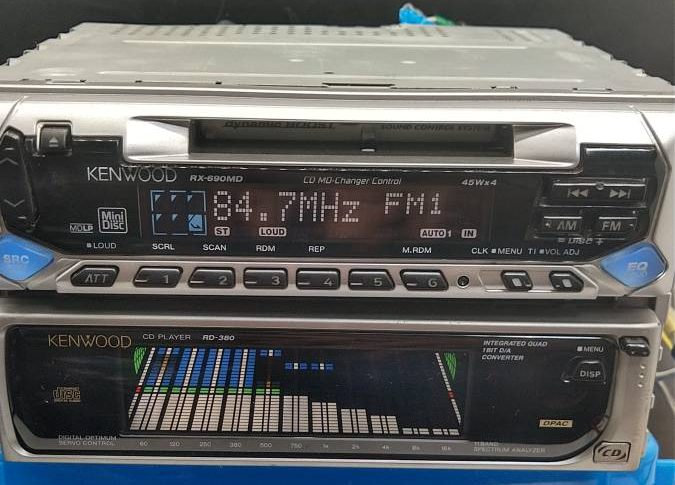

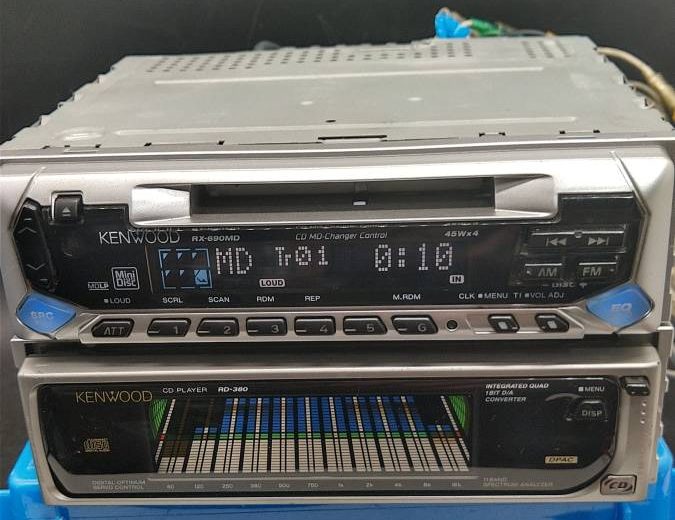

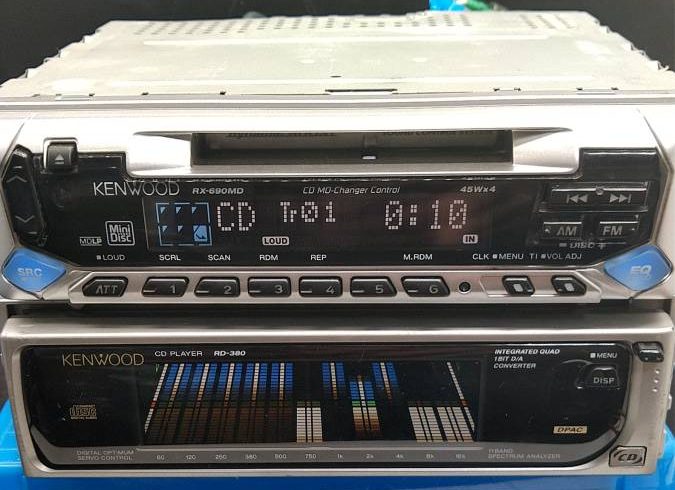

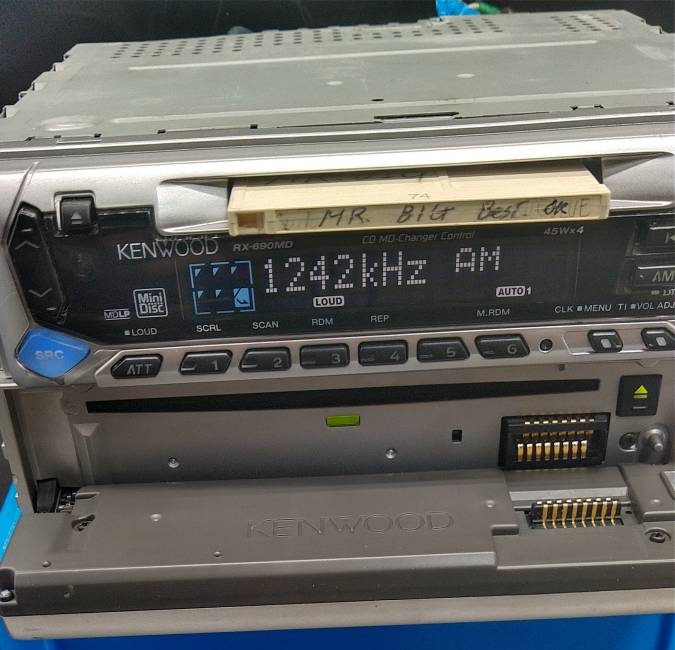

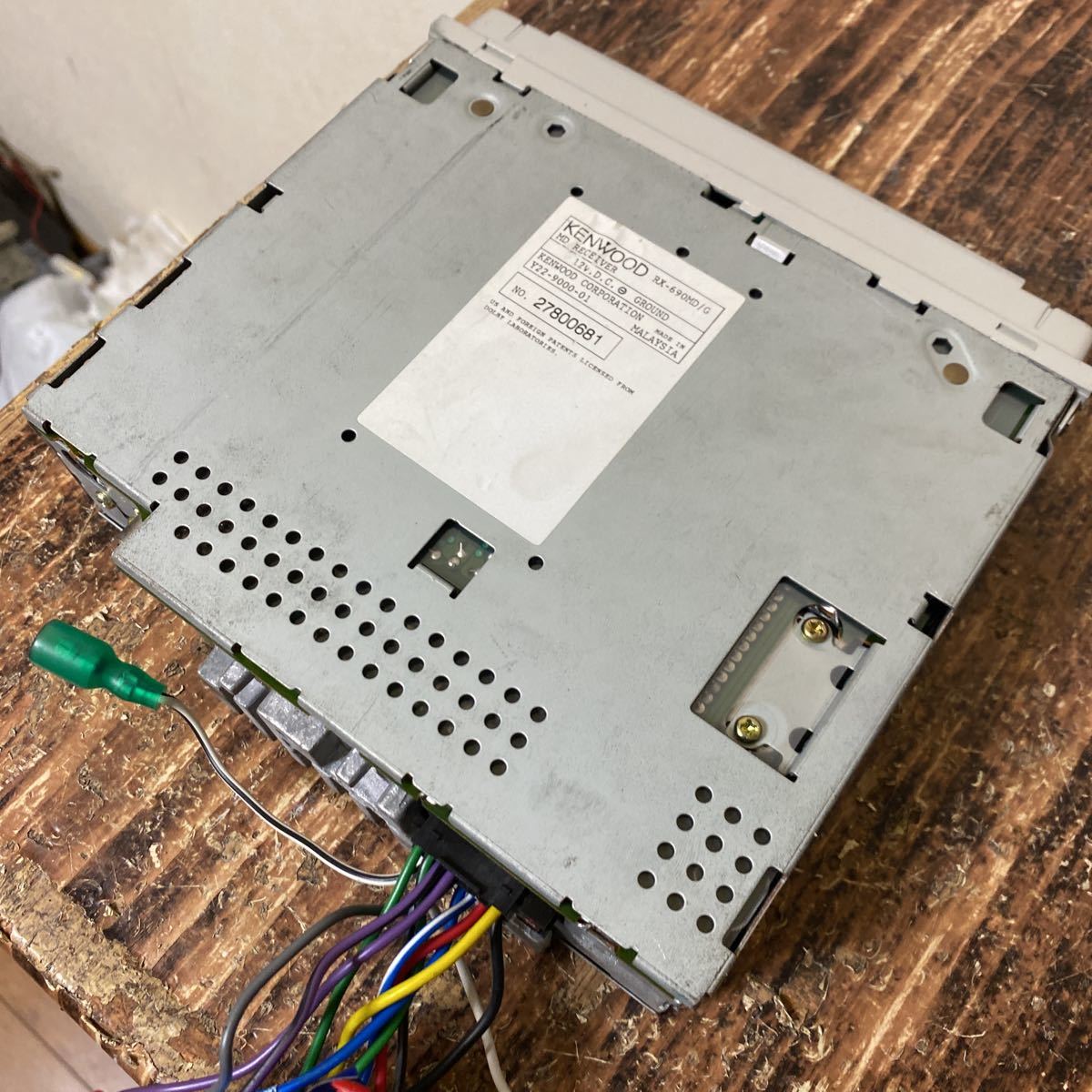

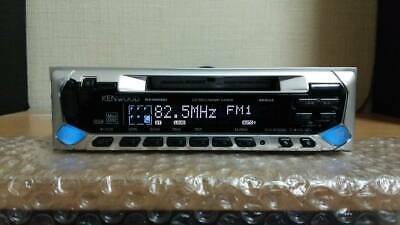

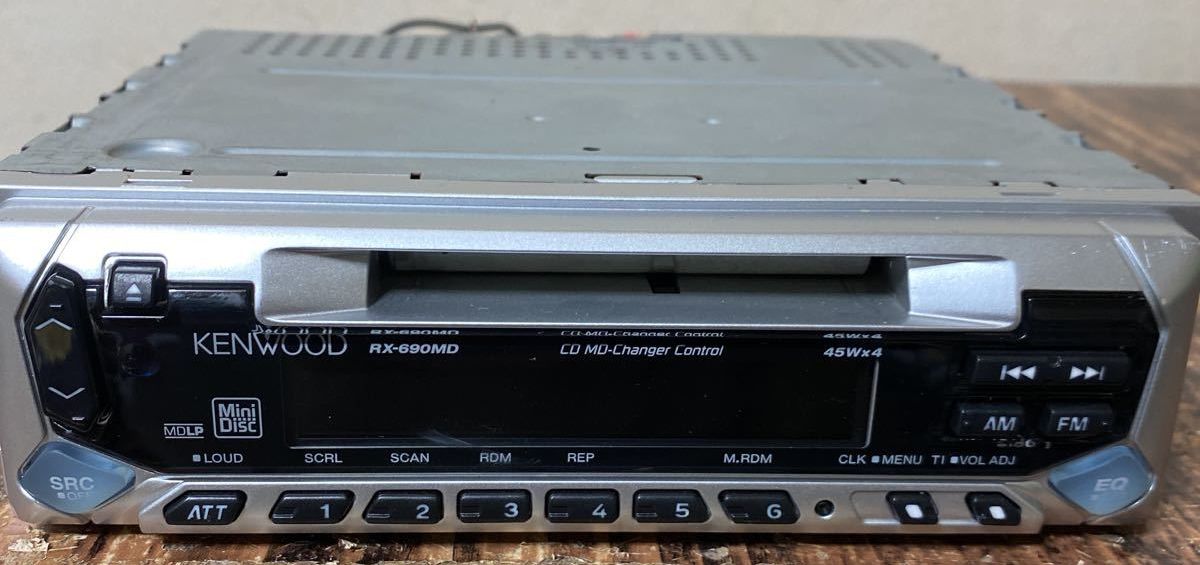

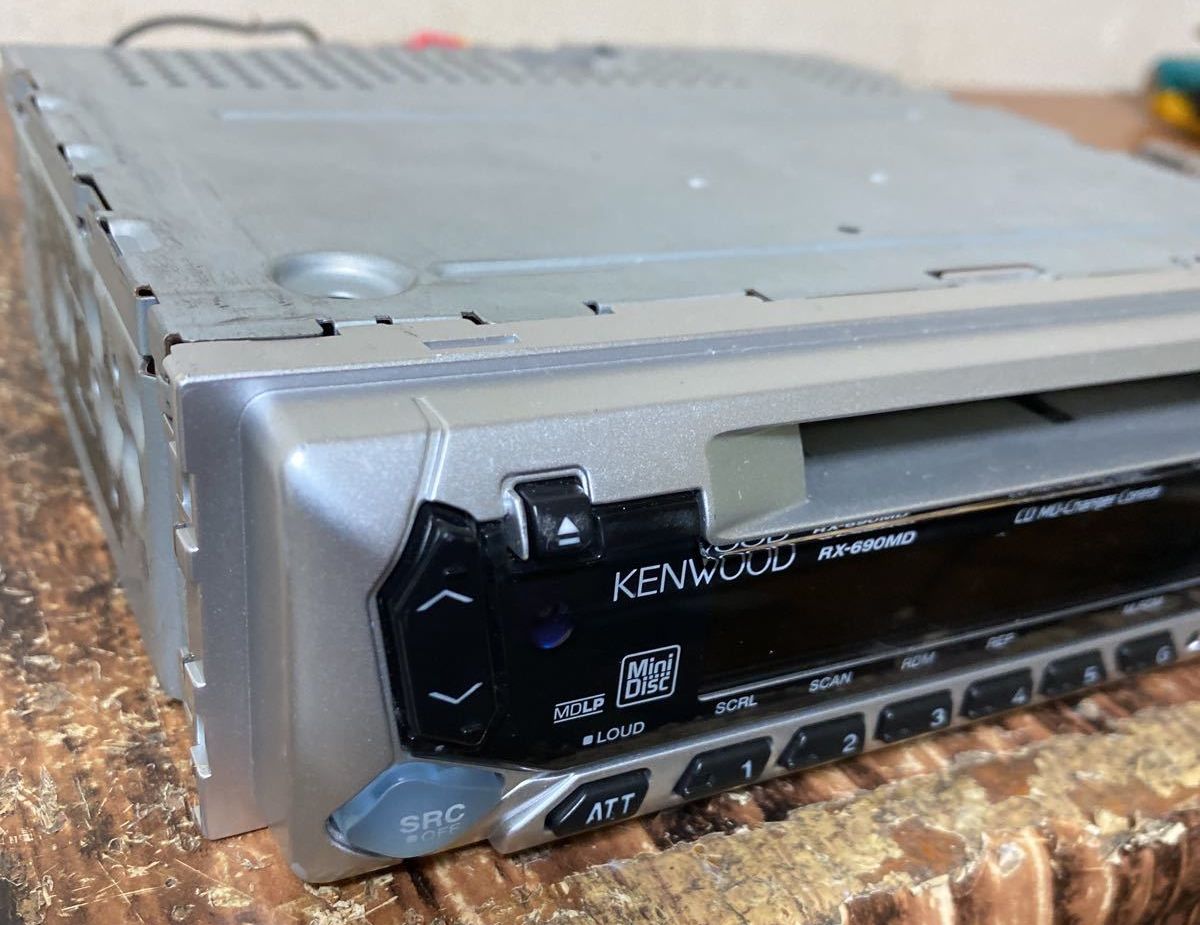

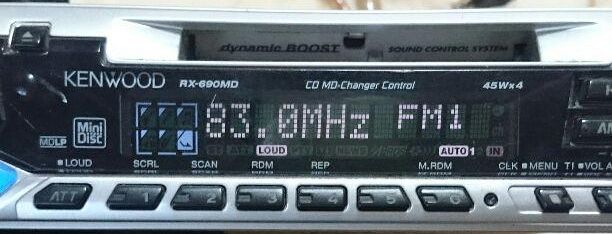

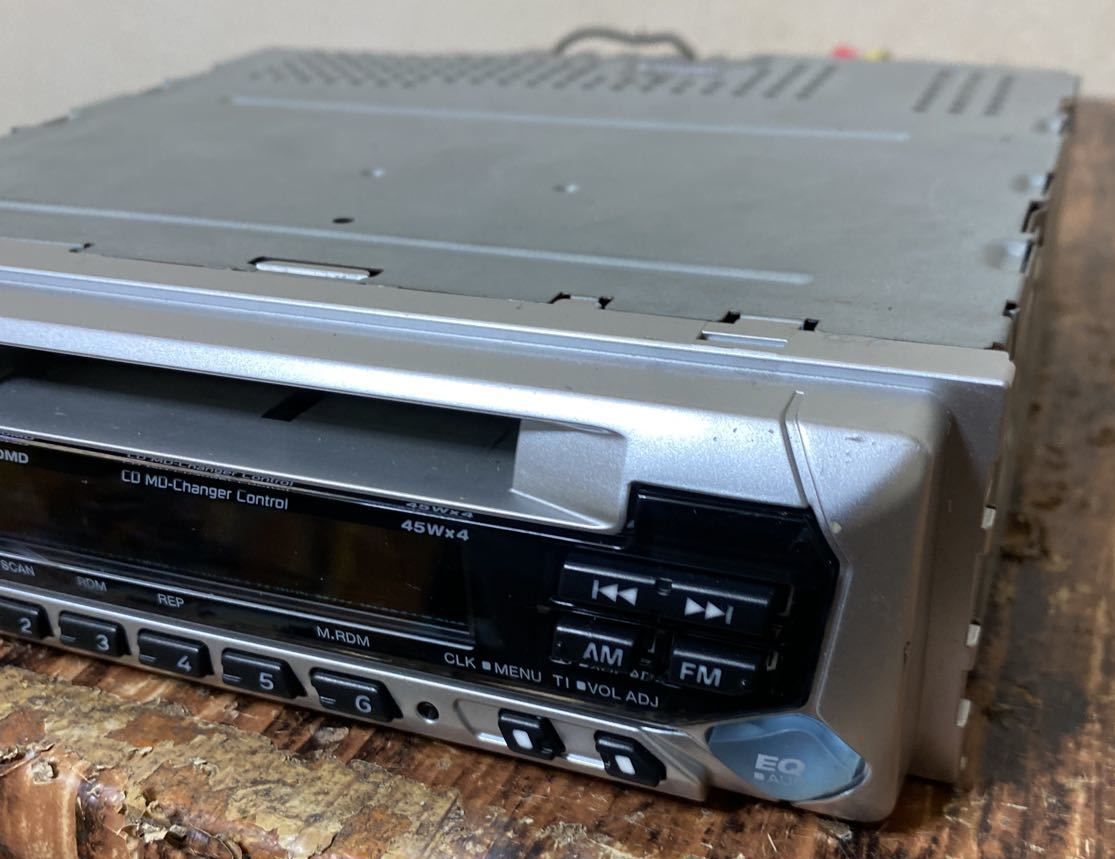

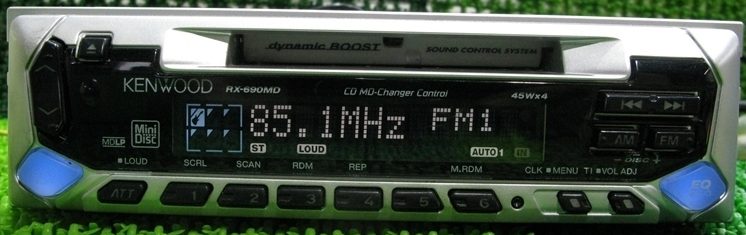

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | No |
|---|---|
| Manual | User manual |
| Region | Japan |
