| Name | AX-D7 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 270x101x347mm |
| Weight | 5kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (analog-only), 3.5mm line in (optical multi), CD |
| Outputs | 3.5mm line out (optical multi), Digital optical (TOSLINK), Speaker amplifier |
| Control | Not recorded |

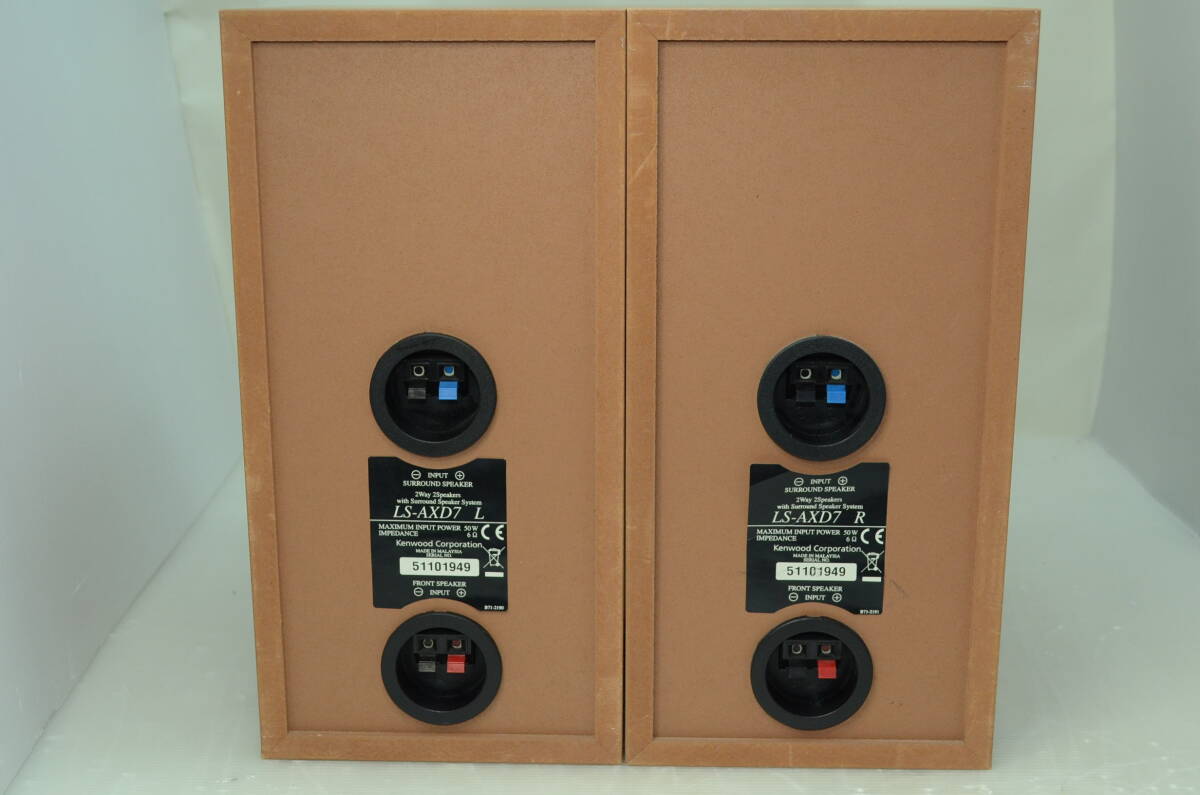

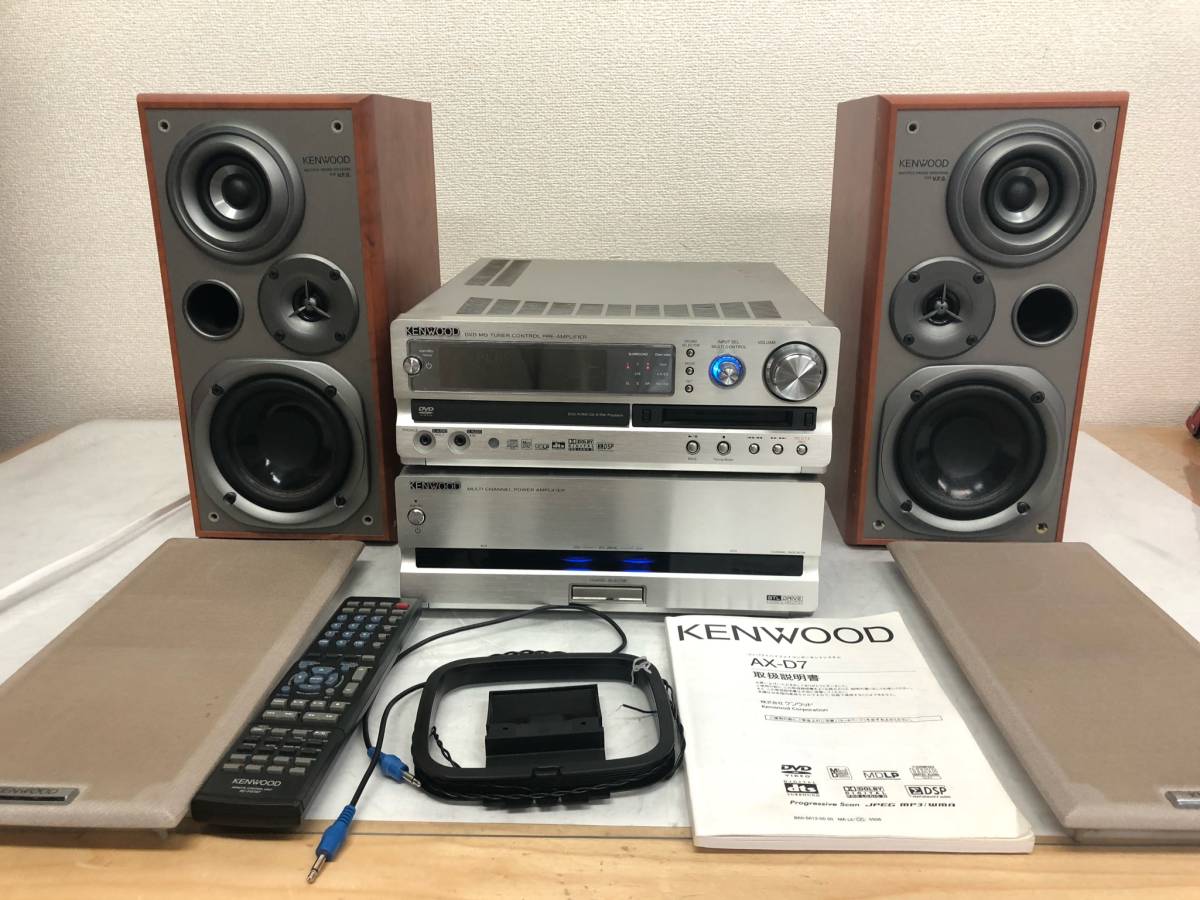

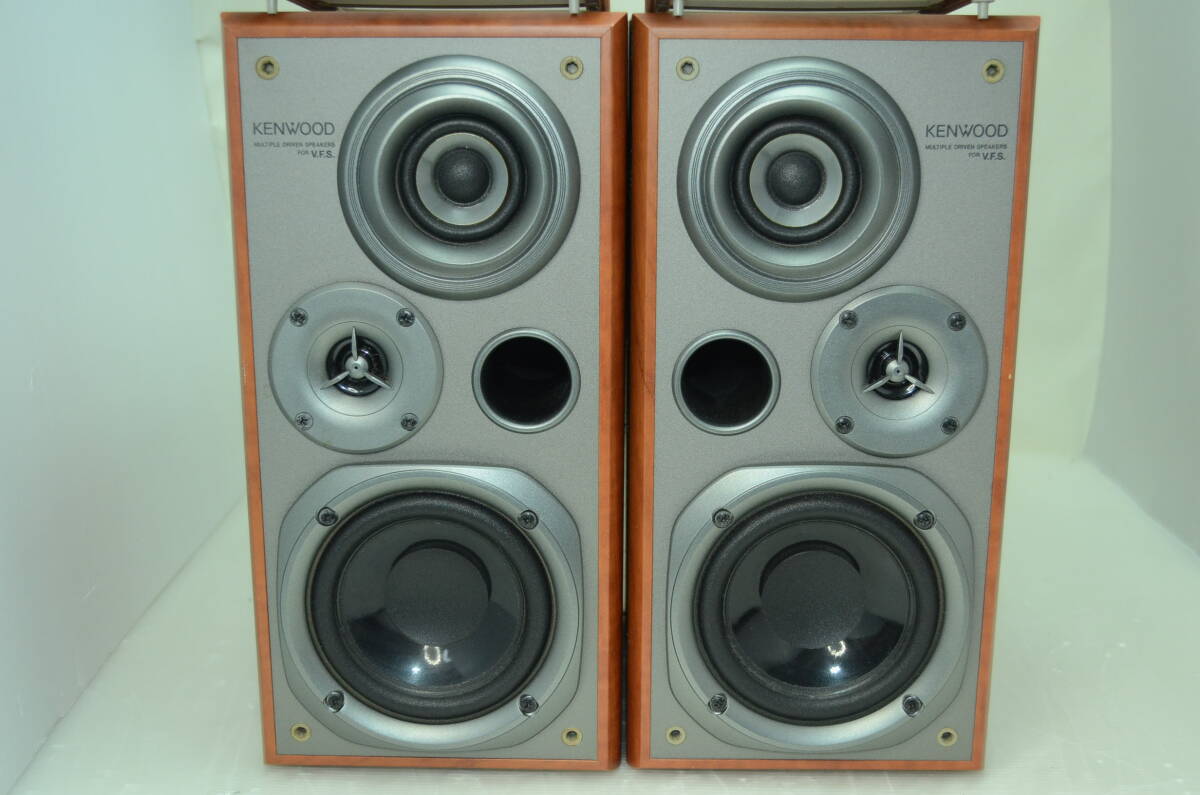

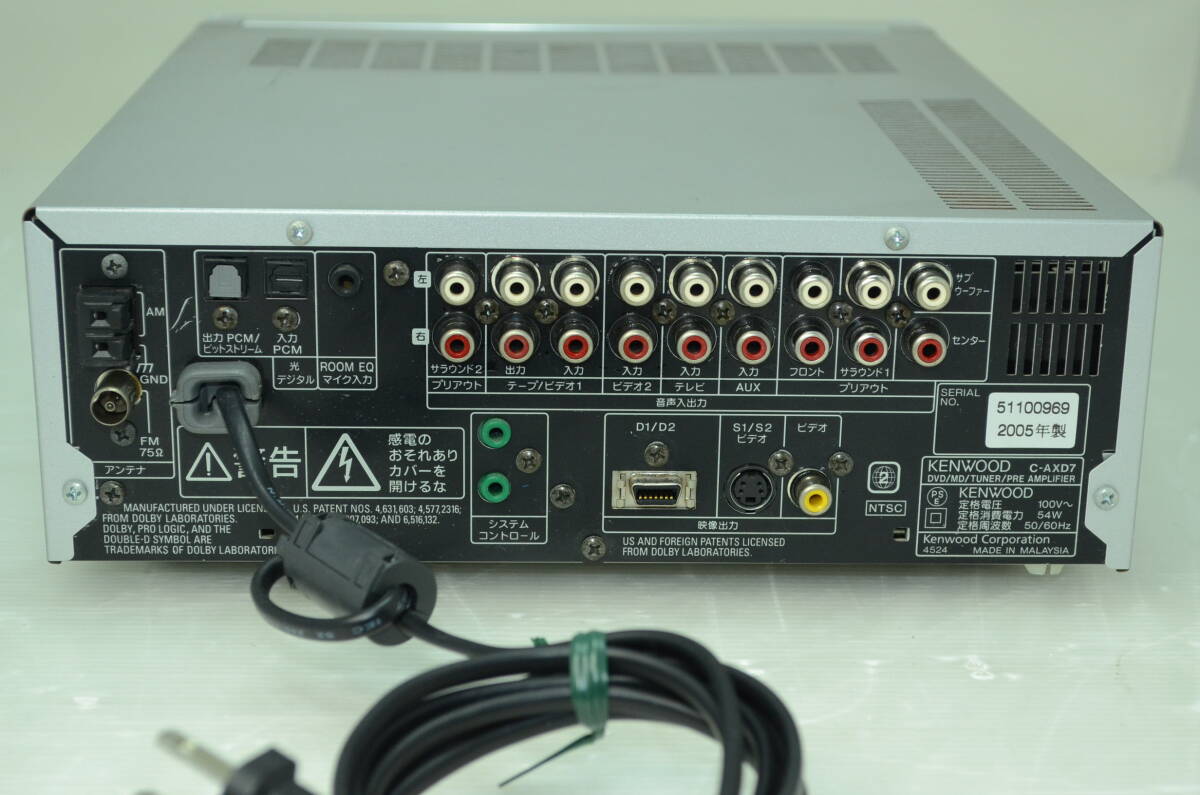

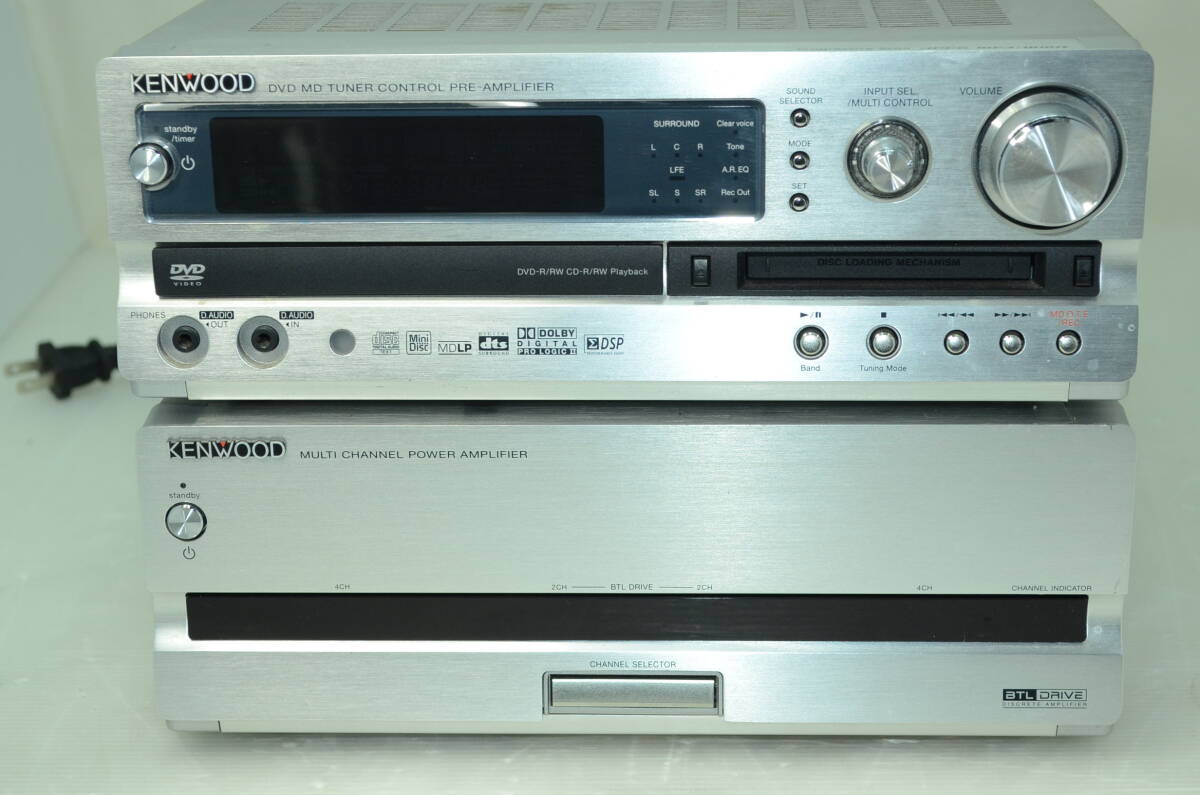

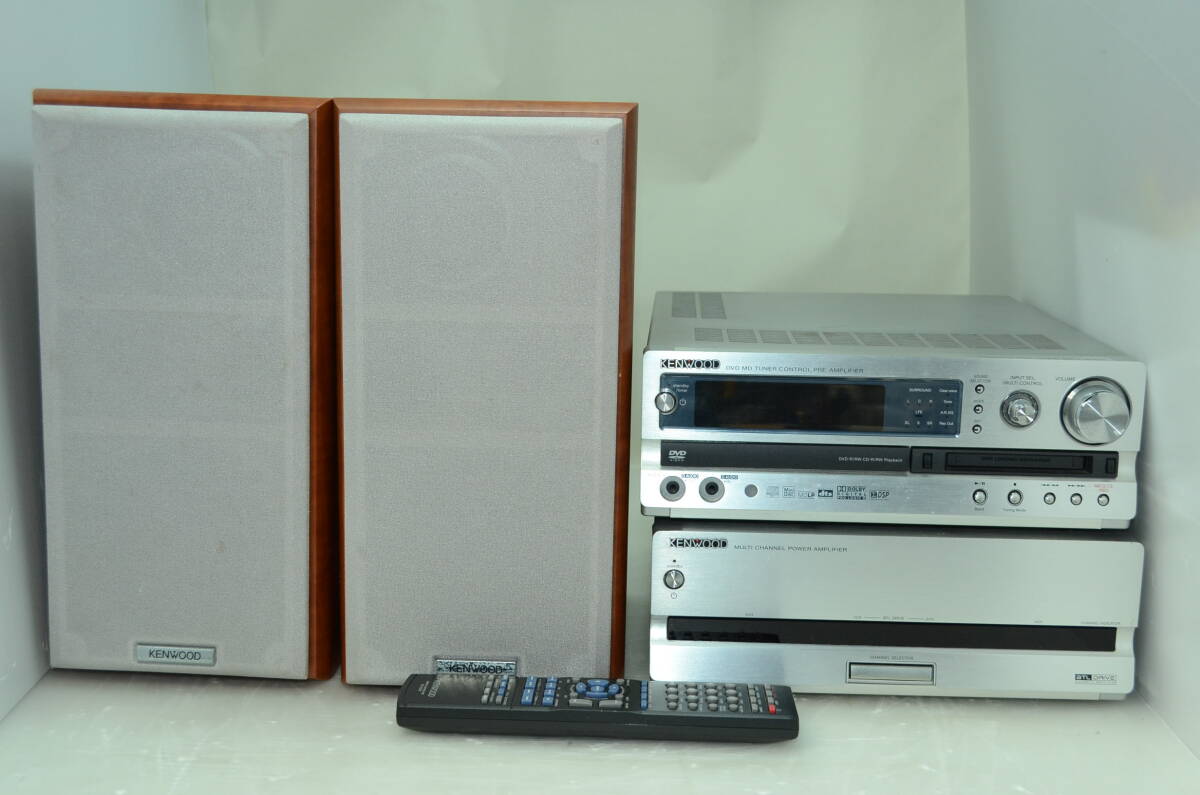

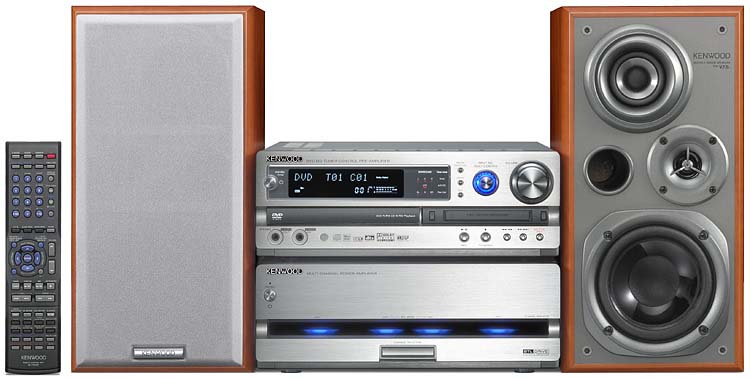

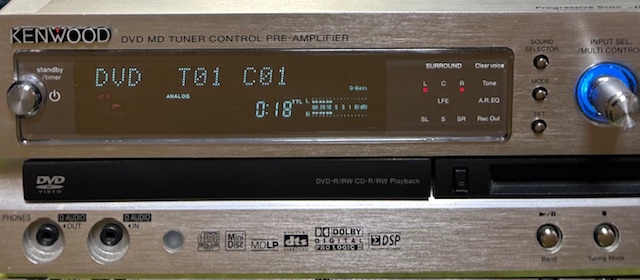

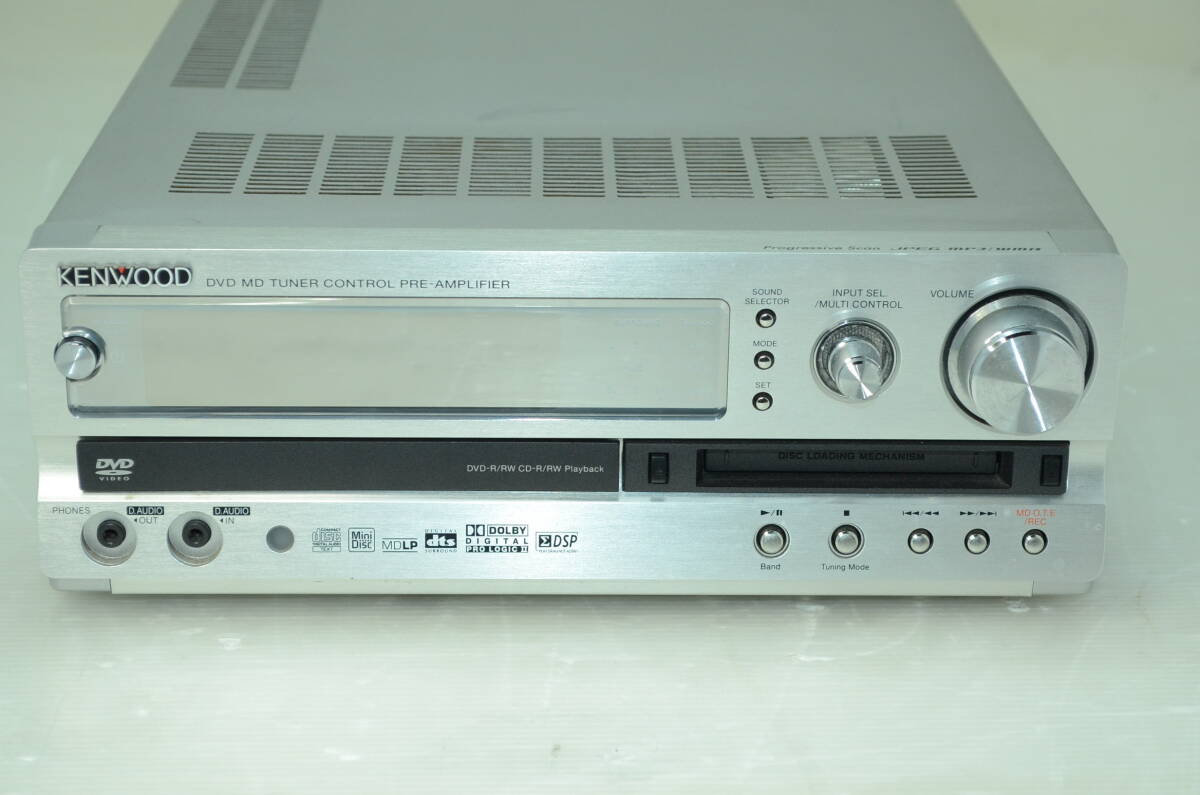

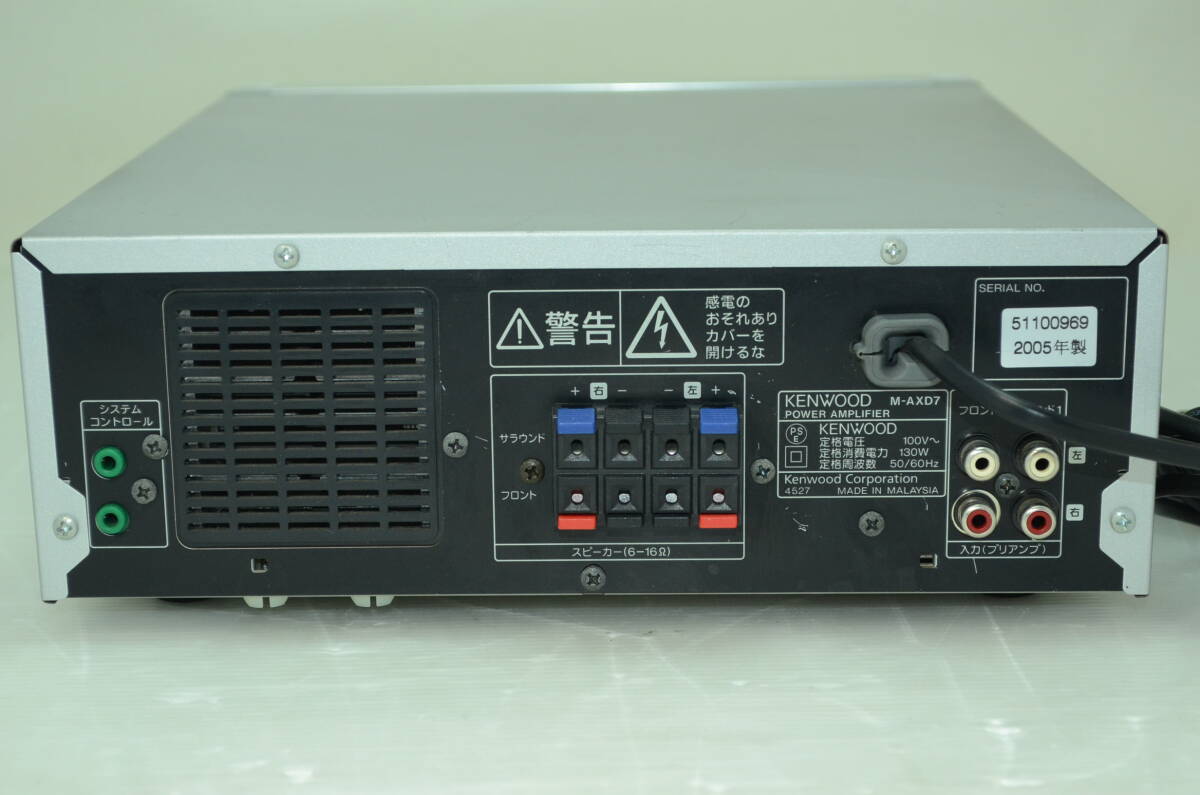

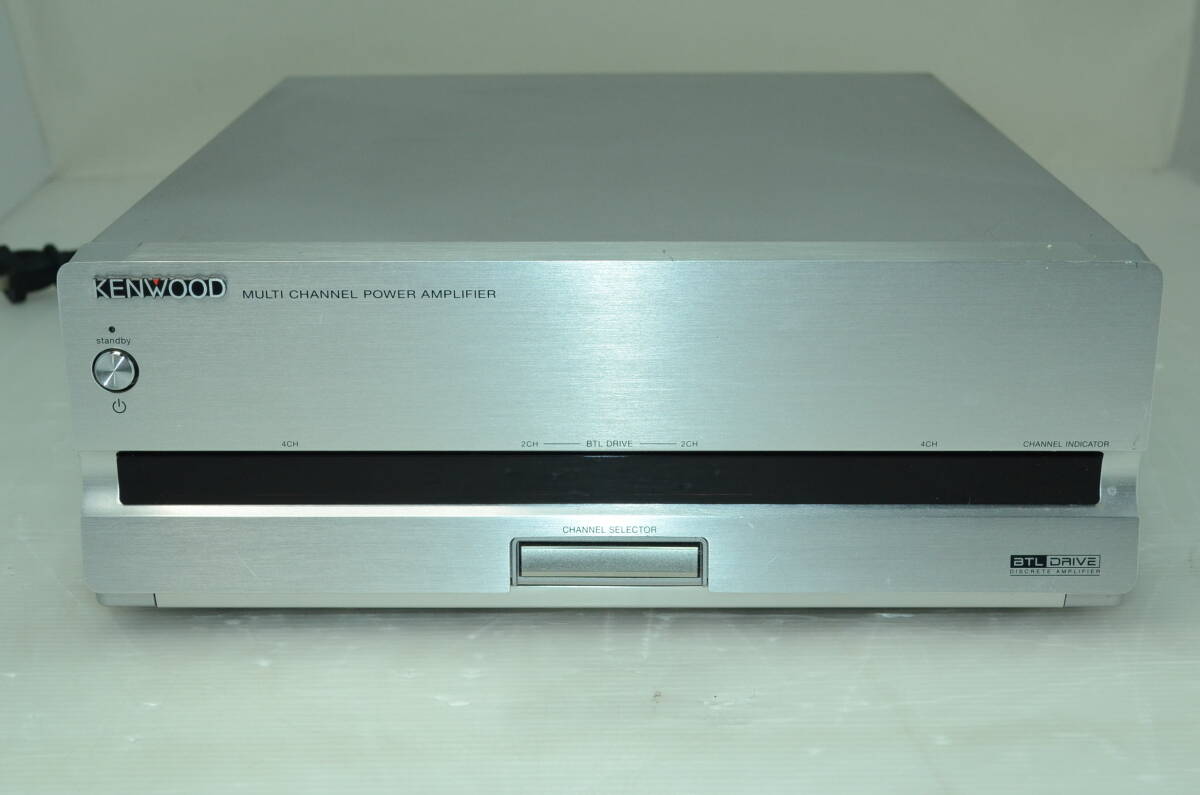

The AX-D7 system is comprised of the C-AXD7 DVD/MD pre-amp, M-AXD7 Amplifier and LS-AXD7 speaker. It comes in two colors: gold (N) and silver (S).
It can connect to the Kenwood HD20GA7 Kenwood HD20GA7 (MiniDisc Wiki mirror) and portable memory audio players M1GB5 M1GB5 (MiniDisc Wiki mirror) and M512B5. M512B5. (MiniDisc Wiki mirror)
You can synchronize music recorded on CD and MD to the M1GB5 and M512B5 without using a PC.
- VFS III realistic surround playback with just the front speakers
- Auto Room EQ
- MP3/WMA/JPEG playback
- Supports playback of DVD-R/RW, DVD+R/RW, and VCD discs
- AM: 531kHz to 1629kHz
- FM: 76MHz-90MHz
Max power: 50 W + 50 W（JEITA、6 Ω）
S/N ratio: 105 dB (JEITA)
Total harmonic strain rate: 0.0025% (1 kHz, 19 W, 6 Ω)

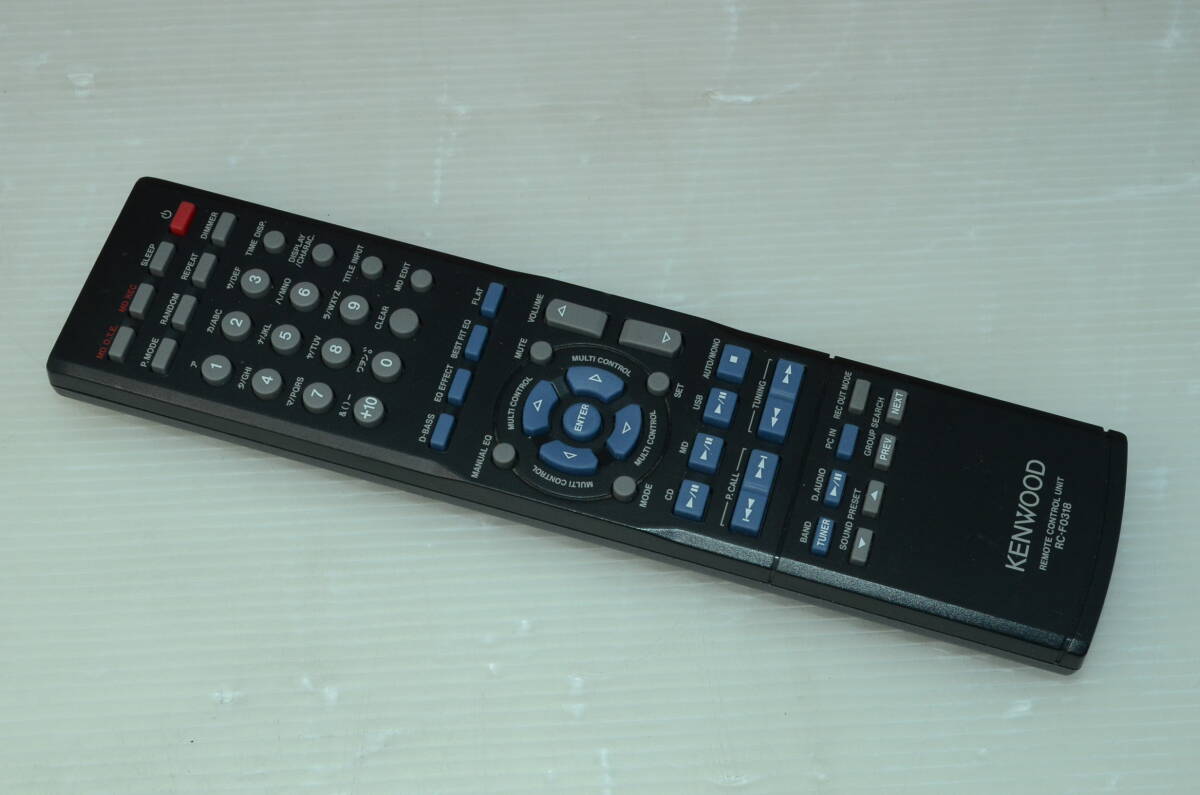

Remote: RC-F0318
Content adapted from: Kenwood News Release Page Kenwood News Release Page (MiniDisc Wiki mirror), Kenwood Product Page av.watch
