| Name | RXD-M32MD |
|---|---|
| Manufacturer | Kenwood |
| Released | Not recorded |
| Device type | bookshelf |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | mian unit: W 180 x H 239 x D 305 mm |
| Weight | main unit: 5.7kg speakers: 2.4kg each |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | Not recorded |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | RCA in, CD, Tape deck |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control | Not recorded |
Kenwood RXD-M32MD (system) HM-382MD (main body). Released sometime in 2000 based on the service manual publication date.
Amplifier section: (For U.K. and Europe)
Effective output power: 1 kHz, 10 % T.H.D., at 6 Ω: 20 W + 20 W
Rated output power: 1 kHz, 0.7 % T.H.D., at 6 Ω: 15 W + 15 W
(For other countries)
Rated output power during STEREO operation 1 kHz, 10 % T.H.D., at 6 Ω: 20 W + 20 W
Frequency response AUX: 50 Hz~50 kHz (0 dB ~ -3dB)
MD MECHANISM (MDM-99D) (part# D40-1677-05)
PICKUP ASSY RCTRH8198AFZZ (part# T25-0099-08 )
ATRAC IC: LR376484F
Content adapted from:
Manuals
Repair
Photos

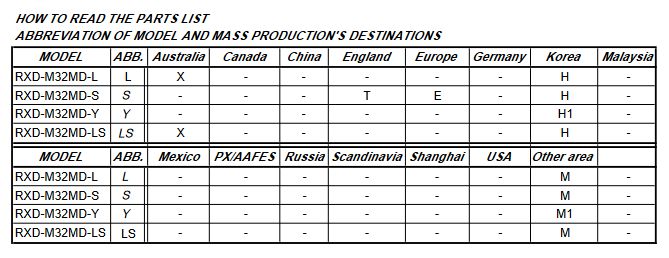

Regions this unit was released with model#'s from the service manual: \
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Remote Page | |
| Atrac Ic | LR376484F (Sharp) |
| Manual | User manual, Service manual |
| Region | Europe, Asia |
