| Name | SH-5MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/11 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 243 x 284 x 310mm |
| Weight | 5.5kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥60 000 | |
| - | |

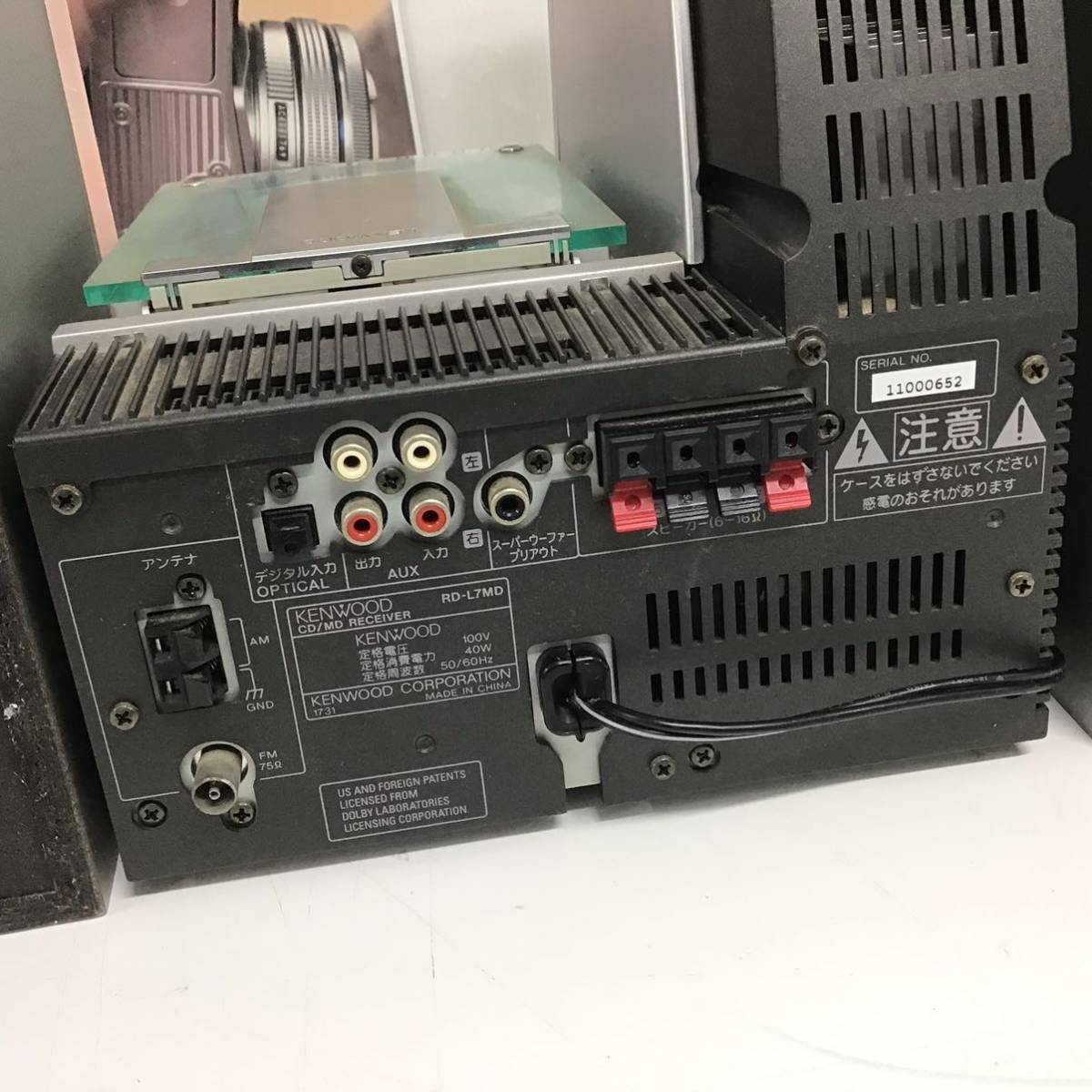

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD |
| Outputs | RCA out |
| Control | Not recorded |
Very similar to the SH-7CDR in design and specs, however this does not support CD-RW.
- FM 76MHz to 90MHz (stereo), AM 531kHz to 1629kHz (monaural)

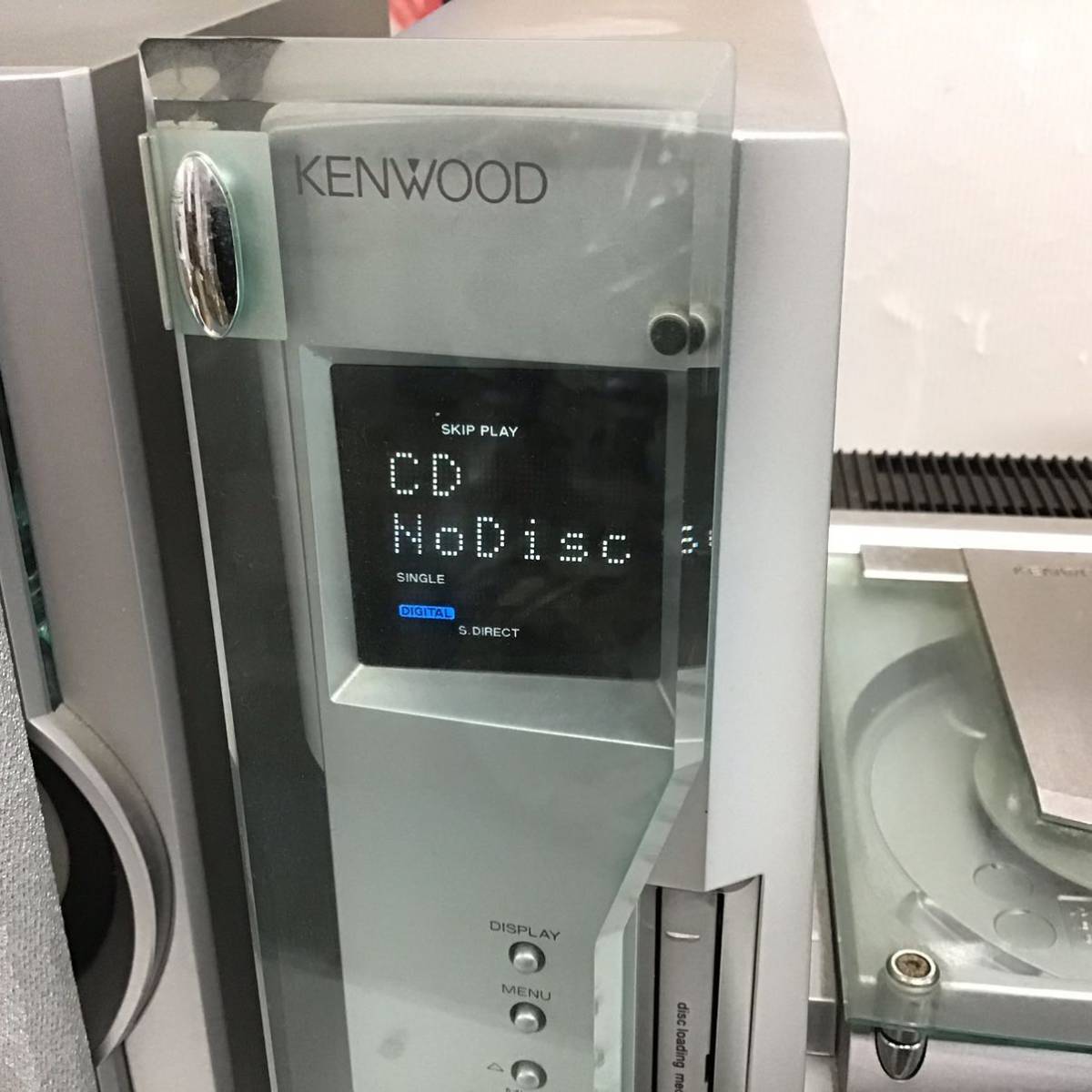

- Supports CD TEXT display.
- 2x CD to MD recording.

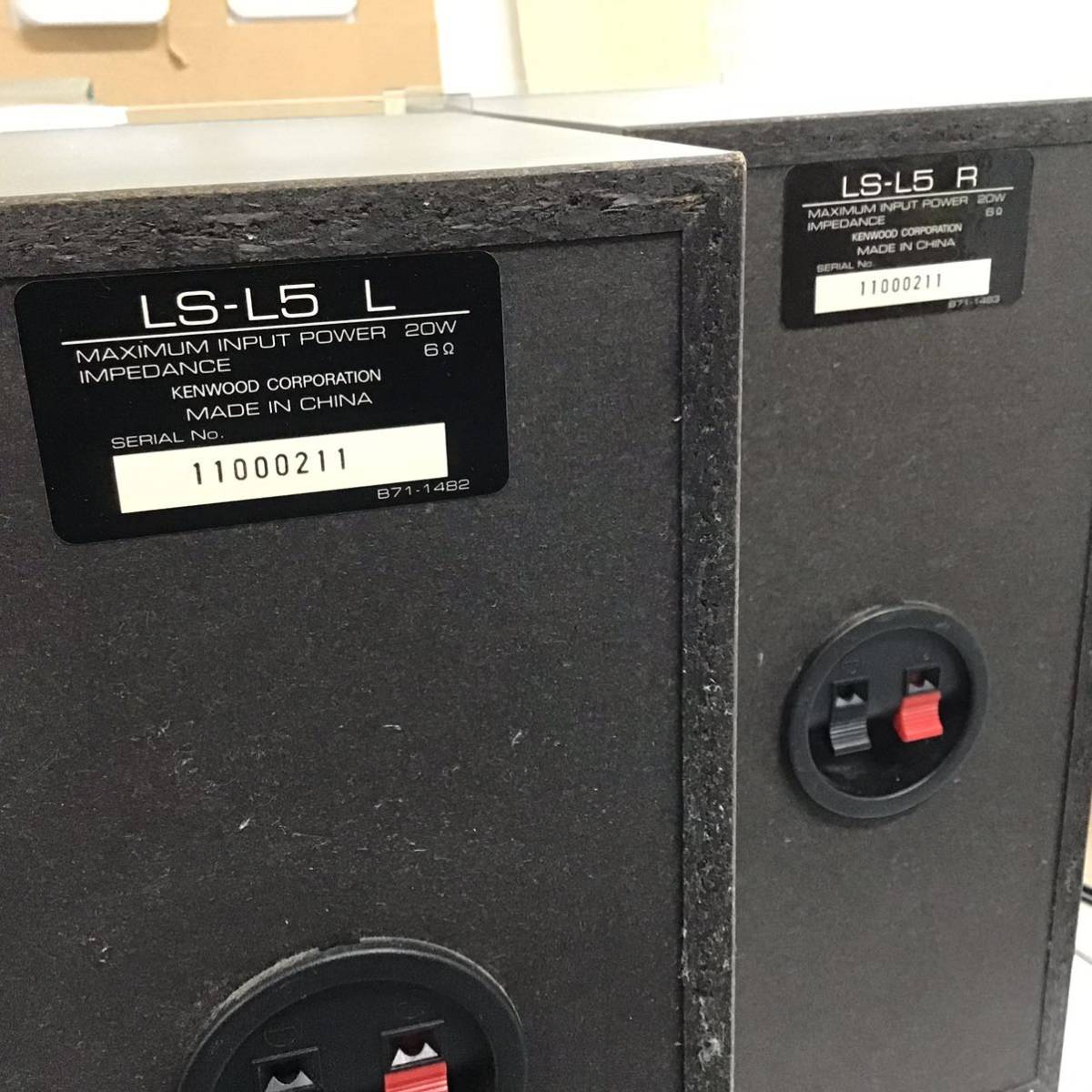

- 2-way speaker system with 10cm cone woofer + 1.9cm dome tweeter.

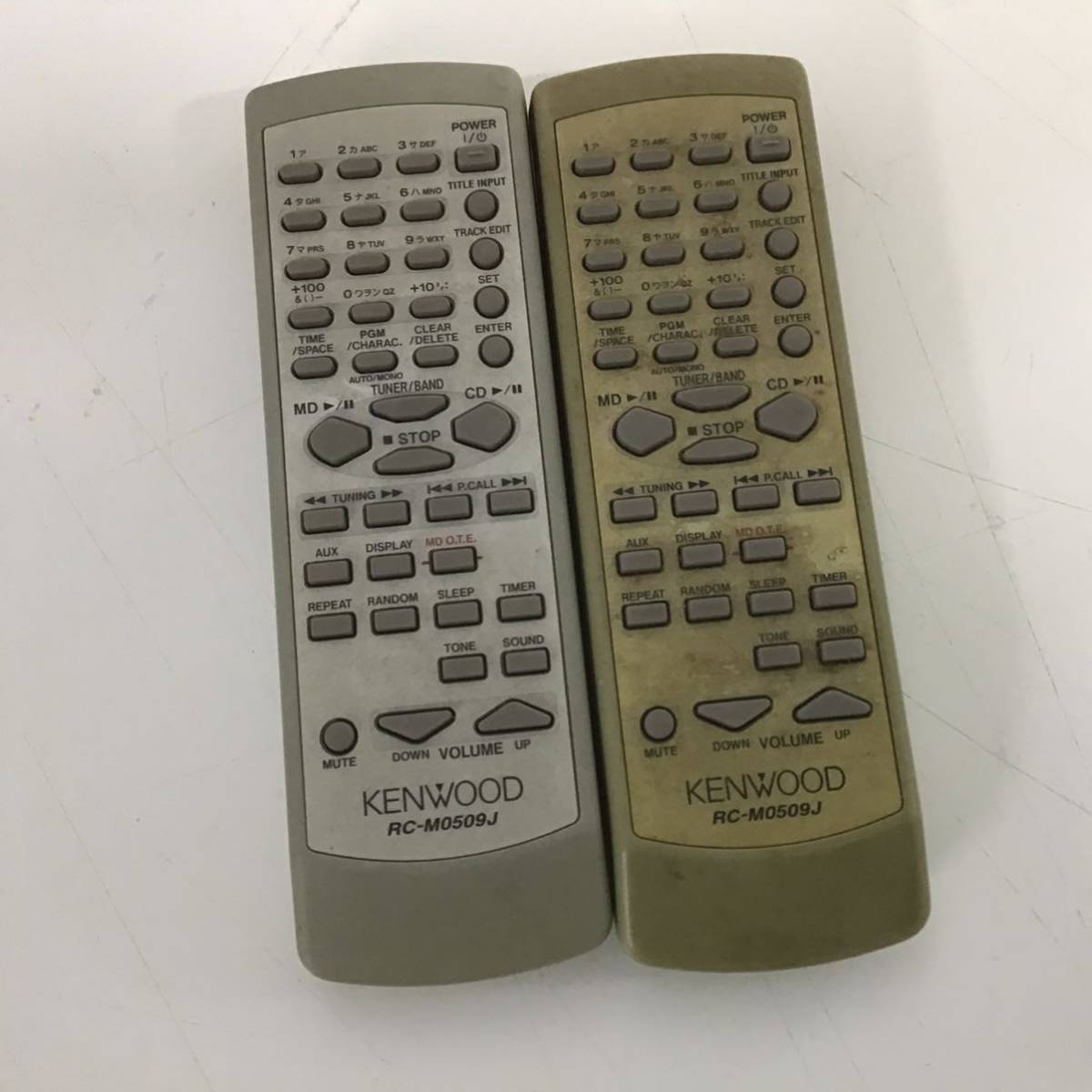

Remote: RC-M0509J
Content adapted from: Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Kenwood News Release Page, Kenwood Spec Page phileweb
Manuals
Repair

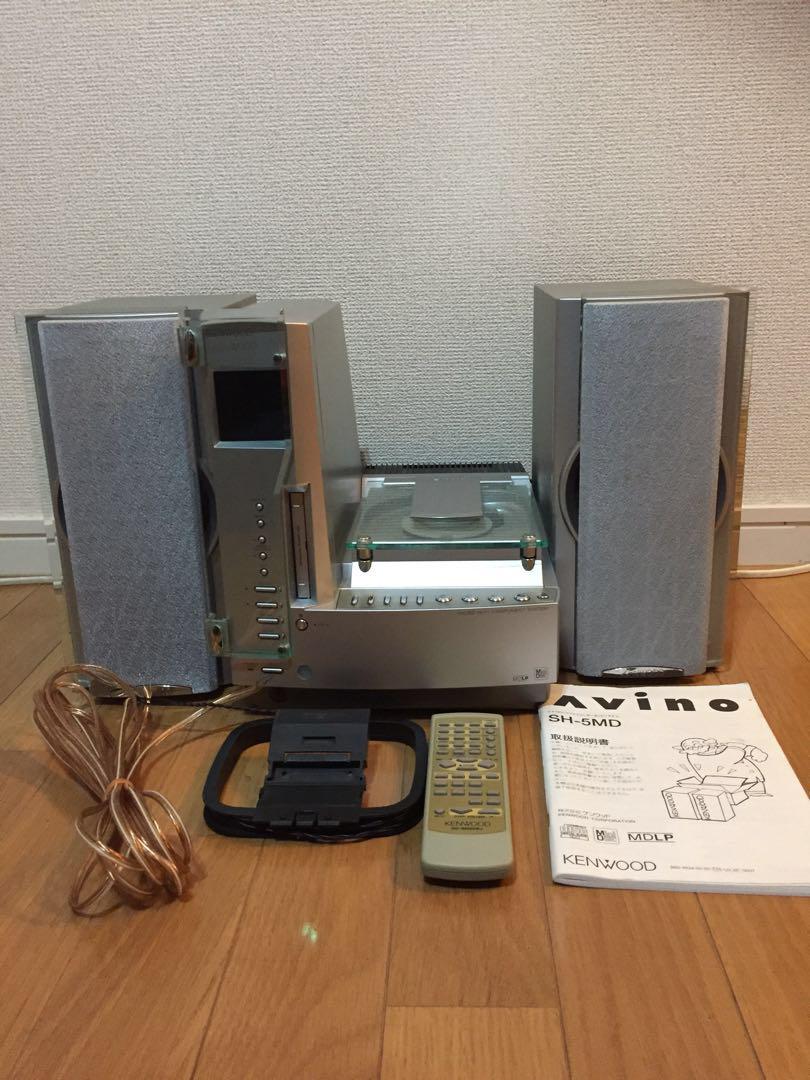

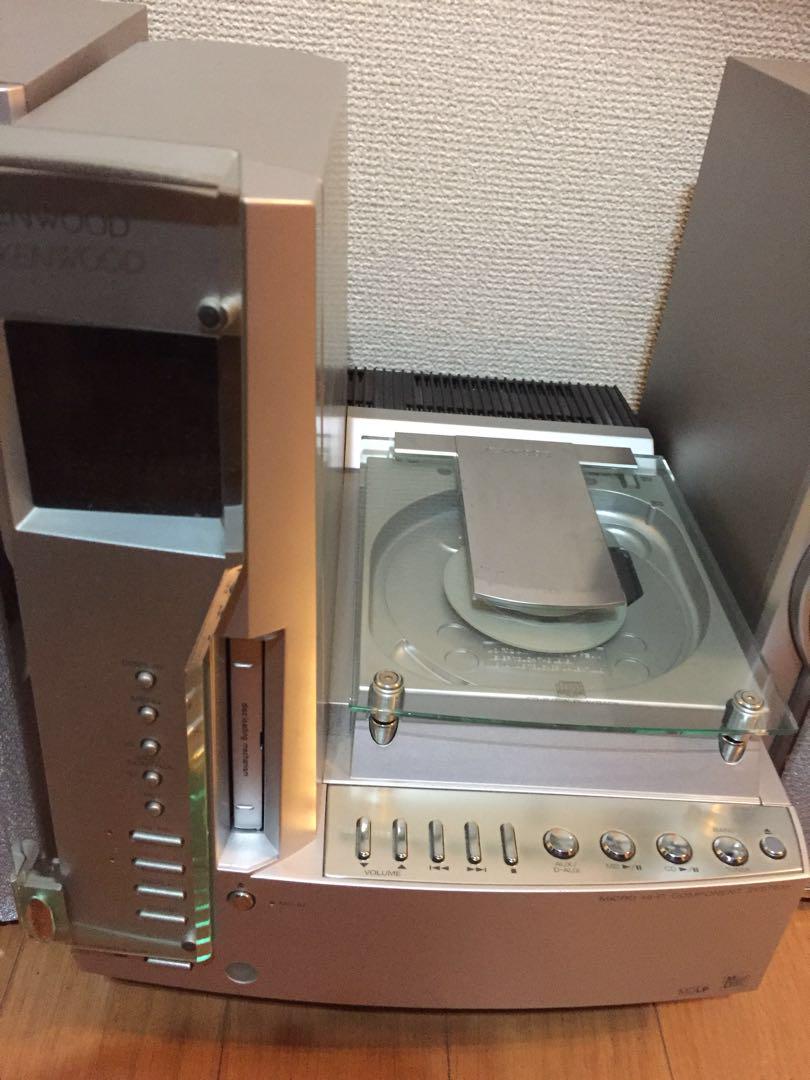

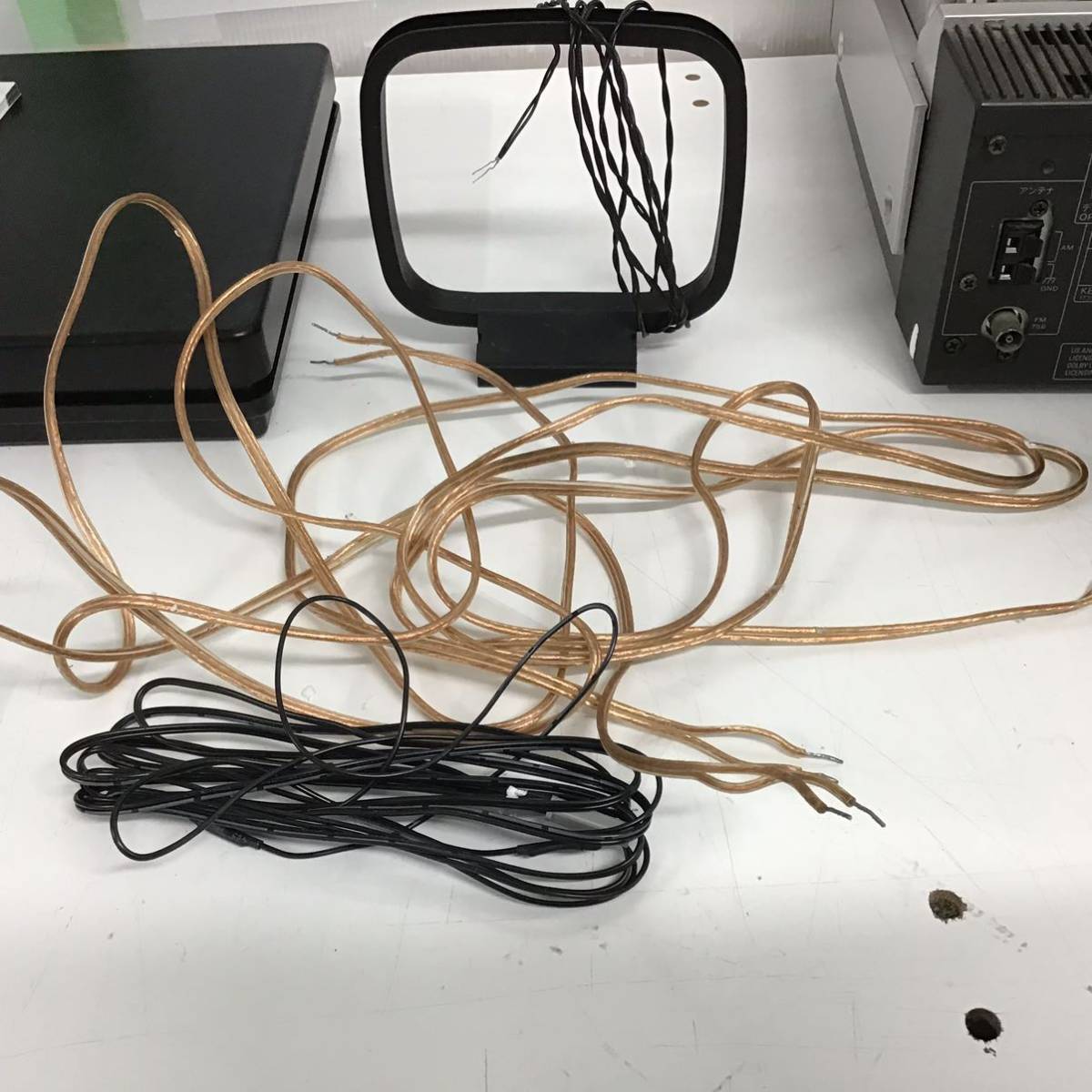

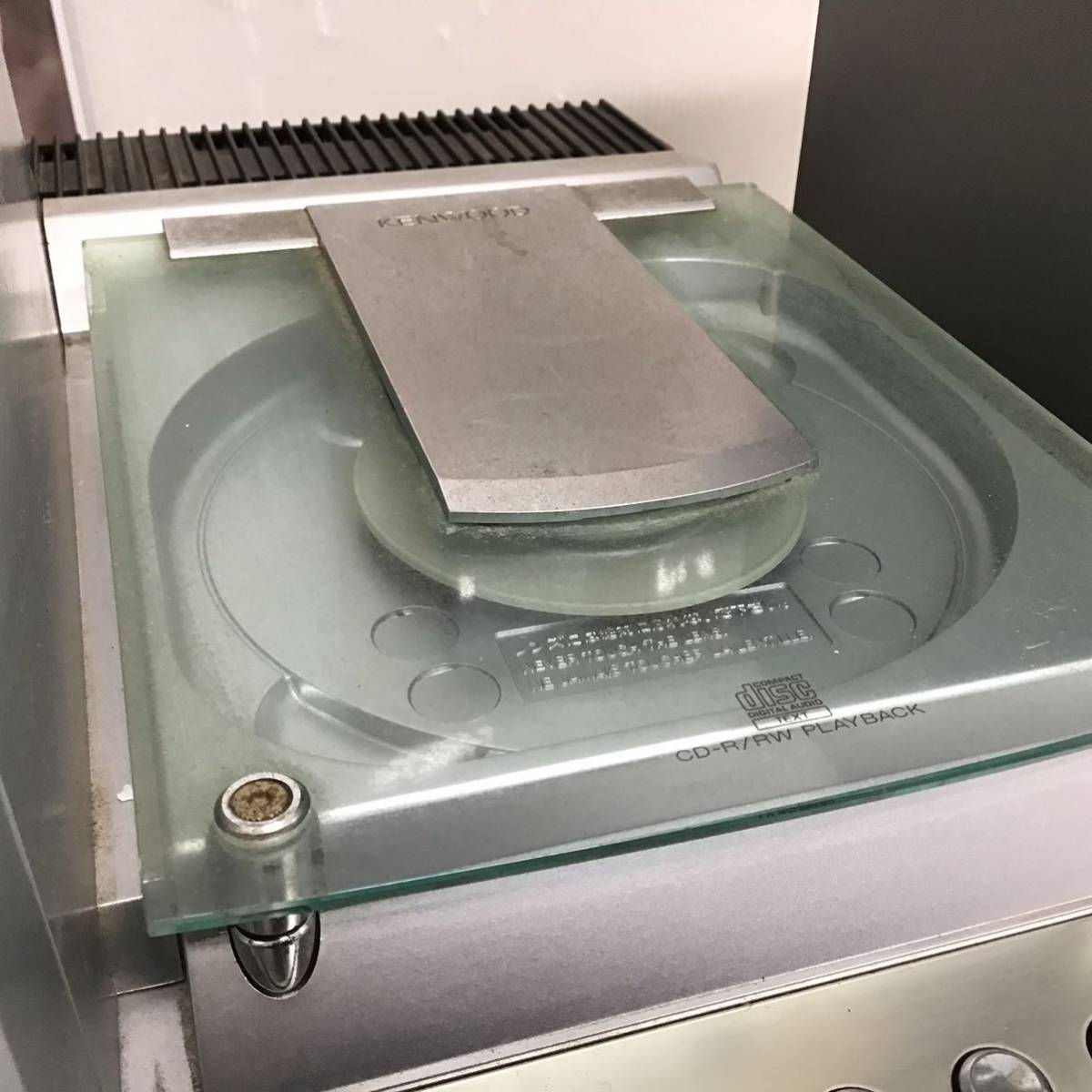

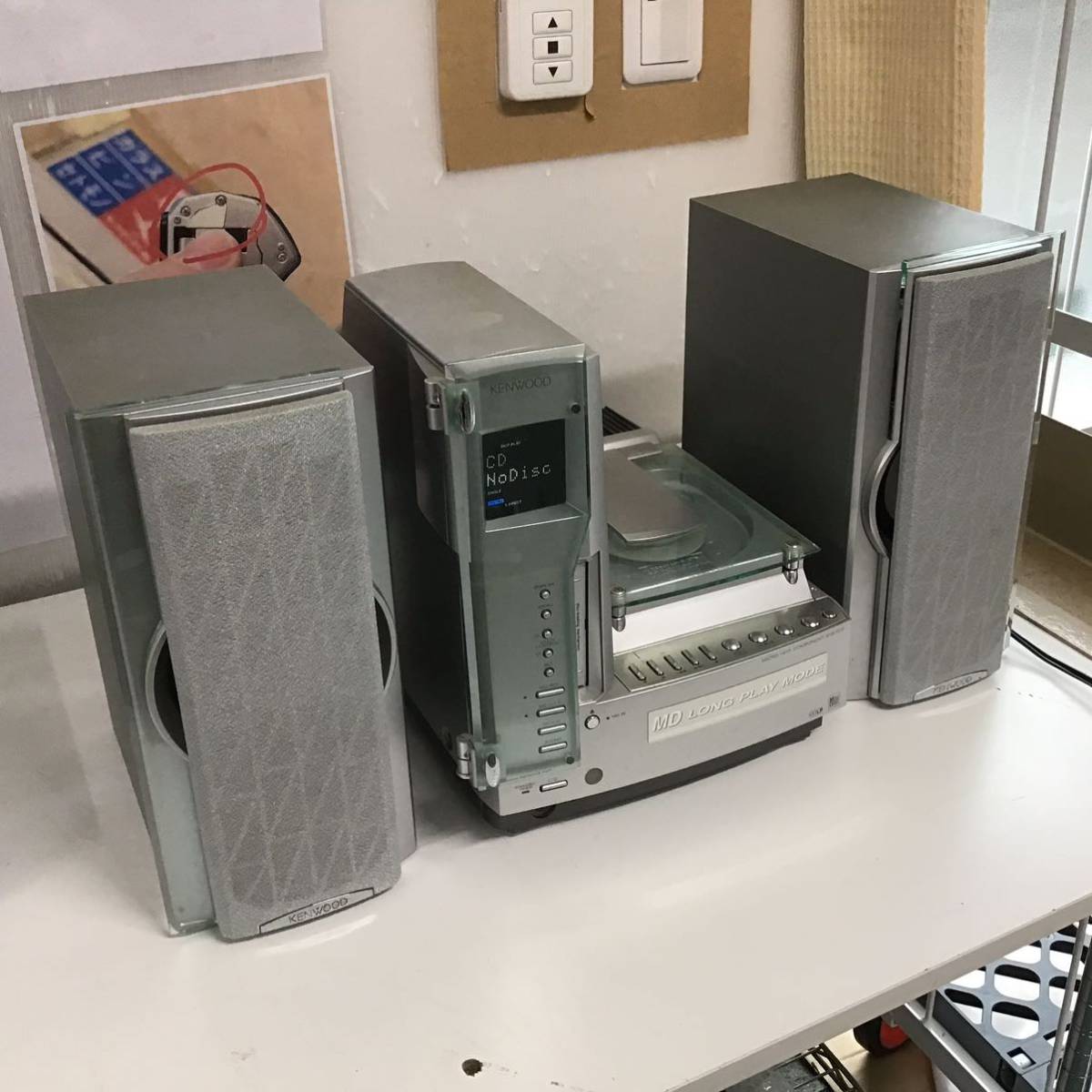

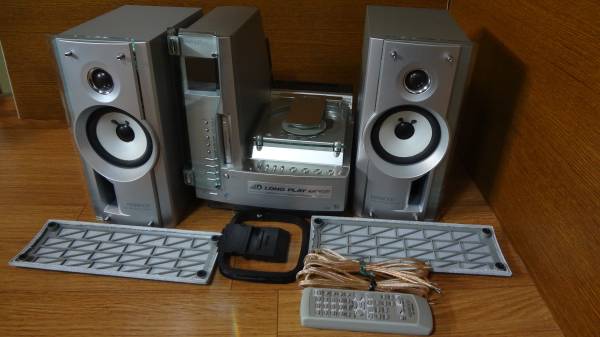

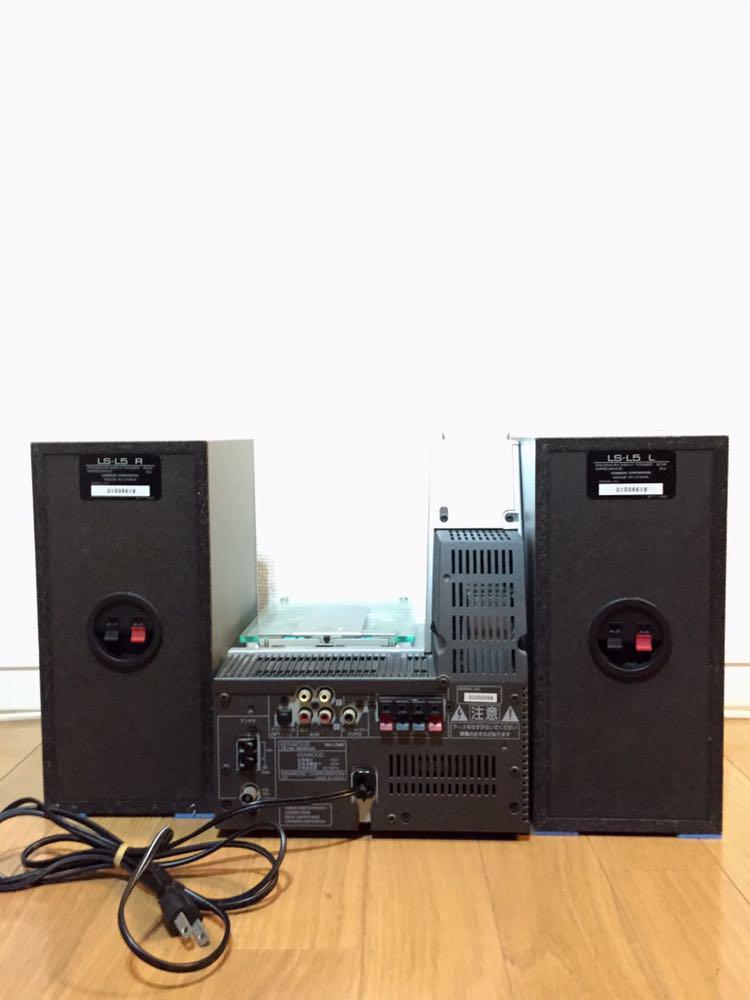

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Manual | User manual |
| Region | Japan |
