| Name | SJ-9CDR |
|---|---|
| Manufacturer | Kenwood |
| Released | 2001/11 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 332 x 285 x 179 mm |
| Weight | 3800 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥90 000 | |
| - | |
| Inputs | RCA in, CD |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

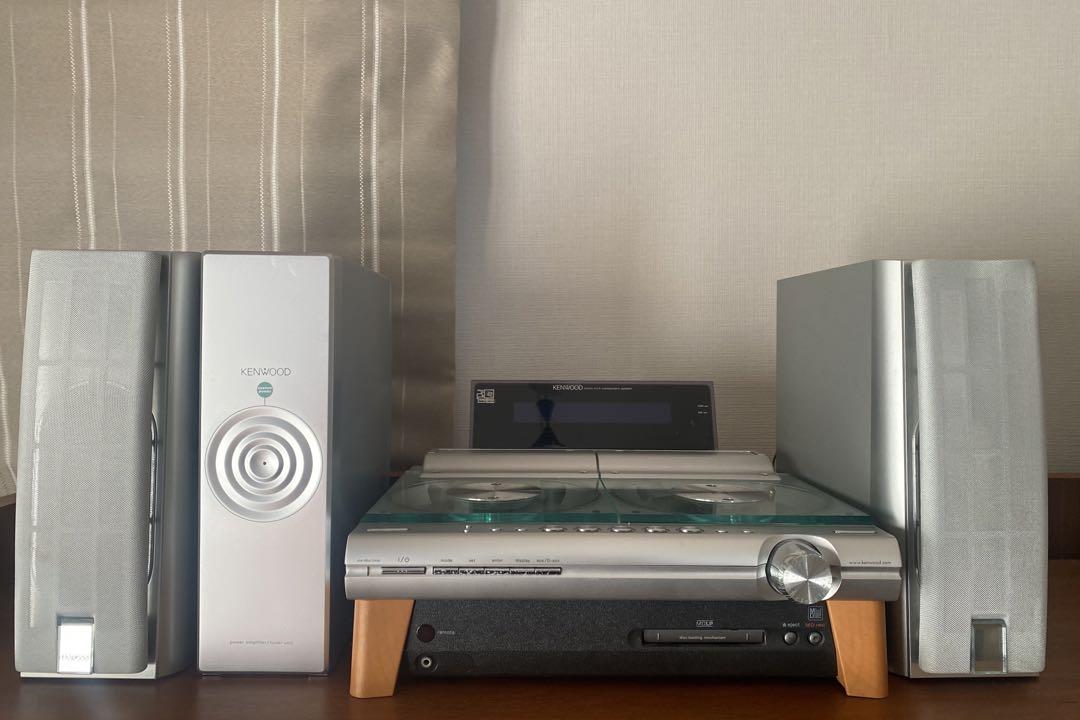

Kenwood Avino SJ-9CDR. A version with NetMD added was released as MPX-710 (a laptop + audio package)
Kenwood Corporation will release a mini component system "Digital Avino SJ-9CDR" equipped with a CD-R / RW recorder that supports WMA / MP3 playback in late November. The price is an open price, and the estimated retail price is expected to be around 90,000 yen.

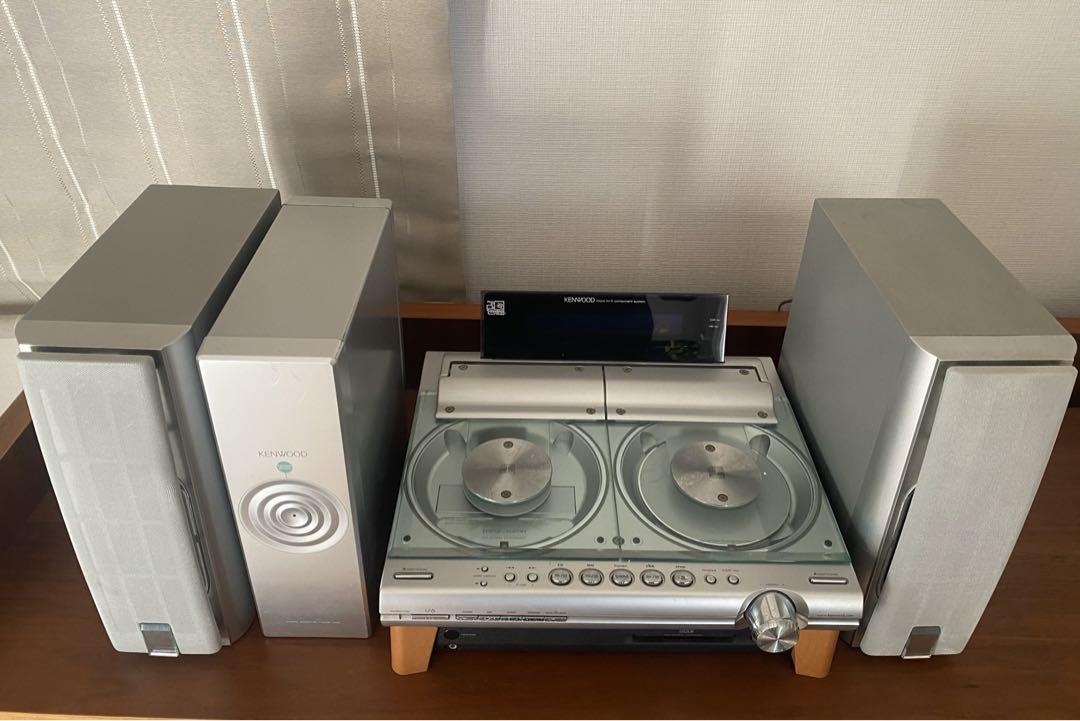

The "Digital Avino SJ-9CDR" is the flagship model of the Avino series equipped with three spindles: a CD player, a CD-R / RW recorder, and an MD recorder. It has a separate amplifier structure with the amplifier / tuner separated, and "reduces digital noise and achieves high sound quality." The output of the amplifier is 20W x 2ch (6Ω).

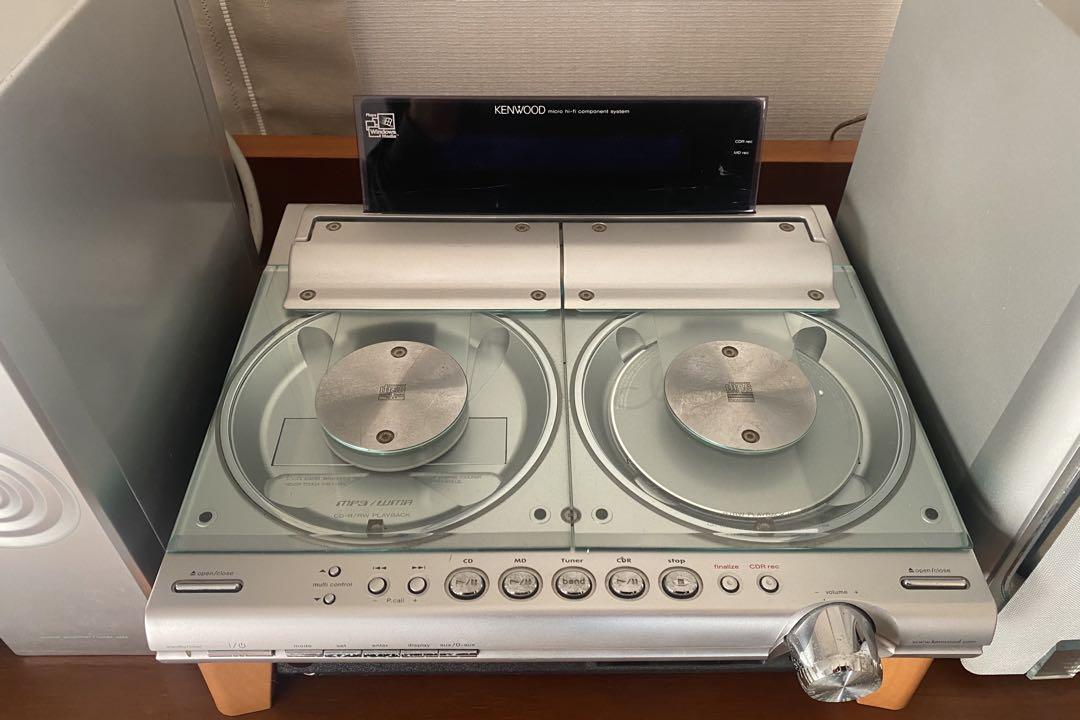

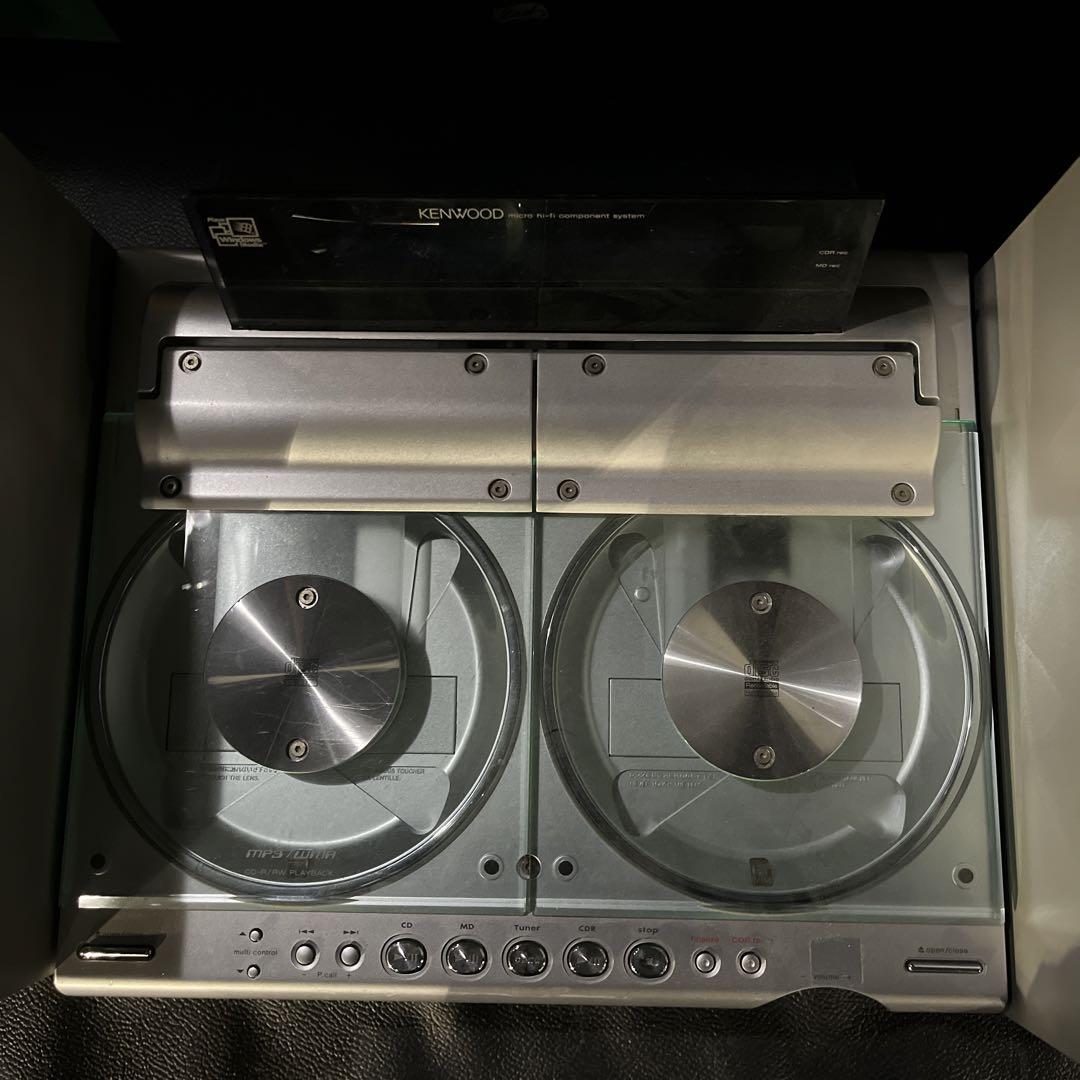

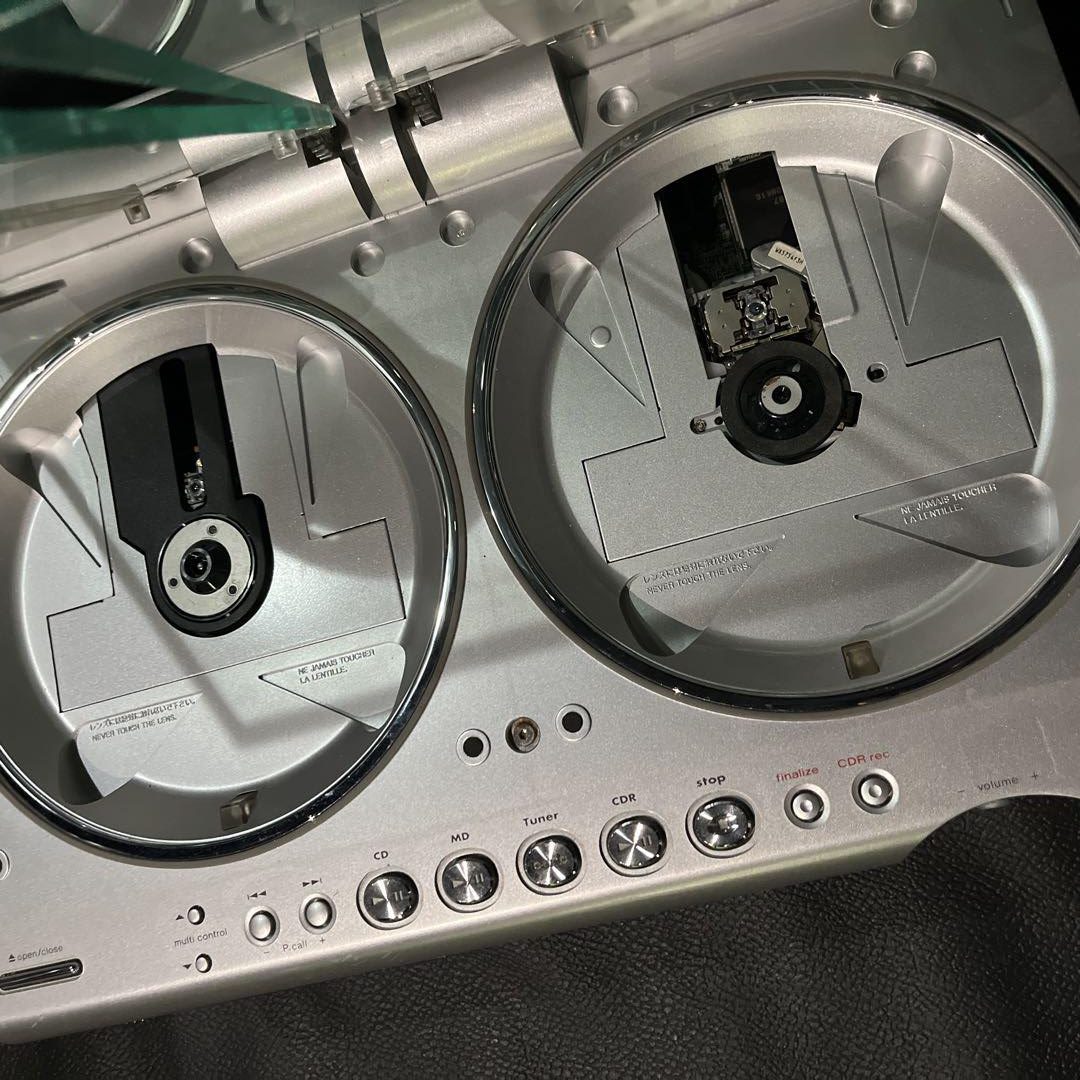

The CD player section and the CD-R / RW recorder section are arranged side by side. The CD-R / RW section can play back WMA and MP3 recorded on a CD, and it is the first "MD stereo system" to be equipped with a WMA / MP3 decoder.
Supports the display of "ID3 tag" or "WMA tag" during WMA / MP3 playback. However, it does not support the display or input of Chinese characters. In addition, it is equipped with a "double speed twin REC" function that allows double speed dubbing of both CD → MD and CD → CD-R / RW at the same time, and the MD section supports MDLP and group functions.

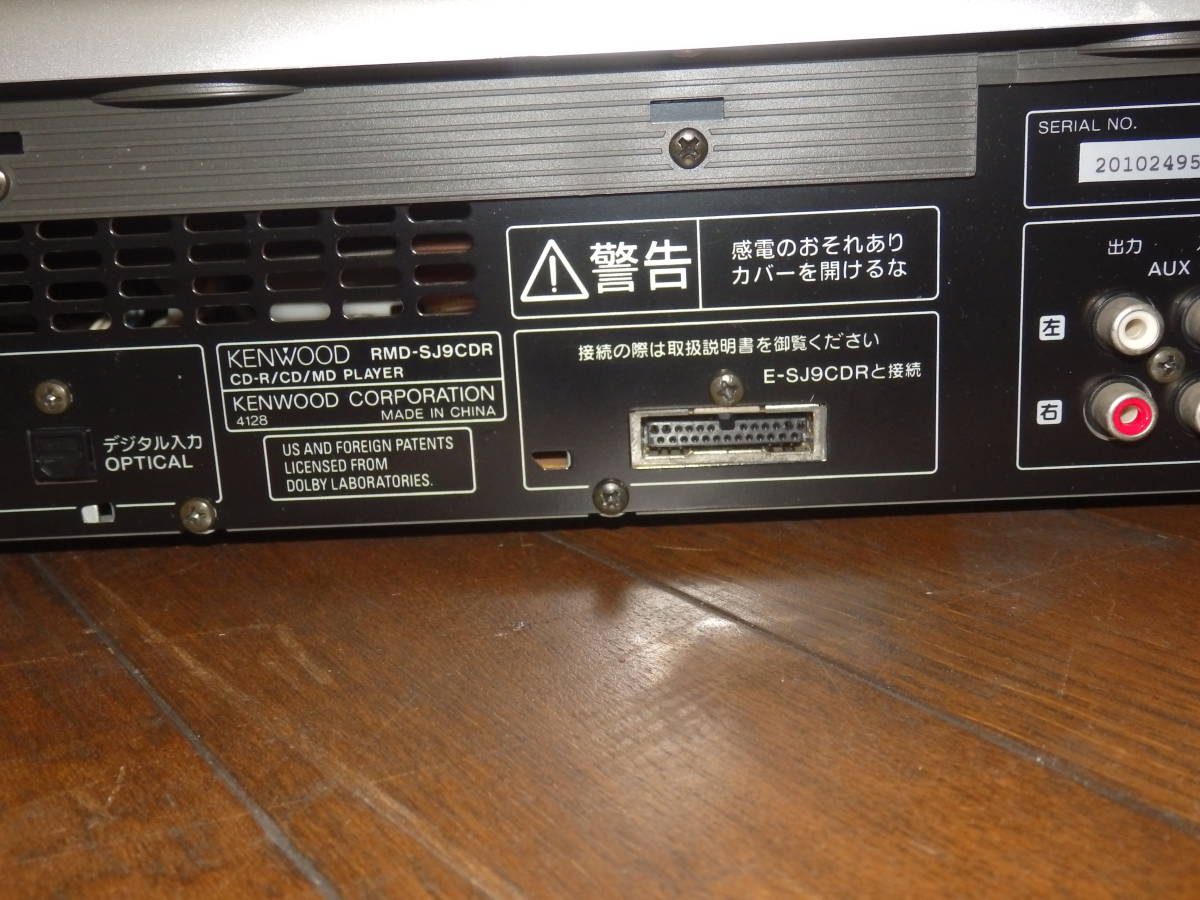

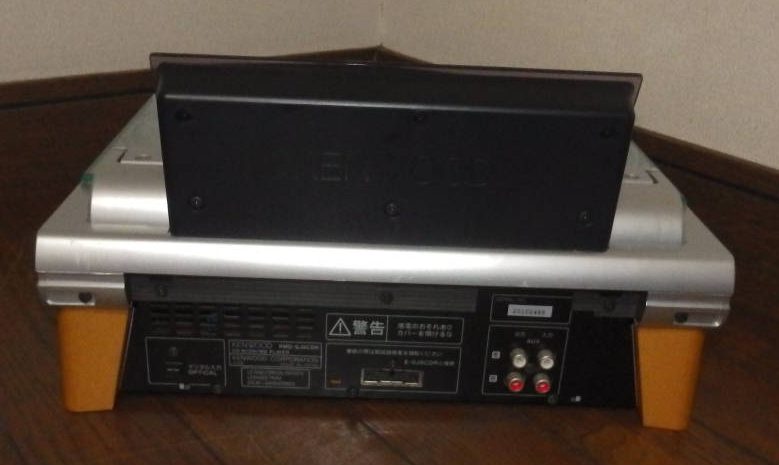

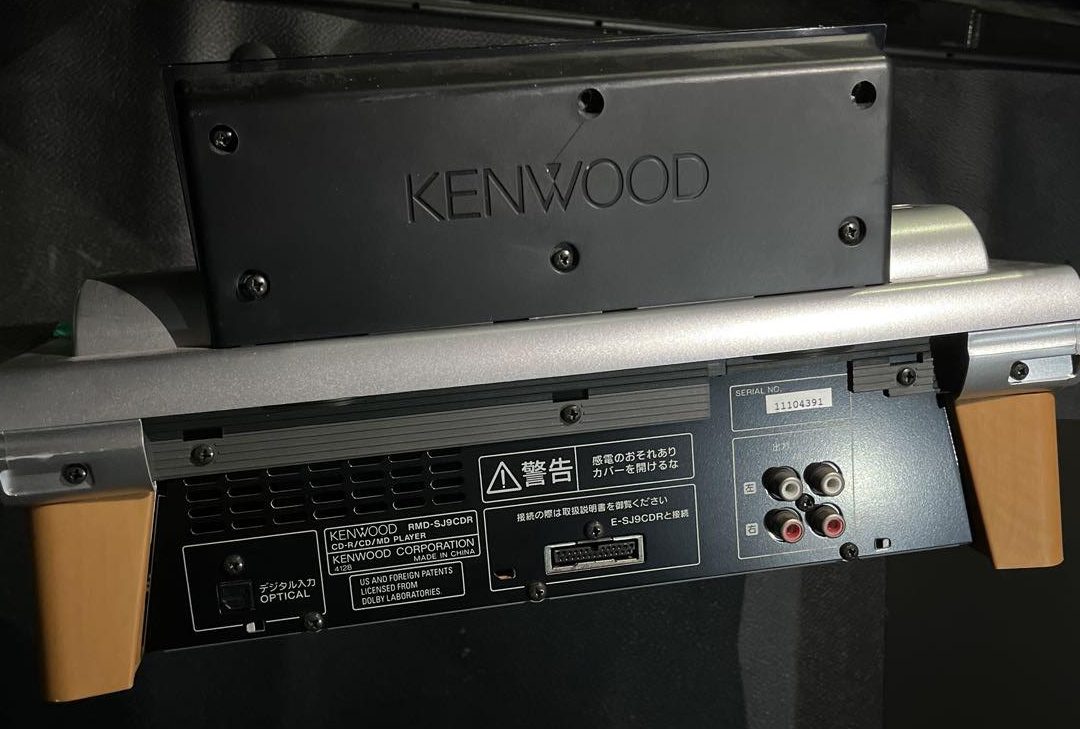

Input / output is equipped with one each of AUX IN, AUX OUT, digital input, and subwoofer pre-out. The attached speaker is a 2-way 2 speaker system that uses a 55 x 130 mm oval cone type woofer and a 19 mm dome type tweeter.
【Main Specifications】
- output 20W x 2ch (6Ω)
- Receive frequency range FM:
- 76-90MHz AM: 531-1,629kHz
- speaker UFA: 55 x 130 mm oval cone type
- tweeter: 19 mm dome type
- Input / output terminal AUX IN, AUX OUT, digital input, subwoofer pre-out 1 system each
- Maximum external dimensions
- (width x depth x height) Main unit: 332 x 285 x 179 mm
- Amplifier section: 85 x 220 x 270 mm
- Speaker section: 105 x 248 x 270 mm
- weight Main unit: Approximately 3.8 kg
- Amplifier: Approximately 3.6 kg
- Speaker: Approximately 2.4 kg (1)
Content adapted from: av.watch news Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror) Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror)
