| Name | SK-5MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W220 x H145 x D356mm |
| Weight | 6800 |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |

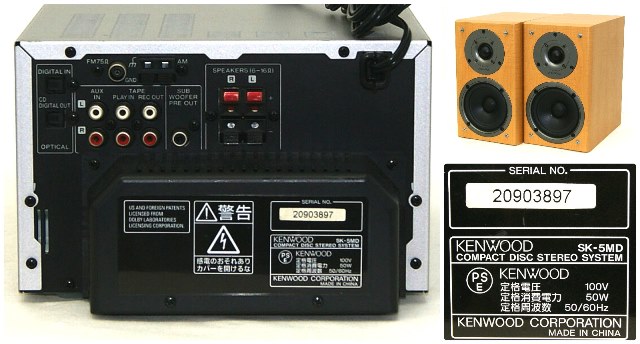

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
CD → MD digital 4x speed recording
Equipped with a 3-CD changer that allows you to insert and remove other CDs while playing a CD.
Equipped with abundant input / output terminals to have expandability to various media. Two analog input terminals, one analog external output terminal, and one optical digital input / output terminal are available.
- Tone control
- CD/R-RW reproduction
- Supports CD-TEXT display
- Dimmer control
- Built-in timer (program 1,2 / sleep)
- Subwoofer output terminal
Optical Pickup: KMS-260B
ATRAC IC: CXD2664R
Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Manual | Service manual |
|---|---|
| Region | Japan |
