Kenwood SK-7PRO

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
SK-7PRO
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood SK-7PRO”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SK-7PRO
Manufacturer Kenwood
Released 2002/08
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions W220 x H145 x D356mm
Weight 6600
ATRAC ver Type-S
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
Not recorded
-

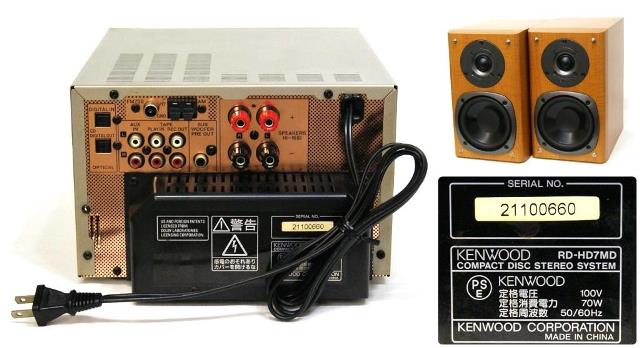

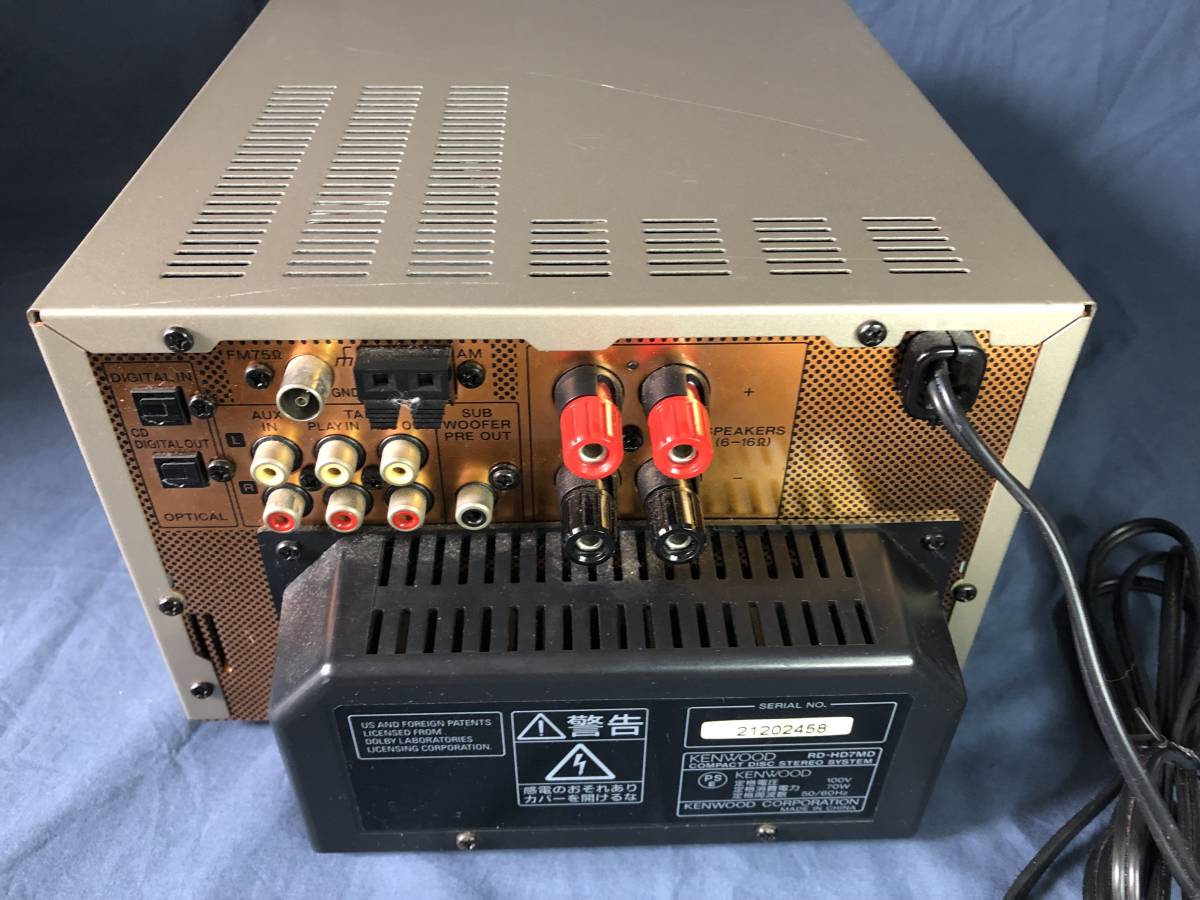

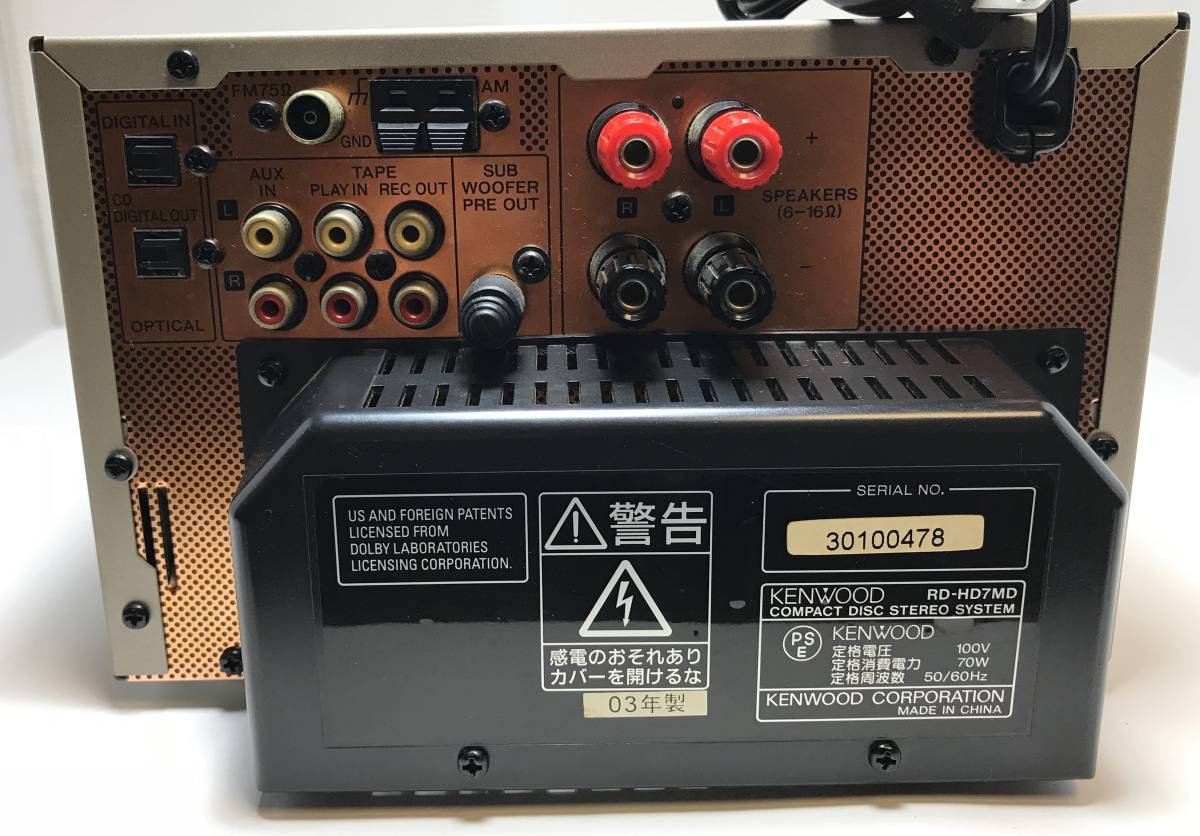

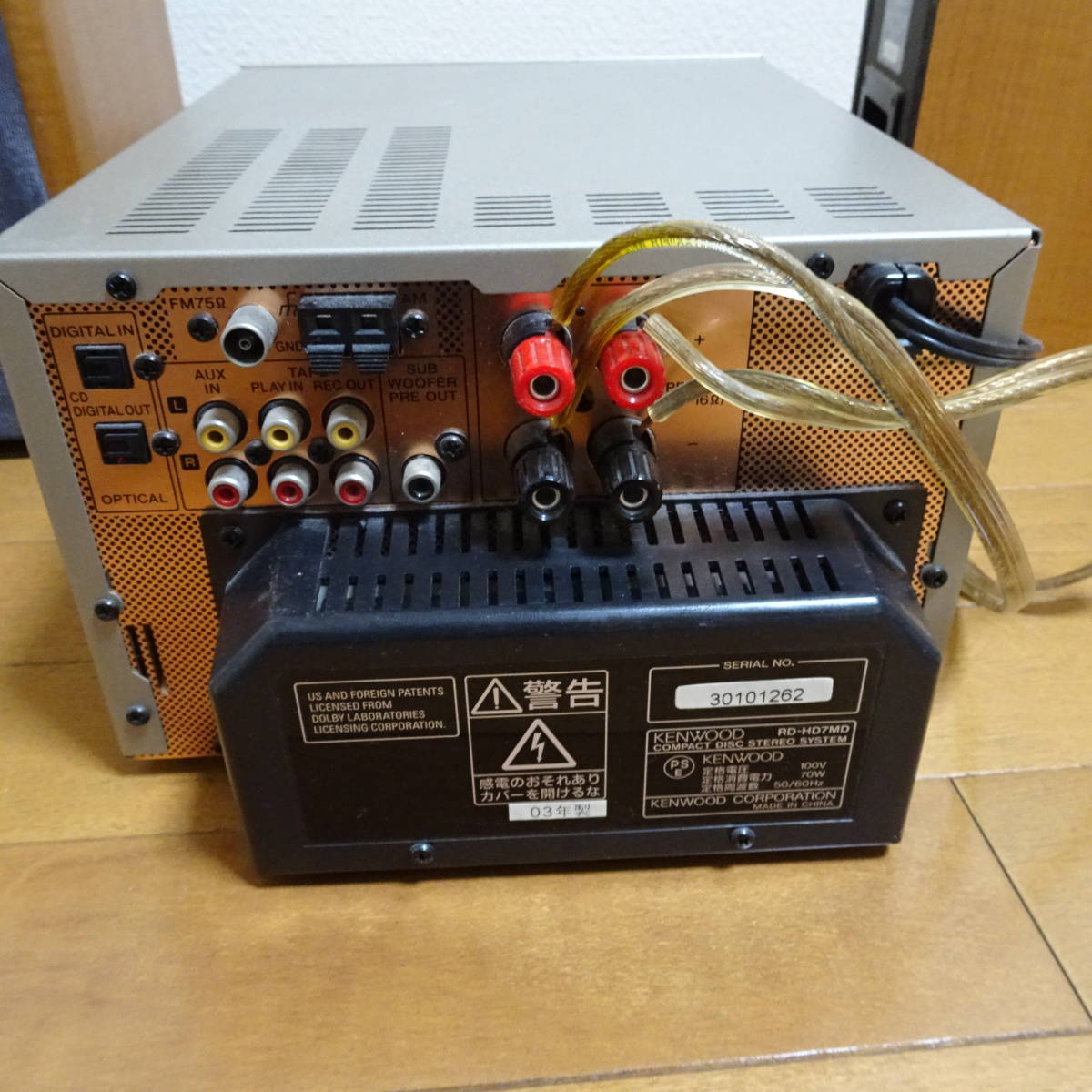

Inputs RCA in, Digital optical (TOSLINK), CD
Outputs 3.5mm headphone, RCA out, Digital optical (TOSLINK)
Control Not recorded

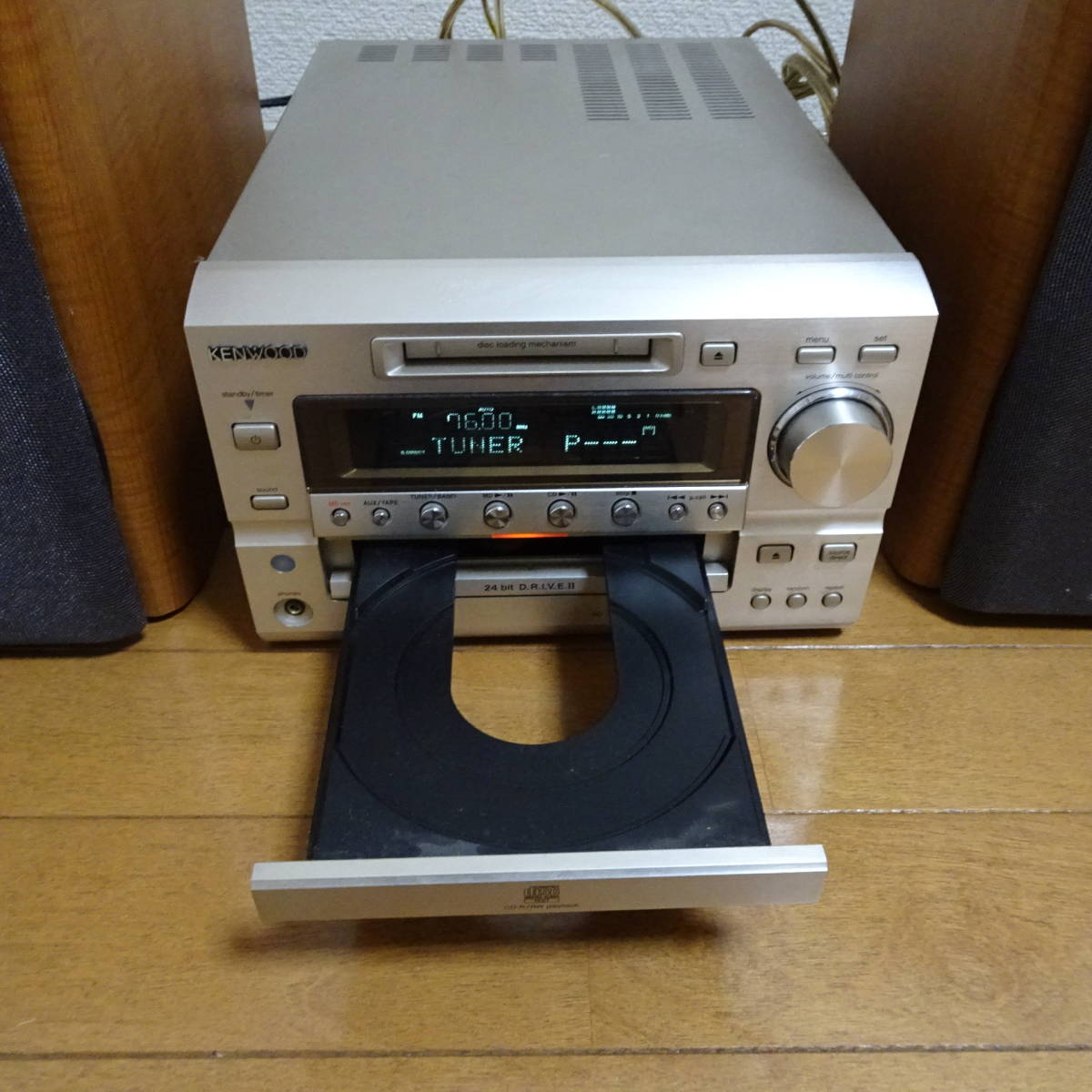

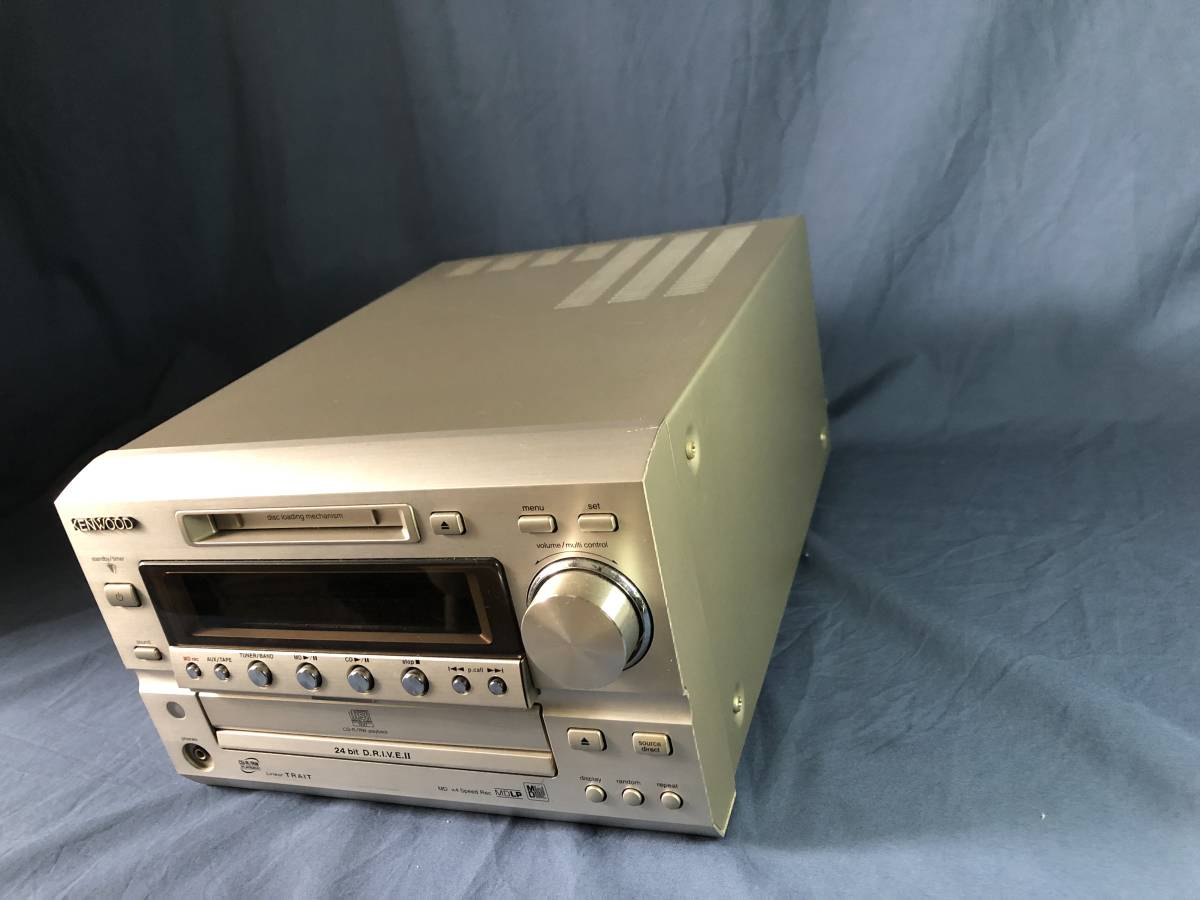

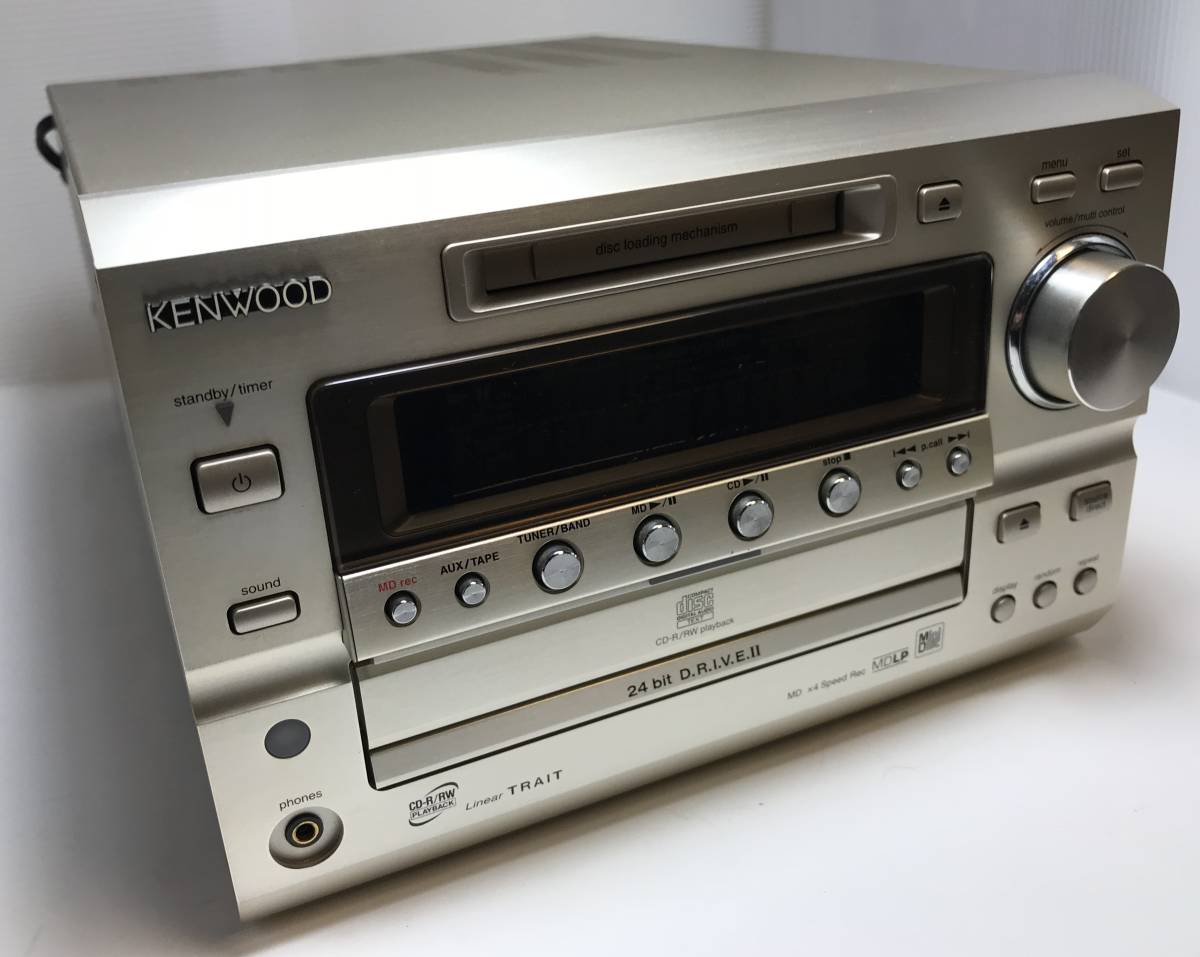

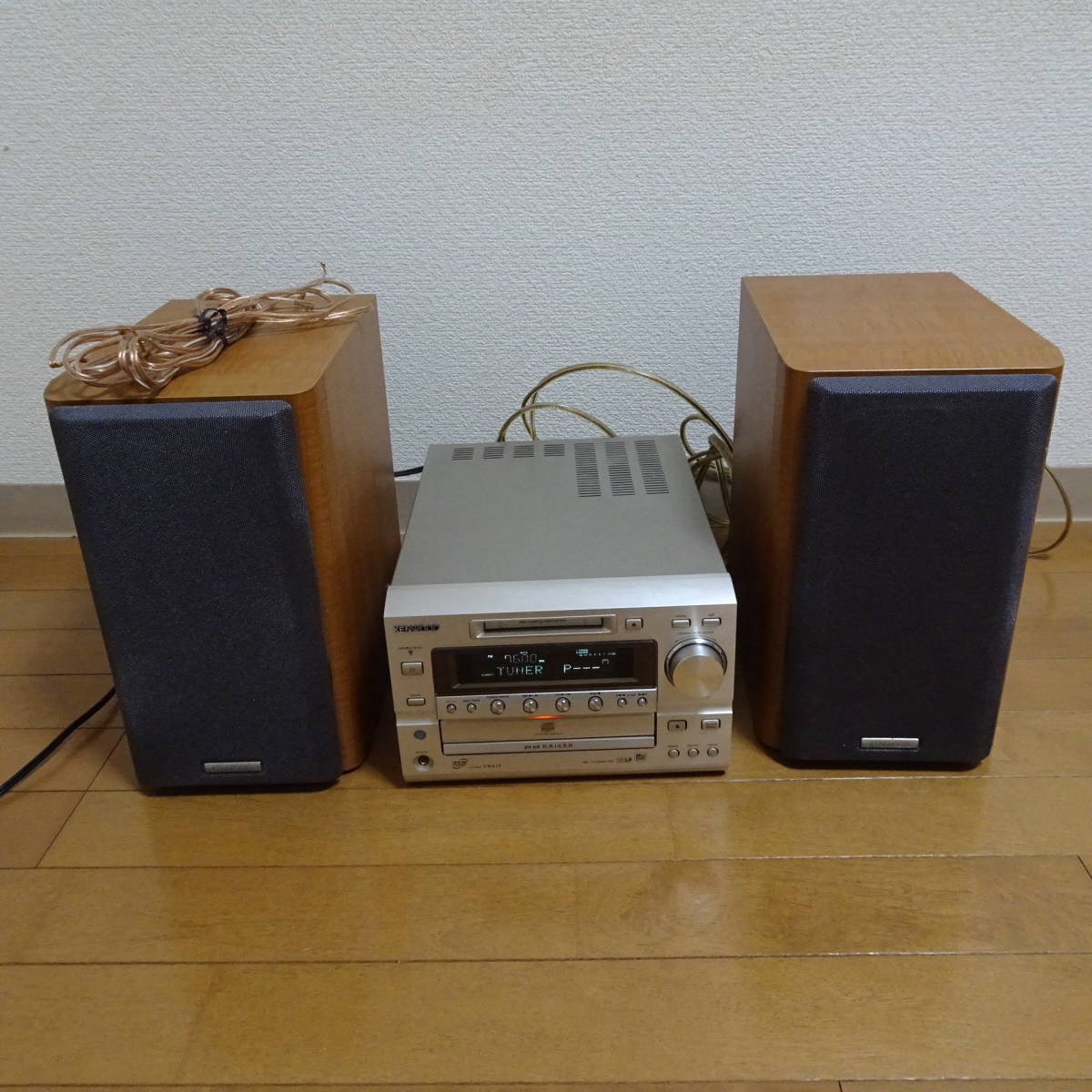

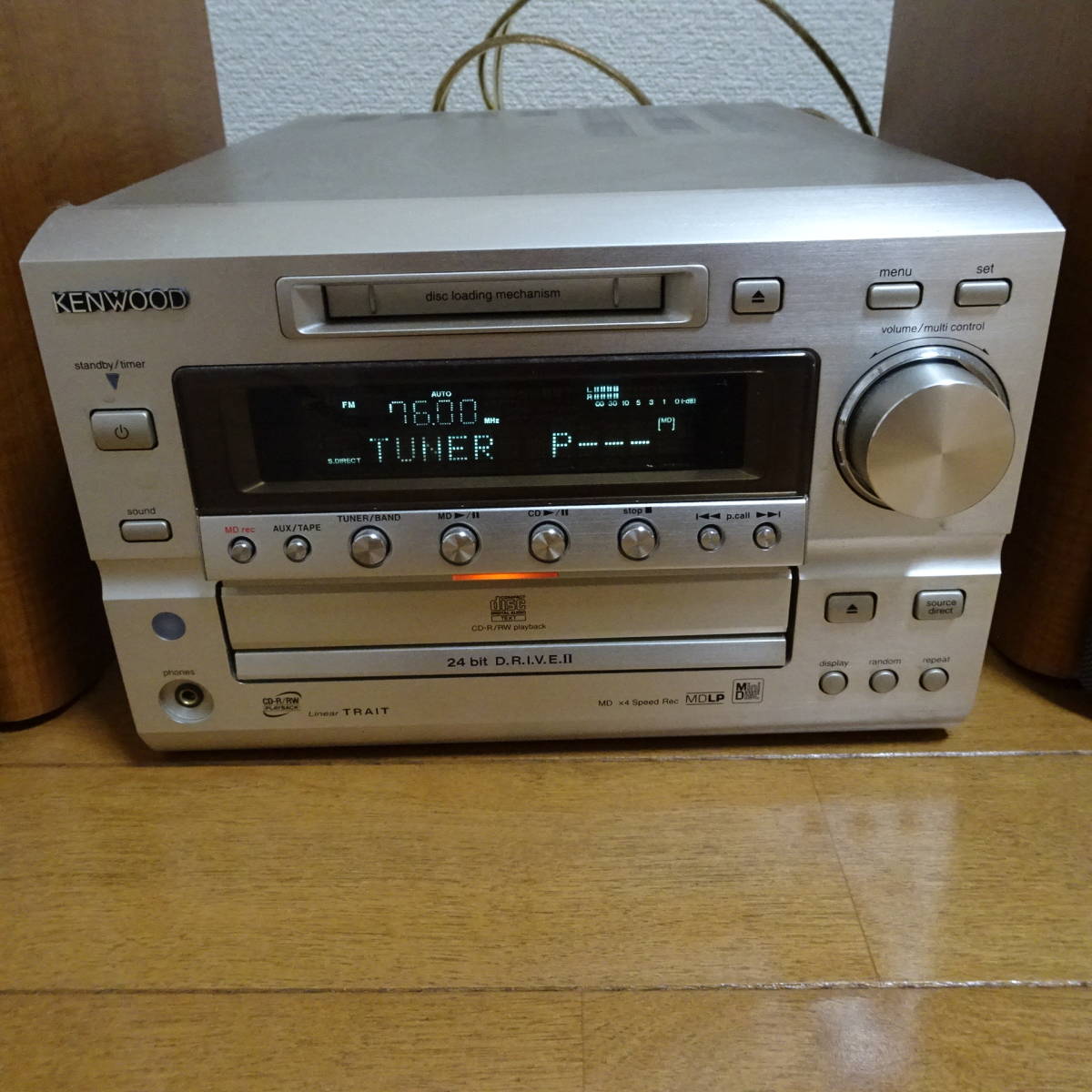

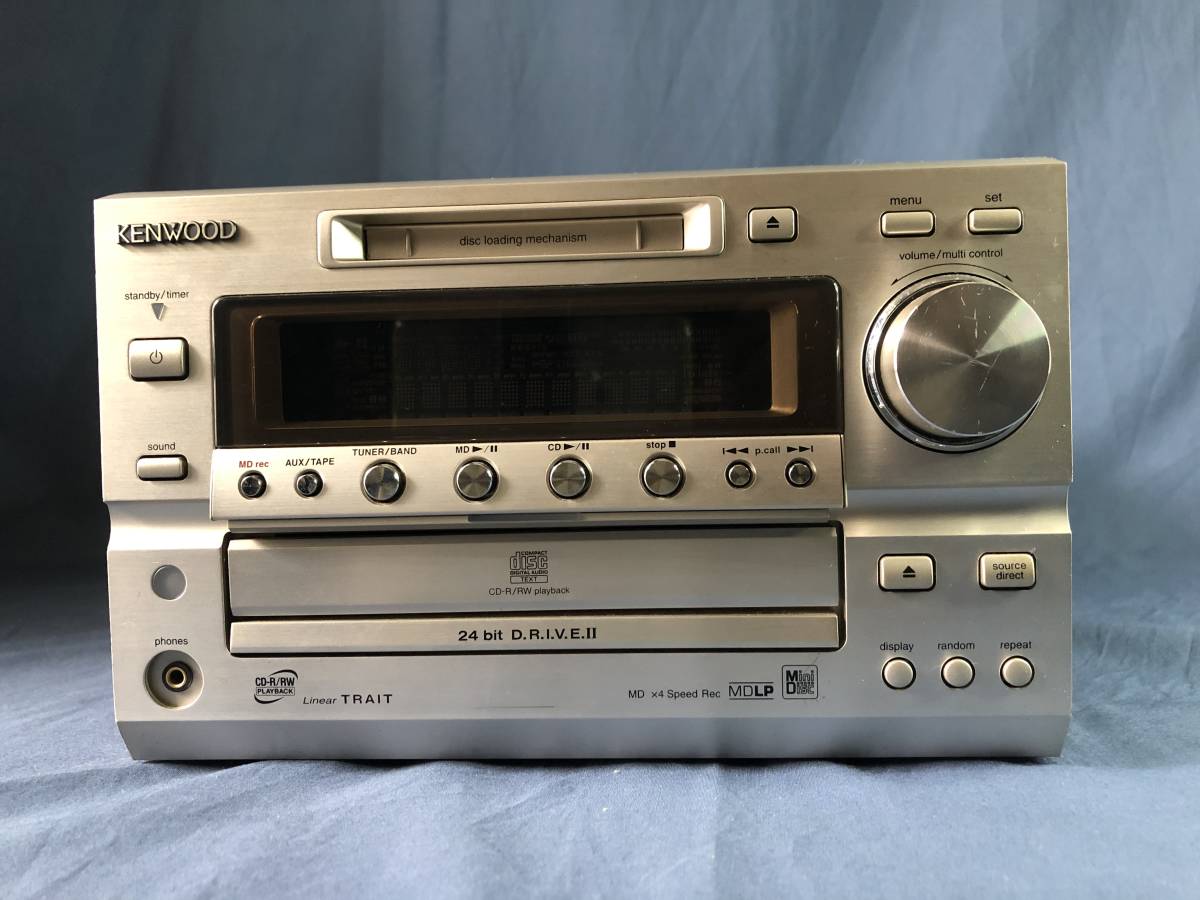

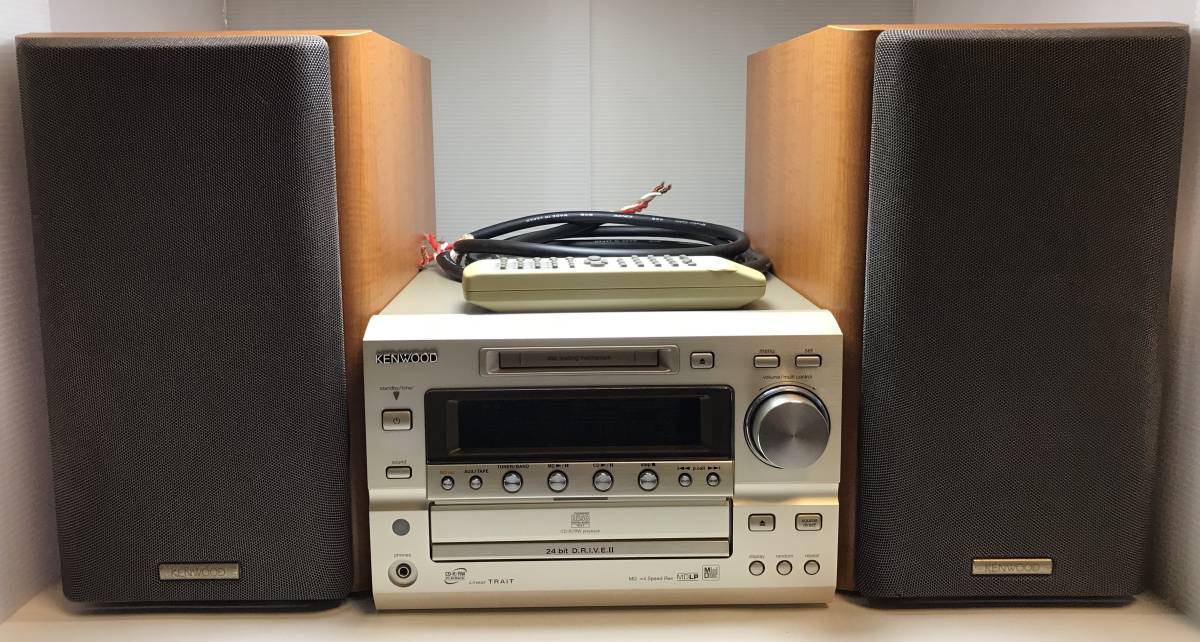

Kenwood Avino SK-7PRO. The main unit has a part# of RD-HD7MD.

  • CD → MD digital 4x speed recording
  • Tone control
  • CD/R-RW reproduction
  • Supports CD-TEXT display
  • Dimmer control
  • FM broadcast station name preset by prefecture
  • CD / MD section 32 songs for each program
  • Built-in timer (program 1,2 / sleep)
  • Subwoofer output terminal

Adopts high-performance 24-bit DRIVE II Equipped with a 24-bit DRIVE? U that finely digitally processes 16-bit CD information with a 24-bit amount of information. In the past, it had a great effect on the quantization distortion of the part where the volume change was small, and it was effective even when the volume change was large. By removing unnecessary quantization distortion and converting it into a signal closer to the original sound, the audibility, lingering sound, localization, and presence are greatly improved.

Optical Pickup: KMS-260B
ATRAC IC: CXD2664R

Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror)

Manuals

Kenwood RD-HD5MD RD-HD7MD Service Manual

Repair

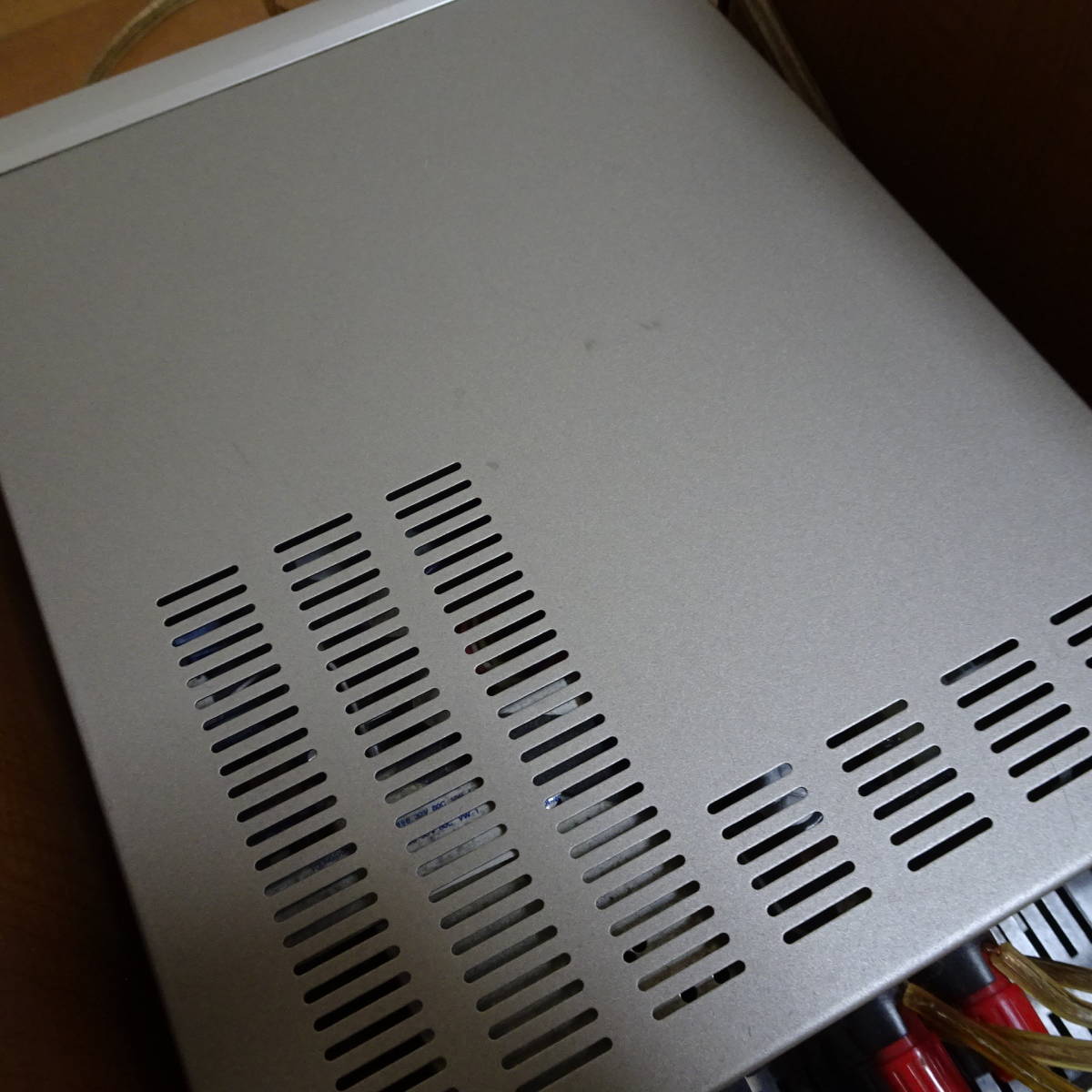

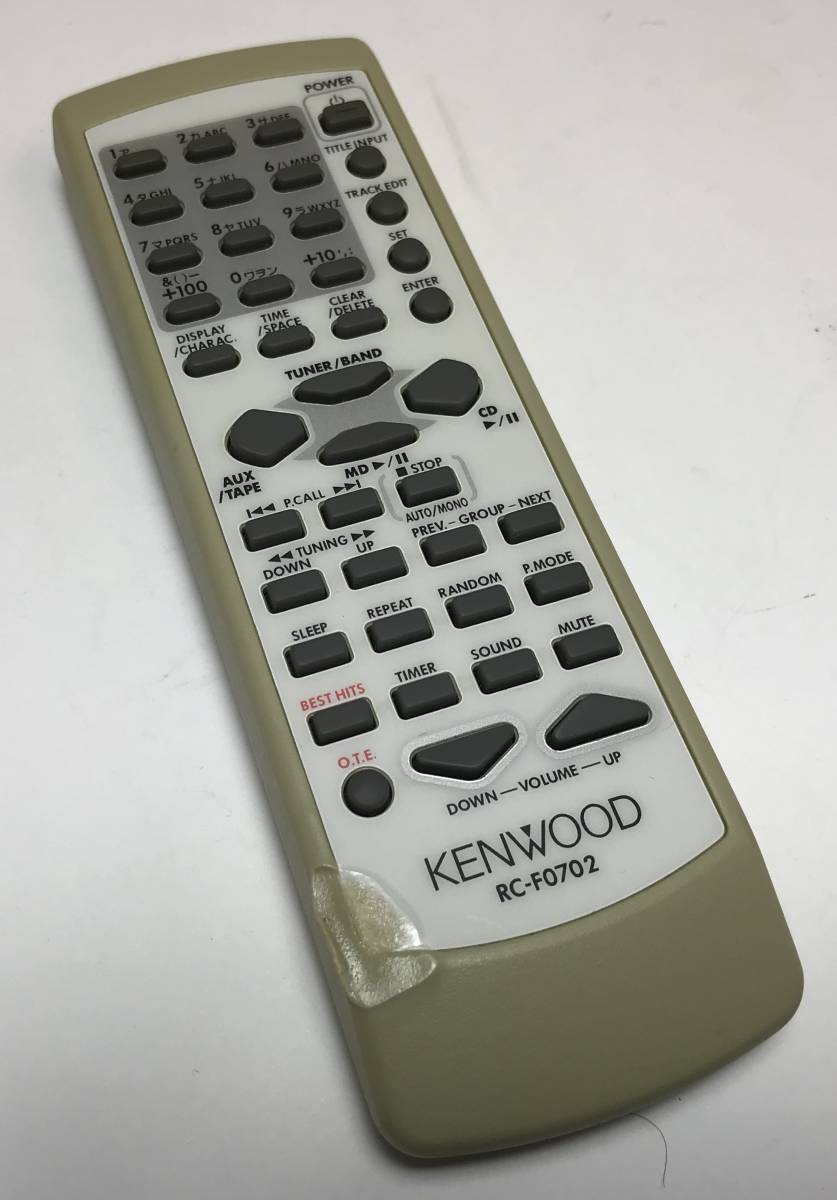

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ManualService manual
RegionJapan
