Kenwood SV-3MD

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
SV-3MD
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood SV-3MD”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name SV-3MD
Manufacturer Kenwood
Released 2005/09
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 180x255x336mm
Weight 5.5kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) No
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-

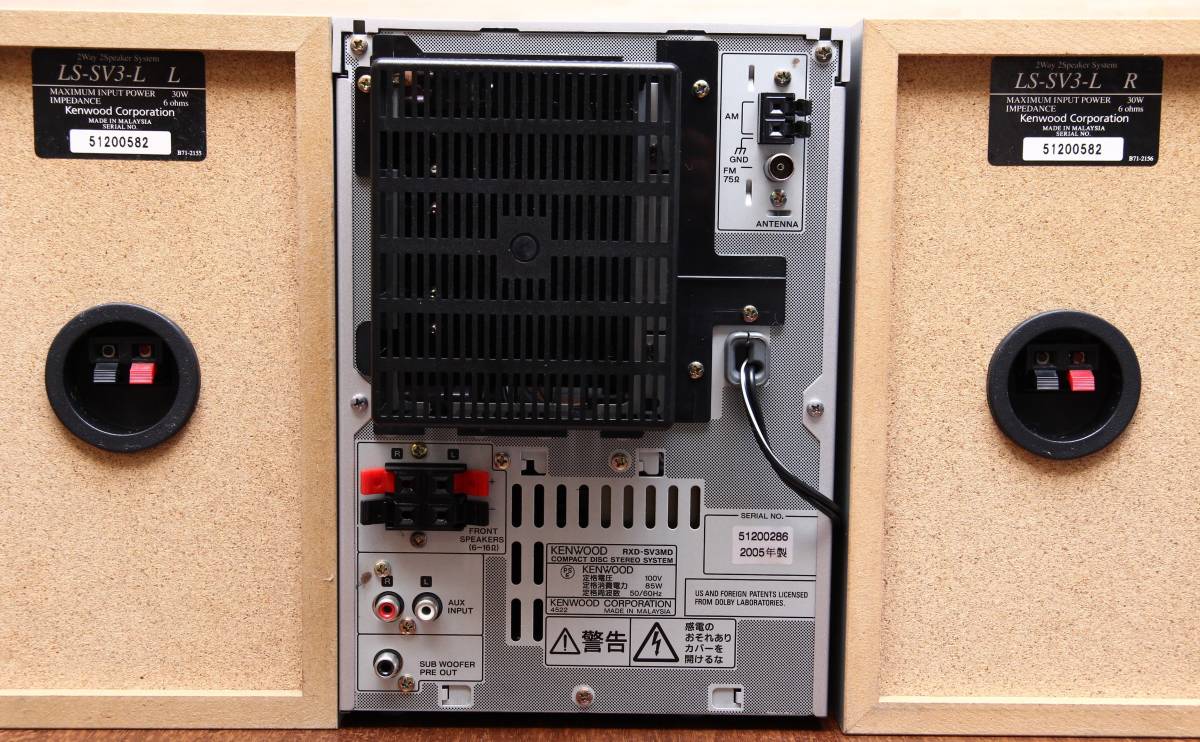

Inputs N/A, 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Tape deck
Outputs 3.5mm line out (analog-only)
Control Not recorded

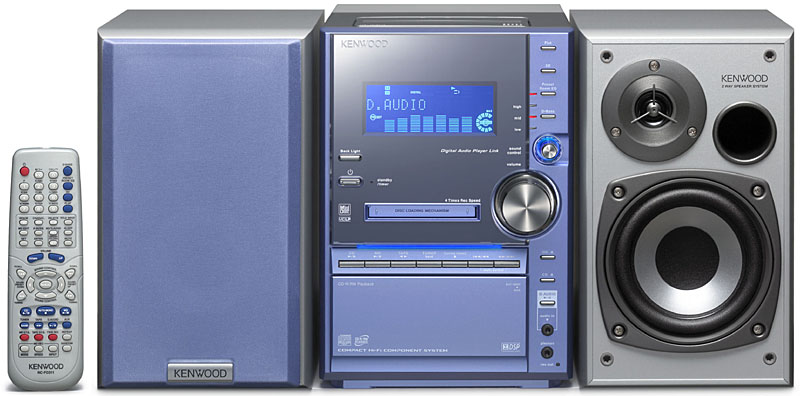

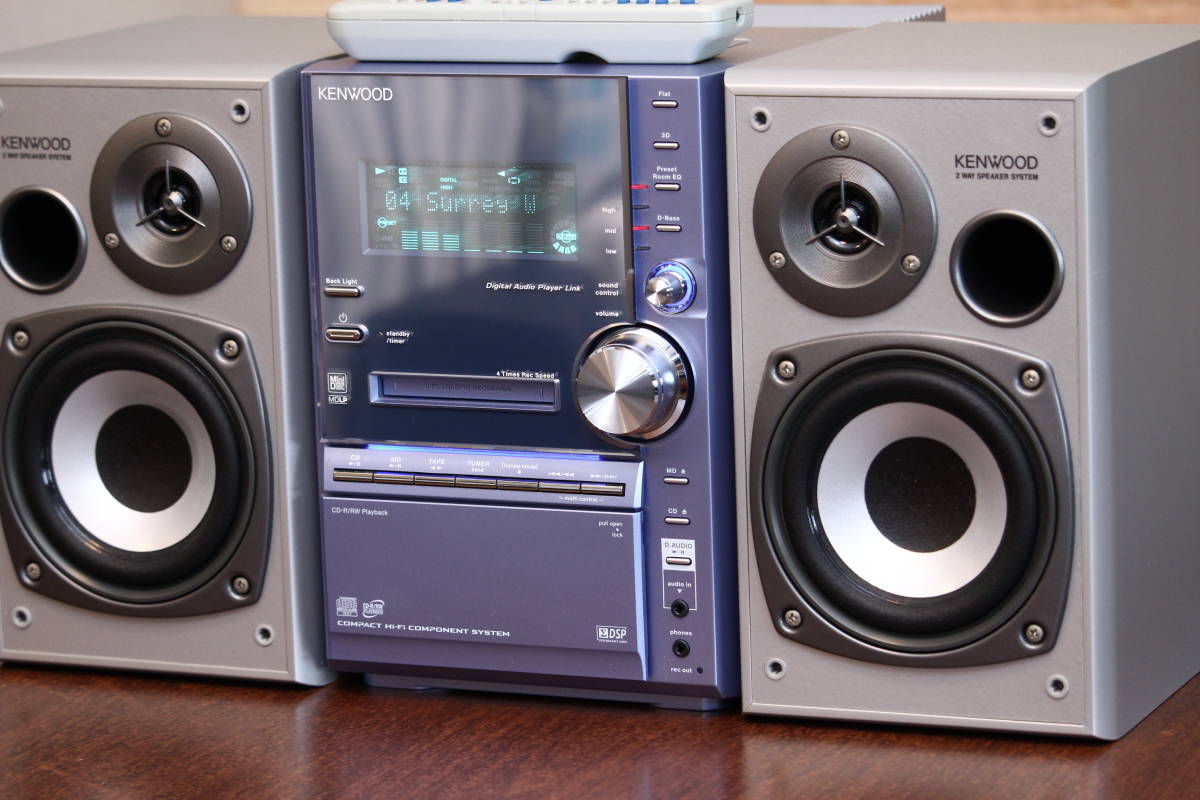

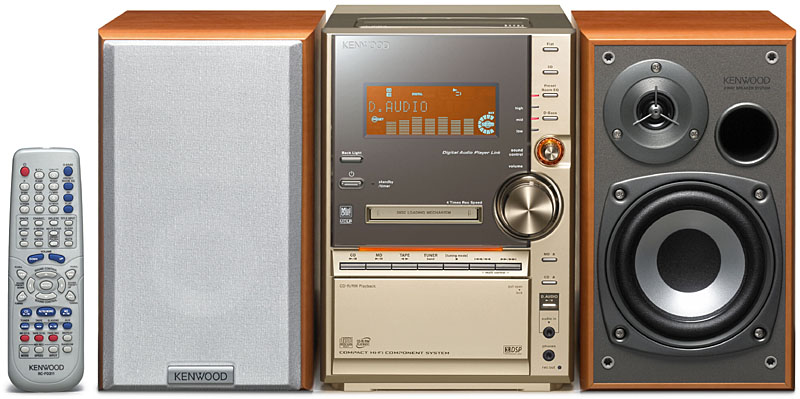

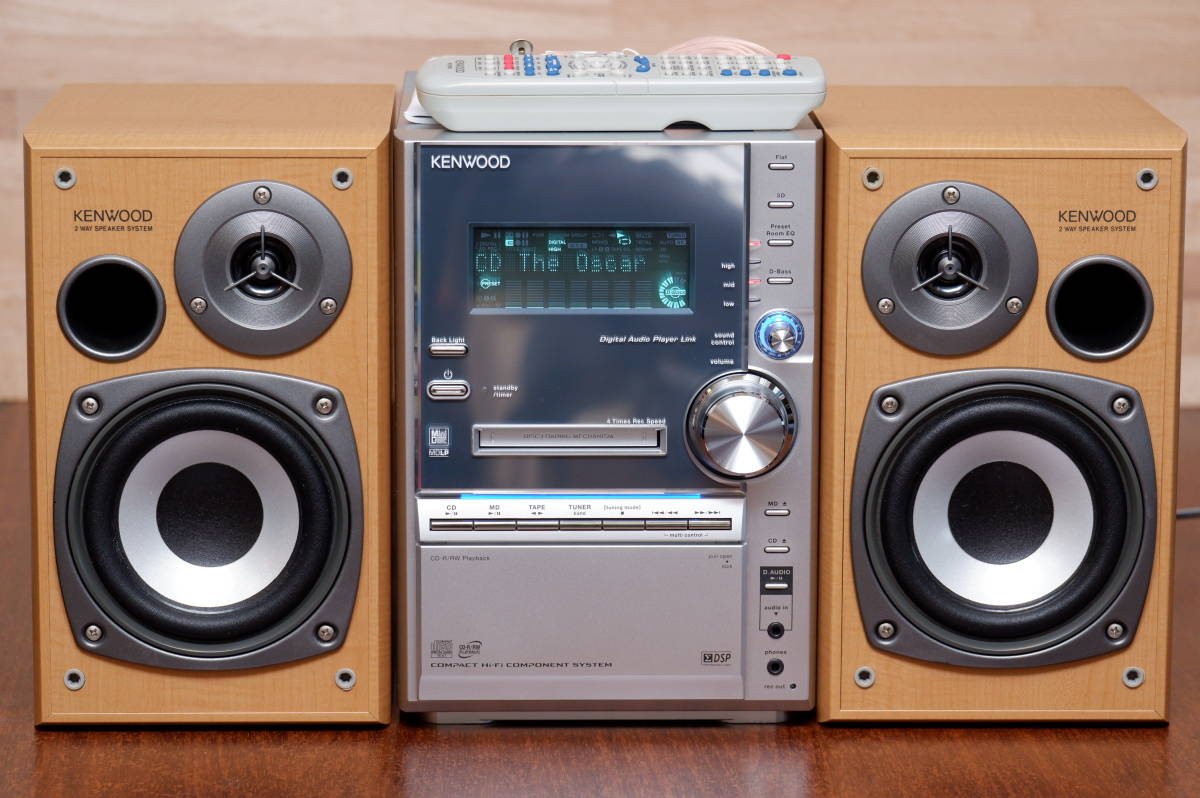

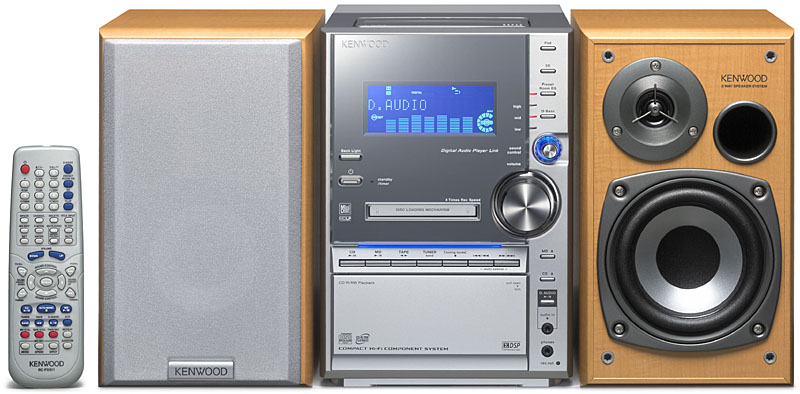

The SV-3MD comes in 3 colors, silver (S), gold (N), and blue (L). RXD-SV3MD is stamped on the main body. The blue variant was a limited special edition.

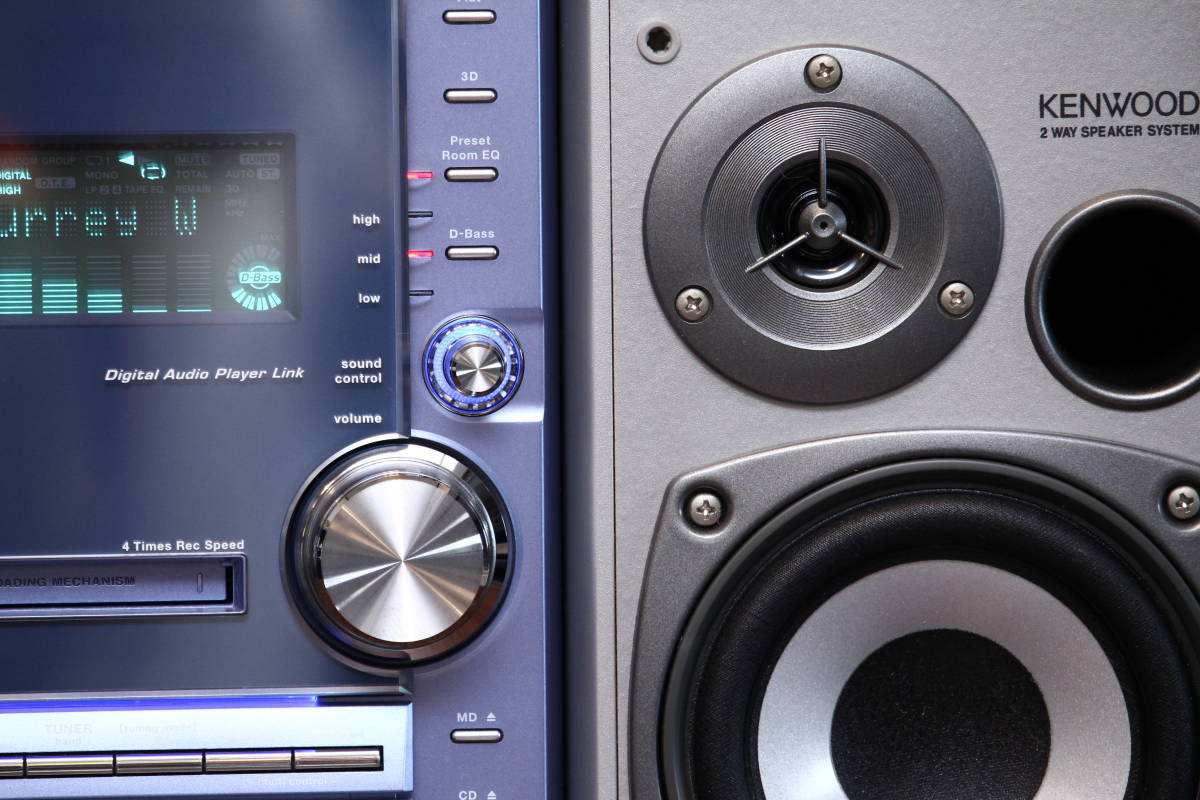

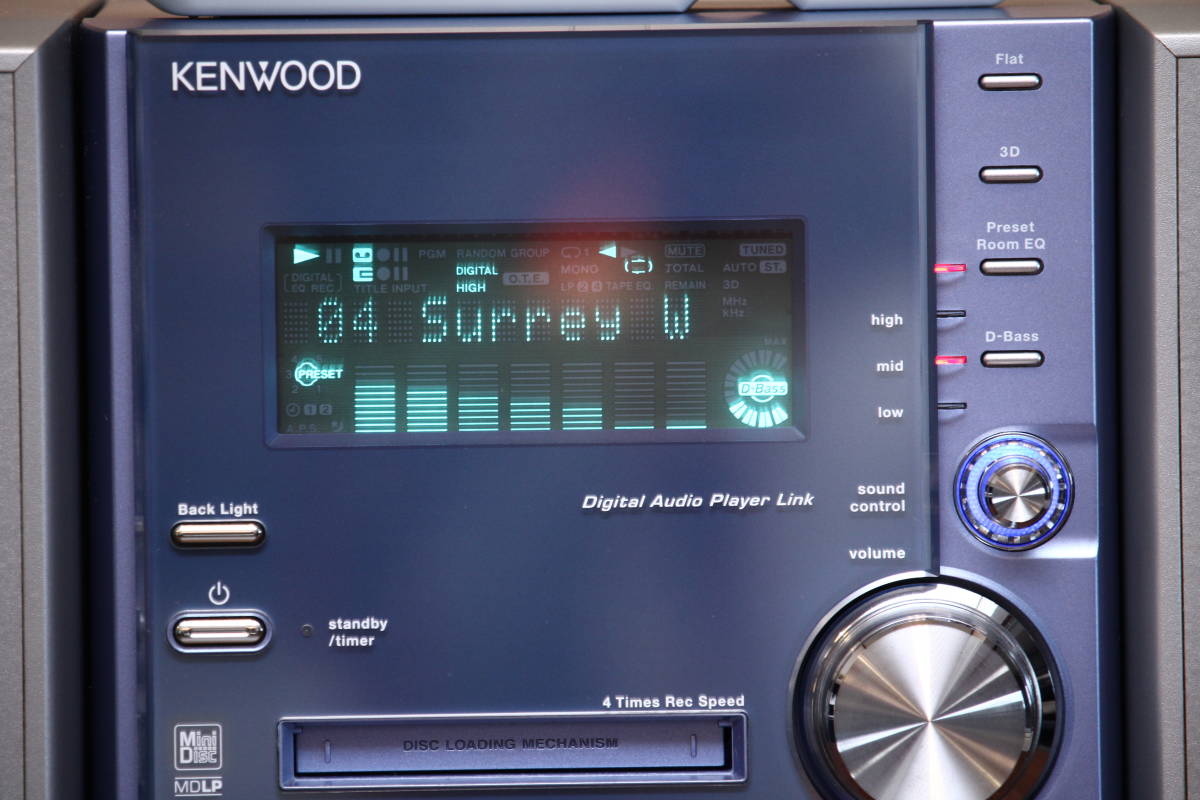

It is the successor to the SL-3MD and equipped with D-BASS II and Preset Room EQ that allows you to select the optimum sound effect based on the configuration of the room.

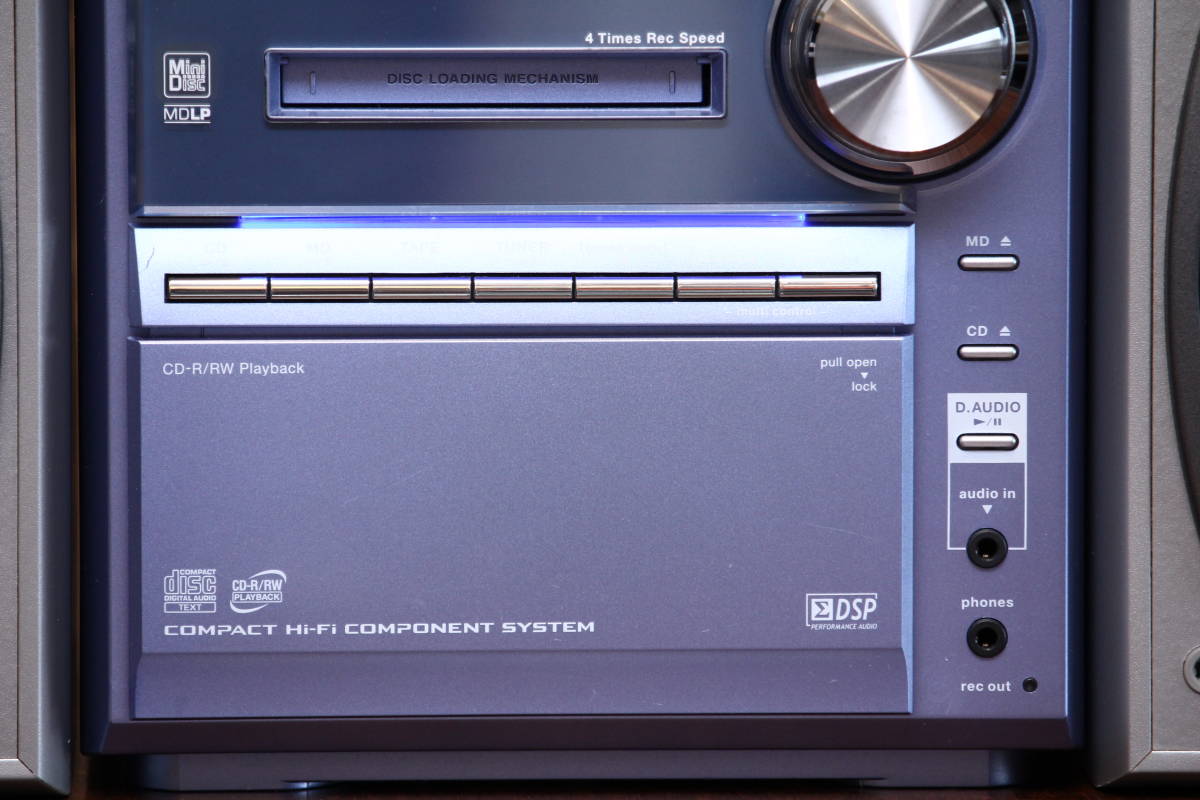

It can also connect to the Kenwood HD20GA7 Kenwood HD20GA7 (MiniDisc Wiki mirror), a 20GB MP3 player connected using the PNC-150 link cable. By connecting to the dedicated input terminal equipped on the front of the main unit, you can control the play/pause, FF/Reverse, and folder skip operations with the HD20GA7.

  • CD → MD 4x speed recording
  • Twin REC (CD can be recorded on MD and tape at the same time)
  • MDLP & group function
  • CD-R/RW playback
  • CD text display
  • FM：76.0～90.0MHz
  • AM：531～1629kHz

Content adapted from: Kenwood Press Release Kenwood Product Page av.watch

Manuals

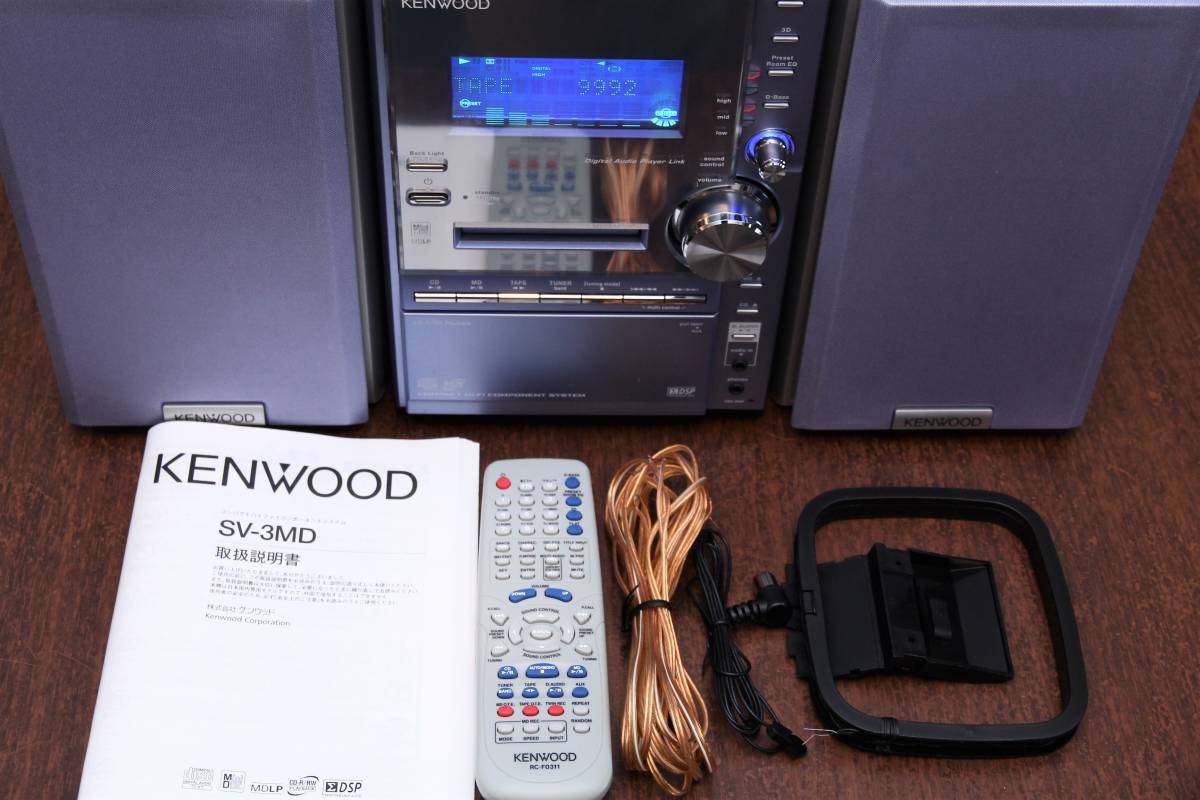

SV-3MD User Manual JP

Repair

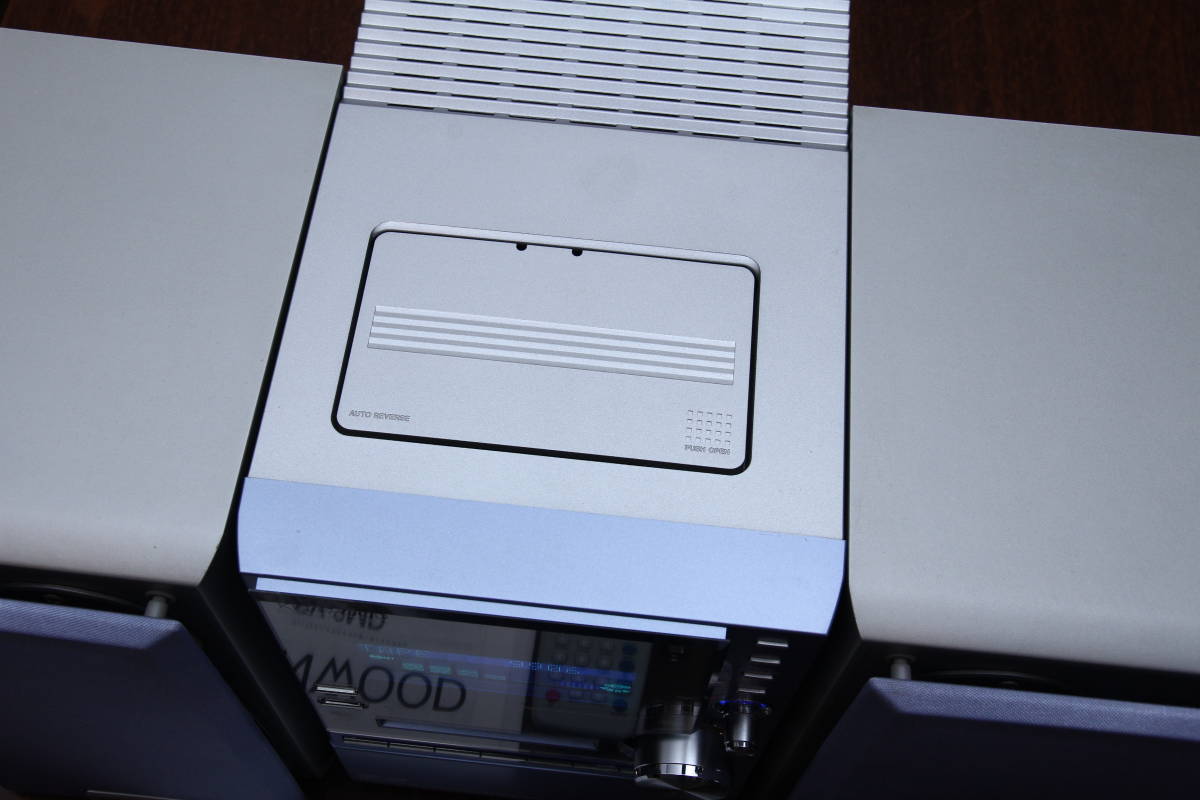

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
ScmsYes
ManualUser manual
RegionJapan
