Kenwood UD-A77

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
UD-A77
Device type
bookshelf
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood UD-A77”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name UD-A77
Manufacturer Kenwood
Released 2006/10
Device type bookshelf
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 240 (W) × 121.5 (H) × 361 (D)
Weight 5800
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable Not recorded
Price (launch) Not recorded
¥53 000
-
Inputs 3.5mm line in (analog-only), RCA in, CD, Radio recording
Outputs 3.5mm headphone, SD card
Control Not recorded

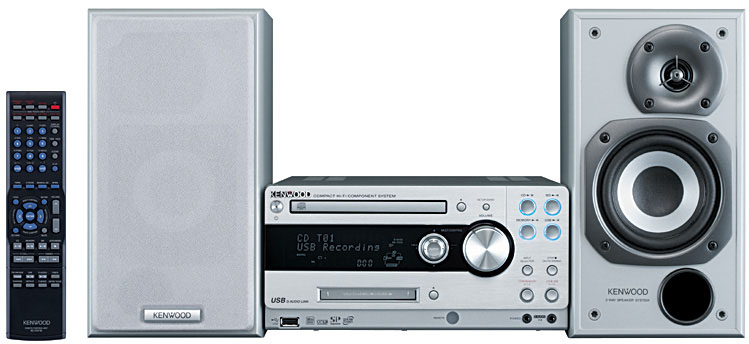

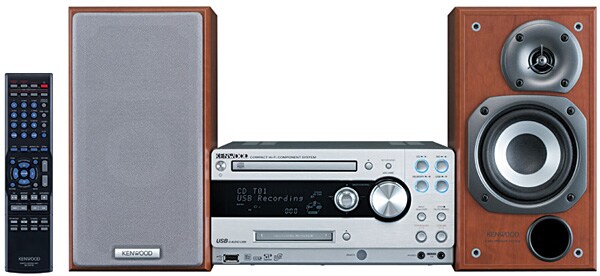

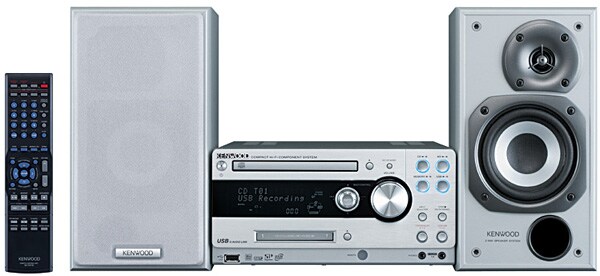

Offered in UD-A77-S (Silver) and UD-A77-M (Wood grain). Sometimes labelled RD-UDA77

[Amplifier section] -Rated output: 20W + 20W (6Ω)

[MD part]

  • D / A converter: 1 bit
  • Wow and flutter: Below the measurement limit

[USB part]

  • Interface: USB2.0 Full Speed, FAT16 / 32
  • Format playback: MP3, WMA, Recording: WMA-SQ, HQ
  • Can save MD to USB (remote required, Tool button)

[CD section]

  • D / A converter: 1 bit, 8fs (352.8kHz)

[SD part]

  • Maximum capacity 2Go
  • Format playback: MP3, WMA, Recording: WMA-SQ, HQ
  • Can save MD to SD (remote required, Tool button)

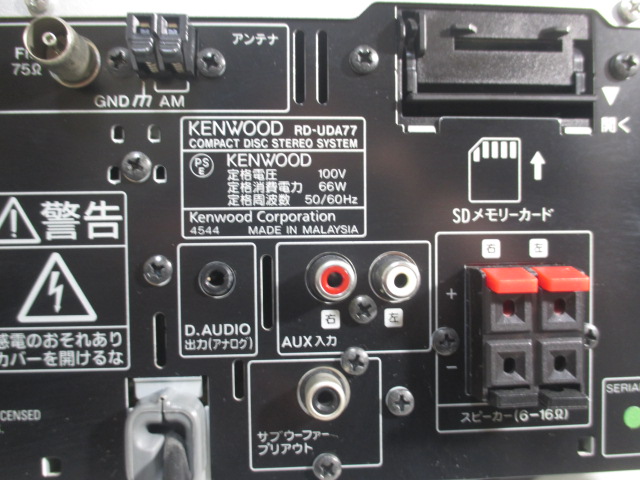

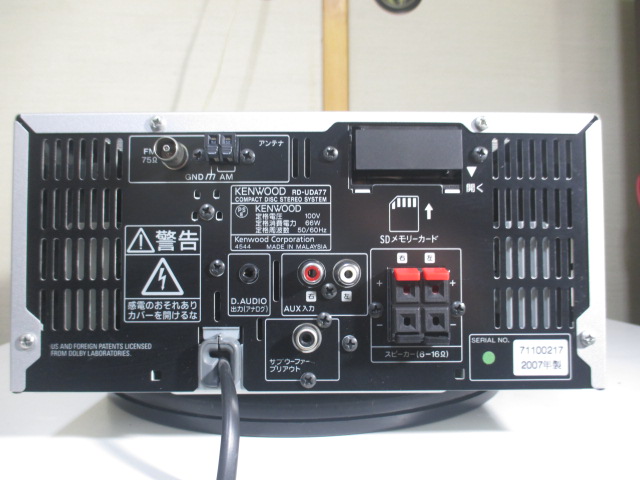

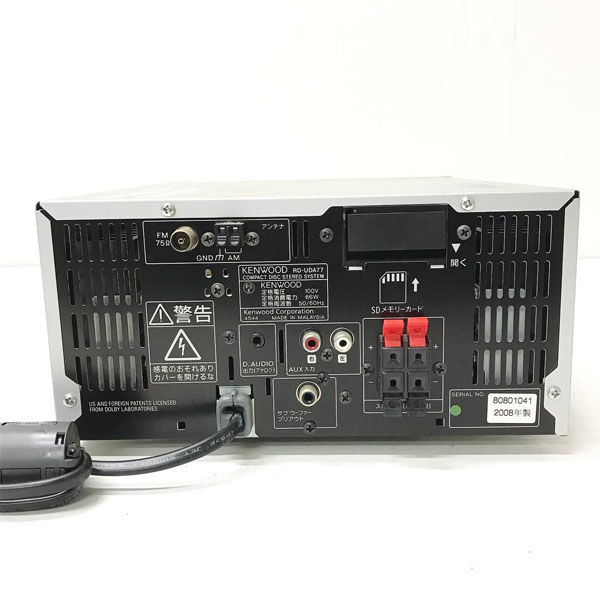

[Inputs]

  • Line in [+ Kenwood proprietary d-input] x2 (front and back),
  • USB x1 (front)
  • SD x1 (back)
  • FM 76MHZ-90MHz 75 Ω
  • AM 731kHz-1,629kHz

Output :

  • Speaker wires 6-16 Ω
  • Phones
  • Sub Woofer Pre-Out (1.6v/10Ω)

Power Rating 66W

MINI input x 1 system, speaker / earphone / PRE-OUT output × 1 each system

Kenwood product page

Content adapted from: Kenwood Press Release Kenwood Product Page P ony Units av.watch

Manuals

kenwood-ud-a77.pdf

Repair

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo (not NetMD)
ExportYes
ManualUser manual
RegionJapan
