Kenwood MDX-F3

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
MDX-F3
Device type
boombox
MDLP modes
No
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Accessories & internal parts

Source-referenced components. Check conditions before substituting parts.

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood MDX-F3”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-F3
Manufacturer Kenwood
Released 1999/10
Device type boombox
Recorder Recorder
MDLP No
NetMD No
Hi-MD No
Radio Yes
Dimensions 474 x 190 x 235mm
Weight 6.1kg
ATRAC ver Not recorded
Battery Not recorded D cells
Battery notes Not recorded
Sidecar (depr) Not recorded
Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), 3.5mm microphone, CD, Radio recording, Tape deck
Outputs 3.5mm headphone, Built-in speaker
Control Not recorded

Available in 5 colors: MDX-F3-L Blue, MDX-F3-W White, MDX-F3-Y Yellow, MDX-F3-R Red, MDX-F3-GR Green

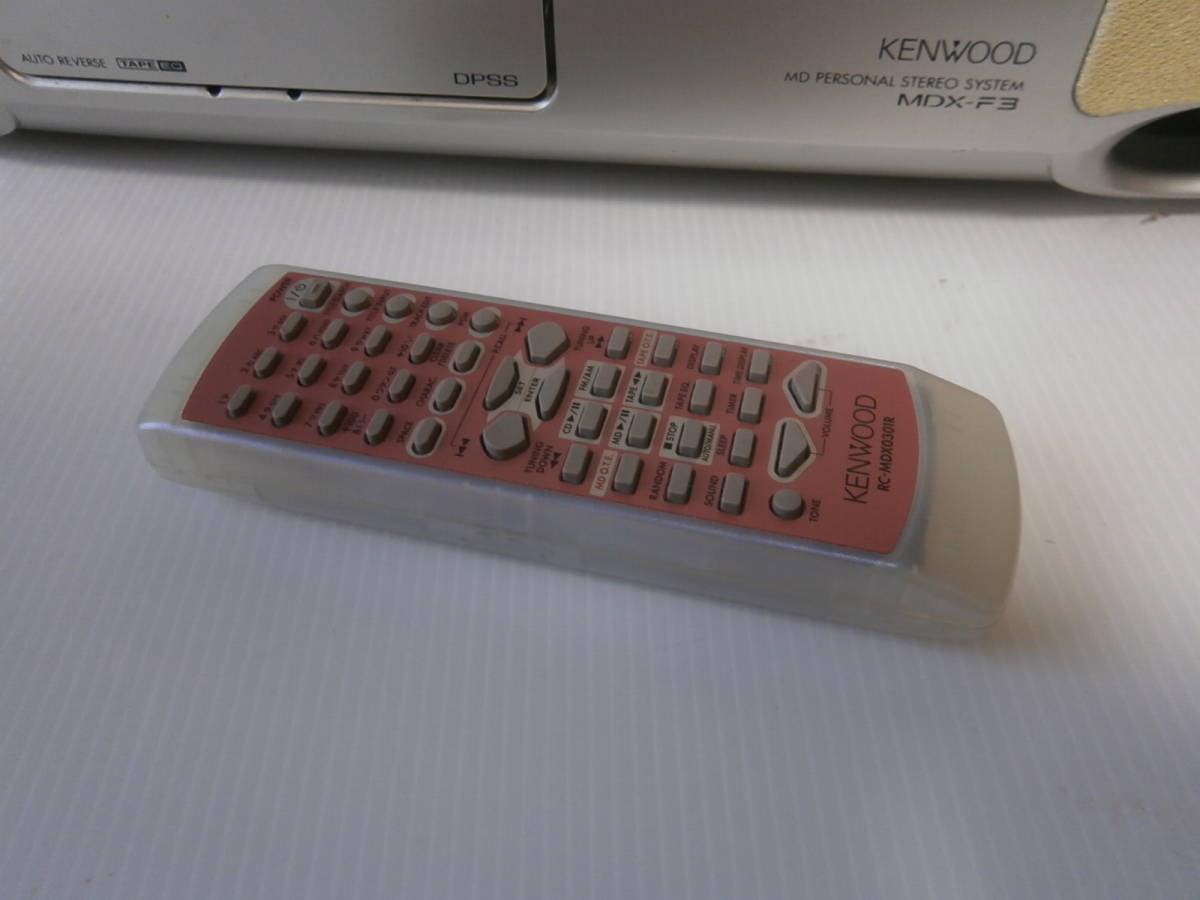

"Rampage" branded boombox. Equipped with MD/CD/cassette/FM/AM tuner. Capable of AC or dry cell battery operation. Remote included.

  • Double-speed digital dubbing from CD to MD.
  • Equipped with a microphone terminal.
  • Twin Rec function that can simultaneously record from CD to MD and cassette tape with one touch.
  • 3 timer functions (sleep, wake up (OTT), program 1.2 timer)

Content adapted from: Kenwood Product Page Kenwood Product Page (MiniDisc Wiki mirror) Announcement Announcement (MiniDisc Wiki mirror) Minidisc.org page, user manual

Manuals

User manual (Ja)

Repair

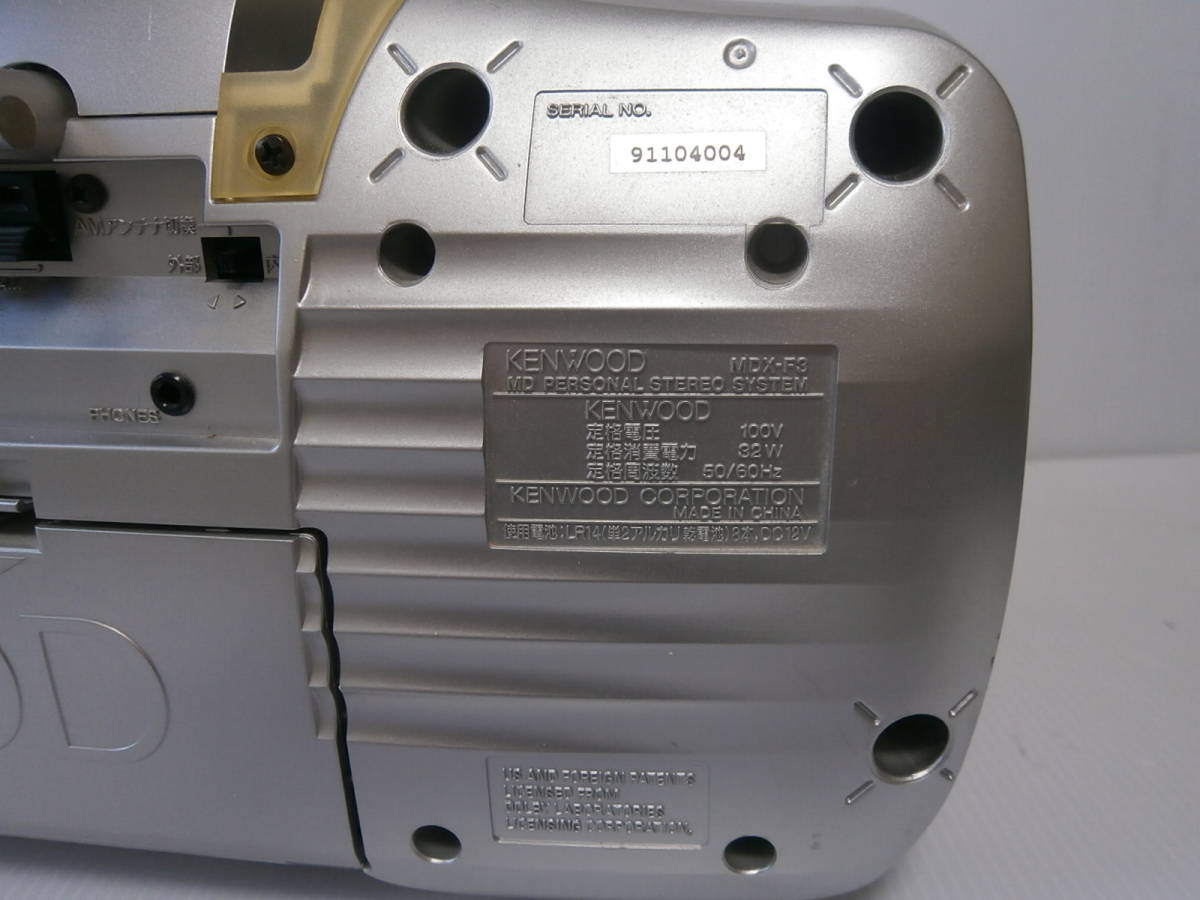

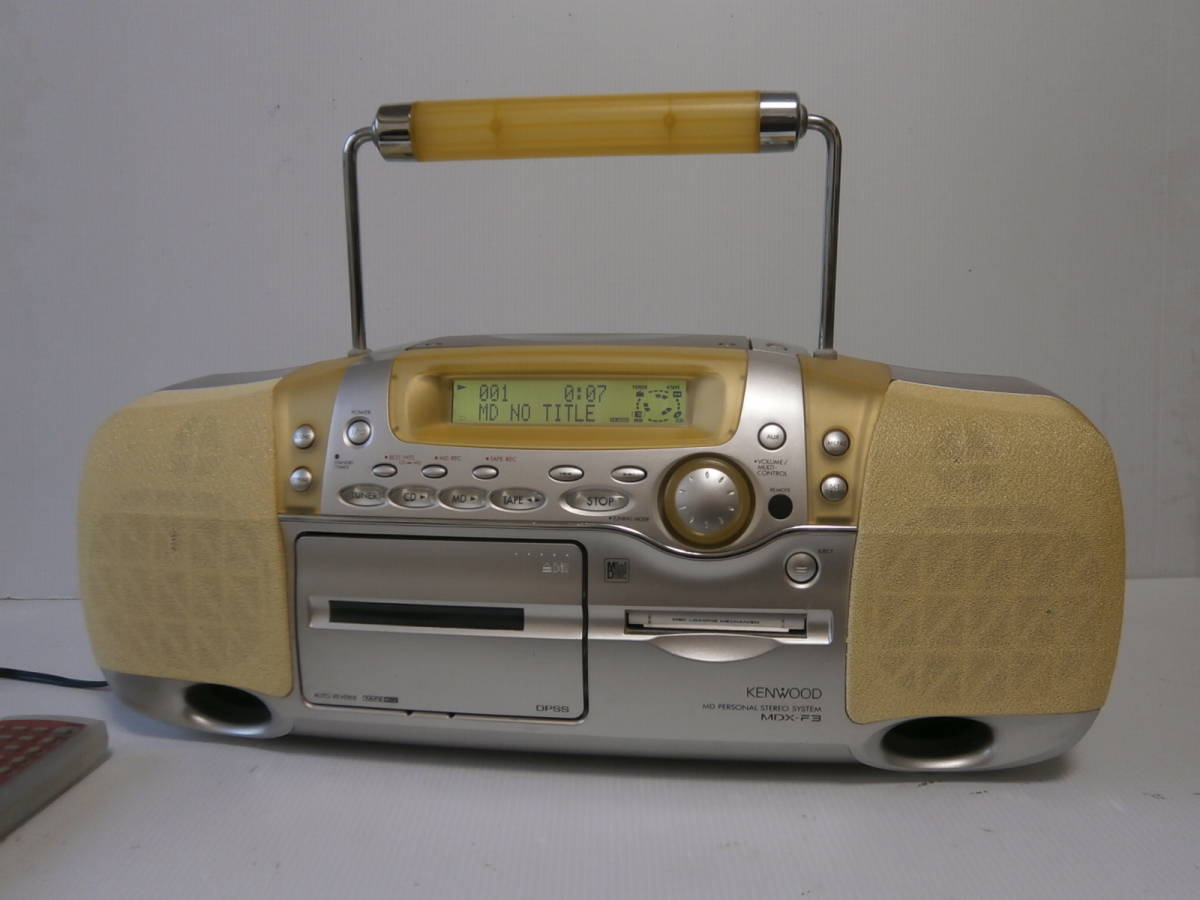

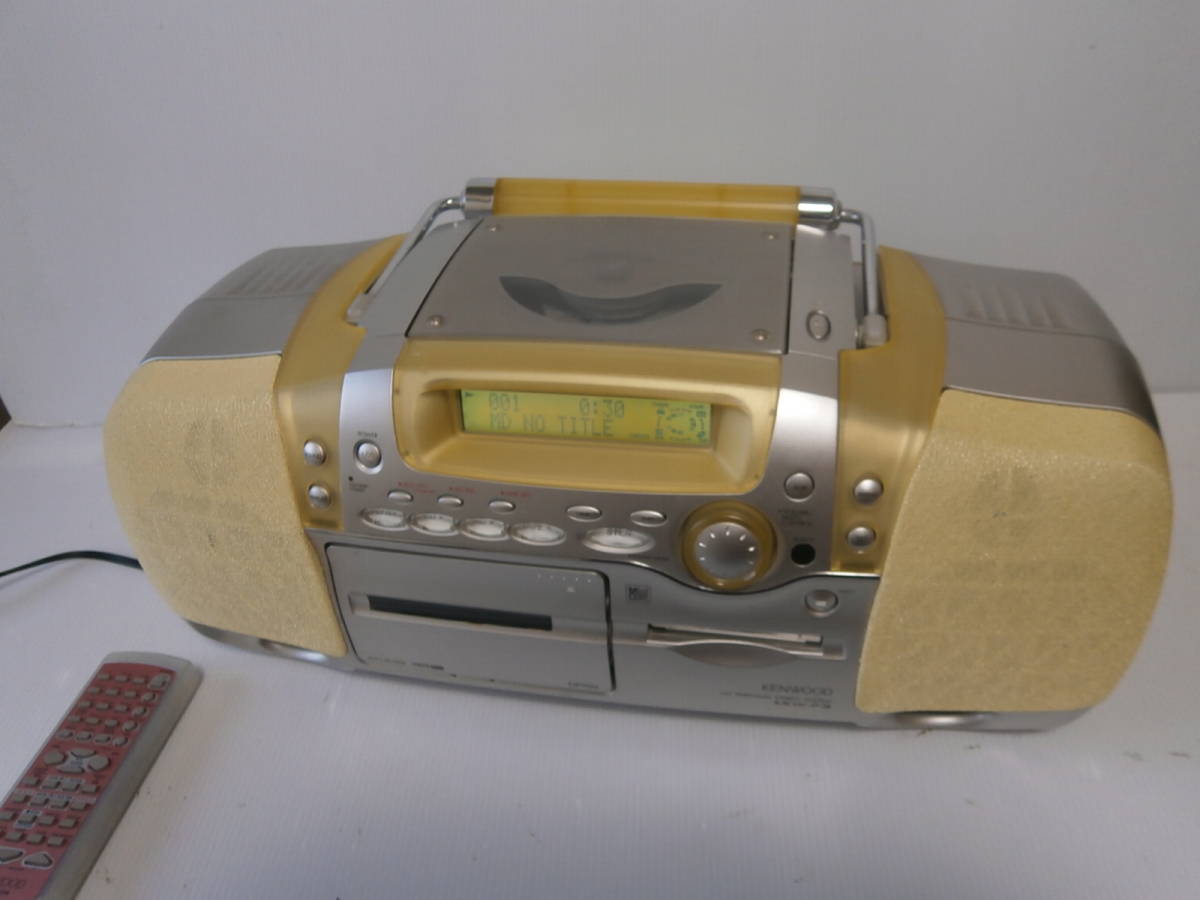

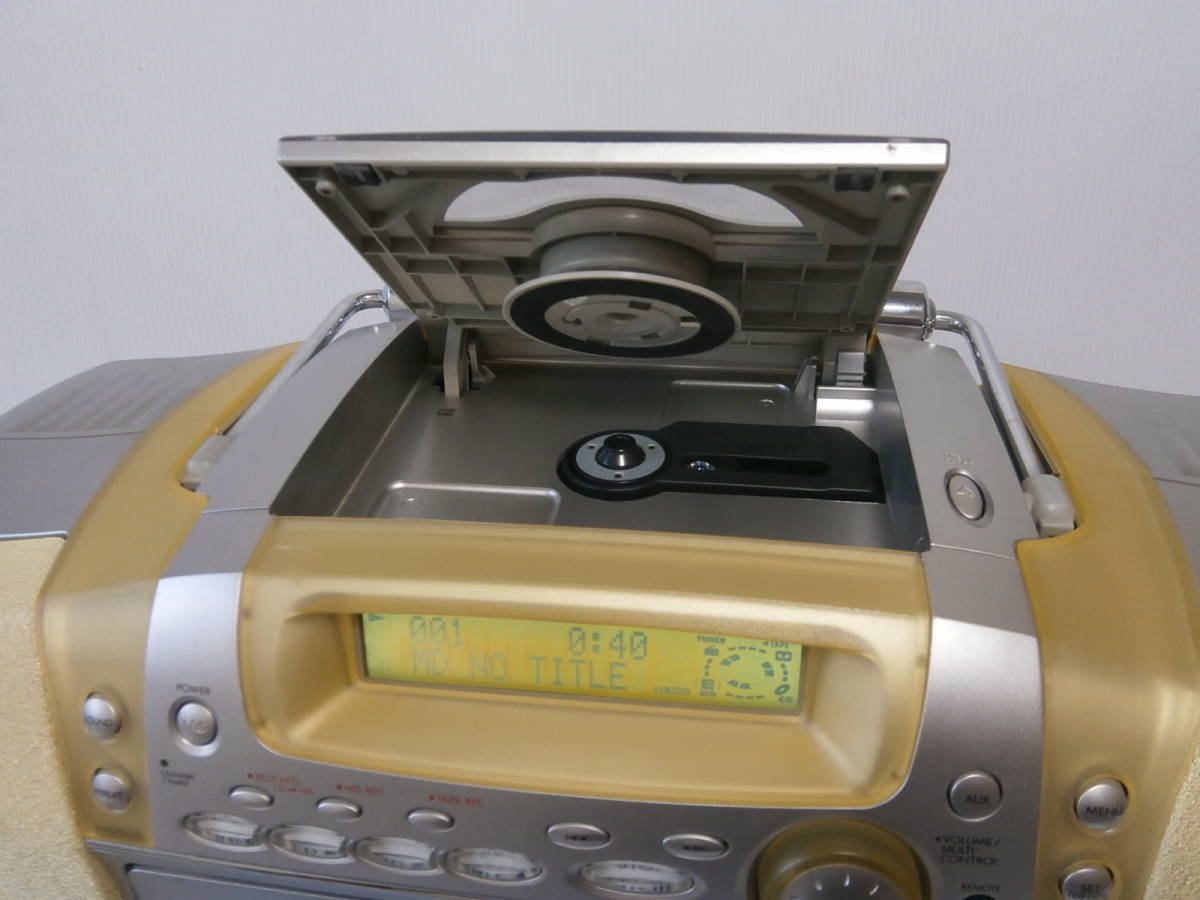

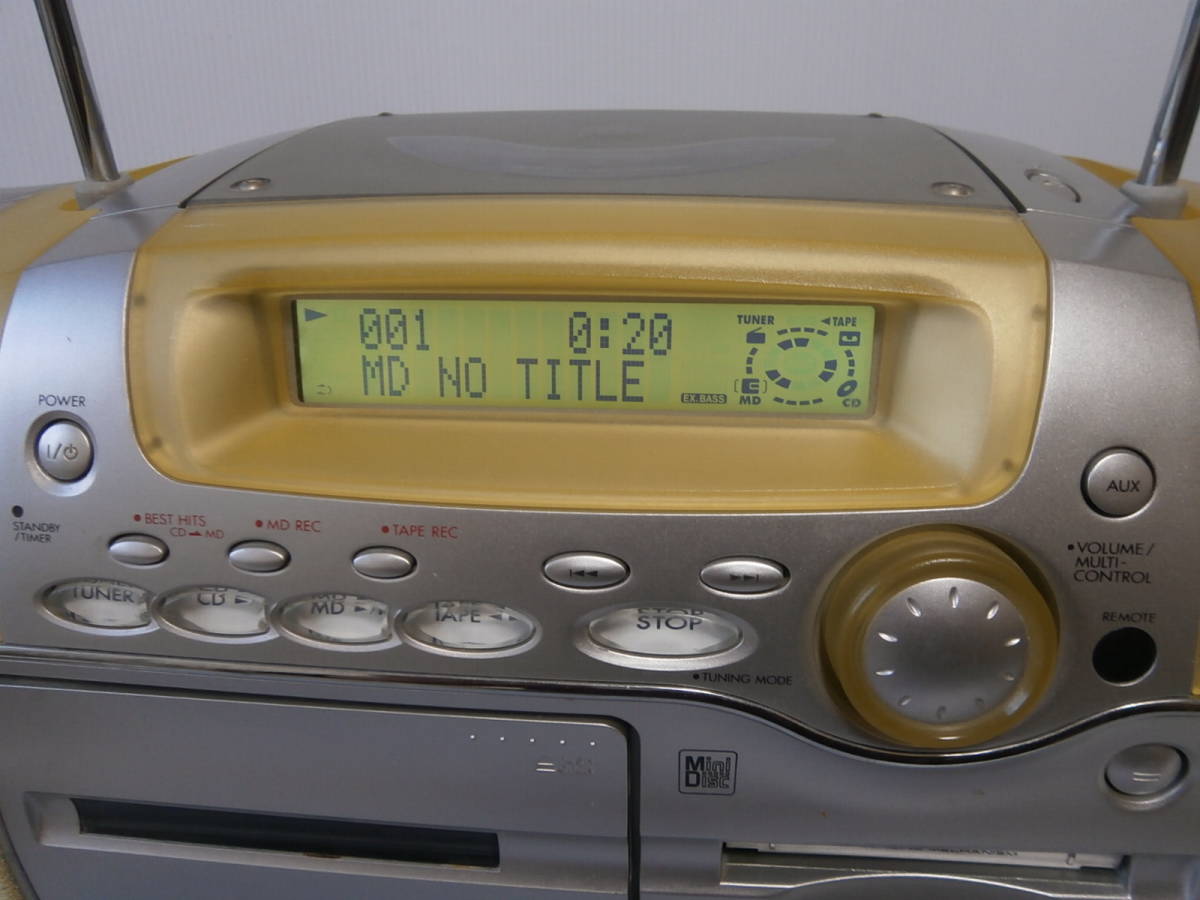

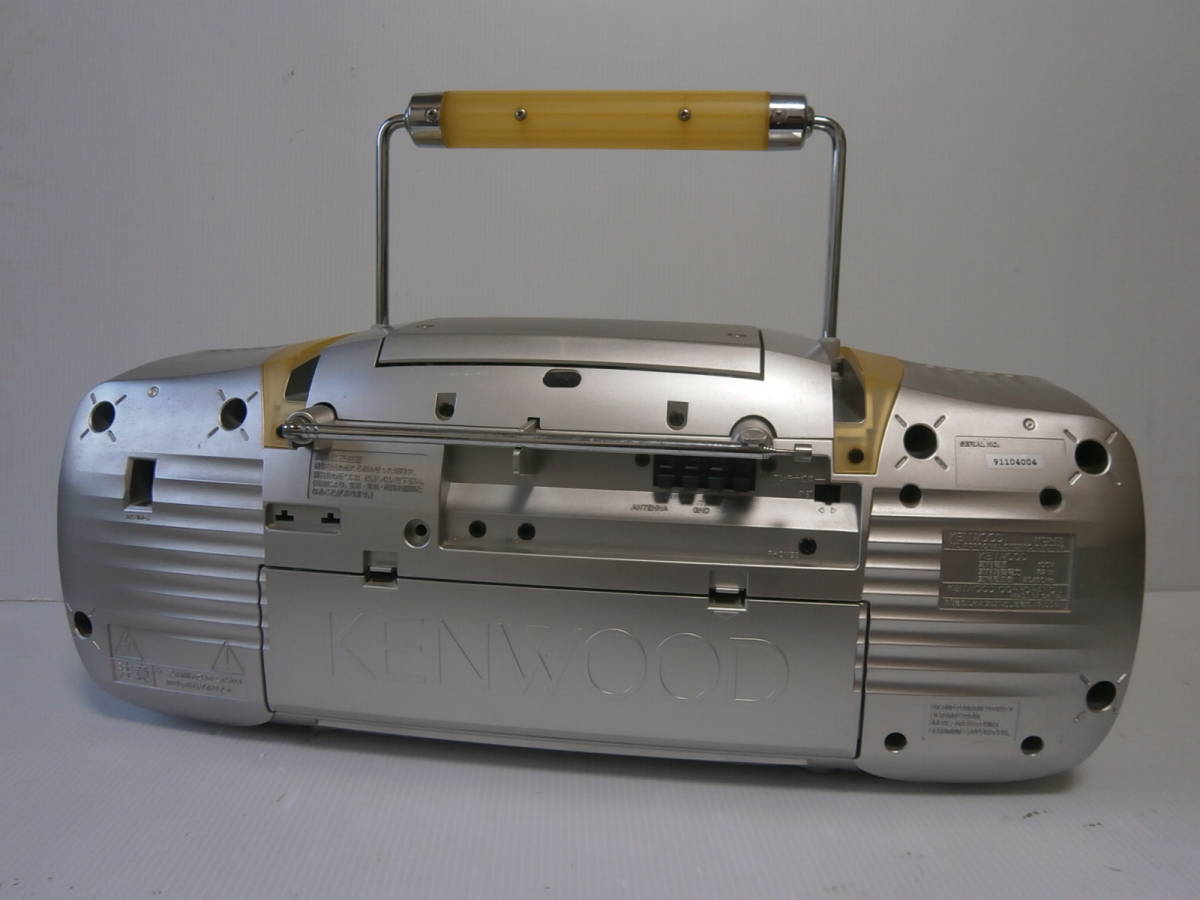

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email..

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
