Kenwood MDX-K1

Source reference · needs review · MiniDisc Wiki, September 2026 snapshot · Source edited 2024-01-01

Manufacturer
Kenwood
Model / source grouping
MDX-K1
Device type
boombox
MDLP modes
Yes
NetMD interface
No
Hi-MD support
No

Capabilities above are source-stated. USB transfer direction, software requirements and regional variants need separate checks.

Manuals & documentation

Search documentation

Preserved source

Original source · Source edits are not technical review dates. Original credits and licence notes remain below.

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Kenwood MDX-K1”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.


Name MDX-K1
Manufacturer Kenwood
Released 2002/10
Device type boombox
Recorder Recorder
MDLP Yes
NetMD No
Hi-MD No
Radio Yes
Dimensions 360x150x200mm
Weight 3.9kg
ATRAC ver Not recorded
Battery Not recorded Not recorded
Battery notes Not recorded
Sidecar (depr) Not recorded

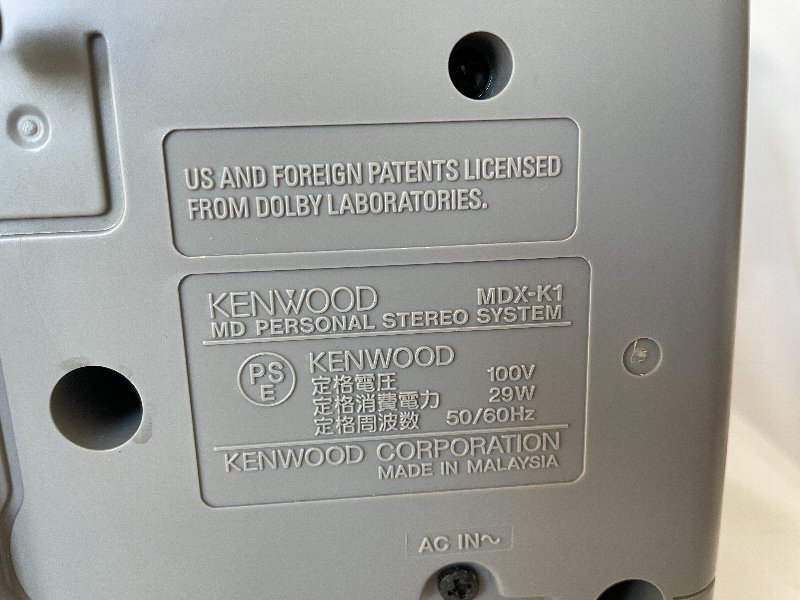

Voltage 100
Power cable AC
Price (launch) Not recorded
Not recorded
-
Inputs 3.5mm line in (analog-only), CD, Tape deck
Outputs Not recorded
Control Not recorded

The MDX-K1 is similar to the MDX-K3 however it has 7cm full-range speakers and a different display and LED illumination.

Offered in (-S) Silver , and (-L) Blue .

  • CD → MD 4x speed recording
  • Supports MDLP
  • Supports CD-R/RW playback
  • Plays a melody at the end of a recording

Content adapted from: Kenwood News Release Page

Manuals

User Manual

Repair

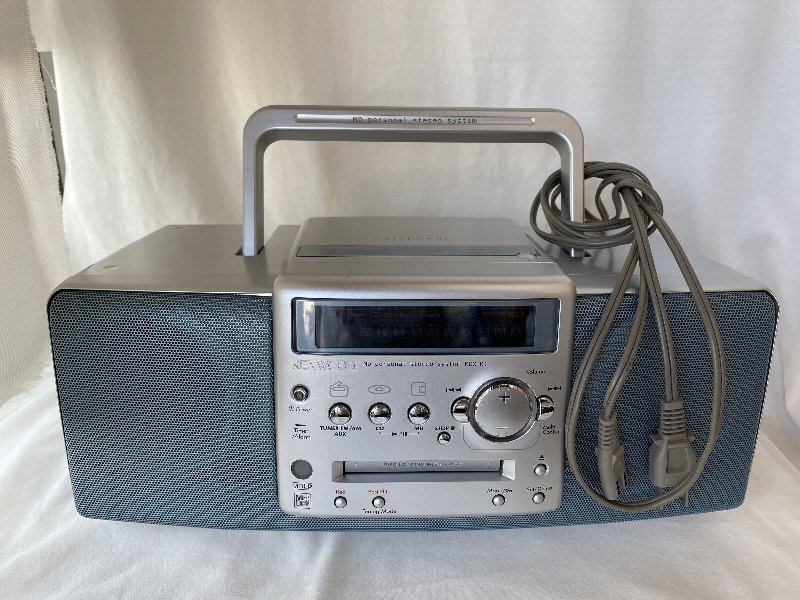

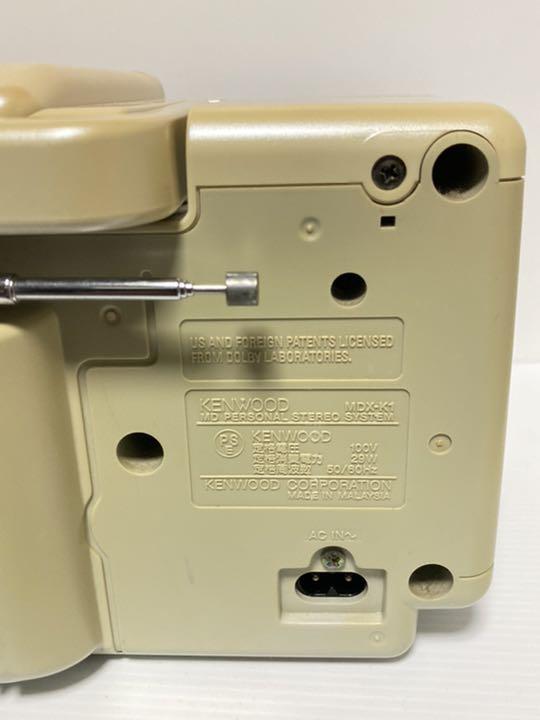

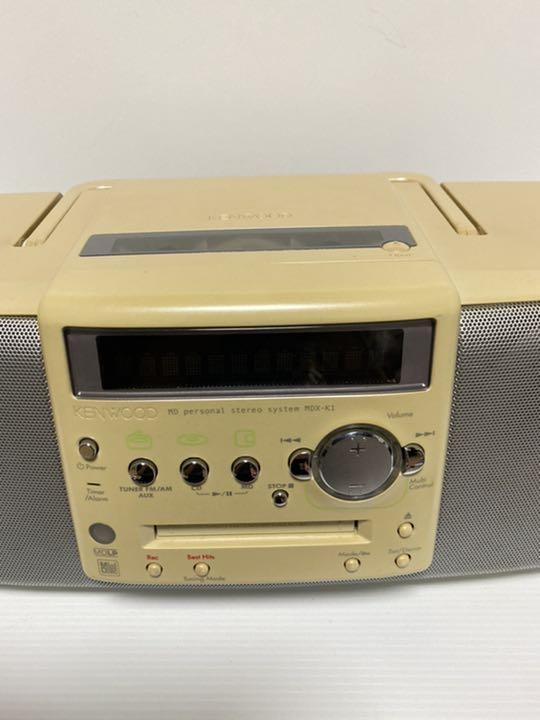

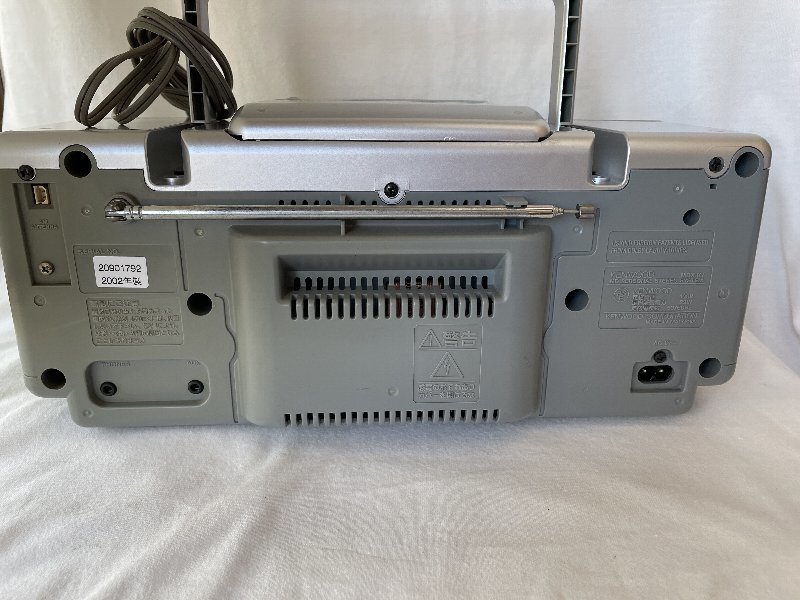

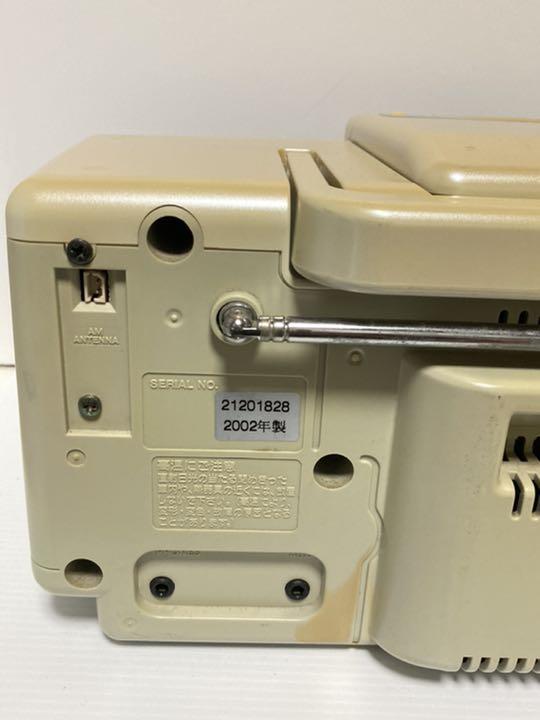

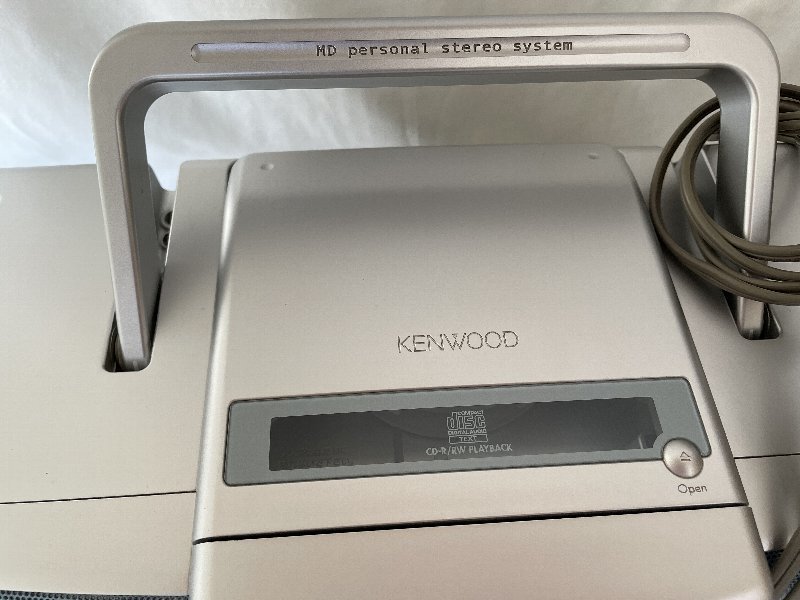

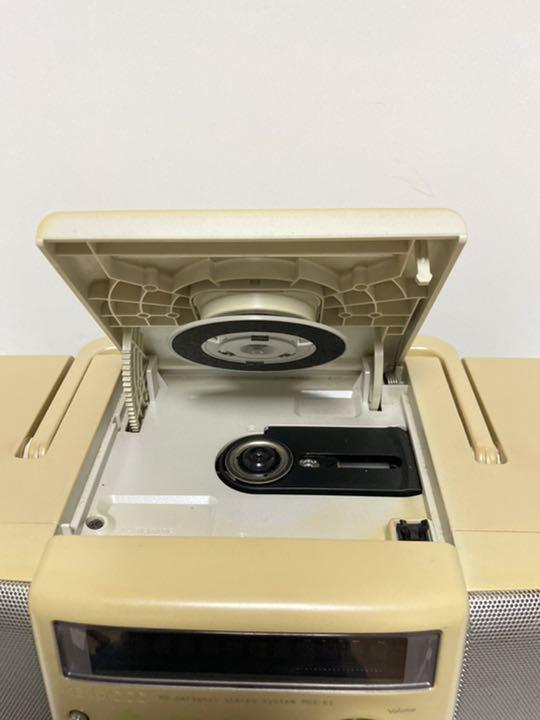

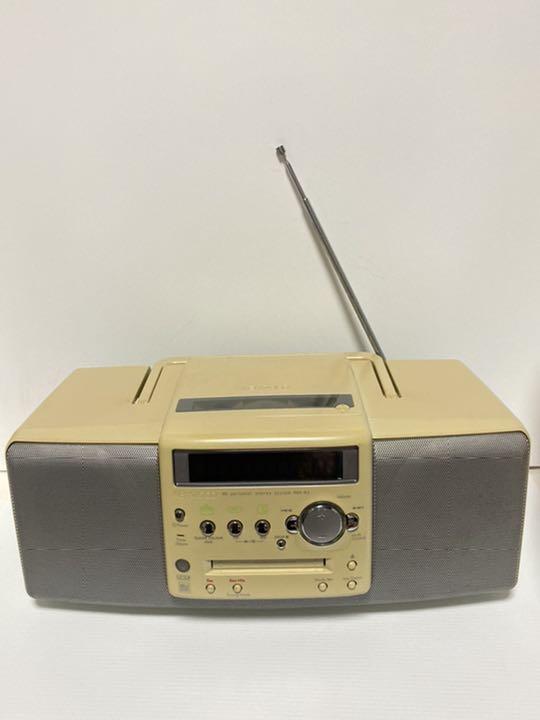

Photos

Have photos or data to add? Edit the page! We do not accept contributions via email.

Additional specifications and references
Web MdNo
ManualUser manual
RegionJapan
