| Name | MDX-L1 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 360x150x220mm |
| Weight | 3.8kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |

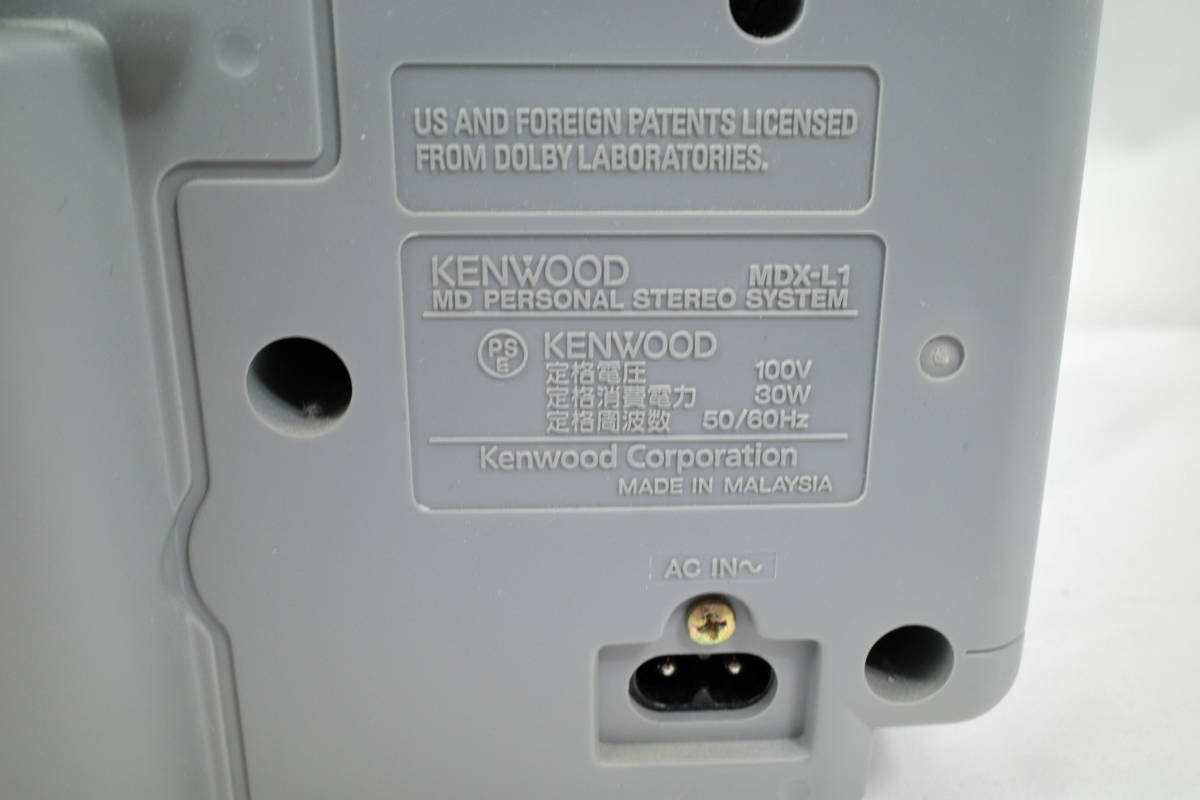

| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥31 500 | |
| - | |

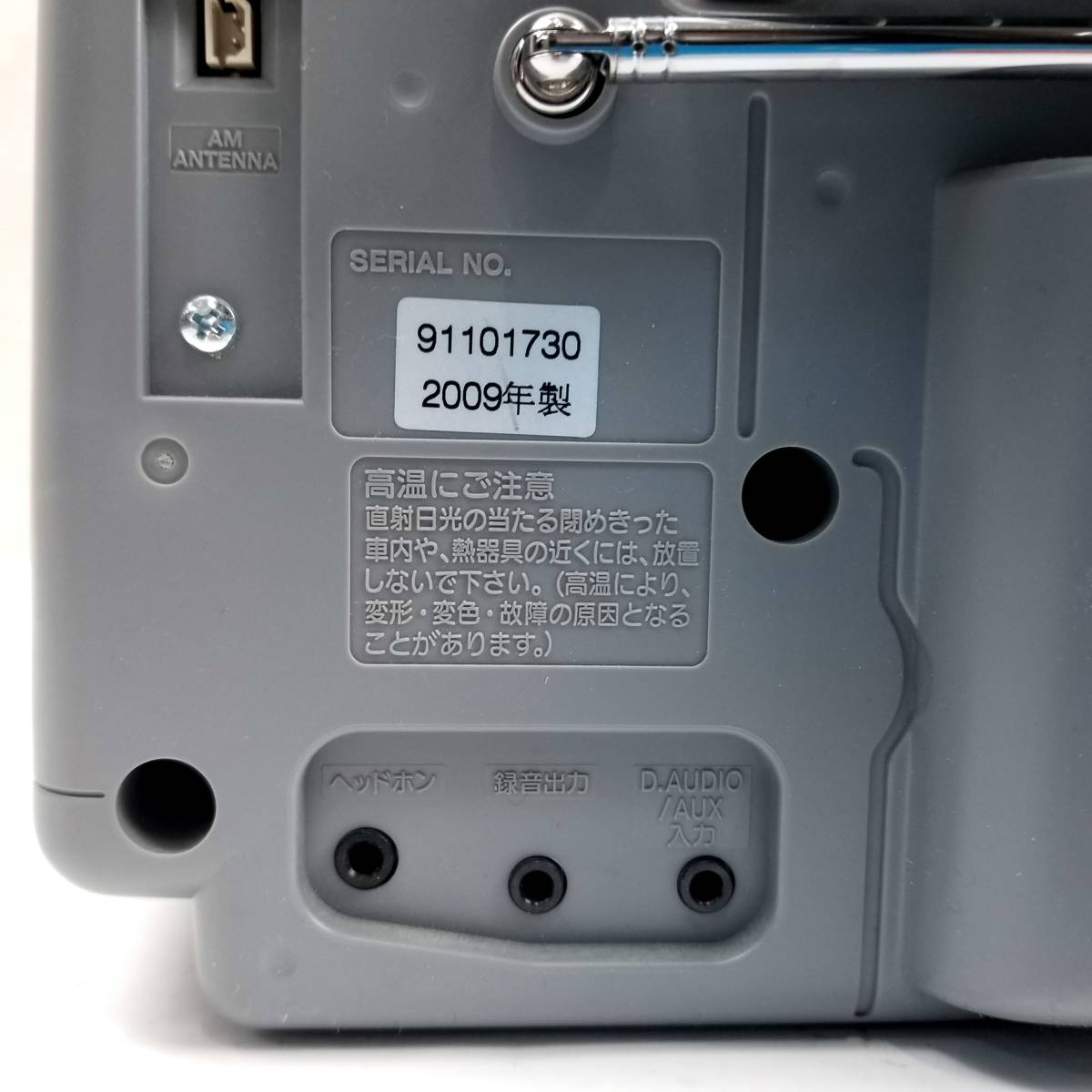

| Inputs | 3.5mm line in (analog-only) |
| Outputs | 3.5mm line out (analog-only) |
| Control | Not recorded |

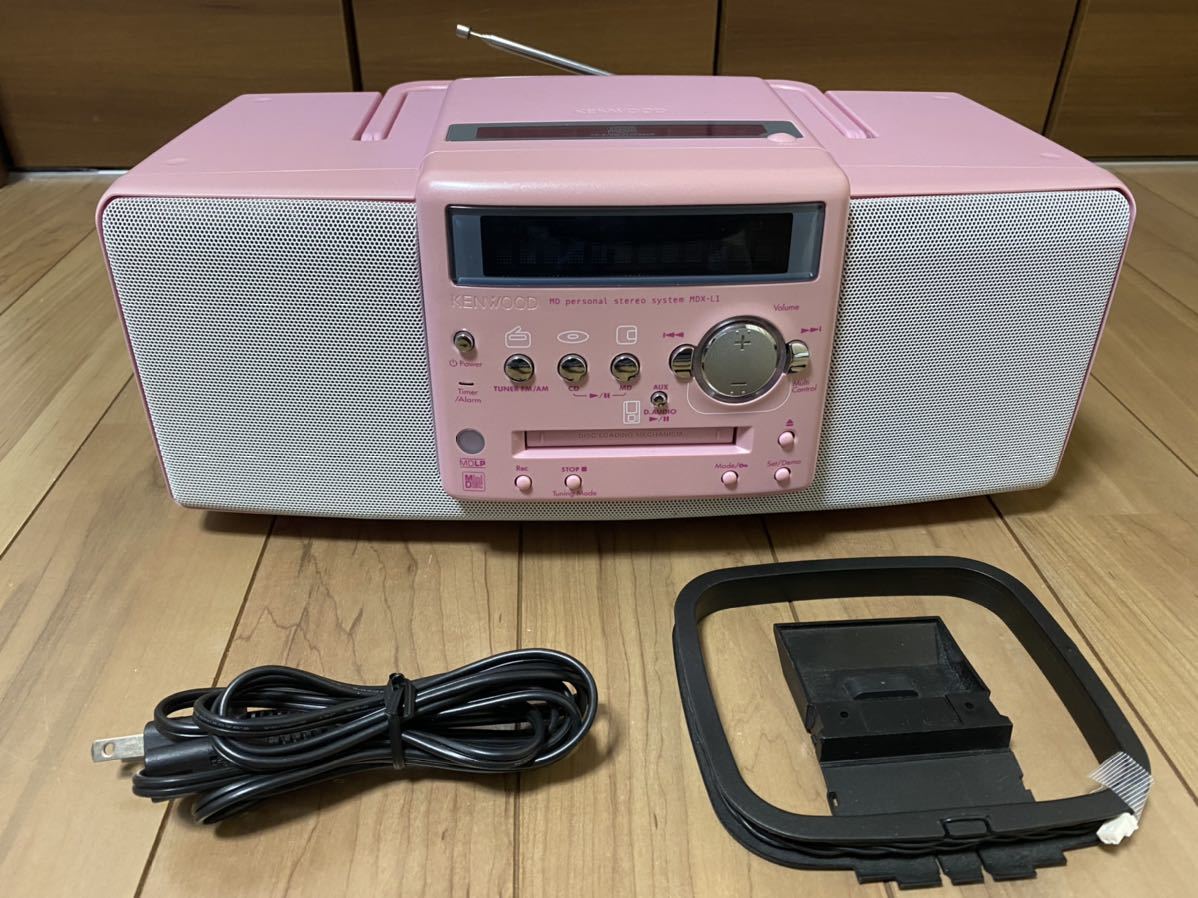

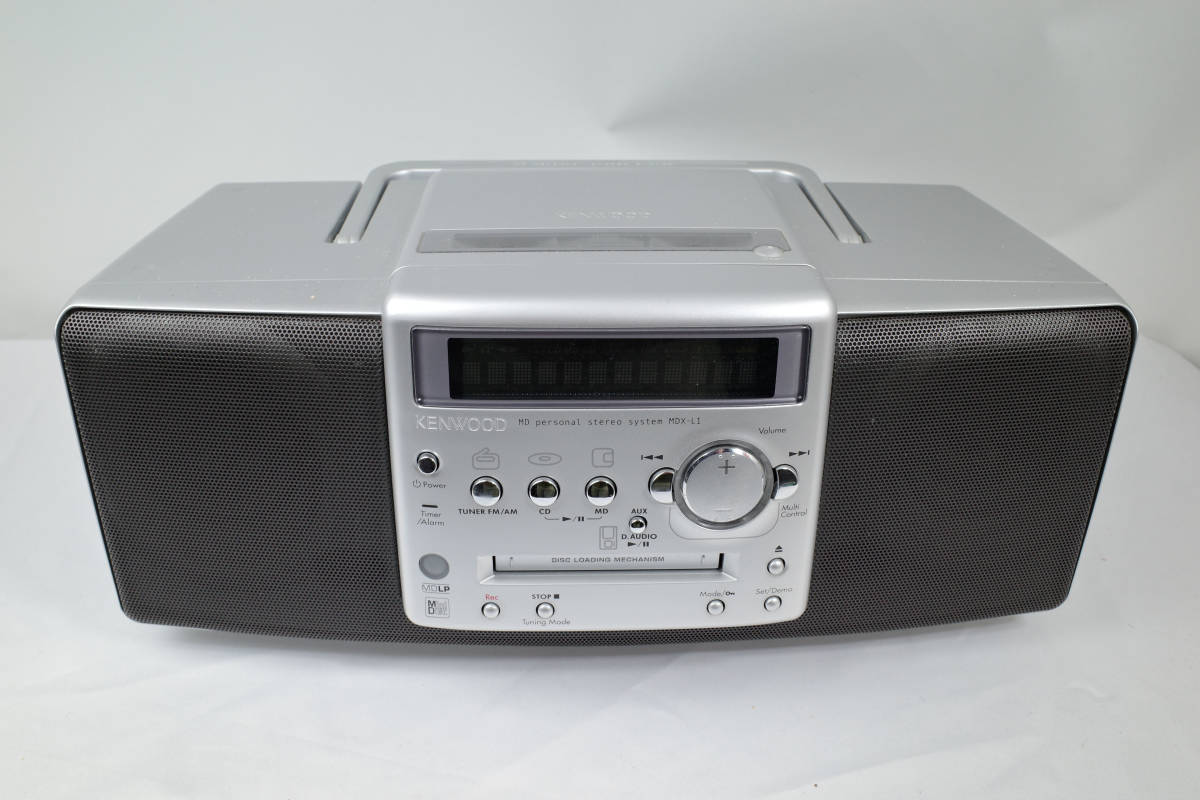

The MDX-L1 comes in 3 colors: white (W),gray (H), and pink (P).
It can connect to the Kenwood HD20GA7 Kenwood HD20GA7 (MiniDisc Wiki mirror) and portable memory audio players M1GB5 M1GB5 (MiniDisc Wiki mirror) and M512B5 M512B5 (MiniDisc Wiki mirror) using the PNC-150 cable.

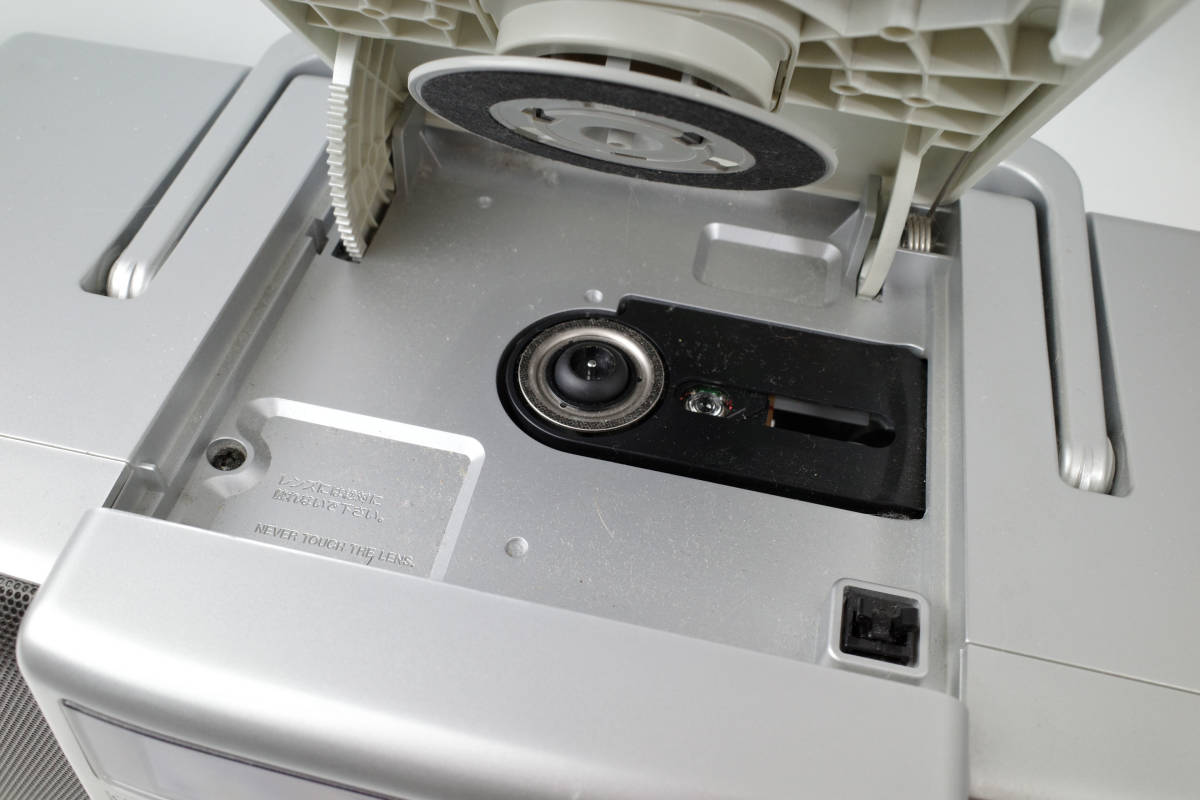

- CD → MD double speed recording
- Supports MDLP and Folder groups
- Supports playback of CD-R/ W discs recorded in CD-DA
- Supports CD Text
- Plays a melody at the end of a recording
Amplifier section: Practical maximum output: 4W + 4W (JEITA 4Ω)
Output terminal (level/impedance): Recording output …950 mV / 1 kΩ
Input terminal (sensitivity/impedance) Digital audio D.AUDIO/AUX input …700mV / 10kΩ
Content adapted from: Kenwood News Release Page Kenwood News Release Page (MiniDisc Wiki mirror) av.watch
Manuals
Repair

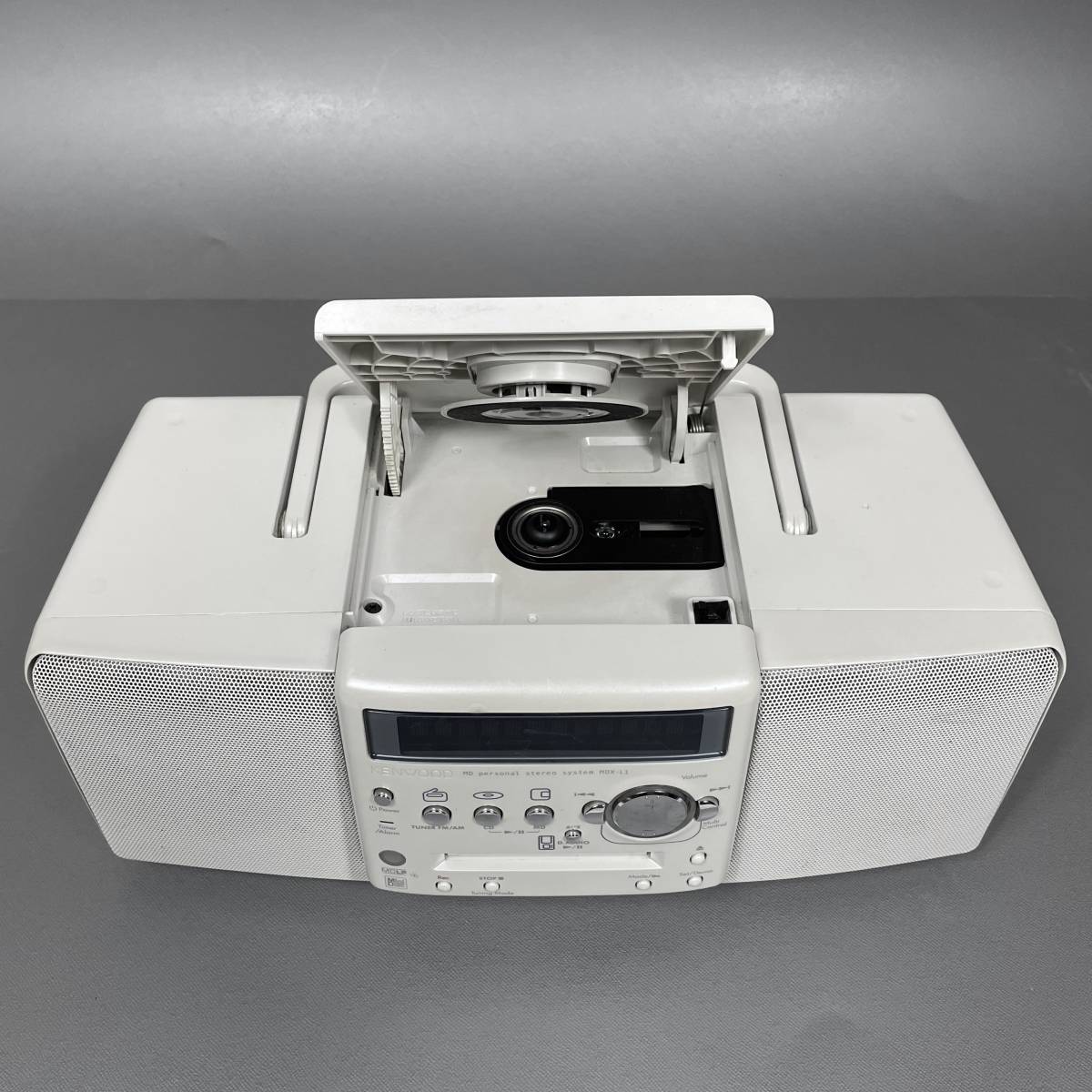

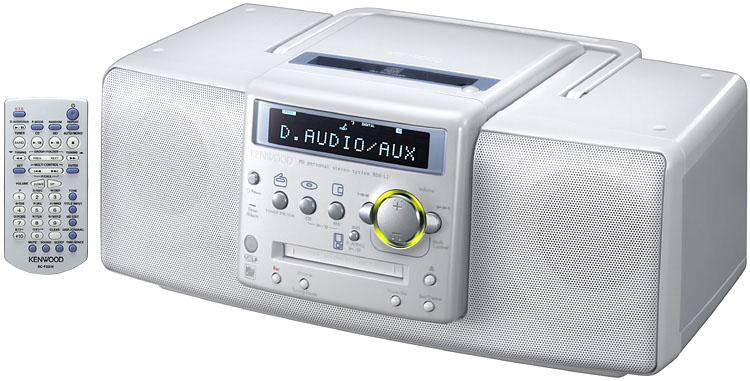

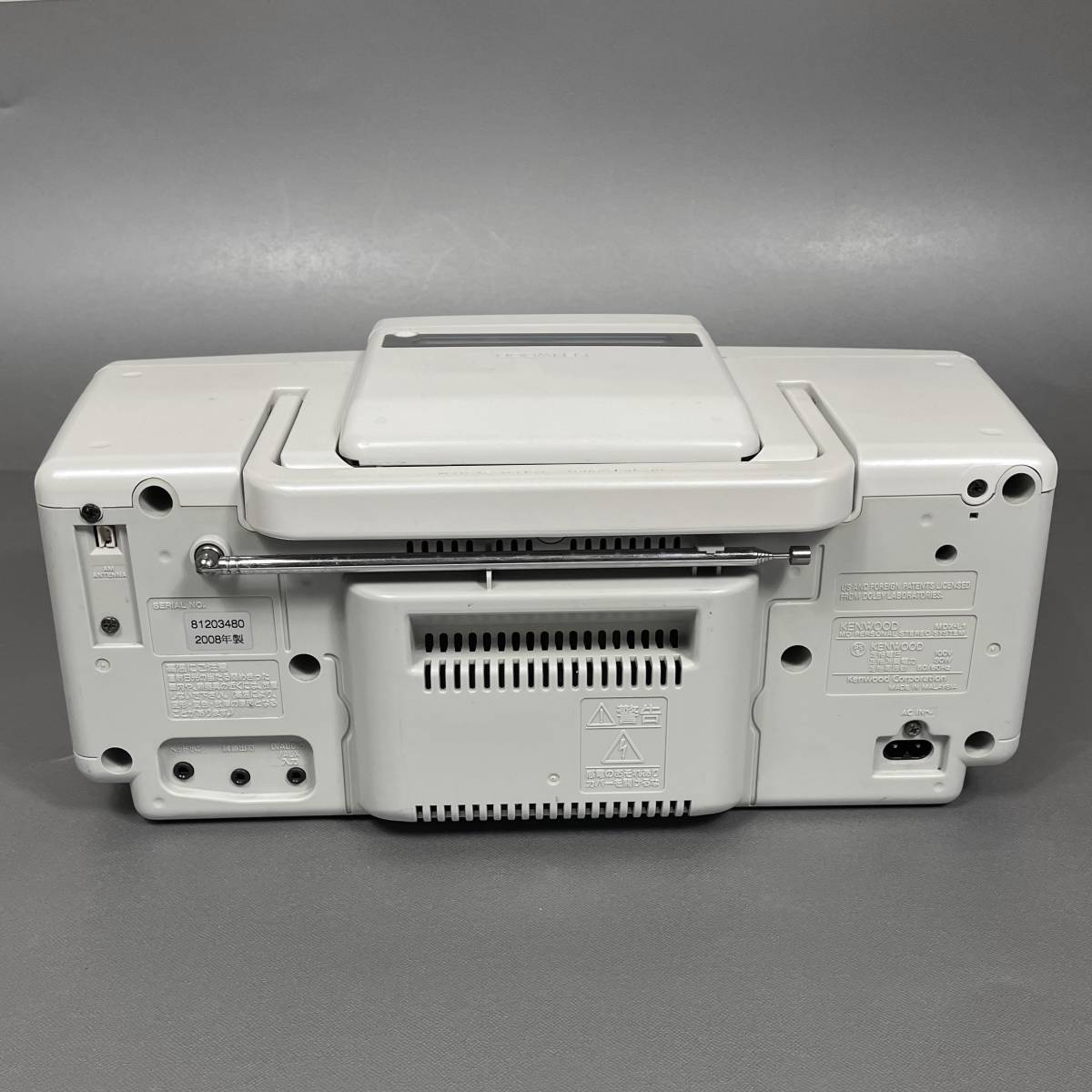

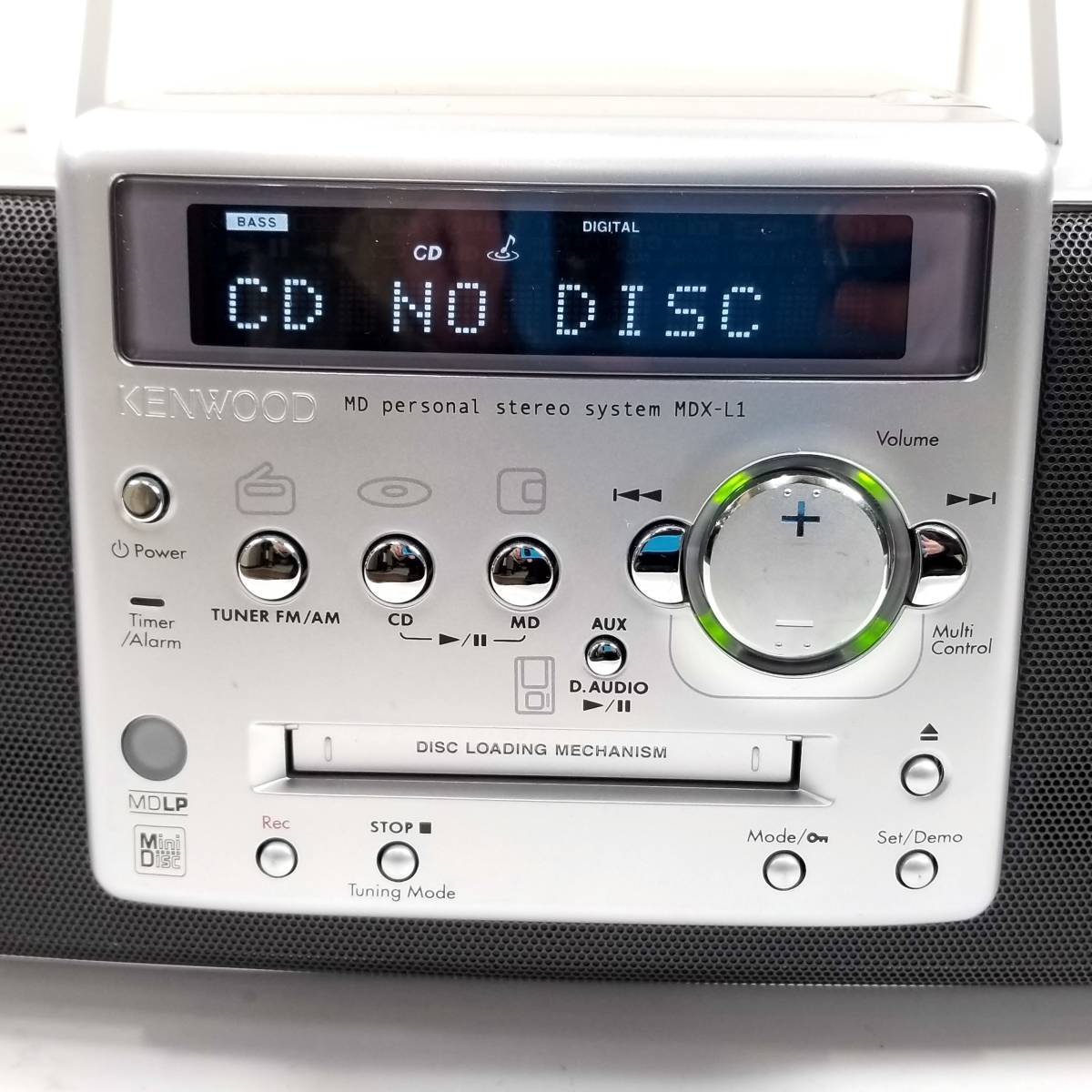

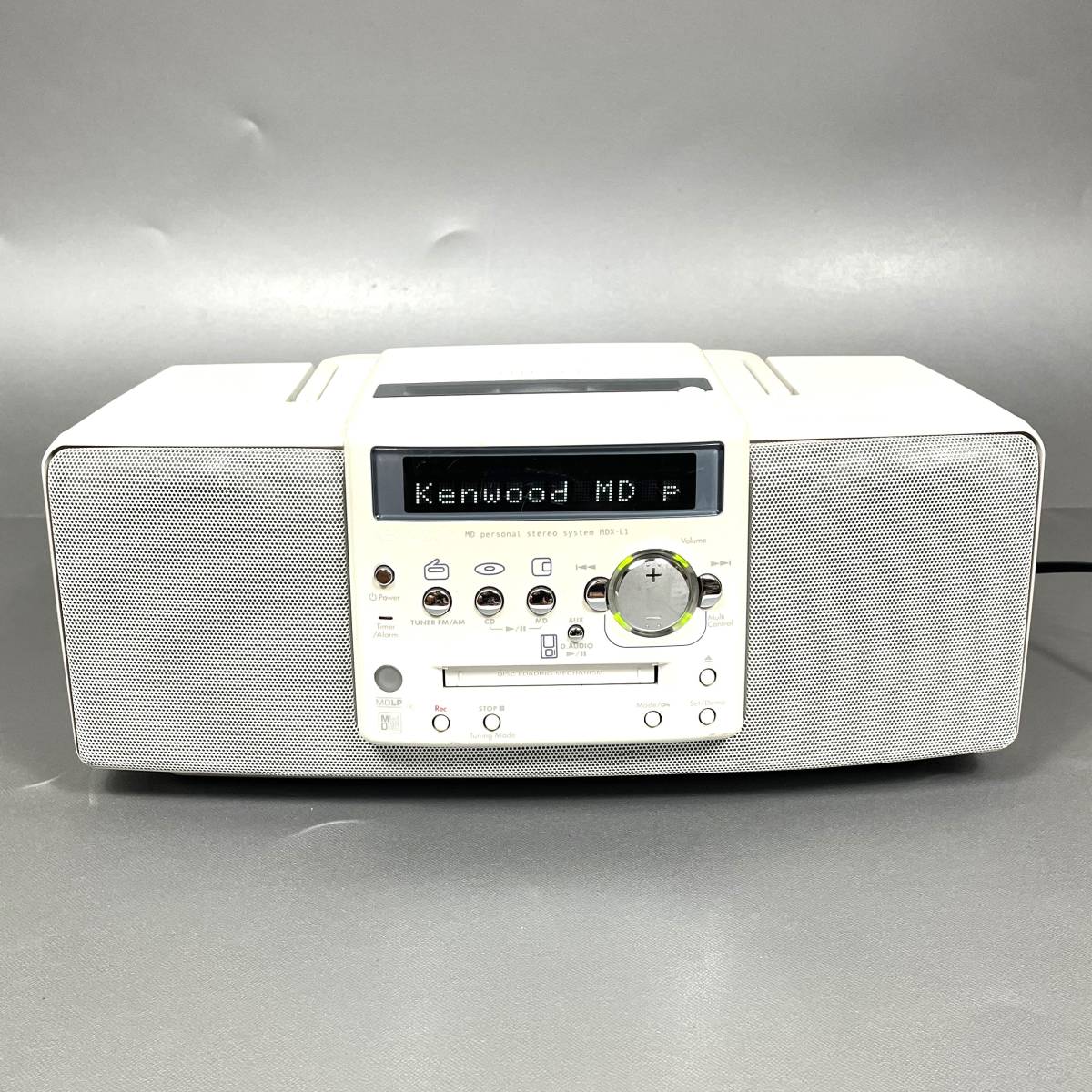

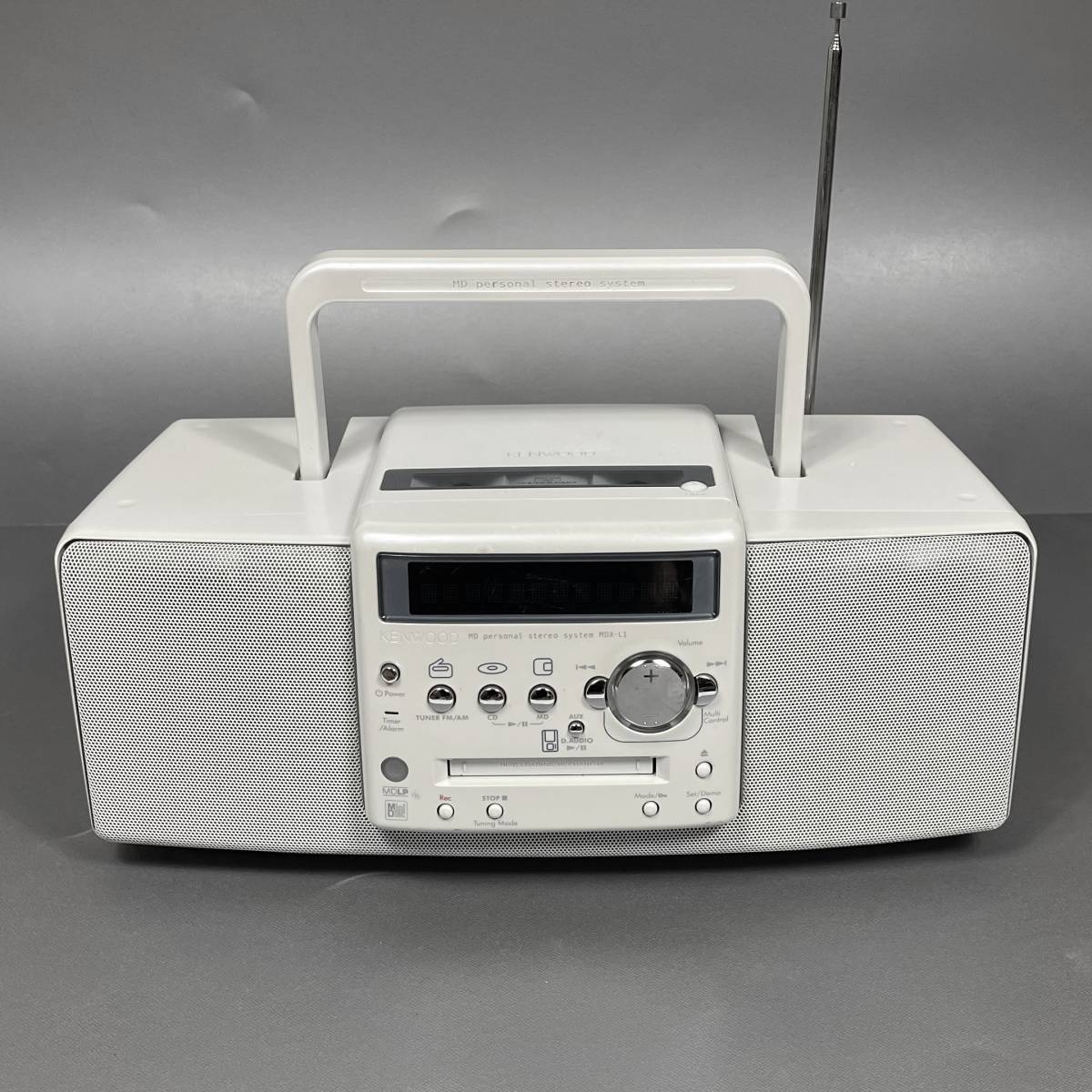

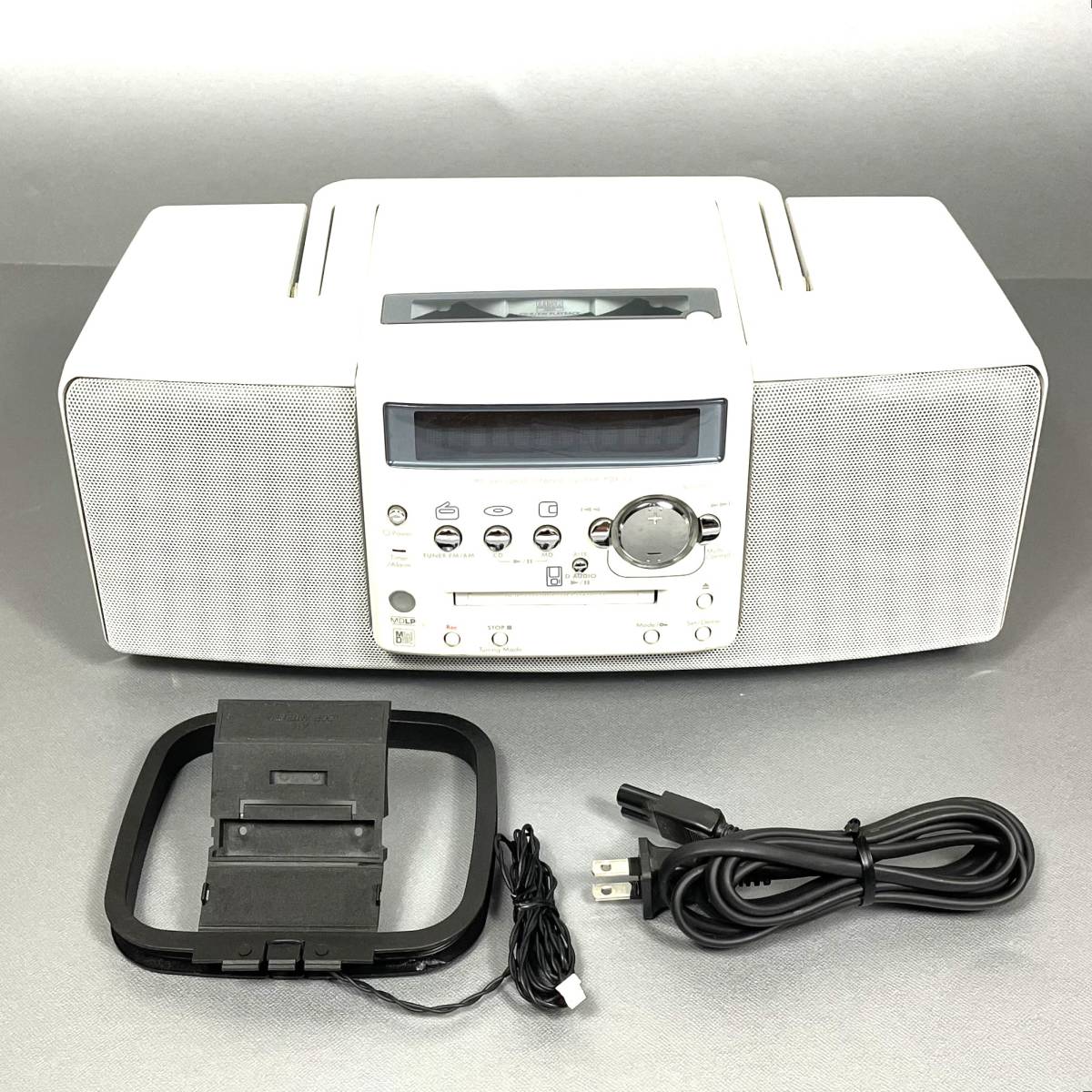

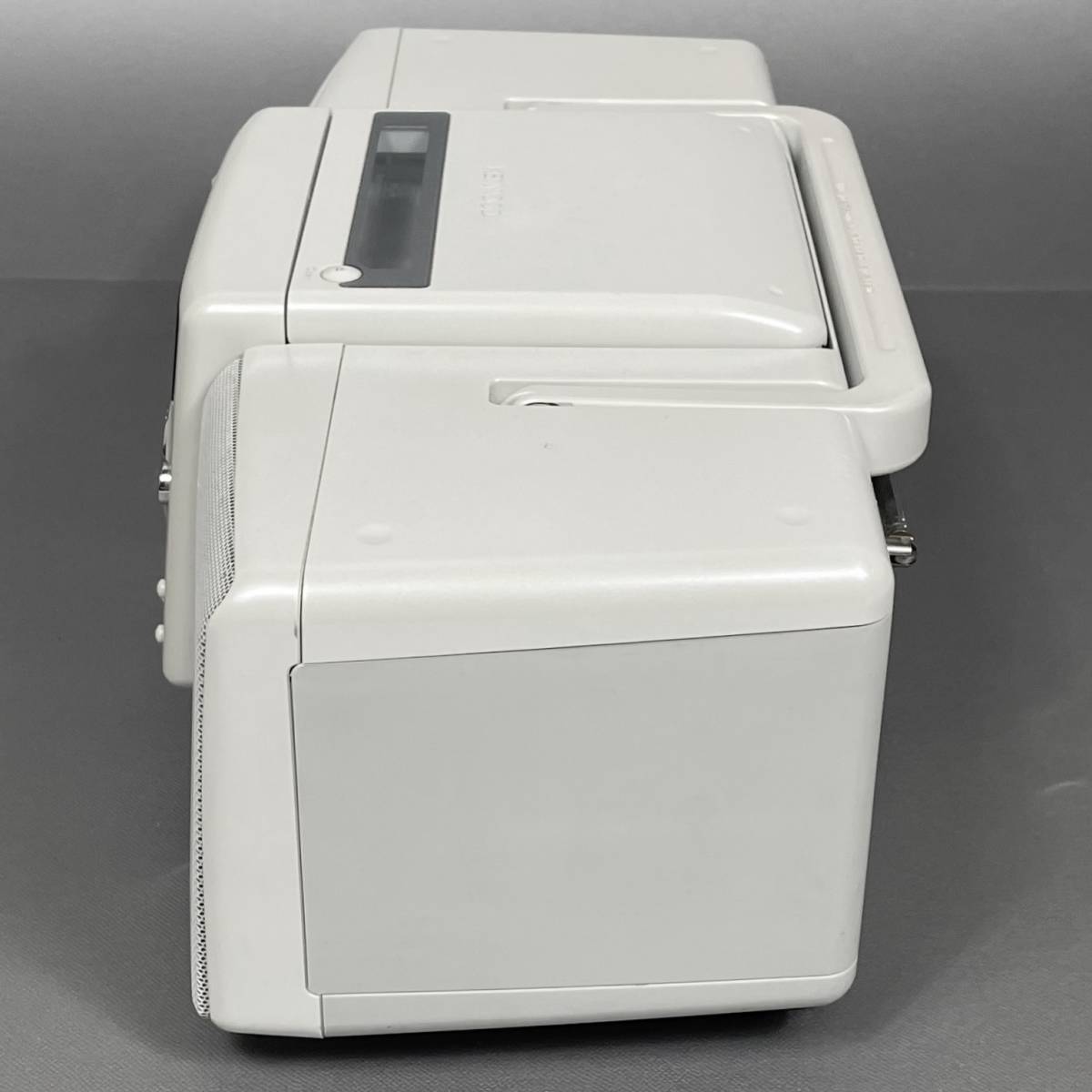

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Manual | User manual |
| Region | Japan |
