| Name | DM-3090 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1997/10 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | 440x94x300mm |
| Weight | 3.6kg |
| ATRAC ver | Sharp 5 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥39 800 | |
| - | |

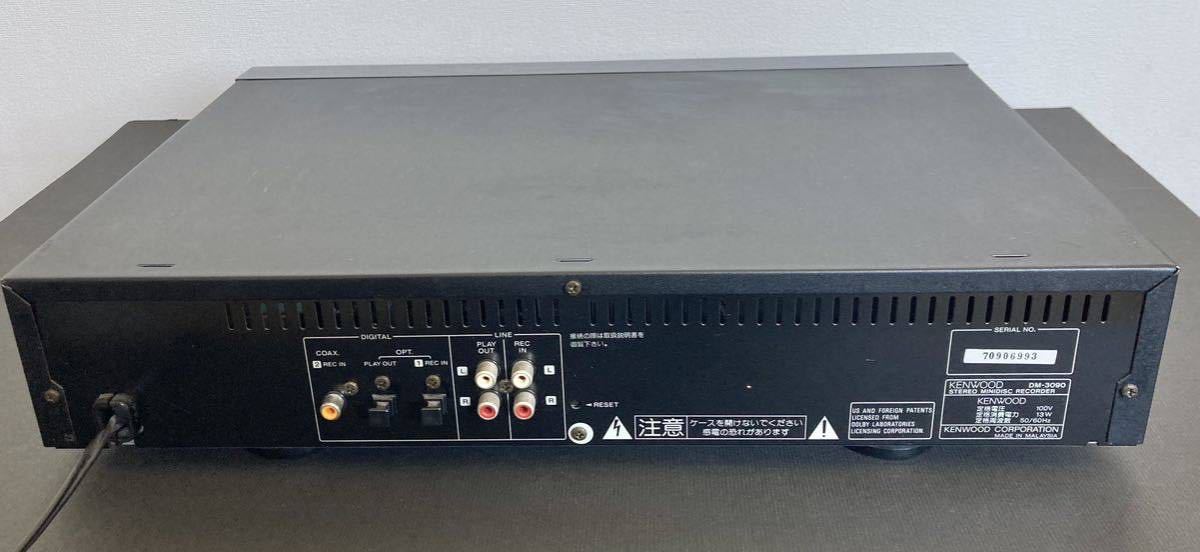

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control | Not recorded |
Features: This is the same machine as the Sharp MD-R2. Sharp ATRAC 5.0, 20bit D/A. Sampling rate converter. Sound synchro recording. Quick move, quick erase functions.
Specs: D/A: 1bit + D.R.I.V.E. 8fs oversampling. A/D: 3 stage sigma delta. Freq resp.: 8hz-20kHz, S/N > 100dB.
Remote: RC-M0301
Content adapted from: Minidisc.org page, Kenwood product announcement (Japanese, Archived)

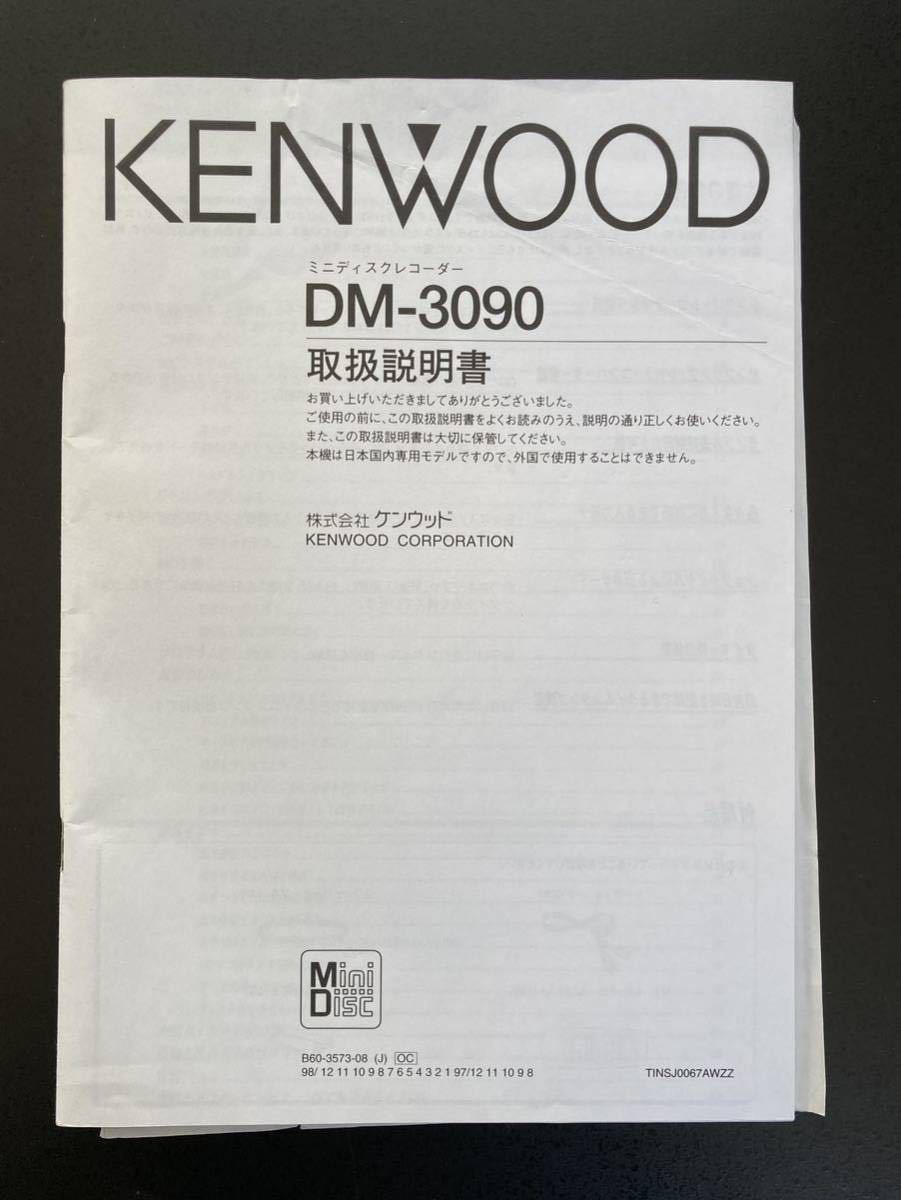

Manuals
Repair

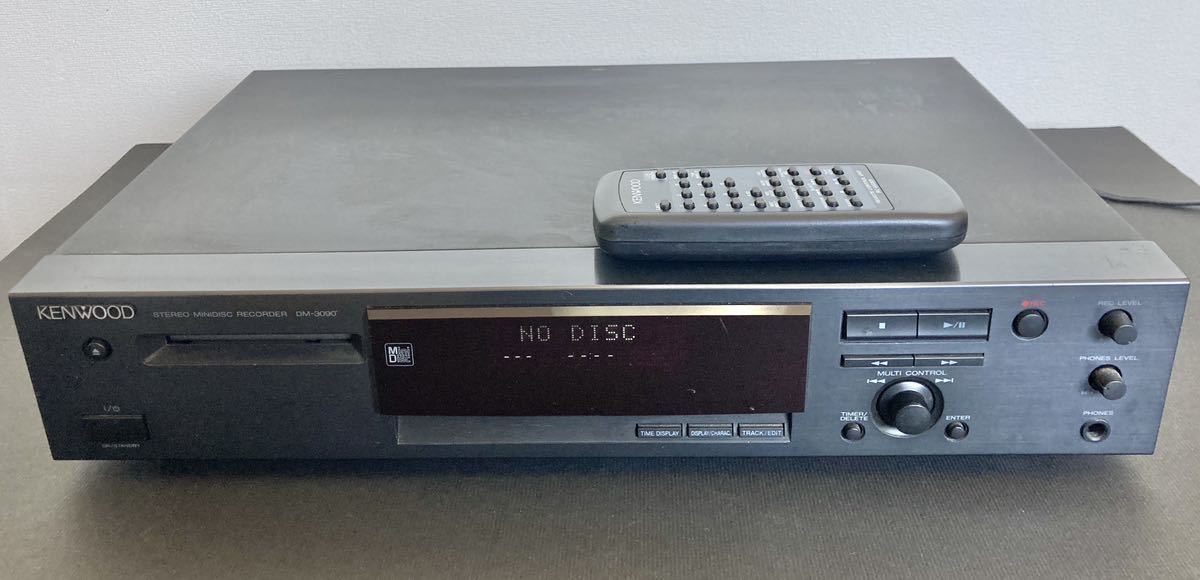

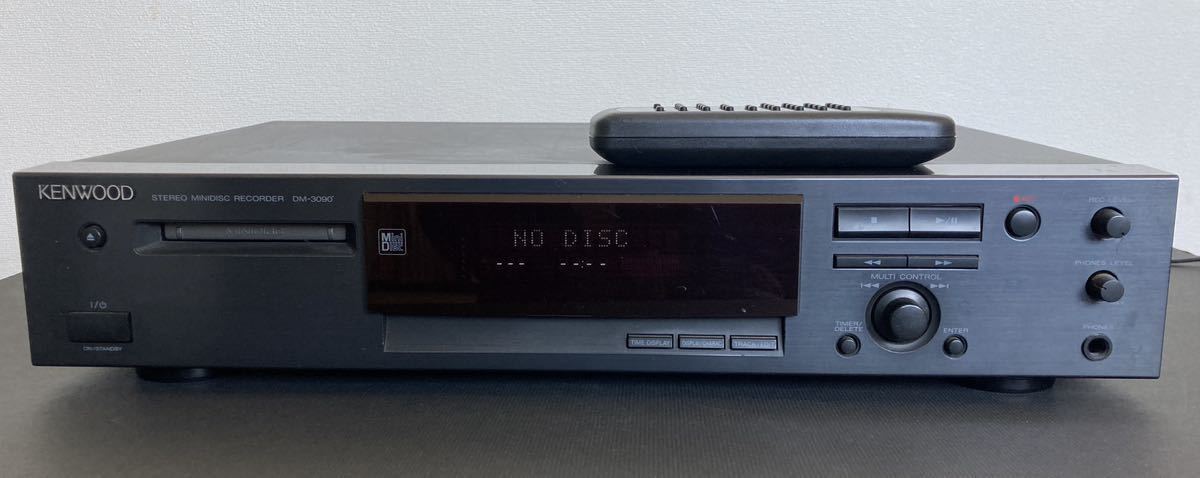

Photos
