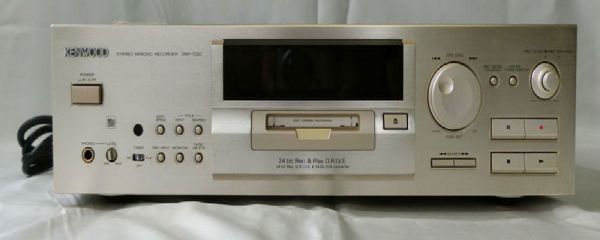

Kenwood DMF-7020
| Name | DMF-7020 |
|---|---|
| Manufacturer | Kenwood |
| Released | 1998/11 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 440 x 125 x 373 mm |
| Weight | 9.7Kg |
| ATRAC ver | 4.5 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥94 000 | |
| - | |

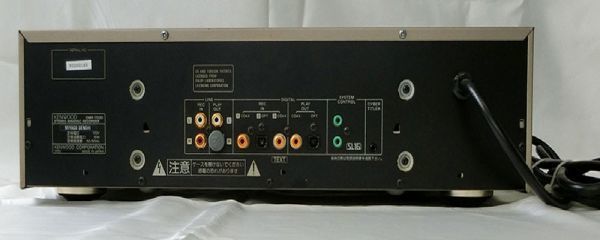

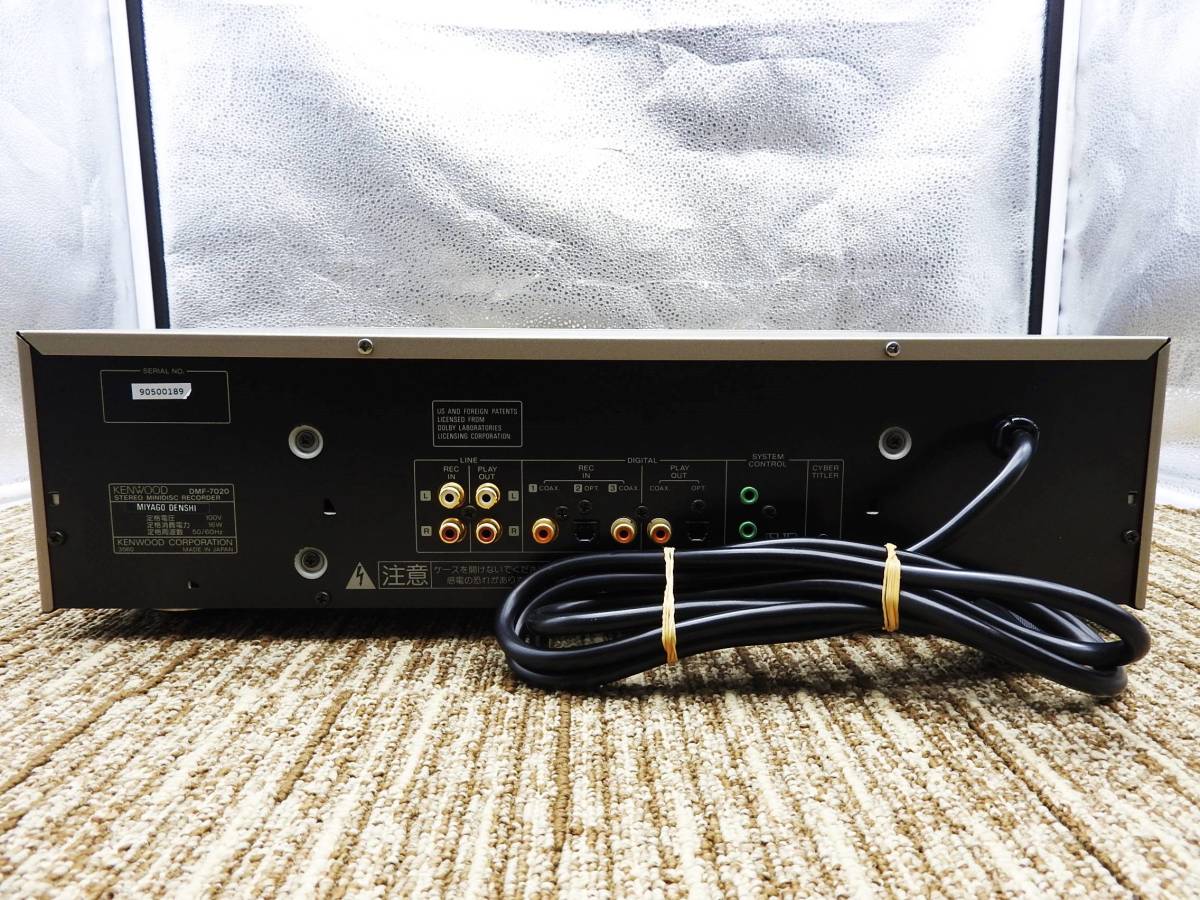

| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control | Not recorded |

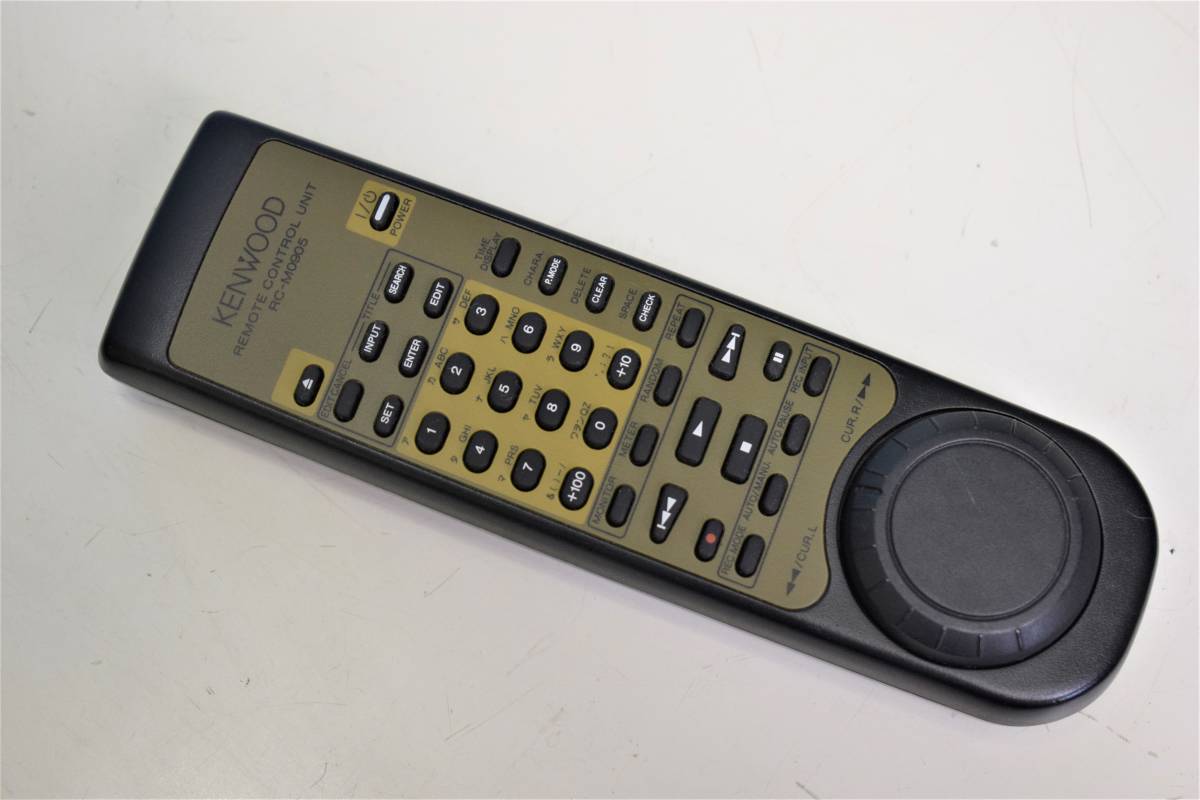

Features: ATRAC 4.5. 24bit precision recording and playback (24bit D.R.I.V.E) (20bit ADC, 24bit DAC). Digital REC volume control. CD-Text recording possible with Kenwood SL-16 CD player. "Quick-move" allows new track order to be set in one step. Separately available "Cyber Titler" CT-G90 (¥32,000) for title input and label printing. Track divide rehearsal mode. Auto-pause mode (play one track and pause). "Preset title" function for reusing same title on multiple tracks. Mono recording. Remote with "direct title input".
Specs: SNR: > 110dB, Dynamic Range: 95dB, Freq. Resp. 8-20,000Hz
Content adapted from: Kenwood Press Release Kenwood Press Release (MiniDisc Wiki mirror) Minidisc.org Page, Kenwood Product Release Page
Manuals
Repair

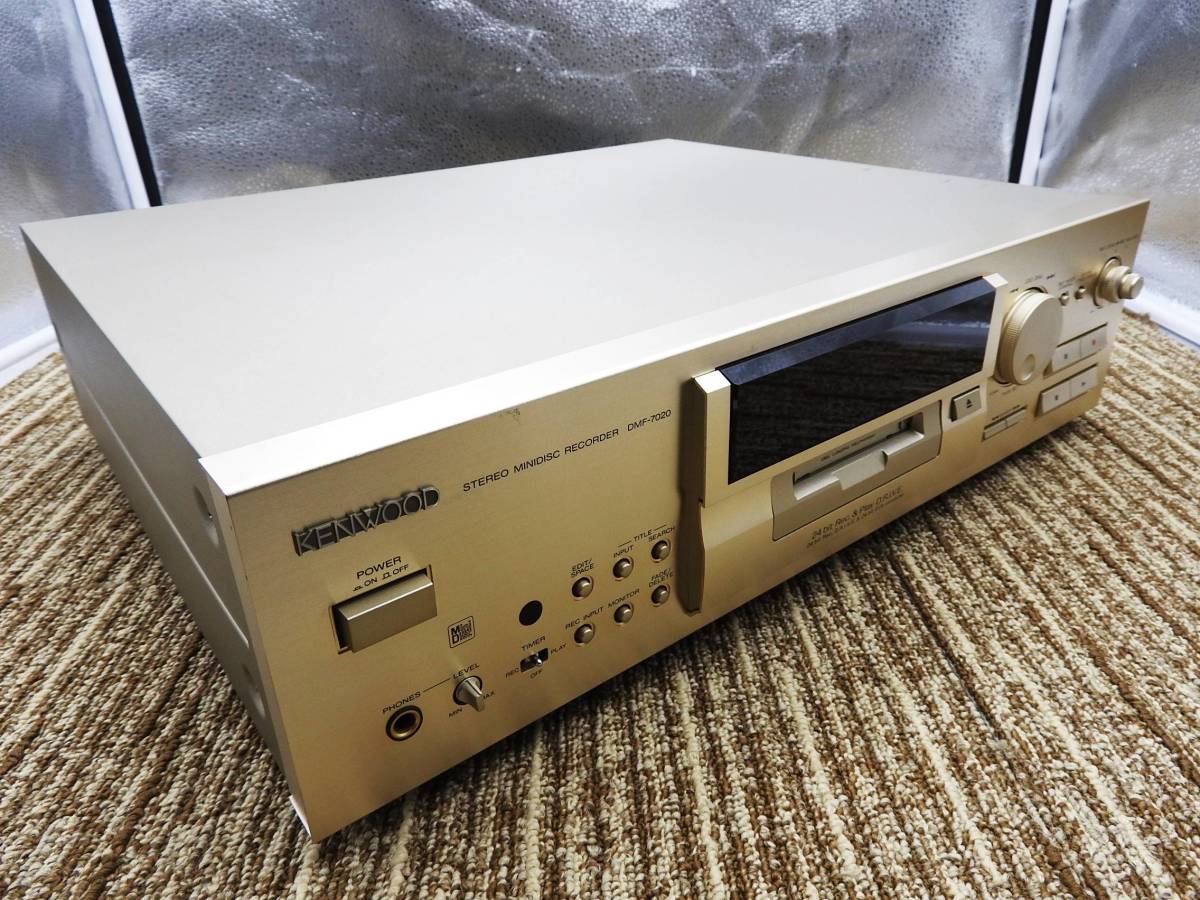

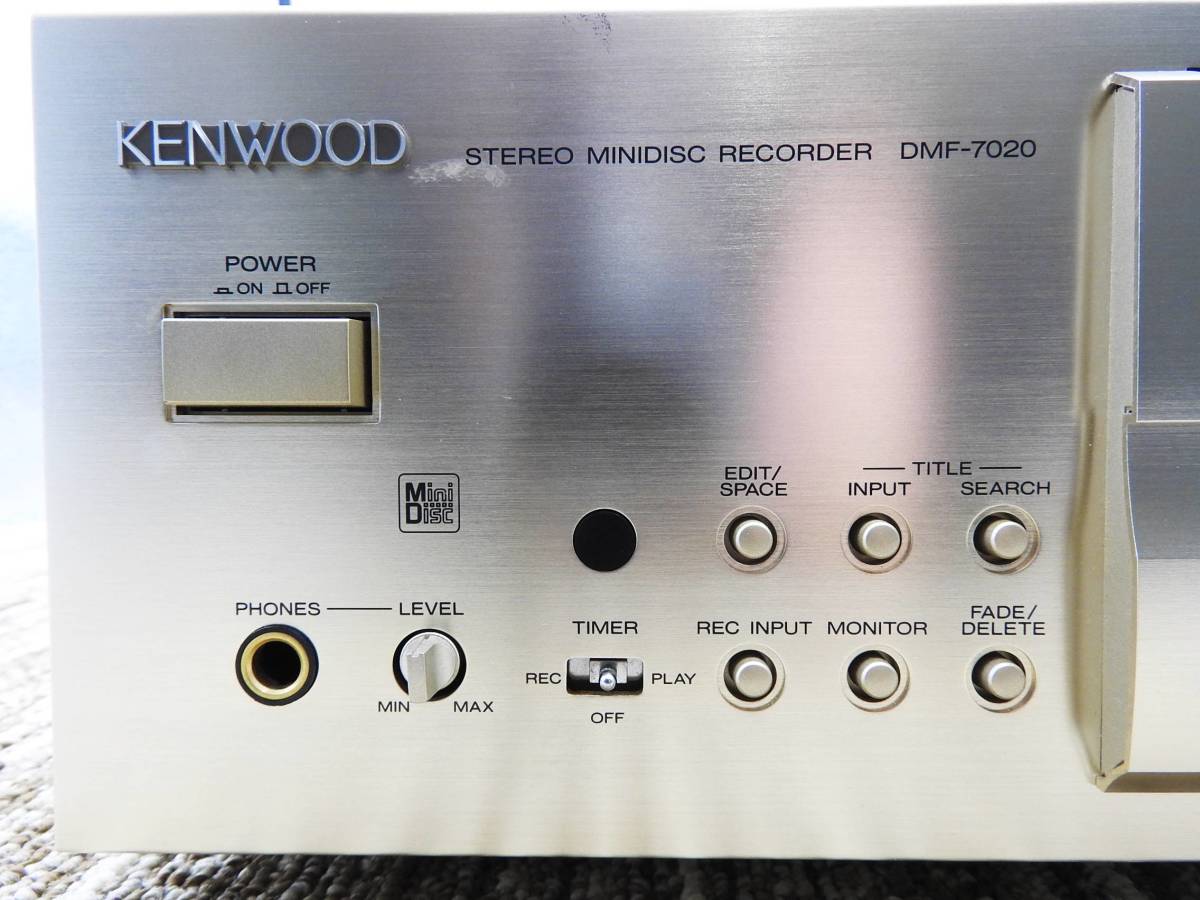

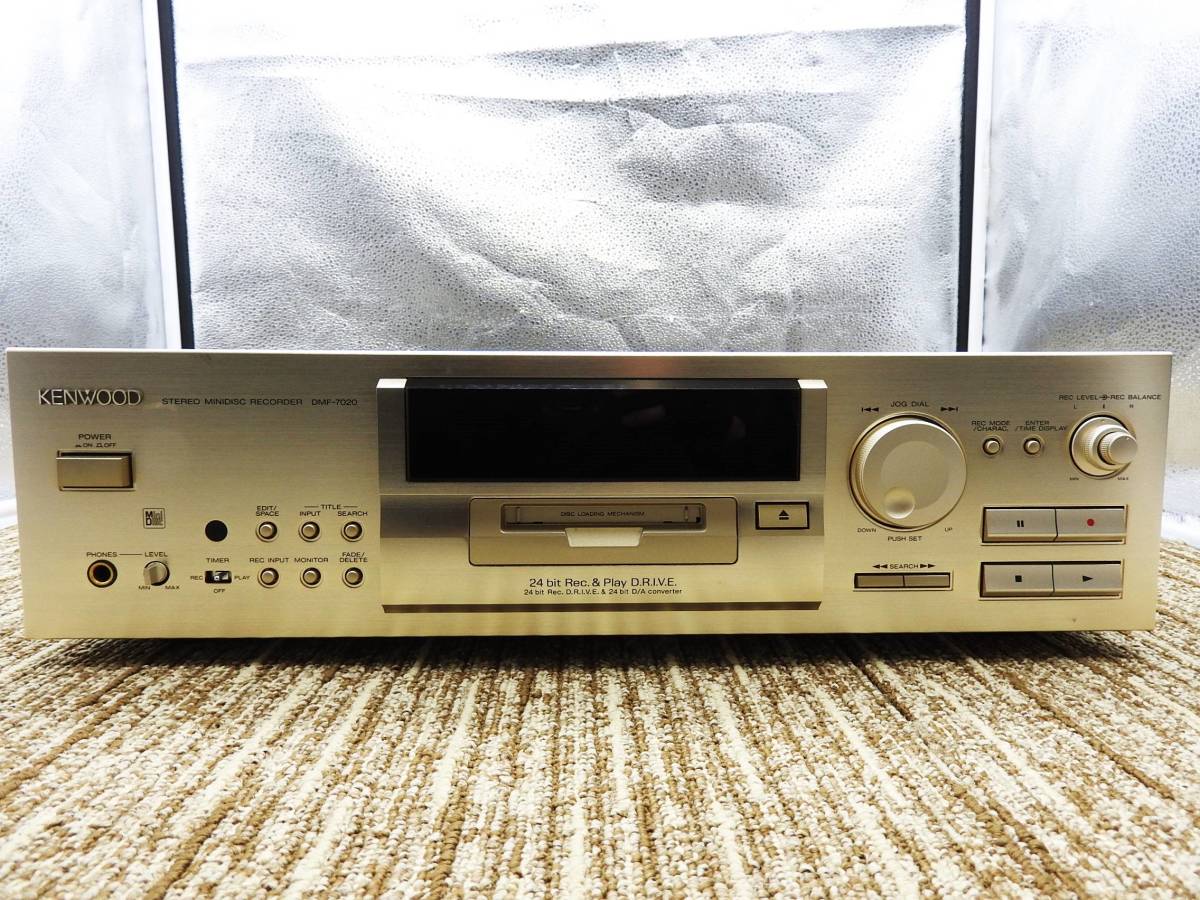

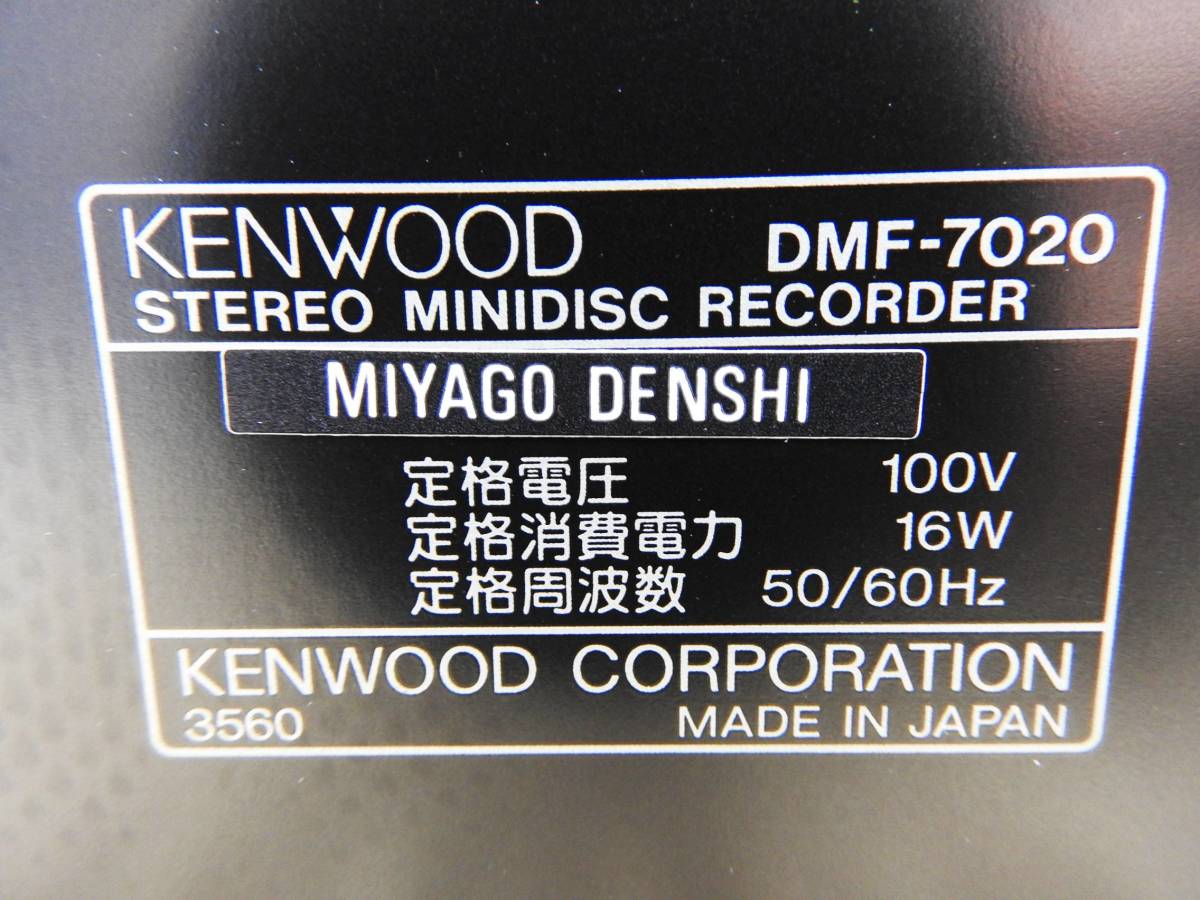

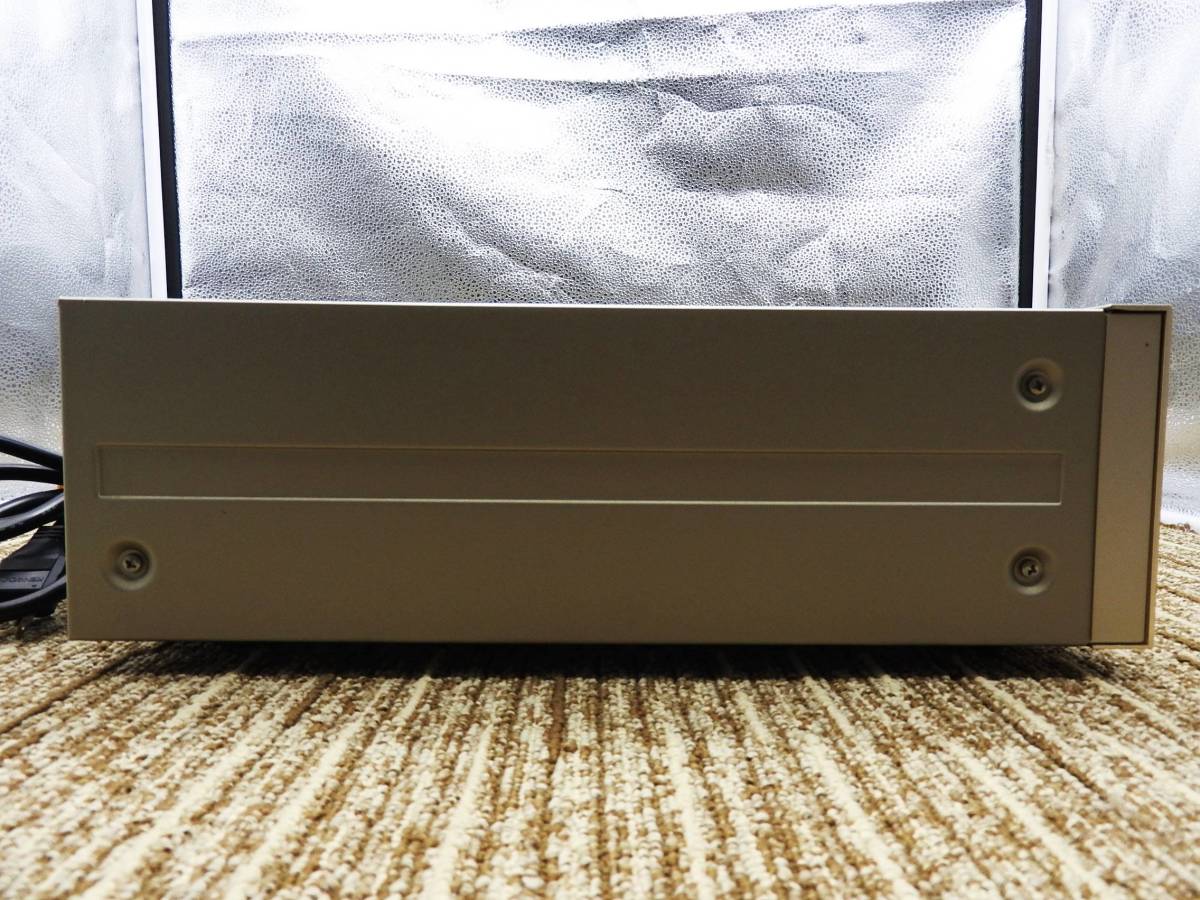

Photos
