| Name | DMC-E7R |
|---|---|
| Manufacturer | Kenwood |
| Released | 1995/09 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 84 x 26.8 x 106mm |
| Weight | 265g (w/ batt) |
| ATRAC ver | Sharp 2 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Other |
| Voltage | 4.5 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm line out (optical multi), 3.5mm headphone |
| Control | Not recorded |
See also Denon DMP-R30, Sharp MD-M25

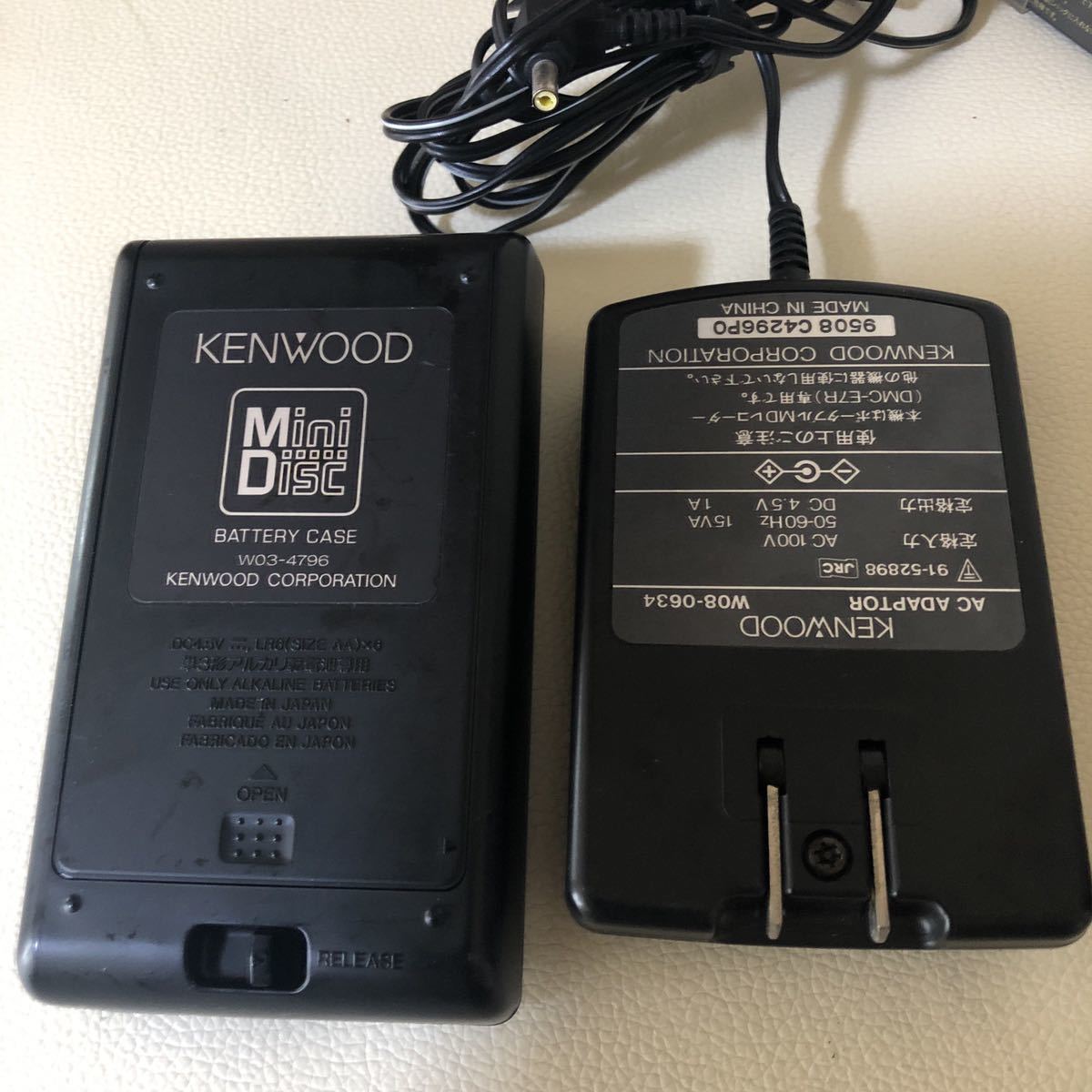

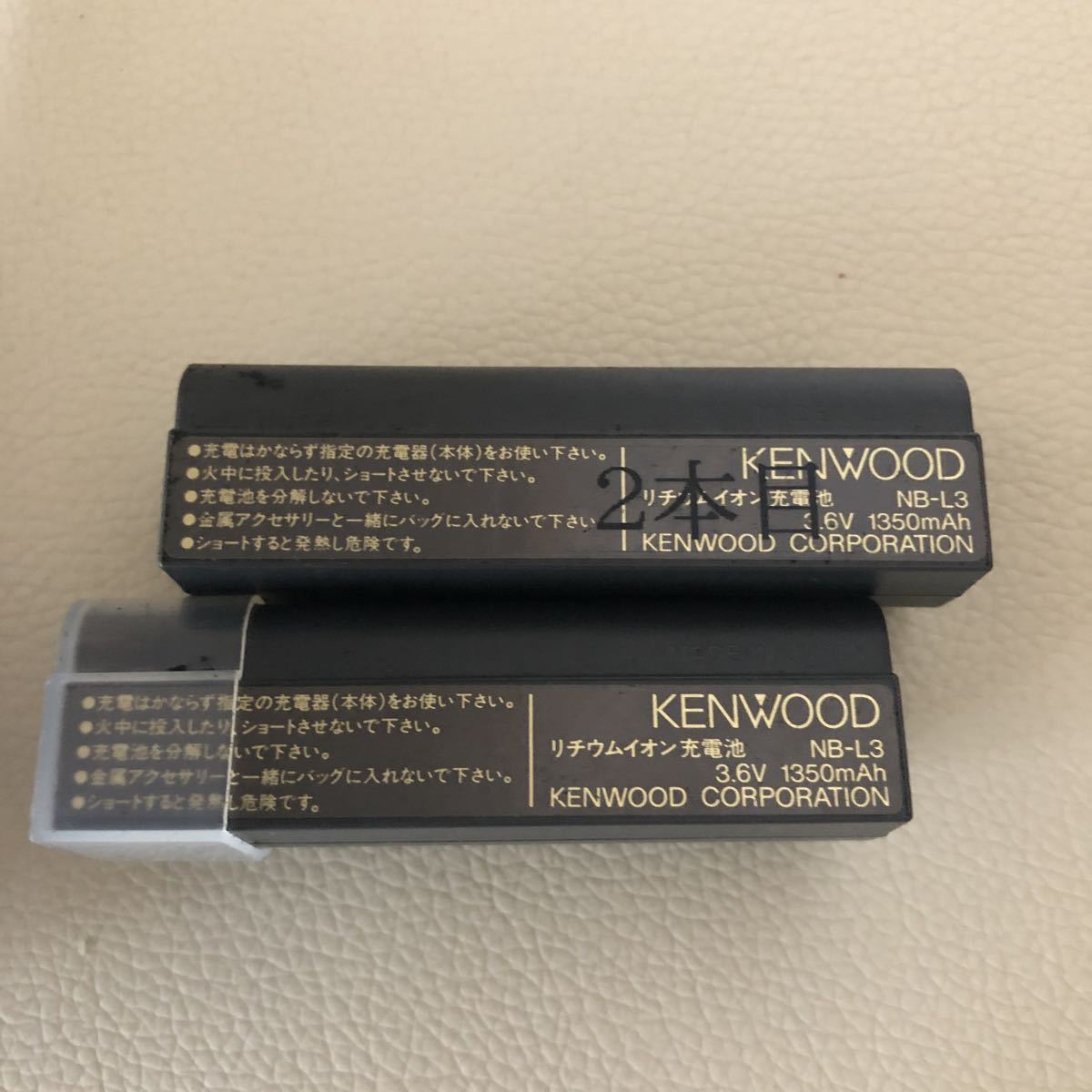

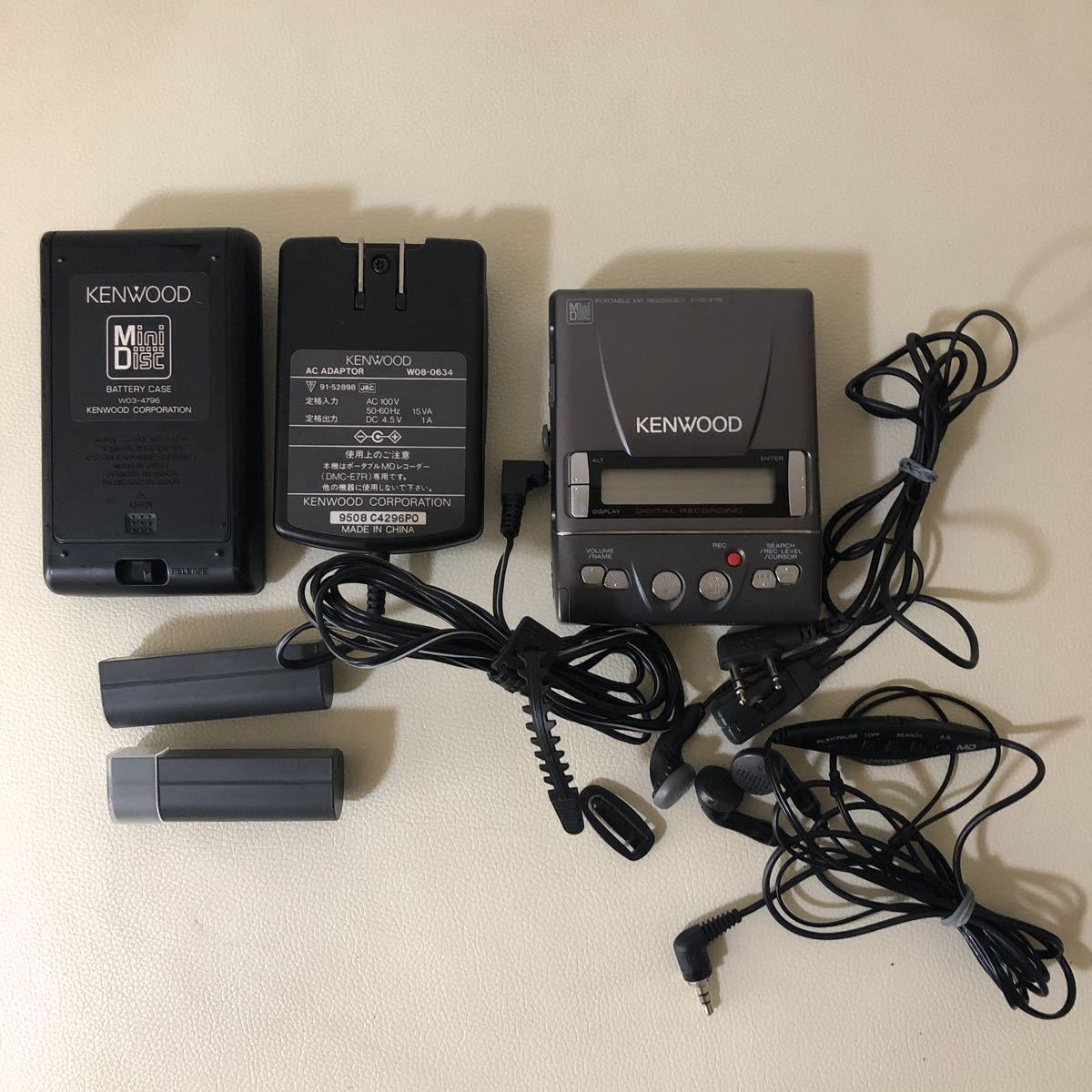

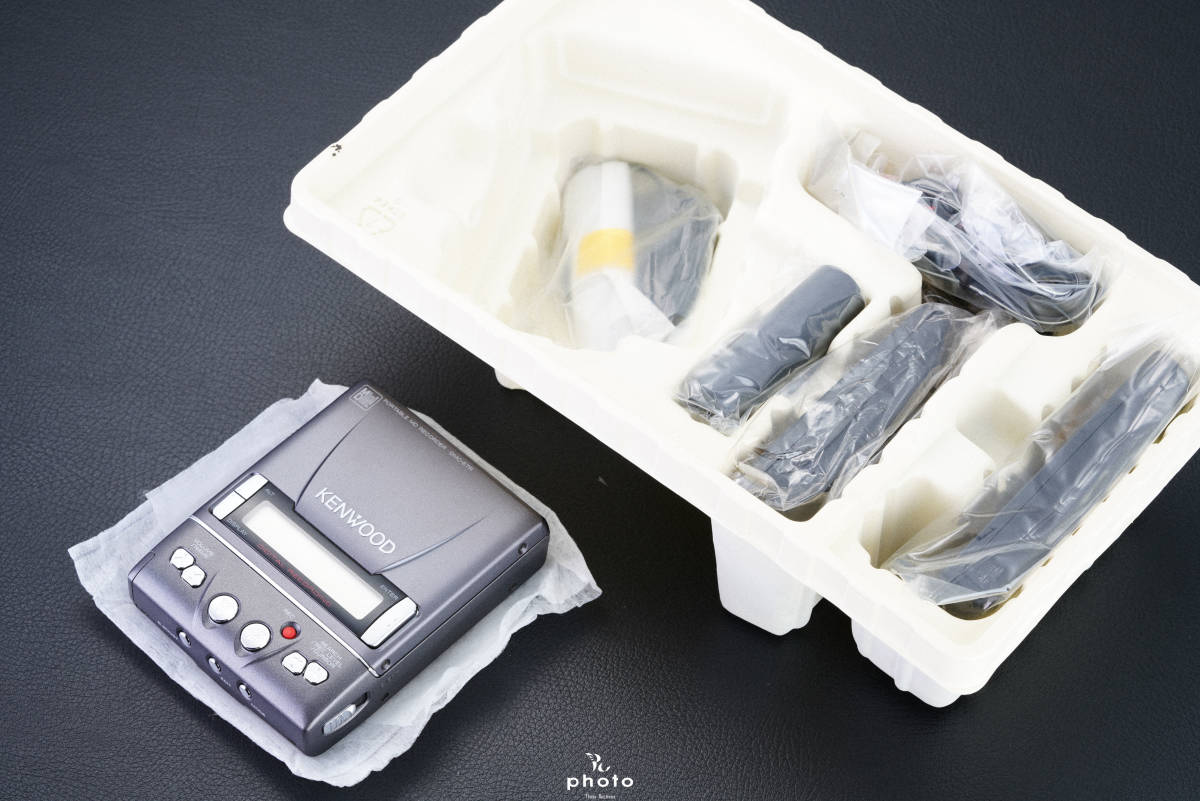

Sharp ATRAC 2. Track/disc titling. Track delete move, join, divide. Sampling rate converter, st/mono recording. 1 bit AD and DA. Defeatable beep (hold bass boost button). Nearly identical in features to the Sharp MD-M20 (the MD-M20 kit included the AD-M20BC 6AA cell case as standard). Accessories: AD-M20BC 6AA cell case, AD-M20CK car mount kit (¥13,000, includes base mounting unit, car power cord, cassette adapter, 2 velcro strips. Mounts on center console). Battery: AD-M20BT Lithium Ion rechargeable (¥5000).
Specs: Headphone jack supplies 10mW+10mW into 16ohm load, or 275mV line level (@-12dB) into 50kohm load.
Content adapted from: Minidisc.org page
Manuals
Repair

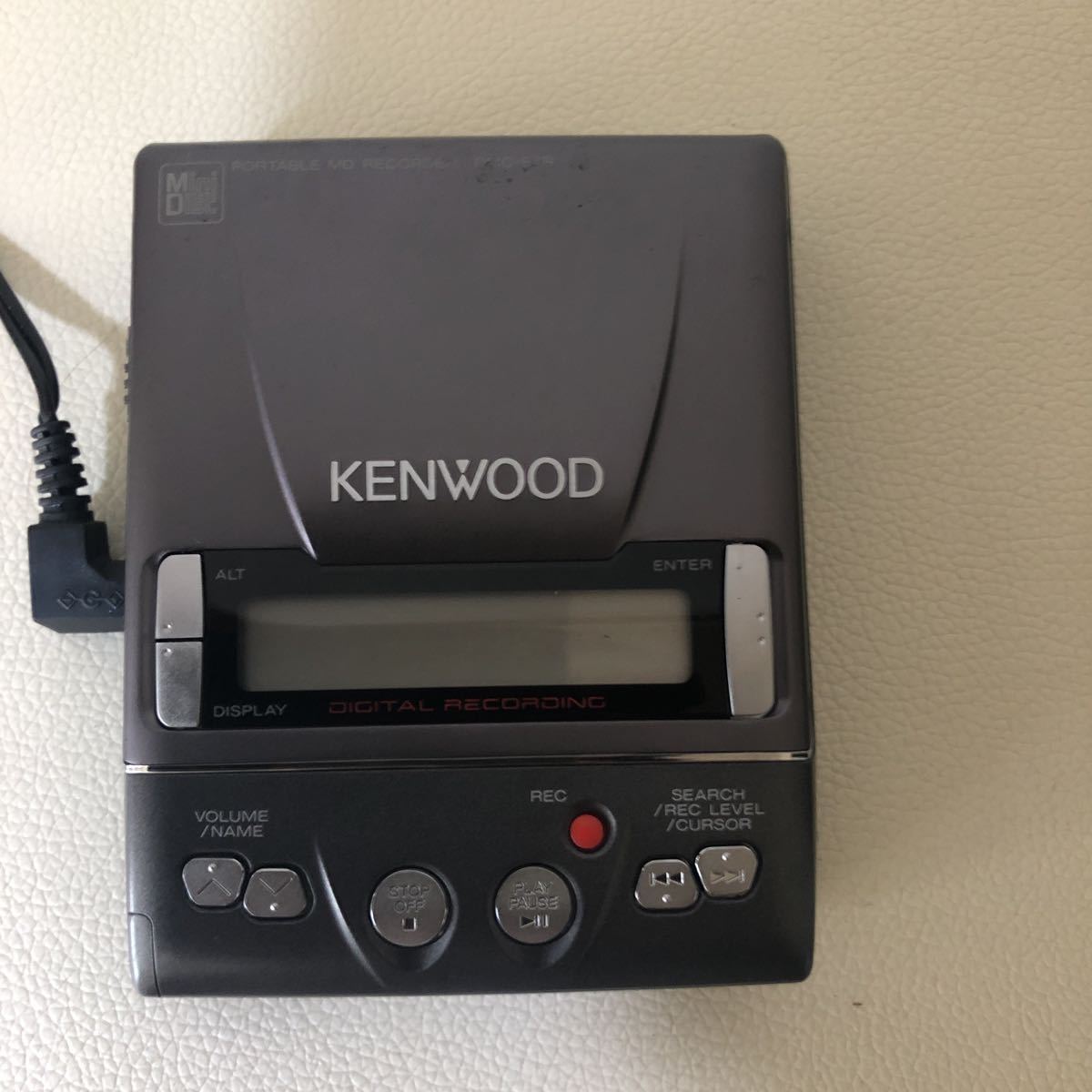

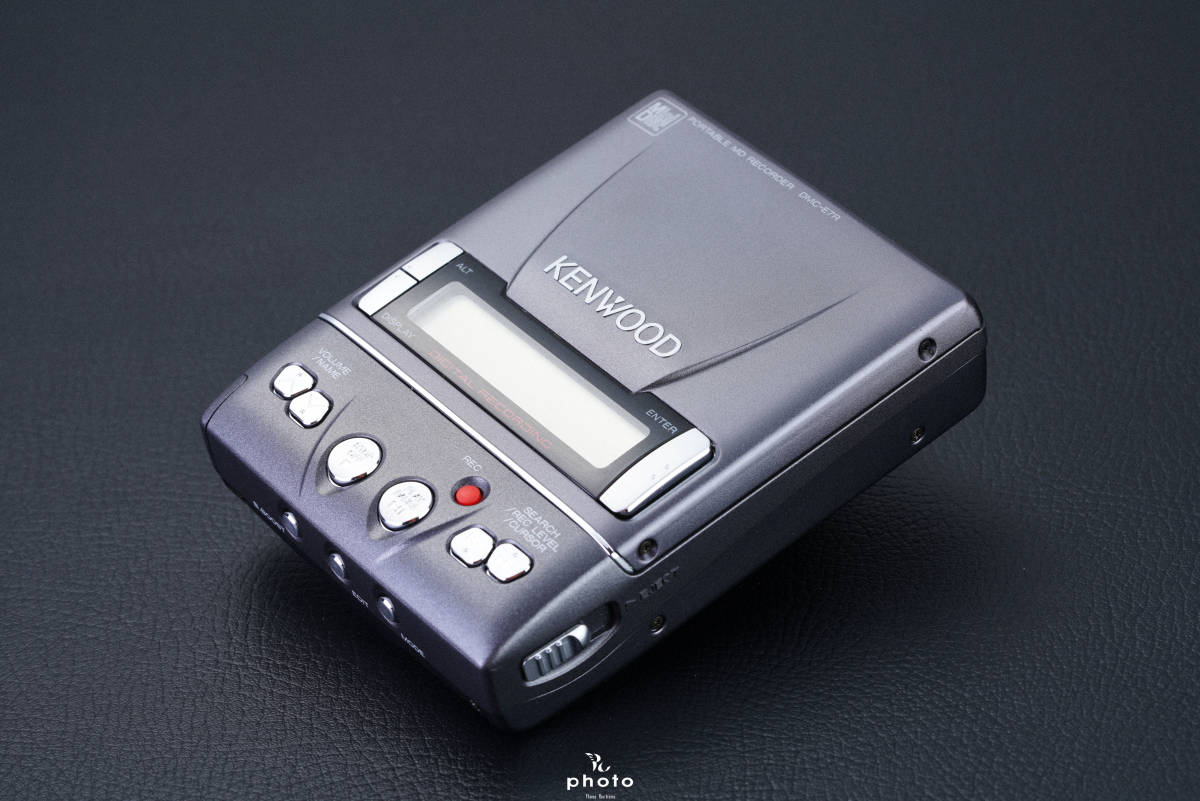

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Manual | |
|---|---|
| Region | Japan |
