| Name | DMC-L7R |
|---|---|
| Manufacturer | Kenwood |
| Released | 1999/09 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 79.4x18.15x81.8mm |
| Weight | 132g (body) 160g (w/ batt) |
| ATRAC ver | Sharp 6 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 3.6, 5 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥46 000 | |
| - | |
| Inputs | 3.5mm line in (optical multi) |
| Outputs | 3.5mm headphone |
| Control | Not recorded |
See also: Sharp MD-MT831 / MD-MT832
40 second shock memory, Sharp ATRAC 6, sampling rate converter, mono 2X playback mode. Mic, line, digital synchro start. 20 bit ADC and DAC. Digital X-Bass boost. Play modes: random, random repeat, 1 repeat, all repeat. Hand strap.
Specs: Motor speed: 400-1350 rpm, headphone amp: 10mW + 10mW * Headphone volume at 0 during recording and 15 during playback.
Content adapted from: Minidisc.org page and Kenwood Product Release Page
Manuals
Repair

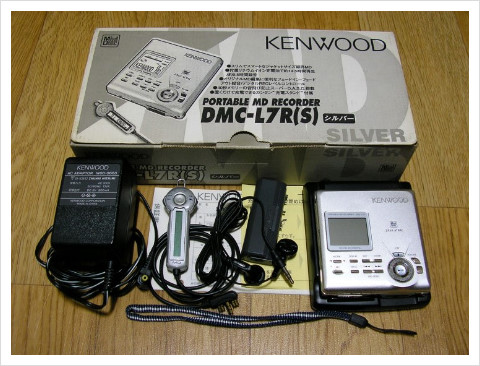

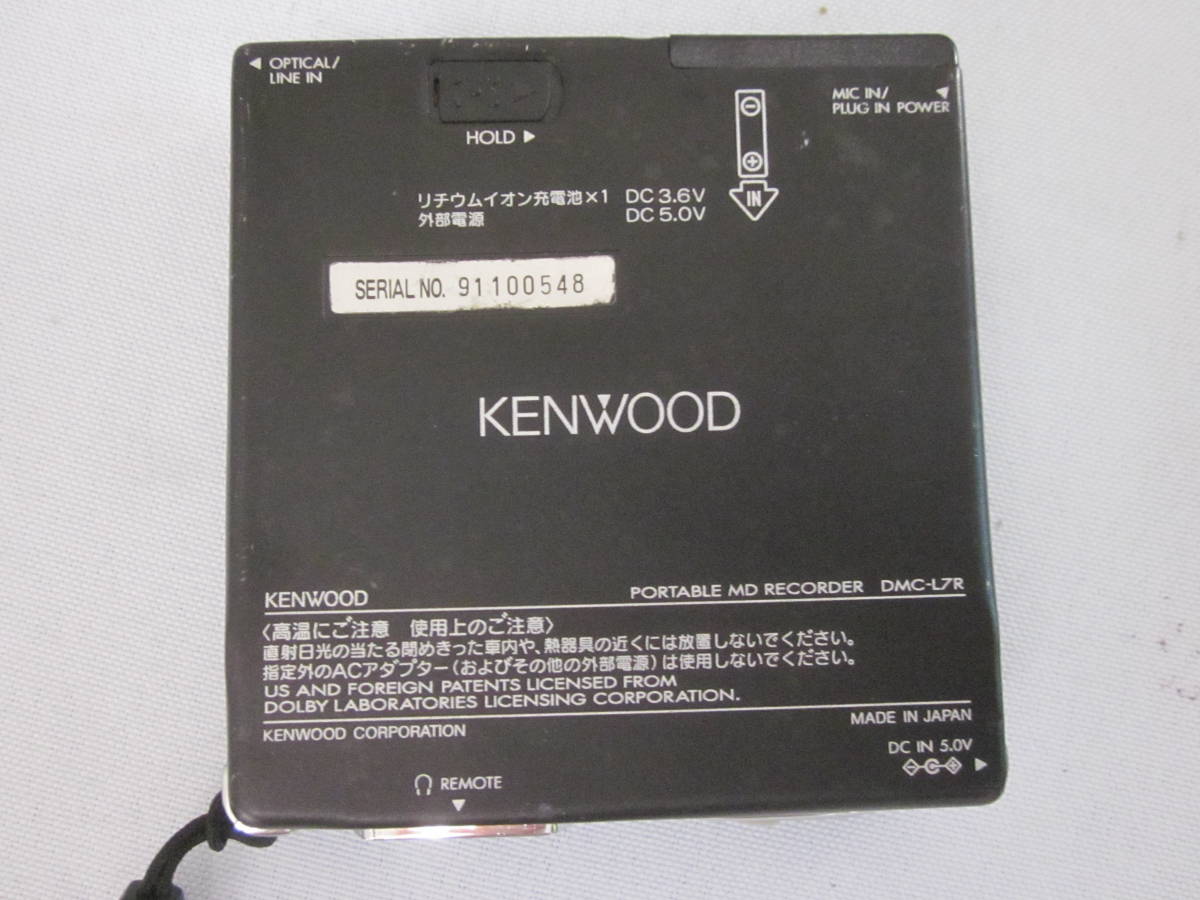

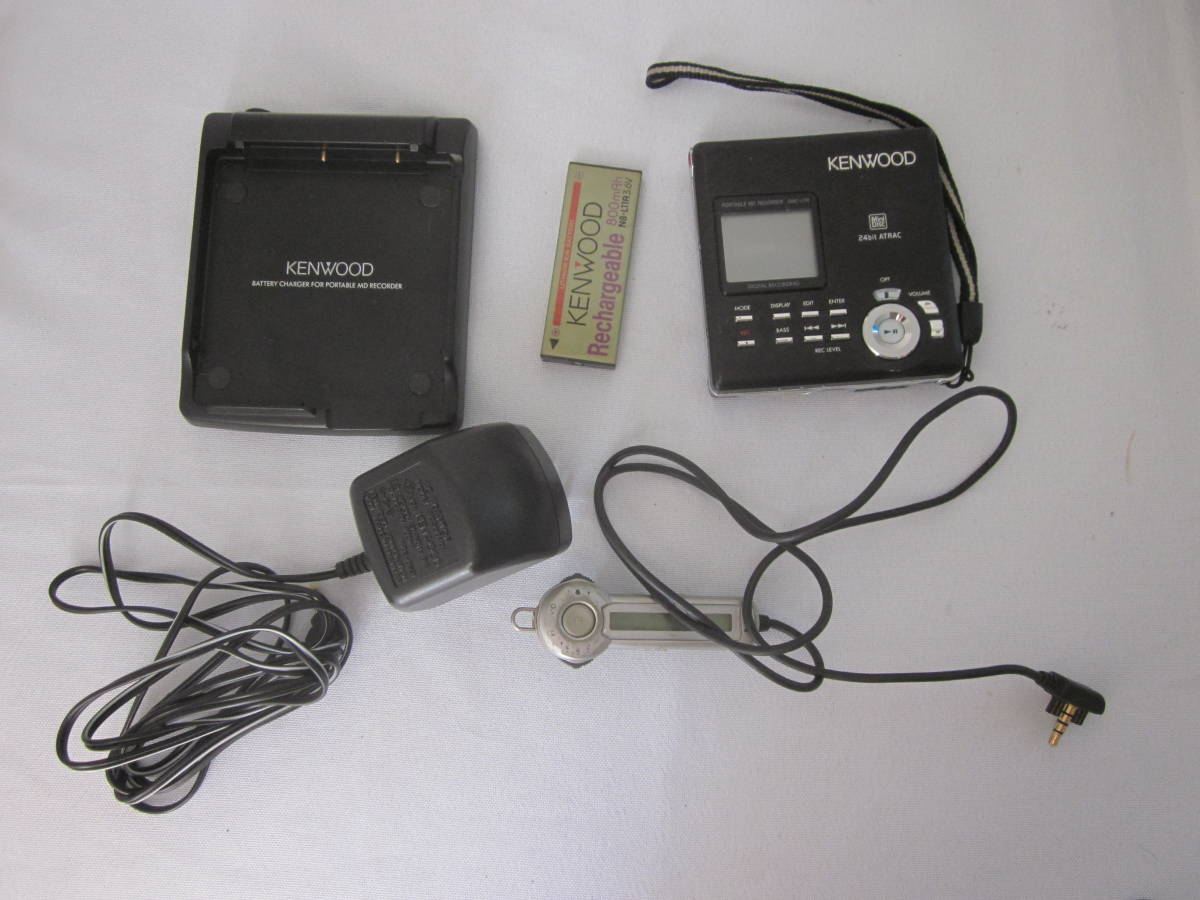

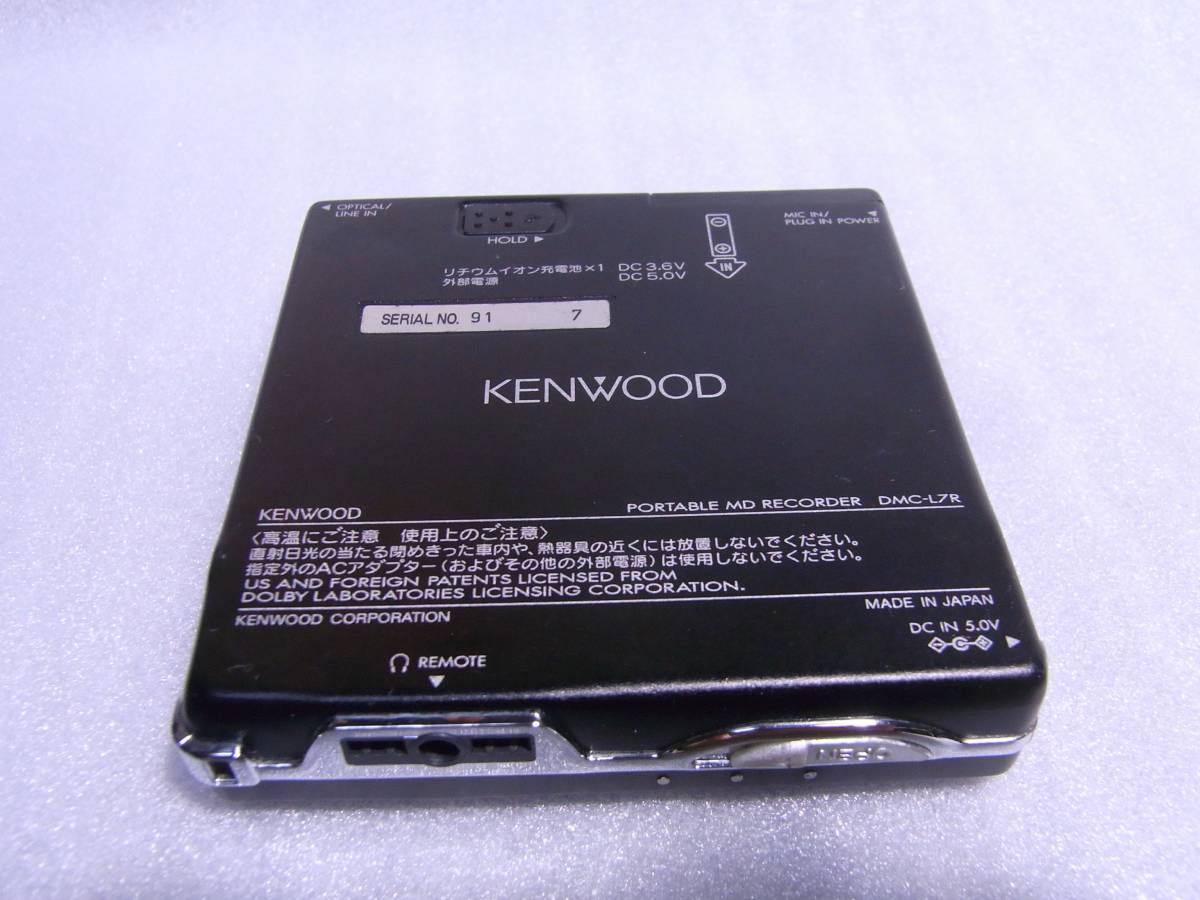

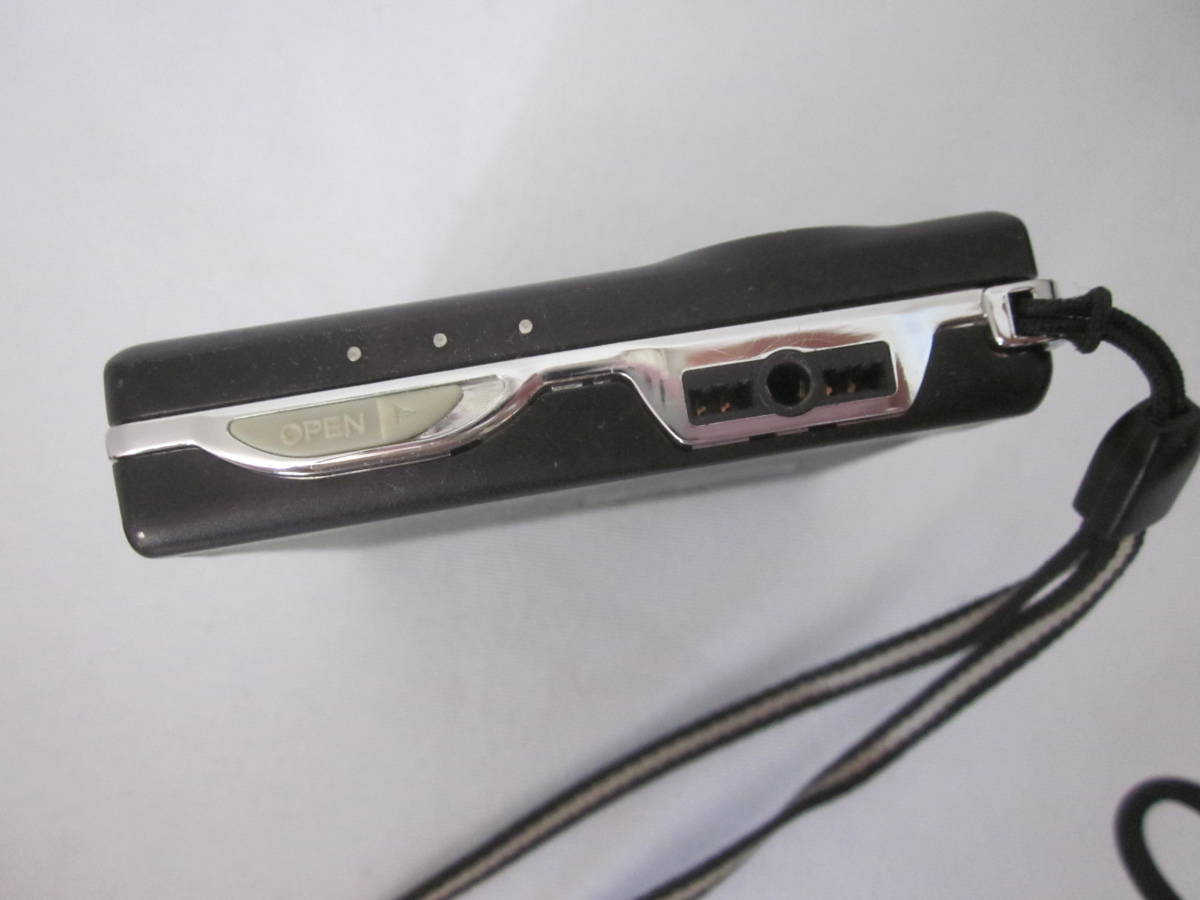

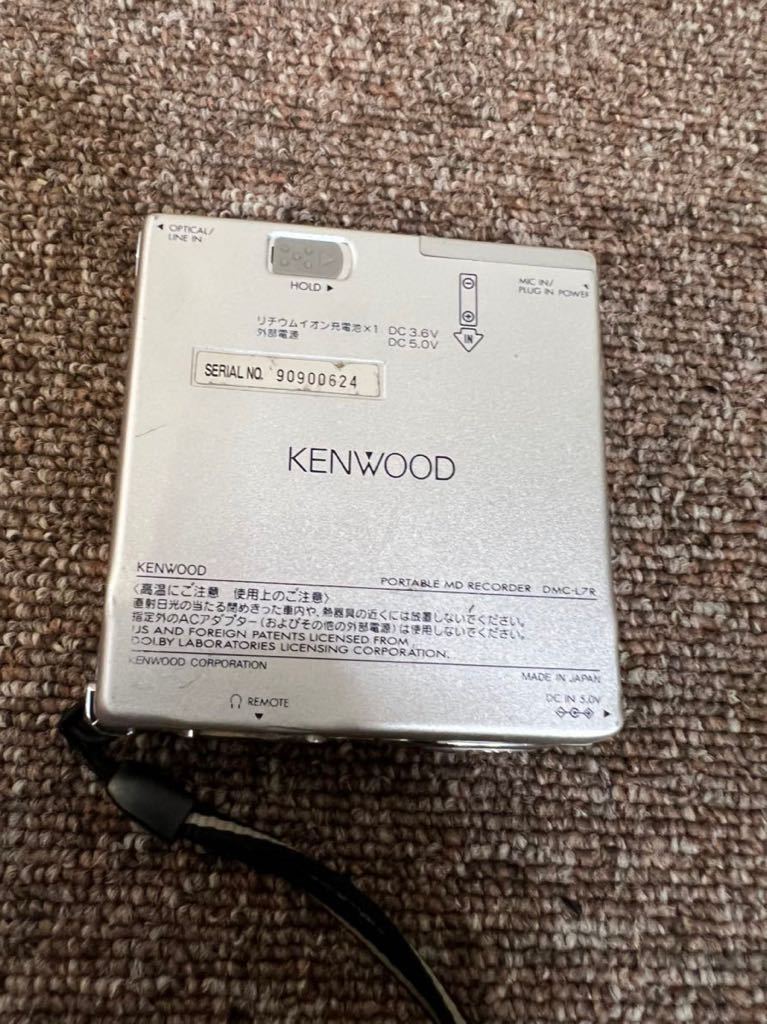

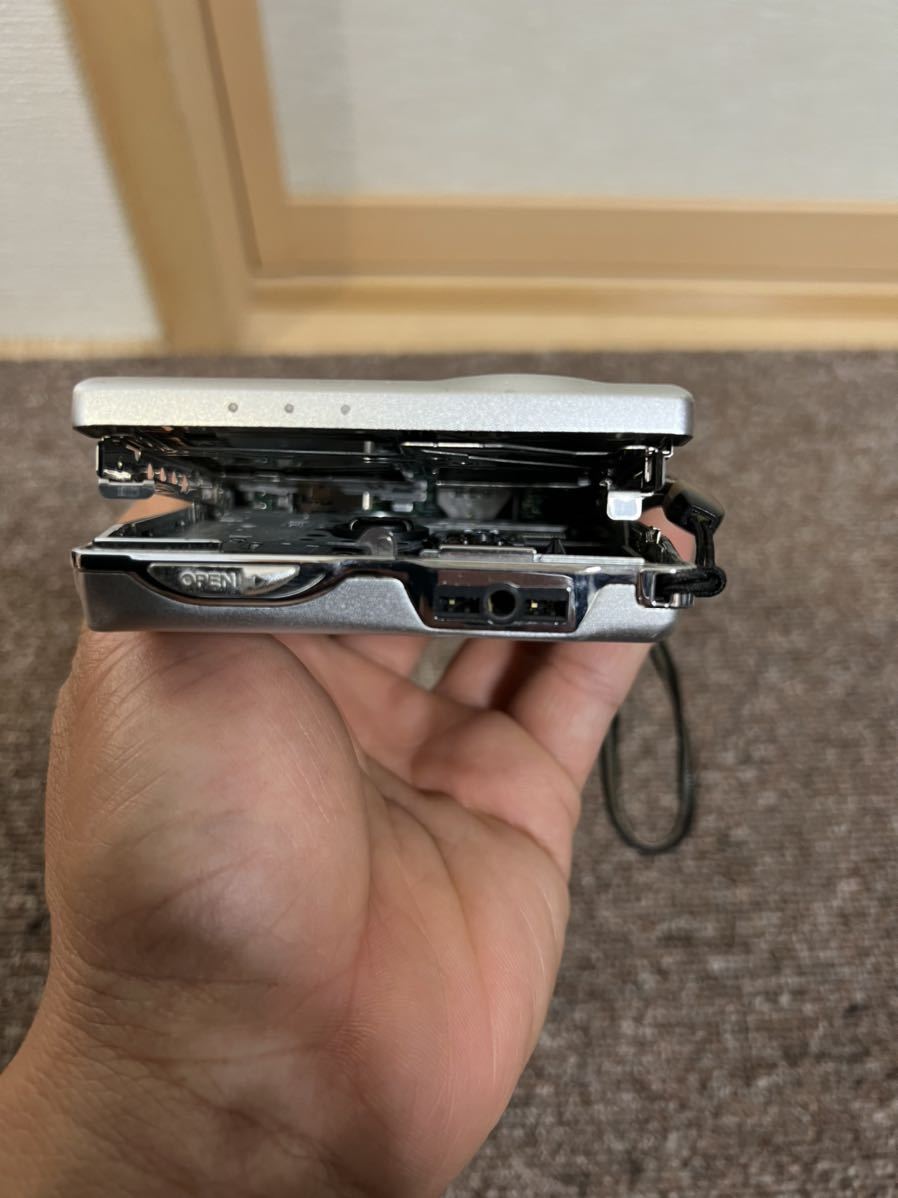

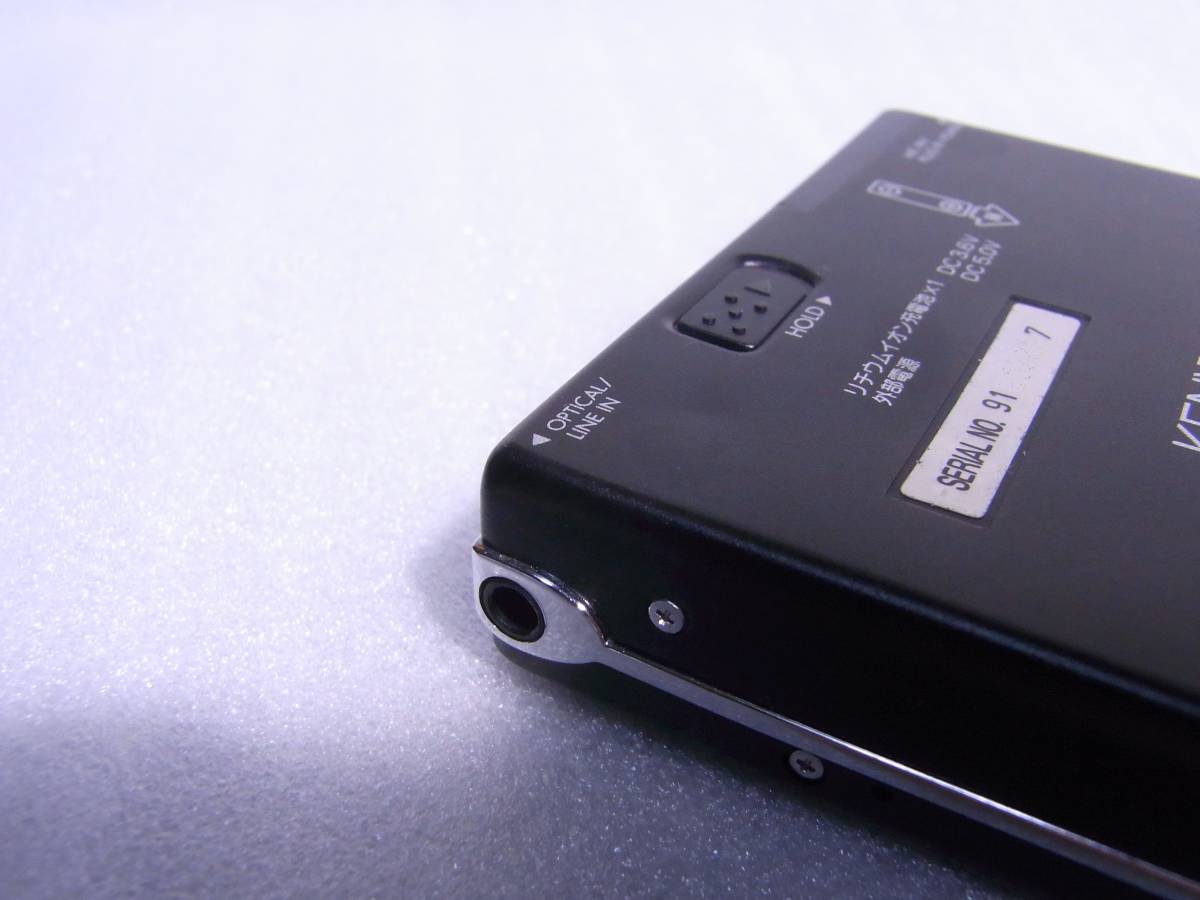

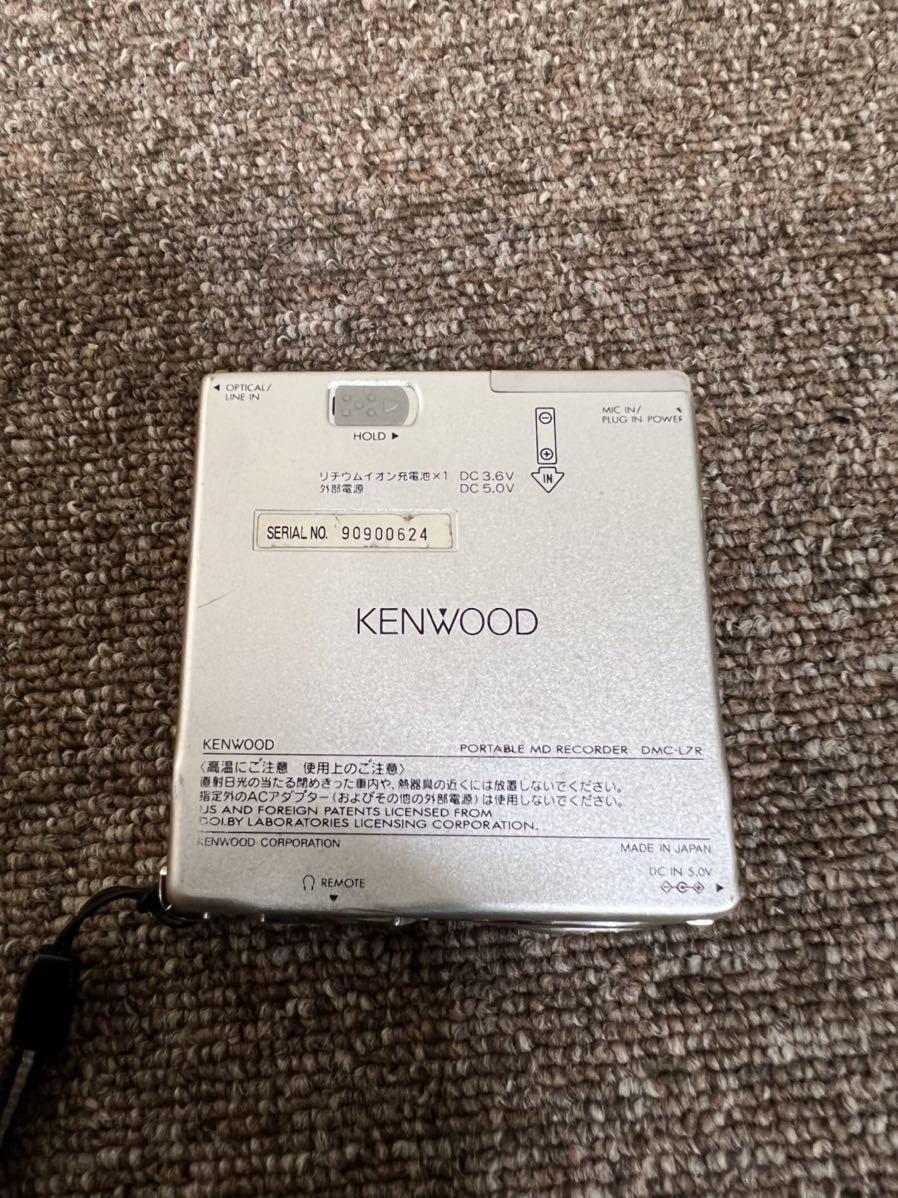

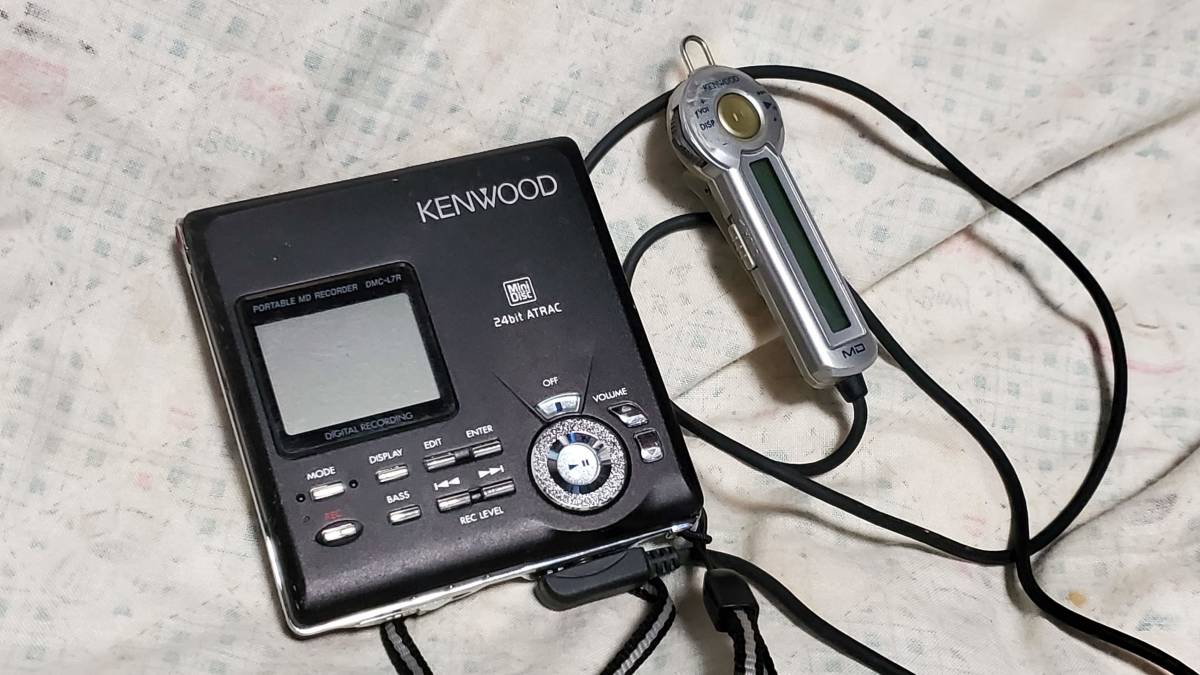

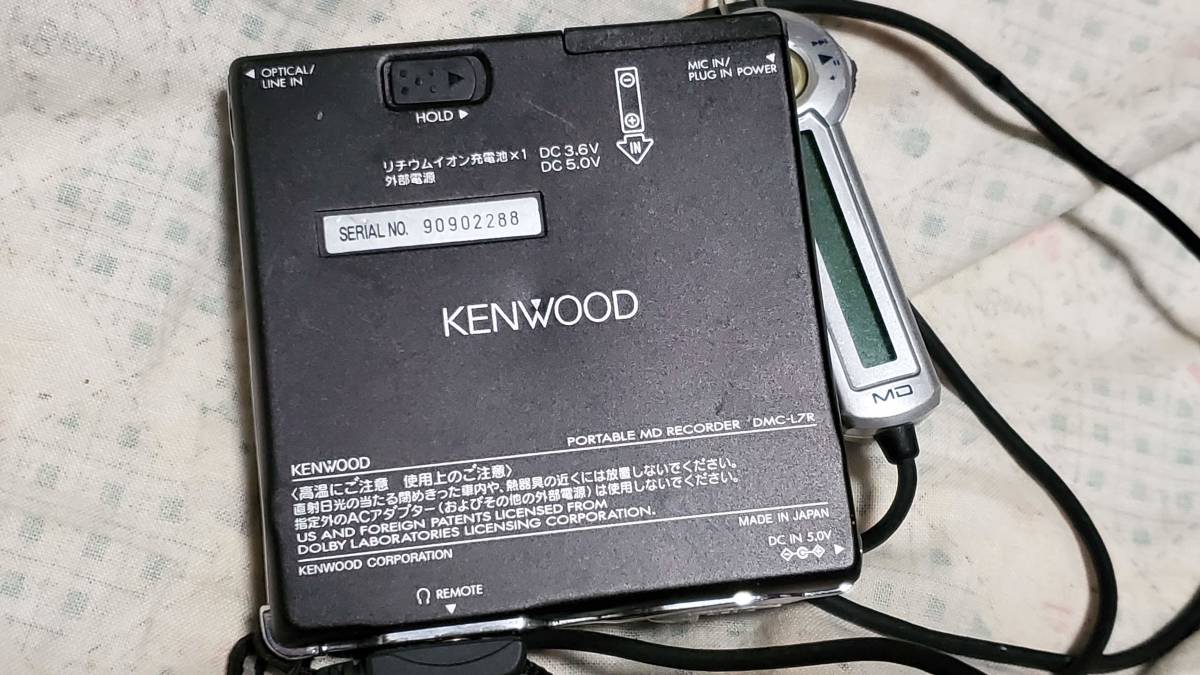

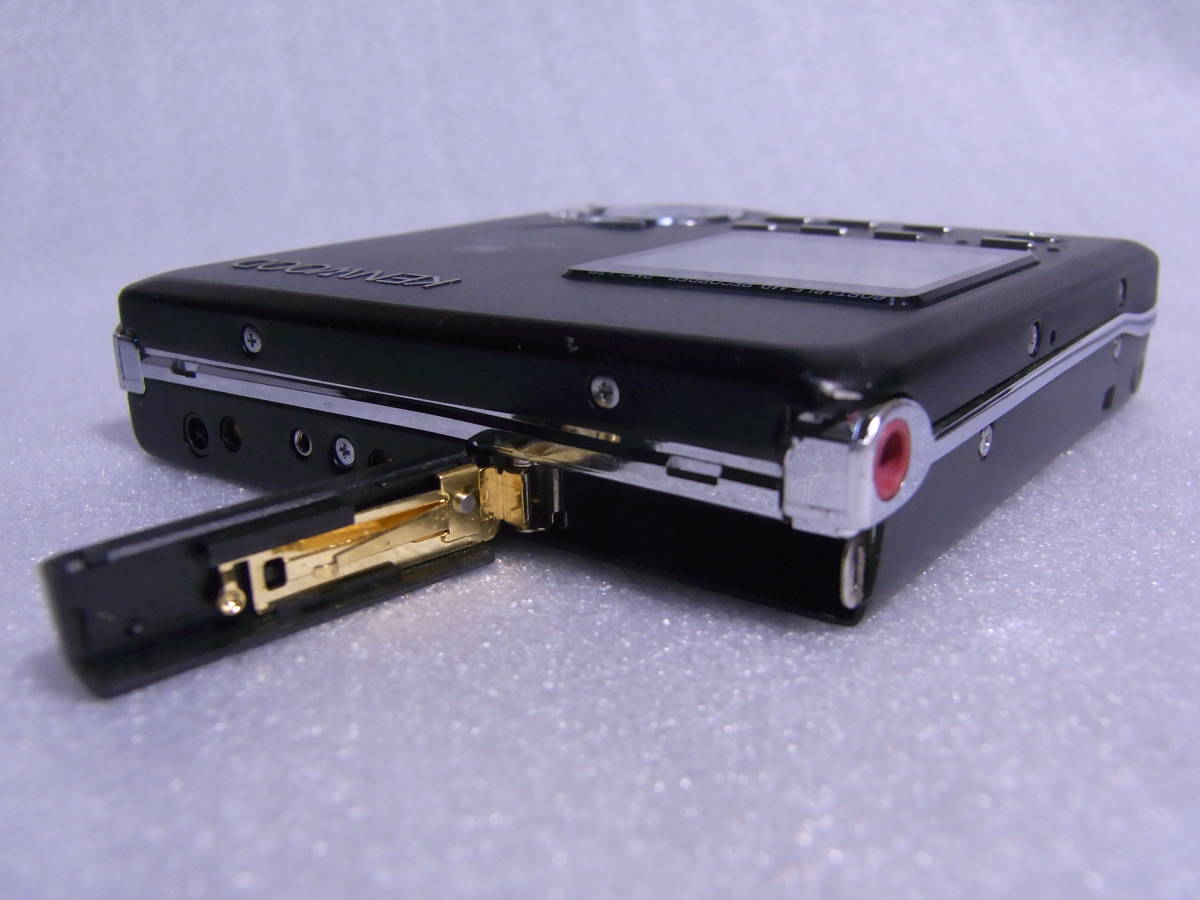

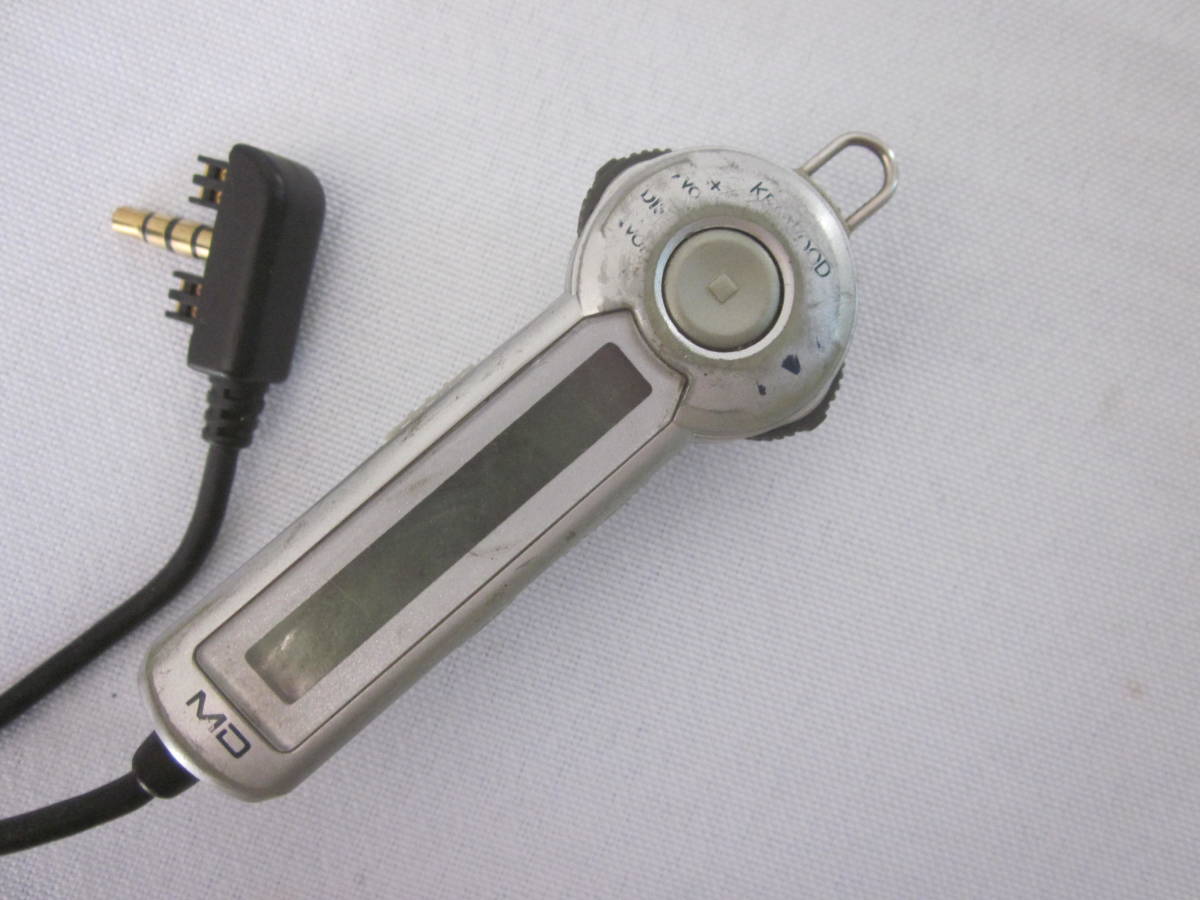

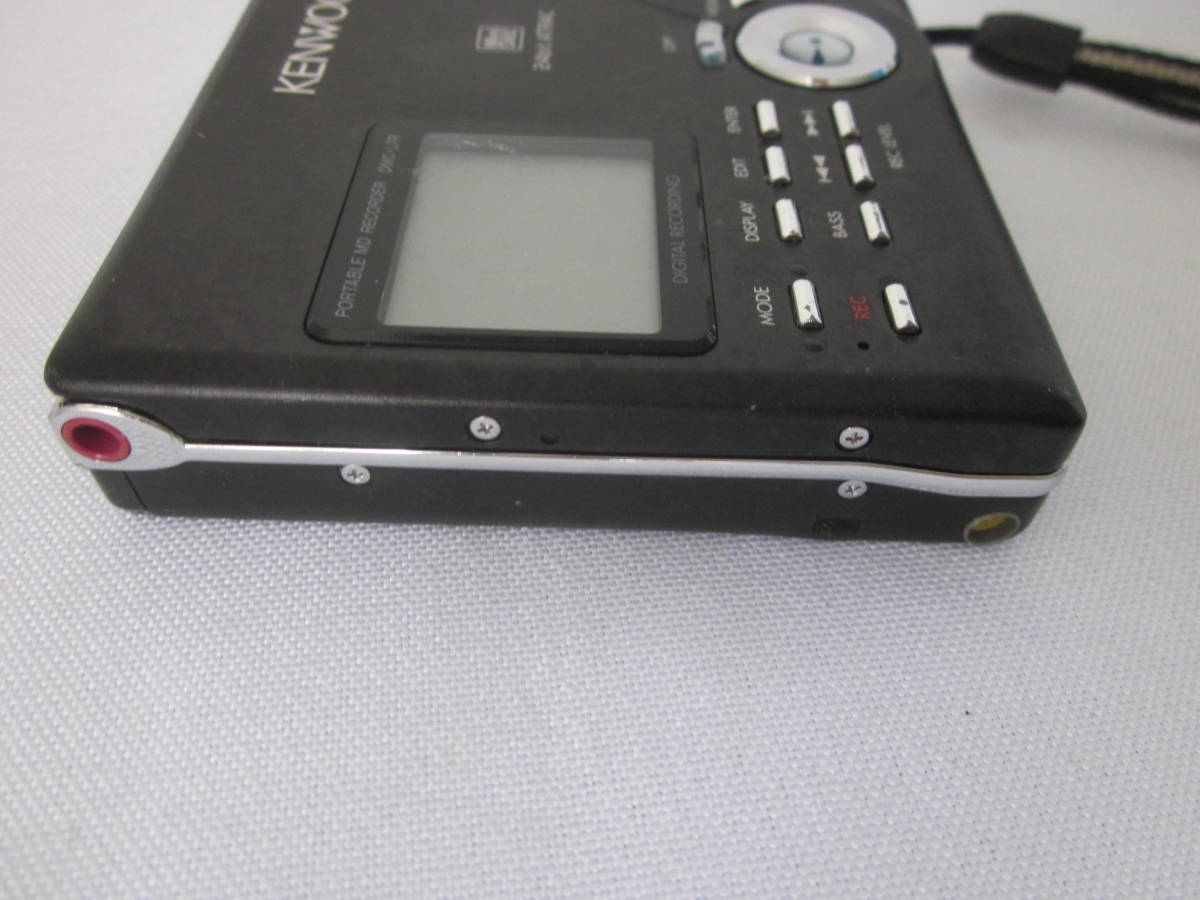

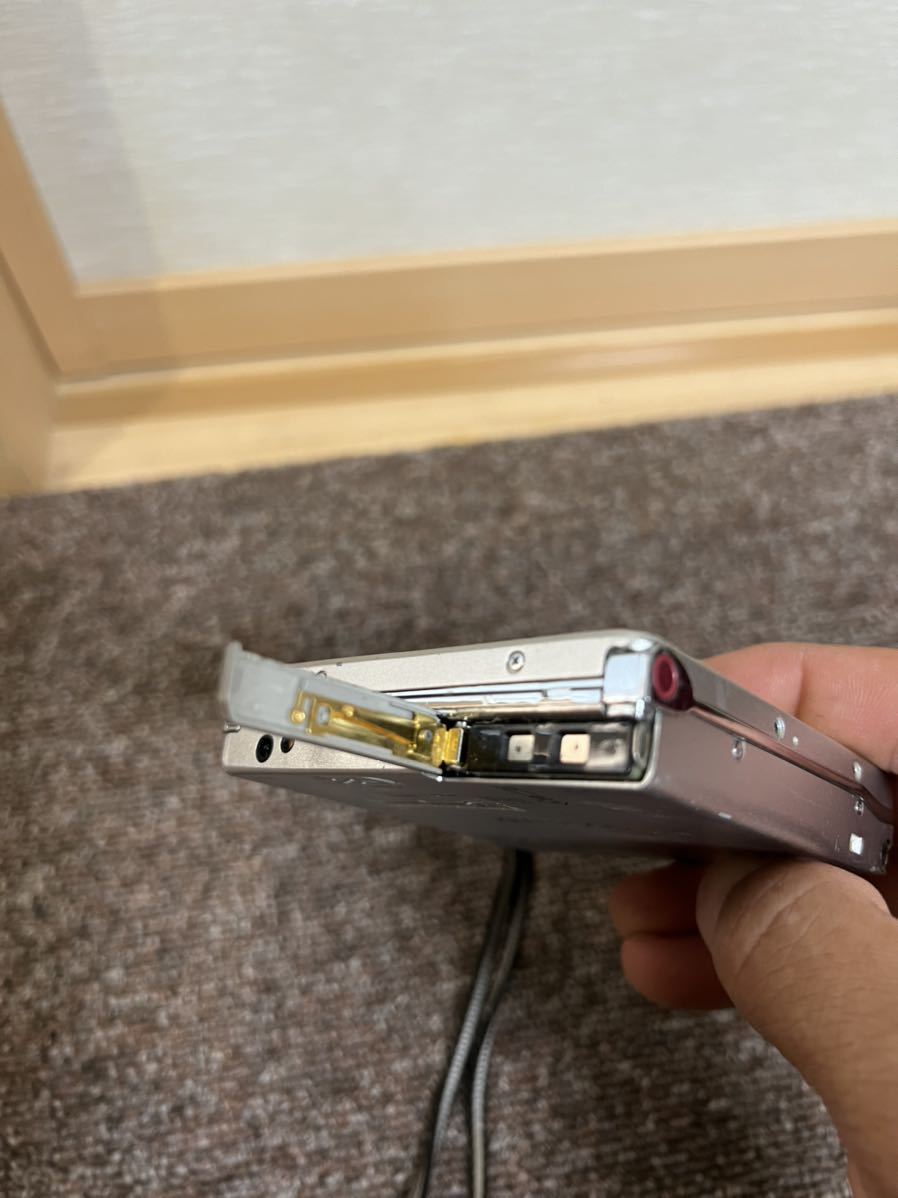

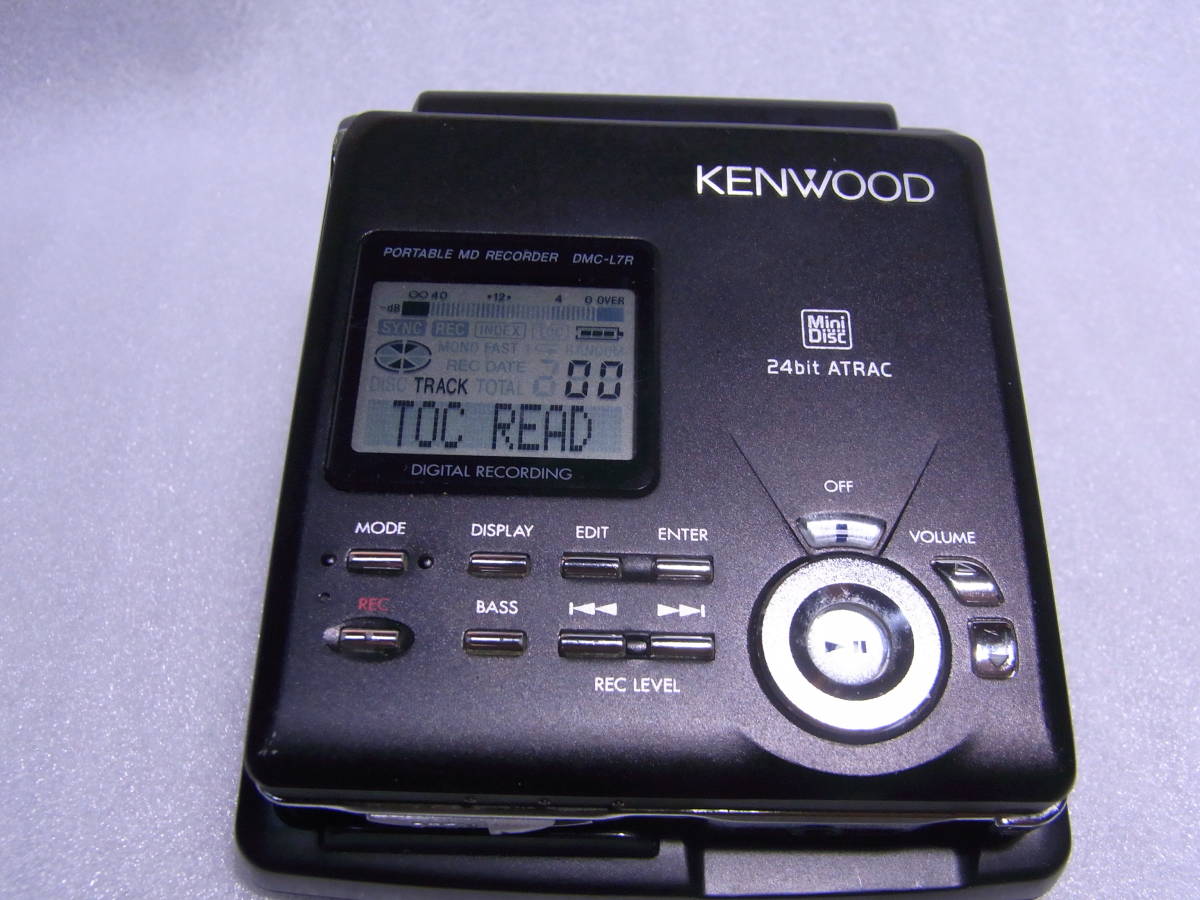

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | LR37812 (Sharp) |
| Manual | User manual |
| Region | Japan |
