| Name | CM6200 |
|---|---|
| Manufacturer | Marantz |
| Released | 2001/05 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 440mm x 86mm x 316mm |
| Weight | 4.7Kg |
| ATRAC ver | Sharp 8 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100, 120 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥62 000 | |
| - | |

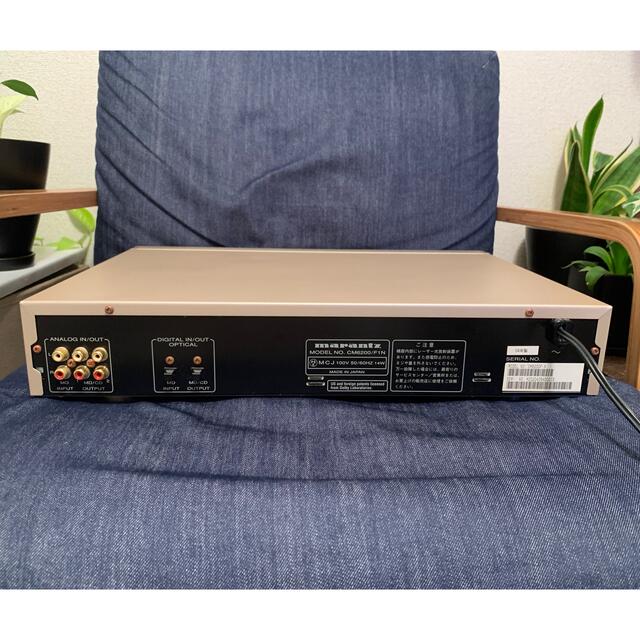

| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
Features: MDLP compatible, CD→MD recording speed of 2x. For CDs with copy protection, recording to MD is automatically switched to analog mode. Tone quality adjustment, automatic analog recording level adjust, manual level controls, CD-TEXT is supported and written to the MD, timer recording function. CD player is capable of reading CD-RW discs.
MD Mechanism: MDM-08BD
Optical Pickup: 412K304410 (marantz part#)
ATRAC Chip: Either LR37816A (IC201) Sharp 8.3
Content adapted from: Minidisc.org Page phileweb.com Marantz Product Page Marantz Product Page (MiniDisc Wiki mirror)
Manuals
Repair
(repair links go here)

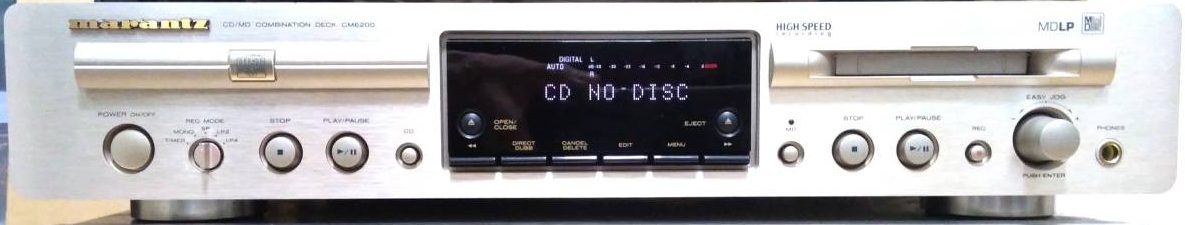

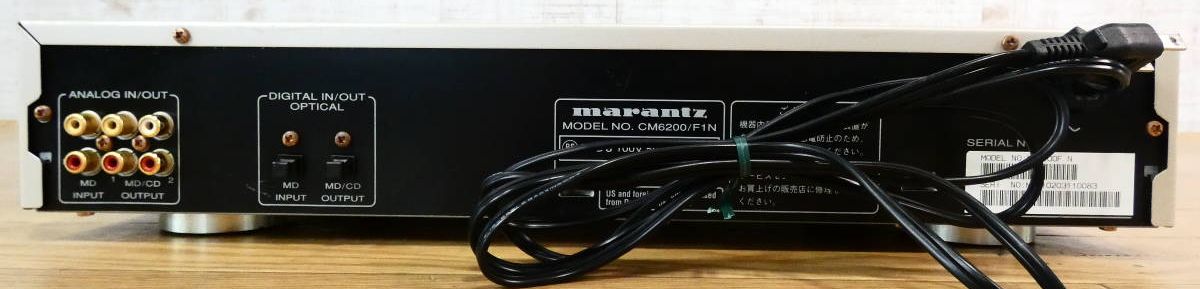

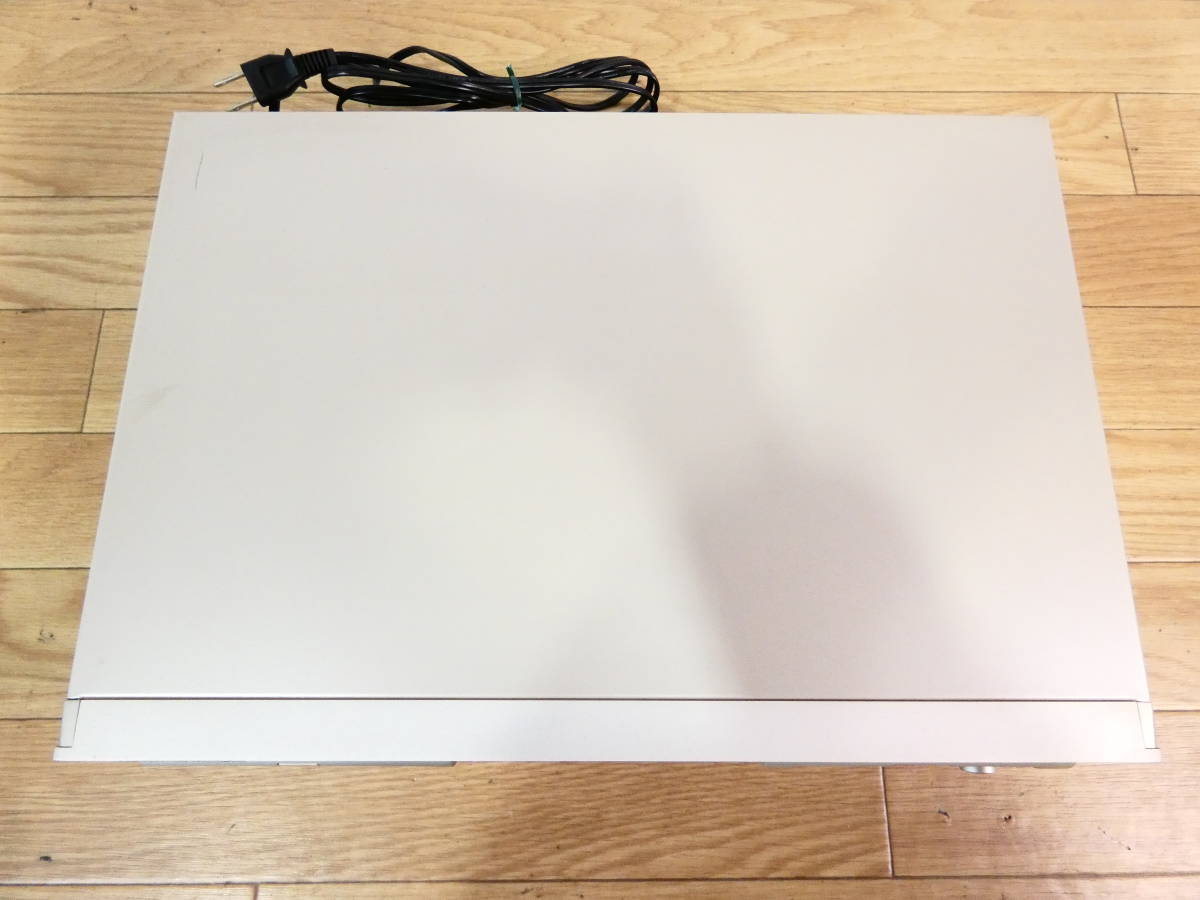

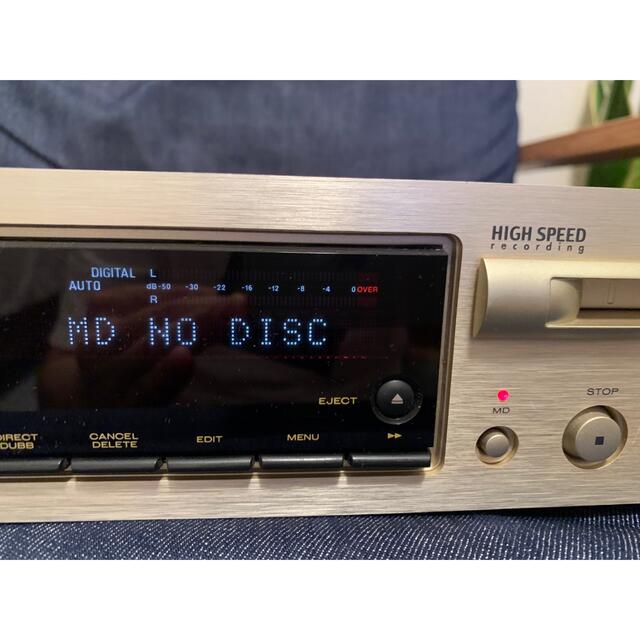

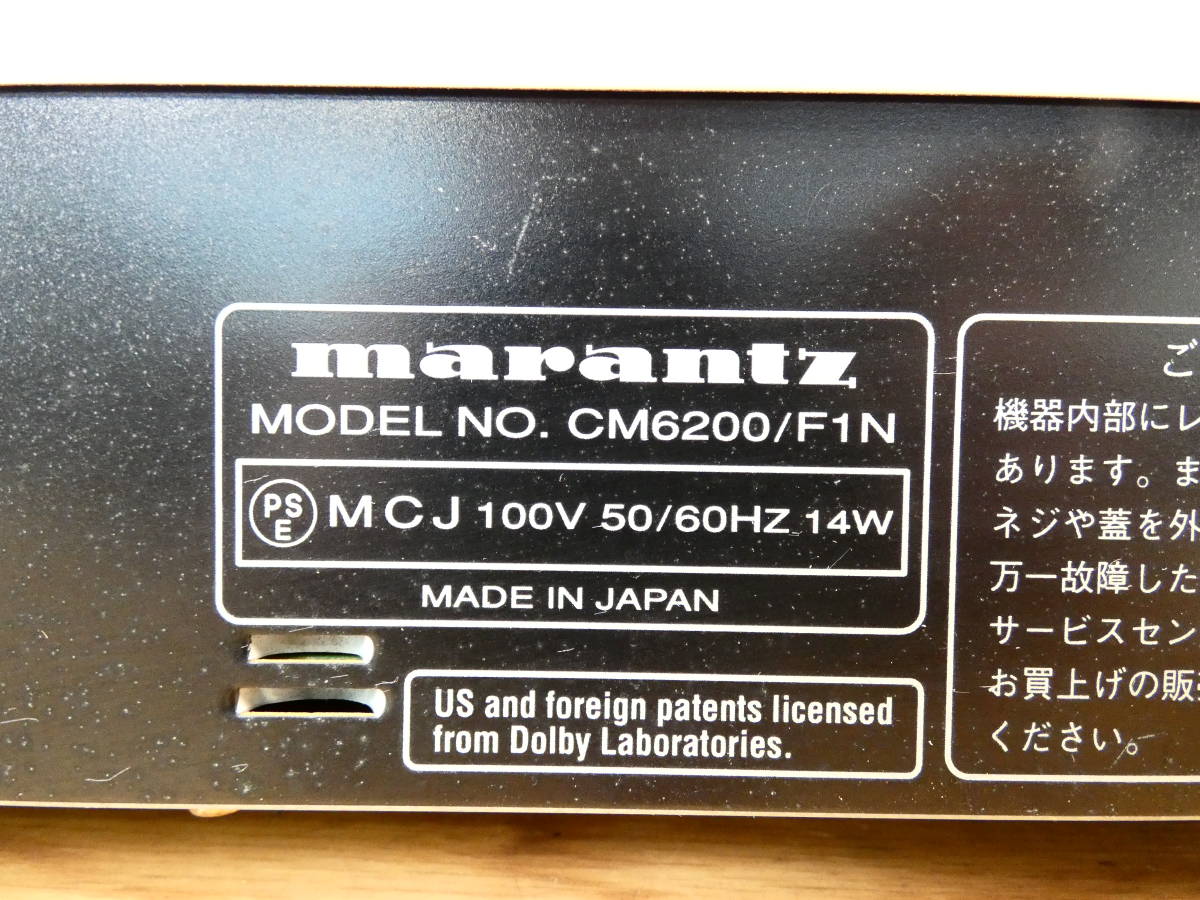

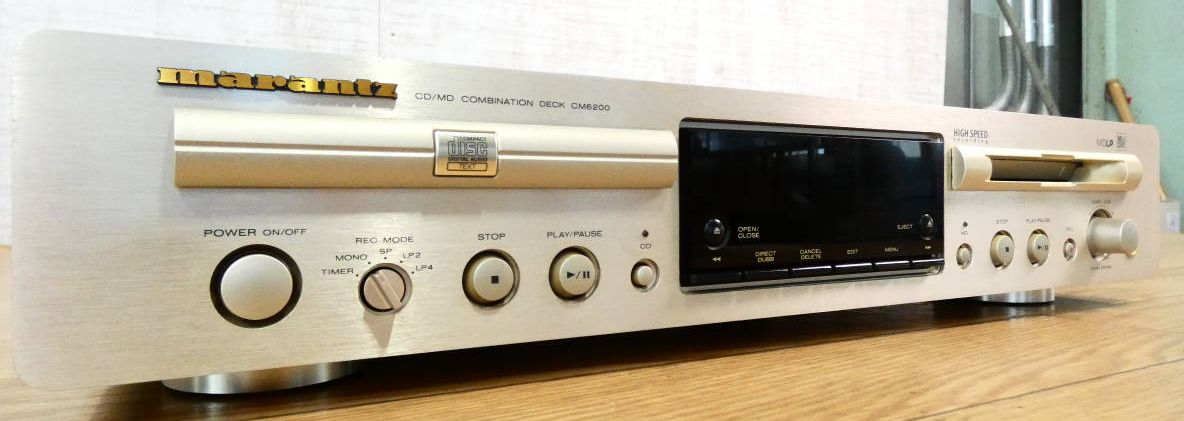

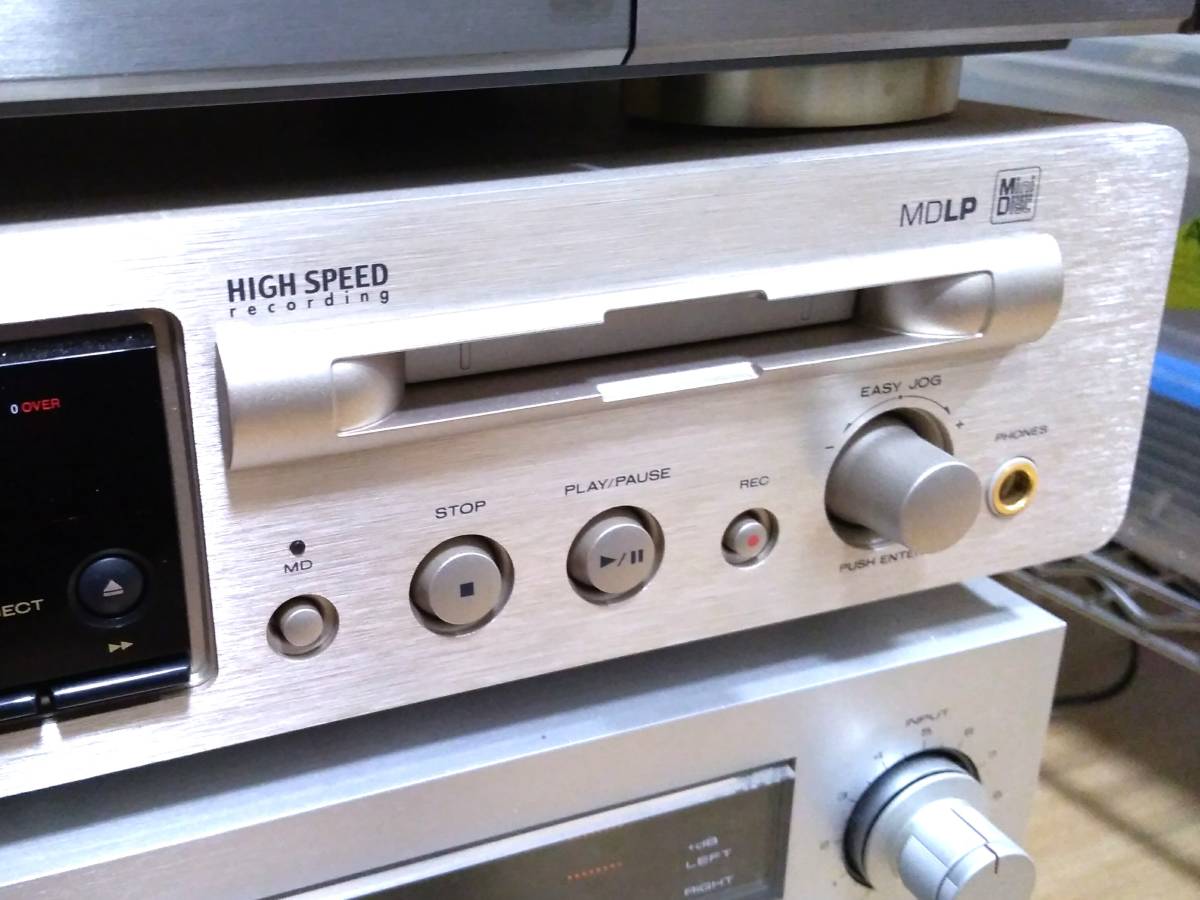

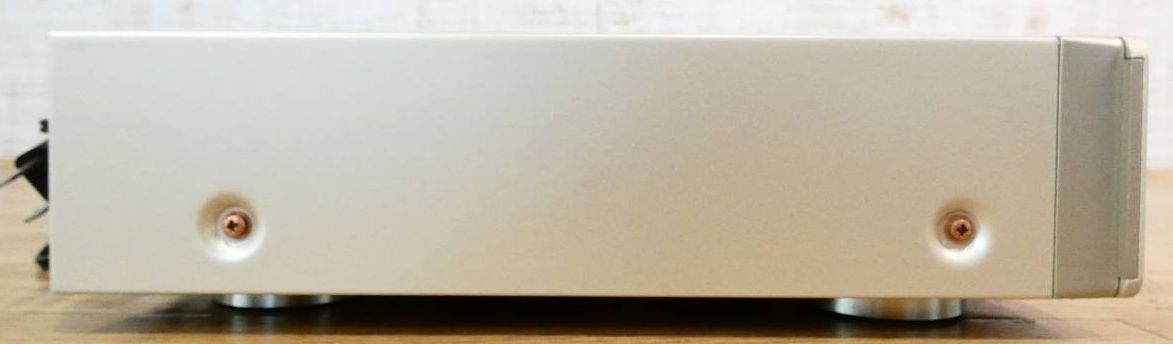

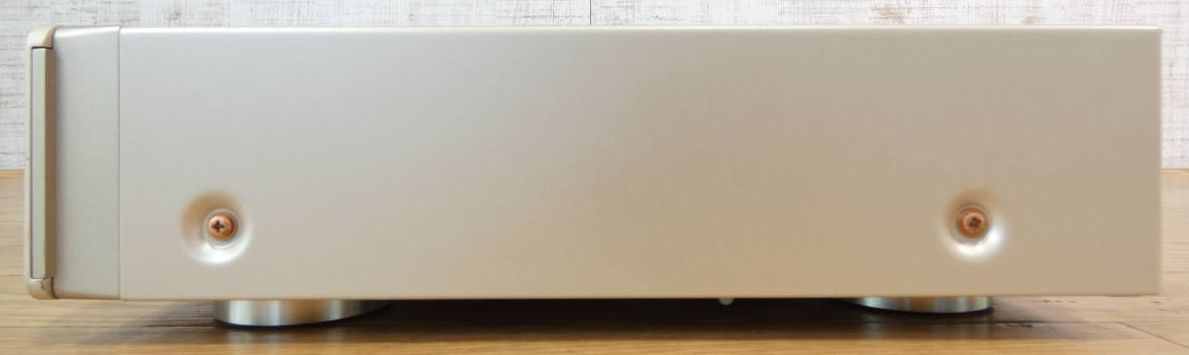

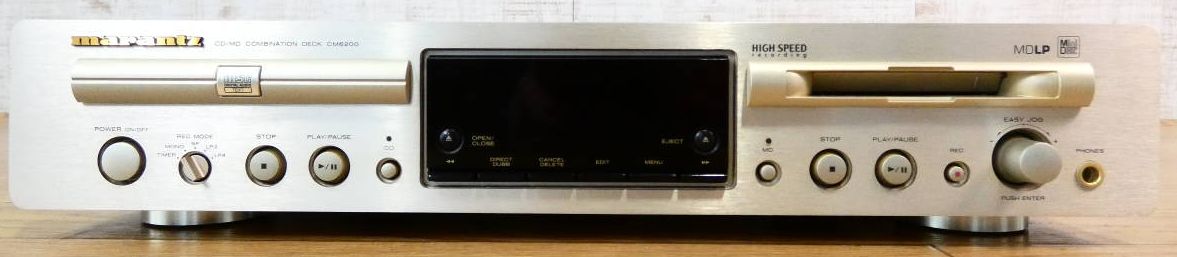

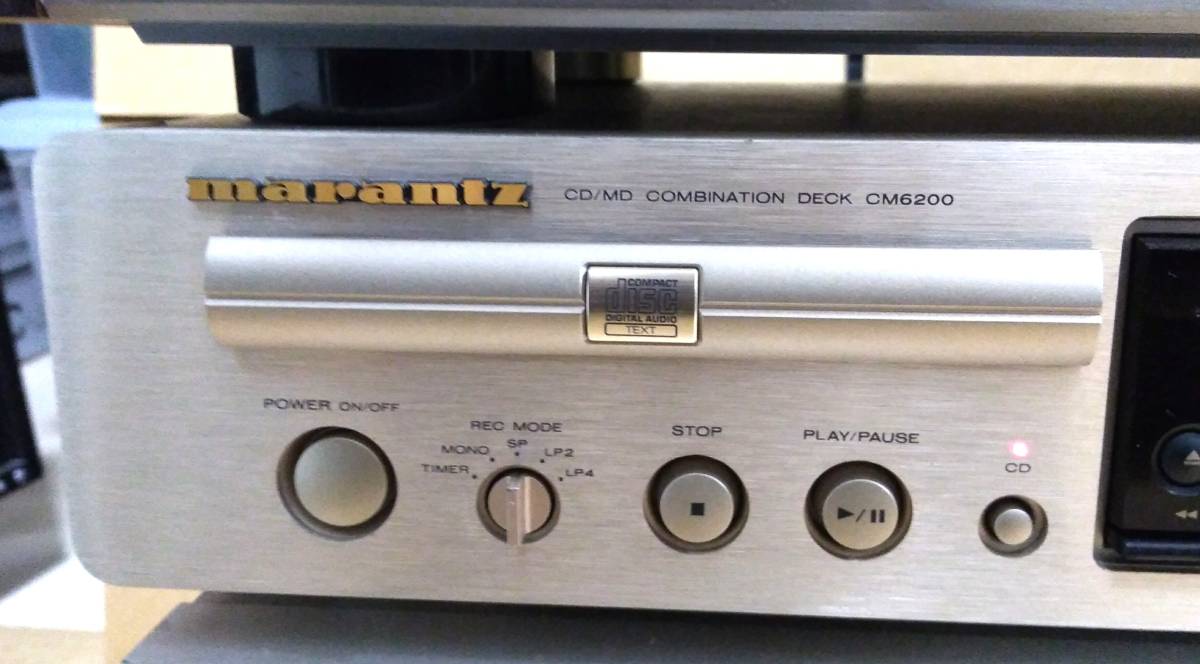

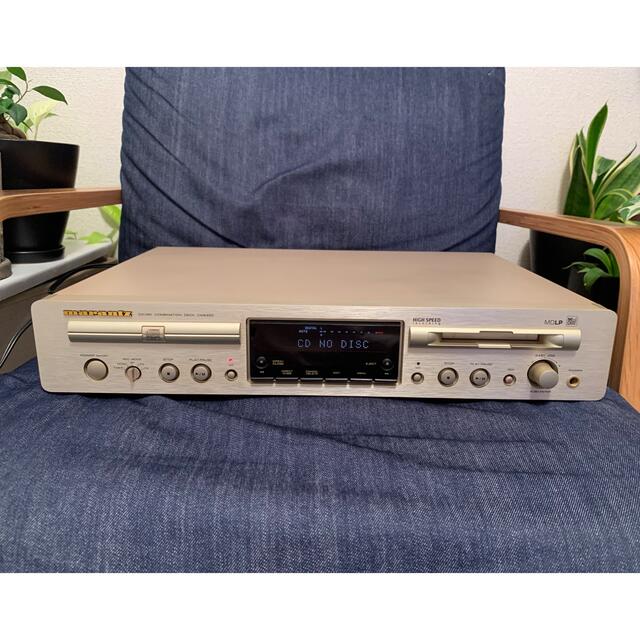

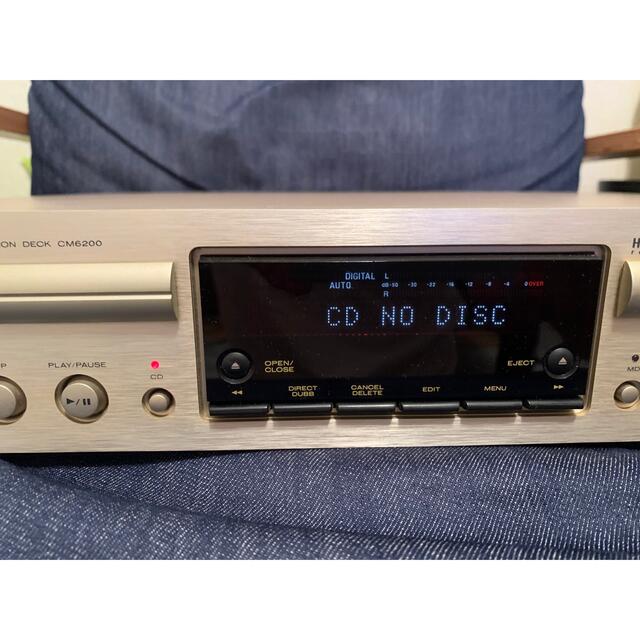

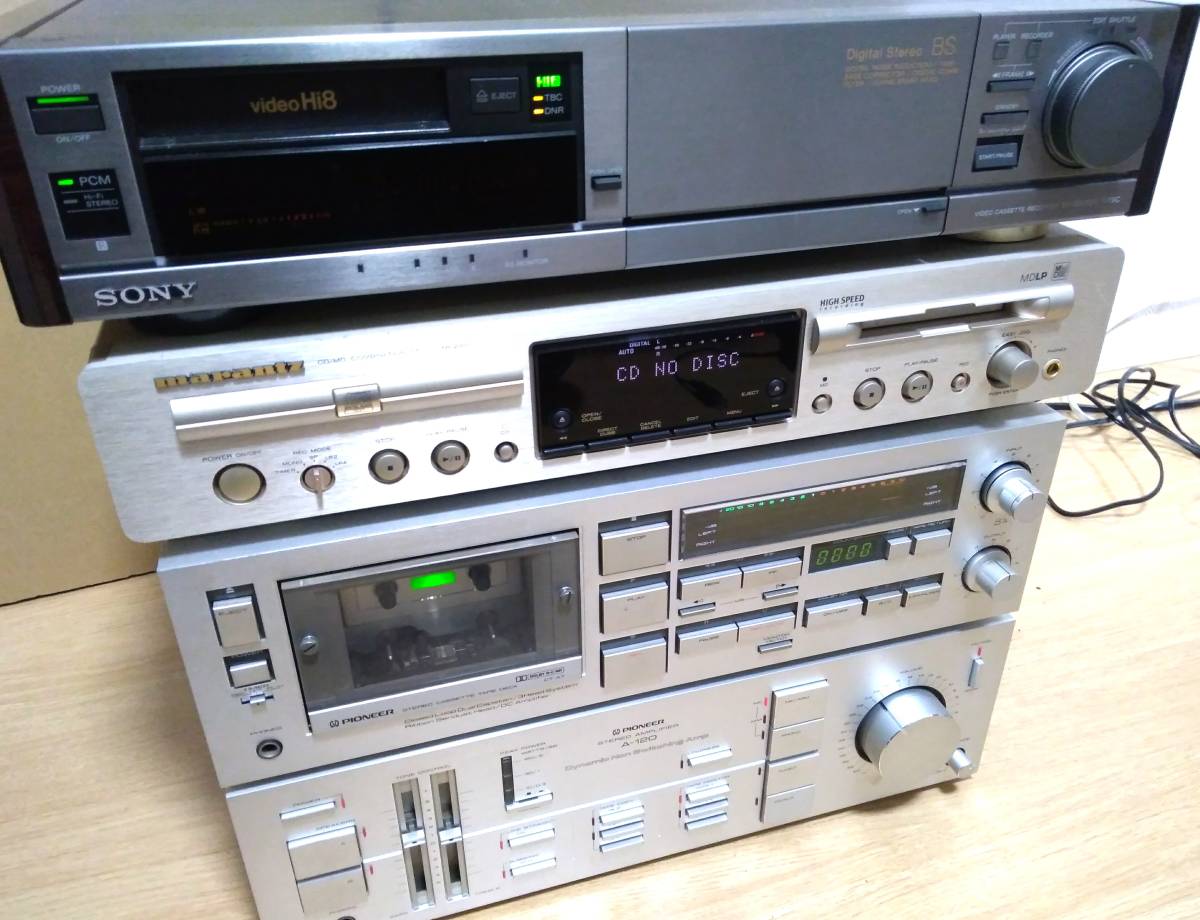

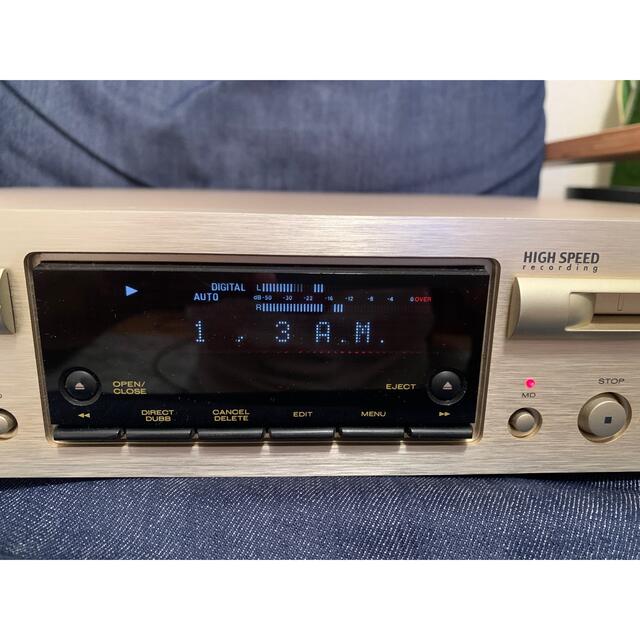

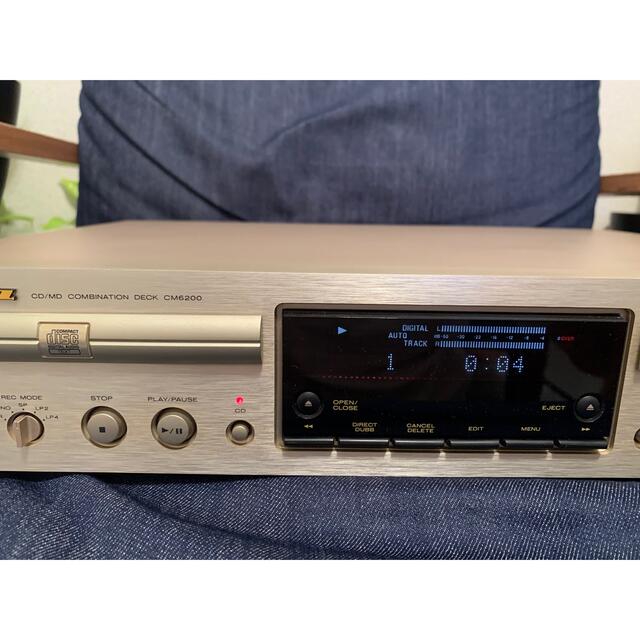

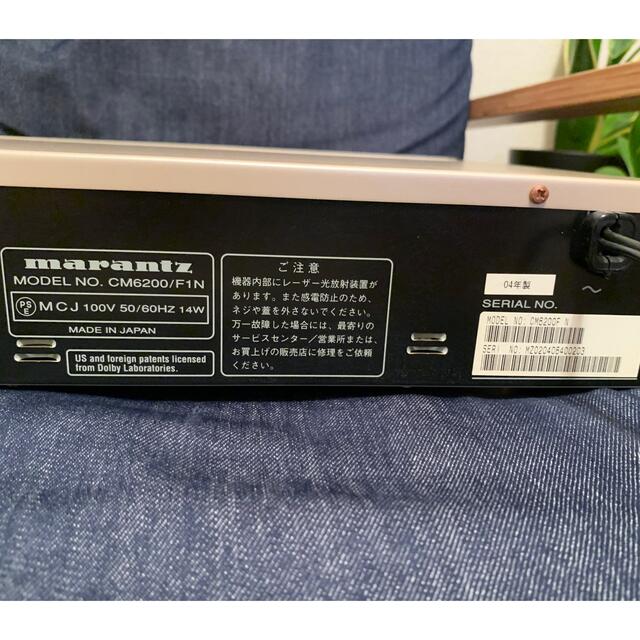

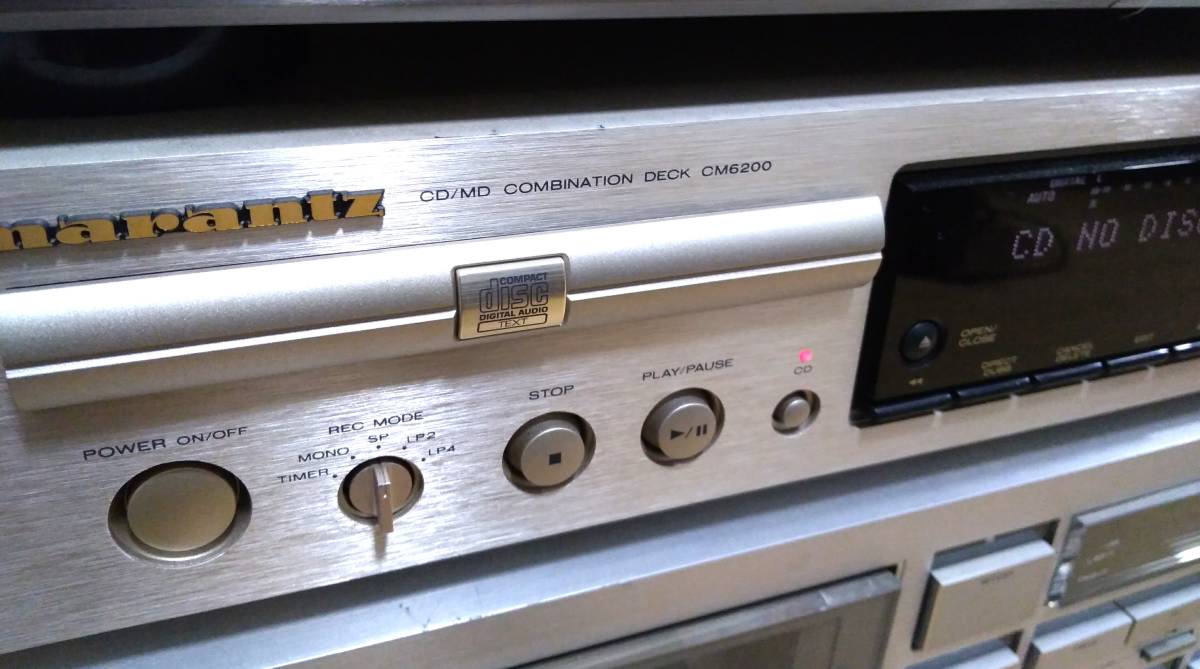

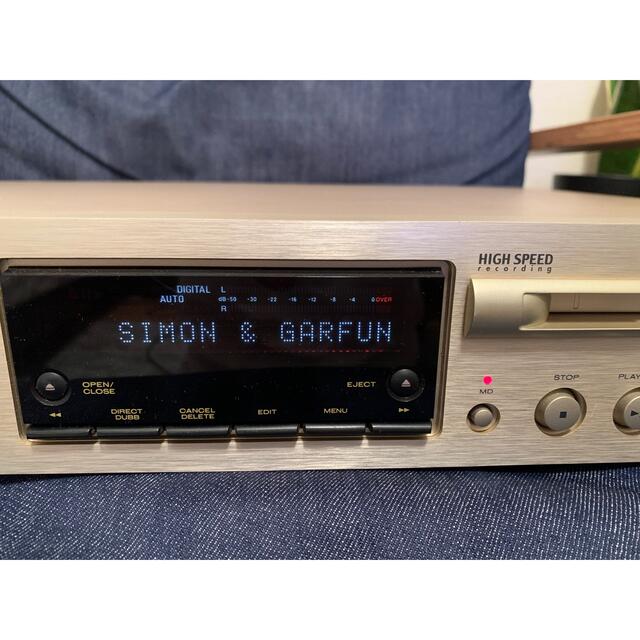

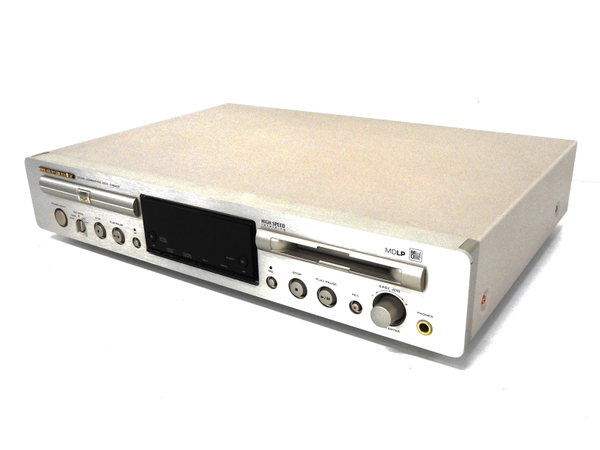

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Remote Page | |
| Atrac Ic | LR378161 (Sharp) |
| Manual | User manual, Service manual |
| Region | Japan |
