| Name | MD-19 |
|---|---|
| Manufacturer | Marantz |
| Released | 1998/11 |
| Device type | deck |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 458 x 86 x 320mm |
| Weight | 6.6Kg |
| ATRAC ver | 4.5 |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥75 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), Digital coaxial |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK), Digital coaxial |
| Control | Not recorded |
Features: 20 bit ADC, 24 bit DAC. ``Latest ATRAC''. Remote uses Japanese portable phone katakana input method. CD-Text display and record function.
Specs: Freq. resp: 5-20kHz +/-0.3dB. SNR >100dB, Dyn. range: >100dB. Chan. sep.: >93dB @ 1kHz. Line out: 2VRMS, Line in: 250mV RMS

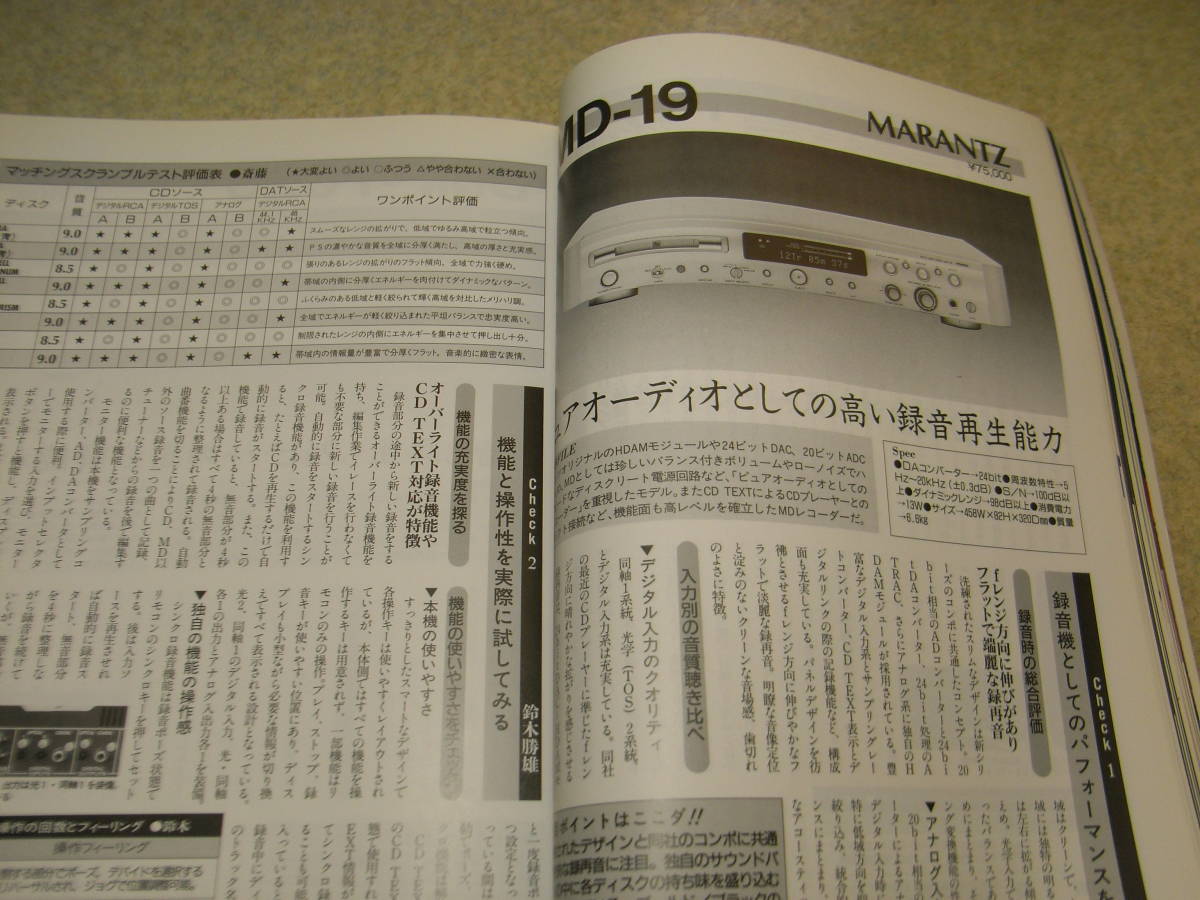

Some info can be found in Quarterly Audio Accessory No.92 Spring 1999 (see pics below)
Content adapted from: Minidisc.org Page, Marantz annoucement (Japanese) (Archived)
Manuals
Repair

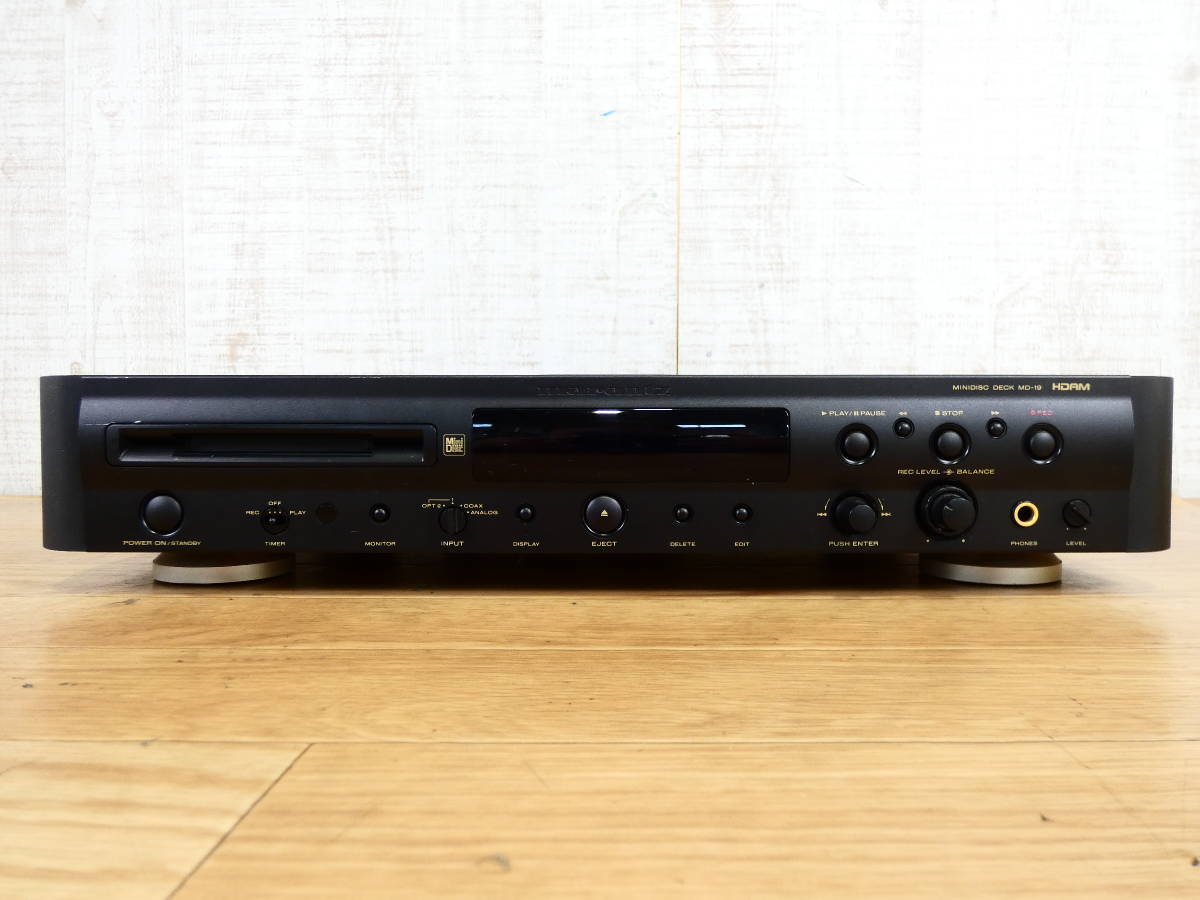

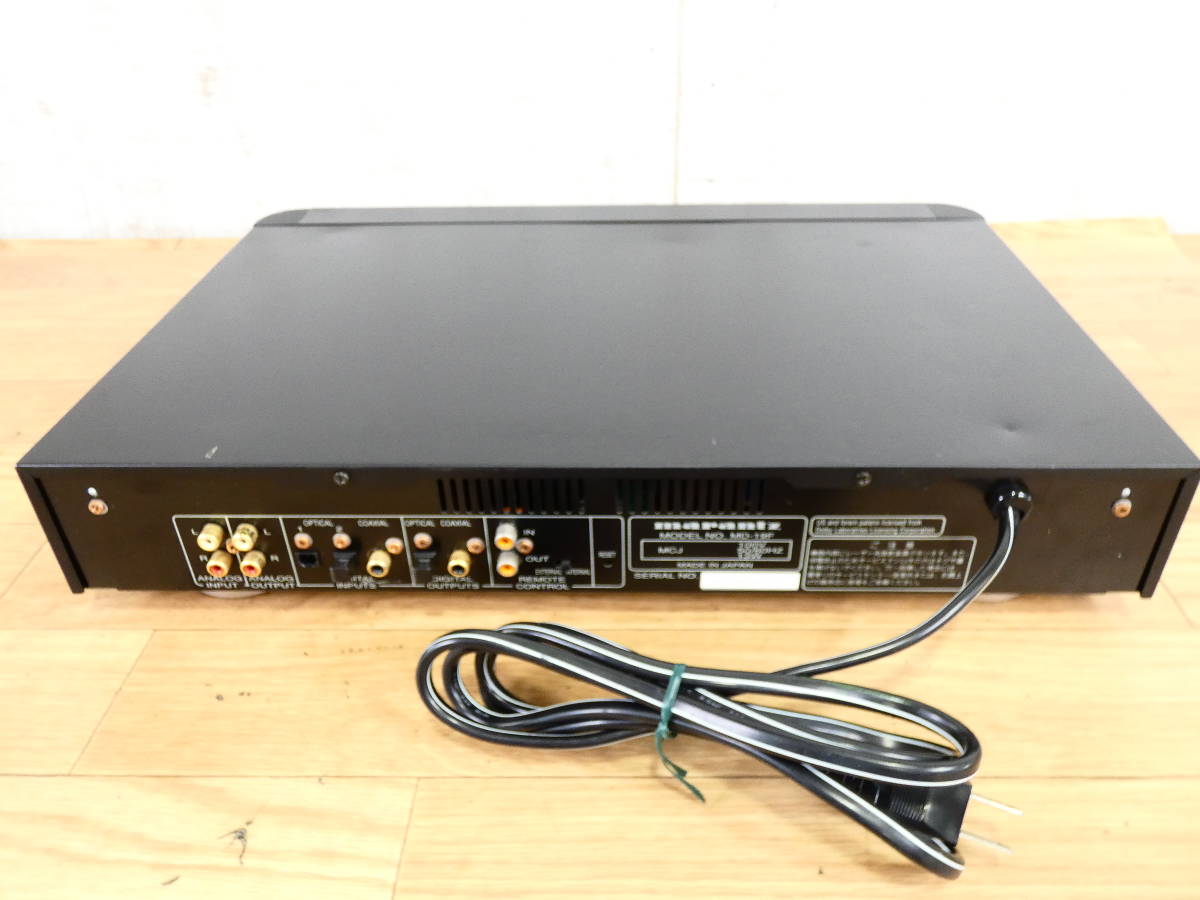

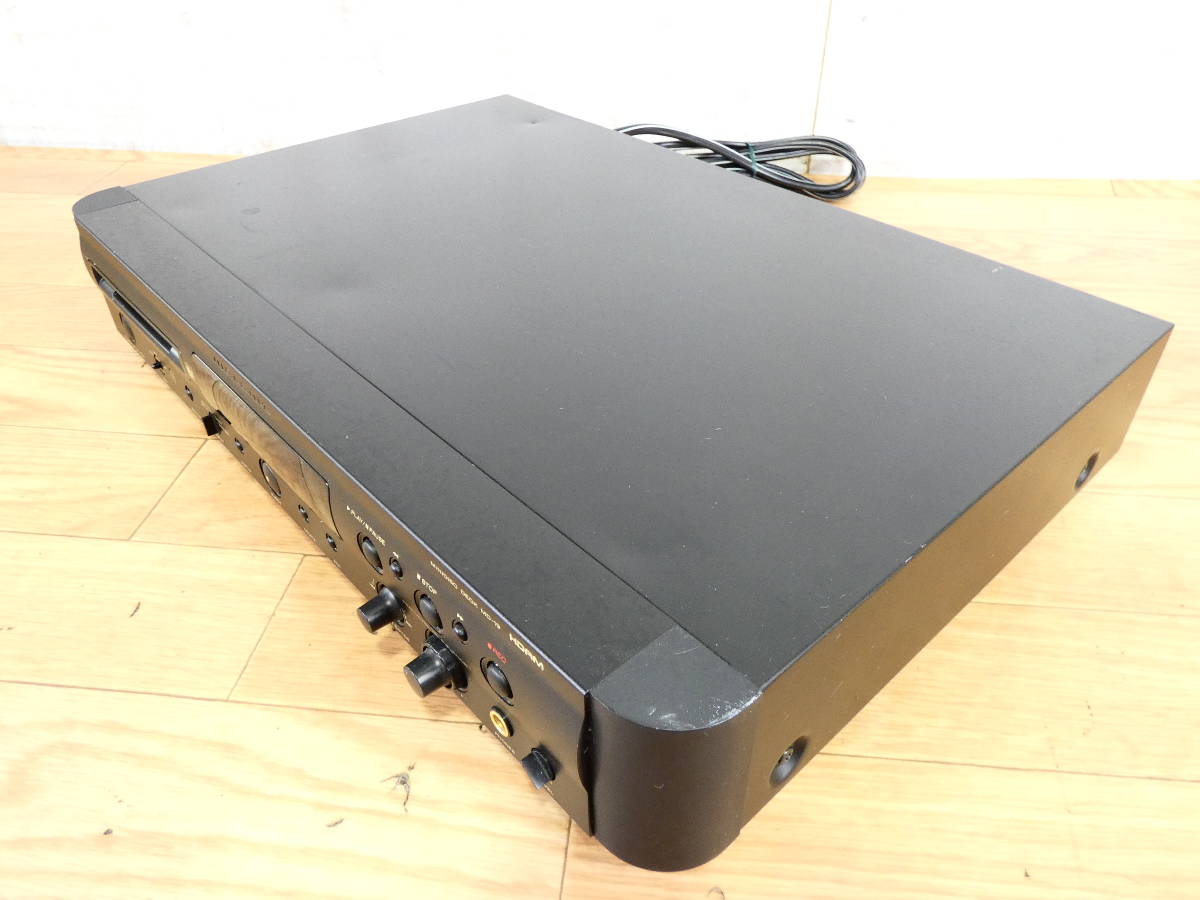

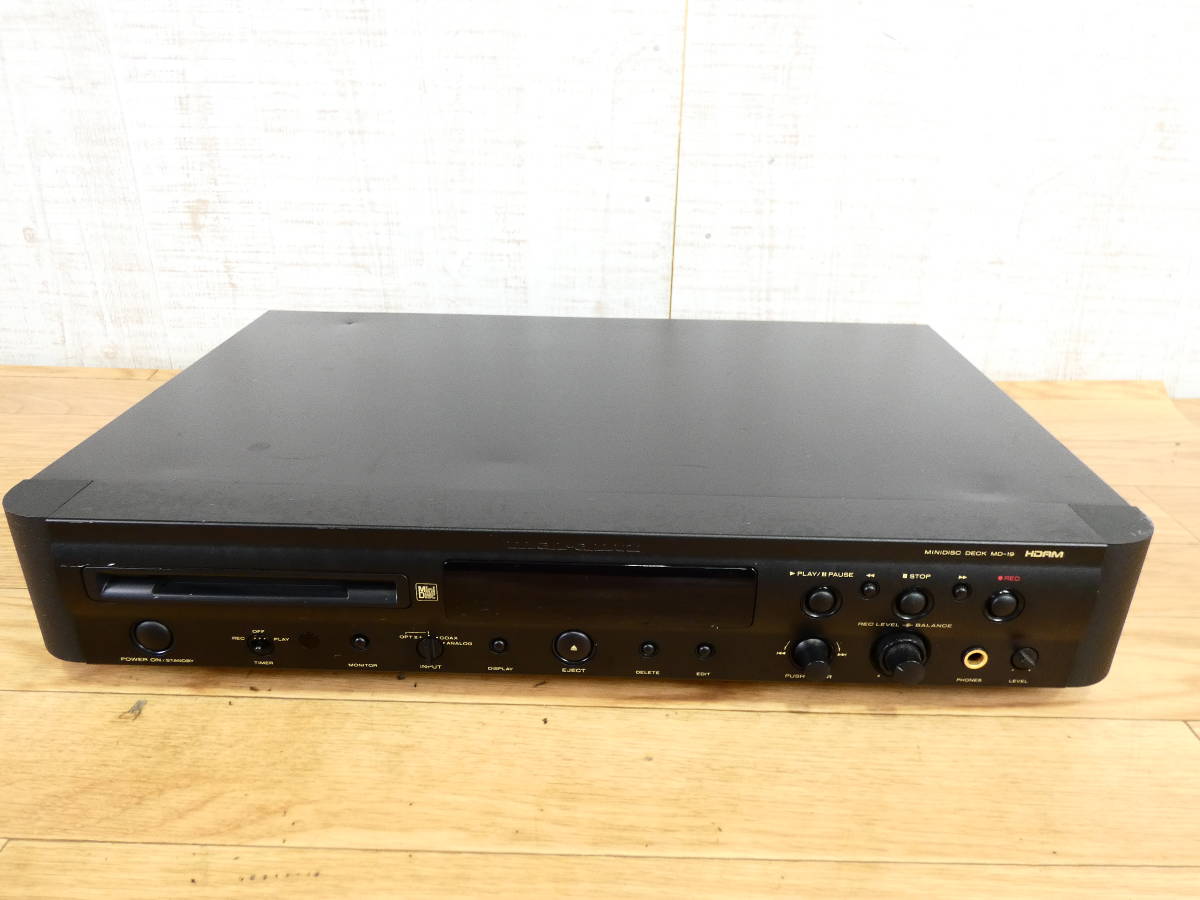

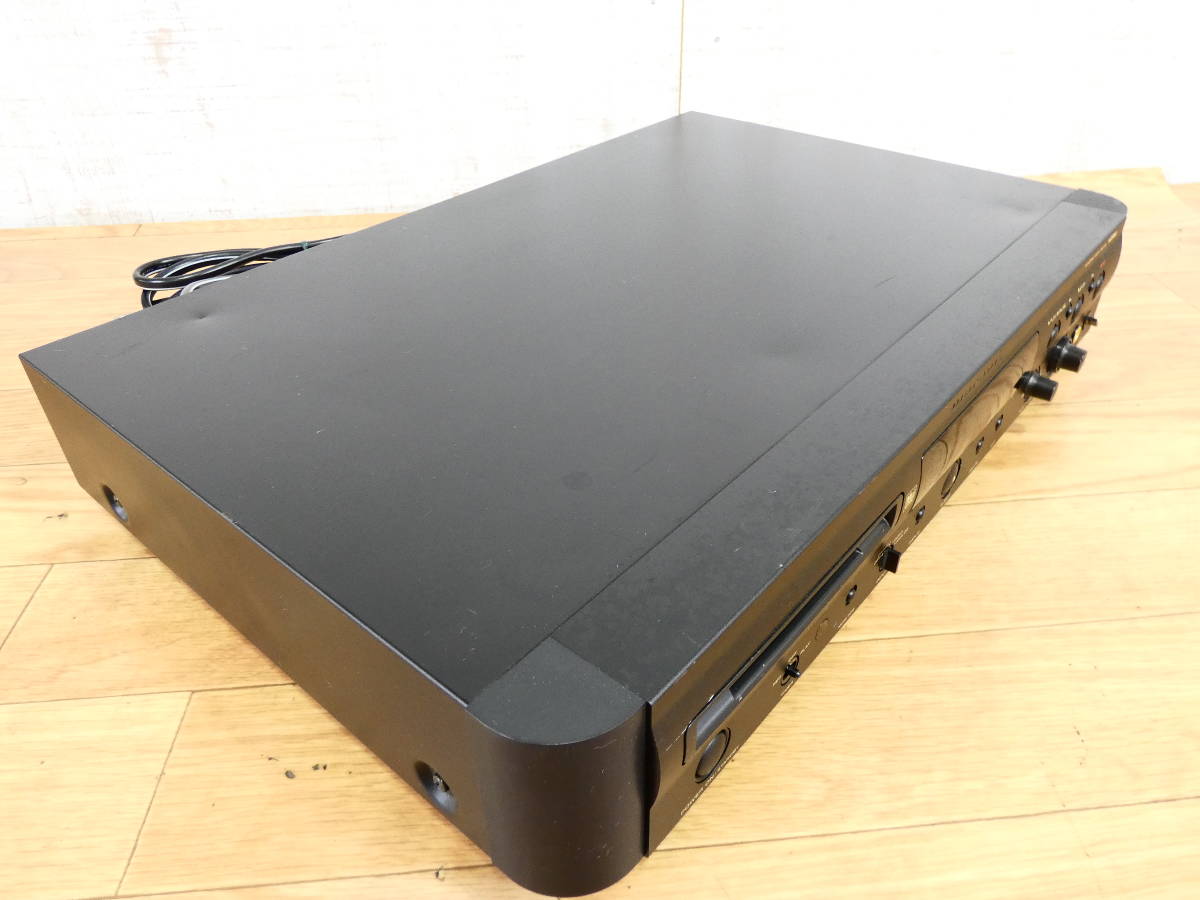

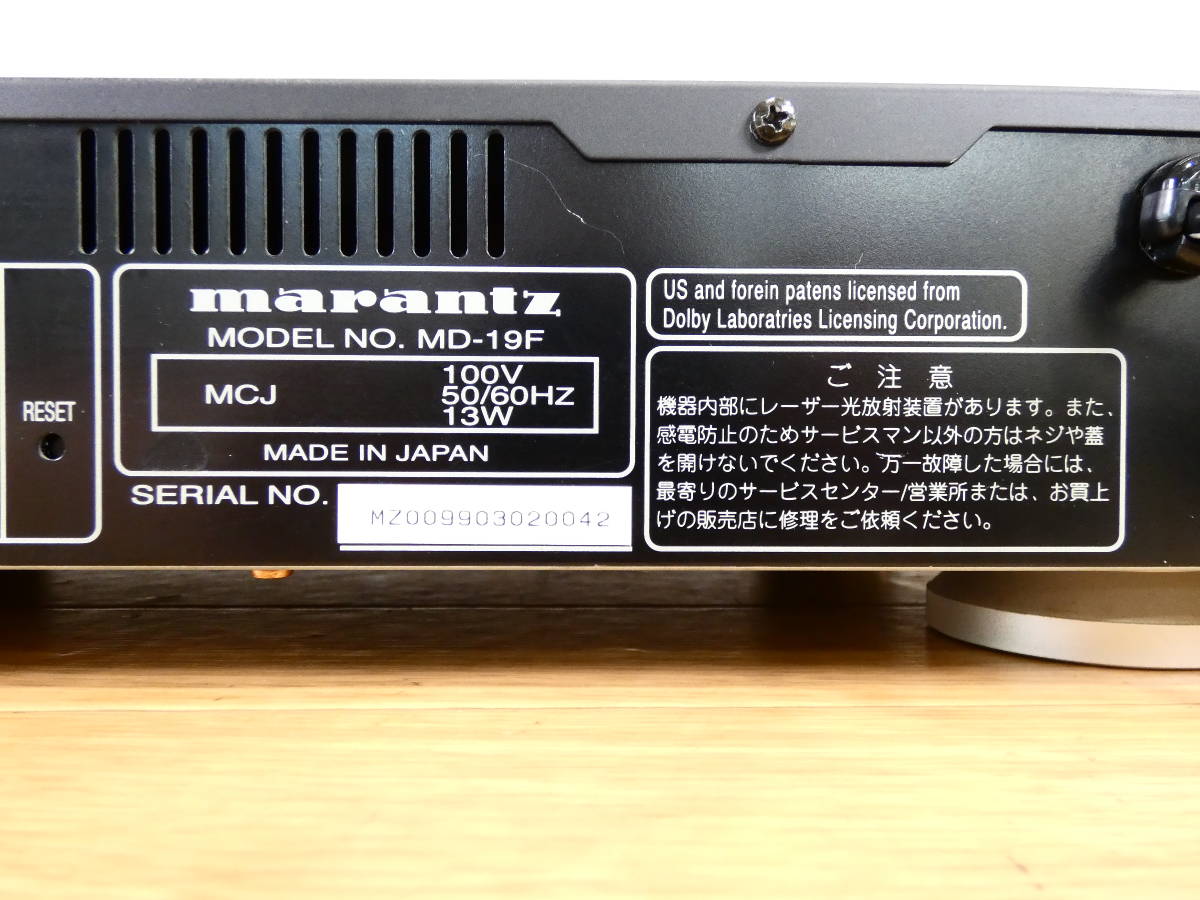

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Remote Page | |
| Mechanism | j2n |
| Pickup | j1n |
| Atrac Ic | CXD2537R / CXD2654 |
| Manual | User manual, Service manual |
| Region | Japan |
