Onkyo FR-N7X/X-N7X

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Onkyo FR-N7X/X-N7X”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	FR-N7X
Manufacturer	Onkyo
Released	2006/04
Device type	bookshelf
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	Yes
Radio	No
Dimensions	167w x 290h x 246d mm
Weight	3.9kg
ATRAC ver	Hi-MD
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	No

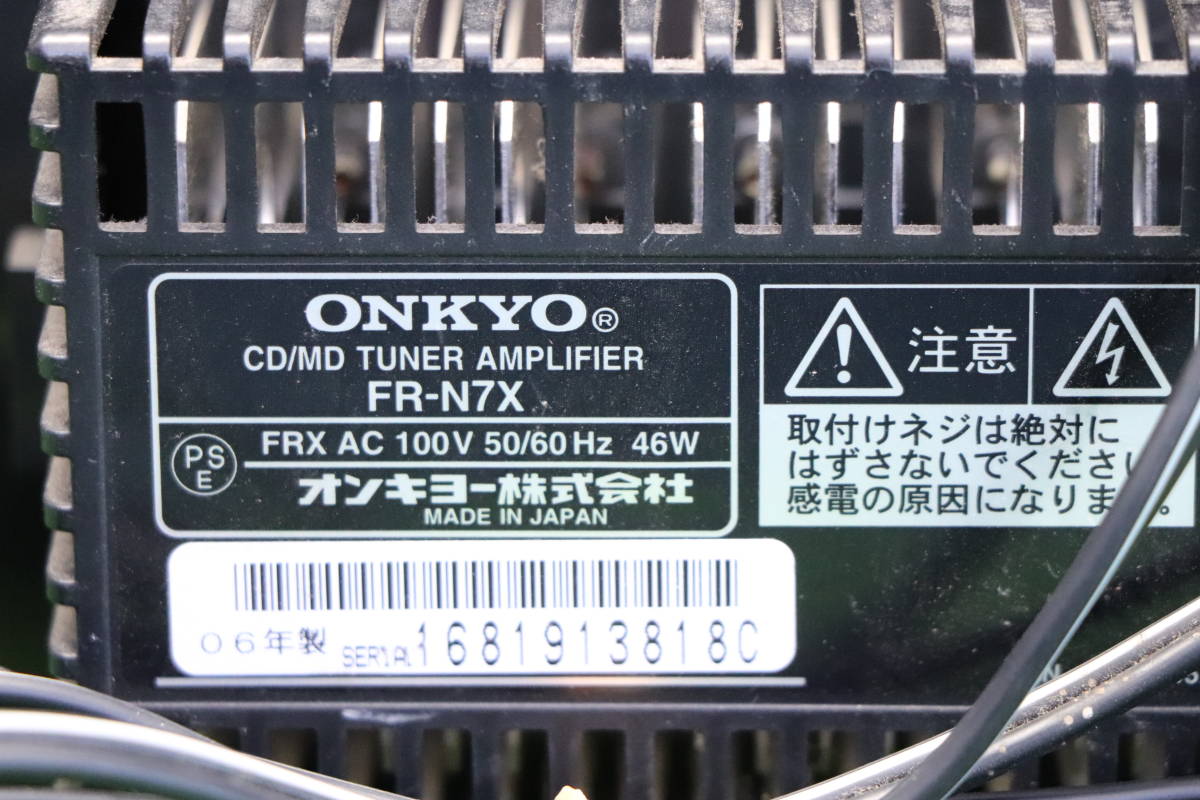

Voltage	100
Power cable	AC
Price (launch)	Not recorded
Price (launch)	¥84 000
-

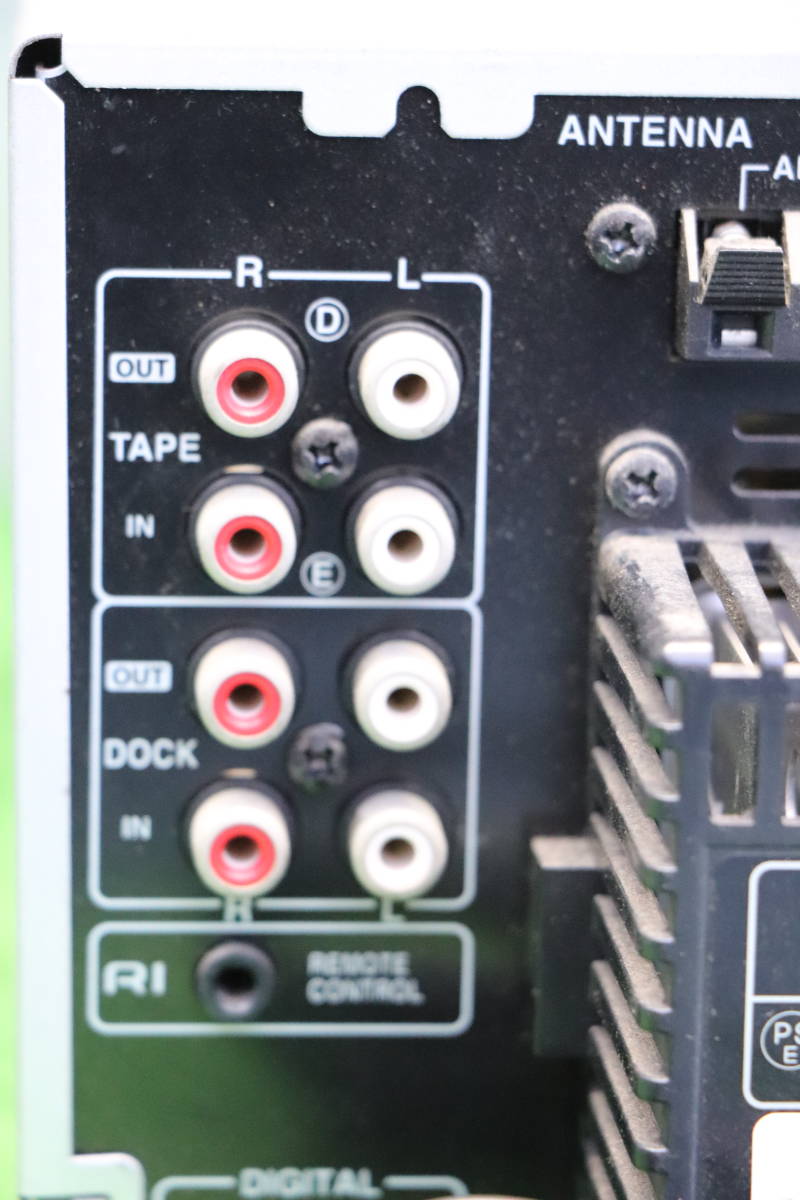

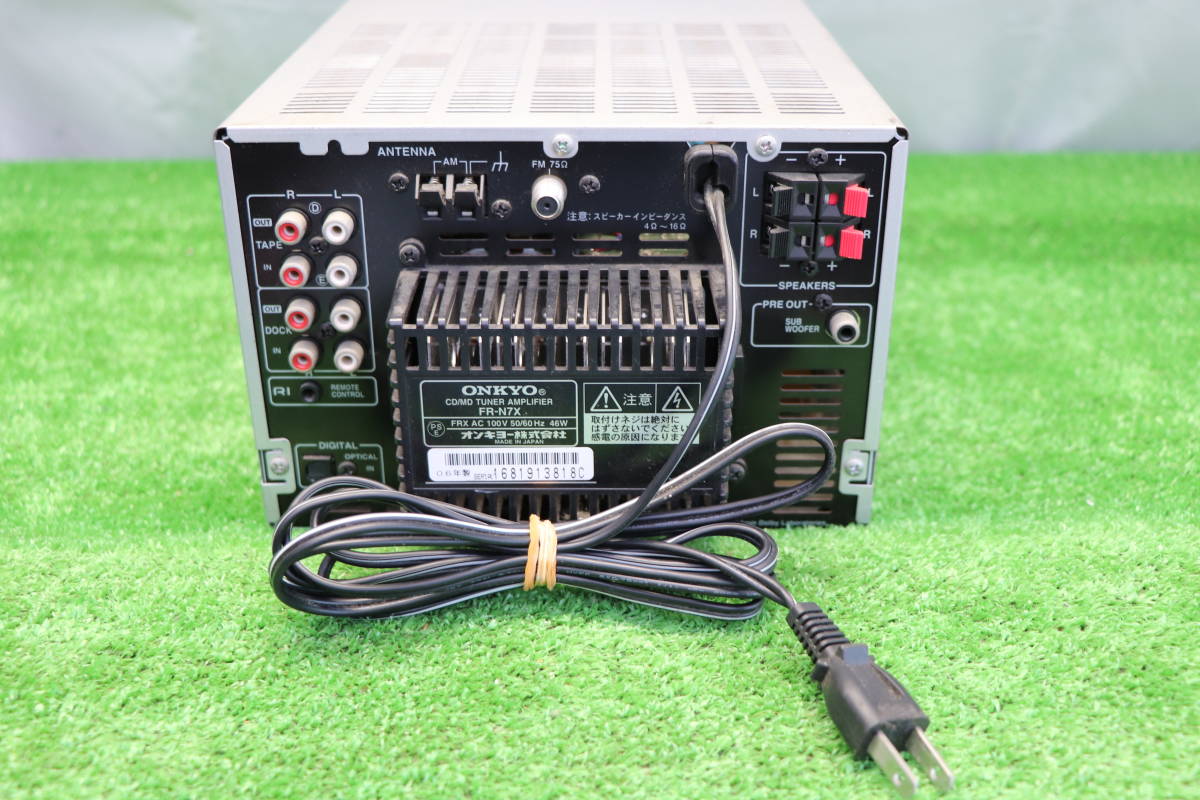

Inputs	3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD
Outputs	3.5mm line out (analog-only), 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier
Control	Not recorded

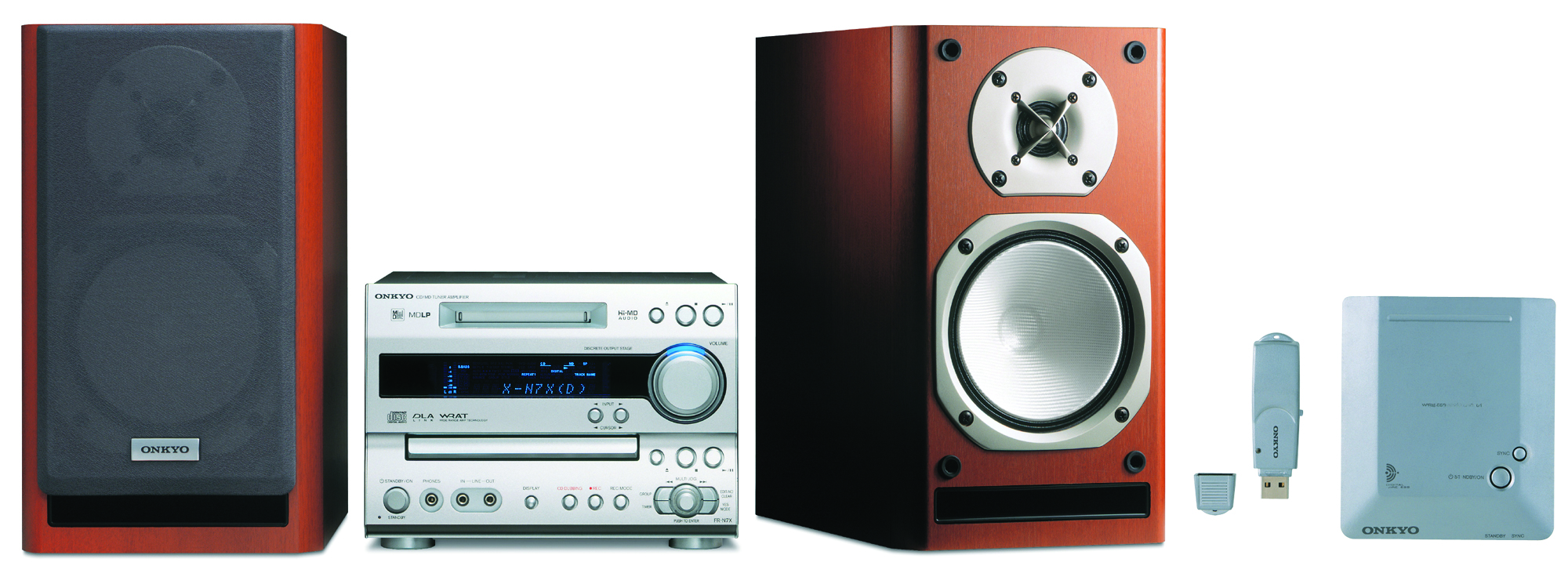

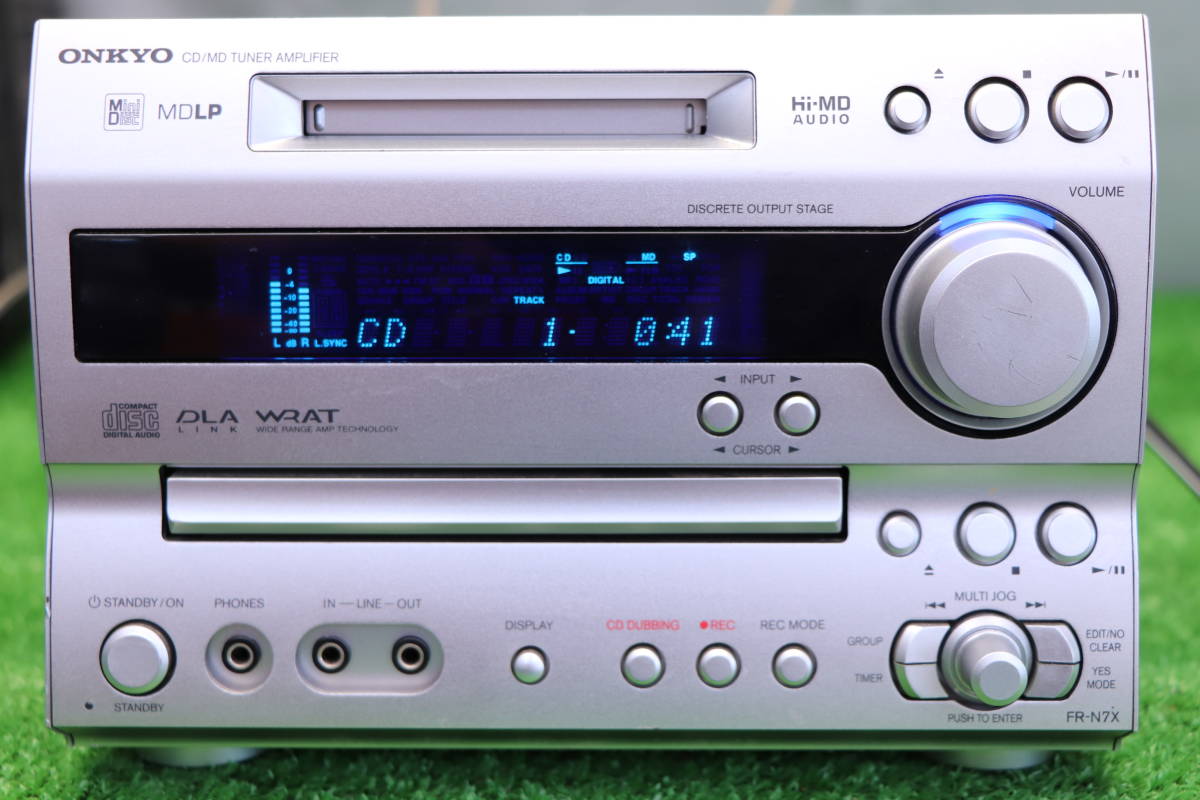

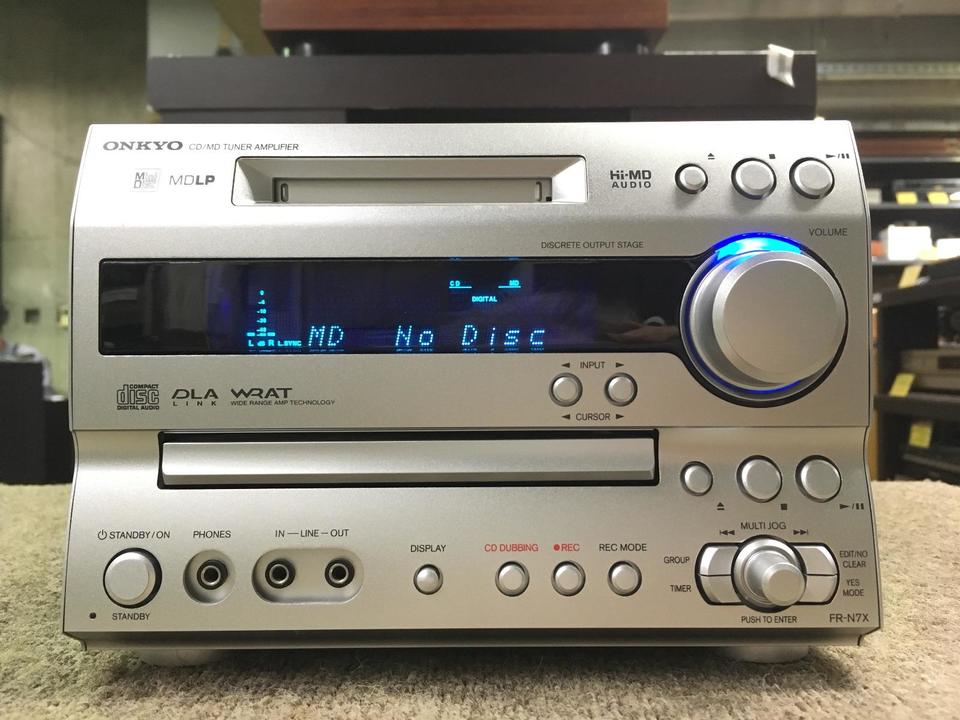

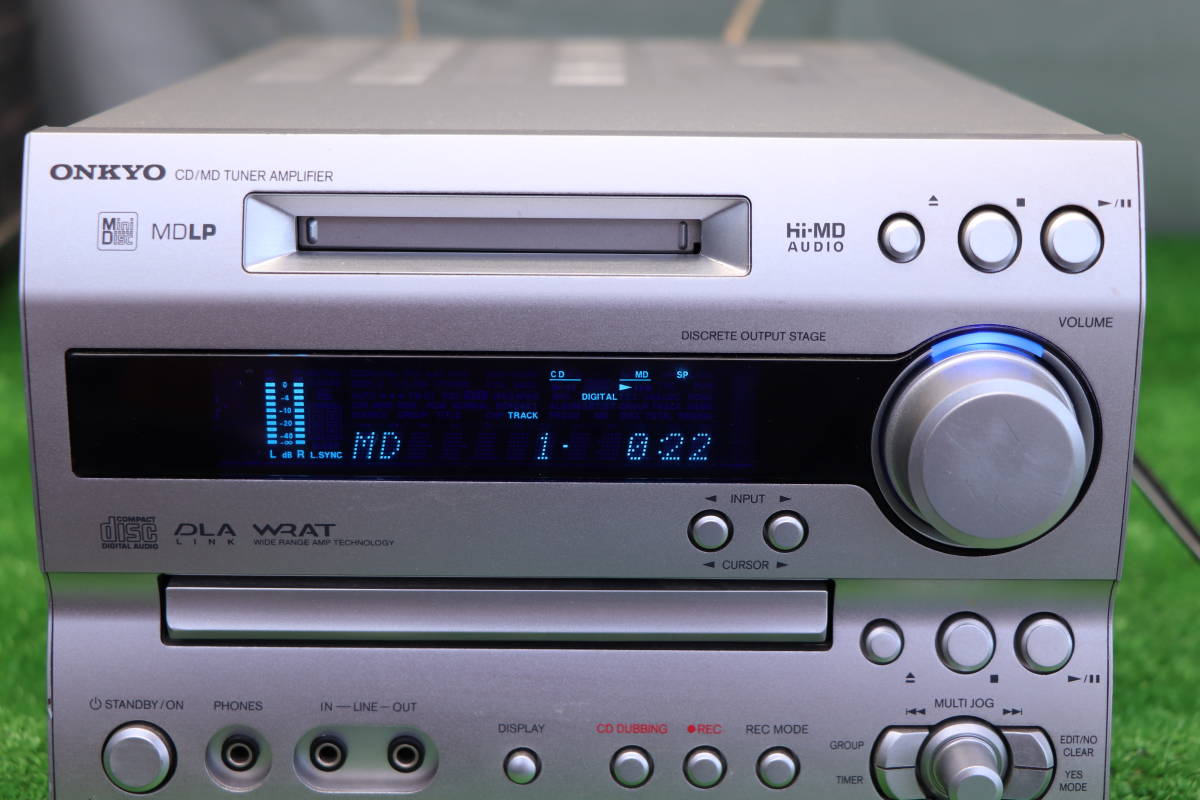

The FR-N7X is a refreshed variant of the FR-N7. Compared with the FR-N9X, it loses optical inputs and the metal volume knob. Compared with its predecessor the FR-N7 it loses an RCA input, but gains a 3.5mm line in and line out on the front panel. It was sold exclusively in Japan as the X-N7X, bundled with large, front bass ported faux wood-grain veneer speakers.

This was also sold as the X-N7UWX with speakers and bundled UWL-1 USB wireless audio dongle.

Rumored to be able to transfer audio from MD to USB, this hasn't been confirmed.

ATRAC IC: CXD2686
