| Name | FR-S7GXDV |
|---|---|
| Manufacturer | Onkyo |
| Released | 2004/05 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Not recorded |
| Dimensions | W 205 x H 154 x D 351mm |
| Weight | 5700 |
| ATRAC ver | Type-S |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥84 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |

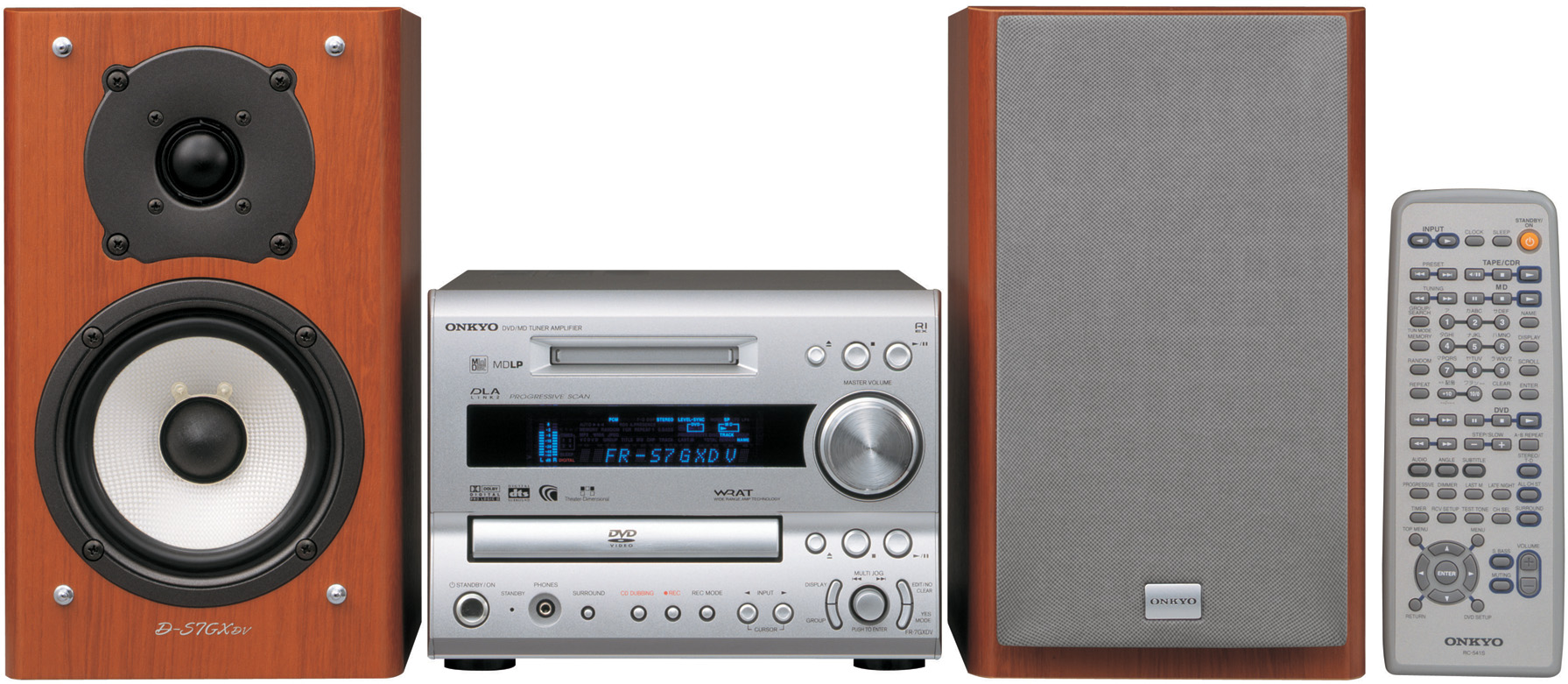

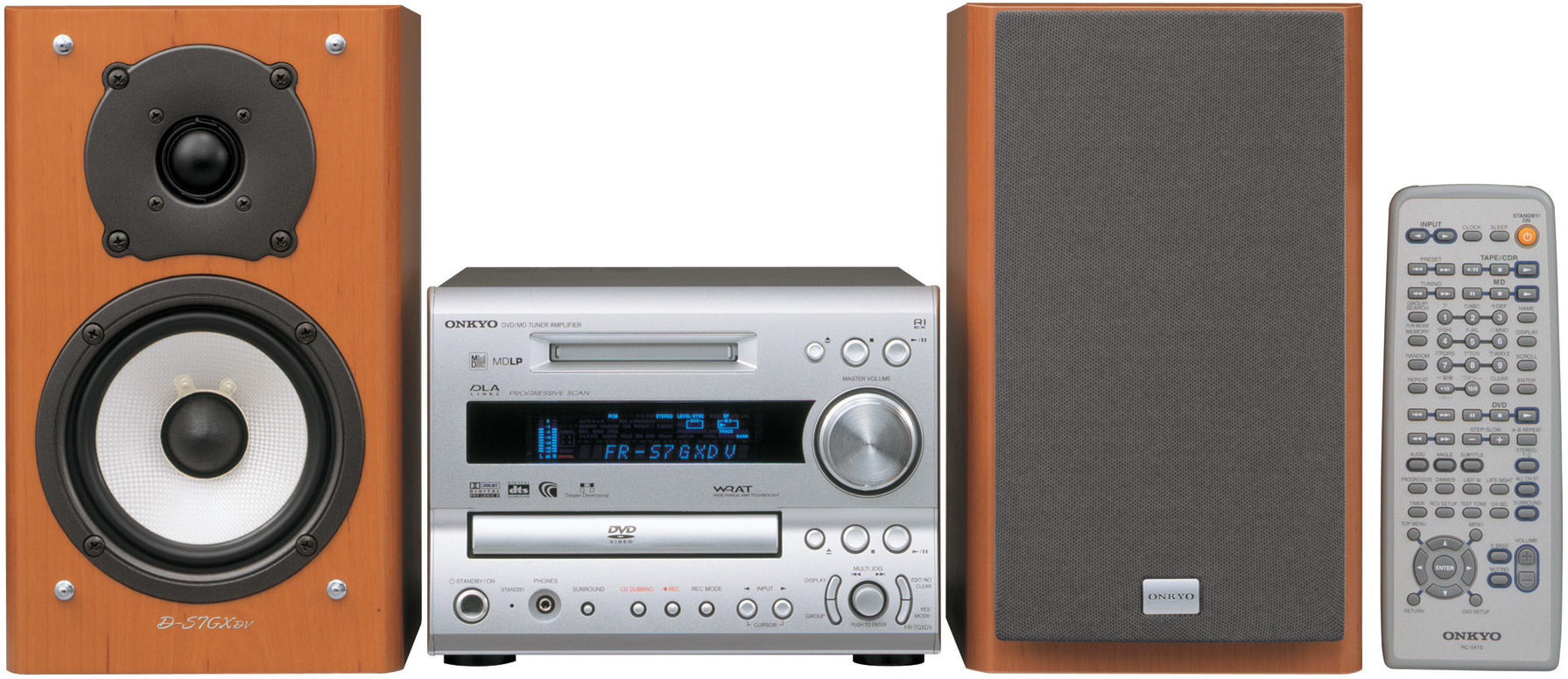

- FR-S7GXDV includes the speakers (D-S7GXDV) whereas FR-7GXDV does not
- Practical maximum output: 25 W + 25 W (4 Ω, JEITA)
- Rated output: 17 W + 17 W (4 Ω)
- Input sensitivity/input impedance: 150 mV/50 kΩ (LINE/TV, TAPE/CDR) ) Audio Input Sensitivity/Impedance: 150mV/50kΩ (LINE/TV, TAPE/CDR) Frequency Response: 10Hz - 100kHz/±3dB (LINE/TV) <Tuner> Receiving Frequency: FM76.00 - 108.00MHz, AM522～1629kHz
- Frequency characteristics: 30Hz～15kHz (±1.5dB)
<MD part>
- Recording/playback time: Maximum approx. 320 minutes (80 minutes) When using a disc/LP4 mode)
- Frequency characteristics: 10Hz to 20kHz (±3.0dB, during playback)
- (Overall) Power consumption: 65W
<DVD part>
- Signal system: Japan and US standard NTSC color vision system
- Horizontal resolution: about 500 lines
- Video output/impedance: 1Vp-p/75Ω (composite Signal) 1Vp-p/75Ω (Y signal) 0.286Vp-p/75Ω (C signal) 0.7Vp-p/75Ω (Pb signal, Pr signal) Audio frequency characteristics (digital audio): DVD linear audio = 4Hz to 22kHz (48kHz/JEITA), 4Hz to 44kHz (96kHz/JEITA) Wow flutter: below the measurement limit (±0.001% (W.PEAK) JEITA)
ATRAC Chip: CXD2664R
Optical Pick-up: KMS-260E

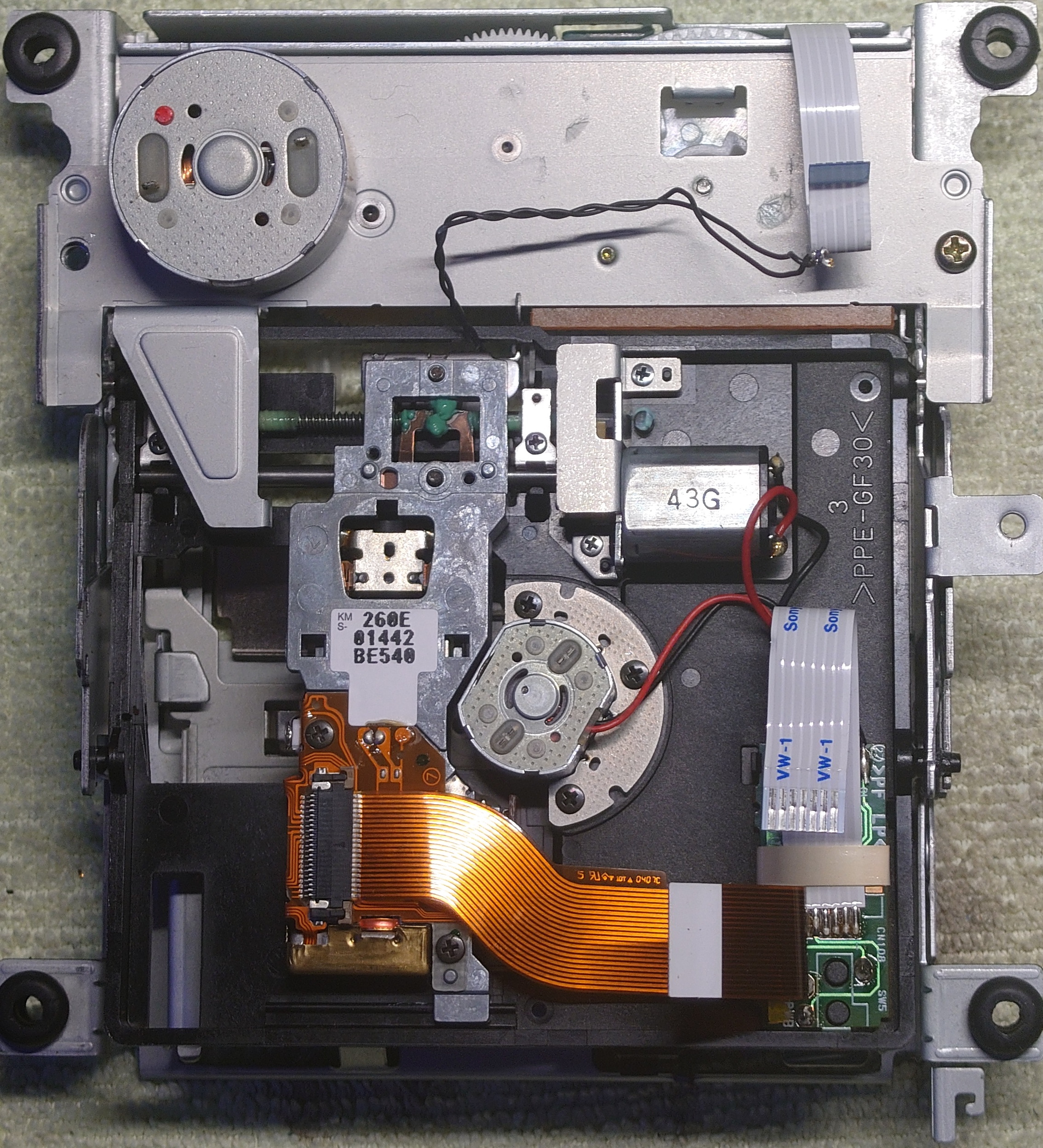

MD Mechanism Type: KMK-260EE0
Content adapted from: Onkyo Press Release Onkyo Press Release (MiniDisc Wiki mirror) av.watch
Manuals
Repair
Photos

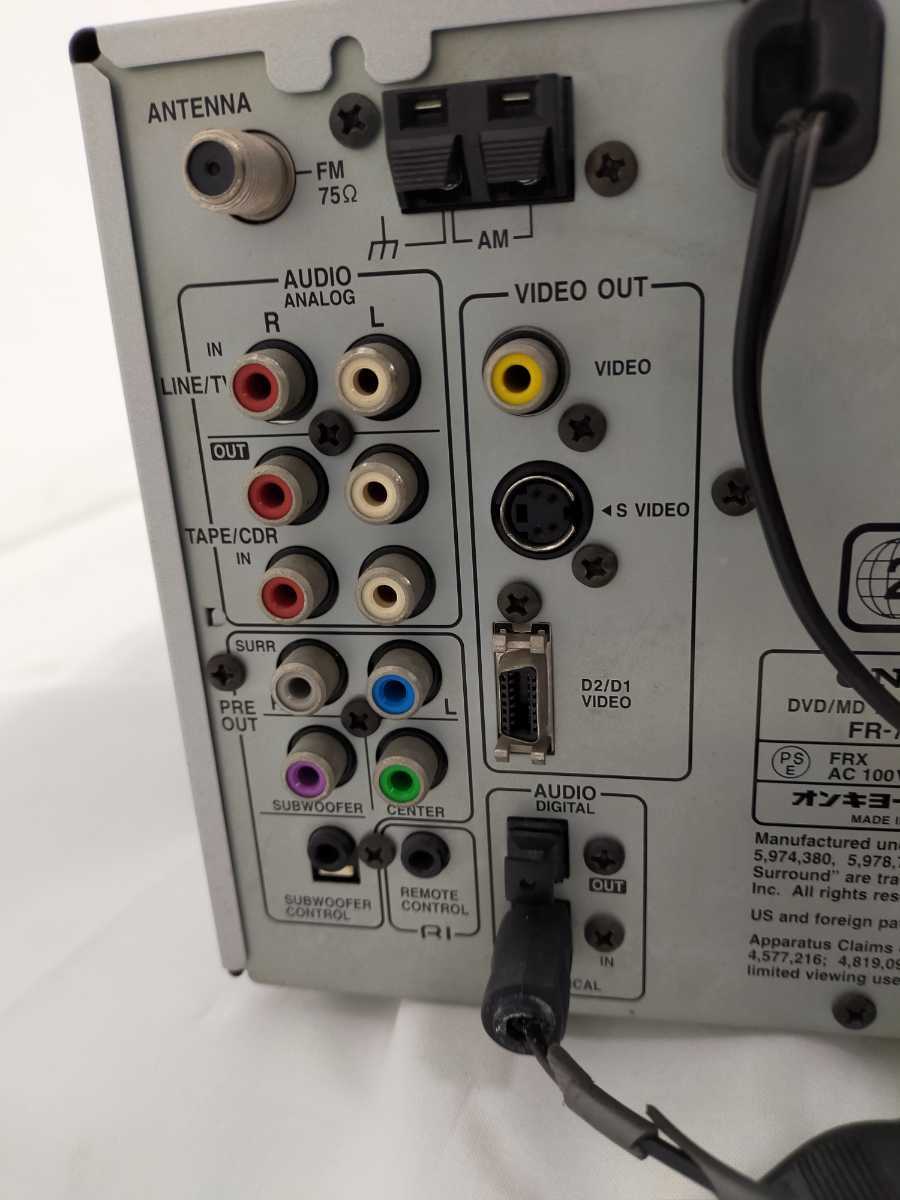

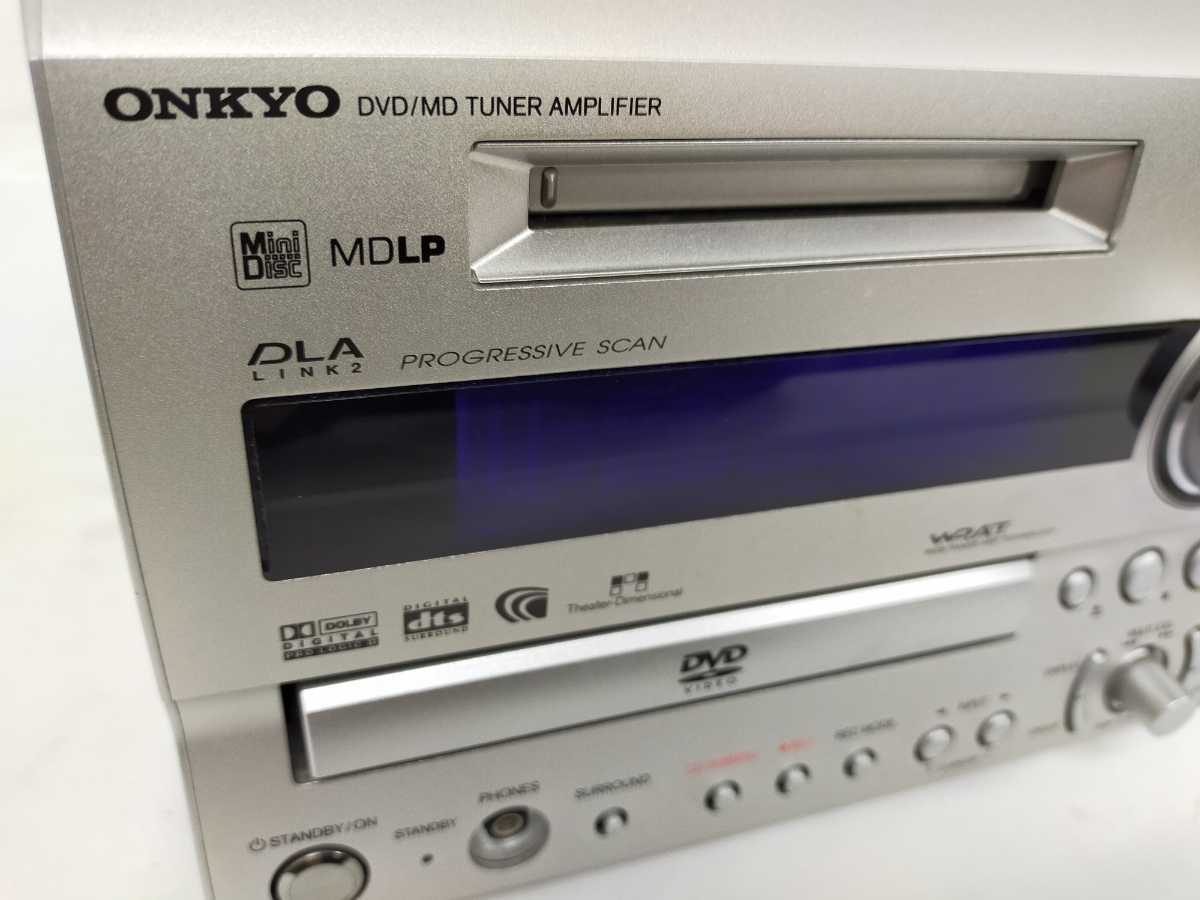

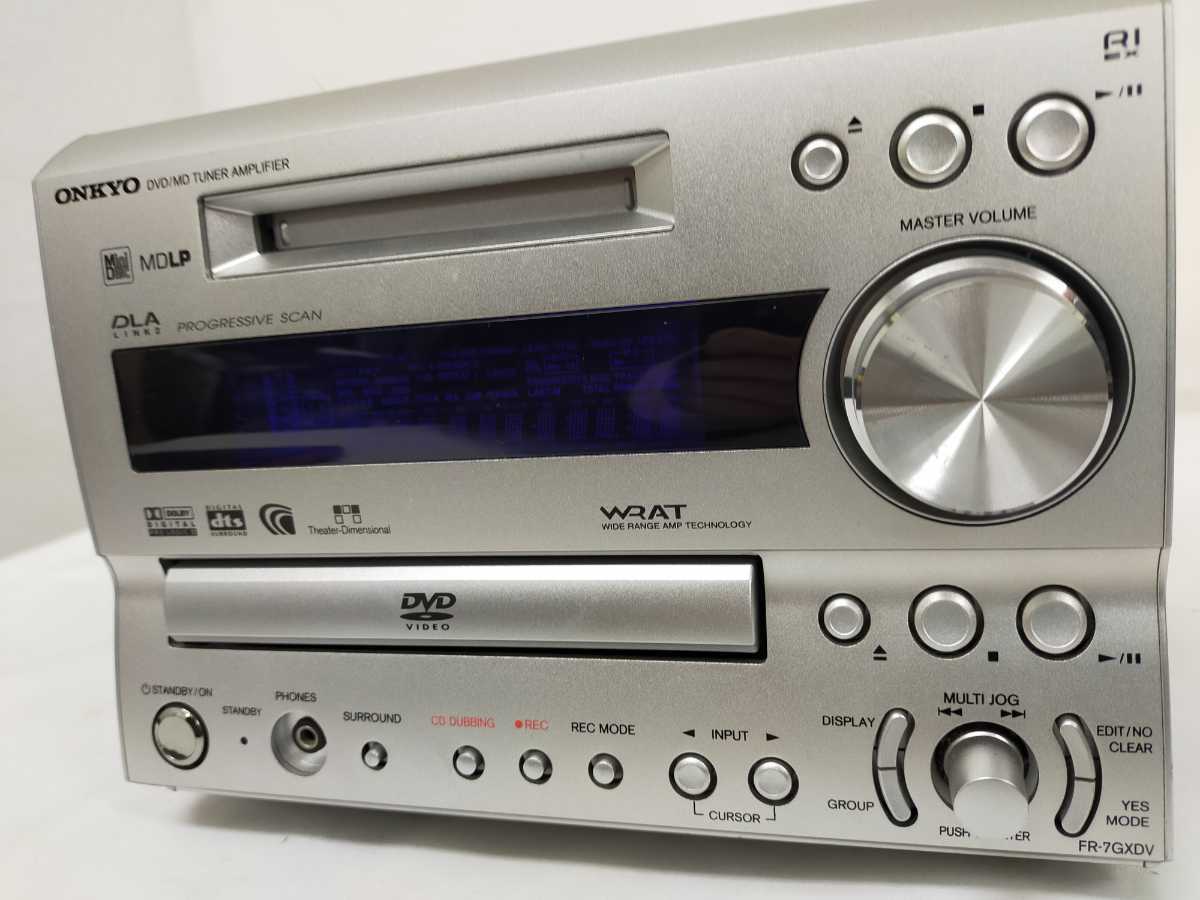

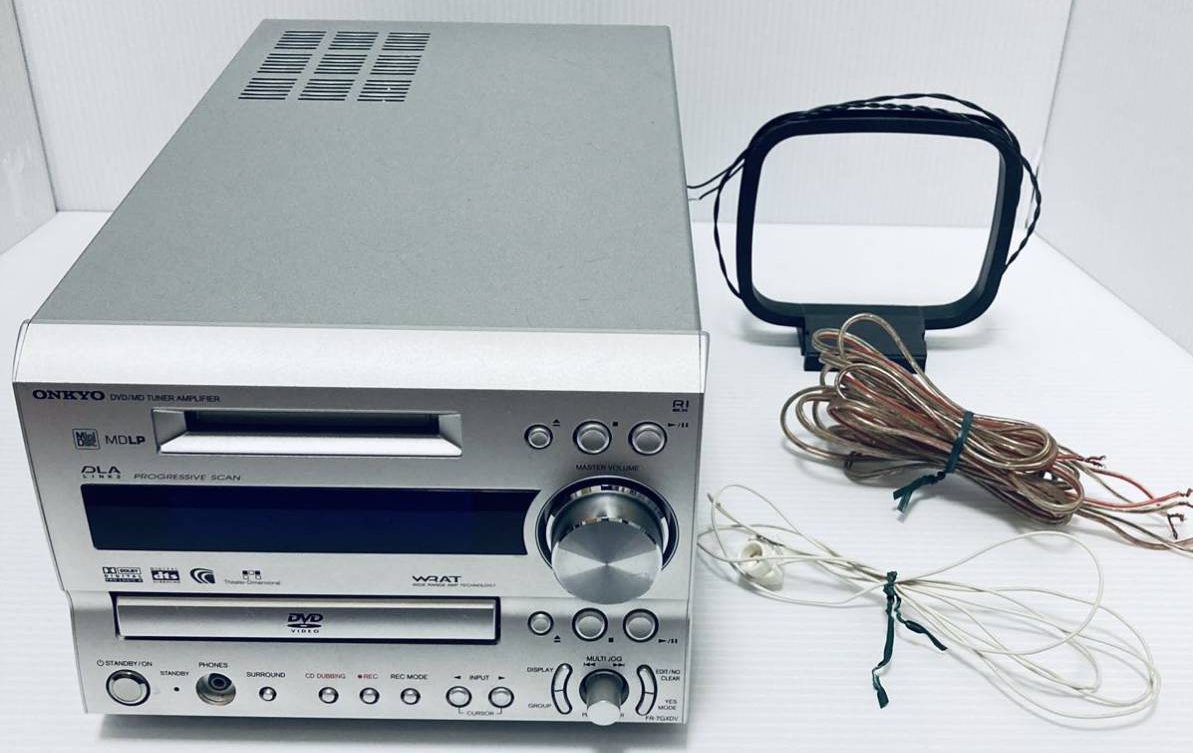

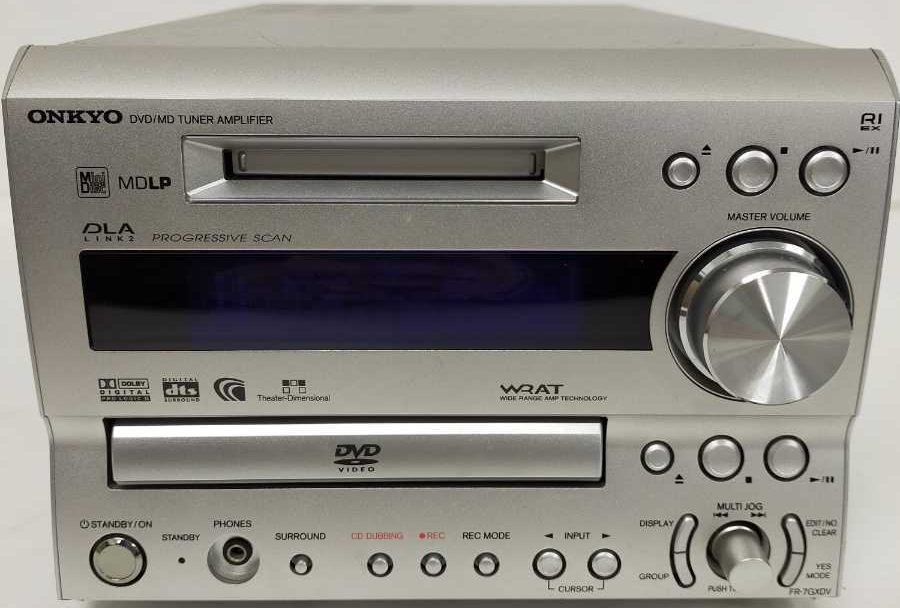

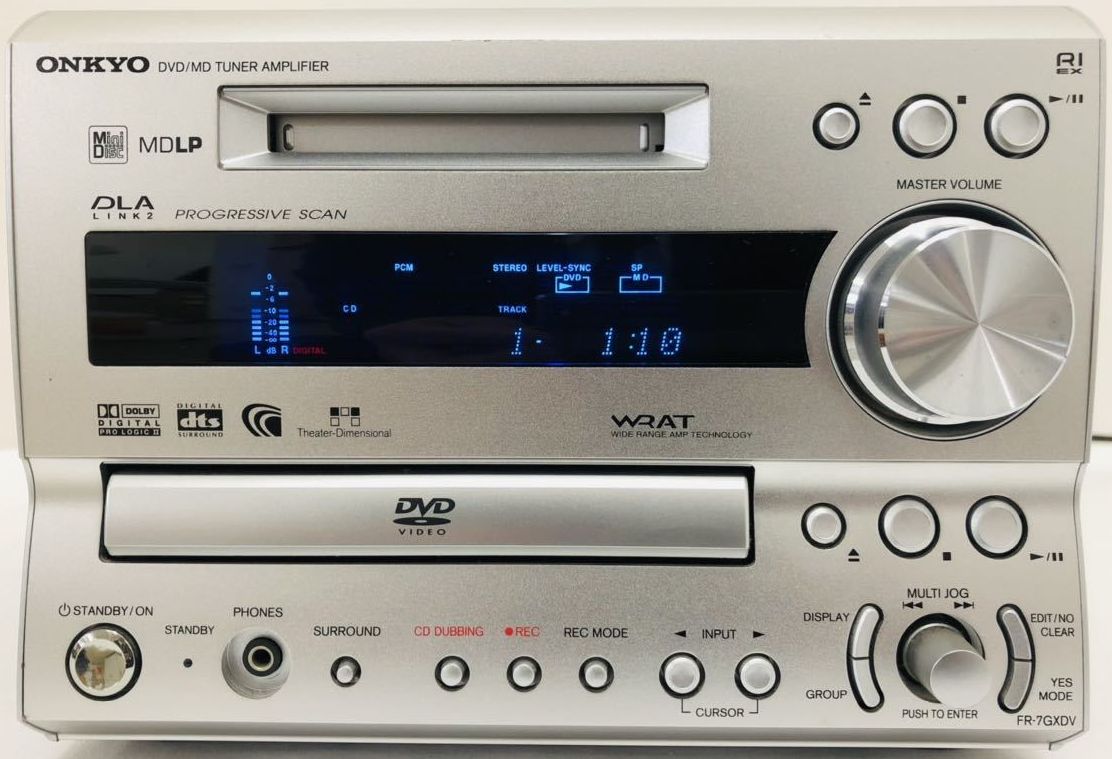

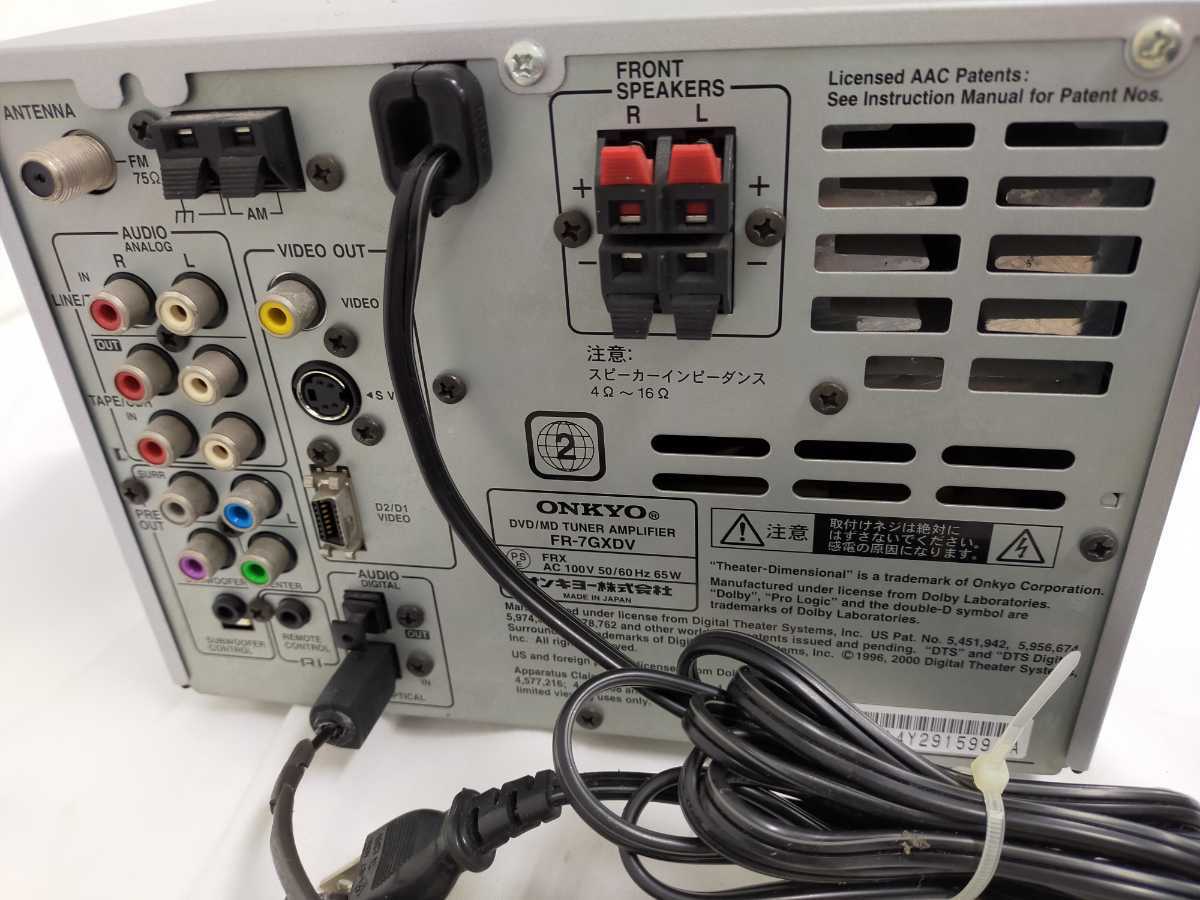

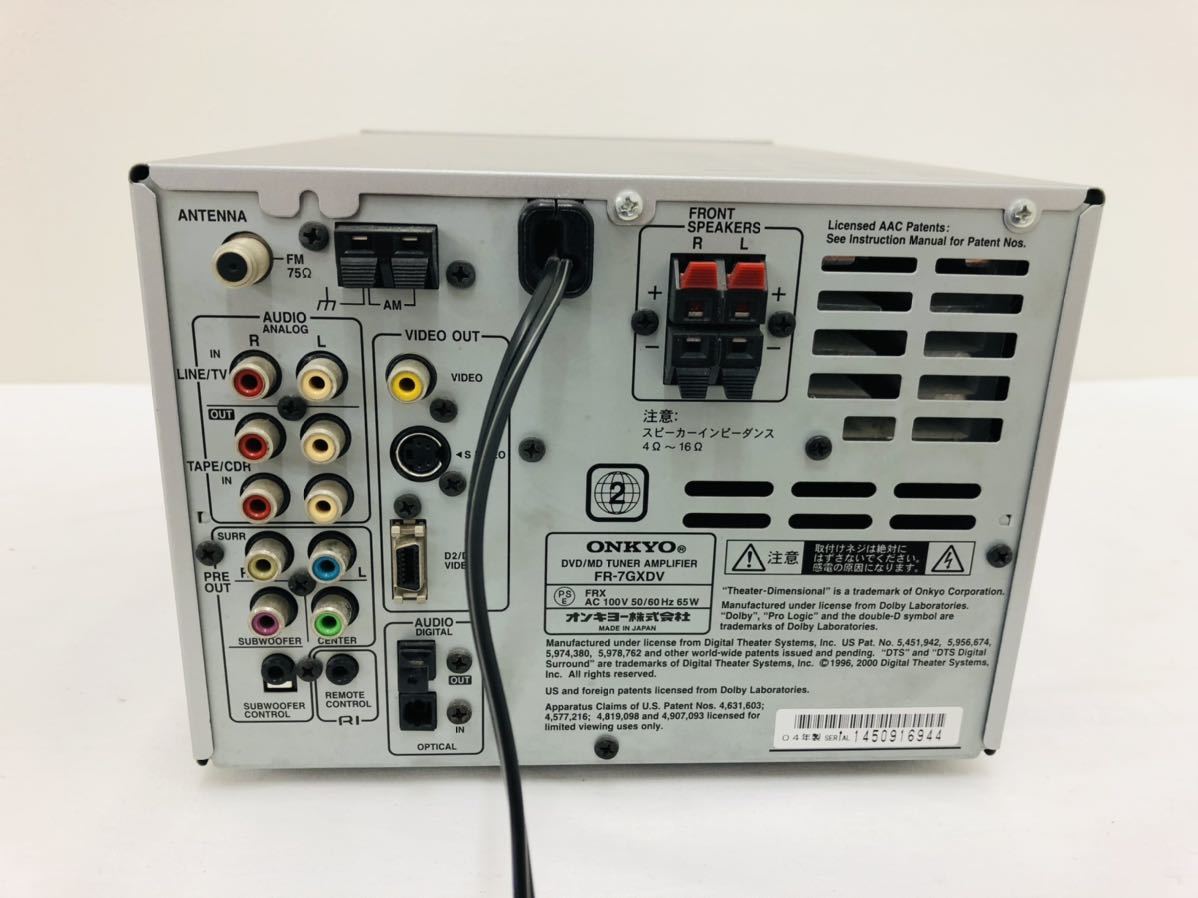

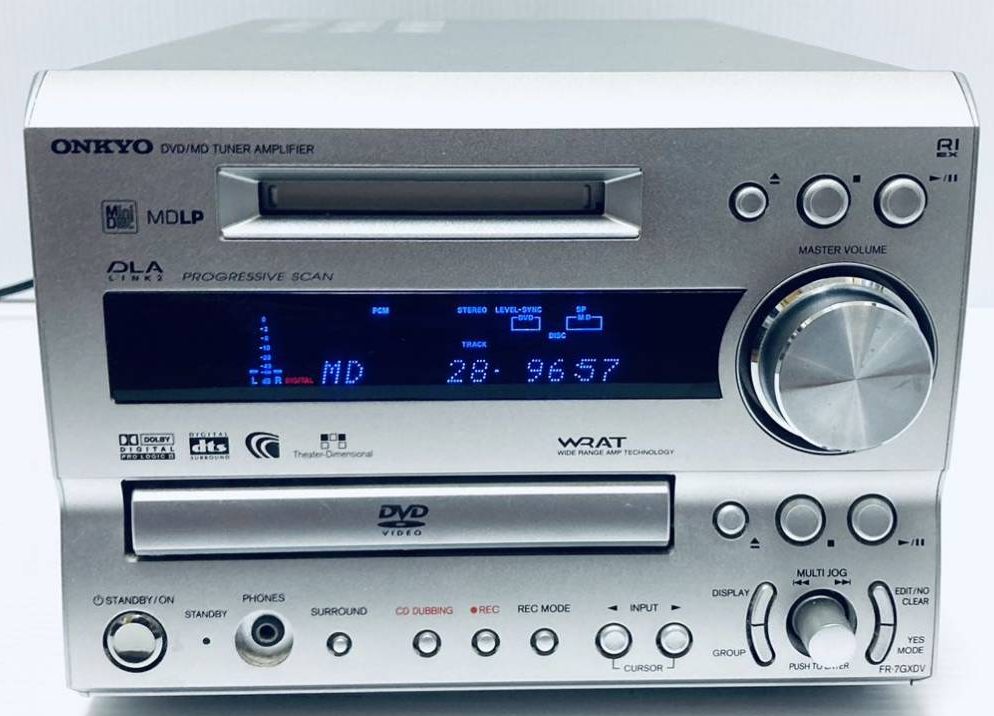

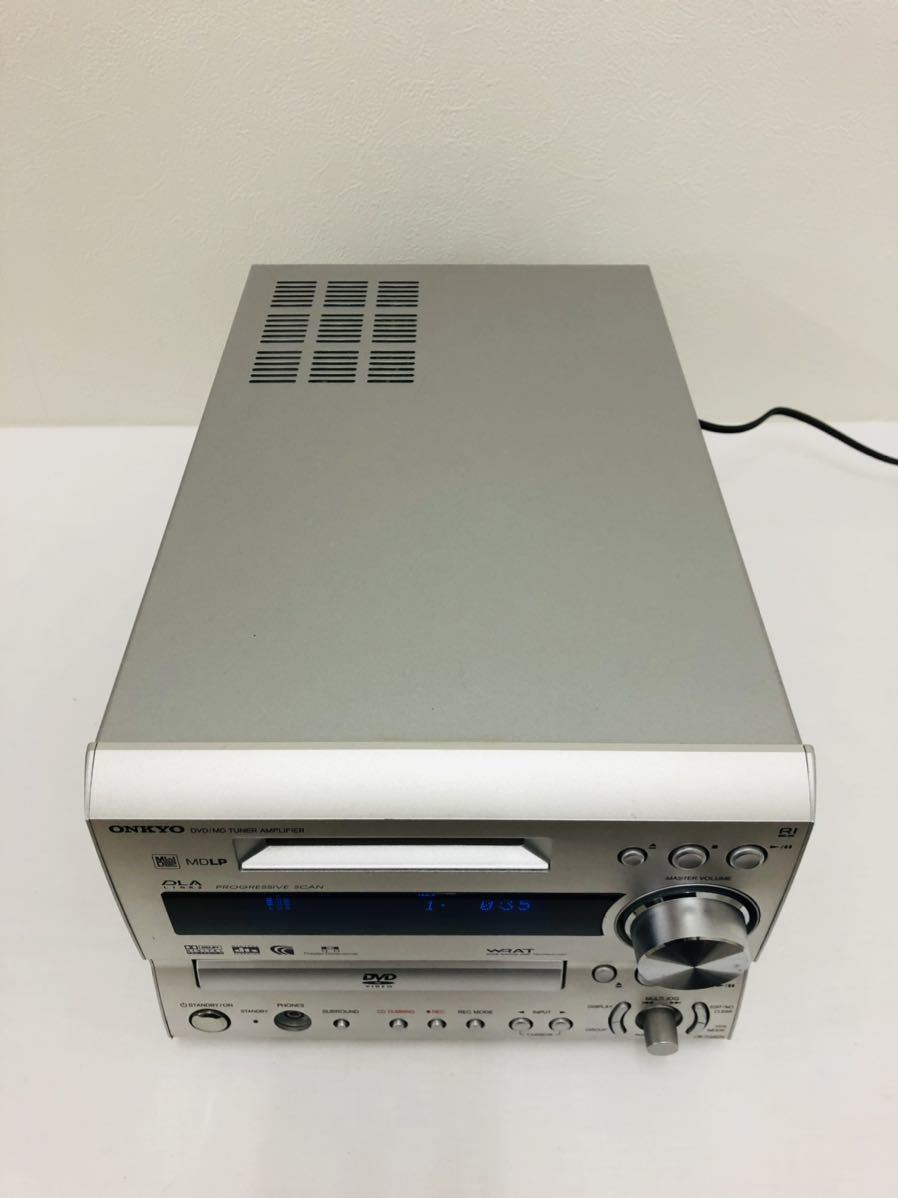

External

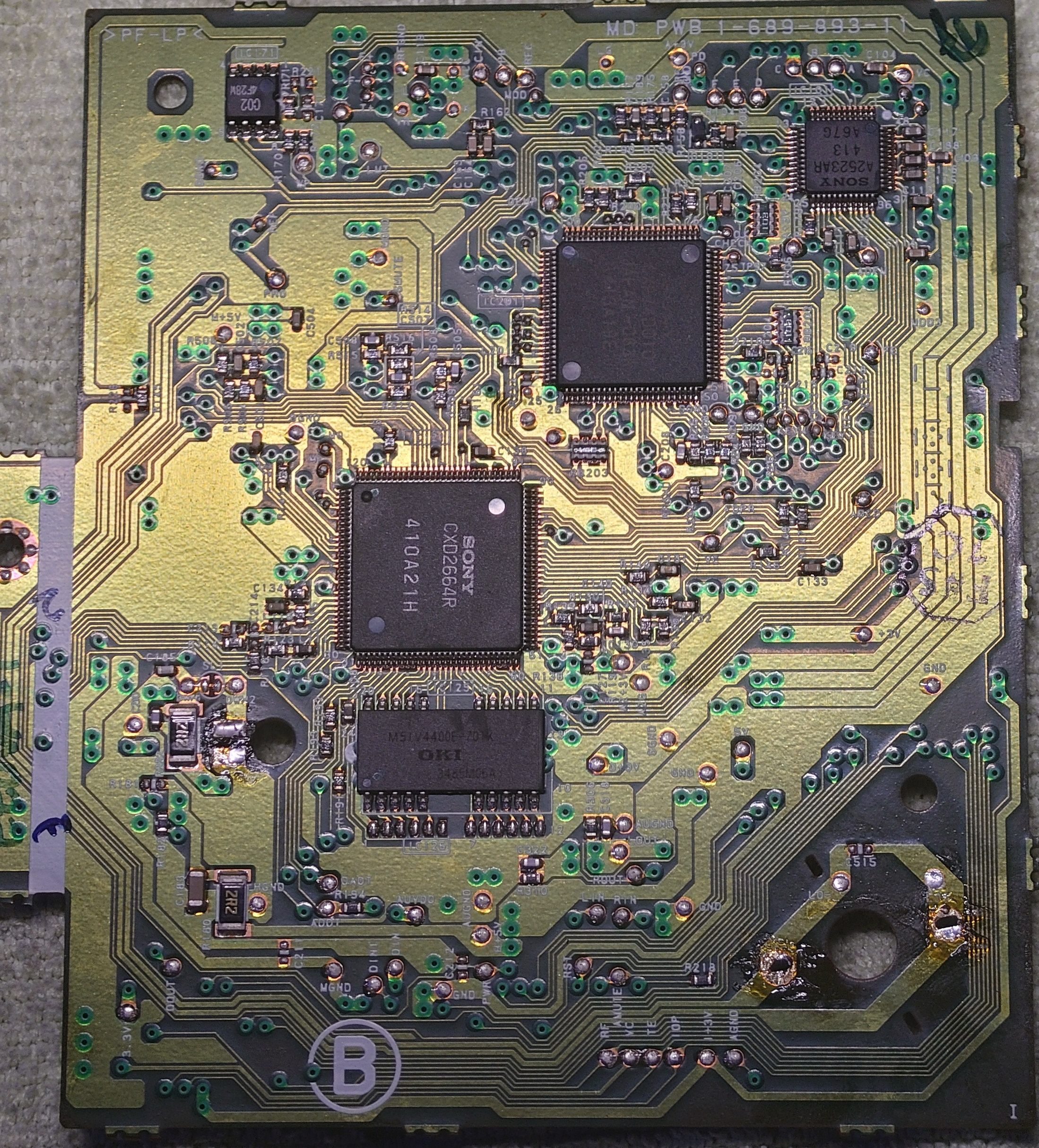

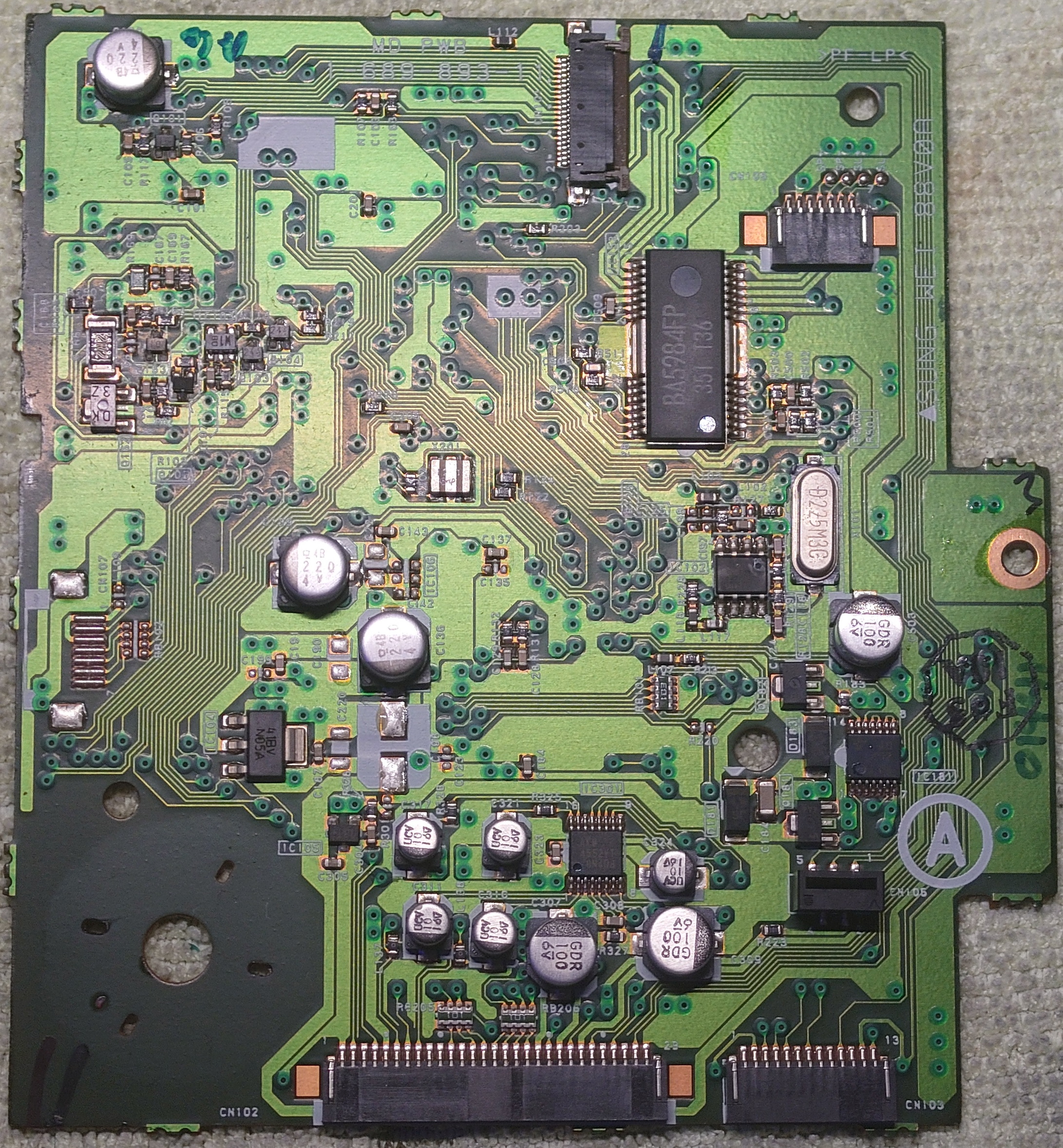

Internal
HQ Press photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Export | No |
| Remote Page | |
| Atrac Ic | CXD2664R |
| Manual | User manual |
| Region | Japan |
