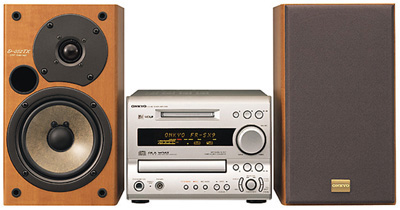

| Name | FR-SX9 |
|---|---|
| Manufacturer | Onkyo |
| Released | 2001/10 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W205 × H154 × D354mm |
| Weight | 5700 |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| ¥75 000 | |
| - | |

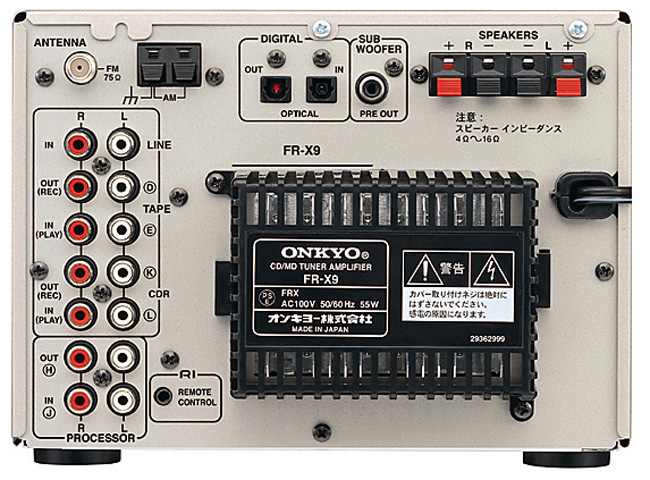

| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
2X CD → MD dubbing
<Amplifier part>
- Practical maximum output 26W + 26W (4Ω, JEITA)
- Rated output 19W+19W (4Ω)
- 16W+16W (6Ω)
- Input sensitivity/input impedance 150mV/50kΩ (LINE, TAPE, CDR)
- Frequency characteristic 10Hz to 100kHz/±3dB (CD)
<Tuner part>
- Receiving frequency FM 76.00-108.00MHz ( * ) AM 522-1629kHz
- Frequency characteristic 30Hz to 15kHz (±1.5dB)
<Overall>
- power consumption 55W (Electrical Appliance and Material Safety Law technical standards)
Optional K-SX7 Cassette Deck msrp: 20,000 yen
Content adapted from: Onkyo FR-SX9 Press Release Onkyo FR-SX9 Press Release (MiniDisc Wiki mirror) Minidisc.org av.watch Phileweb news Phileweb product database
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Scms | Yes |
|---|---|
| Web Md | No (not NetMD) |
| Manual | User manual |
| Region | Japan |
