| Name | FR-V77 |
|---|---|
| Manufacturer | Onkyo |
| Released | 2001/05 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 205 x 154 x 356mm |
| Weight | 5.5kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥63 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | Not recorded |

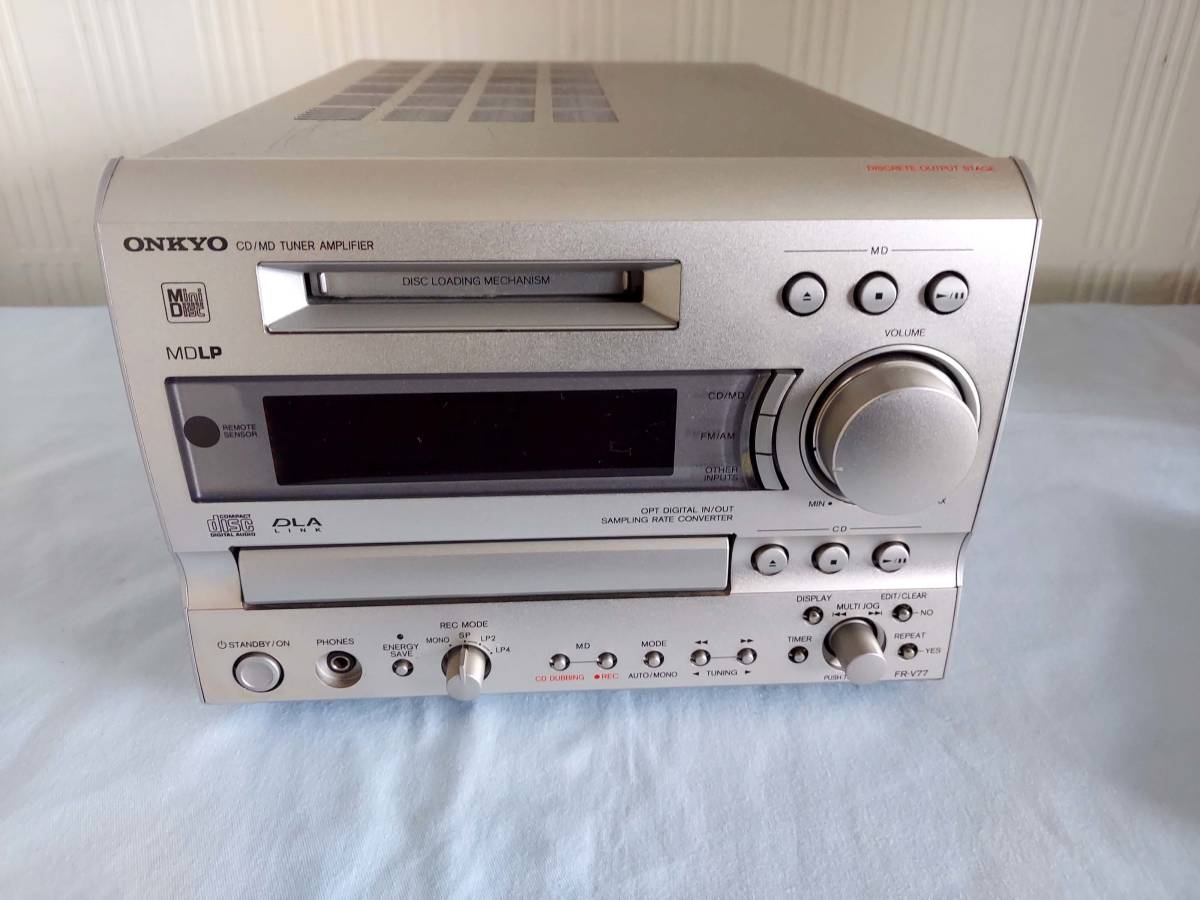

CD/MD/FM Tuner receiver.
- 2X CD-to-MD recording
- Synchro-recording
- CD-R playback
- 30-station radio presets
- "DLA Link" automatically sets analog recording levels, bass boost, motor-driven volume control, battery-free memory backup. 25W per channel (4 ohms)
Content adapted from: Onkyo Press Release Onkyo Press Release (MiniDisc Wiki mirror) Minidisc.org page
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Web Md | No (not NetMD) |
|---|---|
| Manual | User manual |
| Region | Japan |
