| Name | X-N7FX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2008/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 215 x 142 x 349mm |
| Weight | 5.1kg |
| ATRAC ver | Not recorded |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥55 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 3.5mm headphone, RCA out, Speaker amplifier, other |
| Control | USB Type-A |

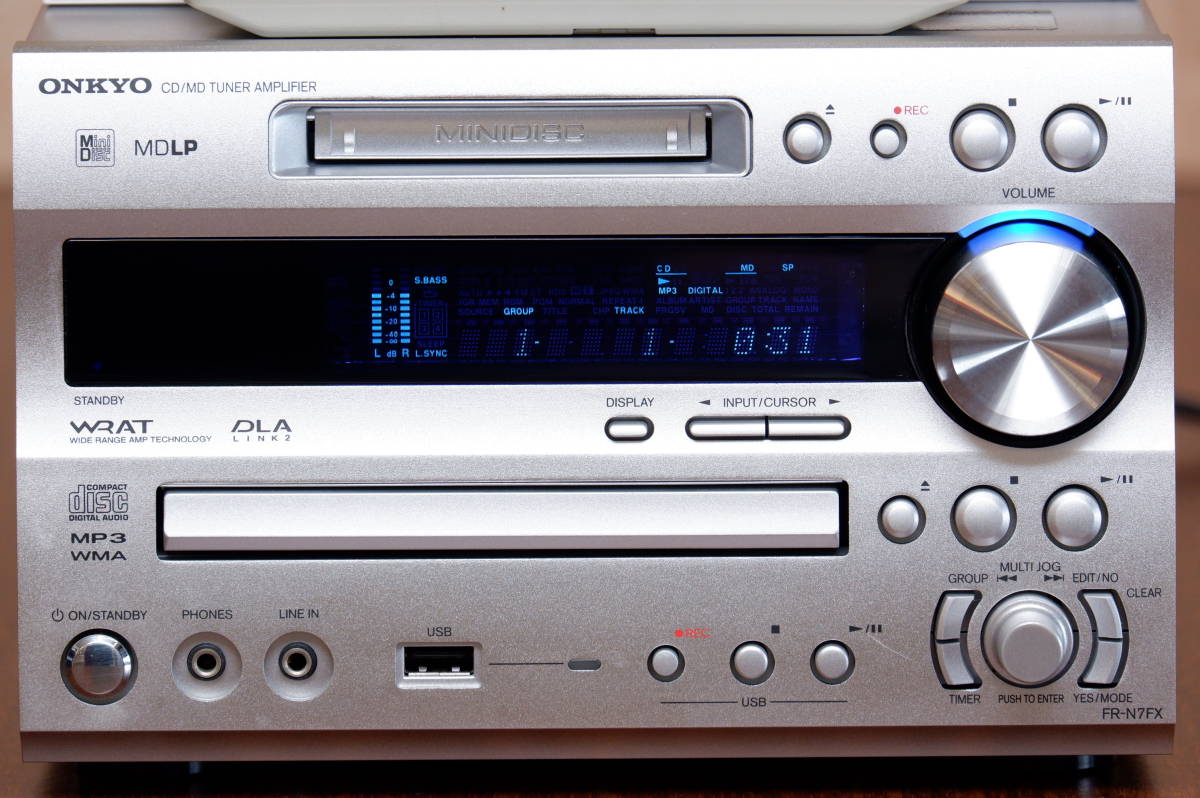

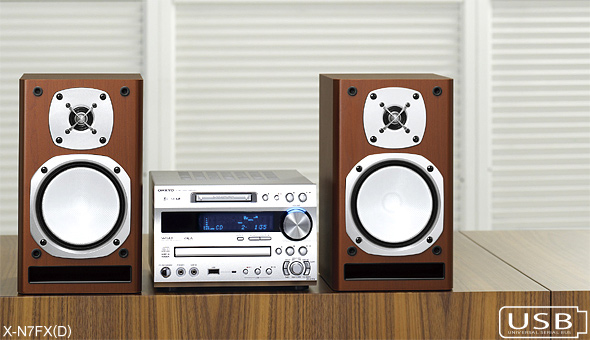

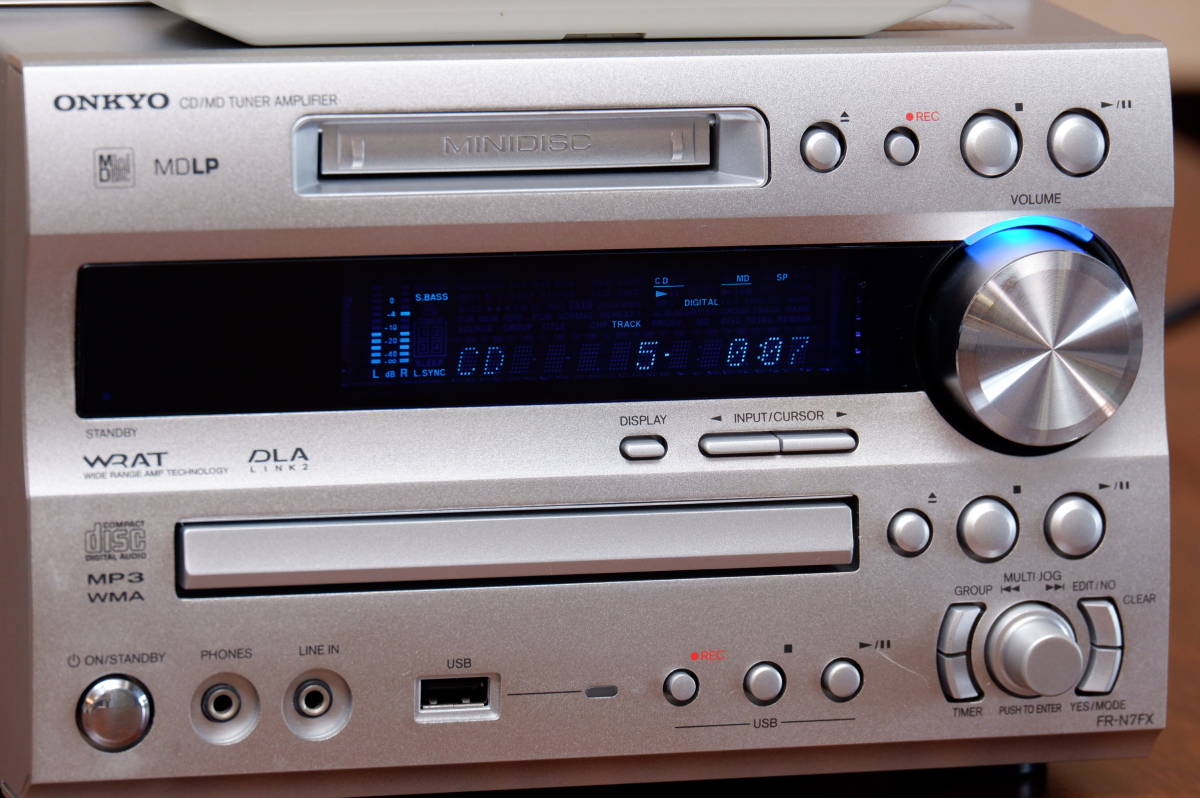

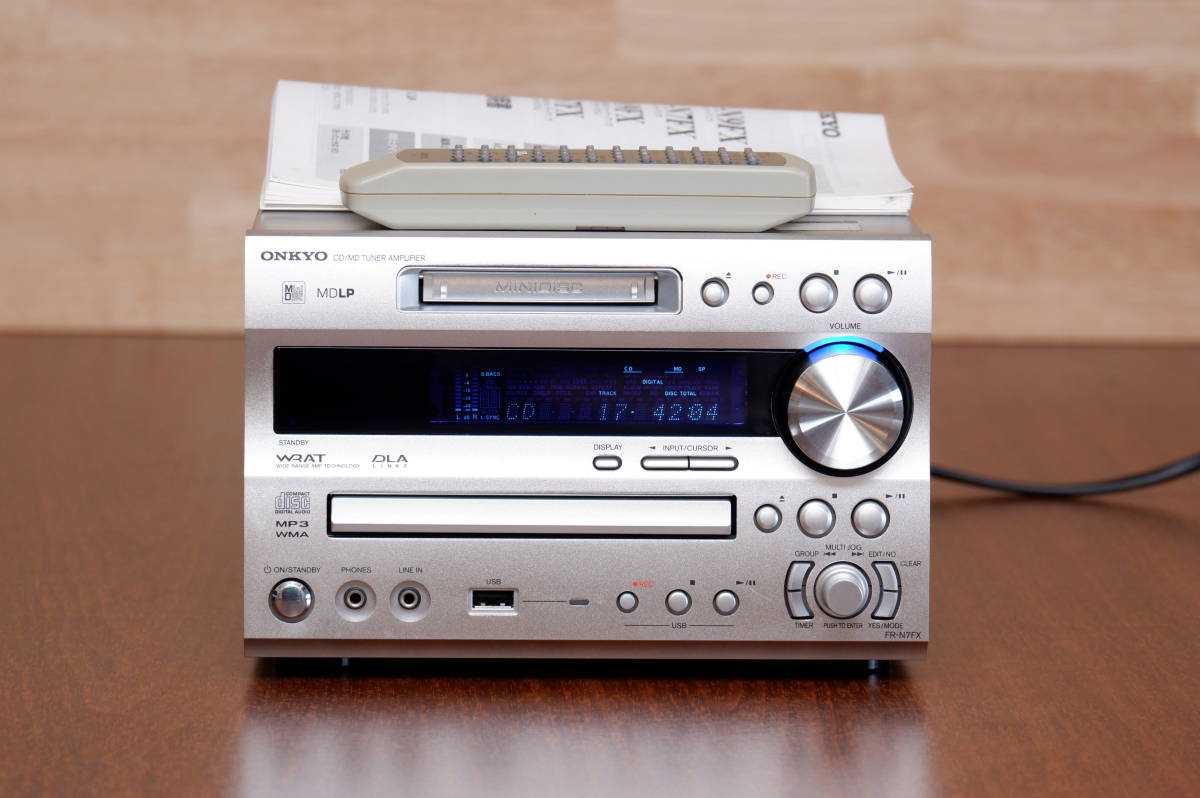

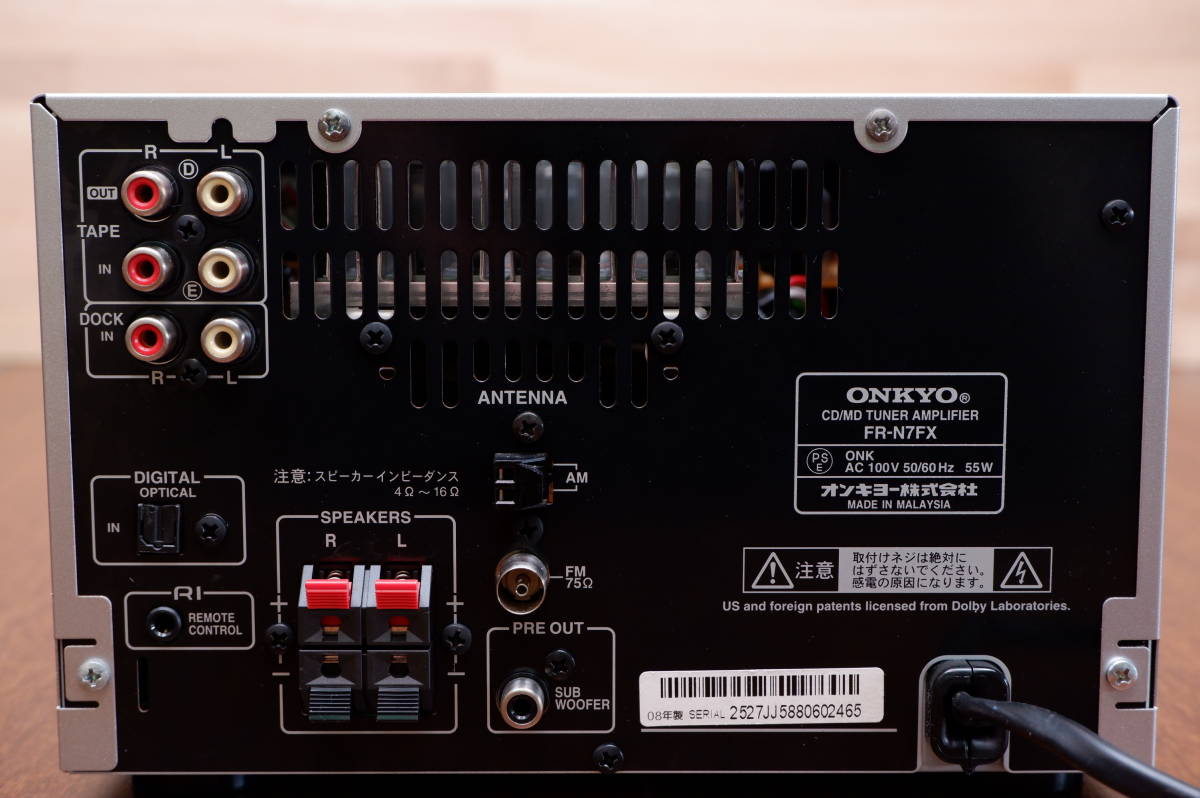

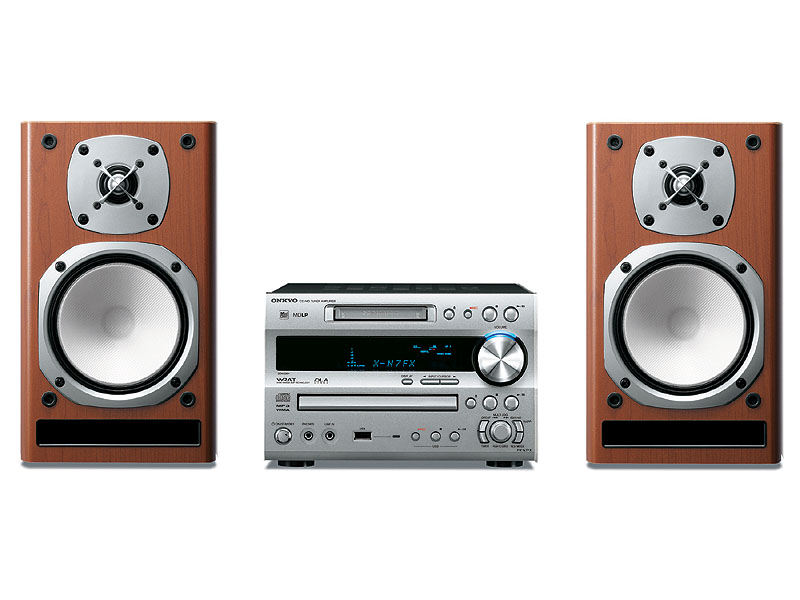

Onkyo X-N7FX. The main receiver unit has a part# FR-N7FX, sold individually. It is the 10th generation of the compact all-in-one component "FR series"

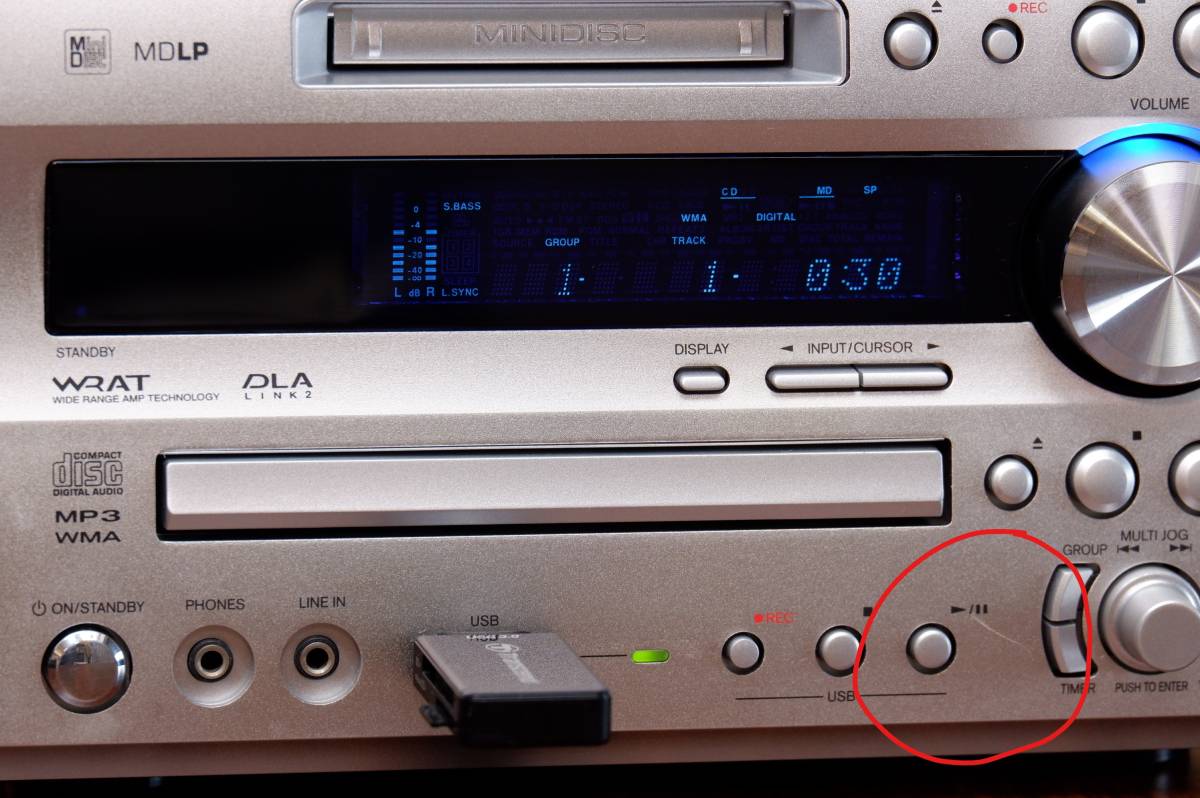

Late era MD/CD deck. It is capable of copying both MD/CD to a USB stick. It can also play music off of said stick.
Content adapted from: Onkyo Product page av.watch Onkyo X-N7FX_N9FX Press Release
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Web Md | Not currently supported |
|---|---|
| Export | Yes |

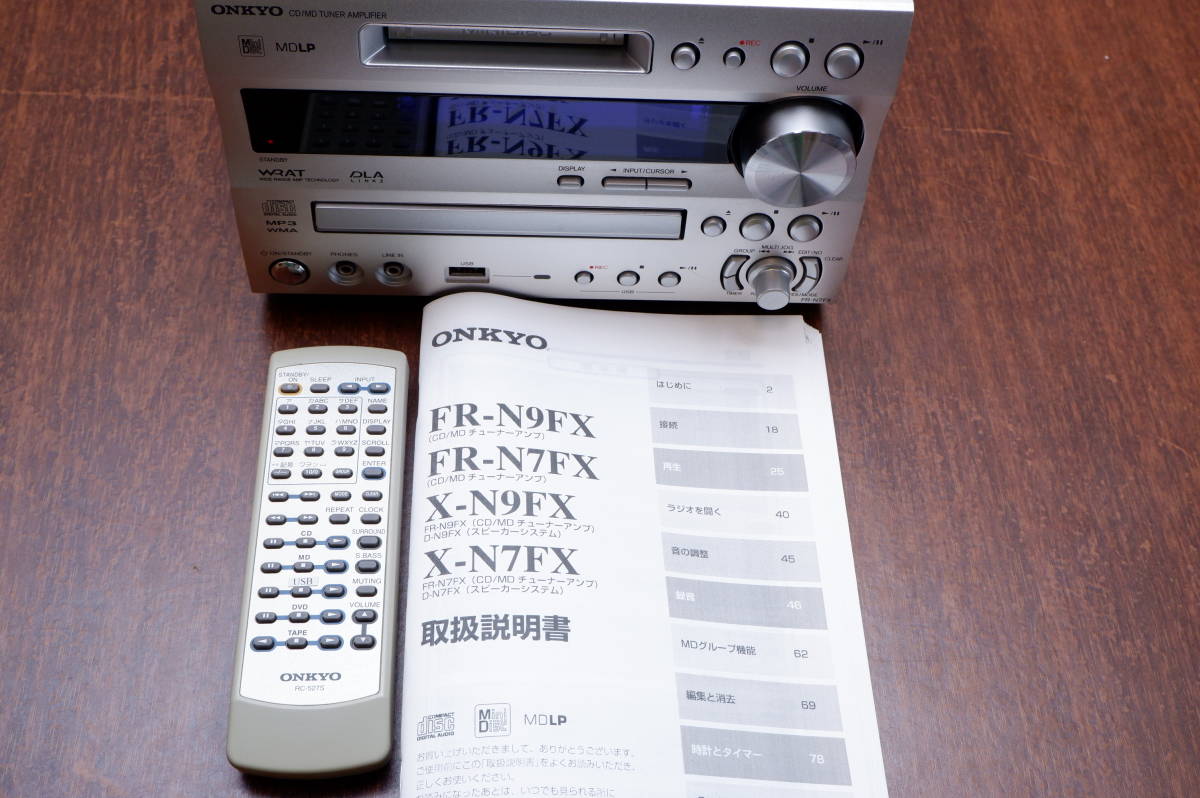

| Manual | User manual |
| Region | Japan |
