| Name | X-N7TX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2007/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | Yes |
| Radio | Yes - 76-90Mhz |
| Dimensions | Width 164 x Height 282 x Depth 258 mm |
| Weight | 3.7kg |
| ATRAC ver | Hi-MD |
| Battery | Not recorded Not recorded |
| Battery notes | Not recorded |
| Sidecar (depr) | Not recorded |
| Voltage | 100 |
| Power cable | Not recorded |
| Price (launch) | Not recorded |
| Not recorded | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm line out (analog-only), 3.5mm headphone, RCA out |
| Control | Not recorded |

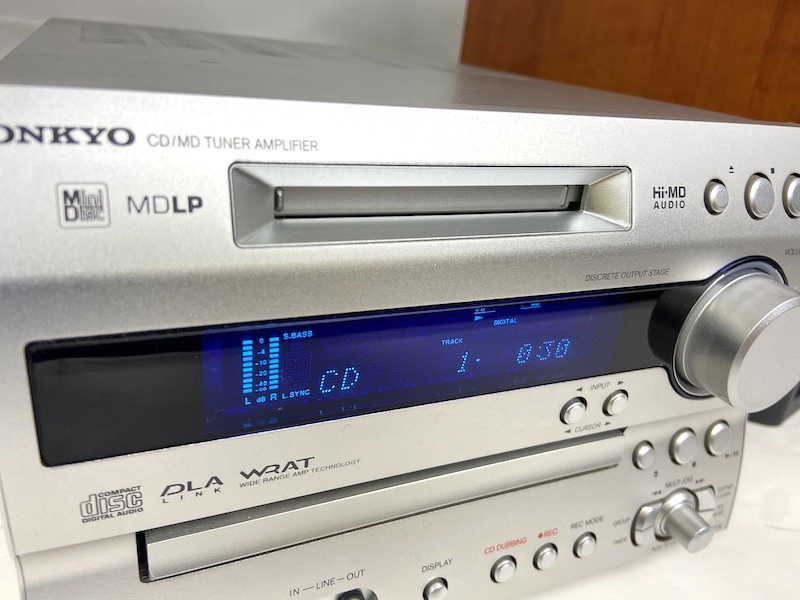

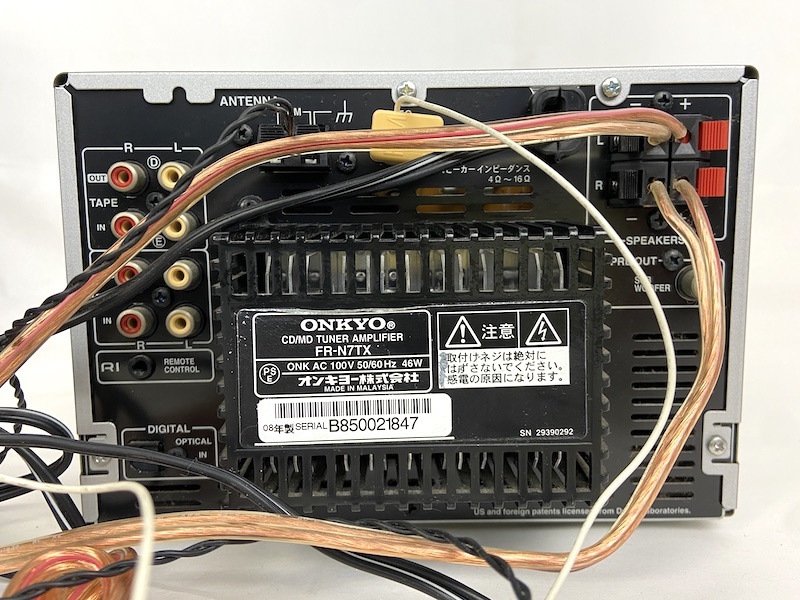

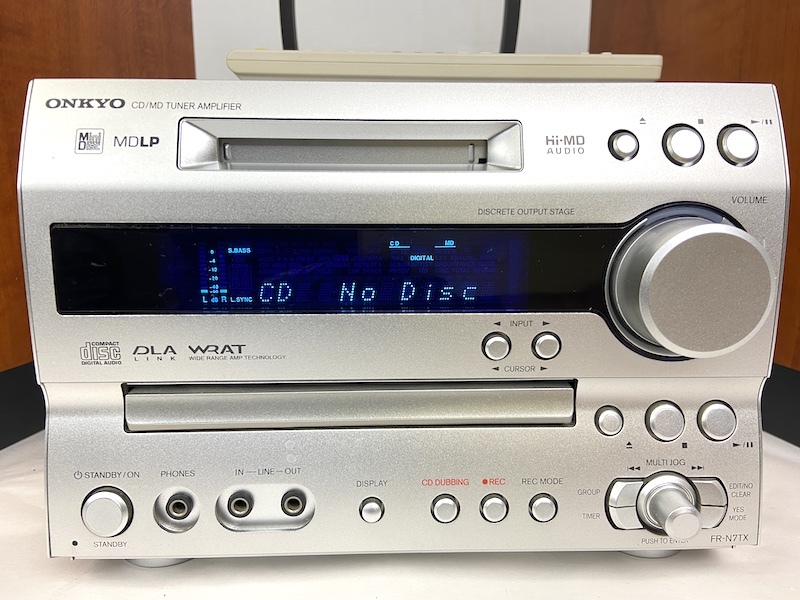

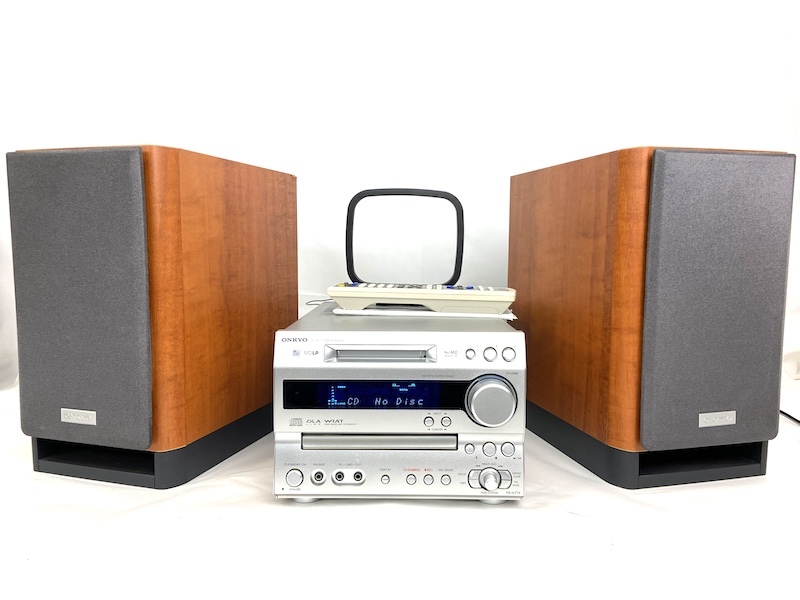

Onyo X-N7TX / FR-N7TX. X-N7TX is the model (including speakers) and FR-N7TX is stamped on the main body of the unit.

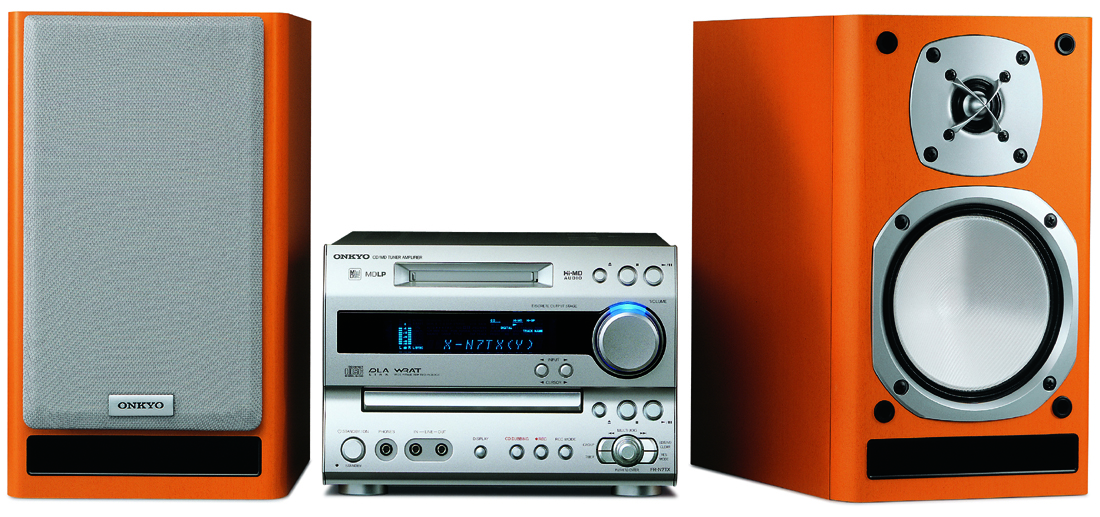

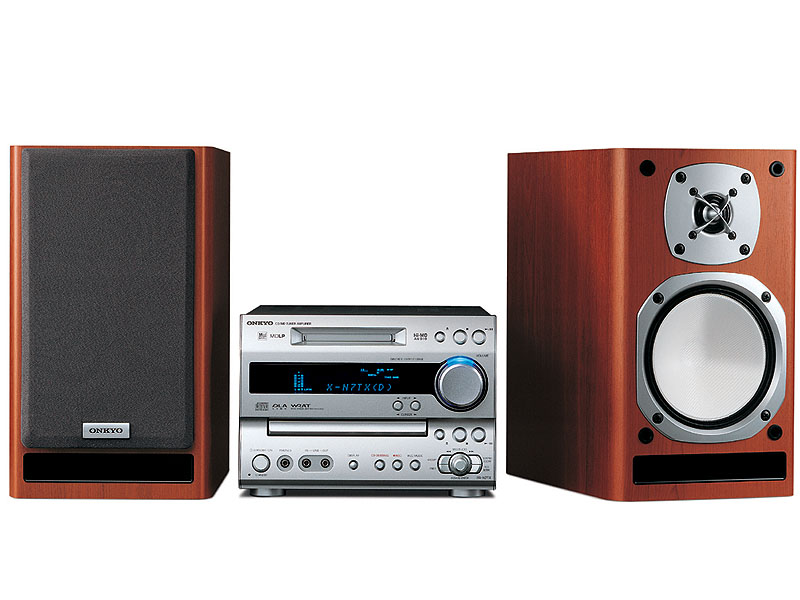

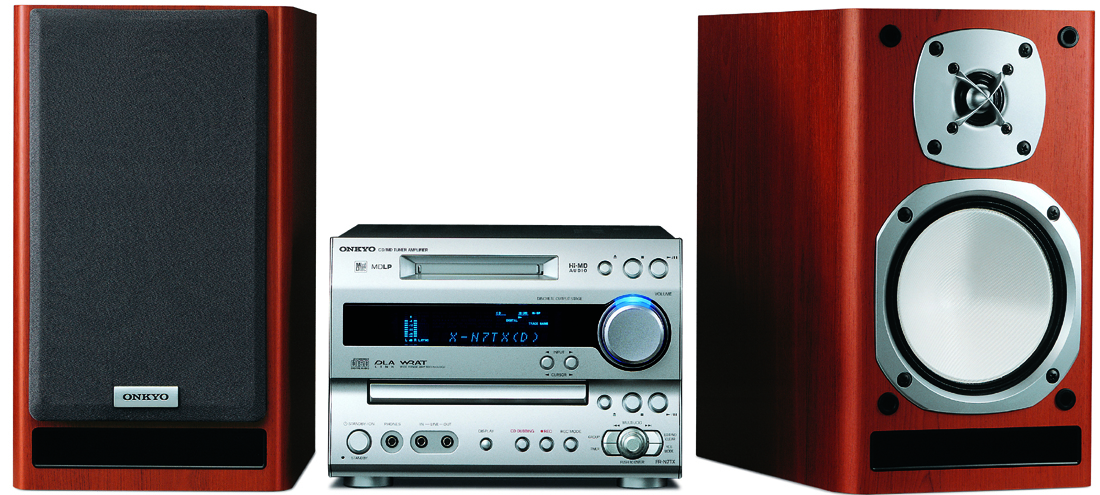

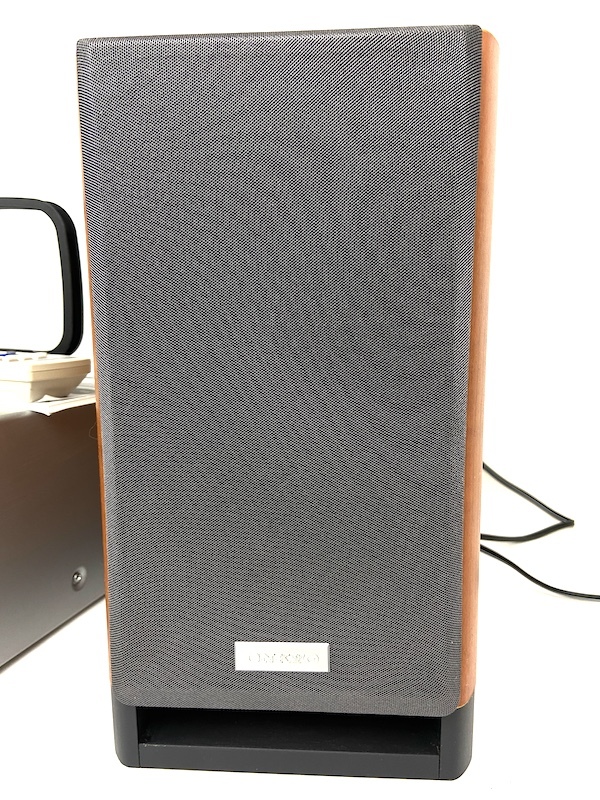

Offered in 2 speaker colors: X-N7TX-D (dark) / X-N7TX-Y (yellow)

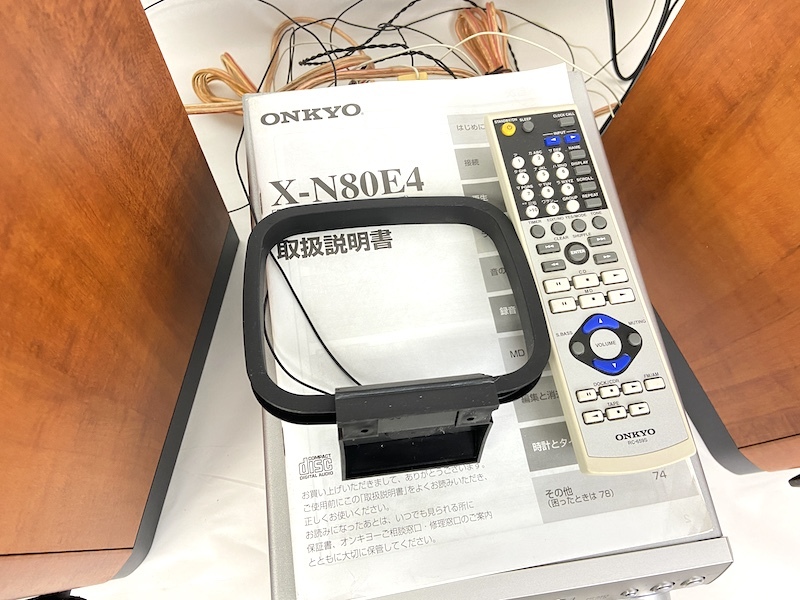

Remote: Onkyo RC-659S
Content adapted from: Onkyo Press Release Onkyo Press Release (MiniDisc Wiki mirror) av.watch
Manuals
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
Additional specifications and references
| Remote Page | |
|---|---|
| Atrac Ic | CXD2687-001GG |
| Manual | User manual |
| Region | Japan |
