Onkyo X-N7XX

Source: MiniDisc Wiki contributors · September 3, 2026 snapshot · CC BY 4.0, except where otherwise credited.

Attribution and changes

Adapted from “Onkyo X-N7XX”. Links, layout and file names normalized; missing database fields restored; remote embeds replaced with links. Manufacturer manuals and separately credited photographs retain their original attribution.

Name	X-N7XX
Manufacturer	Onkyo
Released	2012/06
Device type	bookshelf
Recorder	Recorder
MDLP	Yes
NetMD	No
Hi-MD	No
Radio	Yes
Dimensions	215 x 349 x 142 mm
Weight	5100
ATRAC ver	Not recorded
Battery	Not recorded Not recorded
Battery notes	Not recorded
Sidecar (depr)	Not recorded
Voltage	100
Power cable	Not recorded
Price (launch)	Not recorded
Price (launch)	¥47 000
-
Inputs	3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording
Outputs	3.5mm headphone, RCA out
Control	Not recorded

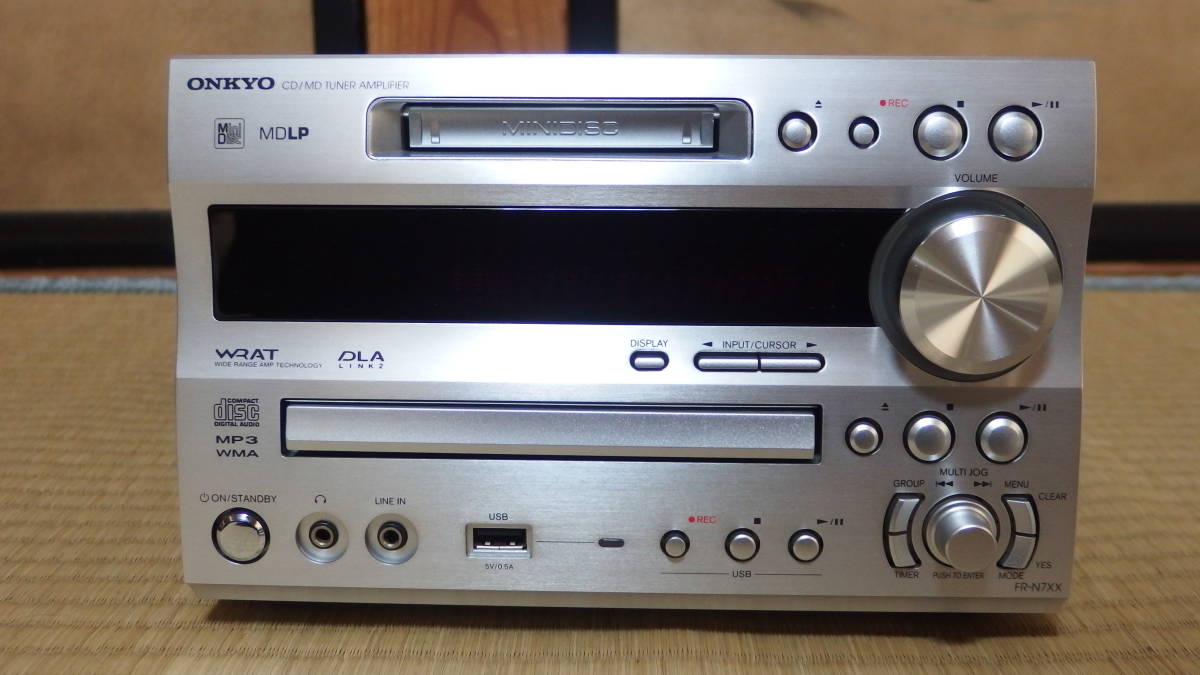

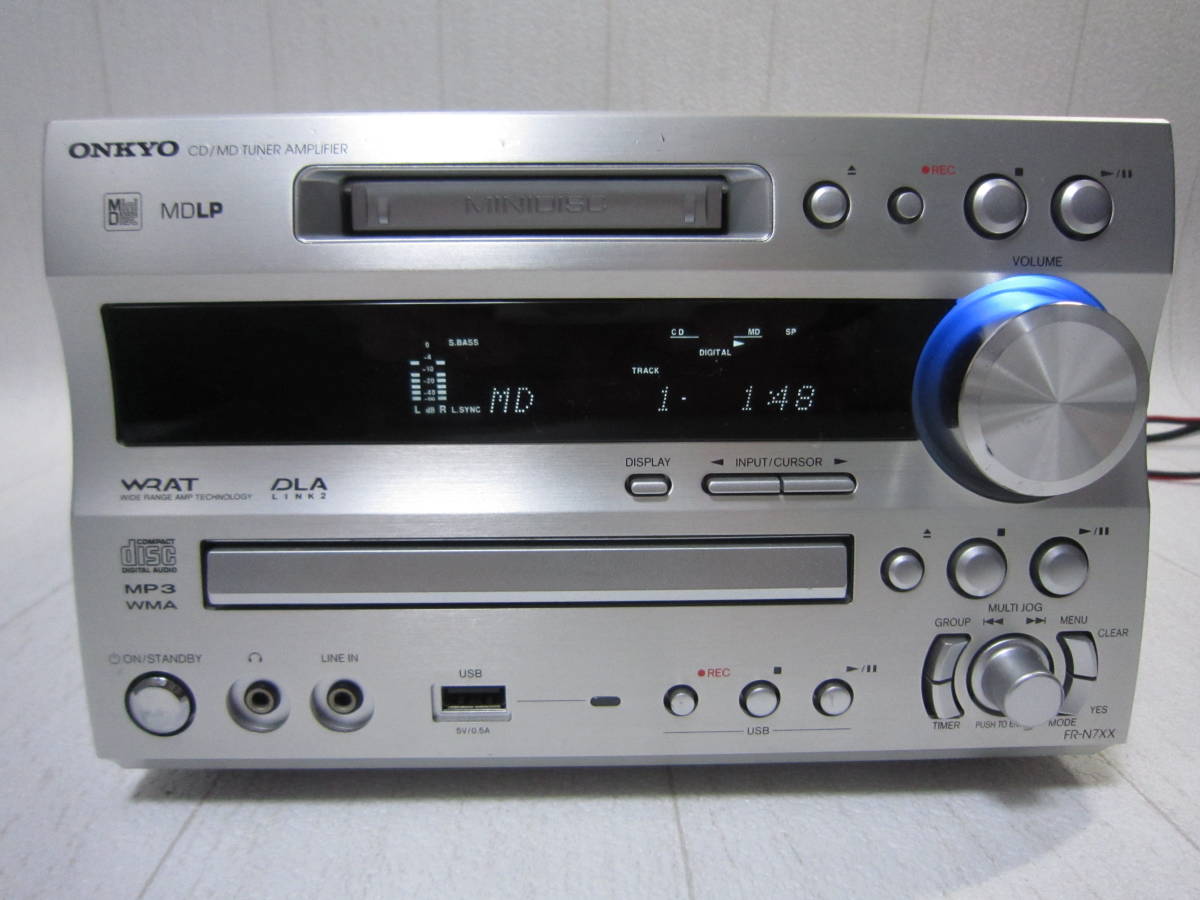

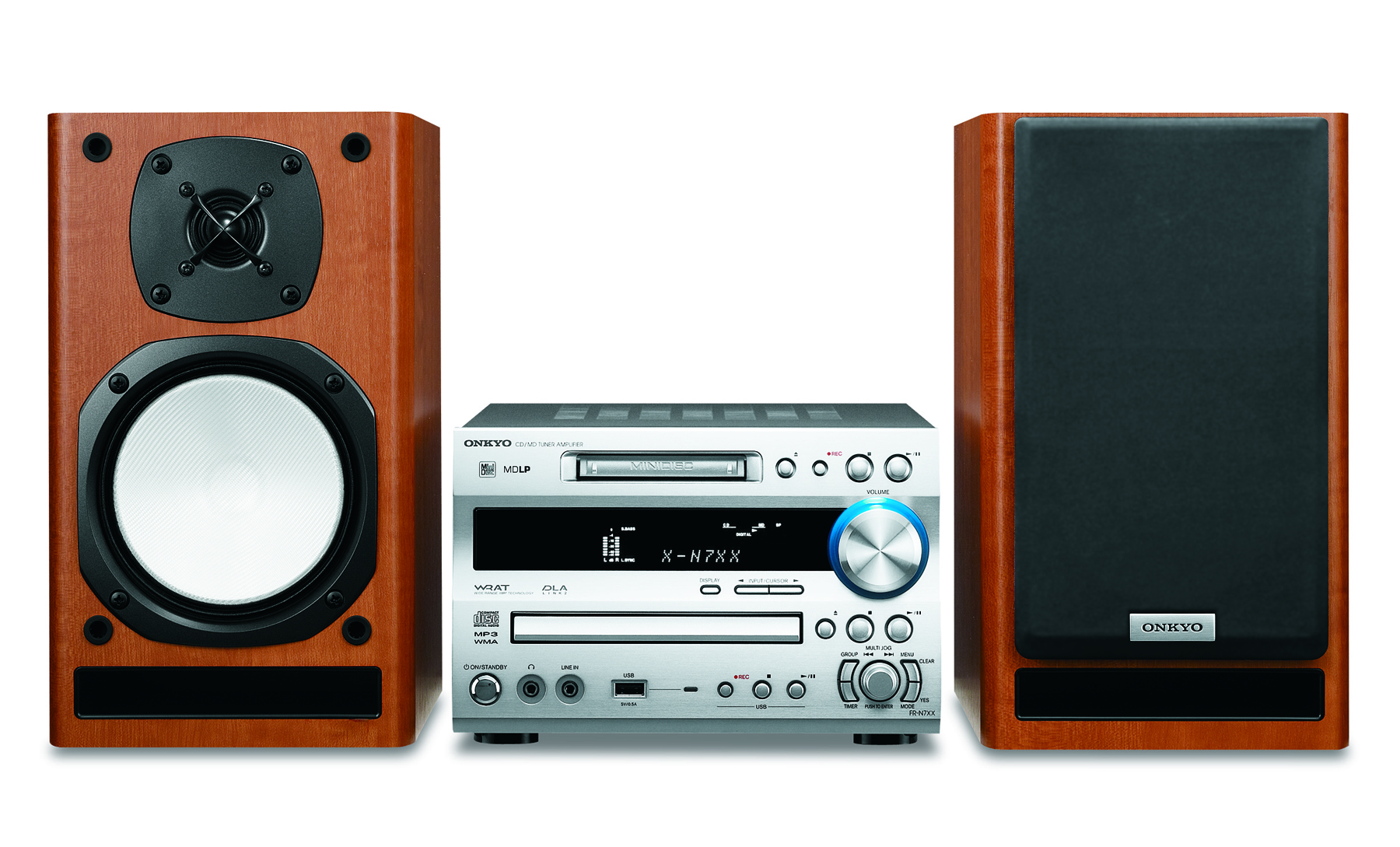

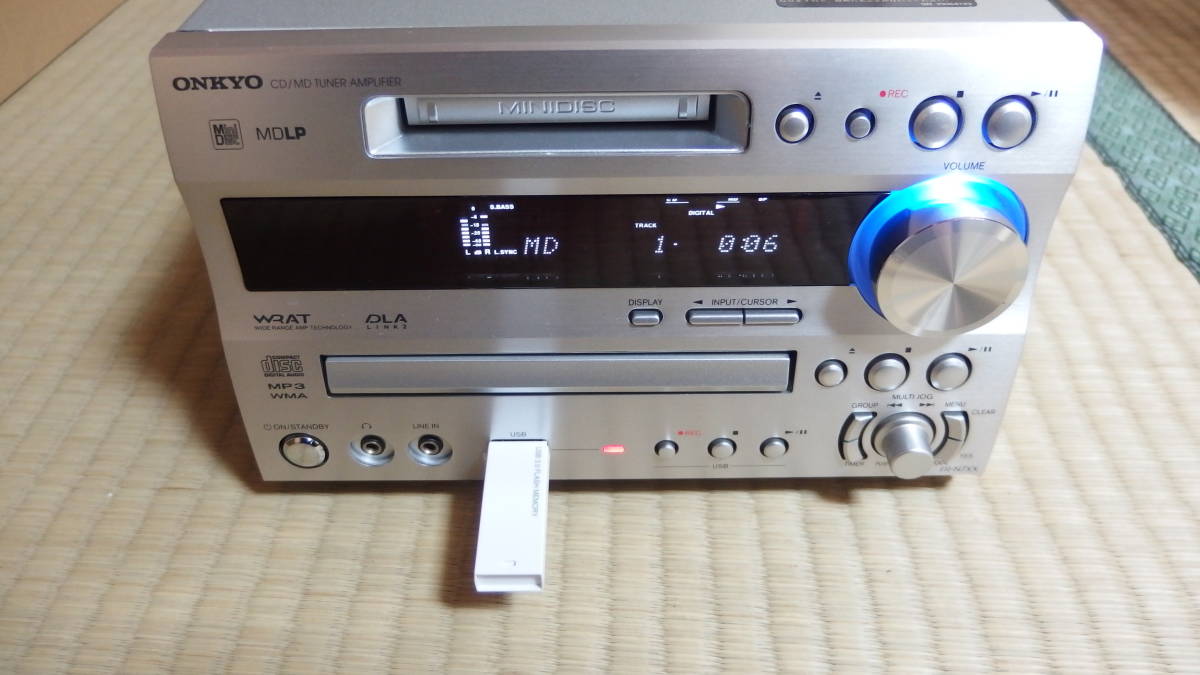

Onkyo X-N7XX / FR-N7XX

Playback of music CDs and MP3 / WMA discs is possible
MP3 / WMA files on USB memory can be played
Various recording modes with MDLP support SP, LP2, LP4, Mono
CD → MD, CD → USB, MD → USB, USB → MD dubbing function (CD → MD can record at 4x speed)
Music CD → MD / USB simultaneous recording function
MD group function to organize many songs
DLA Link (Digital Rec Level Adjustment) function that automatically sets the recording level from CD to MD
Equipped with a digital recording volume that can adjust the level during digital recording to MD
Equipped with FM / AM tuner capable of 30 stations memory (FM can be auto-preset)

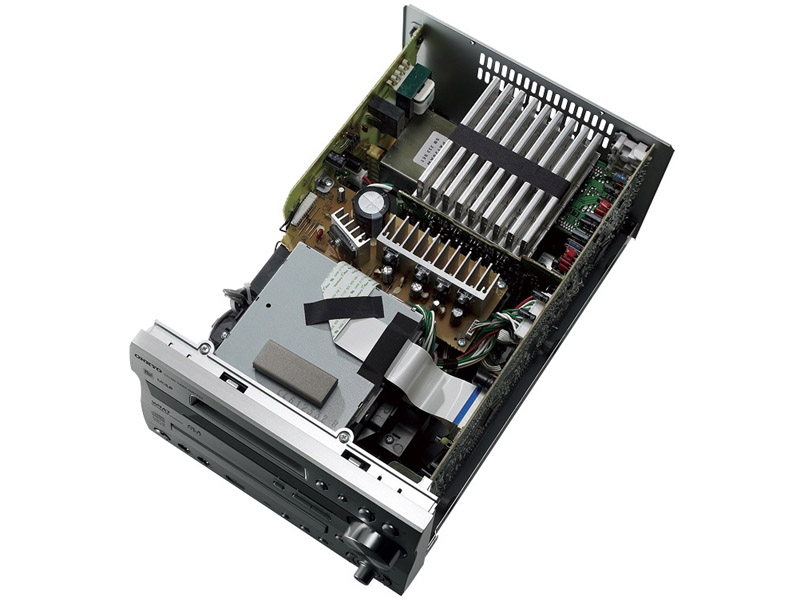

WRAT (Wide Range Amplifier Technology), an ultra-wide range amplifier technology that brings out the power of media
S.BASS function that can adjust deep bass, TONE function that can adjust bass and treble

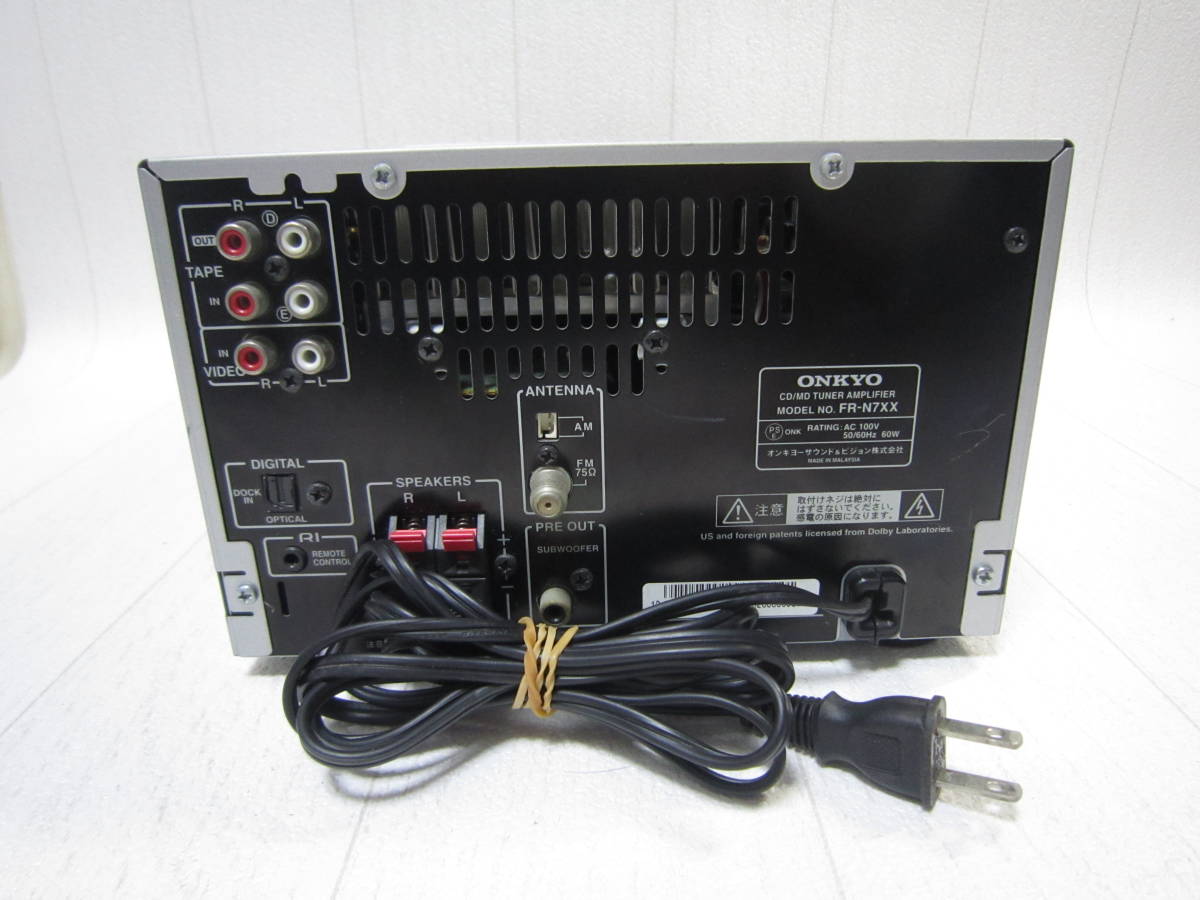

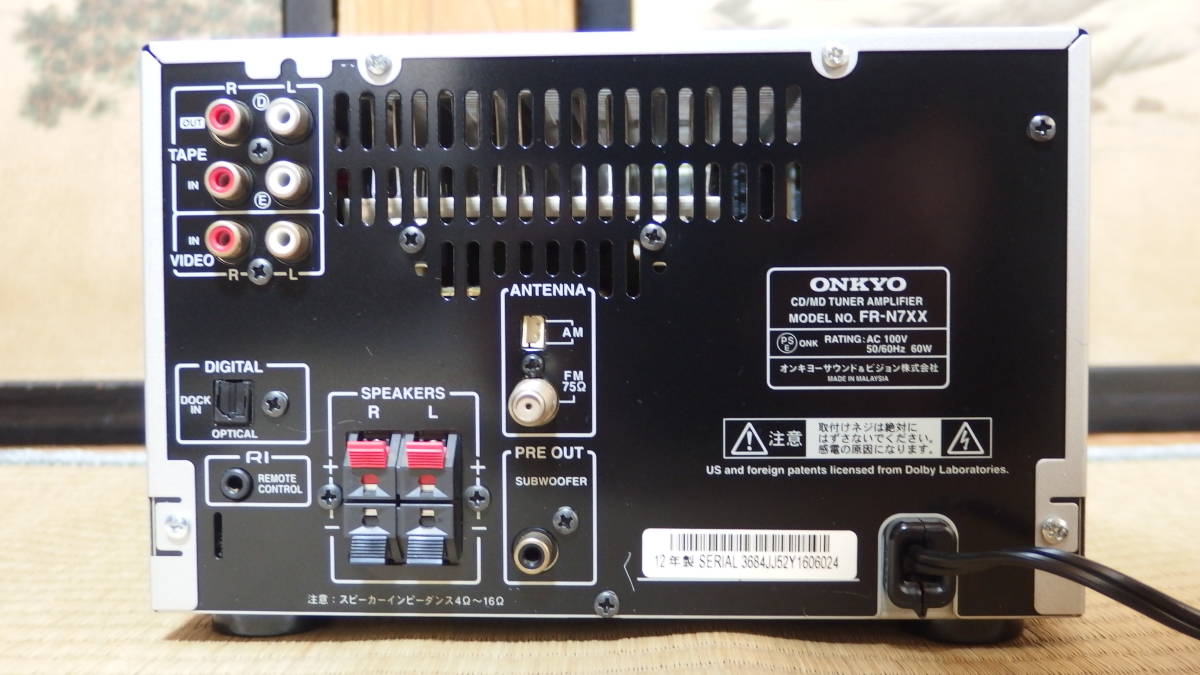

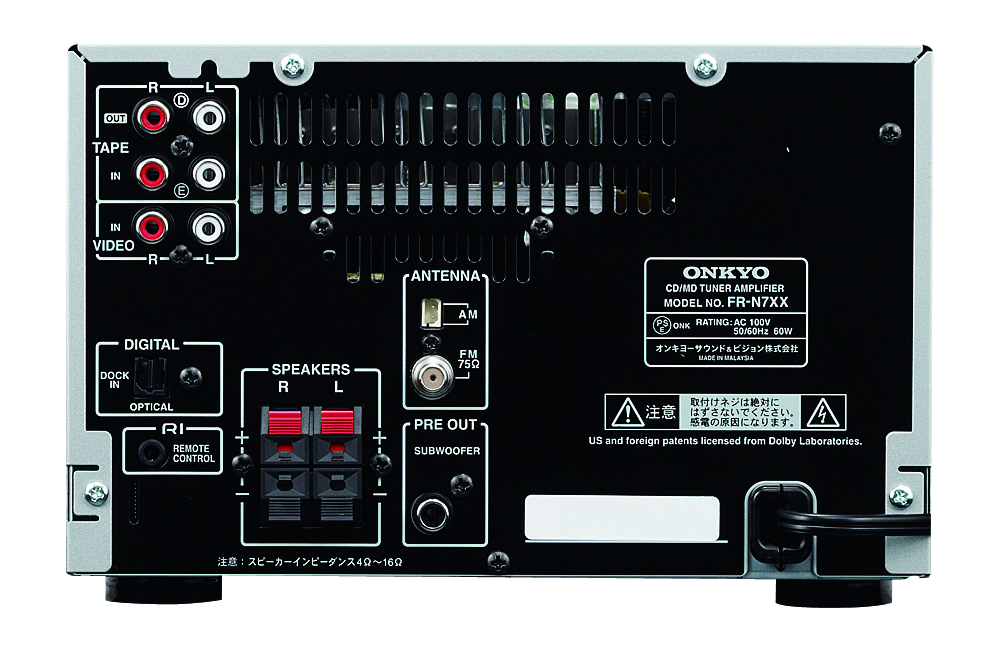

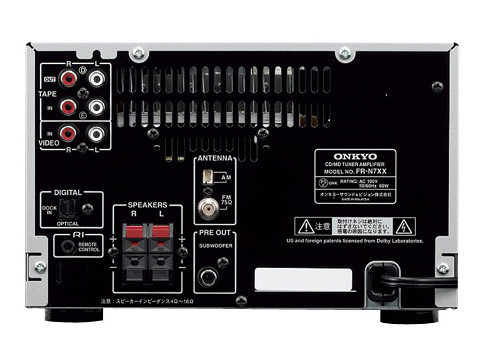

Full external input / output terminals [VIDEO input, TAPE input / output, LINE input (front mini jack)]
Equipped with optical digital terminal [input x 1]
