Onkyo FR-435
| Name | FR-435 |
|---|---|
| Manufacturer | Onkyo |
| Released | 1999/06 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 435 x 90 x 420mm |
| Weight | 8.4kg |
| ATRAC ver | 4.5 |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥85 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 1/4 inch headphone, RCA out, Digital optical (TOSLINK) |
| Control | Not recorded |
Features: First component receiver to incorporate CD and MD units. Built-in sampling rate converter, "Dub It" feature, Signal-synchro recording, CD to MD one-touch dubbing, Easy disc/track titling, 31 Preset titles, Edit functions (combine/divide/move/erase), 5 Repeat modes.
Specs:
- 43W (1kHz DIN) per channel at 4Ω
- 20-Bit D/A & A/D converter
- Large 35-segment dot-matrix display
- RDS FM tuner
- 30 FM manual presets
- Automatically adds available FM stations at first power-on
- Phono and Tape RCA inputs
- Optical Digital in- and outputs
Optical block: KMS-260A
Content adapted from: Minidisc.org Page, Onkyo product page (Archived) Colin Walker Review audio-database.com my-minidisc.de (pricing) my-minidisc.de (pricing) (MiniDisc Wiki mirror)
Manuals
Repair

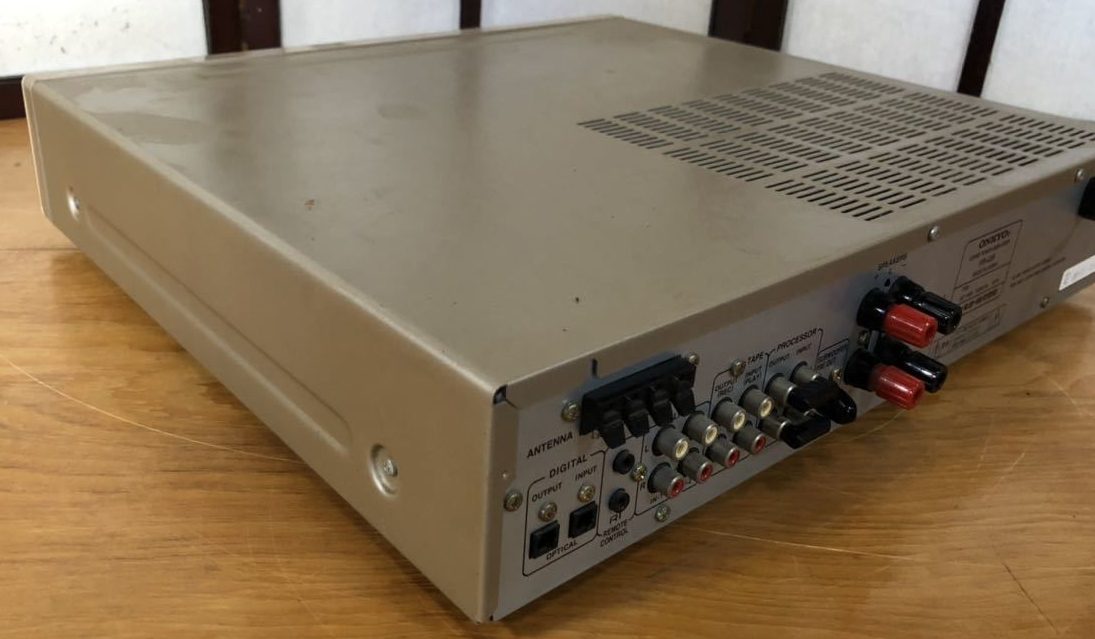

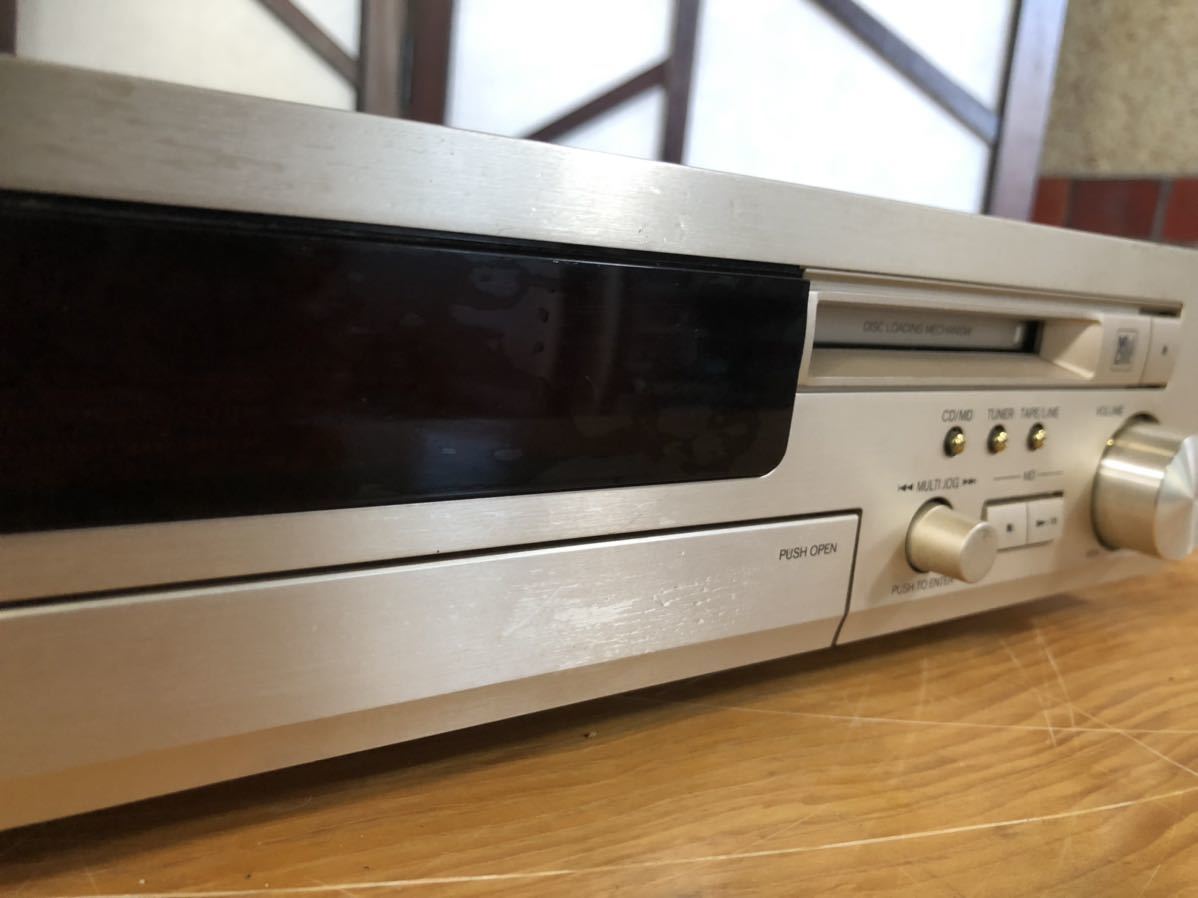

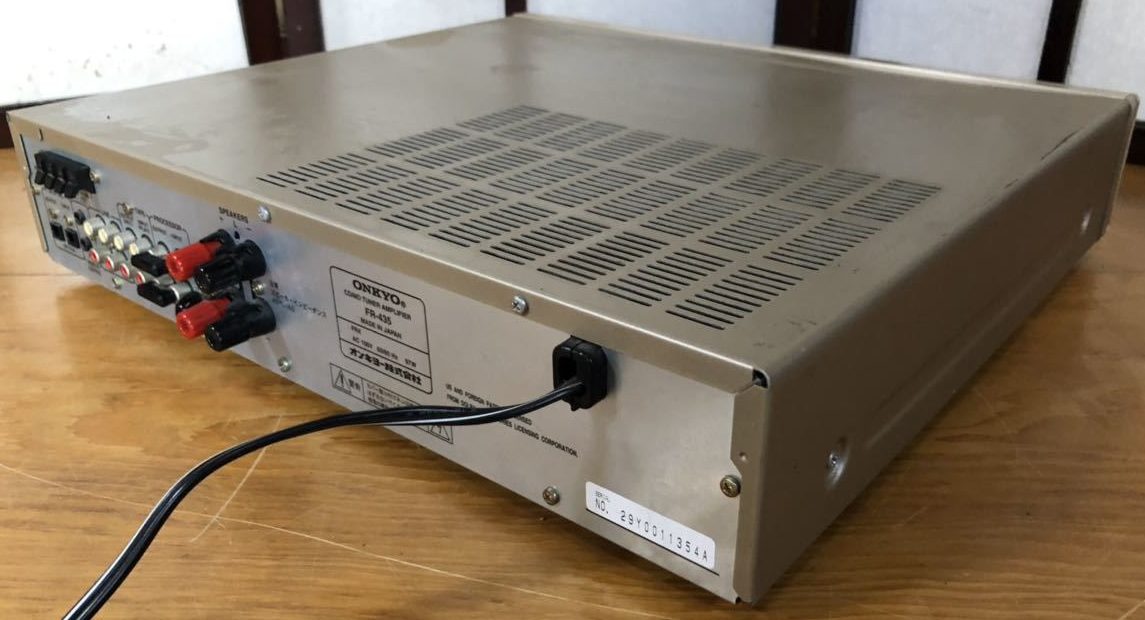

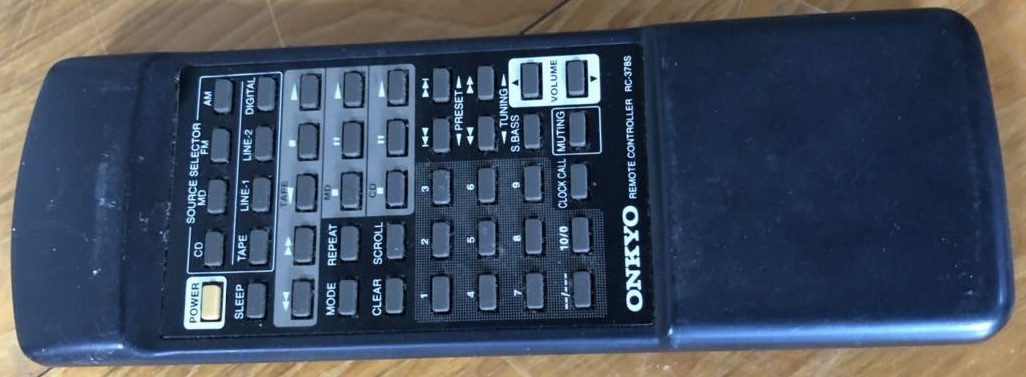

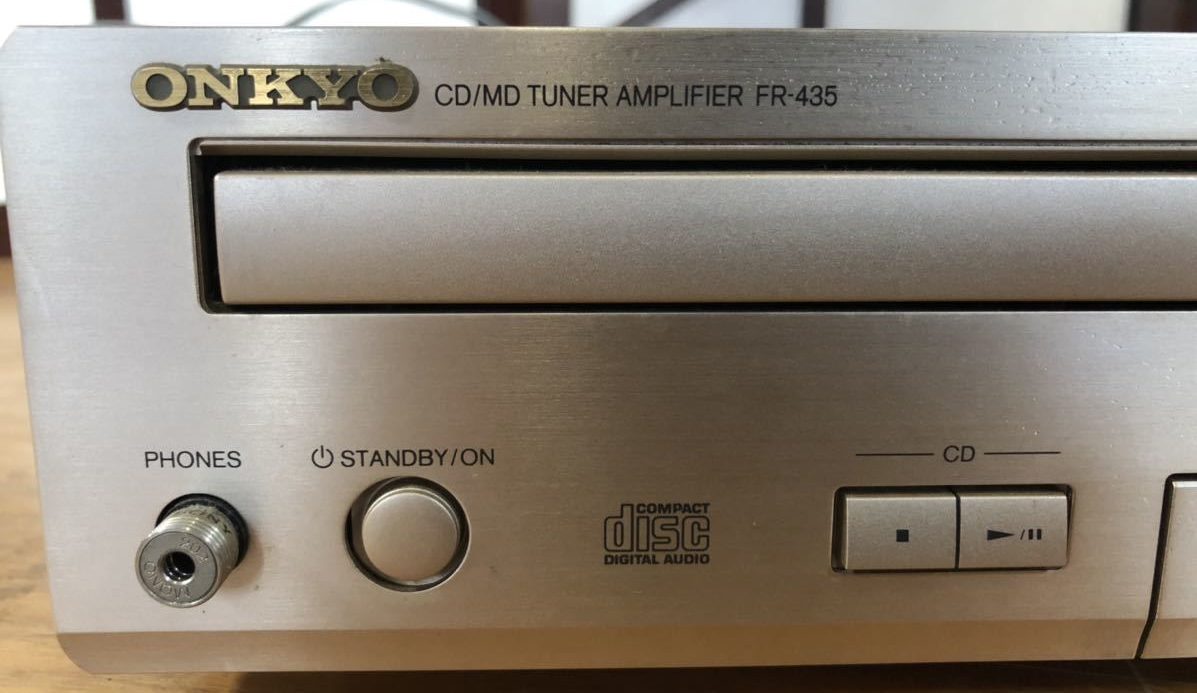

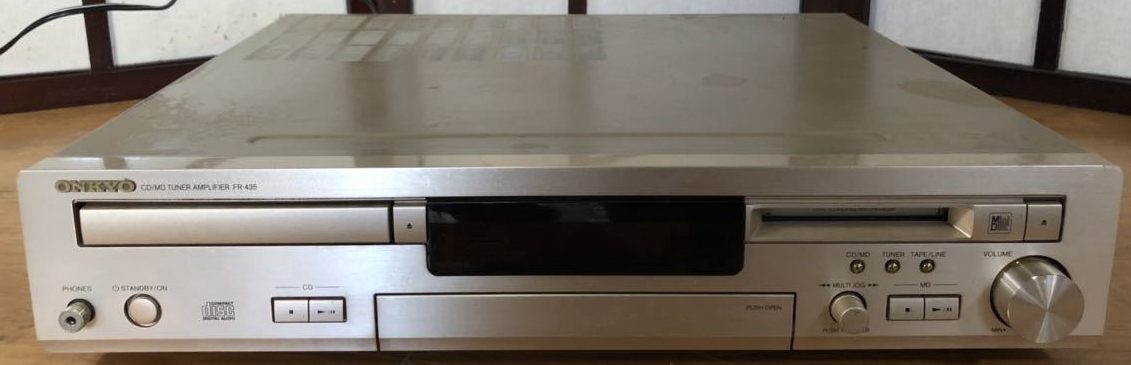

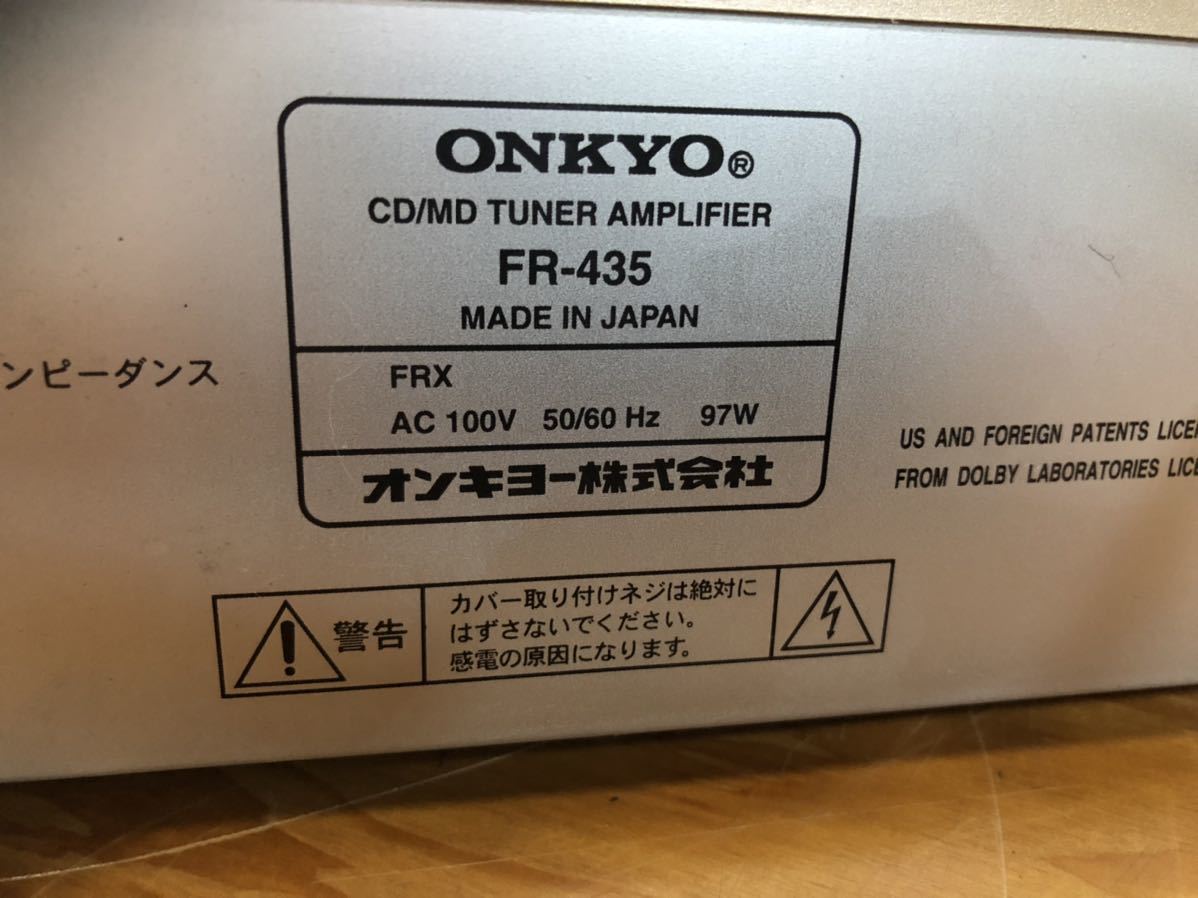

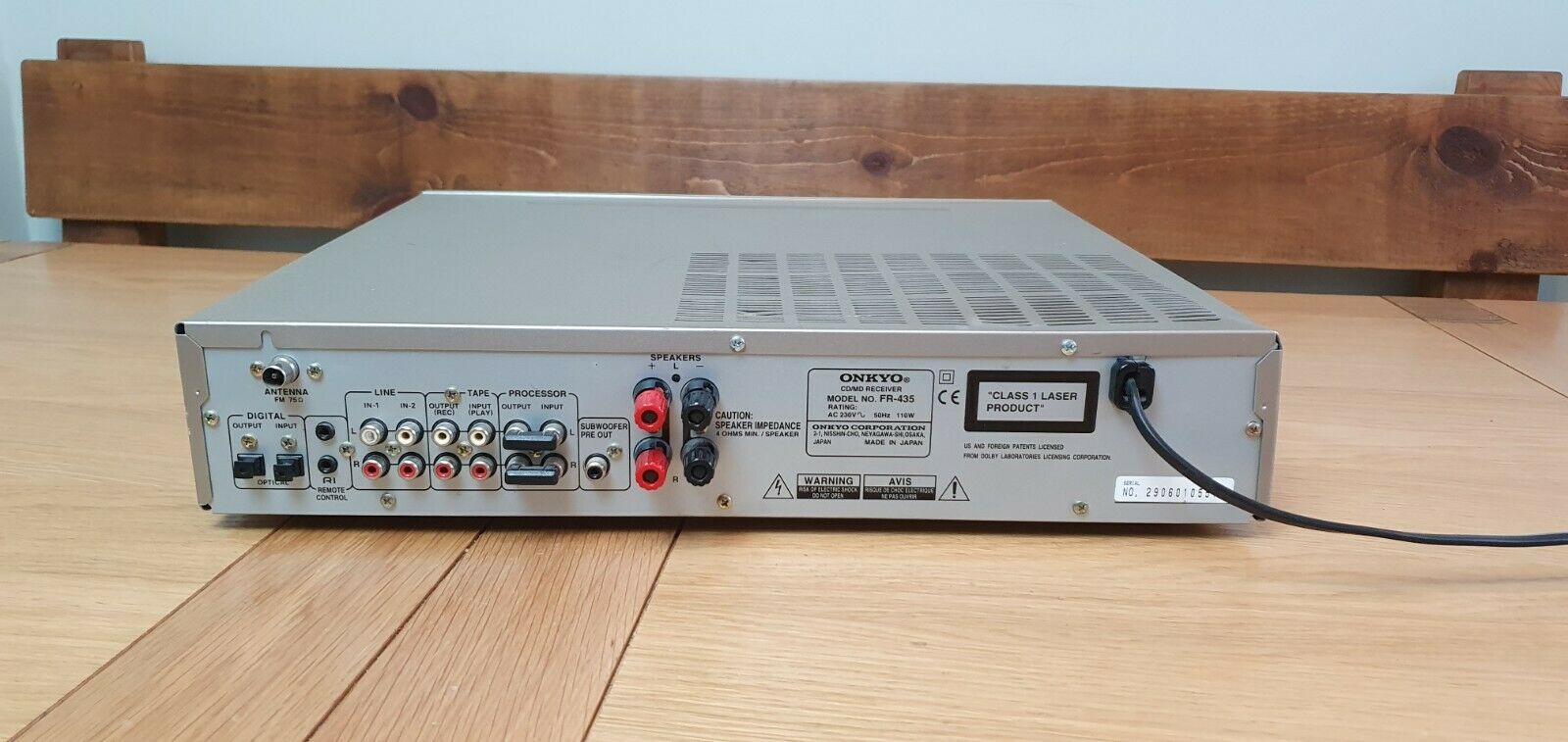

Photos
