| Name | MD-105TX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2001/06 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 205 x 286 x 76 mm |
| Weight | 2.4kg |
| ATRAC ver | Type-S |
| Power cable | AC |
| Price (launch) | Not recorded |
| ¥41 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out |
| Control | Not recorded |
Revision of the MD-105. Finally adds MDLP support. Supplied with RC-409MD remote.

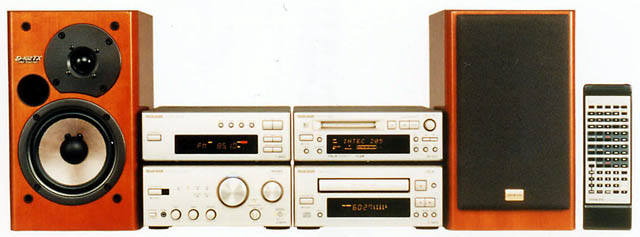

Was included in systems such as the INTEC TX7MD (175,000 yen) and the INTEC TX5MD (145,000 yen)
Main Features:
- Direct Digital Path
- 4-Recording mode (MONO/SP/LP2/LP4)
- 32kHz/44.1kHz/48kHz Sampling Rate Converter
- 24-Bit A/D and D/A Converters
- Digital Rec Level Adjustment
- Rec Volume Control for Analog and Digital Inputs
- Album Dubbing and Fade Out Control
- One-Touch Dubbing
- Signal Synchro Recording
Onkyo recommends using the separately supplied RC-410MD remote RC-410MD remote (MiniDisc Wiki mirror) (3,465 Yen) when using the deck on its own.
This deck uses the cxd2664r ATRAC IC, and the KMS-260 Pickup.
Content adapted from: Onkyo Press Release Onkyo Press Release (MiniDisc Wiki mirror) Onkyo Press Release 2 Onkyo Press Release 2 (MiniDisc Wiki mirror) av.watch, Manuals phileweb.com
Manuals
MD mechanism appears to be identical to the one used in the mds-je480, so it's service manual may be useful.

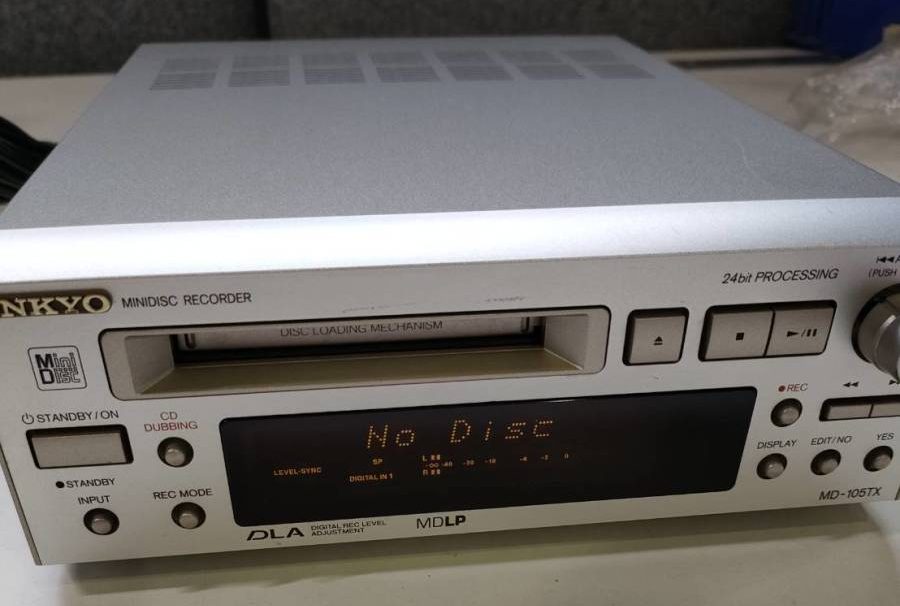

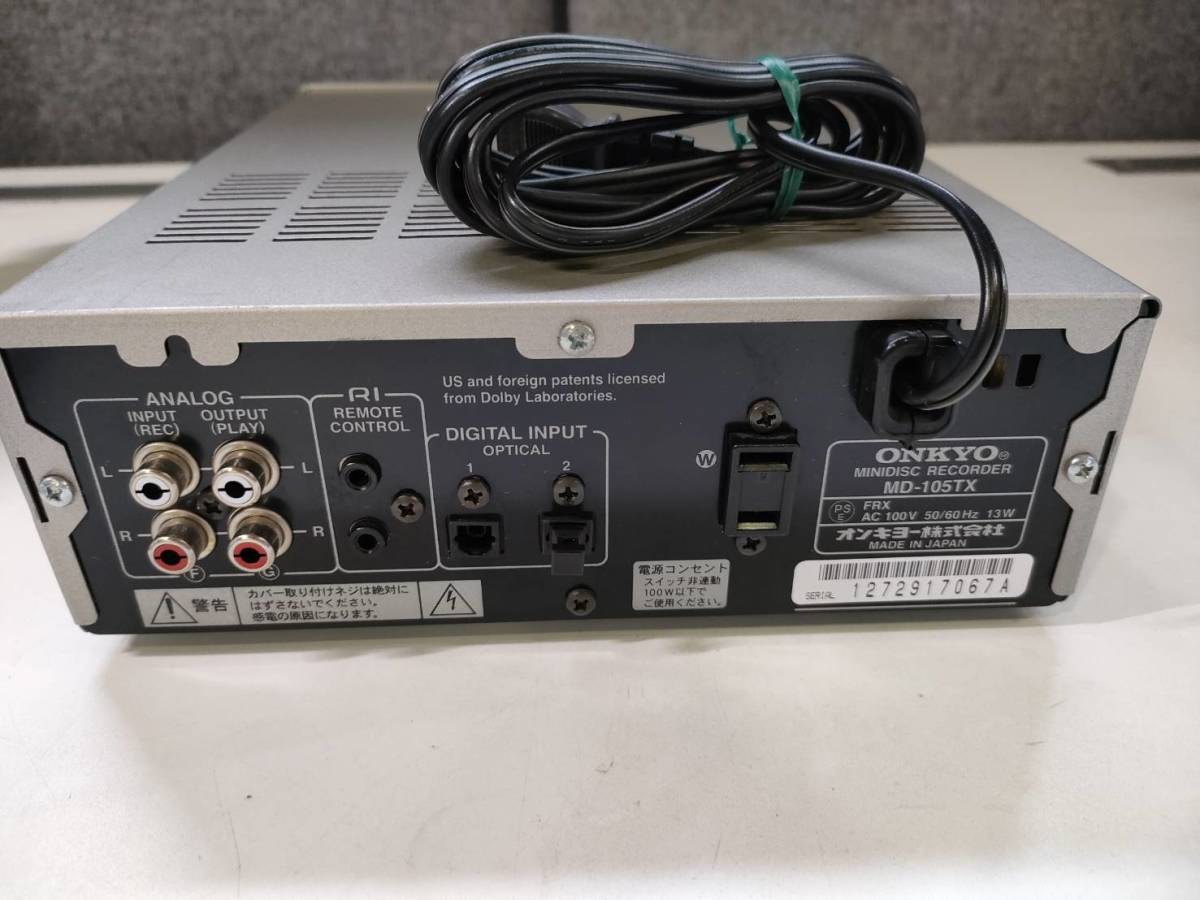

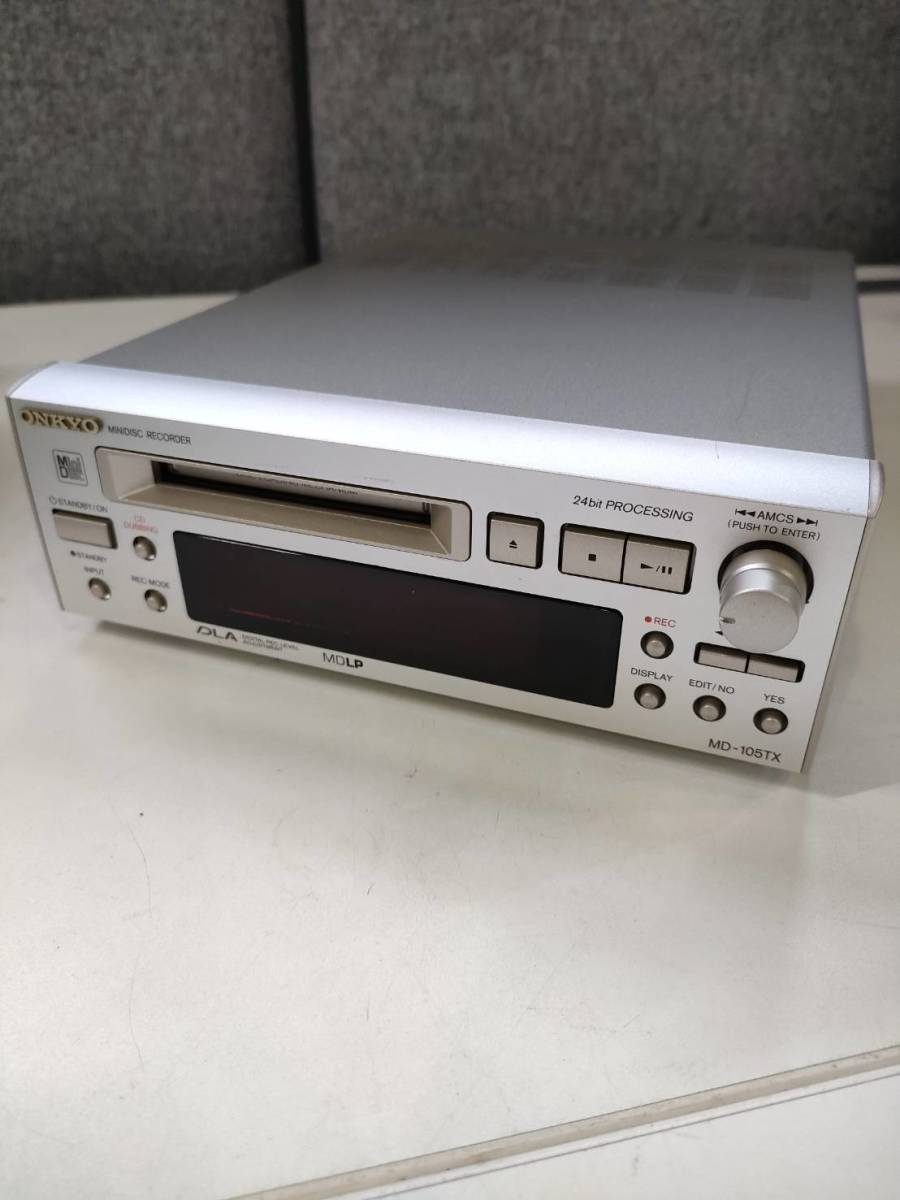

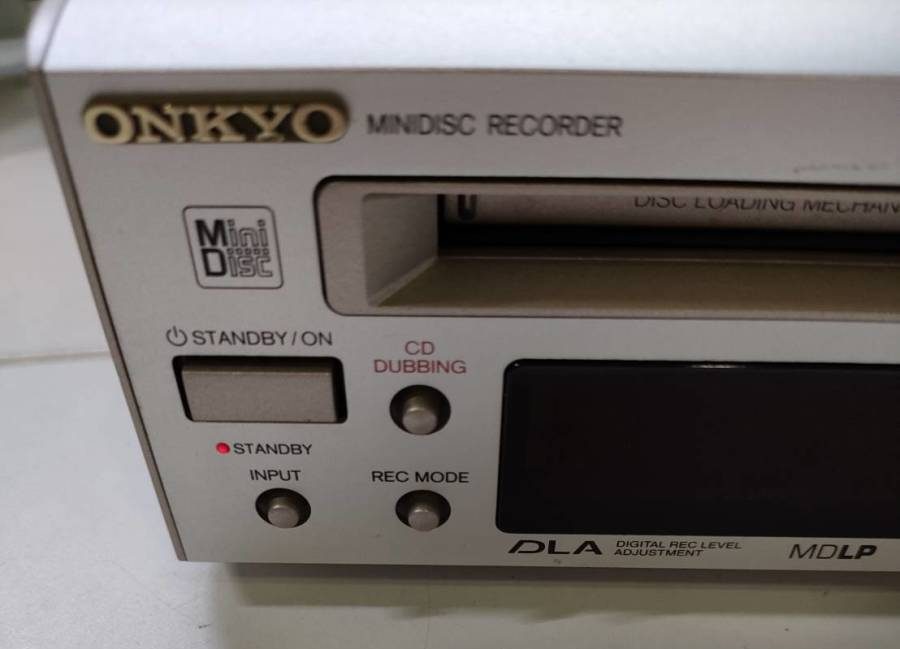

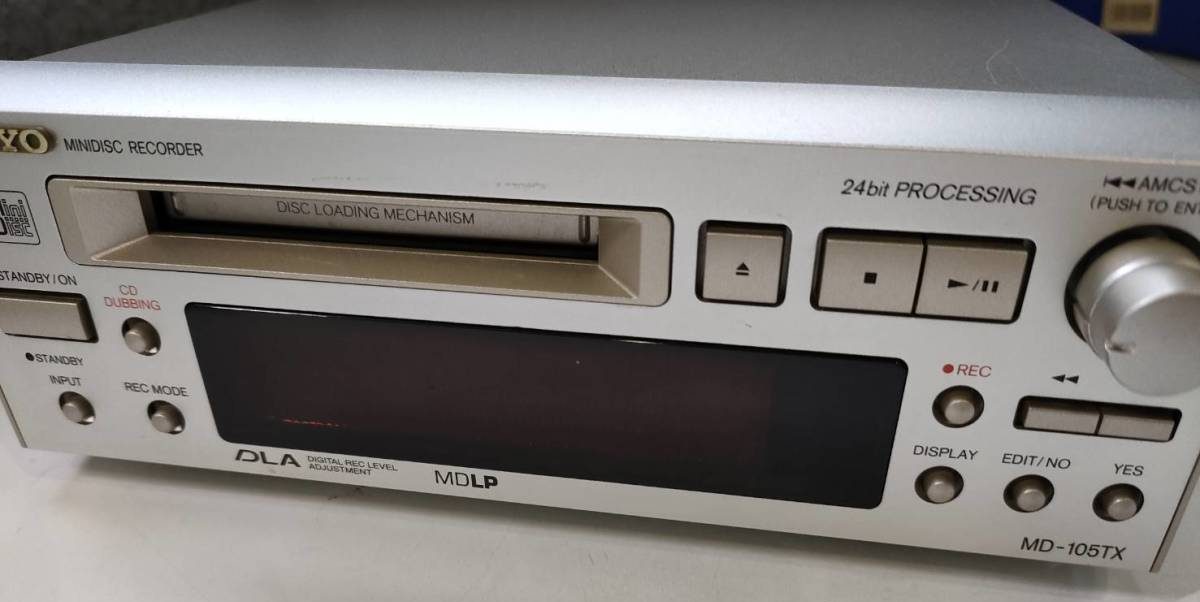

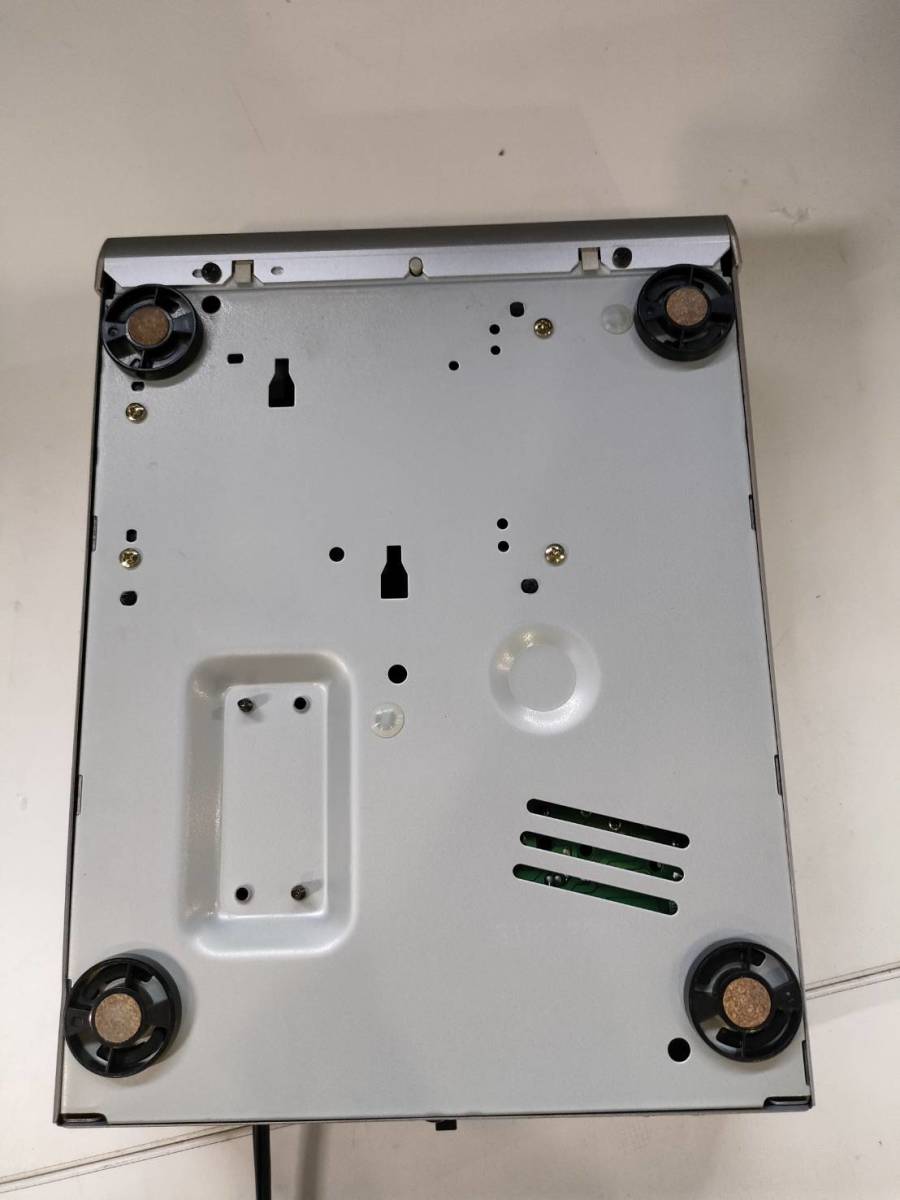

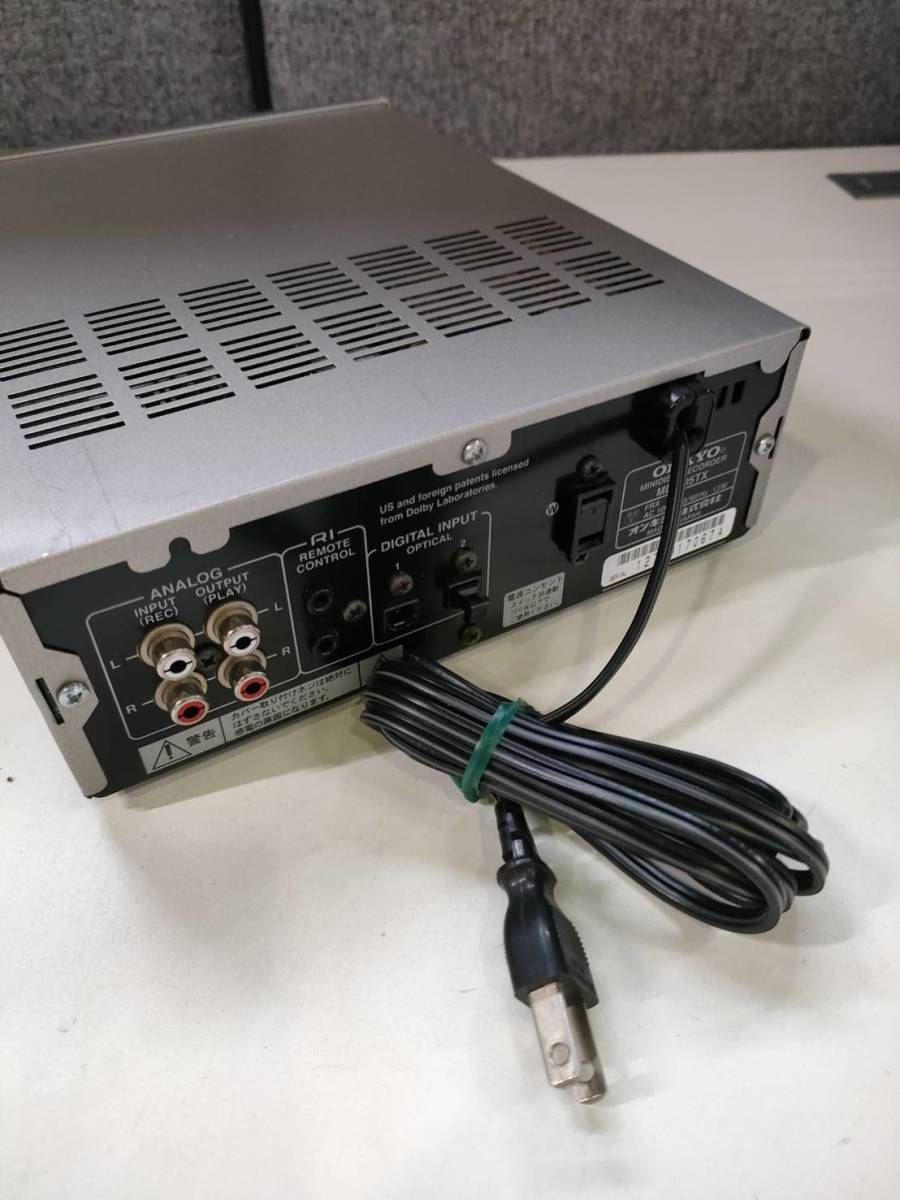

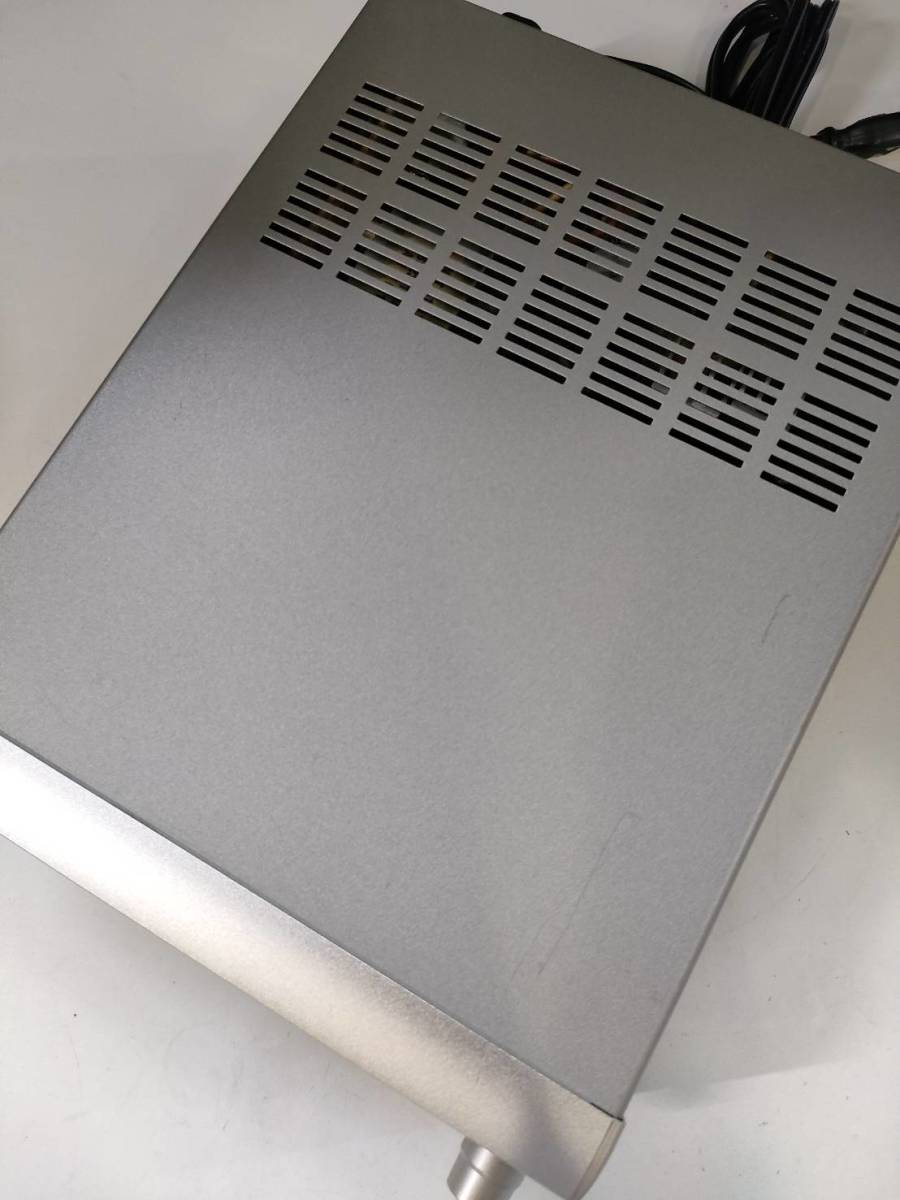

Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
Additional specifications and references
| Recorder | Recorder |
|---|---|
| Scms | Yes |
| Web Md | No (not NetMD) |
| Battery Page | |
| Sidecar | No |
| Voltage | 100 |
| Remote Page | Onkyo RC-410MD |
| Mechanism | mdm-7s1a |
| Atrac Ic | CXD2664R |
| Manual | User manual |
| Region | Japan |
